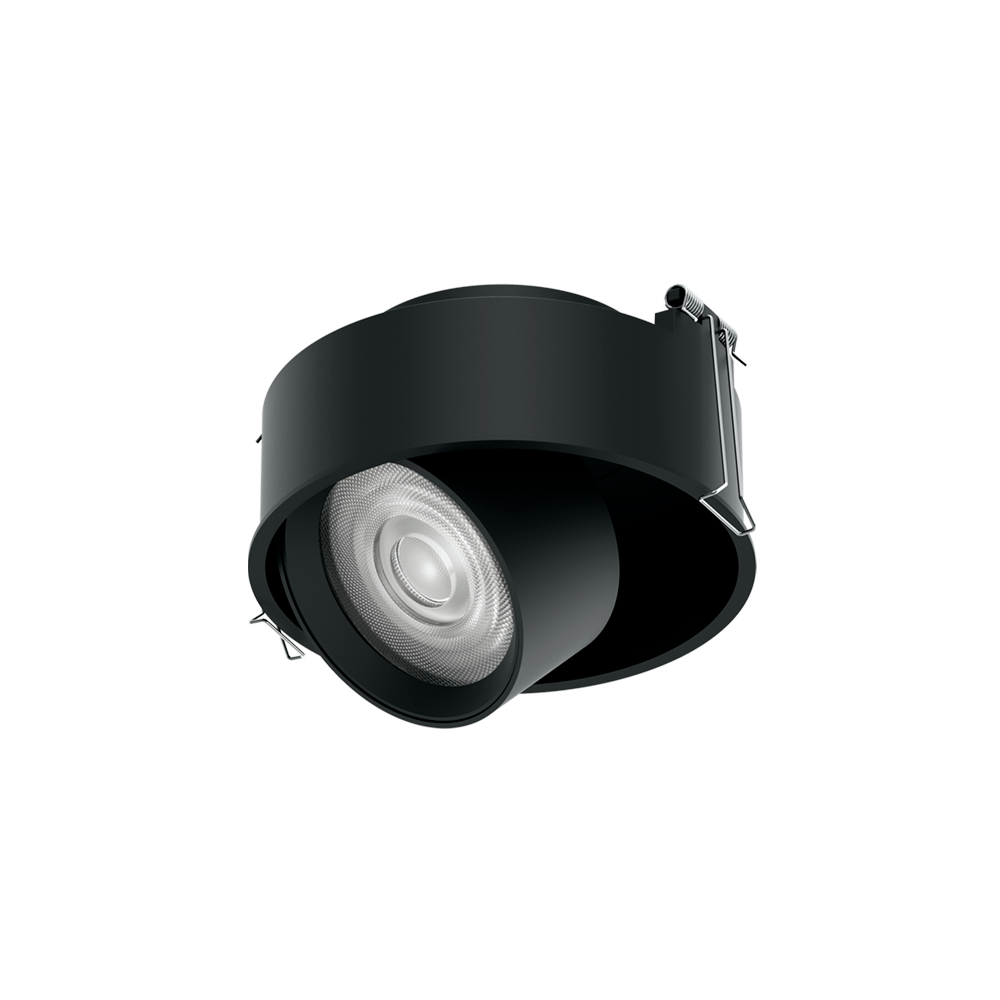

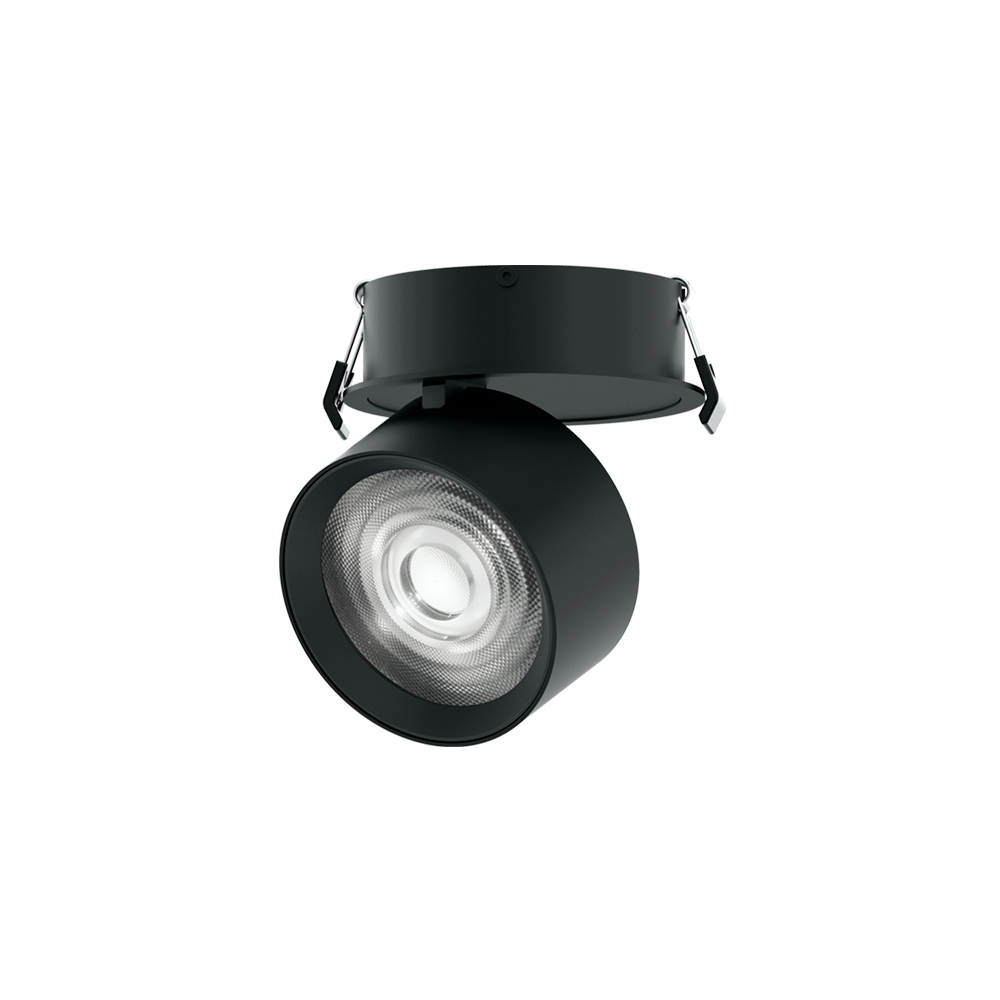

UNIFIT Recessed

One module, endless possibilities.

UNIFIT is a revolutionary modular lighting platform that consolidates multiple installation styles into a single, compact system. Whether you need recessed (trim or trimless), surface-mounted, or track-mounted solutions, UNIFIT covers them all with one unified module. Available in single-head or double-head configurations, with interchangeable optical options and premium finish quality, this series delivers exceptional versatility without compromising on performance or aesthetics. Small in size yet powerful in output – up to 15W per head – UNIFIT brings both brightness and minimalist elegance to any space.

Features Features

- One modular platform covers almost every classic installation – recessed (trim/trimless), surface mount, or track mount – giving you endless application possibilities with minimal inventory

- Single-head and double-head configurations available – flexibly adapt to different space scales and lighting requirements

- Rich and interchangeable optical options – from spot to flood, 18° to 60°, round or oval beam – easily swap optics without changing the entire fixture

- Premium raw housing surface – smooth and clean, capable of achieving high-end metal finishes like electroplated colours for customized aesthetics

- Compact size with powerful output – delivers up to 15W per head, bright enough for real lighting needs while remaining slim for minimalist aesthetics

- High colour rendering (Ra90) – reproduces natural colours with vivid accuracy

- IP54 rating – protects against dust and water splashes, suitable for various indoor and semi-outdoor environments

- Modular design with quick and safe assembly – tool-friendly installation and easy maintenance

Specifications Specifications

- Housing: High-quality aluminium, eco-friendly die-cast construction – excellent thermal conductivity and corrosion resistance

- Surface finish: Fine textured coating – elegant and durable; custom colours available upon request

- Configurations: Single-head / Double-head

- Installation types: Recessed with trim / Recessed trimless / Surface mount / Track mount

- Optical angles: 18° to 60° – spot, flood, round beam, oval beam (interchangeable)

- Colour rendering: Ra90

- Protection rating: IP54

- Power per head: Up to 15W

- Module design: One unified module for all installation types

- Assembly: Quick and safe, tool-friendly

Fields of application Fields of application

- Residential living rooms, bedrooms, kitchens, and corridors

- Retail stores, showrooms, and boutiques

- Hotels, restaurants, and hospitality spaces

- Art galleries and exhibition spaces

- Office environments and commercial interiors

- Track lighting systems in retail or display areas

- Projects requiring flexible installation methods and customized finishes

- Any space demanding high-quality, versatile, and space-saving lighting solutions

Version

0 Article

Nominal power

15W

BEAM ANGLE

60°

36°

24°

18°

COLOUR / FINISH

White/Black/Gold/Nickel

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

15W

BEAM ANGLE

60°

36°

24°

18°

COLOUR / FINISH

White/Black/Gold/Nickel

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

30W

BEAM ANGLE

60°

36°

24°

18°

COLOUR / FINISH

White/Black/Gold/Nickel

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-D1009-COB3-M-30K-18	L-D1009-COB3-M-30K-18	15W	3000K	1425lm	18°	White/Black/Gold/Nickel

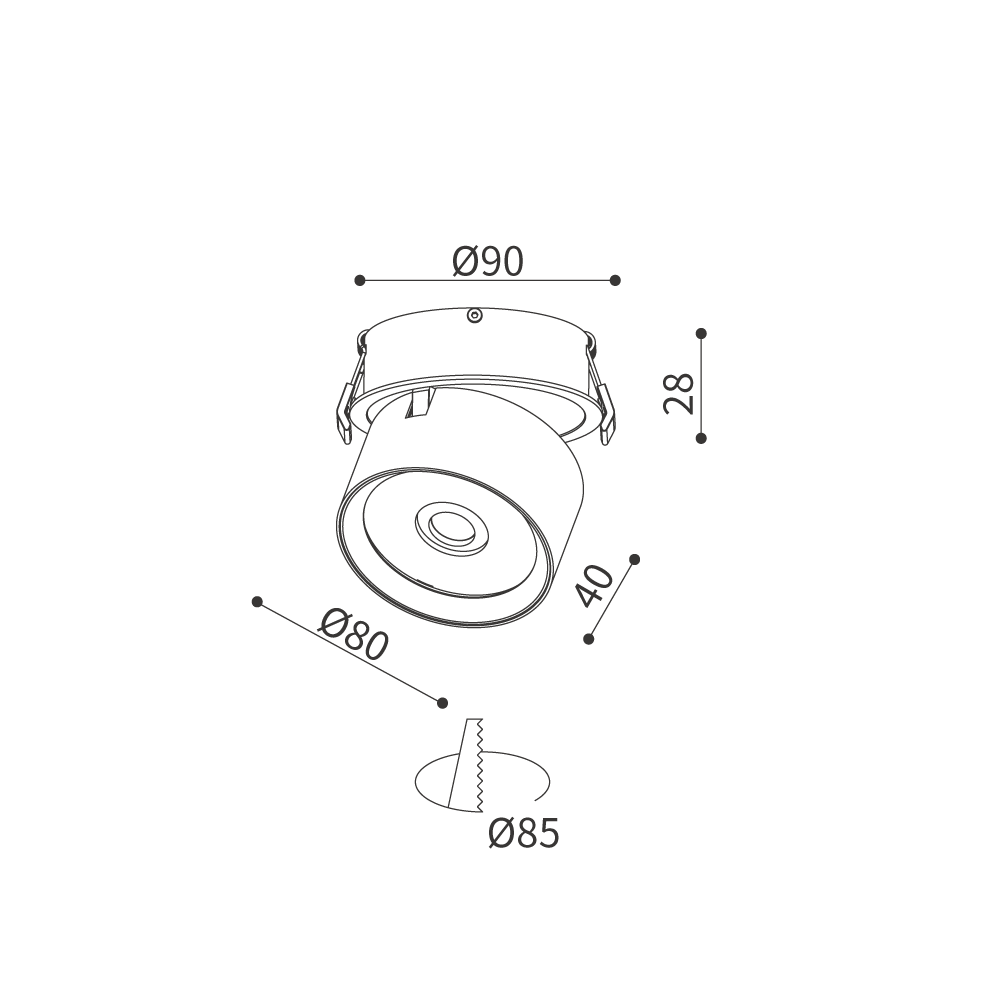

Get in Touch Get in Touch L-D1009-COB3-M-30K-18 UNIFIT Recessed, with LED, system power: 15W, luminous flux of luminaire 1425lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 18°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=90 mm, ceiling cutout ø85 mm Nominal power 15W Finish White/Black/Gold/Nickel Delivered lumens 1425lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 90mm Unified Glare Rating (UGR) UGR＜19 Height 28mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 18° Downloads None Accessories
	L-D1009-COB3-M-30K-24	L-D1009-COB3-M-30K-24	15W	3000K	1425lm	24°	White/Black/Gold/Nickel
Get in Touch Get in Touch L-D1009-COB3-M-30K-24 UNIFIT Recessed, with LED, system power: 15W, luminous flux of luminaire 1425lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 24°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=90 mm, ceiling cutout ø85 mm Nominal power 15W Finish White/Black/Gold/Nickel Delivered lumens 1425lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 90mm Unified Glare Rating (UGR) UGR＜19 Height 28mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 24° Downloads None Accessories
	L-D1009-COB3-M-30K-36	L-D1009-COB3-M-30K-36	15W	3000K	1425lm	36°	White/Black/Gold/Nickel
Get in Touch Get in Touch L-D1009-COB3-M-30K-36 UNIFIT Recessed, with LED, system power: 15W, luminous flux of luminaire 1425lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 36°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=90 mm, ceiling cutout ø85 mm Nominal power 15W Finish White/Black/Gold/Nickel Delivered lumens 1425lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 90mm Unified Glare Rating (UGR) UGR＜19 Height 28mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 36° Downloads None Accessories
	L-D1009-COB3-M-30K-60	L-D1009-COB3-M-30K-60	15W	3000K	1425lm	60°	White/Black/Gold/Nickel
Get in Touch Get in Touch L-D1009-COB3-M-30K-60 UNIFIT Recessed, with LED, system power: 15W, luminous flux of luminaire 1425lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 60°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=90 mm, ceiling cutout ø85 mm Nominal power 15W Finish White/Black/Gold/Nickel Delivered lumens 1425lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 90mm Unified Glare Rating (UGR) UGR＜19 Height 28mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 60° Downloads None Accessories
	L-D1009-COB3-L-30K-18	L-D1009-COB3-L-30K-18	15W	3000K	1425lm	18°	White/Black/Gold/Nickel

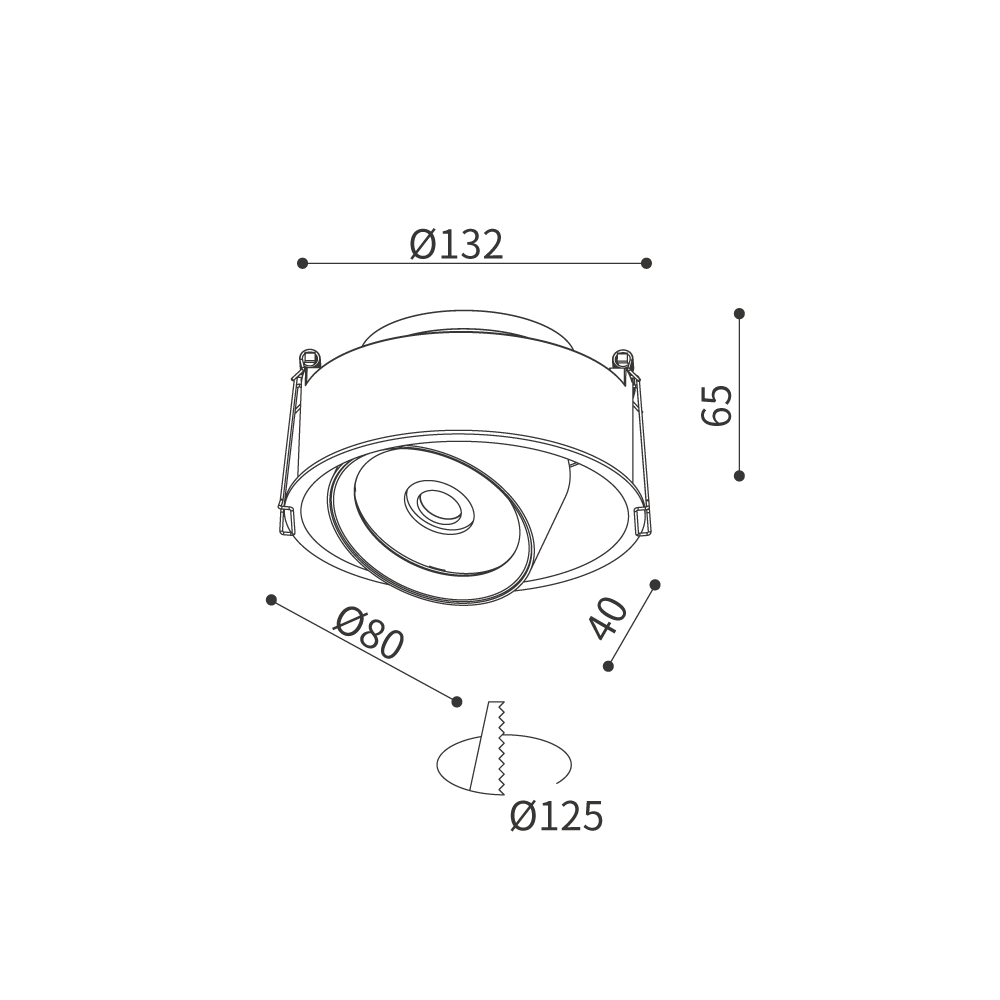

Get in Touch Get in Touch L-D1009-COB3-L-30K-18 UNIFIT Recessed, with LED, system power: 15W, luminous flux of luminaire 1425lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 18°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=132 mm, ceiling cutout ø125 mm Nominal power 15W Finish White/Black/Gold/Nickel Delivered lumens 1425lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Length 132mm Unified Glare Rating (UGR) UGR＜19 Height 65mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 40mm Beam angle 18° Downloads None Accessories
	L-D1009-COB3-L-30K-24	L-D1009-COB3-L-30K-24	15W	3000K	1425lm	24°	White/Black/Gold/Nickel
Get in Touch Get in Touch L-D1009-COB3-L-30K-24 UNIFIT Recessed, with LED, system power: 15W, luminous flux of luminaire 1425lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 24°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=132 mm, ceiling cutout ø125 mm Nominal power 15W Finish White/Black/Gold/Nickel Delivered lumens 1425lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Length 132mm Unified Glare Rating (UGR) UGR＜19 Height 65mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 40mm Beam angle 24° Downloads None Accessories
	L-D1009-COB3-L-30K-36	L-D1009-COB3-L-30K-36	15W	3000K	1425lm	36°	White/Black/Gold/Nickel
Get in Touch Get in Touch L-D1009-COB3-L-30K-36 UNIFIT Recessed, with LED, system power: 15W, luminous flux of luminaire 1425lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 36°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=132 mm, ceiling cutout ø125 mm Nominal power 15W Finish White/Black/Gold/Nickel Delivered lumens 1425lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Length 132mm Unified Glare Rating (UGR) UGR＜19 Height 65mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 40mm Beam angle 36° Downloads None Accessories
	L-D1009-COB3-L-30K-60	L-D1009-COB3-L-30K-60	15W	3000K	1425lm	60°	White/Black/Gold/Nickel
Get in Touch Get in Touch L-D1009-COB3-L-30K-60 UNIFIT Recessed, with LED, system power: 15W, luminous flux of luminaire 1425lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 60°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=132 mm, ceiling cutout ø125 mm Nominal power 15W Finish White/Black/Gold/Nickel Delivered lumens 1425lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Length 132mm Unified Glare Rating (UGR) UGR＜19 Height 65mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 40mm Beam angle 60° Downloads None Accessories

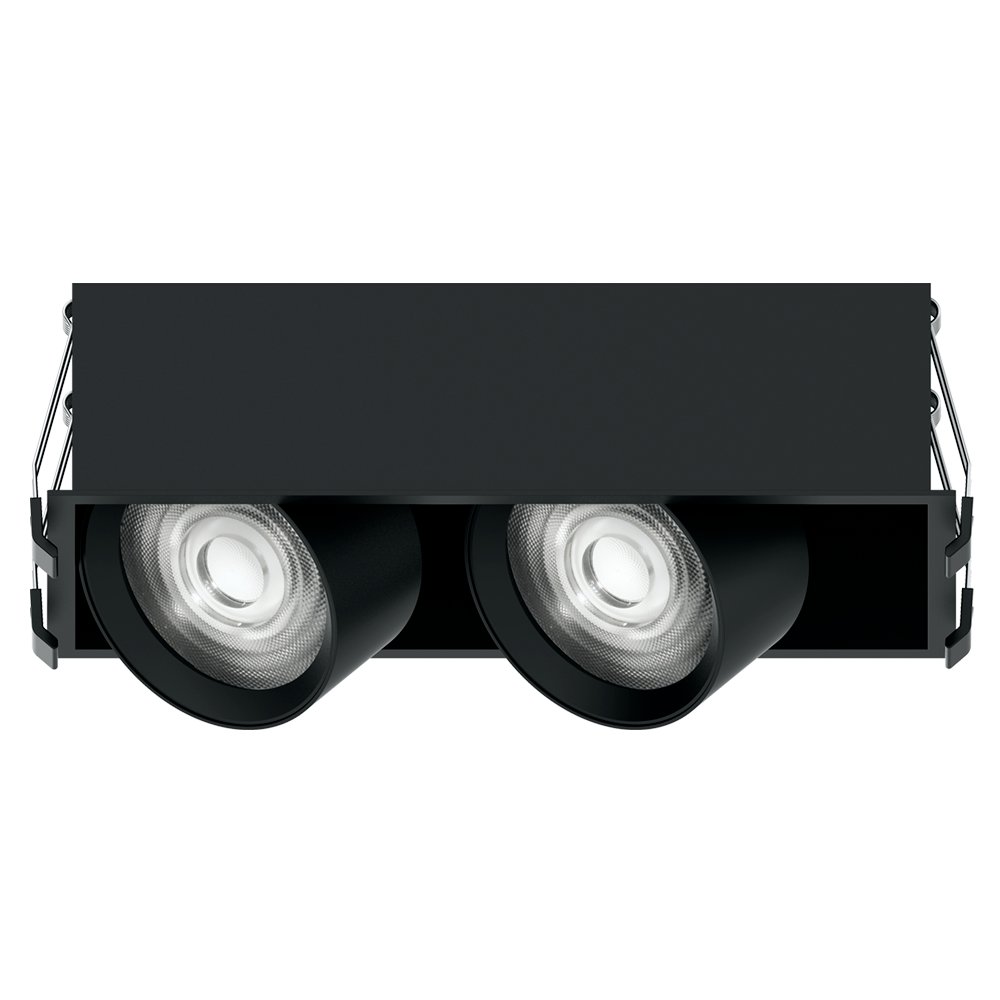

	L-D1009-COB3-2-30K-18	L-D1009-COB3-2-30K-18	30W	3000K	2850lm	18°	White/Black/Gold/Nickel

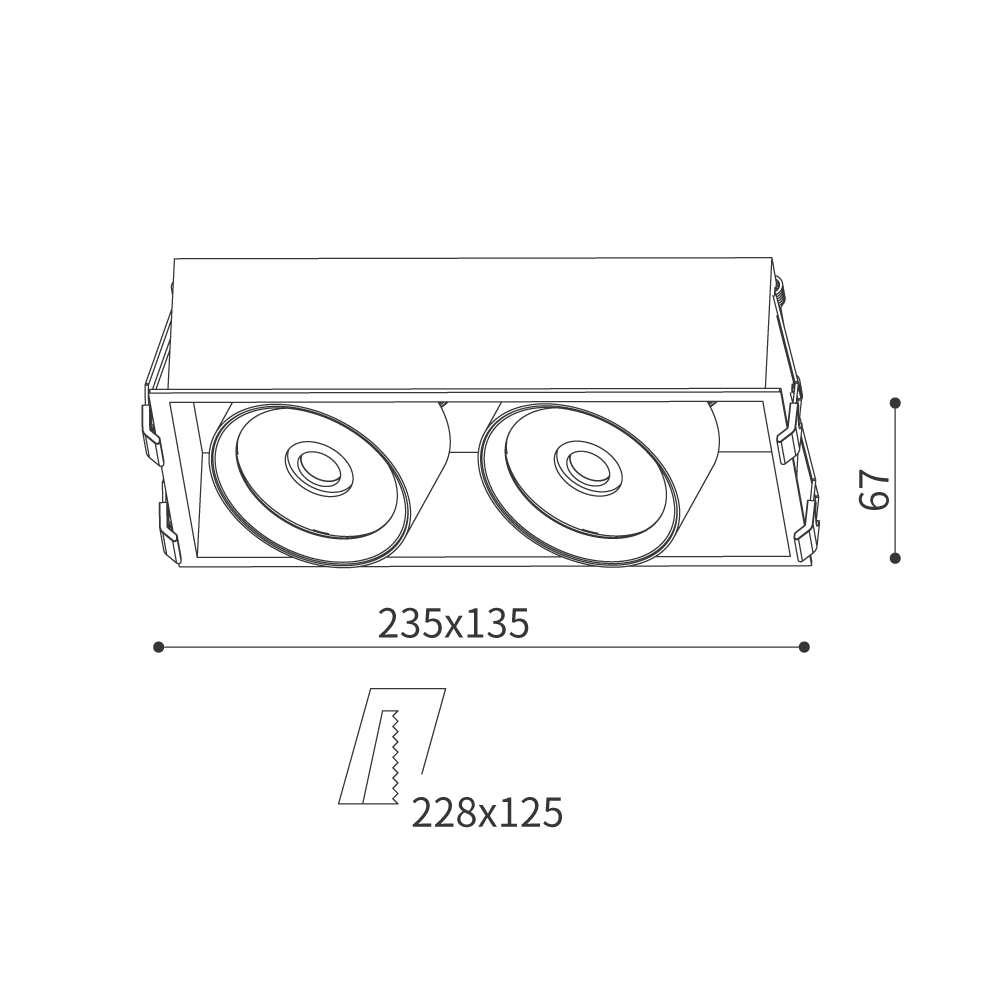

Get in Touch Get in Touch L-D1009-COB3-2-30K-18 UNIFIT Recessed, with LED, system power: 2x15W, luminous flux of luminaire 2850lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 2x350mA, Beam angle: 18°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=235x135 mm, ceiling cutout ø228x125 mm Nominal power 30W Finish White/Black/Gold/Nickel Delivered lumens 2850lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Length 235mm Unified Glare Rating (UGR) UGR＜19 Height 67mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 135mm Beam angle 18° Downloads None Accessories
	L-D1009-COB3-2-30K-24	L-D1009-COB3-2-30K-24	30W	3000K	2850lm	24°	White/Black/Gold/Nickel
Get in Touch Get in Touch L-D1009-COB3-2-30K-24 UNIFIT Recessed, with LED, system power: 2x15W, luminous flux of luminaire 2850lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 2x350mA, Beam angle: 24°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=235x135 mm, ceiling cutout ø228x125 mm Nominal power 30W Finish White/Black/Gold/Nickel Delivered lumens 2850lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Length 235mm Unified Glare Rating (UGR) UGR＜19 Height 67mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 135mm Beam angle 24° Downloads None Accessories
	L-D1009-COB3-2-30K-36	L-D1009-COB3-2-30K-36	30W	3000K	2850lm	36°	White/Black/Gold/Nickel
Get in Touch Get in Touch L-D1009-COB3-2-30K-36 UNIFIT Recessed, with LED, system power: 2x15W, luminous flux of luminaire 2850lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 2x350mA, Beam angle: 36°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=235x135 mm, ceiling cutout ø228x125 mm Nominal power 30W Finish White/Black/Gold/Nickel Delivered lumens 2850lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Length 235mm Unified Glare Rating (UGR) UGR＜19 Height 67mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 135mm Beam angle 36° Downloads None Accessories
	L-D1009-COB3-2-30K-60	L-D1009-COB3-2-30K-60	30W	3000K	2850lm	60°	White/Black/Gold/Nickel
Get in Touch Get in Touch L-D1009-COB3-2-30K-60 UNIFIT Recessed, with LED, system power: 2x15W, luminous flux of luminaire 2850lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 2x350mA, Beam angle: 60°, black/white/gold/nickel color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=235x135 mm, ceiling cutout ø228x125 mm Nominal power 30W Finish White/Black/Gold/Nickel Delivered lumens 2850lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Length 235mm Unified Glare Rating (UGR) UGR＜19 Height 67mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 135mm Beam angle 60° Downloads None Accessories
