Article number |
Nominal power |
Color Temperature(CCT) |
Delivered lumens |
Beam angle |
Finish |
|
U-D921-COB2-1
|
U-D921-COB2-1
|
6W
|
3000K
|
504lm
|
15°
|
white/black
|
U-D921-COB2-1

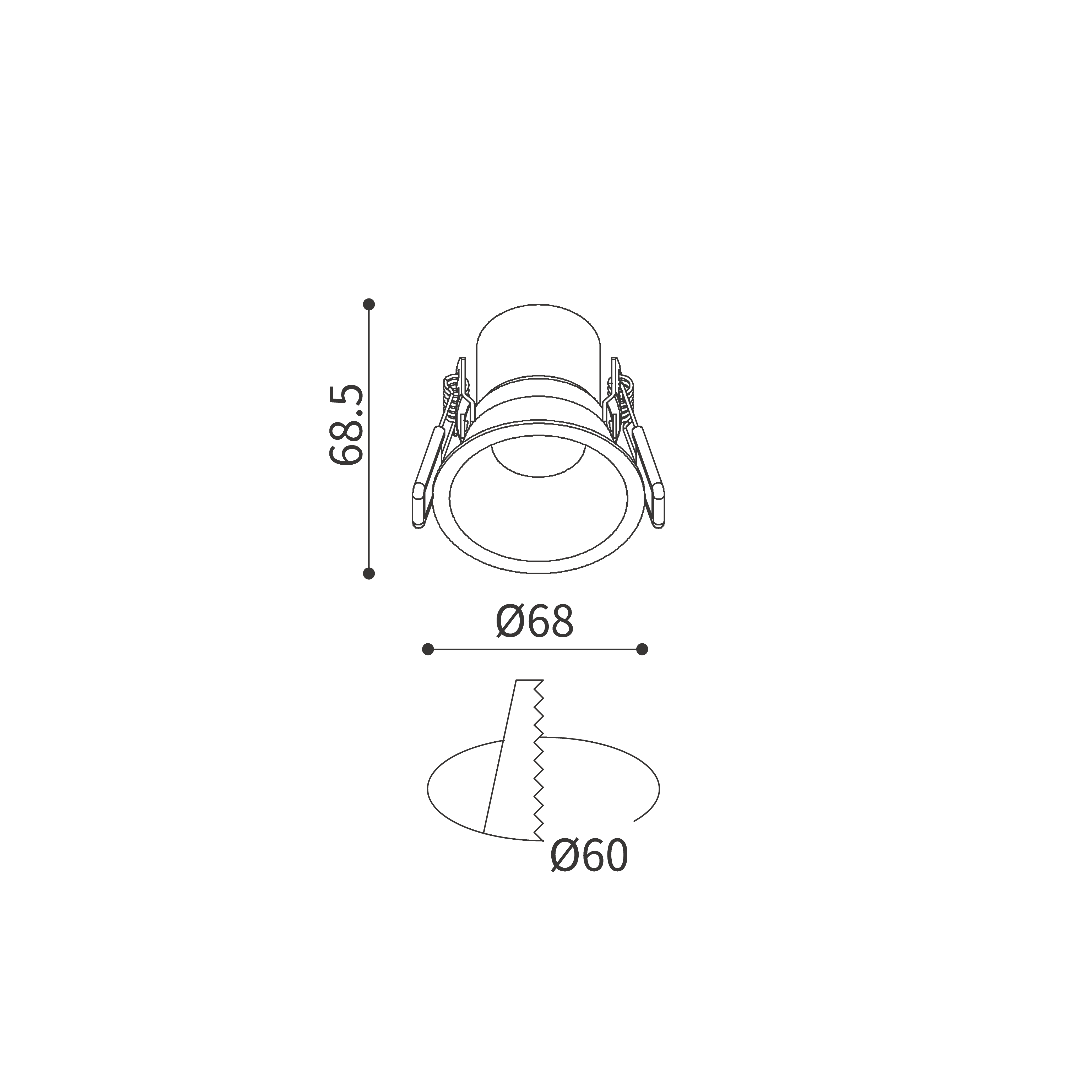

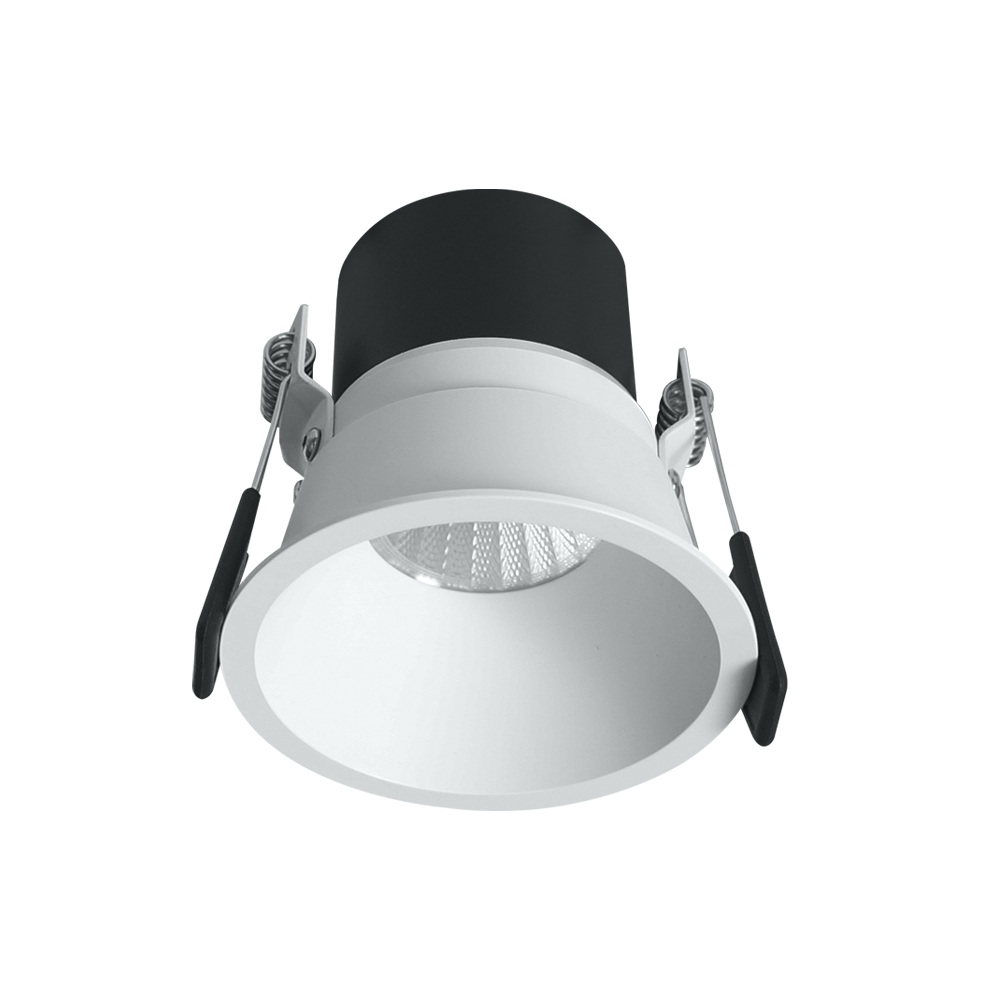

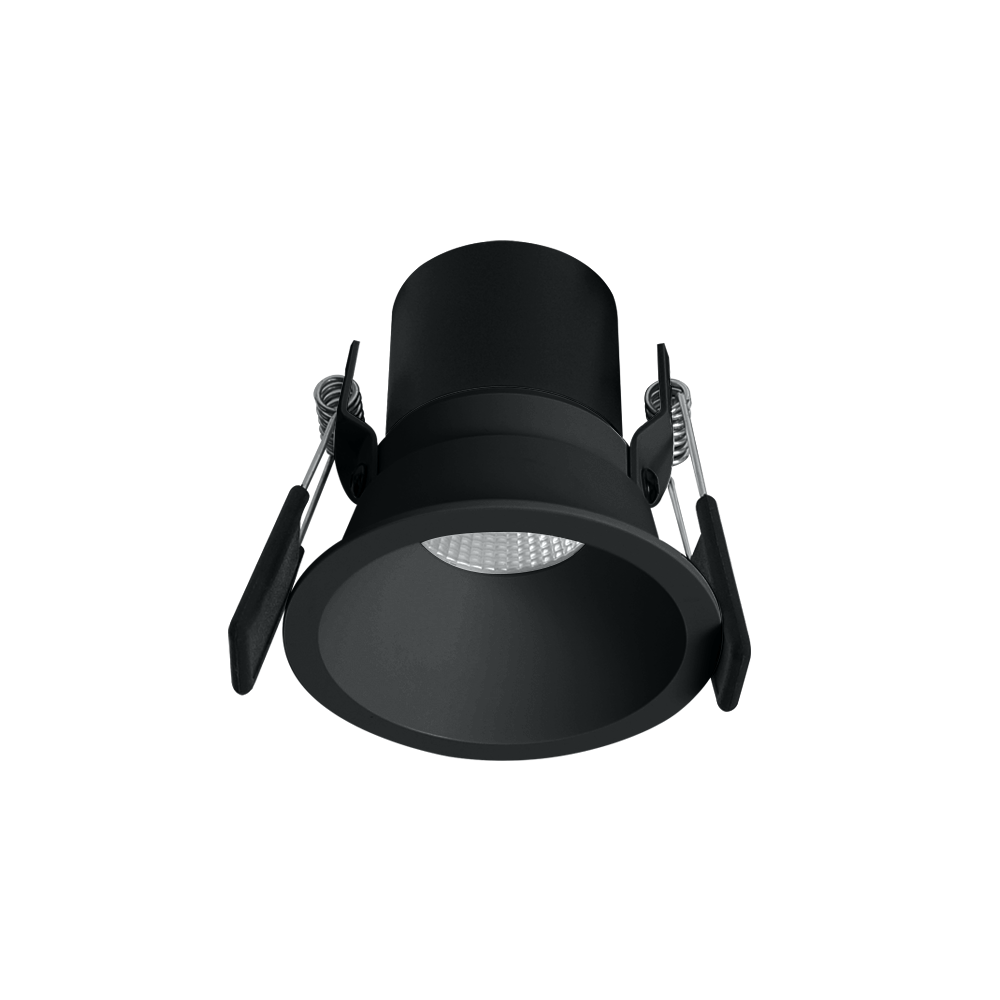

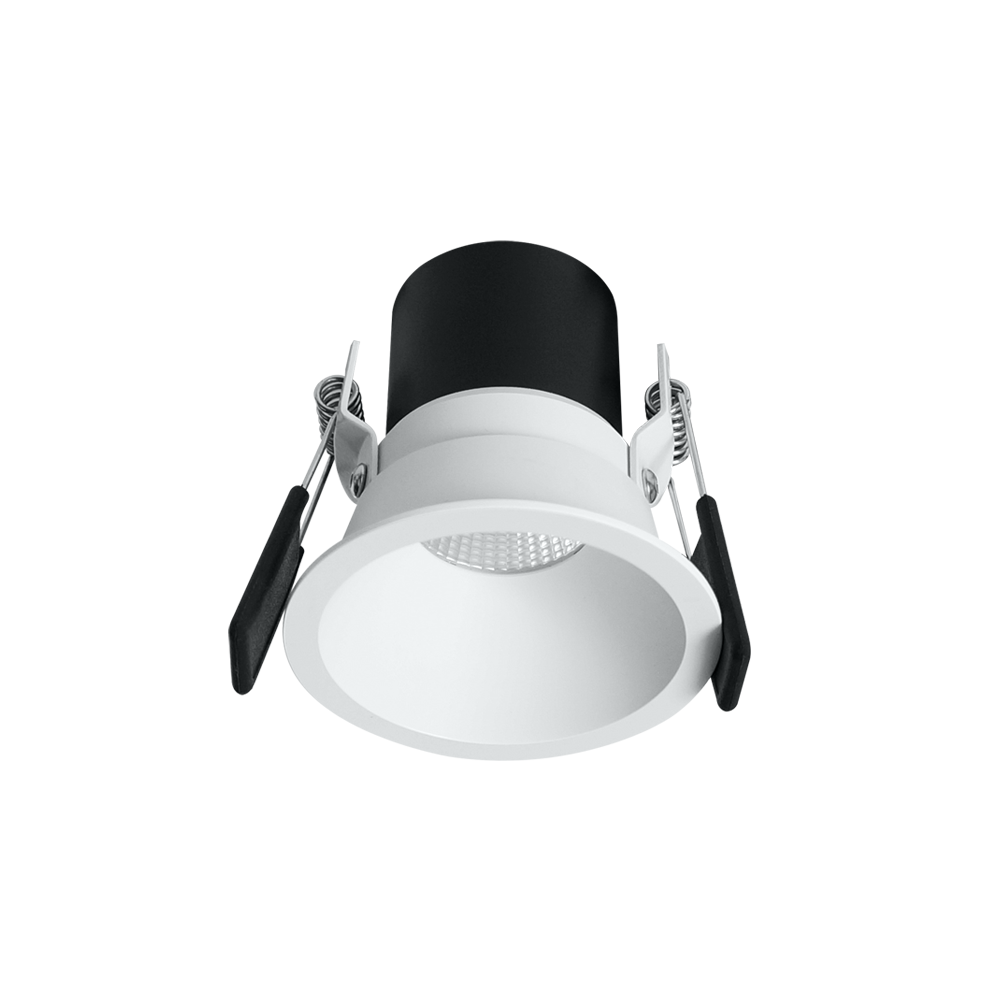

Recessed downlight COZY Round inner ring set back, with LED,system power:6W,luminous flux of luminaire 504Im.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety:Safe,230V,rated current: 150mA,Beam angle:15°/25°/35°,black/white color, ON/OFF.ingress protection IP20. Ø=68mm, ceiling cutout ø60mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D921-COB2-2
|
U-D921-COB2-2
|
6W
|
3000K
|
504lm
|
25°
|
white/black
|
U-D921-COB2-2
Recessed downlight COZY Round inner ring set back, with LED,system power:6W,luminous flux of luminaire 504 Im. colour rendering index CRl >90,colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe,230 V,rated current:150 mA,Beam angle:15°/25°/35°,black/white color, ON/OFF. ingress protection IP20. Ø=68mm, ceiling cutout ø60mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D921-COB2-3
|
U-D921-COB2-3
|
6W
|
3000K
|
504lm
|
35°
|
white/black
|
U-D921-COB2-3
Recessed downlight COZY Round inner ring set back, with LED,system power:6W,luminous flux of luminaire 504 Im. colour rendering index CRl >90,colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe,230 V,rated current:150 mA,Beam angle:15°/25°/35°,black/white color, ON/OFF. ingress protection IP20. Ø=68mm, ceiling cutout ø60mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D921-COB3-1
|
U-D921-COB3-1
|
10W
|
3000K
|
770lm
|
15°
|
white/black
|
U-D921-COB3-1

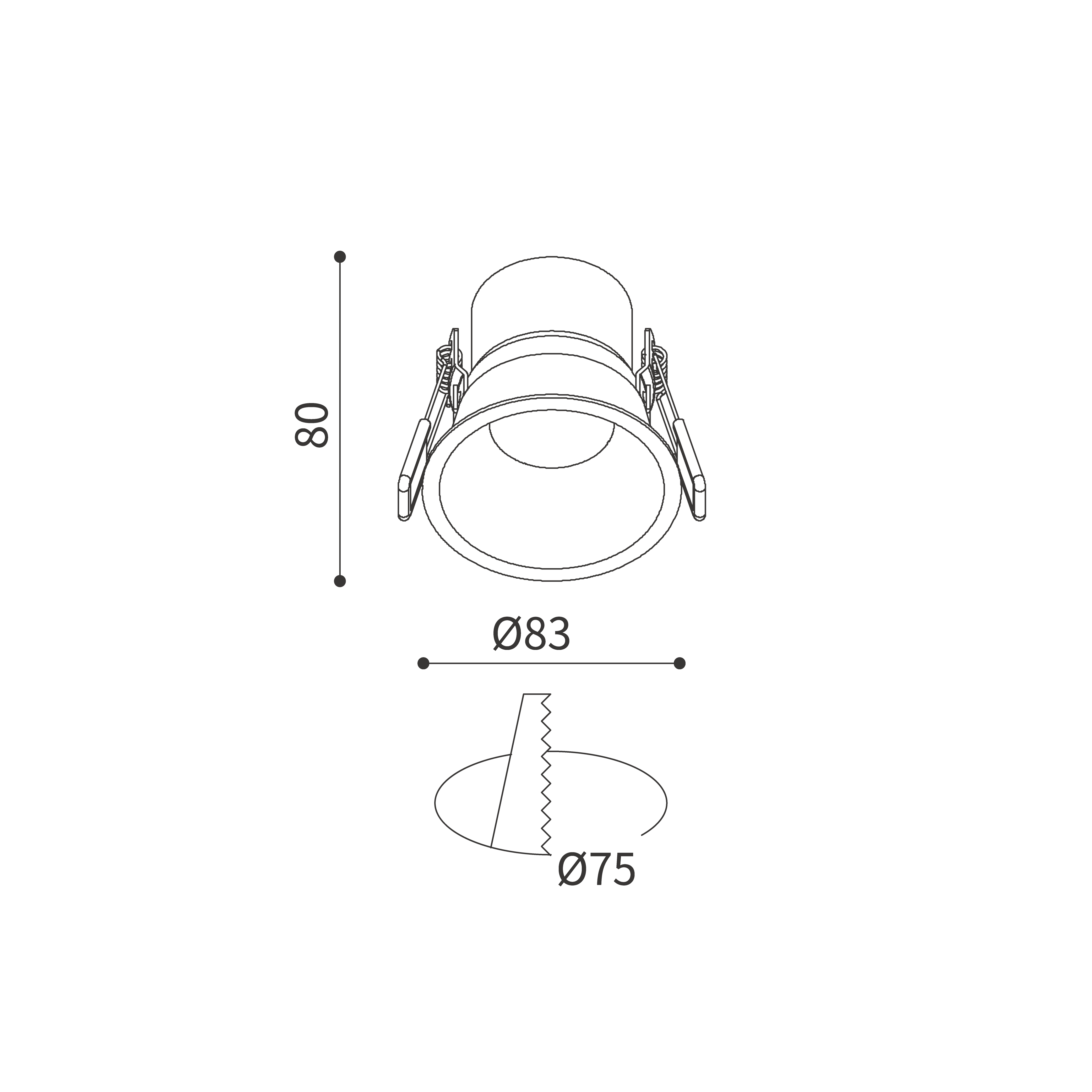

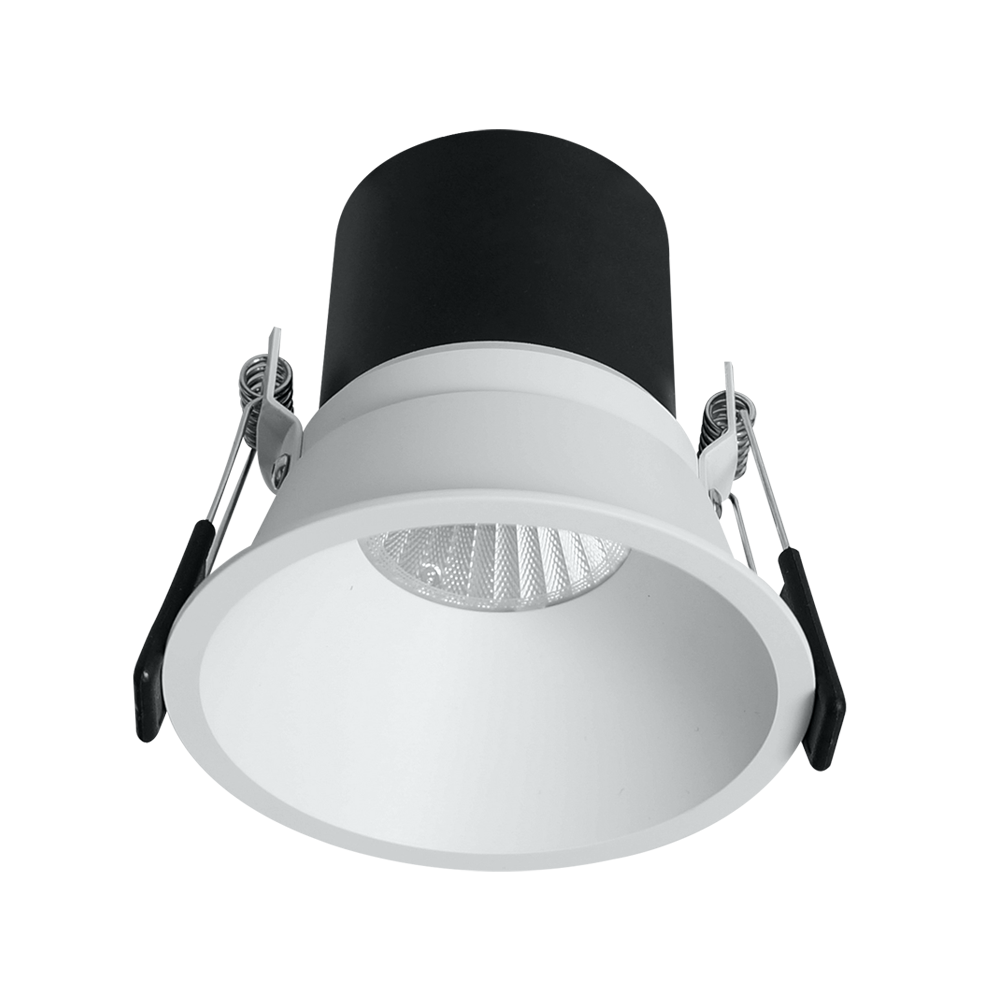

Recessed downlight COZY Round inner ring set back, with LED,system power:10W,luminous flux of luminaire 770 Im, colour rendering index CRl > 90,colour temperature 3000 K,warm white,lifetime LED 50'000 h, Photobiological safety:Safe,230 V,rated current:250 mA,Beam angle:15°/25°/35°/52°,black/white color, ON/OFF. ingress protection IP20. Ø=83mm,ceiling cutout ø75 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D921-COB3-2
|
U-D921-COB3-2
|
10W
|
3000K
|
770lm
|
25°
|
white/black
|
U-D921-COB3-2
Recessed downlight COZY Round inner ring set back, with LED,system power:10W,luminous flux of luminaire 770 Im, colour rendering index CRl > 90,colour temperature 3000 K,warm white,lifetime LED 50'000 h, Photobiological safety:Safe,230 V,rated current:250 mA,Beam angle:15°/25°/35°/52°,black/white color, ON/OFF. ingress protection IP20. Ø=83mm,ceiling cutout ø75 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D921-COB3-3
|
U-D921-COB3-3
|
10W
|
3000K
|
770lm
|
35°
|
white/black
|
U-D921-COB3-3
Recessed downlight COZY Round inner ring set back, with LED,system power:10W,luminous flux of luminaire 770 Im, colour rendering index CRl > 90,colour temperature 3000 K,warm white,lifetime LED 50'000 h, Photobiological safety:Safe,230 V,rated current:250 mA,Beam angle:15°/25°/35°/52°,black/white color, ON/OFF. ingress protection IP20. Ø=83mm,ceiling cutout ø75 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D921-COB3-4
|
U-D921-COB3-4
|
10W
|
3000K
|
770lm
|
52°
|
white/black
|
U-D921-COB3-4
Recessed downlight COZY Round inner ring set back, with LED,system power:10W,luminous flux of luminaire 770 Im, colour rendering index CRl > 90,colour temperature 3000 K,warm white,lifetime LED 50'000 h, Photobiological safety:Safe,230 V,rated current:250 mA,Beam angle:15°/25°/35°/52°,black/white color, ON/OFF. ingress protection IP20. Ø=83mm,ceiling cutout ø75 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D921-COB4-1
|
U-D921-COB4-1
|
15W
|
3000K
|
1125 lm
|
15°
|
white/black
|
U-D921-COB4-1

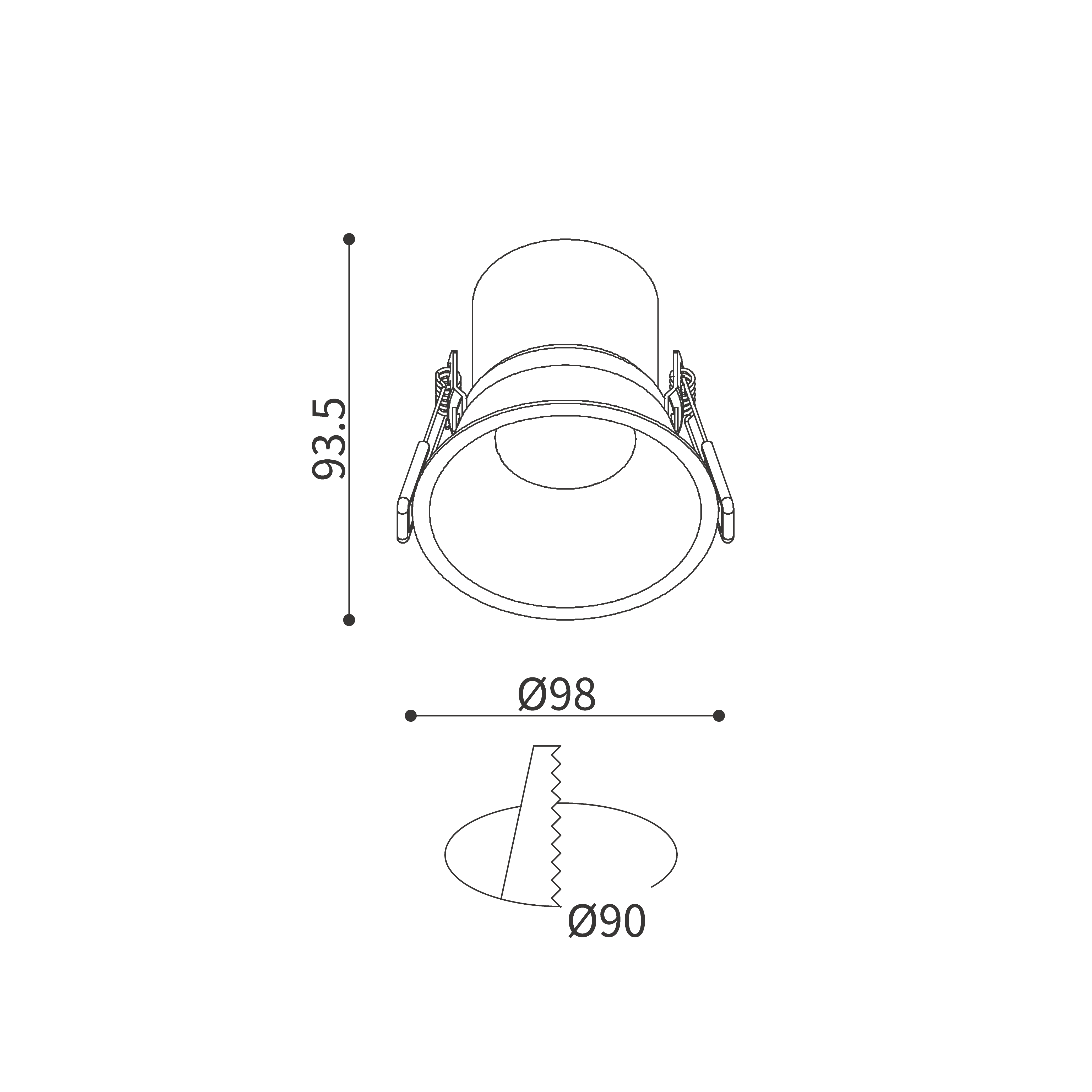

Recessed downlight COZY Round inner ring set back, with LED,system power: 15W,luminous flux of luminaire 1125 Im, colour rendering index CRI >90,colour temperature 3000 K,warm white, lifetime LED 50'000 h, Dhptobioplpbtcalsafey' Satfe,230 y,rated curent.350 mA, Beam angle: 15°/25°/35°/52°,black/white color, ON/OFF, Ø=98 mm, ceiling cutout ø90 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D921-COB4-2
|
U-D921-COB4-2
|
15W
|
3000K
|
1125 lm
|
25°
|
white/black
|
U-D921-COB4-2
Recessed downlight COZY Round inner ring set back, with LED,system power: 15W,luminous flux of luminaire 1125 Im, colour rendering index CRI >90,colour temperature 3000 K,warm white, lifetime LED 50'000 h, Dhptobioplpbtcalsafey' Satfe,230 y,rated curent.350 mA, Beam angle: 15°/25°/35°/52°,black/white color, ON/OFF, Ø=98 mm, ceiling cutout ø90 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D921-COB4-3
|
U-D921-COB4-3
|
15W
|
3000K
|
1125 lm
|
35°
|
white/black
|
U-D921-COB4-3
Recessed downlight COZY Round inner ring set back, with LED,system power: 15W,luminous flux of luminaire 1125 Im, colour rendering index CRI >90,colour temperature 3000 K,warm white, lifetime LED 50'000 h, Dhptobioplpbtcalsafey' Satfe,230 y,rated curent.350 mA, Beam angle: 15°/25°/35°/52°,black/white color, ON/OFF, Ø=98 mm, ceiling cutout ø90 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D921-COB4-4
|
U-D921-COB4-4
|
15W
|
3000K
|
1125 lm
|
52°
|
white/black
|
U-D921-COB4-4
Recessed downlight COZY Round inner ring set back, with LED,system power: 15W,luminous flux of luminaire 1125 Im, colour rendering index CRI >90,colour temperature 3000 K,warm white, lifetime LED 50'000 h, Dhptobioplpbtcalsafey' Satfe,230 y,rated curent.350 mA, Beam angle: 15°/25°/35°/52°,black/white color, ON/OFF, Ø=98 mm, ceiling cutout ø90 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D881-COB5-1
|
U-D881-COB5-1
|
25W
|
3000K
|
1875 lm
|
15°
|
white/black
|
U-D881-COB5-1

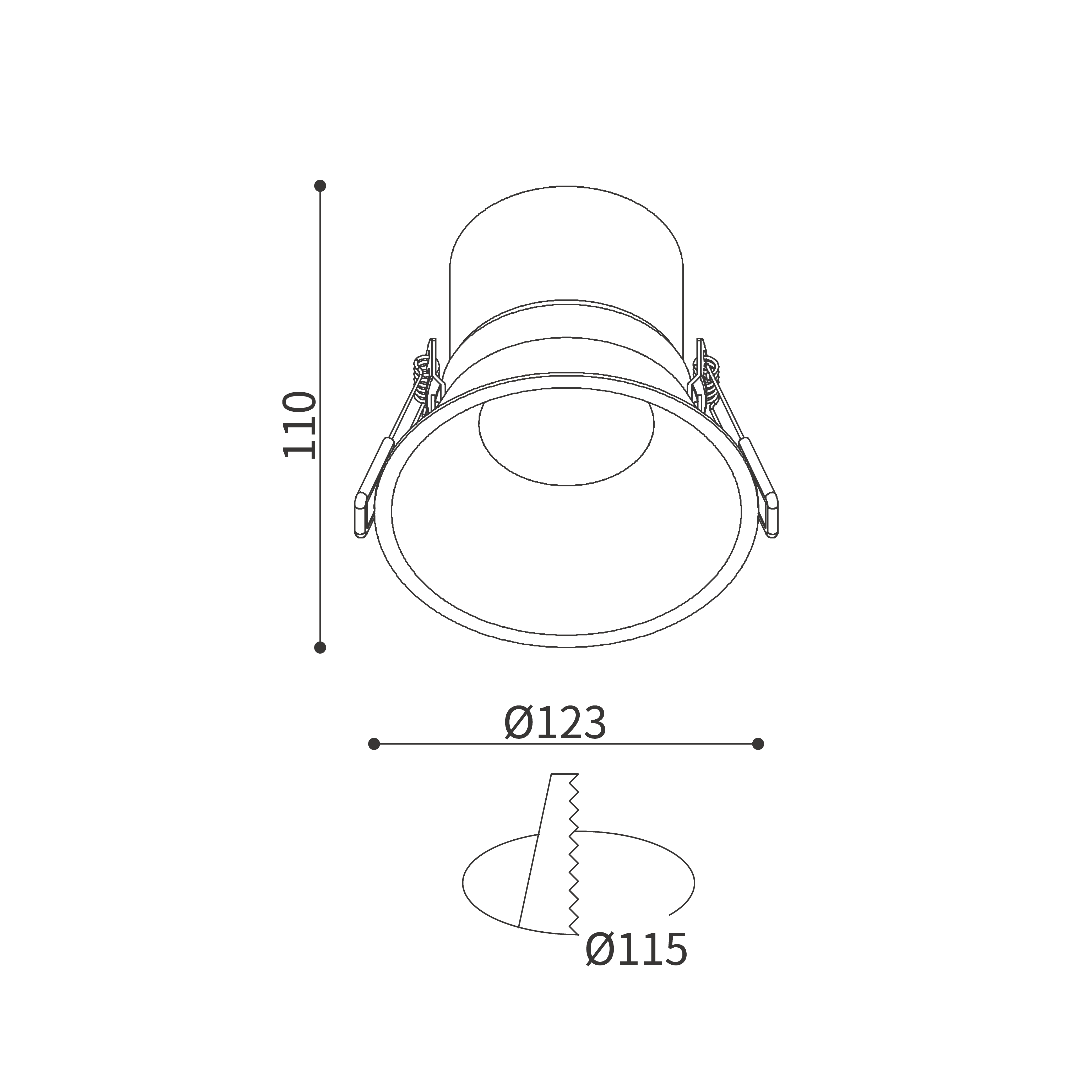

Recessed downlight COZY Round inner ring set back,with LED,system power:25W,luminous flux of luminaire 1875 Im, colour rendering index CRI >90, colour temperature 3000 K, warm white,lifetime LED 50'000 h, Photobiological safety: Safe,230 V,rated current: 600 mA,Beam angle:15°/25°/35°/52°, black/white color, ON/OFF, ingress protection IP20. Ø = 123 mm,ceiling cutout ø115 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D881-COB5-2
|
U-D881-COB5-2
|
25W
|
3000K
|
1875 lm
|
25°
|
white/black
|
U-D881-COB5-2
Recessed downlight COZY Round inner ring set back,with LED,system power:25W,luminous flux of luminaire 1875 Im, colour rendering index CRI >90, colour temperature 3000 K, warm white,lifetime LED 50'000 h, Photobiological safety: Safe,230 V,rated current: 600 mA,Beam angle:15°/25°/35°/52°, black/white color, ON/OFF, ingress protection IP20. Ø = 123 mm,ceiling cutout ø115 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D881-COB5-3
|
U-D881-COB5-3
|
25W
|
3000K
|
1875 lm
|
35°
|
white/black
|
U-D881-COB5-3
Recessed downlight COZY Round inner ring set back,with LED,system power:25W,luminous flux of luminaire 1875 Im, colour rendering index CRI >90, colour temperature 3000 K, warm white,lifetime LED 50'000 h, Photobiological safety: Safe,230 V,rated current: 600 mA,Beam angle:15°/25°/35°/52°, black/white color, ON/OFF, ingress protection IP20. Ø = 123 mm,ceiling cutout ø115 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
|
U-D881-COB5-4
|
U-D881-COB5-4
|
25W
|
3000K
|
1875 lm
|
52°
|
white/black
|
U-D881-COB5-4
Recessed downlight COZY Round inner ring set back,with LED,system power:25W,luminous flux of luminaire 1875 Im,colour rendering index CRI >90, colour temperature 3000 K, warm white,lifetime LED 50'000 h,Photobiological safety: Safe,230 V,rated current: 600 mA,Beam angle:15°/25°/35°/52°, black/white color, ON/OFF,ingress protection IP20. Ø = 123 mm,ceiling cutout ø115 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI>90
Unified Glare Rating (UGR)
UGR <19
|
