CLARA

Slim profile, brilliant performance.

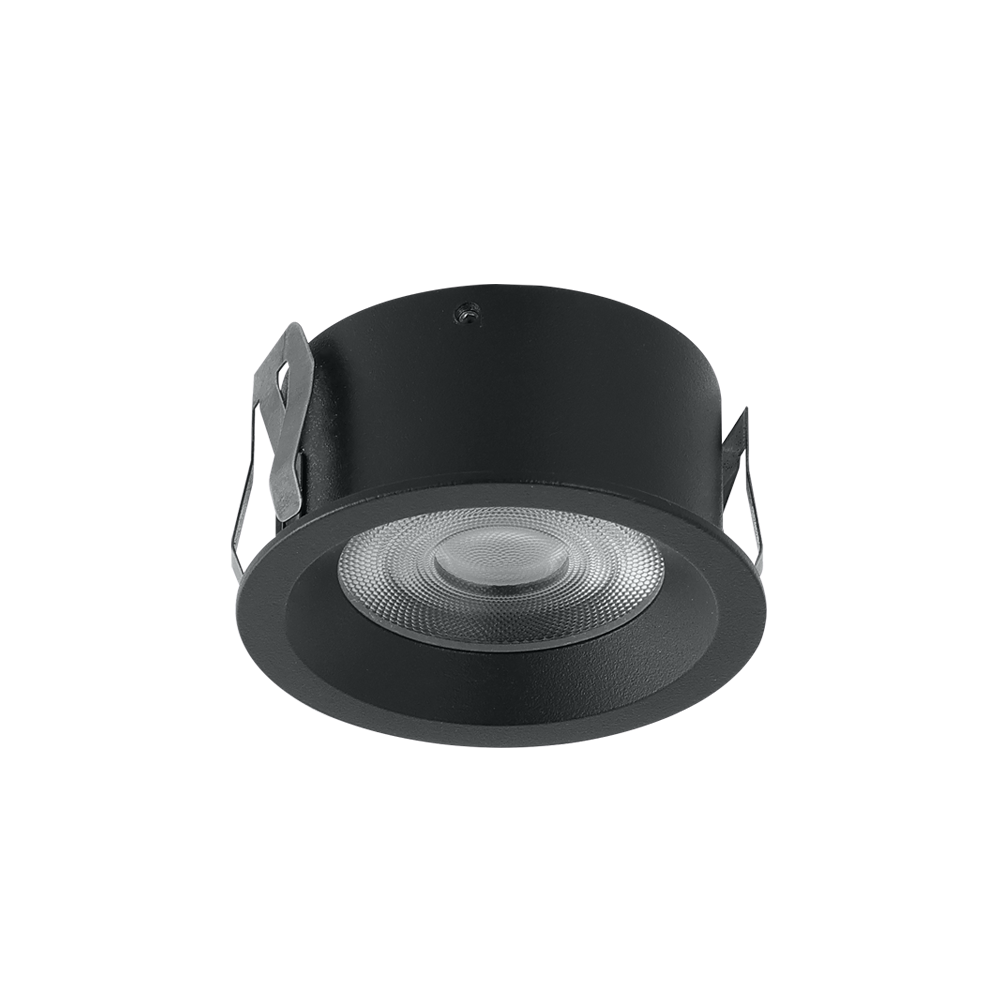

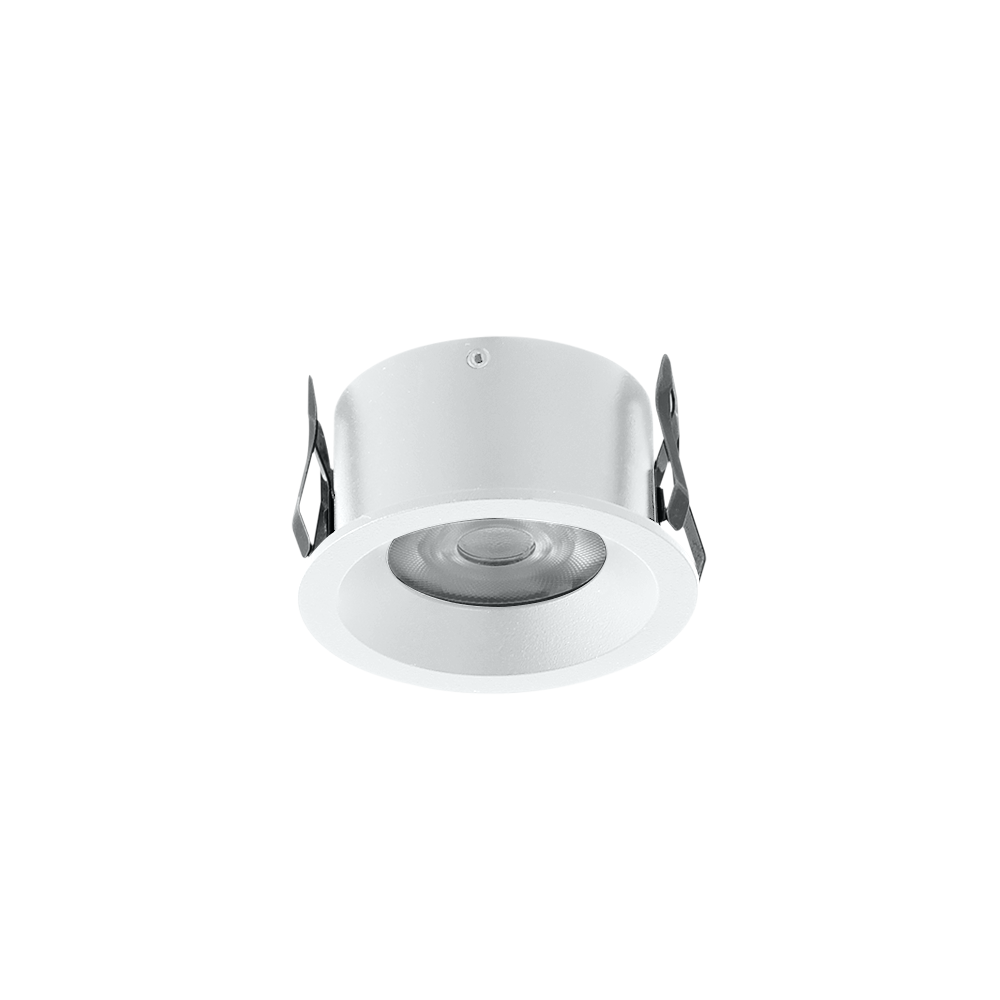

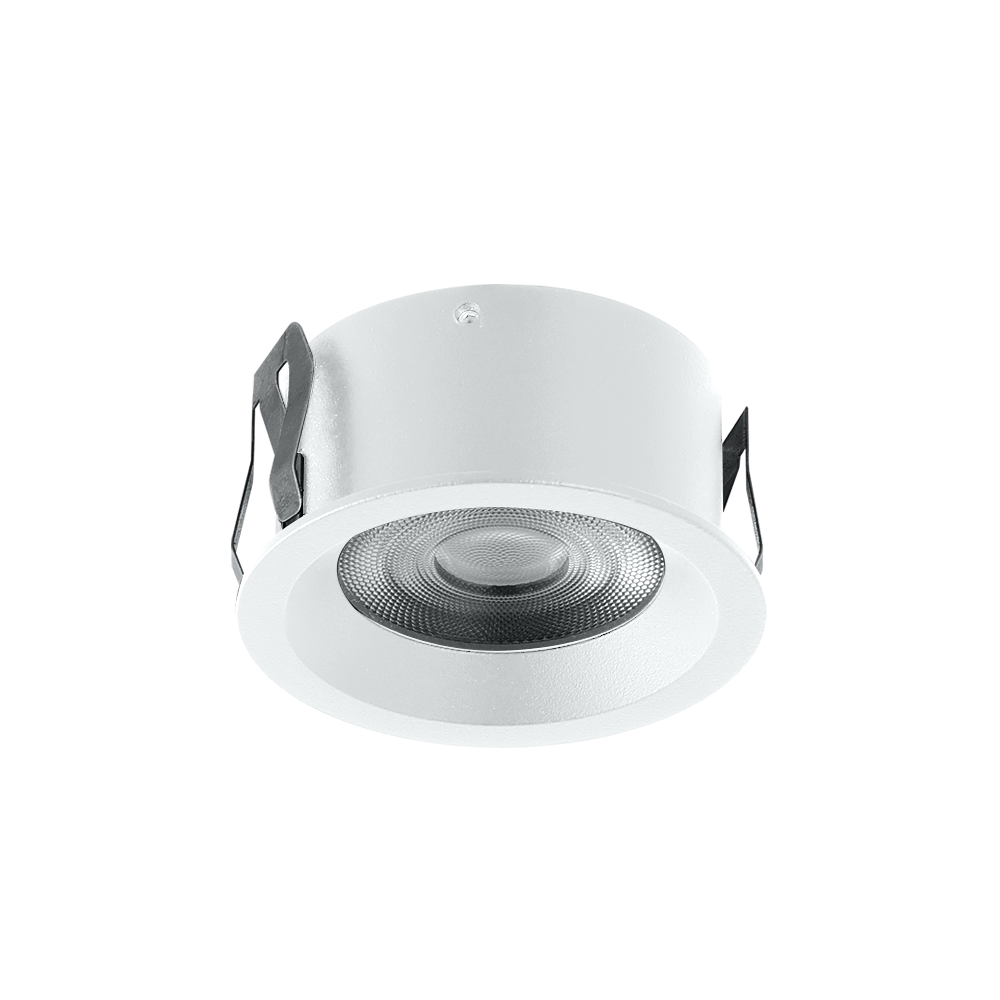

CLARA is an ultra-slim, high-performance downlight series engineered for spaces with limited ceiling plenum depth. With a total height of just 30mm, it fits effortlessly into any ceiling with a cavity greater than 30mm. Available in two mounting styles – standard trim (CLARA) and trimless (CLARA TRIMLESS) – the series offers flexible aesthetic choices to match diverse ceiling designs. Crafted from pure 6063 aluminium with precision machining, CLARA delivers excellent thermal management, high colour rendering, and IP54 protection, making it a reliable and elegant lighting solution for both residential and commercial interiors.

Features Features

- Ultra-slim 30mm total height – opens up lighting possibilities for shallow-ceiling spaces where standard downlights simply cannot fit

- Two mounting styles available – standard trim for quick installation with a clean finished edge, and trimless for a seamless, minimalist look that blends flush with the ceiling surface

- Quick-mount design with tool-free installation – simplifies deployment and makes maintenance or replacement effortless for both versions

- IP54 rating – provides reliable protection against dust and water splashes, offering peace of mind in kitchens, bathrooms, and covered outdoor areas

- High colour rendering (Ra90) – ensures accurate colour perception, making spaces feel more vibrant and true to life

- Premium 6063 aluminium construction – delivers efficient heat dissipation, extending LED lifespan and maintaining stable performance

Specifications Specifications

- Heatsink: 6063 pure aluminium with precision machining

- Surface finish: Fine textured coating

- Total height: 30mm – fits ceilings with cavity depth >30mm

- Colour rendering: Ra90

- Protection rating: IP54

- Mounting styles:

CLARA: Standard recessed with trim ring

CLARA TRIMLESS: Recessed without visible trim, flush ceiling integration

- Sizes: 3 diameter options available for each mounting style

- Installation: Quick-mount mechanism, tool-free

- Wattages: Multiple options available per size

Fields of application Fields of application

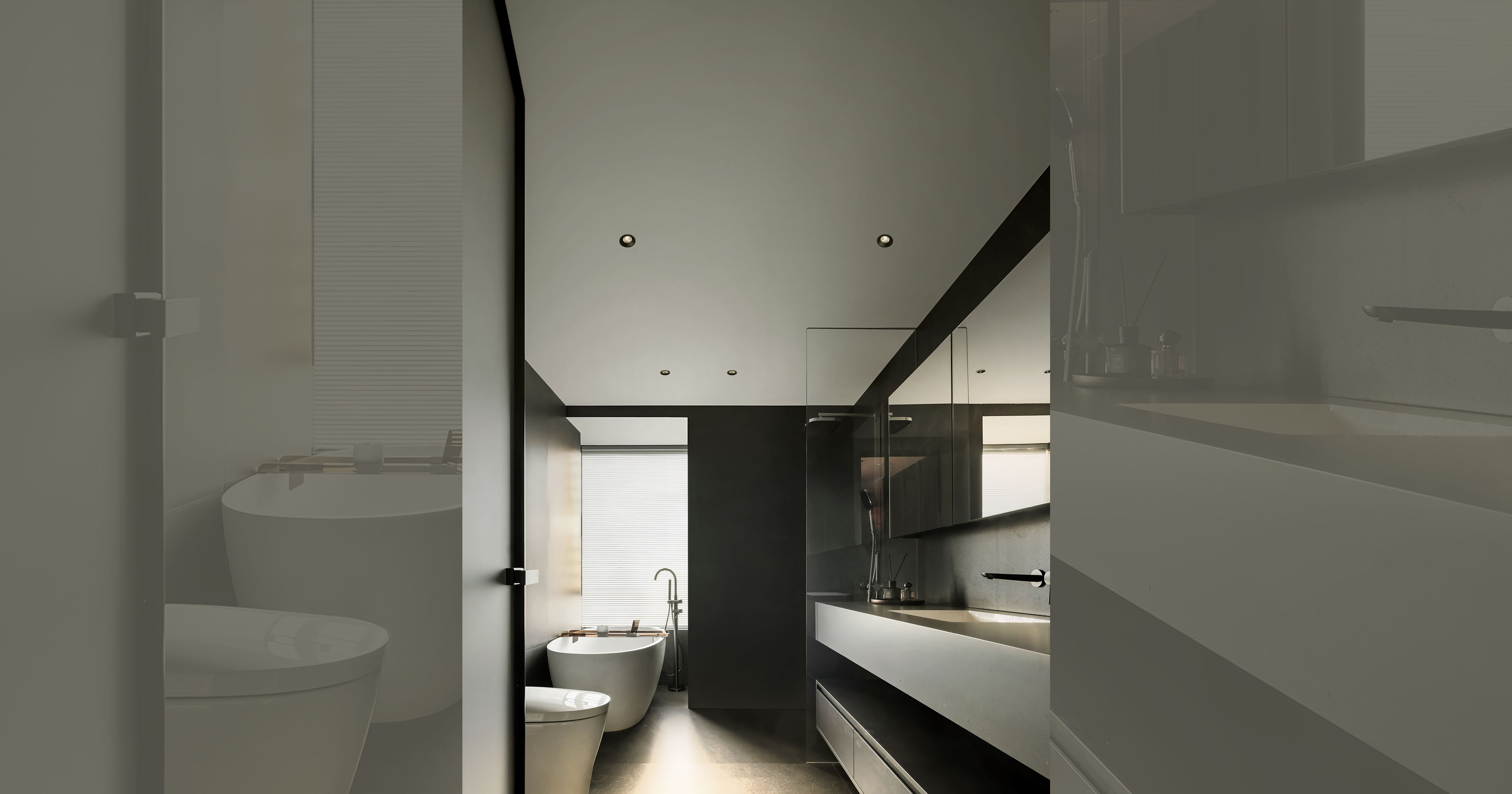

- Residential living rooms, bedrooms, kitchens, and corridors

- Hotel rooms, suites, and public areas

- Office environments and meeting rooms

- Retail stores and showrooms

- Spaces with shallow ceiling cavities where standard downlights cannot fit

- Projects requiring seamless ceiling aesthetics (recommend CLARA TRIMLESS)

- Any interior requiring slim, high-quality, and glare-free illumination

Version

0 Article

Nominal power

BEAM ANGLE

60°

36°

24°

15°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

BEAM ANGLE

50°

36°

24°

15°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

12W

BEAM ANGLE

50°

36°

24°

15°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-D703-COB1-30K-15	L-D703-COB1-30K-15	5W	3000K	390lm	15°	White/Black

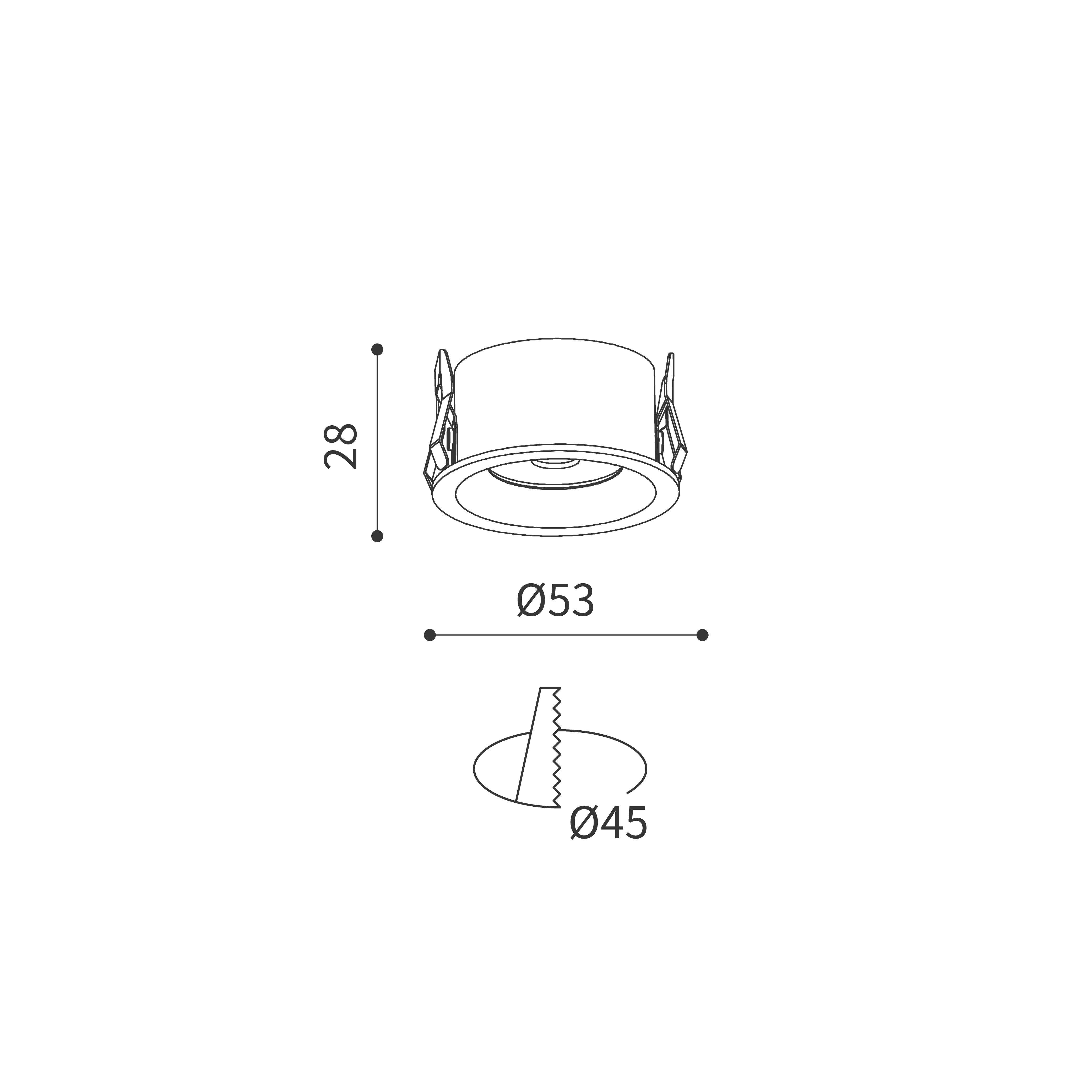

Get in Touch Get in Touch L-D703-COB1-30K-15 Recessed downlight CLARA Round inner ring set back, with LED,system power: 5 W,luminous flux of luminaire 390 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 120 mA,Beam angle: 15°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=53mm, ceiling cutout ø45mm Nominal power 5W Finish White/Black Delivered lumens 390lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.08kg Color Rendering Index(CRI) CRI>90 Diameter 53mm Unified Glare Rating (UGR) UGR <22 Length 28mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 53mm Beam angle 15° Downloads L-D703-Instruction Manual pdf L-D703-Instruction pdf Accessories
	L-D703-COB1-30K-24	L-D703-COB1-30K-24	5W	3000K	390lm	24°	White/Black
Get in Touch Get in Touch L-D703-COB1-30K-24 Recessed downlight CLARA Round inner ring set back, with LED,system power: 5 W,luminous flux of luminaire 390 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 120 mA,Beam angle: 24°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=53mm, ceiling cutout ø45mm Nominal power 5W Finish White/Black Delivered lumens 390lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.08kg Color Rendering Index(CRI) CRI>90 Diameter 53mm Unified Glare Rating (UGR) UGR <22 Length 28mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 53mm Beam angle 24° Downloads L-D703-Instruction Manual pdf Accessories
	L-D703-COB1-30K-36	L-D703-COB1-30K-36	5W	3000K	390lm	36°	White/Black
Get in Touch Get in Touch L-D703-COB1-30K-36 Recessed downlight CLARA Round inner ring set back, with LED,system power: 5 W,luminous flux of luminaire 390 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 120 mA,Beam angle: 36°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=53mm, ceiling cutout ø45mm Nominal power 5W Finish White/Black Delivered lumens 390lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.08kg Color Rendering Index(CRI) CRI>90 Diameter 53mm Unified Glare Rating (UGR) UGR <22 Length 28mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 53mm Beam angle 36° Downloads L-D703-Instruction Manual pdf Accessories
	L-D703-COB1-30K-60	L-D703-COB1-30K-60	5W	3000K	390lm	60°	White/Black
Get in Touch Get in Touch L-D703-COB1-30K-60 Recessed downlight CLARA Round inner ring set back, with LED,system power: 5 W,luminous flux of luminaire 390 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 120 mA,Beam angle: 60°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=53mm, ceiling cutout ø45mm Nominal power 5W Finish White/Black Delivered lumens 390lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.08kg Color Rendering Index(CRI) CRI>90 Diameter 53mm Unified Glare Rating (UGR) UGR <22 Length 28mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 53mm Beam angle 60° Downloads L-D703-Instruction Manual pdf Accessories
	L-D703-COB2-30K-15	L-D703-COB2-30K-15	7W	3000K	567lm	15°	White/Black

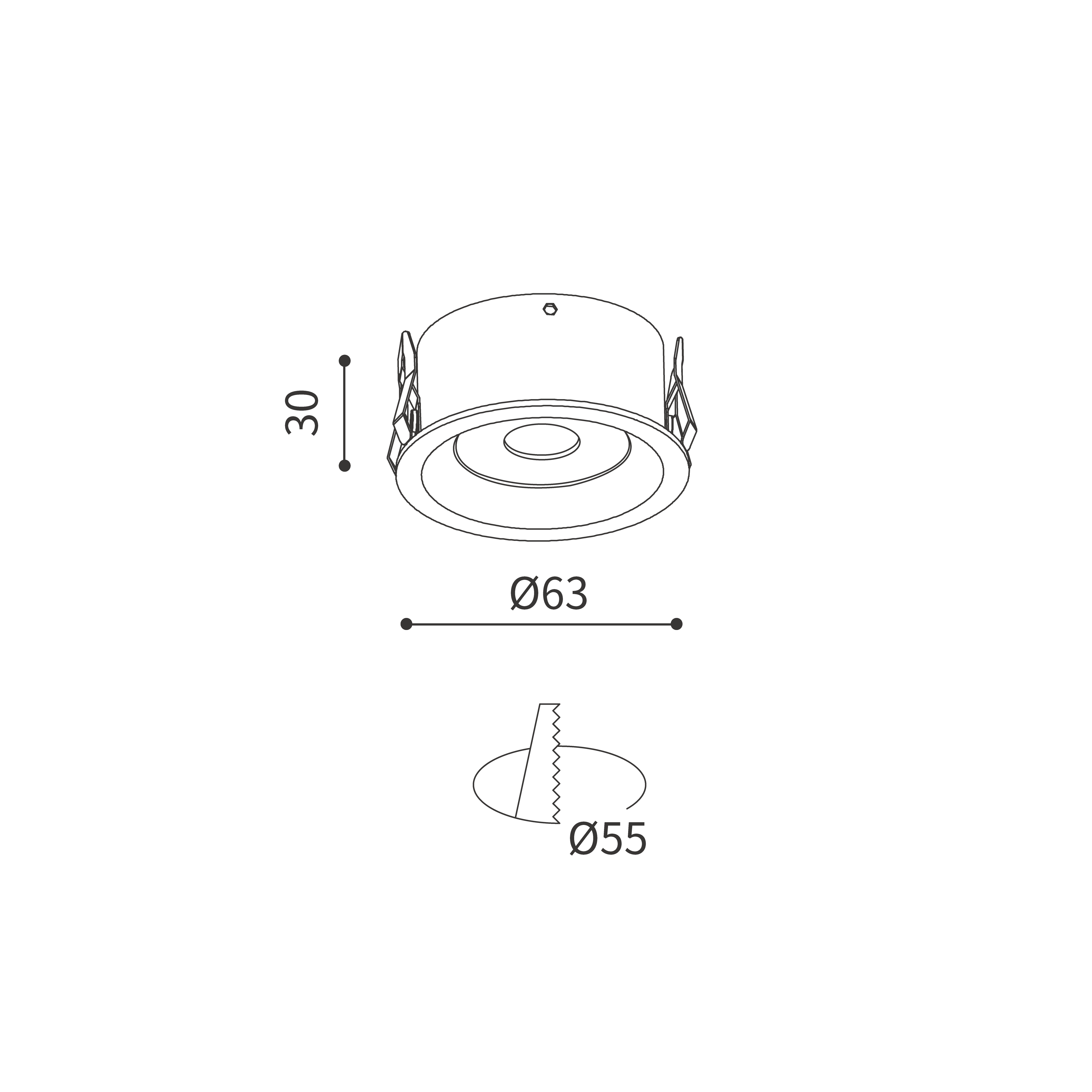

Get in Touch Get in Touch L-D703-COB2-30K-15 Recessed downlight CLARA Round inner ring set back, with LED,system power: 7 W,luminous flux of luminaire 567 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 160 mA,Beam angle: 15°,black/white color,ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=63mm, ceiling cutout ø55mm Nominal power 7W Finish White/Black Delivered lumens 567lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.14kg Color Rendering Index(CRI) CRI>90 Diameter 63mm Unified Glare Rating (UGR) UGR <22 Length 30mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 63mm Beam angle 15° Downloads L-D703-Instruction Manual pdf Accessories
	L-D703-COB2-30K-24	L-D703-COB2-30K-24	7W	3000K	567lm	24°	White/Black
Get in Touch Get in Touch L-D703-COB2-30K-24 Recessed downlight CLARA Round inner ring set back, with LED,system power: 7 W,luminous flux of luminaire 567 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 160 mA,Beam angle: 24°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=63mm, ceiling cutout ø55mm Nominal power 7W Finish White/Black Delivered lumens 567lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.14kg Color Rendering Index(CRI) CRI>90 Diameter 63mm Unified Glare Rating (UGR) UGR <22 Length 30mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 63mm Beam angle 24° Downloads L-D703-Instruction Manual pdf Accessories
	L-D703-COB2-30K-36	L-D703-COB2-30K-36	7W	3000K	567lm	36°	White/Black
Get in Touch Get in Touch L-D703-COB2-30K-36 Recessed downlight CLARA Round inner ring set back, with LED,system power: 7 W,luminous flux of luminaire 567 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 160 mA,Beam angle: 36°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=63mm, ceiling cutout ø55mm Nominal power 7W Finish White/Black Delivered lumens 567lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.14kg Color Rendering Index(CRI) CRI>90 Diameter 63mm Unified Glare Rating (UGR) UGR <22 Length 30mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 63mm Beam angle 36° Downloads L-D703-Instruction Manual pdf Accessories
	L-D703-COB2-30K-50	L-D703-COB2-30K-50	7W	3000K	567lm	50°	White/Black
Get in Touch Get in Touch L-D703-COB2-30K-50 Recessed downlight CLARA Round inner ring set back, with LED,system power: 7 W,luminous flux of luminaire 567 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 160 mA,Beam angle: 50°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=63mm, ceiling cutout ø55mm Nominal power 7W Finish White/Black Delivered lumens 567lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.14kg Color Rendering Index(CRI) CRI>90 Diameter 63mm Unified Glare Rating (UGR) UGR <22 Length 30mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 63mm Beam angle 50° Downloads L-D703-Instruction Manual pdf Accessories
	L-D703-COB3-30K-15	L-D703-COB3-30K-15	12W	3000K	1032lm	15°	White/Black

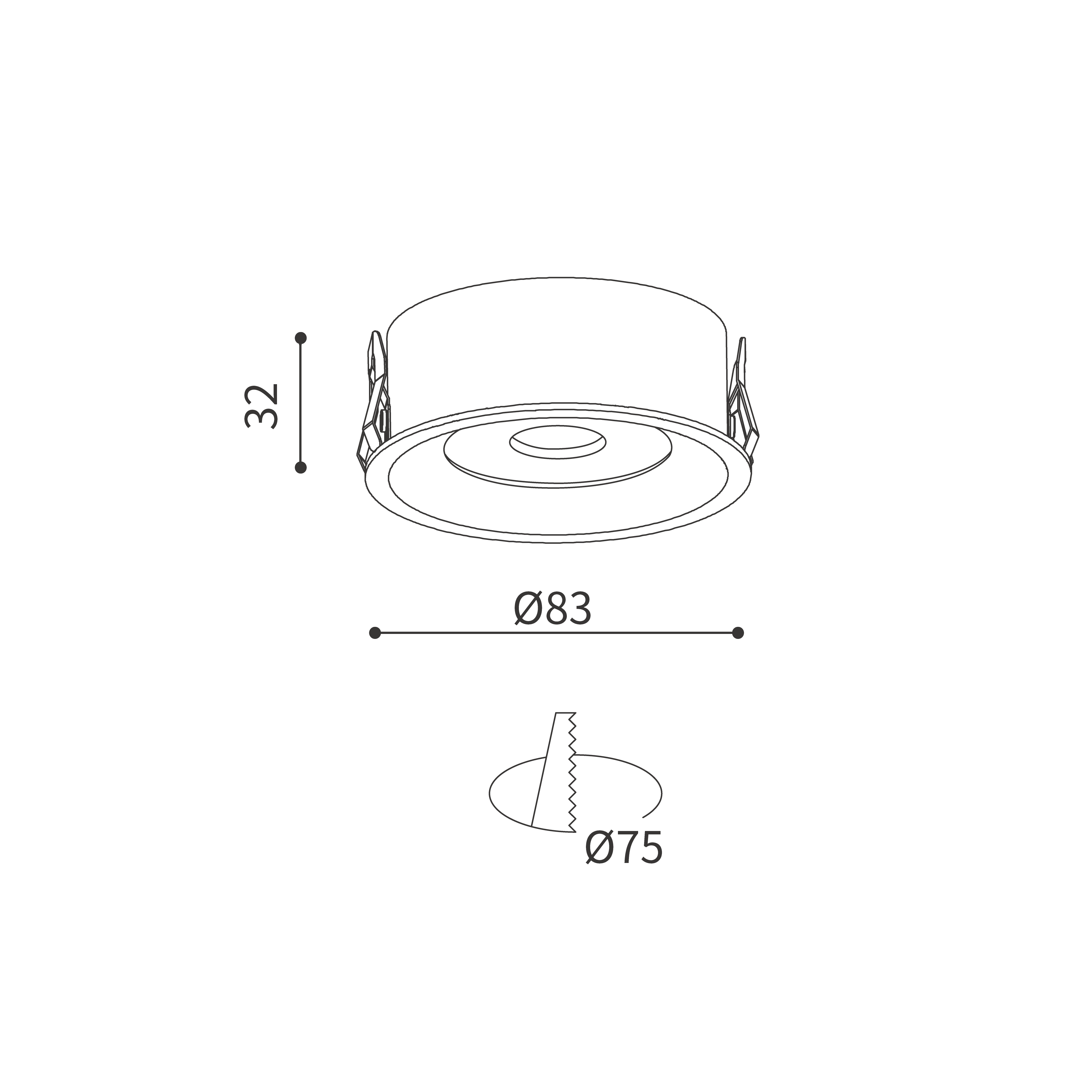

Get in Touch Get in Touch L-D703-COB3-30K-15 Recessed downlight CLARA Round inner ring set back, with LED,system power: 12 W,luminous flux of luminaire 1032 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 300 mA,Beam angle: 15°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=83mm, ceiling cutout ø75mm Nominal power 12W Finish White/Black Delivered lumens 1032lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.231kg Color Rendering Index(CRI) CRI>90 Diameter 83mm Unified Glare Rating (UGR) UGR <22 Length 32mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 83mm Beam angle 15° Downloads L-D703-Instruction Manual pdf Accessories
	L-D703-COB3-30K-24	L-D703-COB3-30K-24	12W	3000K	1032lm	24°	White/Black
Get in Touch Get in Touch L-D703-COB3-30K-24 Recessed downlight CLARA Round inner ring set back, with LED,system power: 12 W,luminous flux of luminaire 1032 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 300 mA,Beam angle: 24°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=83mm, ceiling cutout ø75mm Nominal power 12W Finish White/Black Delivered lumens 1032lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.231kg Color Rendering Index(CRI) CRI>90 Diameter 83mm Unified Glare Rating (UGR) UGR <22 Length 32mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 83mm Beam angle 24° Downloads L-D703-Instruction Manual pdf Accessories
	L-D703-COB3-30K-36	L-D703-COB3-30K-36	12W	3000K	1032lm	36°	White/Black
Get in Touch Get in Touch L-D703-COB3-30K-36 Recessed downlight CLARA Round inner ring set back, with LED,system power: 12 W,luminous flux of luminaire 1032 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 300 mA,Beam angle: 36°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=83mm, ceiling cutout ø75mm Nominal power 12W Finish White/Black Delivered lumens 1032lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.231kg Color Rendering Index(CRI) CRI>90 Diameter 83mm Unified Glare Rating (UGR) UGR <22 Length 32mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 83mm Beam angle 36° Downloads L-D703-Instruction Manual pdf Accessories
	L-D703-COB3-30K-50	L-D703-COB3-30K-50	12W	3000K	1032lm	50°	White/Black
Get in Touch Get in Touch L-D703-COB3-30K-50 Recessed downlight CLARA Round inner ring set back, with LED,system power: 12 W,luminous flux of luminaire 1032 lm.colour rendering index CRl>90,colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220 V,rated current: 300 mA,Beam angle: 50°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=83mm, ceiling cutout ø75mm Nominal power 12W Finish White/Black Delivered lumens 1032lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.231kg Color Rendering Index(CRI) CRI>90 Diameter 83mm Unified Glare Rating (UGR) UGR <22 Length 32mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 83mm Beam angle 50° Downloads L-D703-Instruction Manual pdf Accessories
