UNICO

Masterful light, boundless control.

UNICO is a versatile, high-performance lighting series defined by its unique mechanical flexibility and precise optical engineering. Featuring cross-beam optics and an innovative sliding-and-rotating mechanism, UNICO puts beam direction entirely in your hands. Available in one-head, two-head, and three-head configurations, with trim or trimless options, this series adapts seamlessly to spaces of every scale – from intimate corners to expansive interiors.

Features Features

- Cross-beam optics work in harmony with the housing design to deliver focused, precise lighting while effectively controlling glare

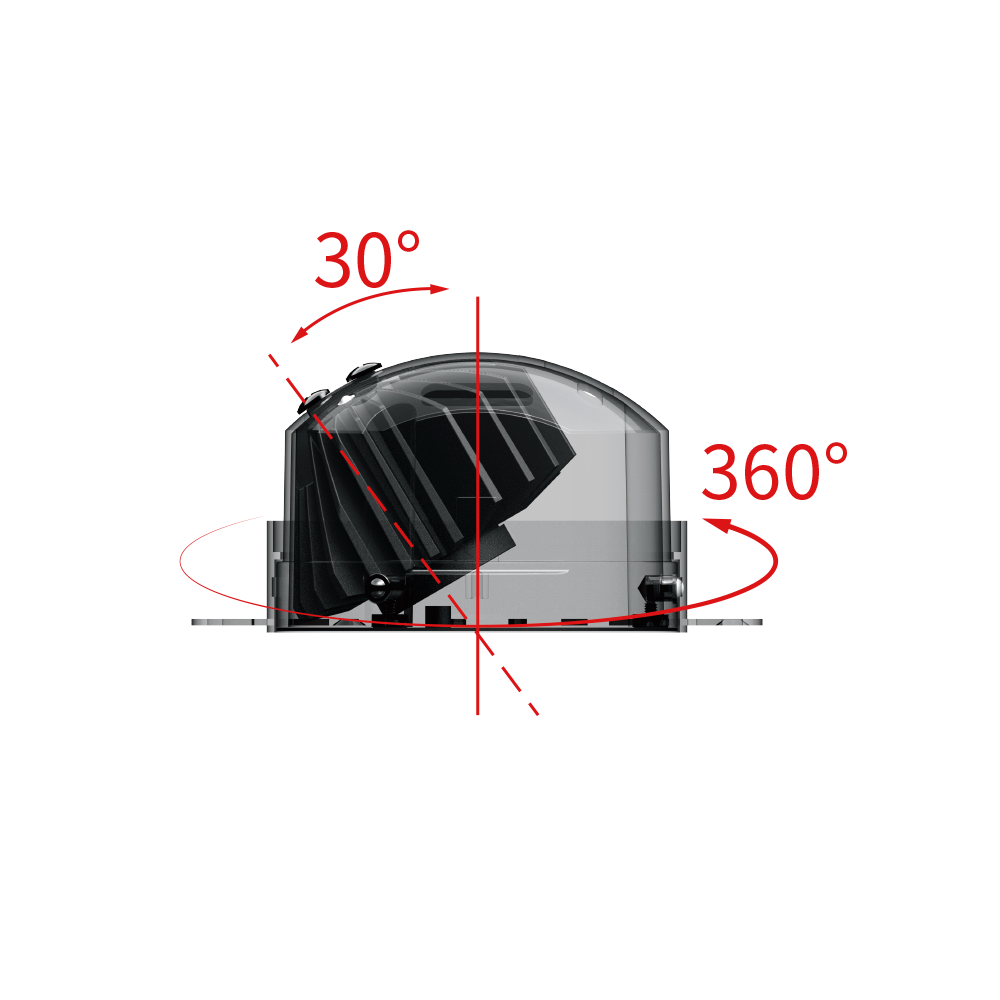

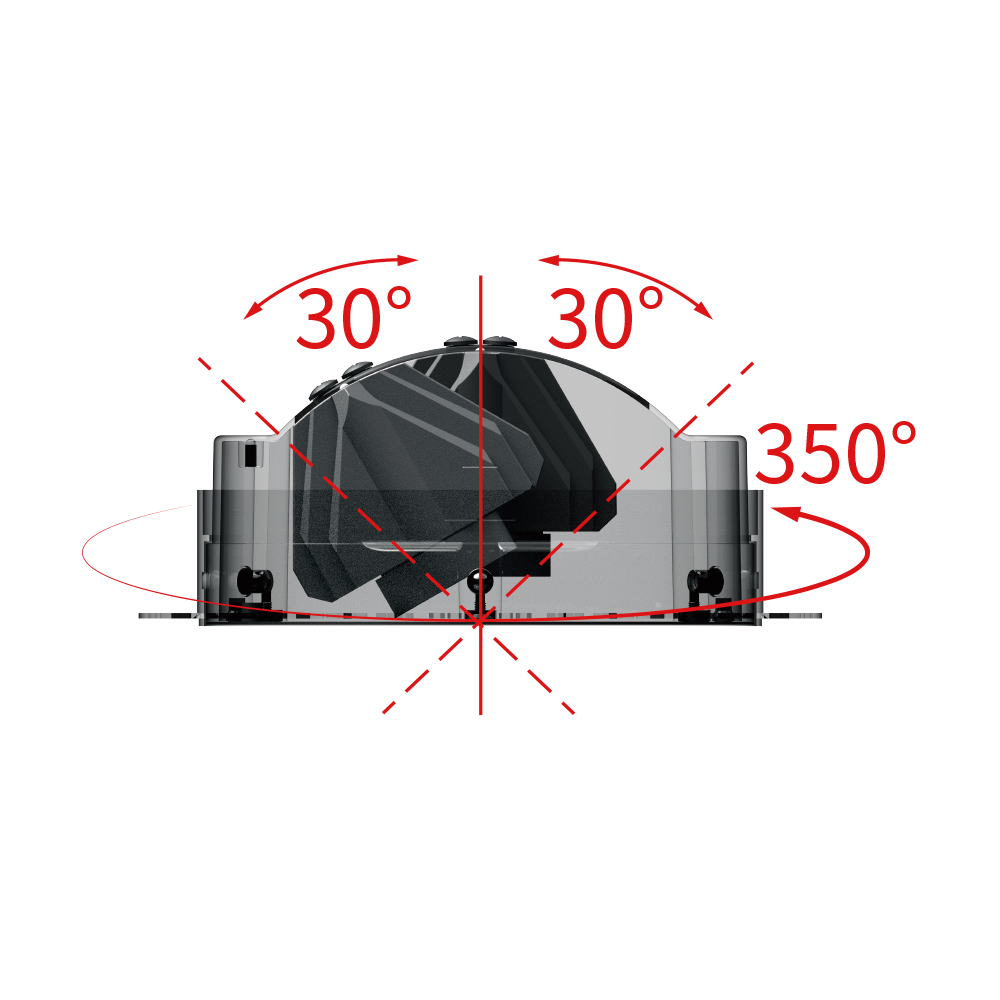

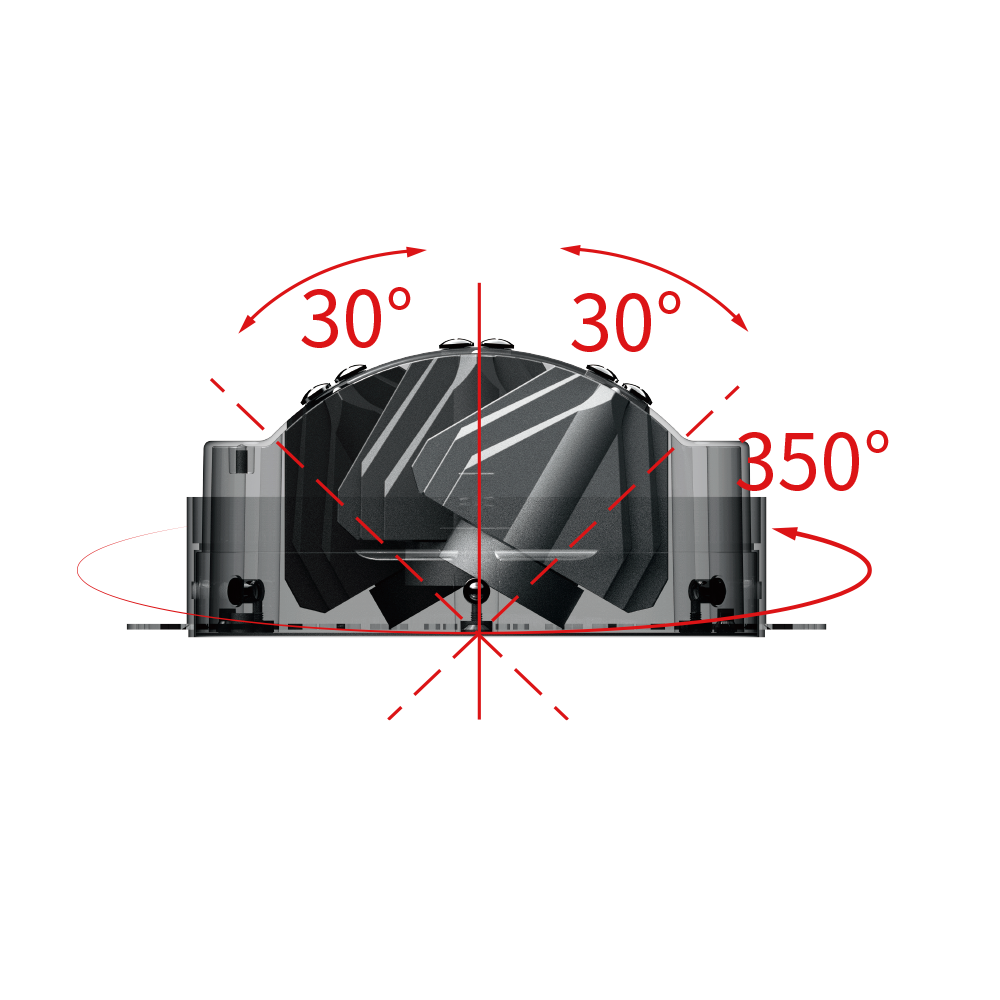

- Unique housing slot allows the module to slide back and forth; the light head rotates independently – giving you full directional control over the beam

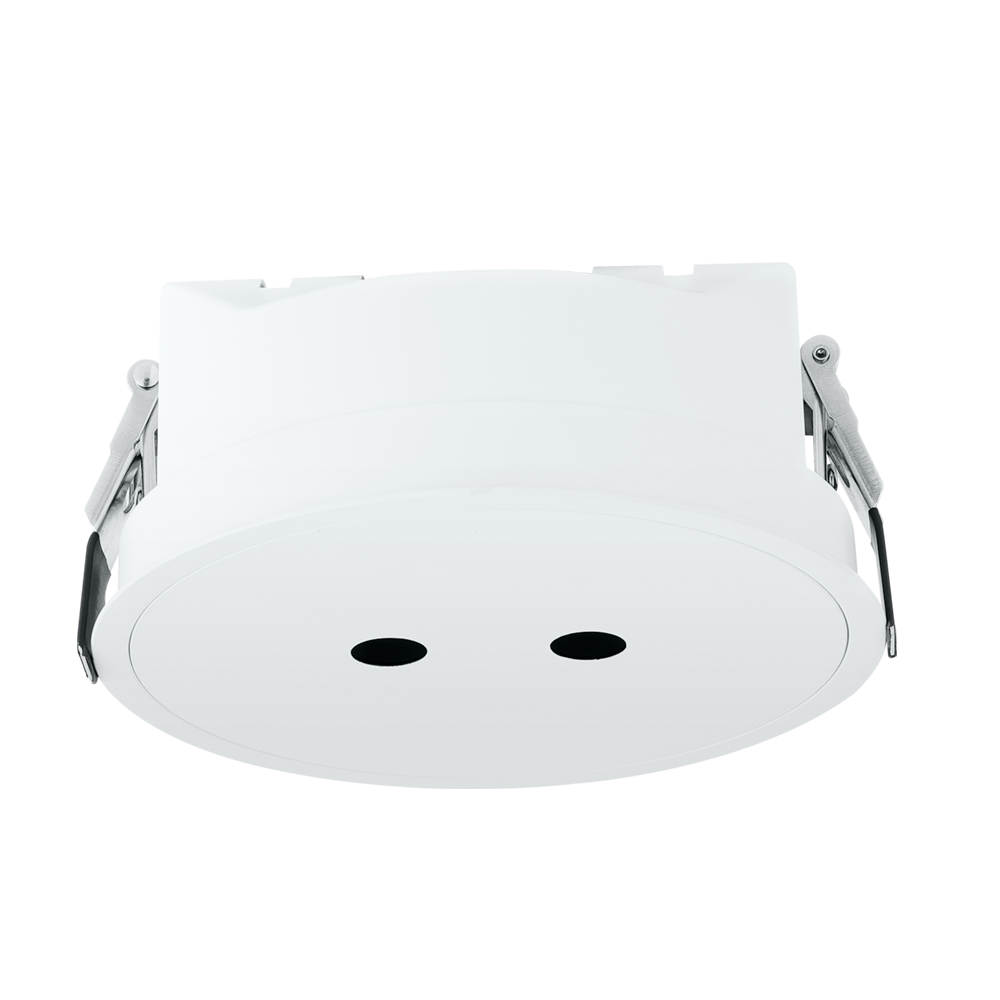

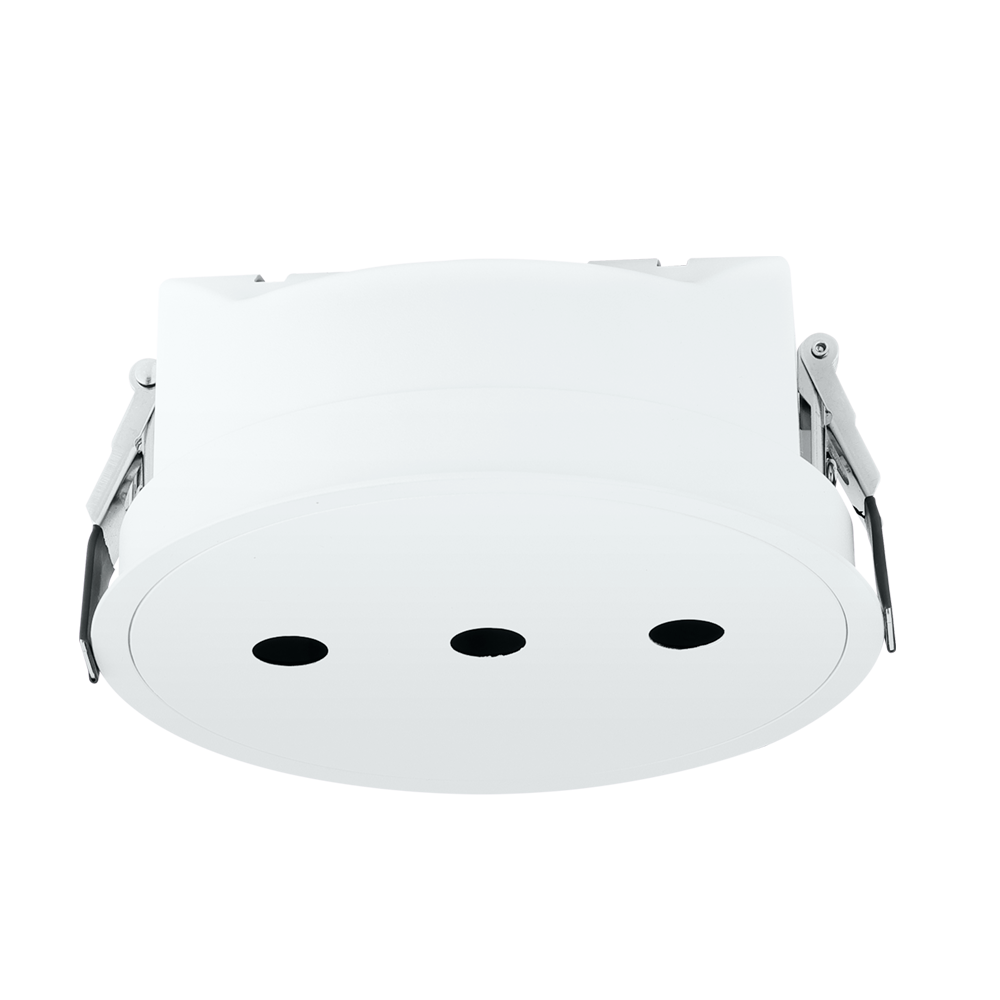

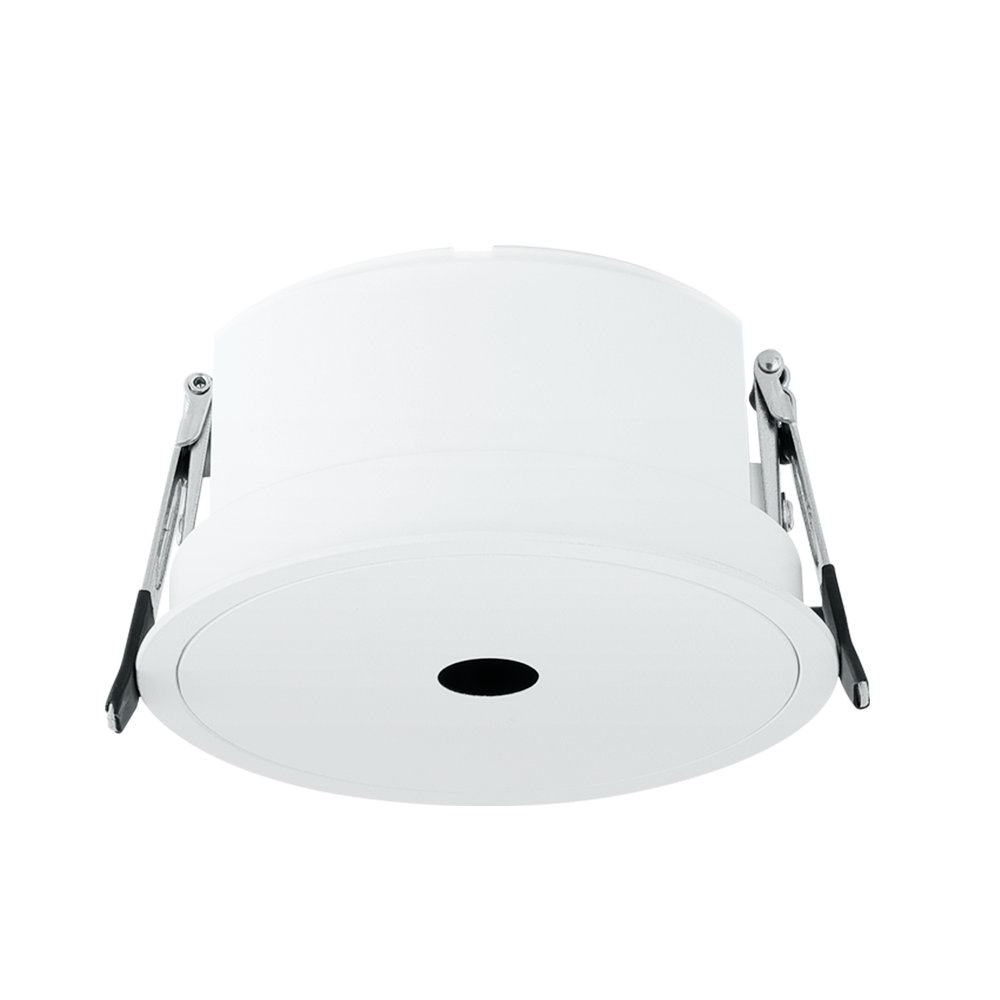

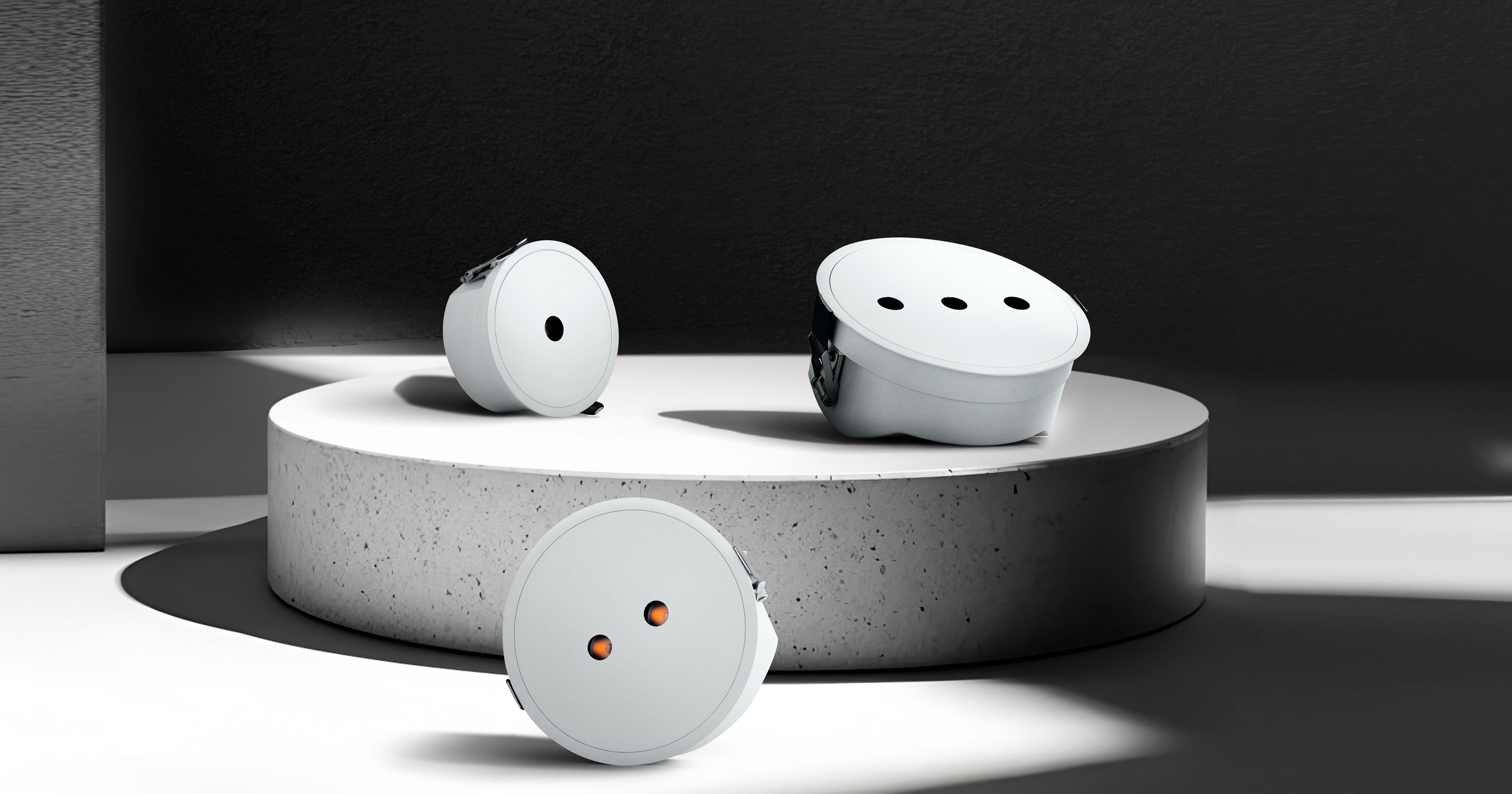

- Available in 1-head, 2-head, or 3-head configurations to suit different room sizes – from compact spaces to large open areas

- Choose between trim or trimless appearance for flexibility to match various ceiling styles and design preferences

- Integrated one-piece aluminium die-cast housing – excellent heat dissipation, corrosion-resistant, and built to last

- Black-hole optical lens technology – delivers bright, soft, and uniform light output with high transmittance, resistant to yellowing over time

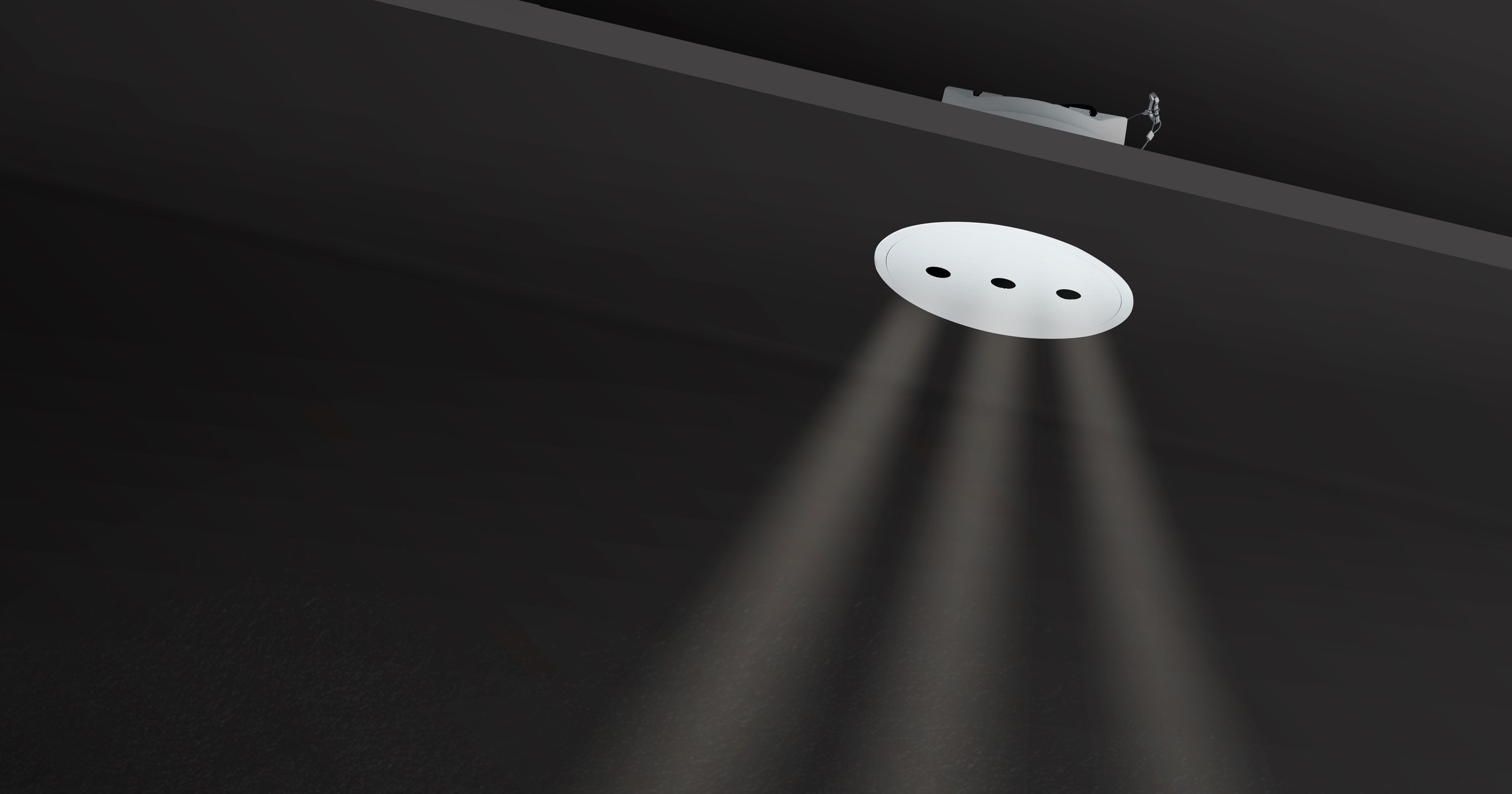

- Micro-aperture light emission – truly "see the light, not the source" for a clean, minimalist visual effect

- High colour rendering (Ra90) for vivid, natural colour presentation; deep anti-glare design ensures zero glare and comfortable viewing in no-main-light layouts

- Spring-loaded ball catch mounting – tool-free installation and easy maintenance

Specifications Specifications

- Housing: Integrated one-piece aluminium, eco-friendly die-cast construction

- Optical system: Black-hole lens technology with cross-beam optics

- Colour rendering: Ra90

- Anti-glare: Deep anti-glare design with effectively controlled glare

- Adjustability: Module slides along the housing slot; light head rotates independently

- Configurations: 1-head, 2-head, 3-head options available

- Mounting: Trim or trimless versions available; spring-loaded ball catch for quick installation

- Protection: Durable finish, corrosion-resistant

- Wattages: Multiple options available per configuration

Fields of application Fields of application

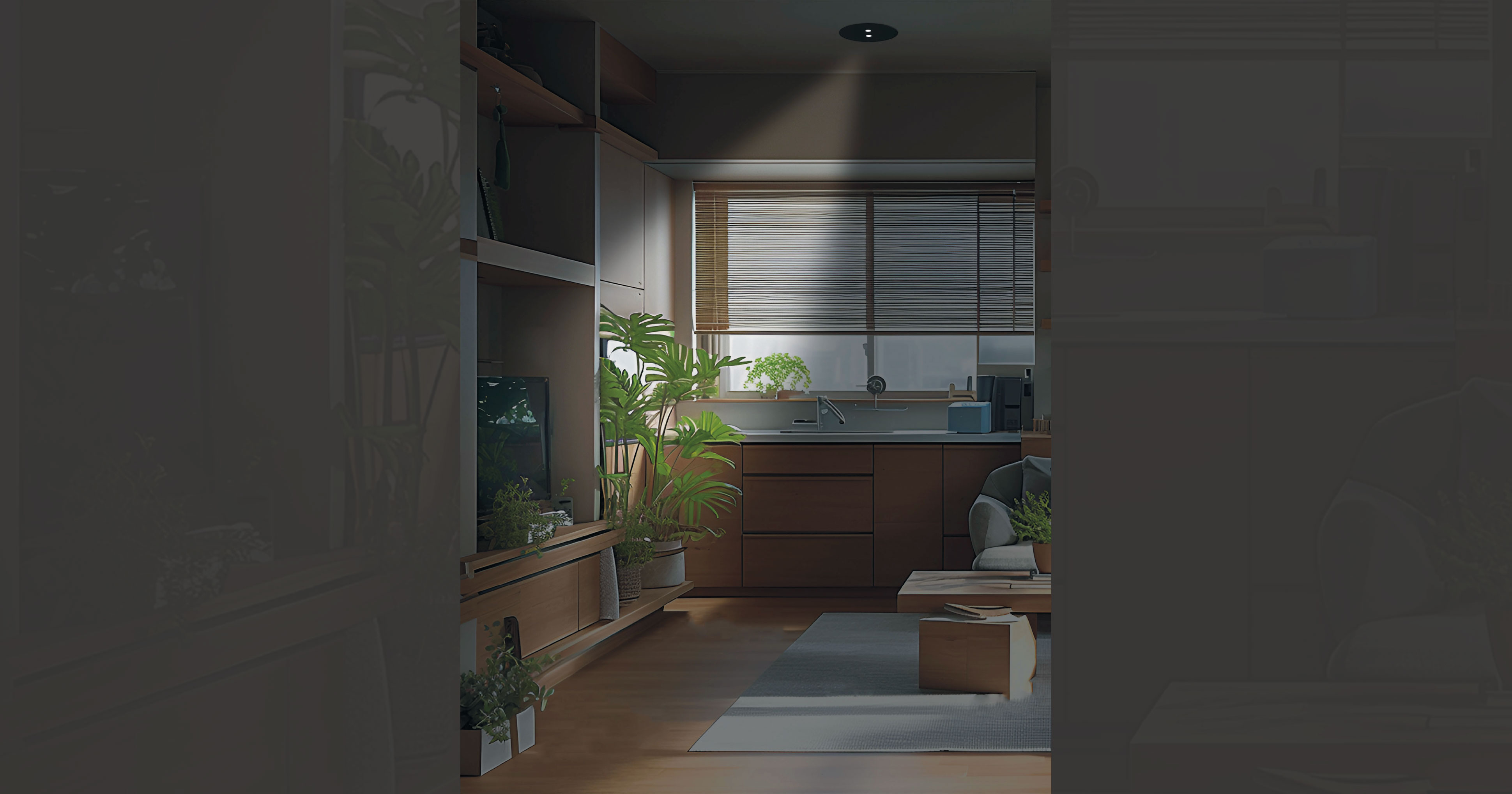

- Living rooms, dining rooms, and bedrooms in residential interiors

- Hotel lobbies, suites, and hospitality spaces

- Retail boutiques and display areas

- Art galleries and exhibition spaces (trimless version recommended)

- Office meeting rooms and collaborative zones

- Any space requiring flexible directional lighting with a clean, source-hidden aesthetic

Version

0 Article

Nominal power

15W

BEAM ANGLE

36°

24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

20W

BEAM ANGLE

36°

24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

30W

BEAM ANGLE

36°

24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-R836-COB1-30K-24	L-R836-COB1-30K-24	15W	3000K	900lm	24°	White/Black

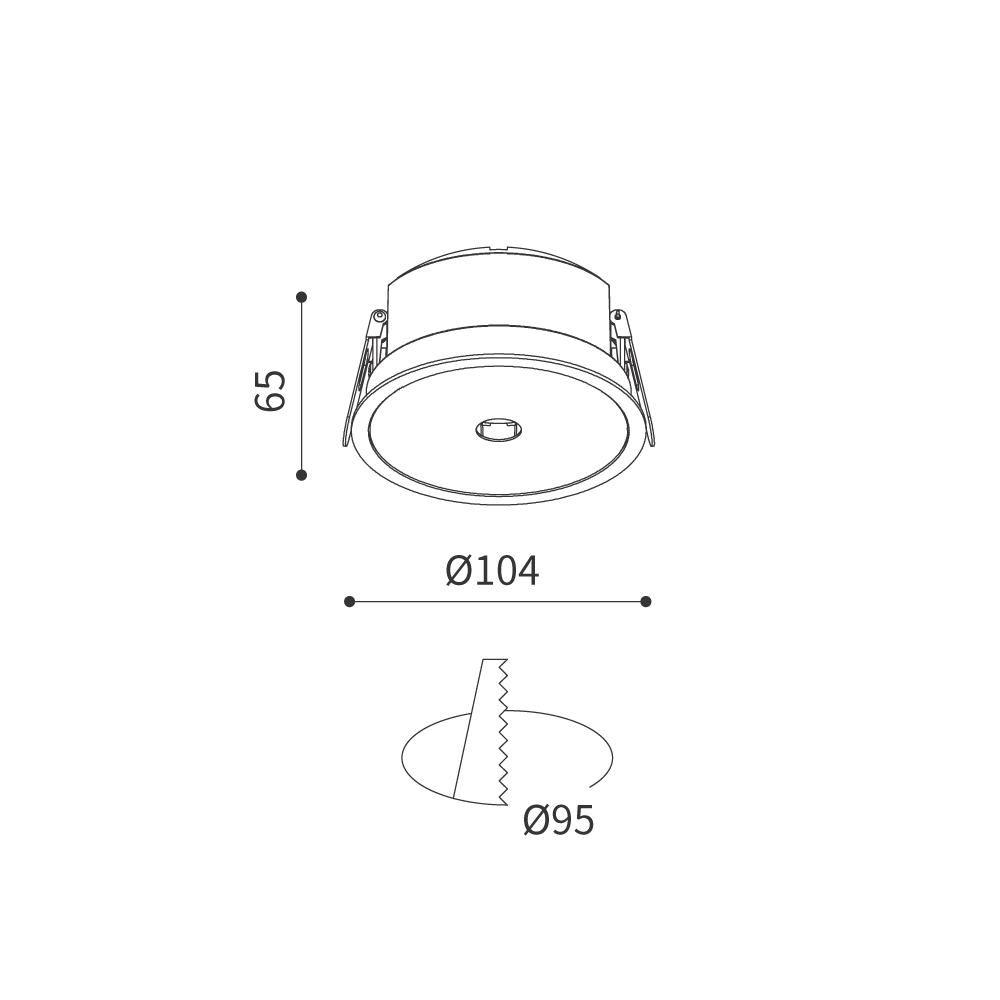

Get in Touch Get in Touch L-R836-COB1-30K-24 Unico-cob downlight, with LED,system power:15W, luminous flux of luminaire 900lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 350mA, Beam angle:24°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V.ingress protection IP20. Ø=104 mm, ceiling cutout ø95 mm Nominal power 15W Finish White/Black Delivered lumens 900lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.456kg Color Rendering Index(CRI) CRI≥90 Diameter 104mm Unified Glare Rating (UGR) UGR<9 Height 65mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 104mm Beam angle 24° Downloads None Accessories
	L-R836-COB1-30K-36	L-R836-COB1-30K-36	15W	3000K	900lm	36°	White/Black
Get in Touch Get in Touch L-R836-COB1-30K-36 Unico-cob downlight, with LED,system power:15W, luminous flux of luminaire 900lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 350mA, Beam angle:36°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V.ingress protection IP20. Ø=104 mm, ceiling cutout ø95 mm Nominal power 15W Finish White/Black Delivered lumens 900lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.456kg Color Rendering Index(CRI) CRI≥90 Diameter 104mm Unified Glare Rating (UGR) UGR<9 Height 65mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 104mm Beam angle 36° Downloads None Accessories
	L-R836-COB2-30K-24	L-R836-COB2-30K-24	20W	3000K	1220lm	24°	White/Black
Get in Touch Get in Touch L-R836-COB2-30K-24 Unico-cob downlight, with LED,system power:20W, luminous flux of luminaire 1220lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 500mA, Beam angle:24°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V.ingress protection IP20. Ø=155 mm, ceiling cutout ø145 mm Nominal power 20W Finish White/Black Delivered lumens 1220lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.78kg Color Rendering Index(CRI) CRI≥90 Diameter 155mm Unified Glare Rating (UGR) UGR<9 Height 74mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 155mm Beam angle 24° Downloads None Accessories
	L-R836-COB2-30K-36	L-R836-COB2-30K-36	20W	3000K	1220lm	36°	White/Black
Get in Touch Get in Touch L-R836-COB2-30K-36 Unico-cob downlight, with LED,system power:20W, luminous flux of luminaire 1220lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 500mA, Beam angle:36°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V.ingress protection IP20. Ø=155 mm, ceiling cutout ø145 mm Nominal power 20W Finish White/Black Delivered lumens 1220lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.78kg Color Rendering Index(CRI) CRI≥90 Diameter 155mm Unified Glare Rating (UGR) UGR<9 Height 74mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 155mm Beam angle 36° Downloads None Accessories
	L-R836-COB3-30K-24	L-R836-COB3-30K-24	30W	3000K	1830lm	24°	White/Black

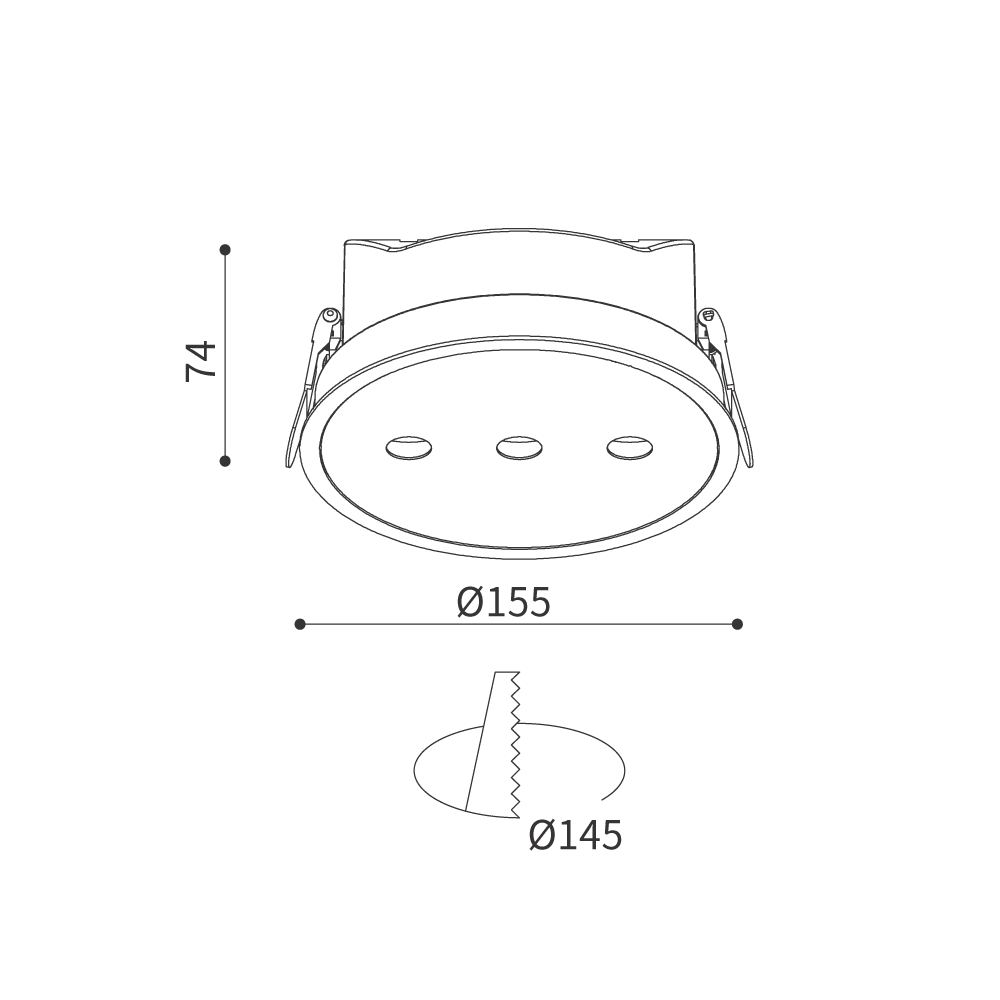

Get in Touch Get in Touch L-R836-COB3-30K-24 Unico-cob downlight, with LED,system power:30W, luminous flux of luminaire 1830lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 750mA, Beam angle:24°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V.ingress protection IP20. Ø=155 mm, ceiling cutout ø145 mm Nominal power 30W Finish White/Black Delivered lumens 1830lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.91kg Color Rendering Index(CRI) CRI≥90 Diameter 155mm Unified Glare Rating (UGR) UGR<9 Height 74mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 155mm Beam angle 24° Downloads None Accessories
	L-R836-COB3-30K-36	L-R836-COB3-30K-36	30W	3000K	1830lm	36°	White/Black
Get in Touch Get in Touch L-R836-COB3-30K-36 Unico-cob downlight, with LED,system power:30W, luminous flux of luminaire 1830lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 750mA, Beam angle:36°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V.ingress protection IP20. Ø=155 mm, ceiling cutout ø145mm Nominal power 30W Finish White/Black Delivered lumens 1830lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.91kg Color Rendering Index(CRI) CRI≥90 Diameter 155mm Unified Glare Rating (UGR) UGR<9 Height 74mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 155mm Beam angle 36° Downloads None Accessories
