TOP-NEXUS - Precision lighting, refined simplicity.

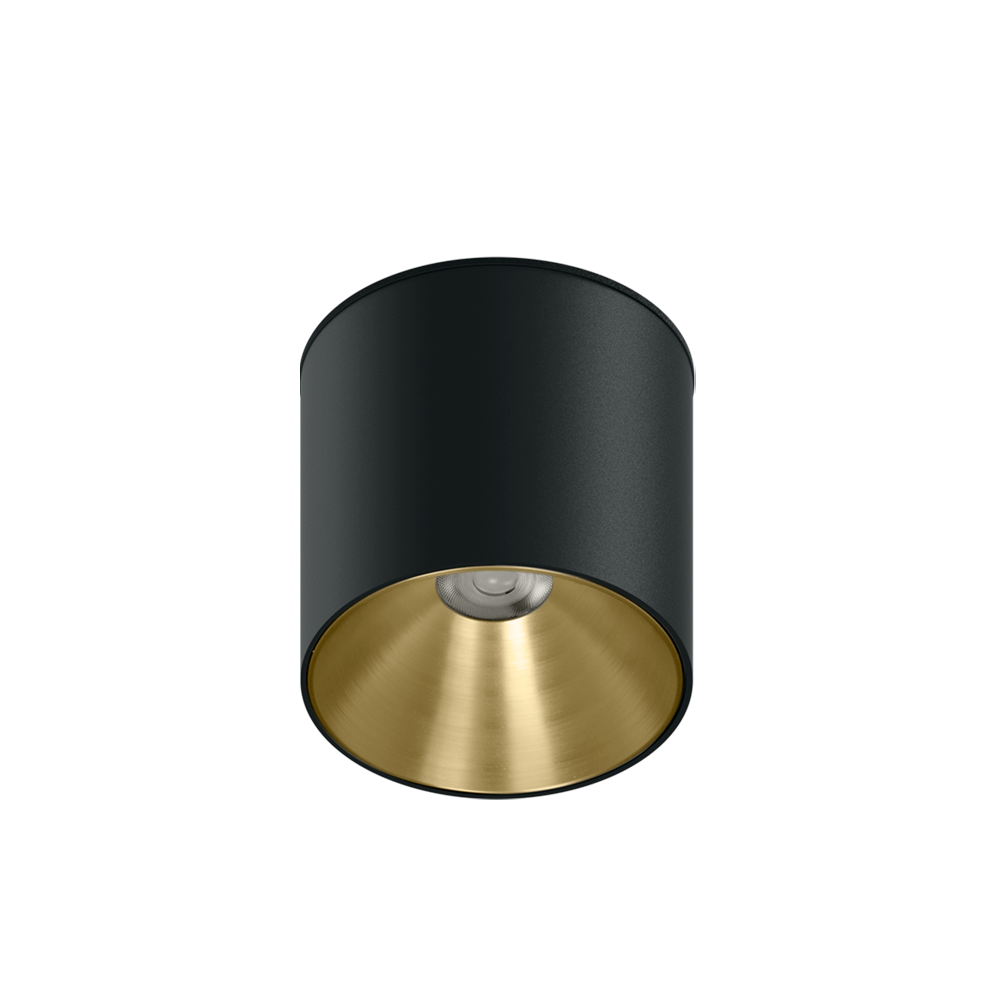

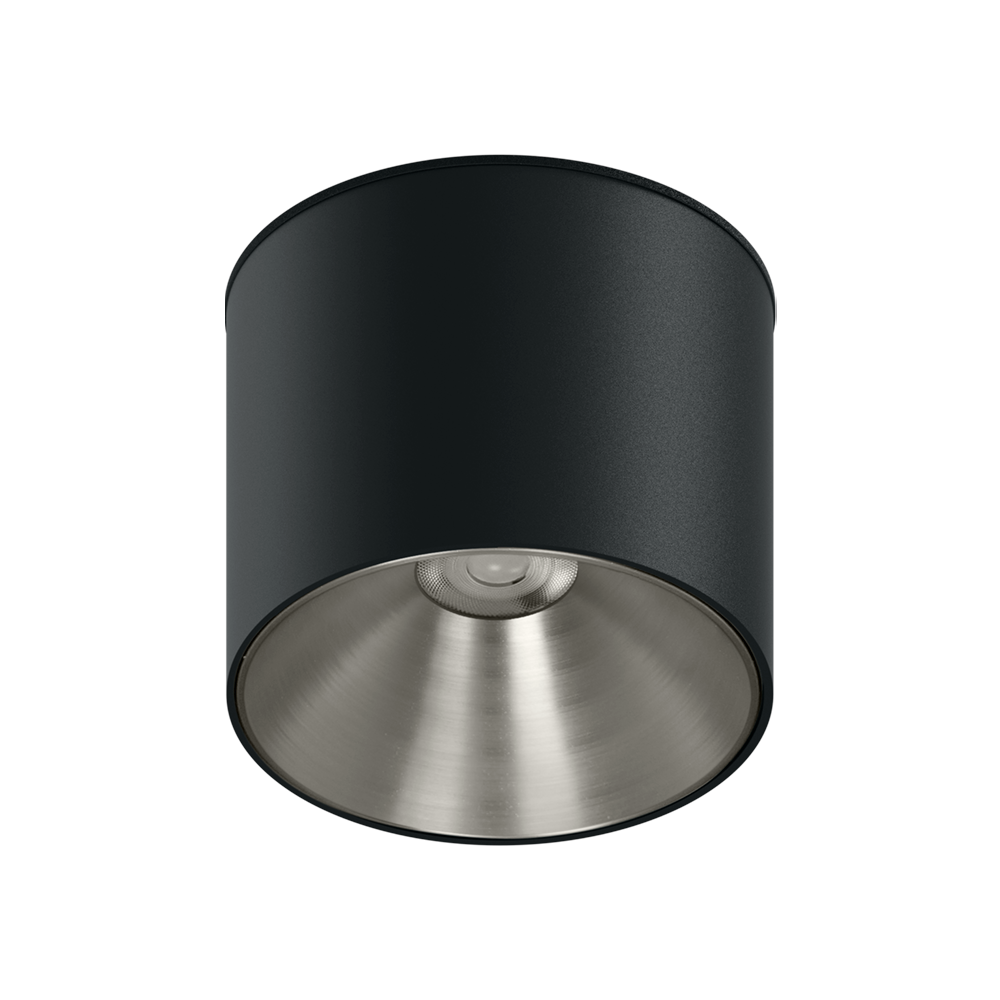

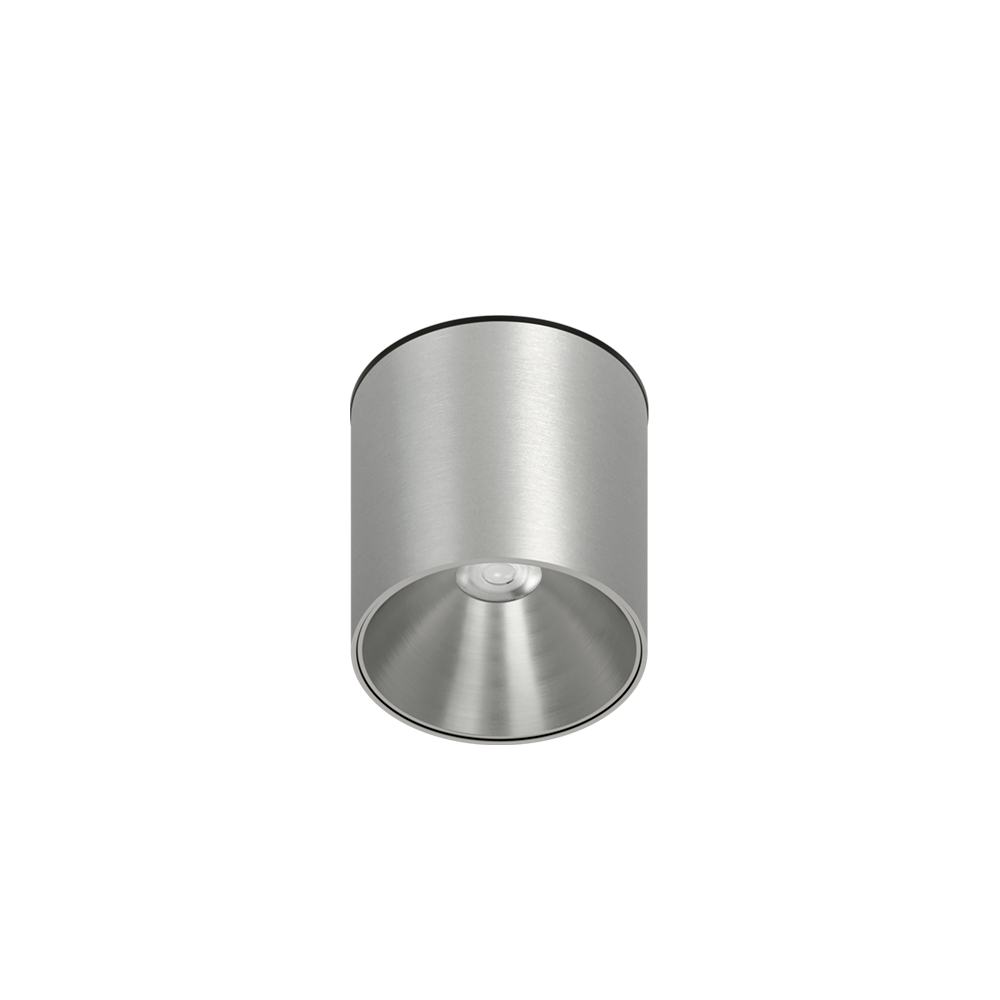

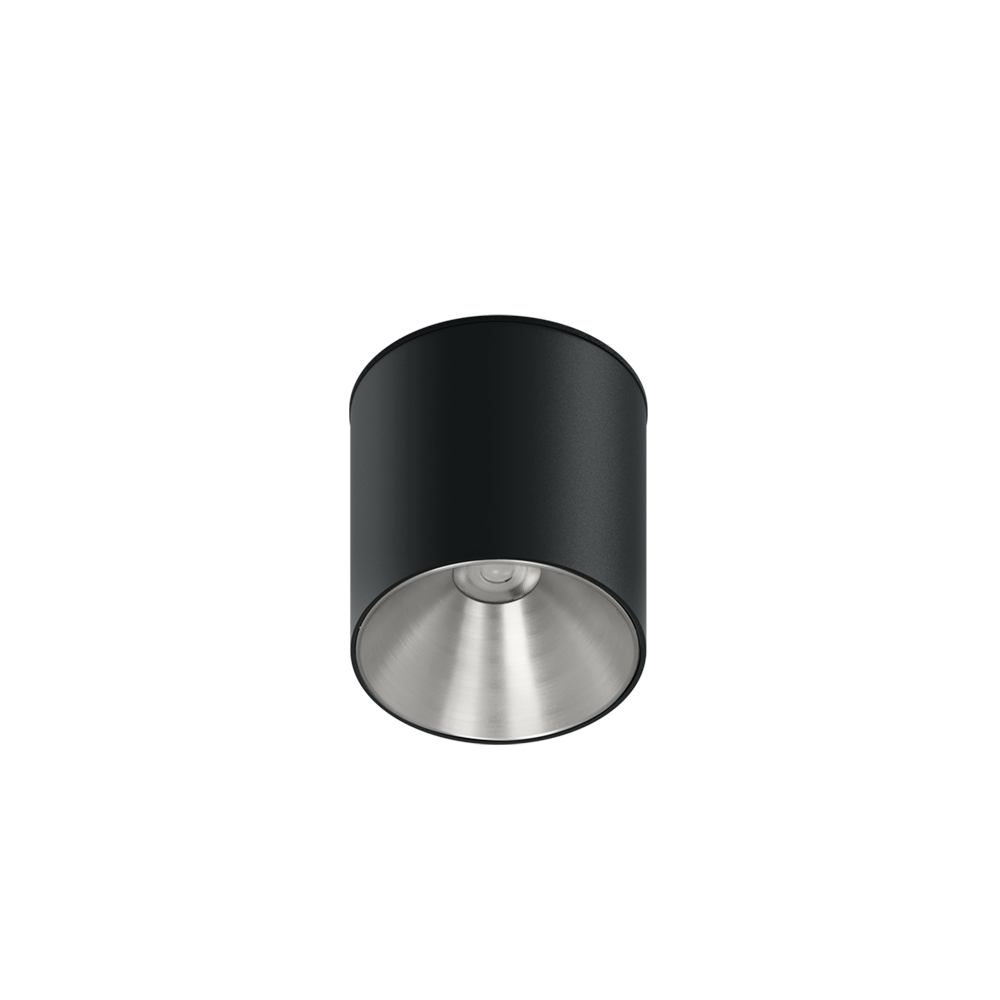

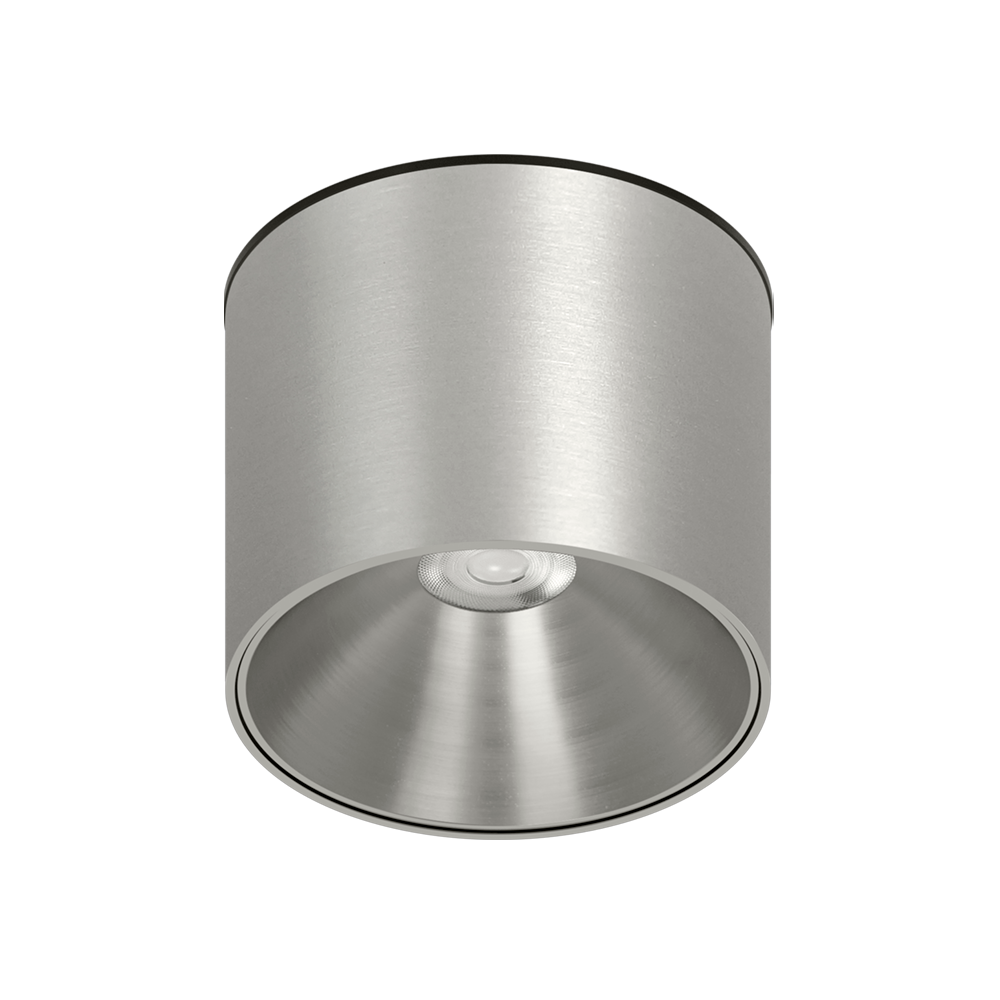

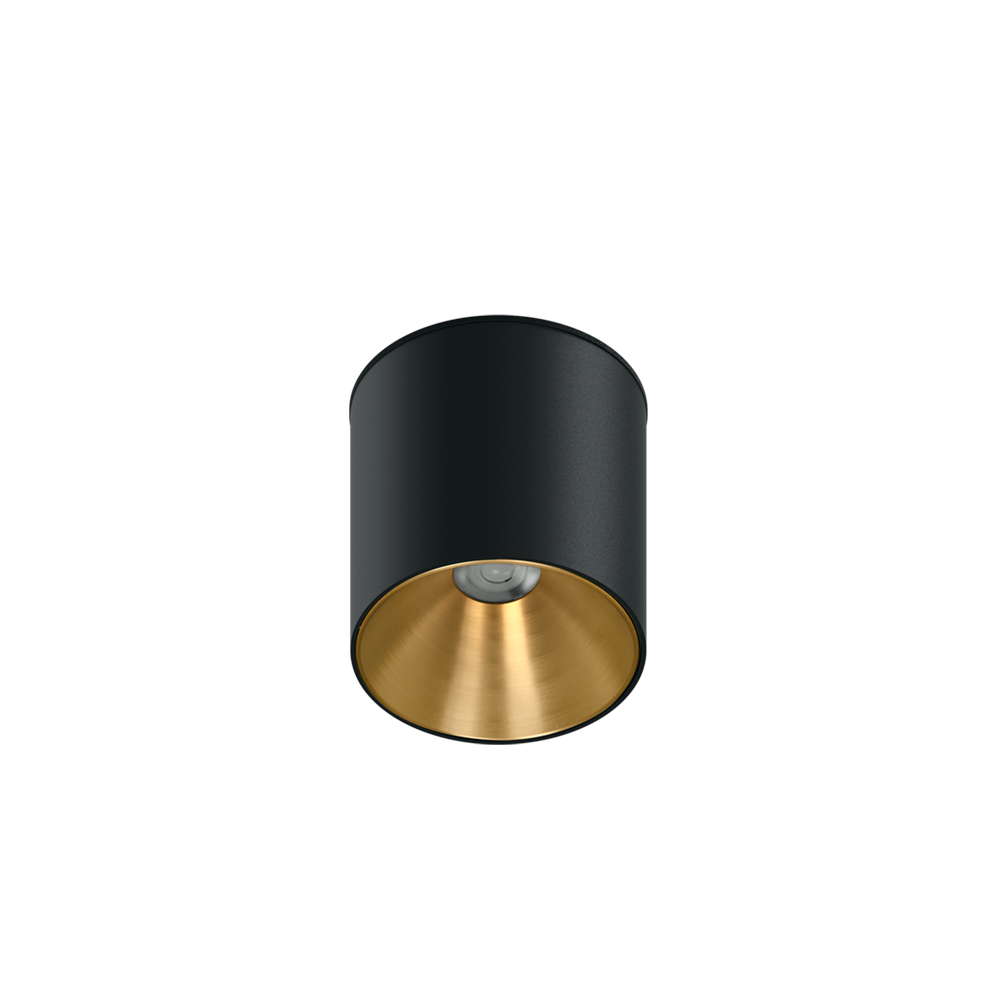

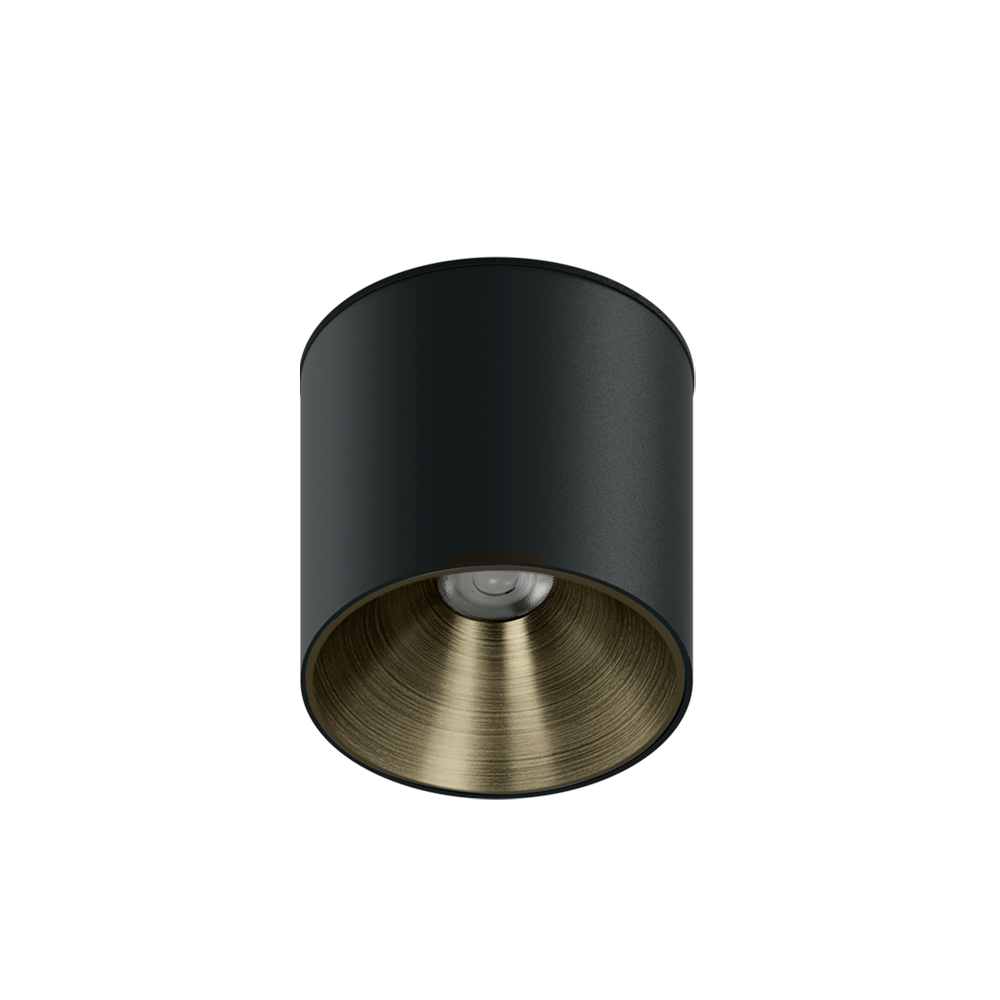

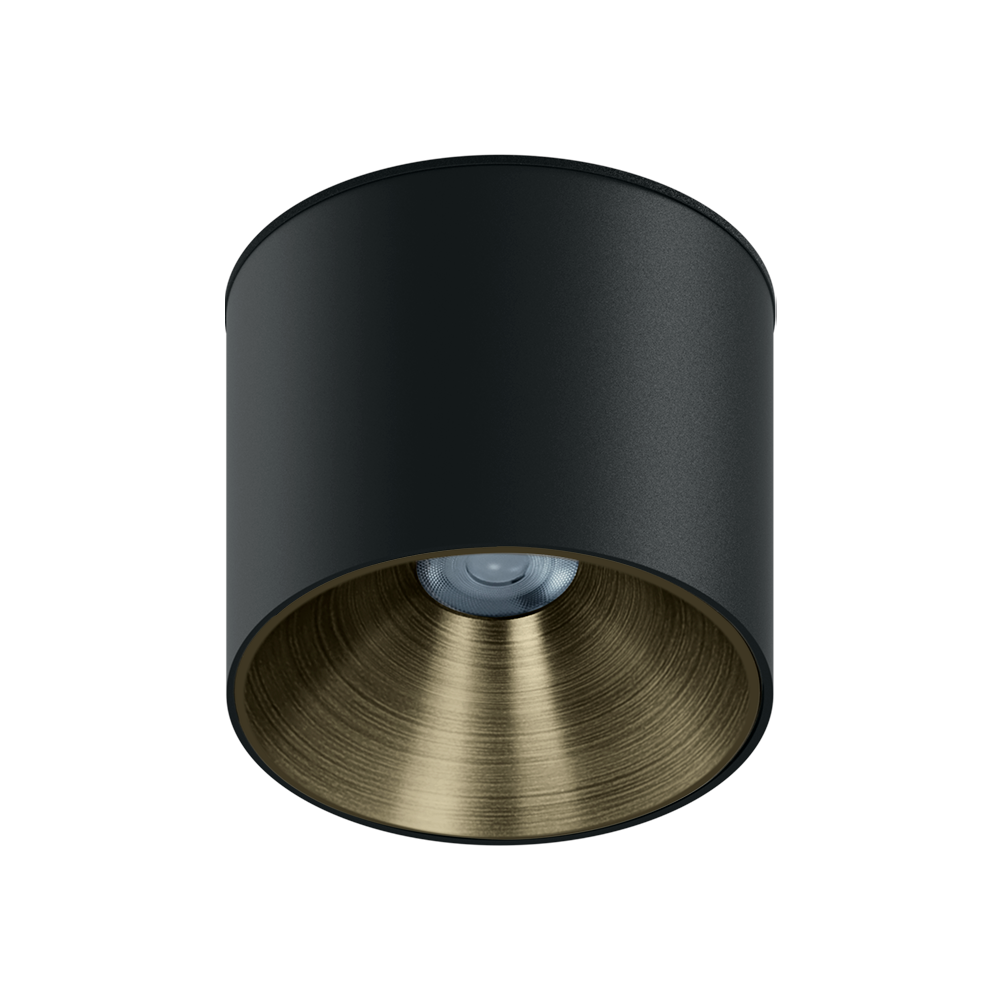

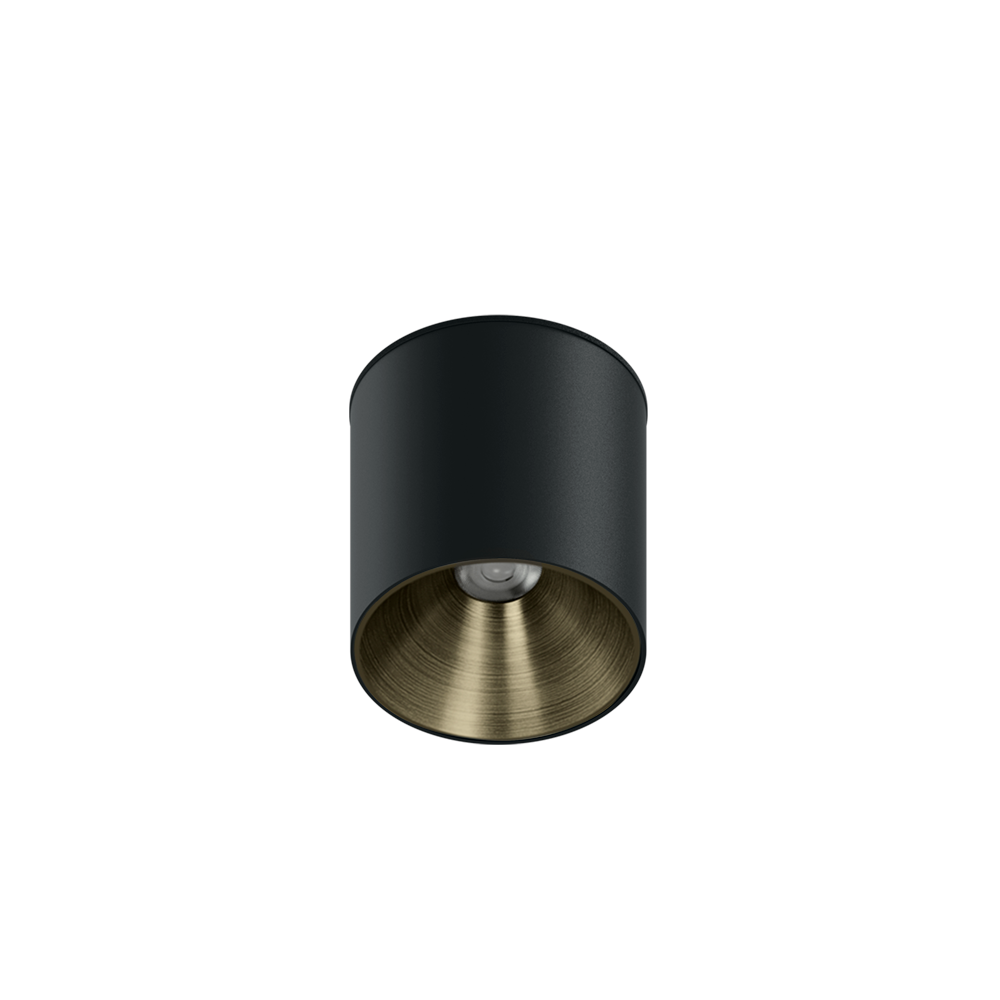

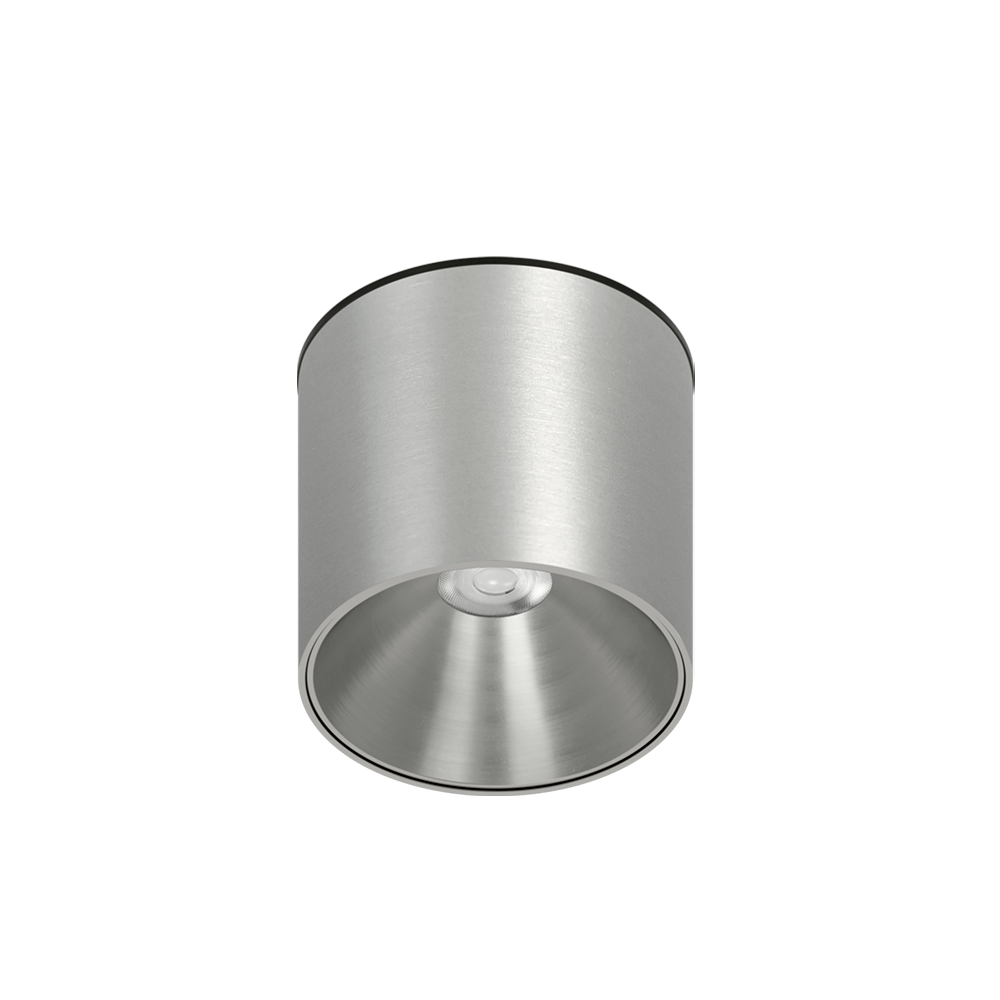

MIKA is a surface-mounted LED downlight series that combines clean aesthetics with reliable performance. Designed for indoor ceiling installation, it delivers high-quality light with excellent colour consistency and low glare – making it a versatile choice for modern commercial and residential spaces.

Features Features

- High‑power LED with spot beam optics (34°) for precise light distribution

- CRI ≥90 and 3‑step MacAdam colour consistency for true‑to‑life colour rendering

- Low UGR values (≤9.2) for visual comfort over extended periods

- Surface‑mount design for quick and easy ceiling installation

- Available in multiple finishes: White, Black, Nickel, and Gold

- Integrated constant‑current driver for stable and reliable operation

Specifications Specifications

- Optical performance: 690 lm source lumen output, delivering 540 lm with a luminaire efficacy of 84 lm/W. Colour temperature at 2700 K, CRI ≥90, and 3-step MacAdam colour consistency ensure accurate and uniform light quality.

- Electrical & driver: Rated at 7W DC with 6.4W input power at 220V AC. Operates on 220–240V AC, 50/60 Hz with a constant current output of 150mA DC. Integrated driver ensures stable and reliable operation.

- Lifetime & comfort: LED lifetime rated at L70 >61,000 hrs and L90 >41,000 hrs (TM-21). UGR values of 9.0 endwise and 9.2 crosswise (CIE 117, X=4H, Y=6H) ensure excellent visual comfort for prolonged use.

- Finish options: Available in White, Black, Nickel, and Gold finishes to suit various interior design styles.

Fields of application Fields of application

- Retail and boutique lighting

- Hospitality environments (hotels, restaurants)

- Office and commercial interiors

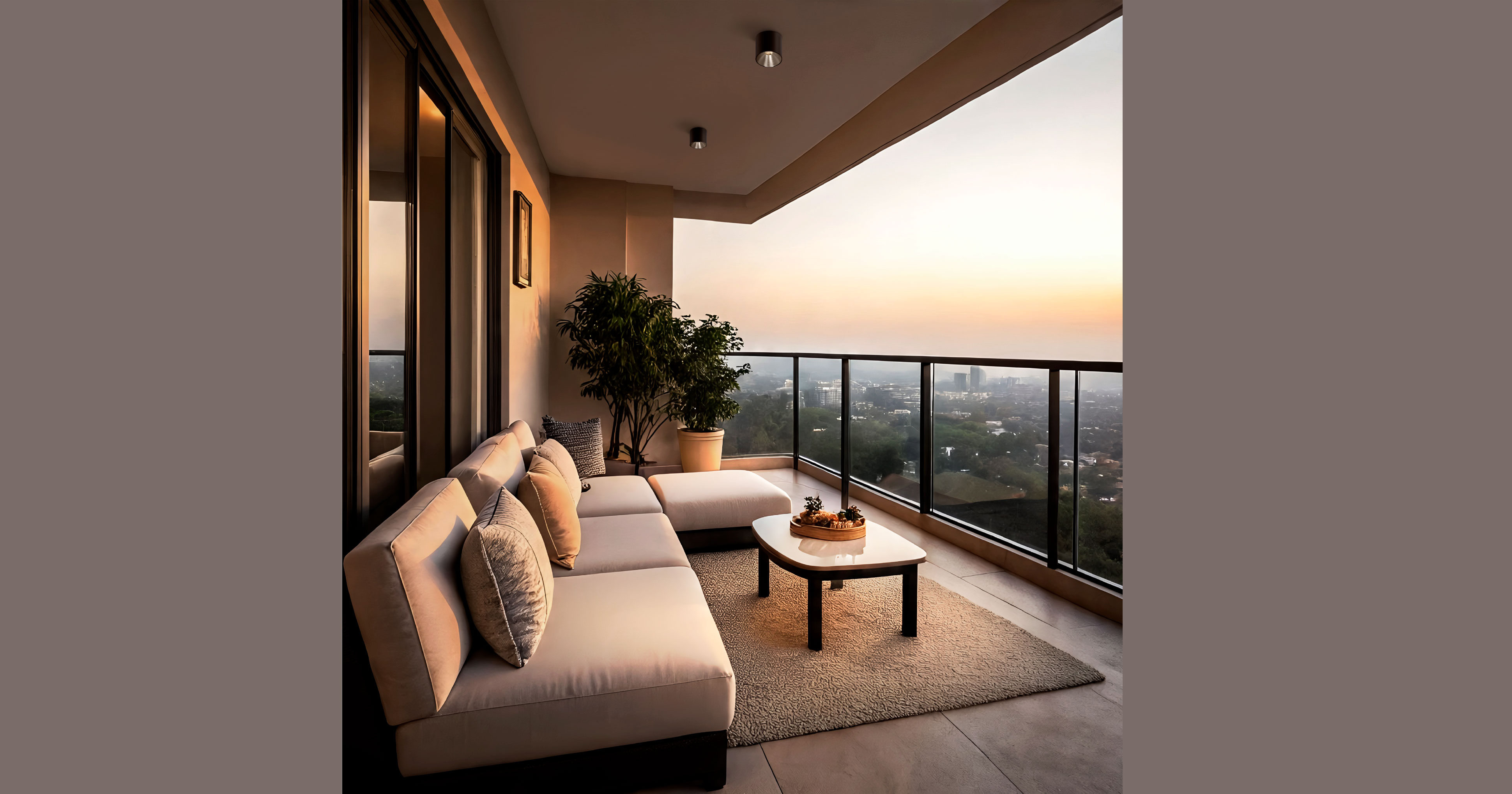

- Residential living spaces

- Corridors, lobbies, and public areas

Version

0 Article

Nominal power

BEAM ANGLE

40°

30°

20°

COLOUR / FINISH

Black/White/Gold/Nickel/Bronze

LIGHT CONTROL

ON/OFF

Nominal power

12W

BEAM ANGLE

50°

30°

20°

COLOUR / FINISH

Black/White/Gold/Nickel/Bronze

LIGHT CONTROL

ON/OFF

Nominal power

18W

BEAM ANGLE

60°

30°

20°

COLOUR / FINISH

Black/White/Gold/Nickel/Bronze

LIGHT CONTROL

ON/OFF

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-C1006-COB3-30K-20	L-C1006-COB3-30K-20	7W	3000K	427lm	20°	Black/White/Gold/Nickel/Bronze
Get in Touch Get in Touch L-C1006-COB3-30K-20 TOP-NEXUS Surface, with LED,system power:7W, luminous flux of luminaire 427m. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 150mA, Beam angle:20°, black/white/gold/nickel/bronze color, ON/OFF. ingress protection IP54. Ø=68 mm H=70 mm Nominal power 7W Finish Black/White/Gold/Nickel/Bronze Delivered lumens 427lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 68mm Unified Glare Rating (UGR) UGR<9 Length 70mm Light Control ON/OFF Width 68mm Beam angle 20° Downloads None Accessories
	L-C1006-COB3-30K-30	L-C1006-COB3-30K-30	7W	3000K	427lm	30°	Black/White/Gold/Nickel/Bronze
Get in Touch Get in Touch L-C1006-COB3-30K-30 TOP-NEXUS Surface, with LED,system power:7W, luminous flux of luminaire 427m. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 150mA, Beam angle:30°, black/white/gold/nickel/bronze color, ON/OFF. ingress protection IP54. Ø=68 mm H=70 mm Nominal power 7W Finish Black/White/Gold/Nickel/Bronze Delivered lumens 427lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 68mm Unified Glare Rating (UGR) UGR<9 Length 70mm Light Control ON/OFF Width 68mm Beam angle 30° Downloads None Accessories
	L-C1006-COB3-30K-40	L-C1006-COB3-30K-40	7W	3000K	427lm	40°	Black/White/Gold/Nickel/Bronze
Get in Touch Get in Touch L-C1006-COB3-30K-40 TOP-NEXUS Surface, with LED,system power:7W, luminous flux of luminaire 427m. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 150mA, Beam angle:40°, black/white/gold/nickel/bronze color, ON/OFF. ingress protection IP54. Ø=68 mm H=70 mm Nominal power 7W Finish Black/White/Gold/Nickel/Bronze Delivered lumens 427lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 68mm Unified Glare Rating (UGR) UGR<9 Length 70mm Light Control ON/OFF Width 68mm Beam angle 40° Downloads None Accessories
	L-C1006-COB4-30K-20	L-C1006-COB4-30K-20	12W	3000K	840lm	20°	Black/White/Gold/Nickel/Bronze
Get in Touch Get in Touch L-C1006-COB4-30K-20 TOP-NEXUS Surface, with LED,system power:12W, luminous flux of luminaire 840m. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:20°, black/white/gold/nickel/bronze color, ON/OFF. ingress protection IP54. Ø=90 mm H=85 mm Nominal power 12W Finish Black/White/Gold/Nickel/Bronze Delivered lumens 840lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 90mm Unified Glare Rating (UGR) UGR<9 Length 85mm Light Control ON/OFF Width 90mm Beam angle 20° Downloads None Accessories
	L-C1006-COB4-30K-30	L-C1006-COB4-30K-30	12W	3000K	840lm	30°	Black/White/Gold/Nickel/Bronze
Get in Touch Get in Touch L-C1006-COB4-30K-30 TOP-NEXUS Surface, with LED,system power:12W, luminous flux of luminaire 840m. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:30°, black/white/gold/nickel/bronze color, ON/OFF. ingress protection IP54. Ø=90 mm H=85 mm Nominal power 12W Finish Black/White/Gold/Nickel/Bronze Delivered lumens 840lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 90mm Unified Glare Rating (UGR) UGR<9 Length 85mm Light Control ON/OFF Width 90mm Beam angle 30° Downloads None Accessories
	L-C1006-COB4-30K-50	L-C1006-COB4-30K-50	12W	3000K	840lm	50°	Black/White/Gold/Nickel/Bronze
Get in Touch Get in Touch L-C1006-COB4-30K-50 TOP-NEXUS Surface, with LED,system power:12W, luminous flux of luminaire 840m. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:50°, black/white/gold/nickel/bronze color, ON/OFF. ingress protection IP54. Ø=90 mm H=85 mm Nominal power 12W Finish Black/White/Gold/Nickel/Bronze Delivered lumens 840lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 90mm Unified Glare Rating (UGR) UGR<9 Length 85mm Light Control ON/OFF Width 90mm Beam angle 50° Downloads None Accessories
	L-C1006-COB5-30K-20	L-C1006-COB5-30K-20	18W	3000K	1278lm	20°	Black/White/Gold/Nickel/Bronze
Get in Touch Get in Touch L-C1006-COB5-30K-20 TOP-NEXUS Surface, with LED,system power:18W, luminous flux of luminaire 1278m. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 400mA, Beam angle:20°, black/white/gold/nickel/bronze color, ON/OFF. ingress protection IP54. Ø=120 mm H=95 mm Nominal power 18W Finish Black/White/Gold/Nickel/Bronze Delivered lumens 1278lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 120mm Unified Glare Rating (UGR) UGR<9 Length 95mm Light Control ON/OFF Width 120mm Beam angle 20° Downloads None Accessories
	L-C1006-COB5-30K-30	L-C1006-COB5-30K-30	18W	3000K	1278lm	30°	Black/White/Gold/Nickel/Bronze
Get in Touch Get in Touch L-C1006-COB5-30K-30 TOP-NEXUS Surface, with LED,system power:18W, luminous flux of luminaire 1278m. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 400mA, Beam angle:30°, black/white/gold/nickel/bronze color, ON/OFF. ingress protection IP54. Ø=120 mm H=95 mm Nominal power 18W Finish Black/White/Gold/Nickel/Bronze Delivered lumens 1278lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 120mm Unified Glare Rating (UGR) UGR<9 Length 95mm Light Control ON/OFF Width 120mm Beam angle 30° Downloads None Accessories
	L-C1006-COB5-30K-60	L-C1006-COB5-30K-60	18W	3000K	1278lm	60°	Black/White/Gold/Nickel/Bronze
Get in Touch Get in Touch L-C1006-COB5-30K-60 TOP-NEXUS Surface, with LED,system power:18W, luminous flux of luminaire 1278m. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 400mA, Beam angle:60°, black/white/gold/nickel/bronze color, ON/OFF. ingress protection IP54. Ø=120 mm H=95 mm Nominal power 18W Finish Black/White/Gold/Nickel/Bronze Delivered lumens 1278lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight /kg Color Rendering Index(CRI) CRI≥90 Diameter 120mm Unified Glare Rating (UGR) UGR<9 Length 95mm Light Control ON/OFF Width 120mm Beam angle 60° Downloads None Accessories
