A&C SURFACE

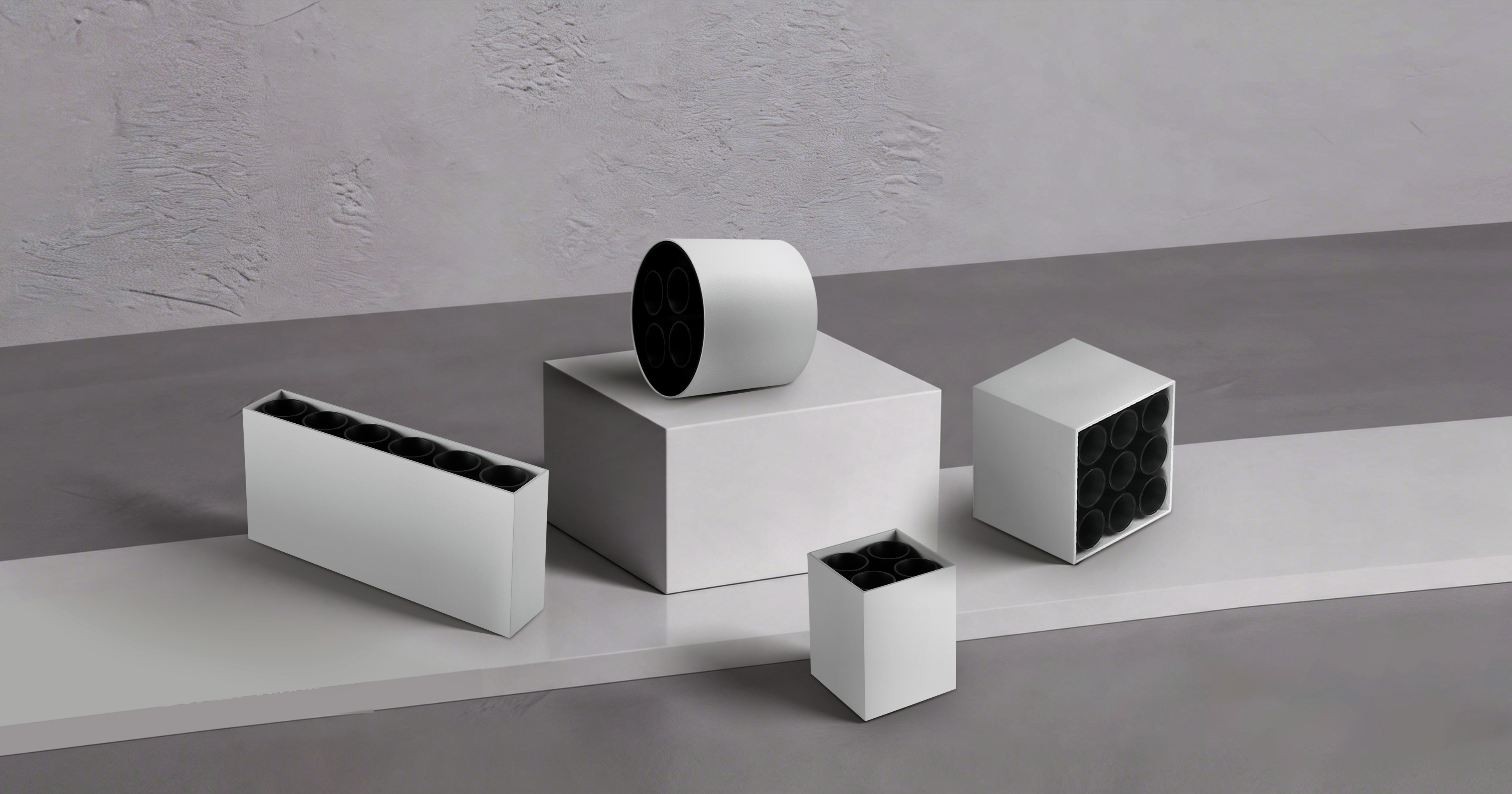

A&C-SURFACE series is a surface light, square rectangular luminaires, available in 4, 6 or 9 light versions.This family of luminaires is manufactured in different sizes and power so it is easy to find one that fits best to your lighting needs.

Features Features

-These luminaires long oplics to distribute the light over o more norrow area than with traditional lighting.

-Create a circle of light from a line of LED Downlights

-A narrow line of nano LED Downlights for pure minimalism Superior glare control for high performance

-Trimless Version Trim Version

Specifications Specifications

-Black and white versions available

-Aluminum housing and in powder-coated finish, excellent dissipation

-ON/OFF, TRIAC 0-10V, and DALl control system

-Switchable CCT version in 3000K-3500K-4000K switchable, easier for keeping stock

-Downlight with pleasantly homogeneous luminance levels

Fields of application Fields of application

Retail & Hospitality

retail spaces, presentation of merchandise, restaurants, hotels,

shop windows,exhibition spaces

Office & Education

offices, conference rooms, art & culture establishments

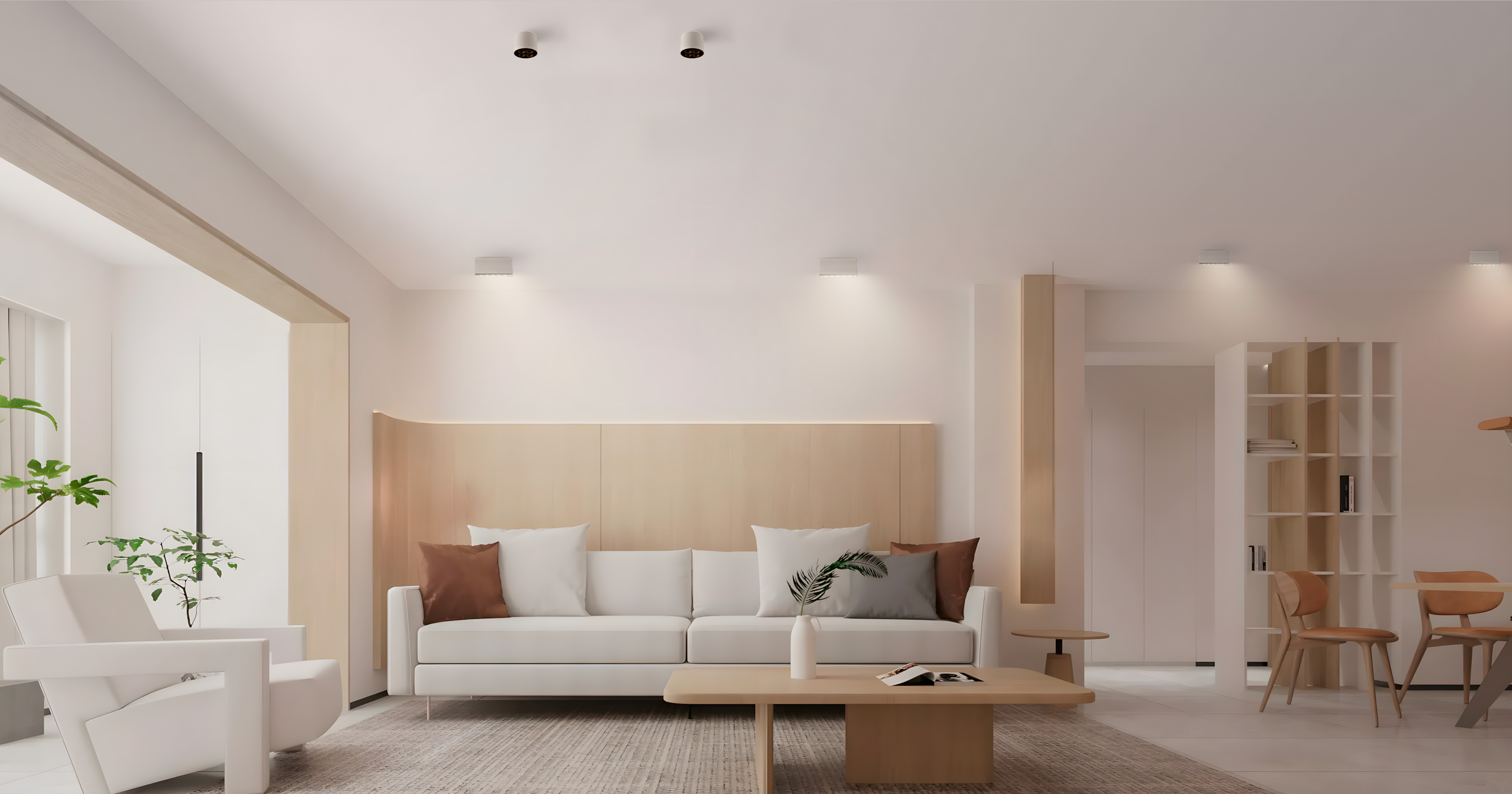

Home & Living

Version

0 Article

Nominal power

10W

BEAM ANGLE

38°

24°

16°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF

Nominal power

10W

BEAM ANGLE

38°

24°

16°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF

Nominal power

15W

BEAM ANGLE

16°

35°

24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF

Nominal power

20W

BEAM ANGLE

38°

24°

16°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-C400-4-30K-16	L-C400-4-30K-16	10W	3000K	710lm	16°	White/Black

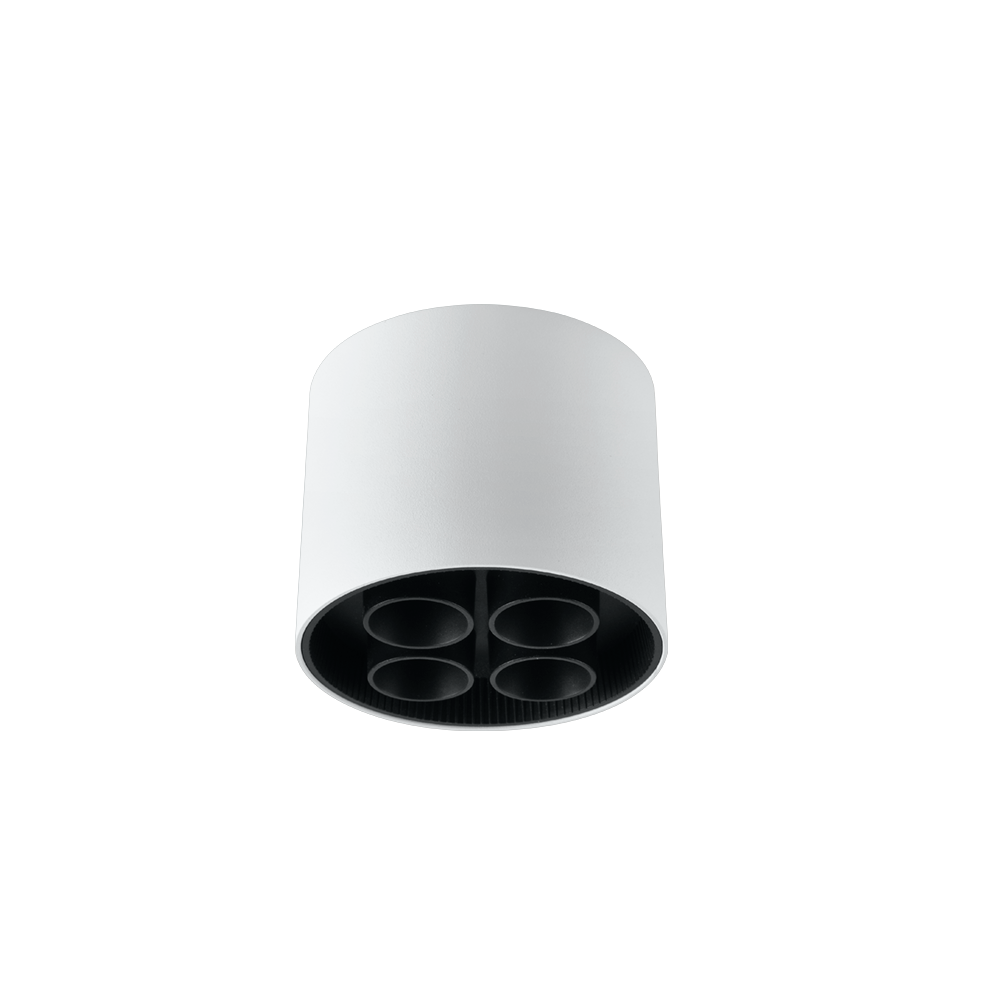

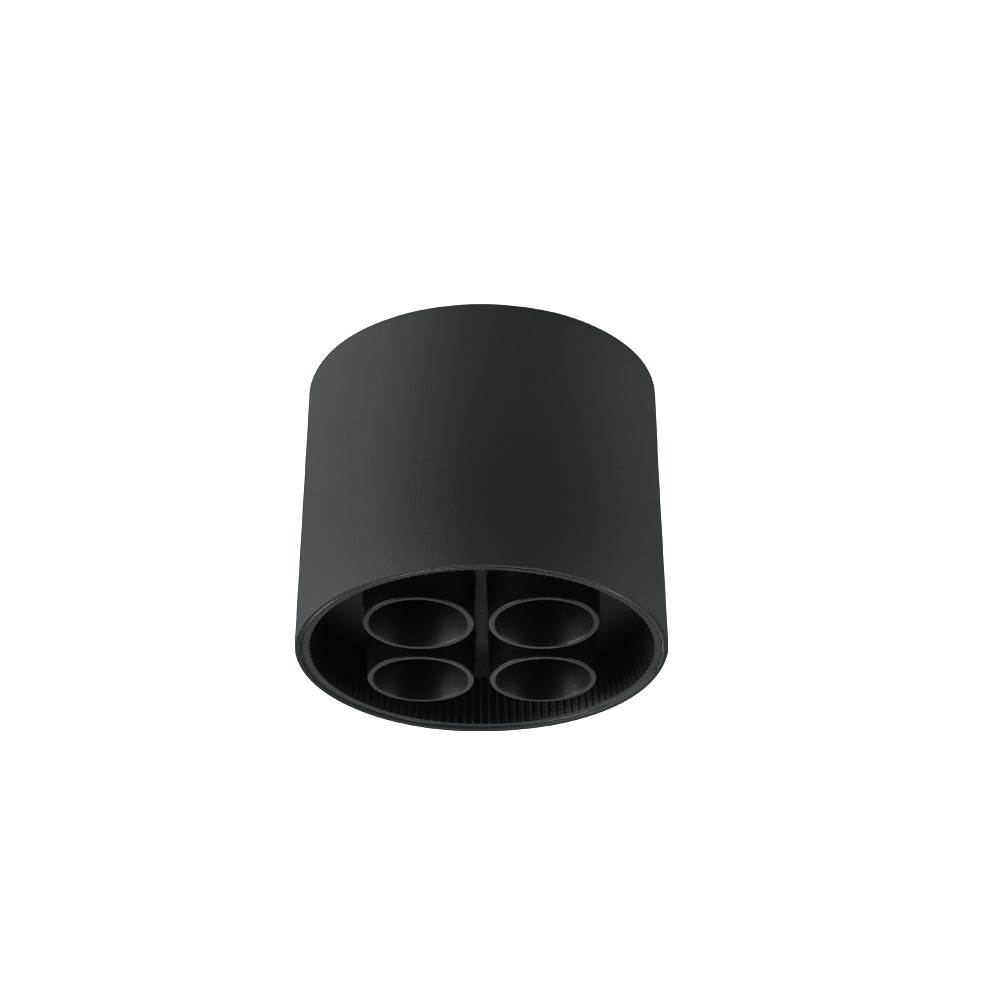

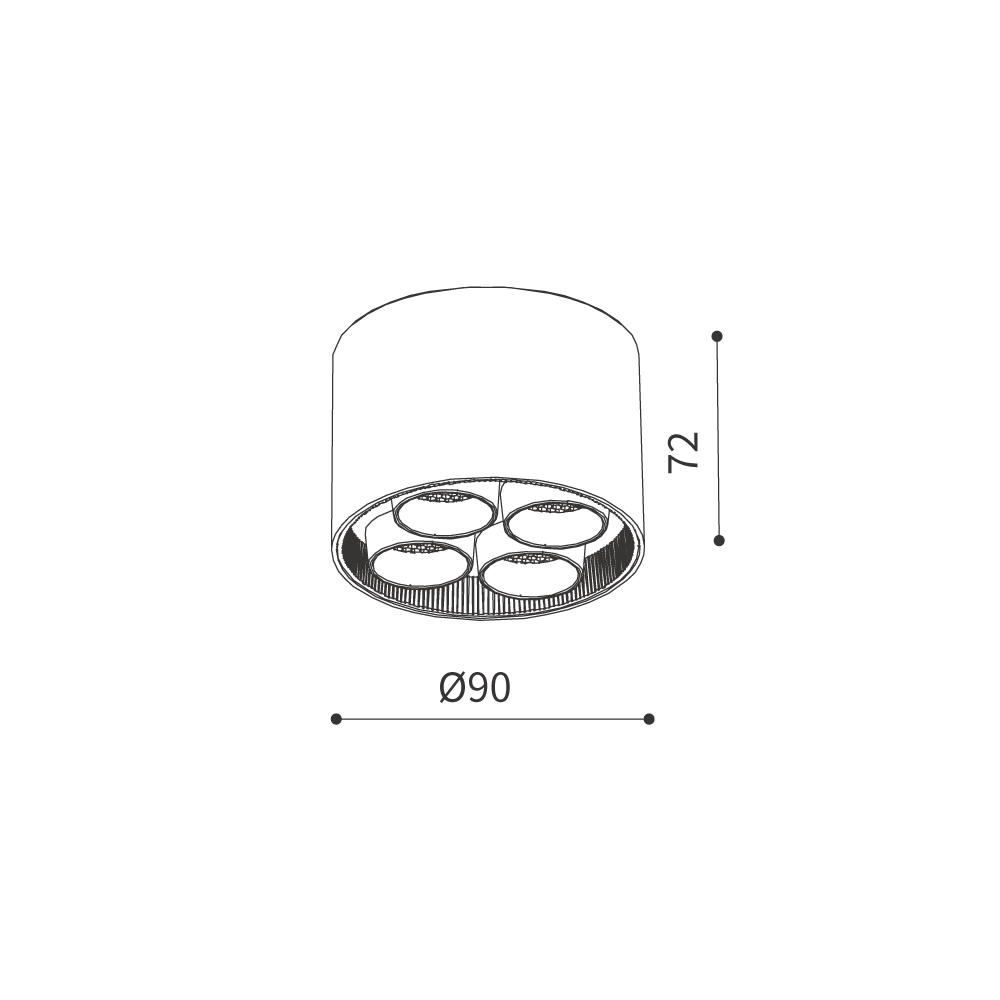

Get in Touch Get in Touch L-C400-4-30K-16 A&C Surface, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=90 mm H=72 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.52kg Color Rendering Index(CRI) CRI≥90 Diameter 90mm Unified Glare Rating (UGR) UGR <10 Length 72mm Light Control ON/OFF Width 90mm Beam angle 16° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-C400-4-30K-24	L-C400-4-30K-24	10W	3000K	710lm	24°	White/Black
Get in Touch Get in Touch L-C400-4-30K-24 A&C Surface, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=90 mm H=72 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.52kg Color Rendering Index(CRI) CRI≥90 Diameter 90mm Unified Glare Rating (UGR) UGR<10 Length 72mm Light Control ON/OFF Width 90mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-C400-4-30K-38	L-C400-4-30K-38	10W	3000K	710lm	38°	White/Black
Get in Touch Get in Touch L-C400-4-30K-38 A&C Surface, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:38°, black/white color, ON/OFF.ingress protection IP20. Ø=90 mm H=72 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.52kg Color Rendering Index(CRI) CRI≥90 Diameter 90mm Unified Glare Rating (UGR) UGR <10 Length 72mm Light Control ON/OFF Width 90mm Beam angle 38° Downloads None Accessories Transparent PVC sheet Honeycomb

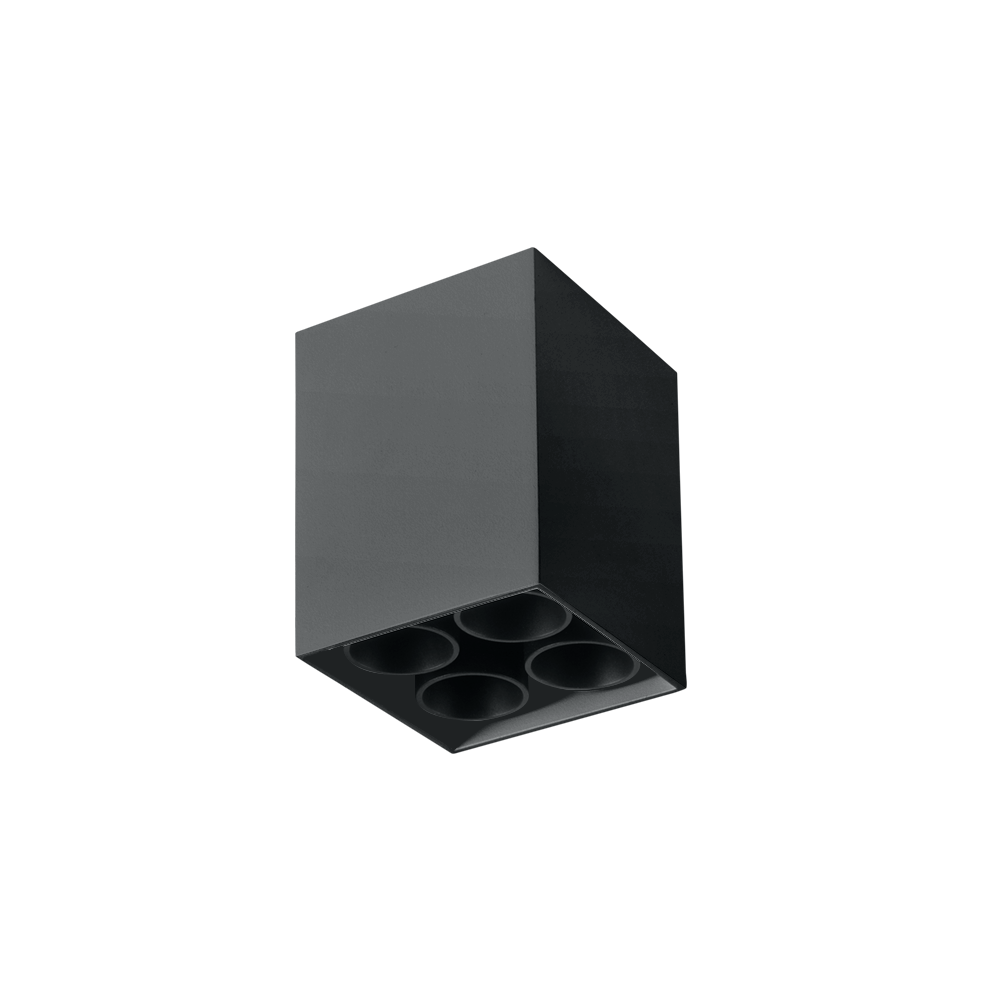

	L-D333-4-30K-16	L-D333-4-30K-16	10W	3000K	710lm	16°	White/Black

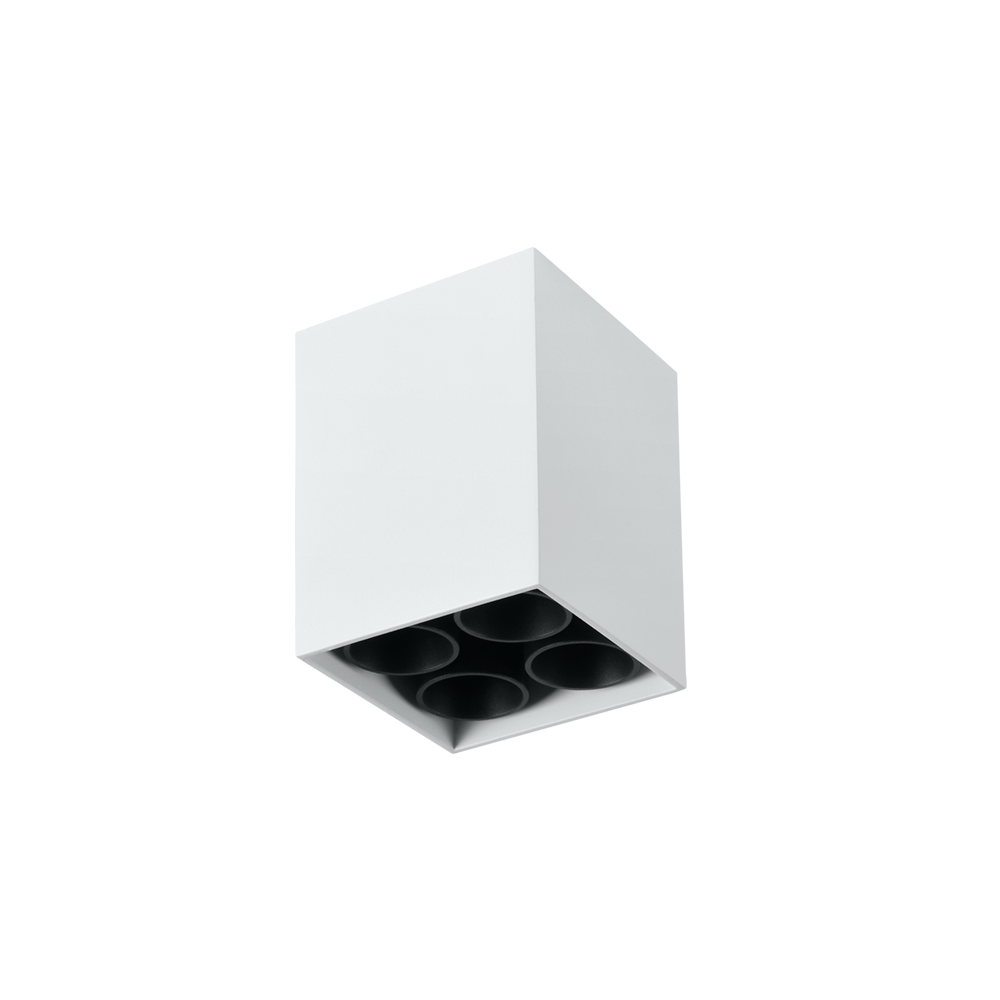

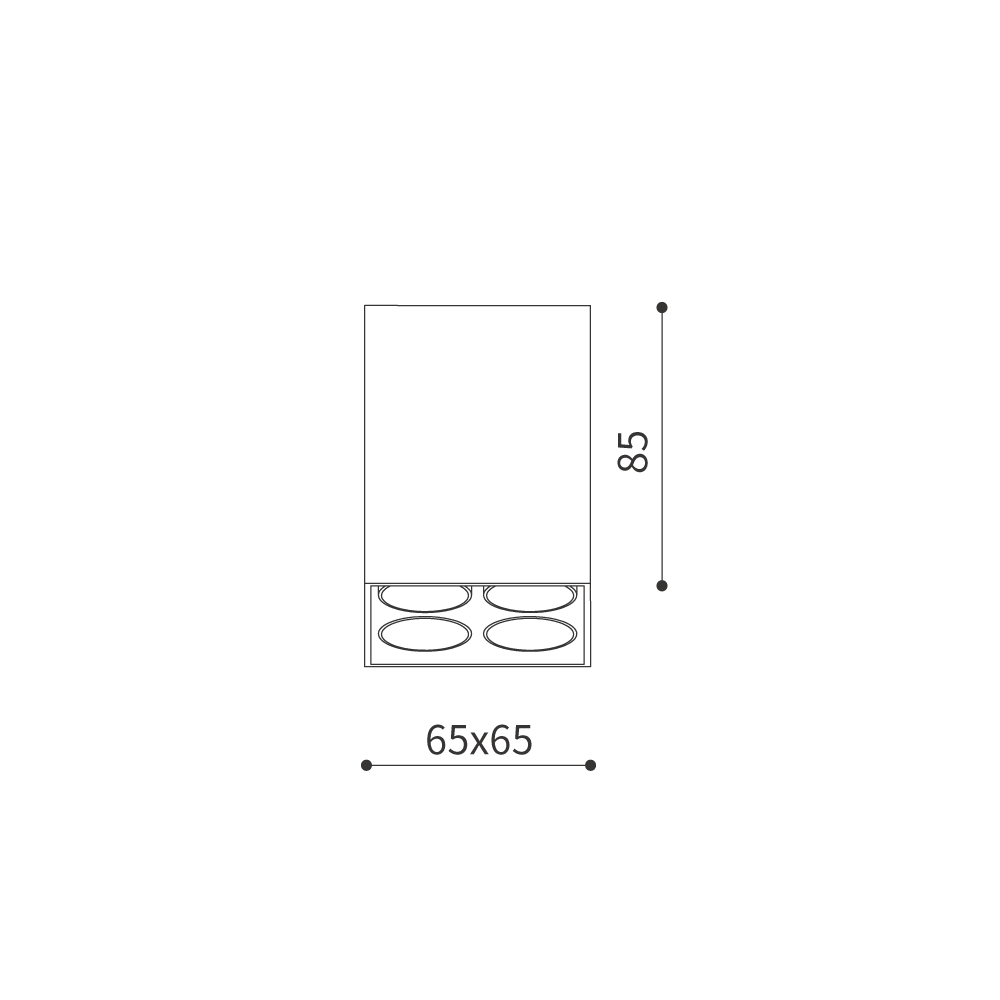

Get in Touch Get in Touch L-D333-4-30K-16 A&C Surface, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=65x65 mm H=85 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.31kg Color Rendering Index(CRI) CRI≥90 Height 85mm Unified Glare Rating (UGR) UGR <10 Length 65mm Light Control ON/OFF Width 65mm Beam angle 16° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D333-4-30K-24	L-D333-4-30K-24	10W	3000K	710lm	24°	White/Black
Get in Touch Get in Touch L-D333-4-30K-24 A&C Surface, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl>90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=65x65 mm H=85 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.31kg Color Rendering Index(CRI) CRI≥90 Height 85mm Unified Glare Rating (UGR) UGR <10 Length 65mm Light Control ON/OFF Width 65mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D333-4-30K-38	L-D333-4-30K-38	10W	3000K	710lm	38°	White/Black
Get in Touch Get in Touch L-D333-4-30K-38 A&C Surface, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:38°, black/white color, ON/OFF.ingress protection IP20. Ø=65x65 mm H=85 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.31kg Color Rendering Index(CRI) CRI≥90 Height 85mm Unified Glare Rating (UGR) UGR<10 Length 65mm Light Control ON/OFF Width 65mm Beam angle 38° Downloads None Accessories Transparent PVC sheet Honeycomb

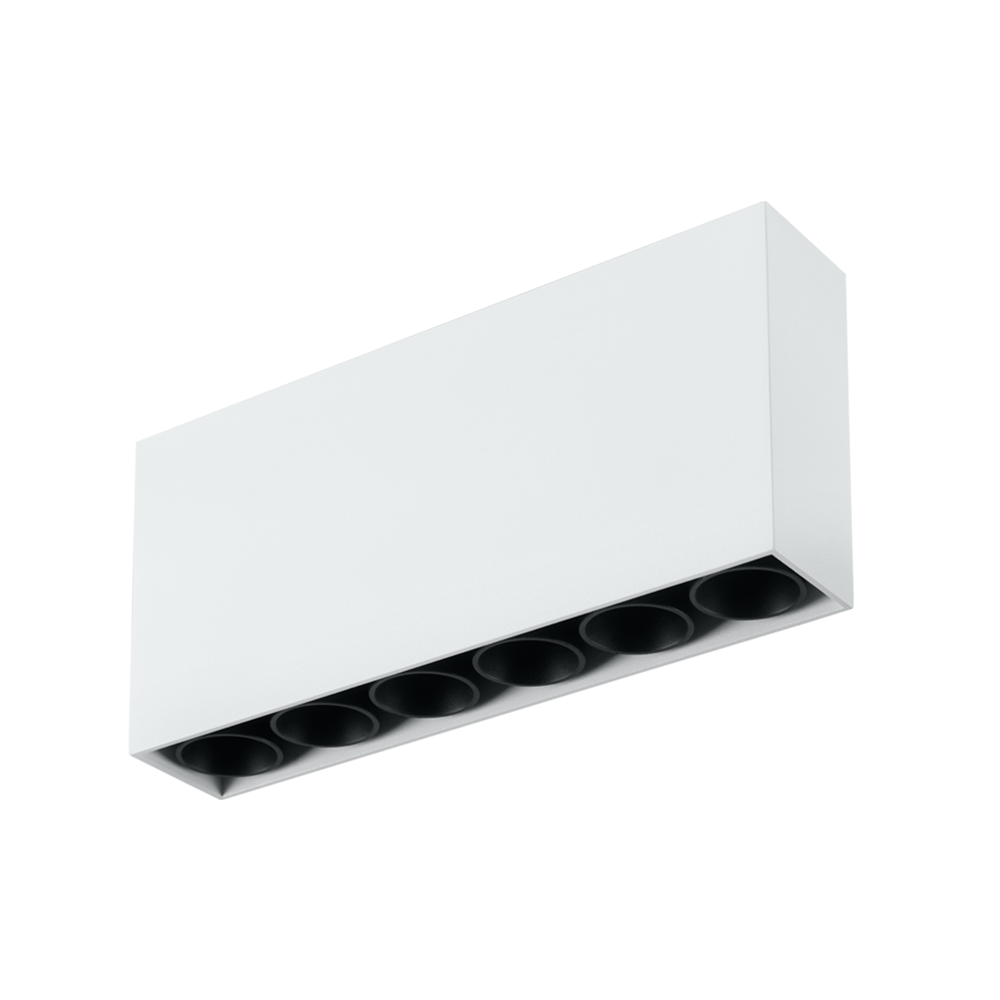

	L-D333-6-30K-16	L-D333-6-30K-16	15W	3000K	950lm	16°	White/Black

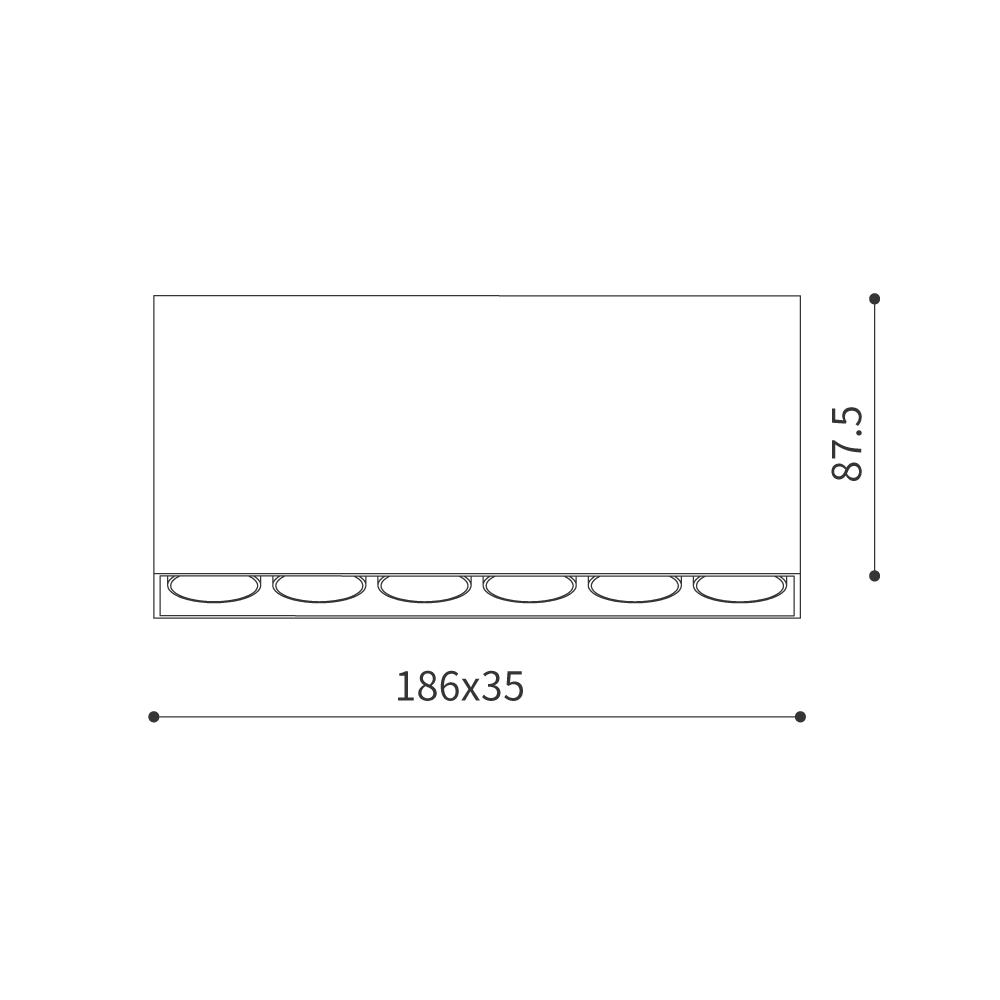

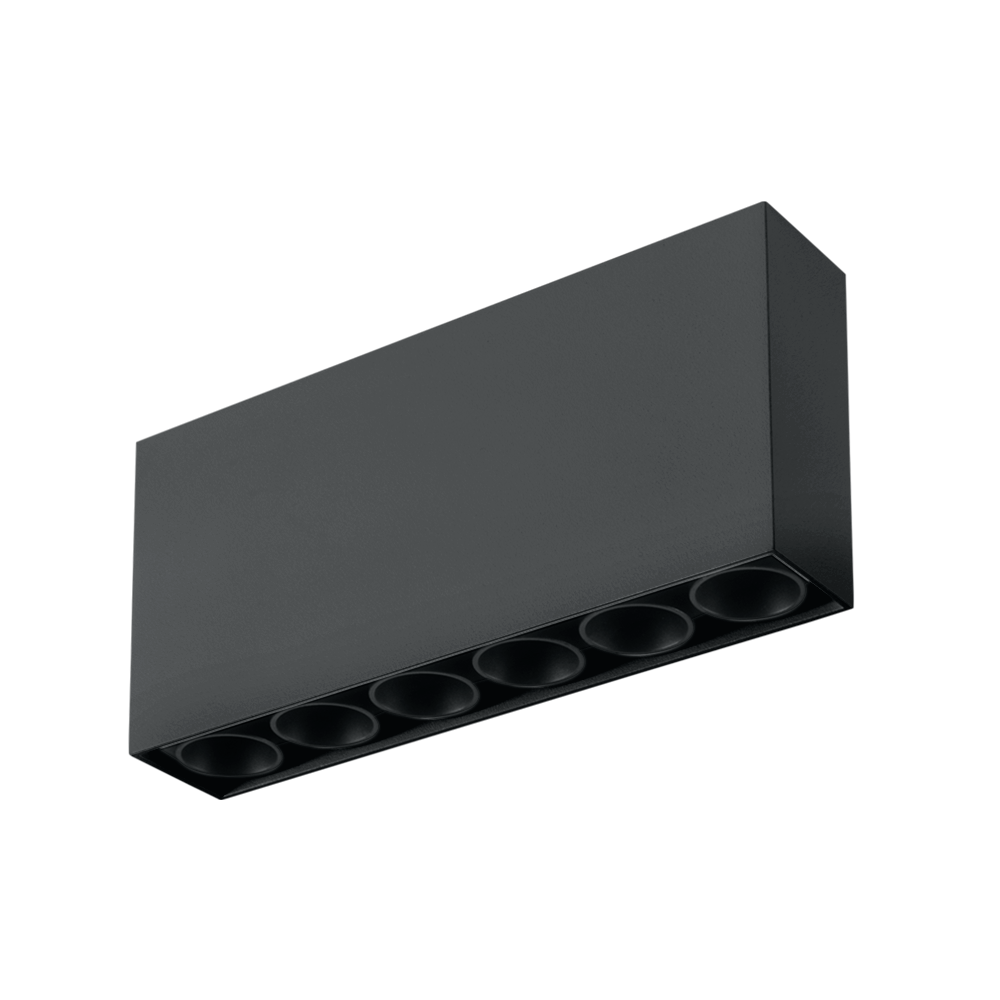

Get in Touch Get in Touch L-D333-6-30K-16 A&C Surface, with LED,system power:15W, luminous flux of luminaire 950lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=186x35 mm H=87.5 mm Nominal power 15W Finish White/Black Delivered lumens 950lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.53kg Color Rendering Index(CRI) CRI≥90 Height 87.5mm Unified Glare Rating (UGR) UGR <10 Length 186mm Light Control ON/OFF Width 35mm Beam angle 16° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D333-6-30K-24	L-D333-6-30K-24	15W	3000K	950lm	24°	White/Black
Get in Touch Get in Touch L-D333-6-30K-24 A&C Surface, with LED,system power:15W, luminous flux of luminaire 950lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=186x35 mm H=87.5 mm Nominal power 15W Finish White/Black Delivered lumens 950lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.53kg Color Rendering Index(CRI) CRI≥90 Height 87.5mm Unified Glare Rating (UGR) UGR <10 Length 186mm Light Control ON/OFF Width 35mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D333-6-30K-35	L-D333-6-30K-35	15W	3000K	950lm	35°	White/Black
Get in Touch Get in Touch L-D333-6-30K-35 A&C Surface, with LED,system power:15W, luminous flux of luminaire 950lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:35°, black/white color, ON/OFF.ingress protection IP20. Ø=186x35 mm H=87.5 mm Nominal power 15W Finish White/Black Delivered lumens 950lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.53kg Color Rendering Index(CRI) CRI≥90 Height 87.5mm Unified Glare Rating (UGR) UGR <10 Length 186mm Light Control ON/OFF Width 35mm Beam angle 35° Downloads None Accessories Transparent PVC sheet Honeycomb

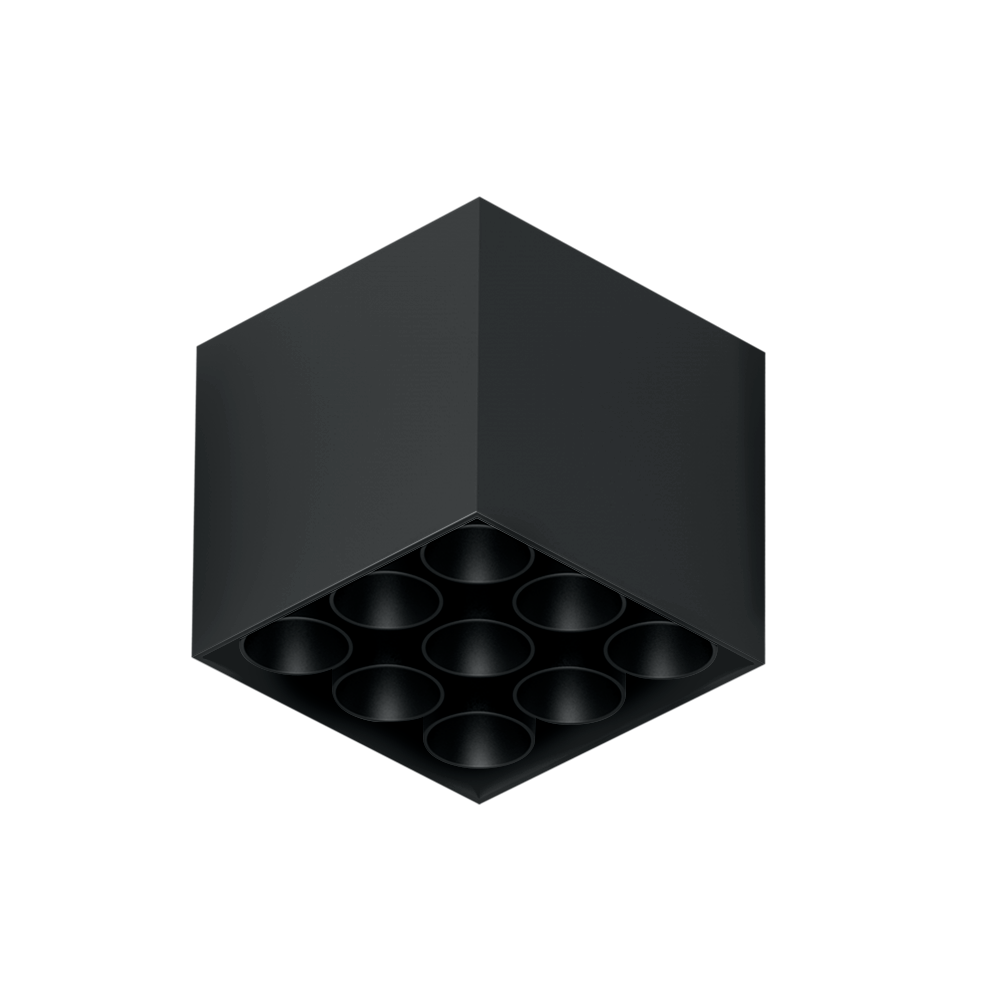

	L-D333-9-30K-16	L-D333-9-30K-16	20W	3000K	1460lm	16°	White/Black

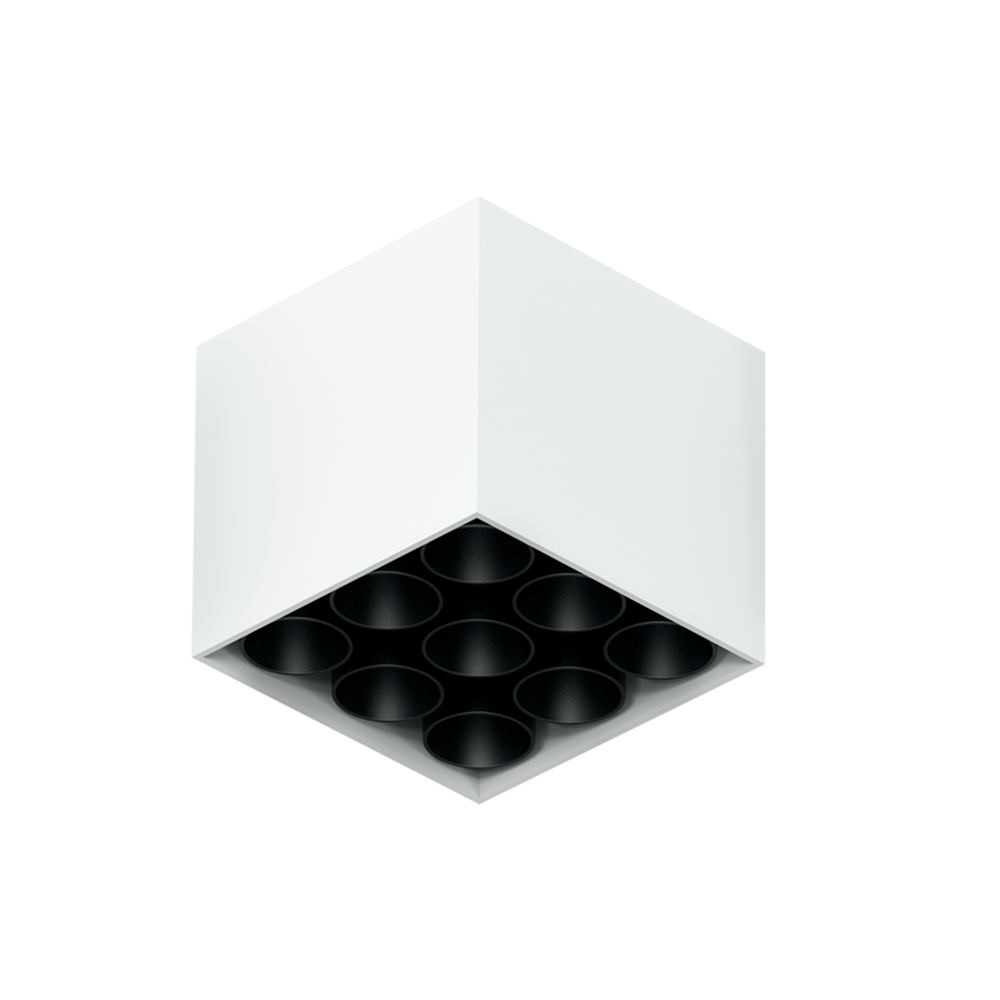

Get in Touch Get in Touch L-D333-9-30K-16 A&C Surface, with LED,system power:20W, luminous flux of luminaire 1460lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=95x95 mm H=85 mm Nominal power 20W Finish White/Black Delivered lumens 1460lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.53kg Color Rendering Index(CRI) CRI≥90 Height 85mm Unified Glare Rating (UGR) UGR <10 Length 95mm Light Control ON/OFF Width 95mm Beam angle 16° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D333-9-30K-24	L-D333-9-30K-24	20W	3000K	1460lm	24°	White/Black
Get in Touch Get in Touch L-D333-9-30K-24 A&C Surface, with LED,system power:20W, luminous flux of luminaire 1460lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=95x95 mm H=85 mm Nominal power 20W Finish White/Black Delivered lumens 1460lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.53kg Color Rendering Index(CRI) CRI≥90 Height 85mm Unified Glare Rating (UGR) UGR <10 Length 95mm Light Control ON/OFF Width 95mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D333-9-30K-38	L-D333-9-30K-38	20W	3000K	1460lm	38°	White/Black
Get in Touch Get in Touch L-D333-9-30K-38 A&C Surface, with LED,system power:20W, luminous flux of luminaire 1460lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:38°, black/white color, ON/OFF.ingress protection IP20. Ø=95x95 mm H=85 mm Nominal power 20W Finish White/Black Delivered lumens 1460lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.53kg Color Rendering Index(CRI) CRI≥90 Height 85mm Unified Glare Rating (UGR) UGR <10 Length 95mm Light Control ON/OFF Width 95mm Beam angle 38° Downloads None Accessories Transparent PVC sheet Honeycomb
