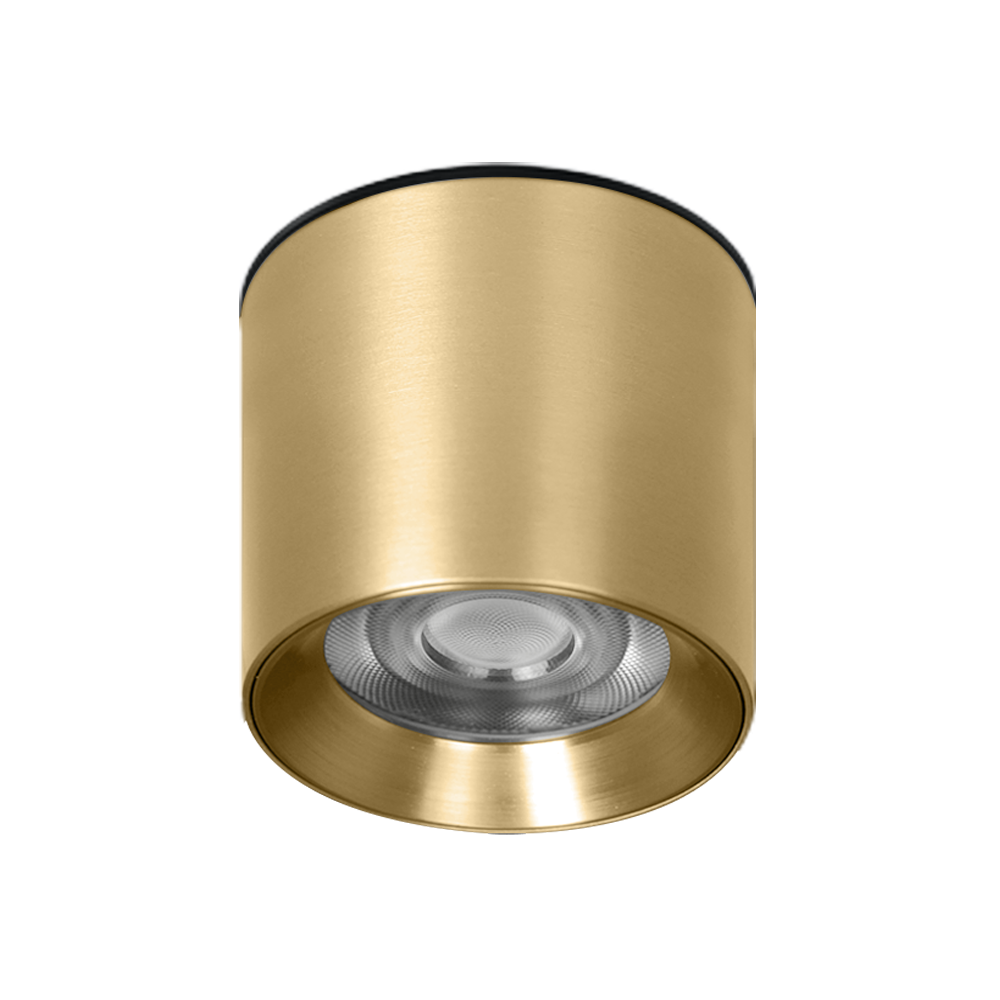

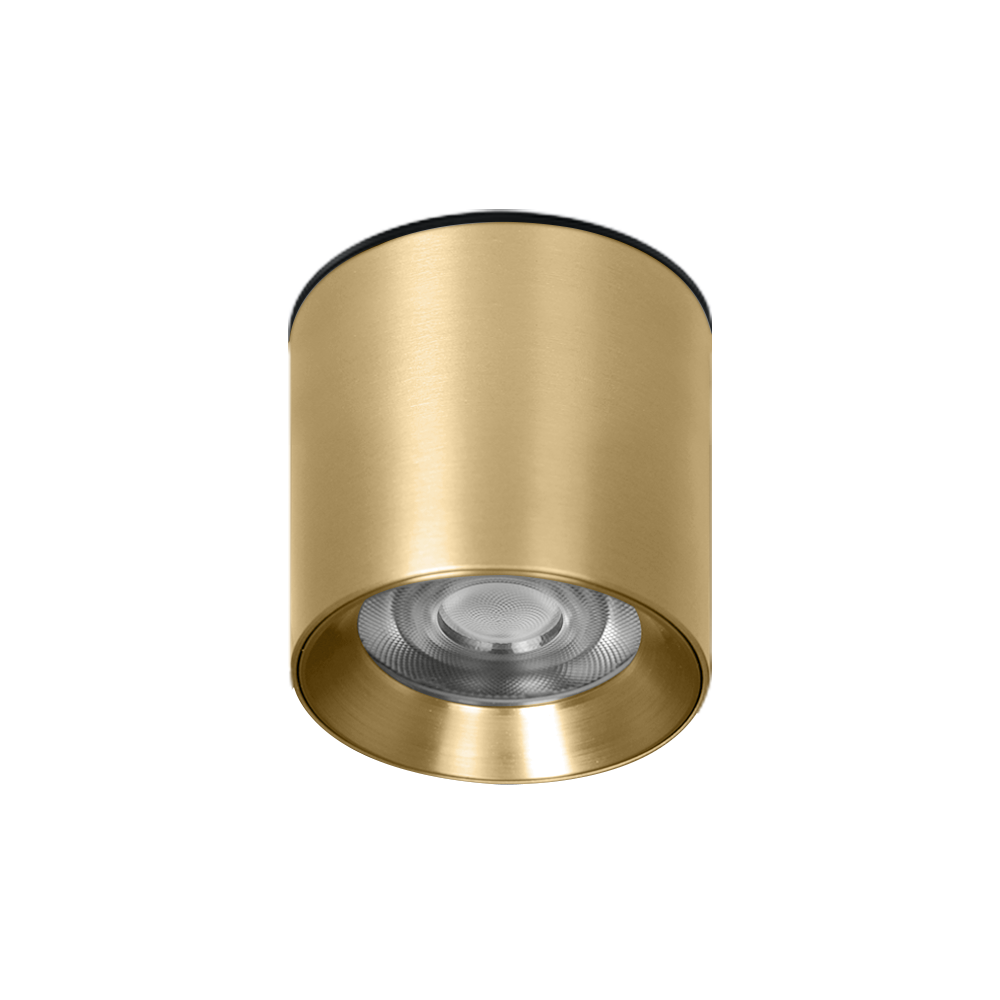

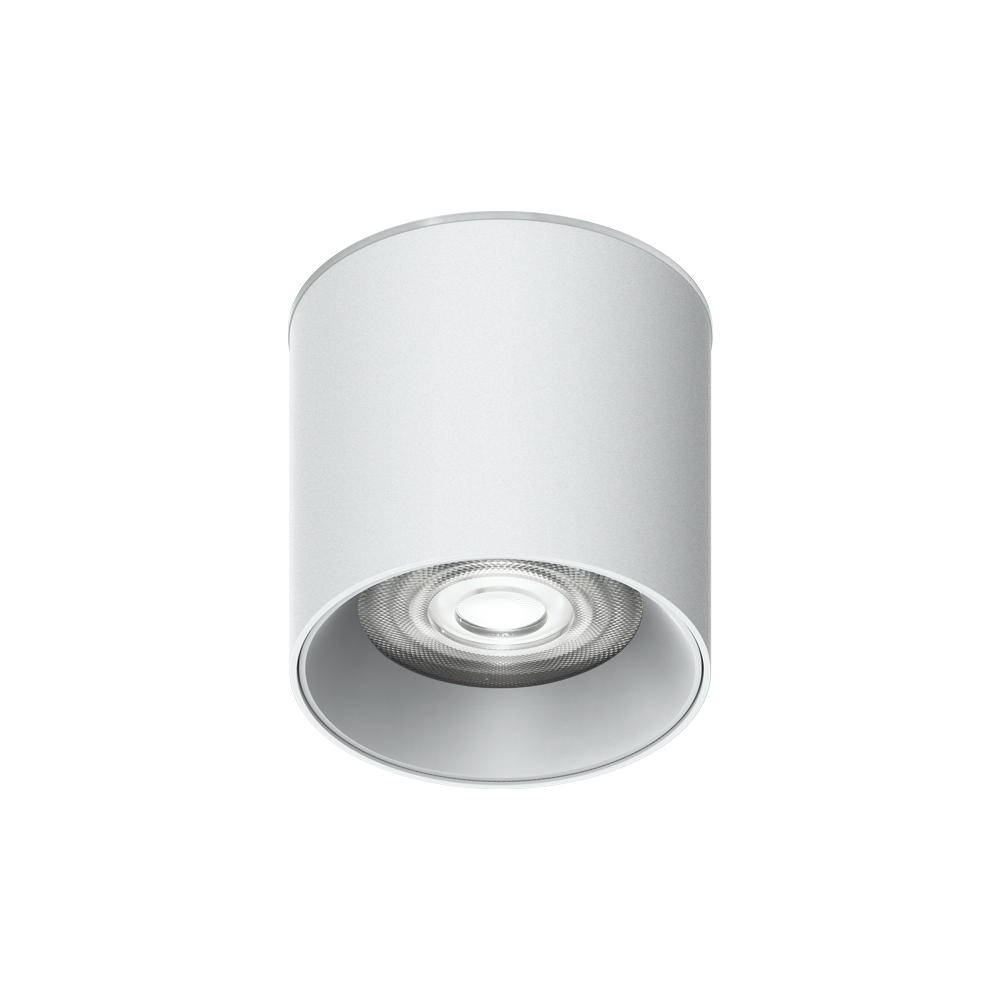

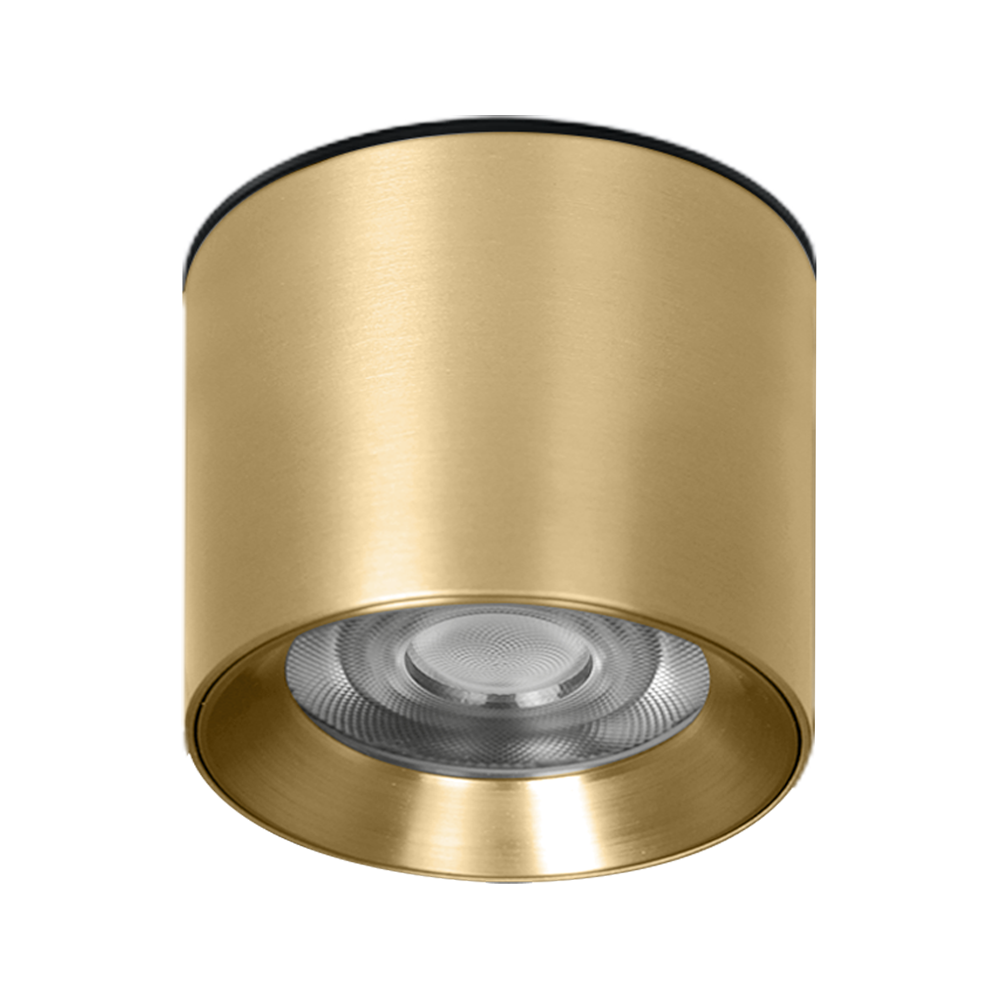

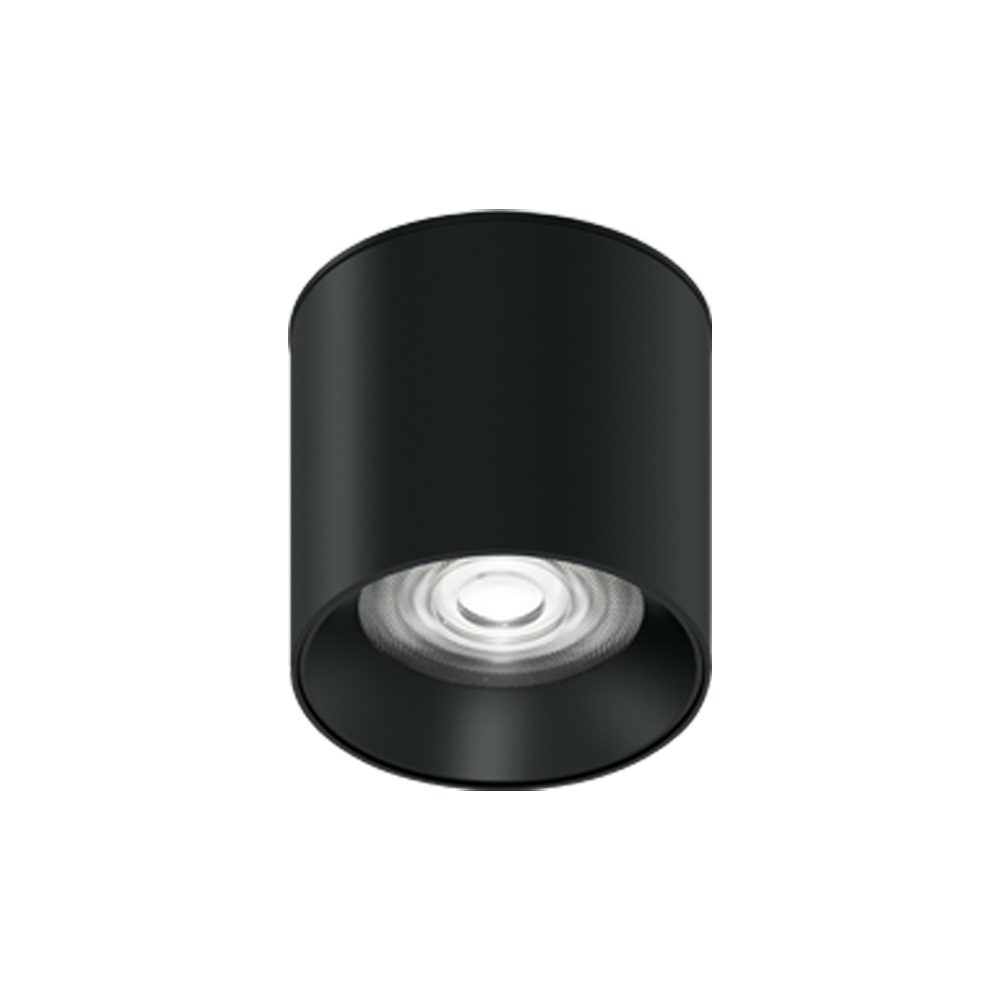

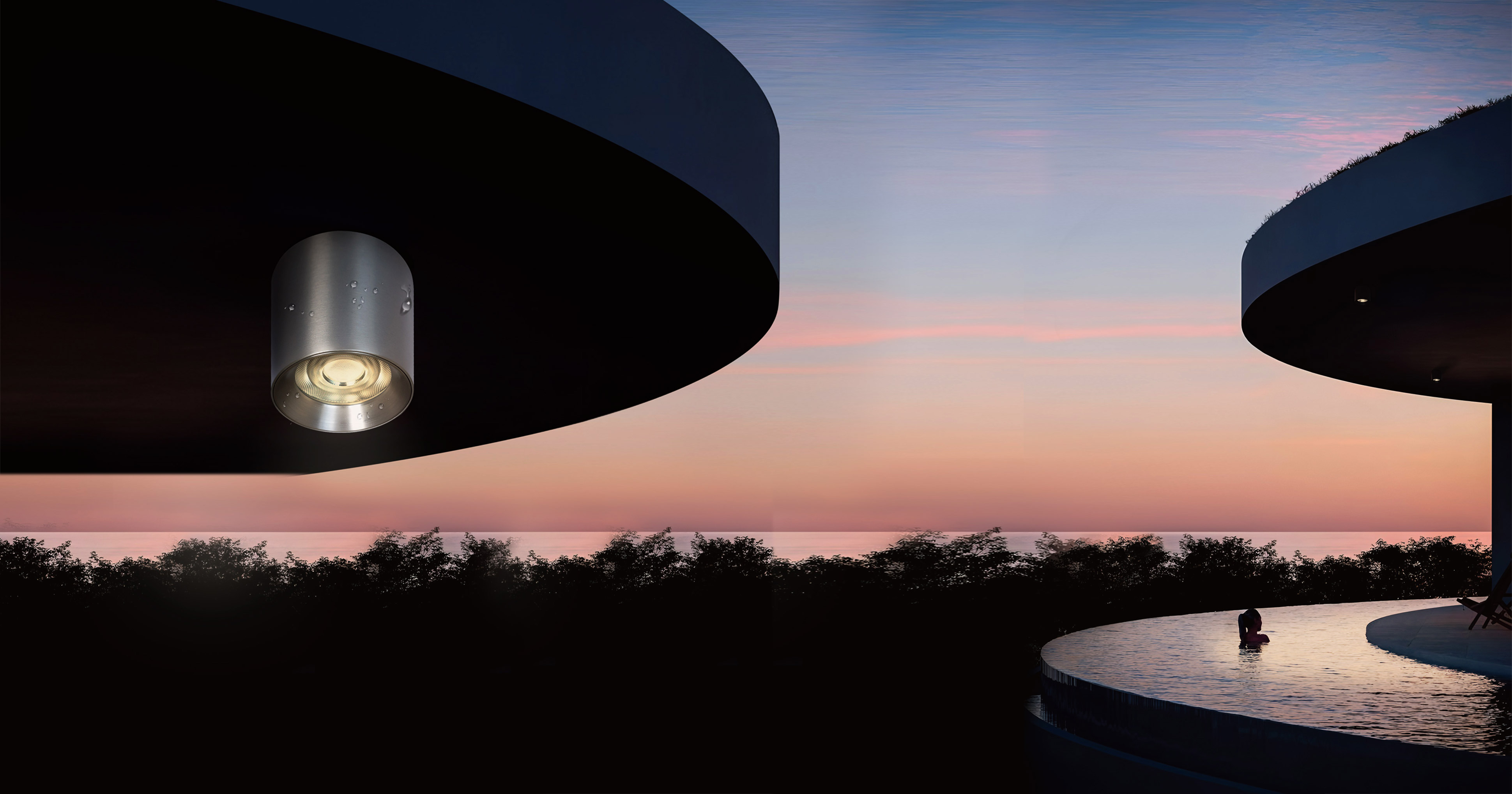

TOP

The TOP surface-mounted luminaire has an understated, timeless design. State-of-the-art LED technology and anintelligent design guarantee outstanding light quality, high energy efficiency and a long service life.

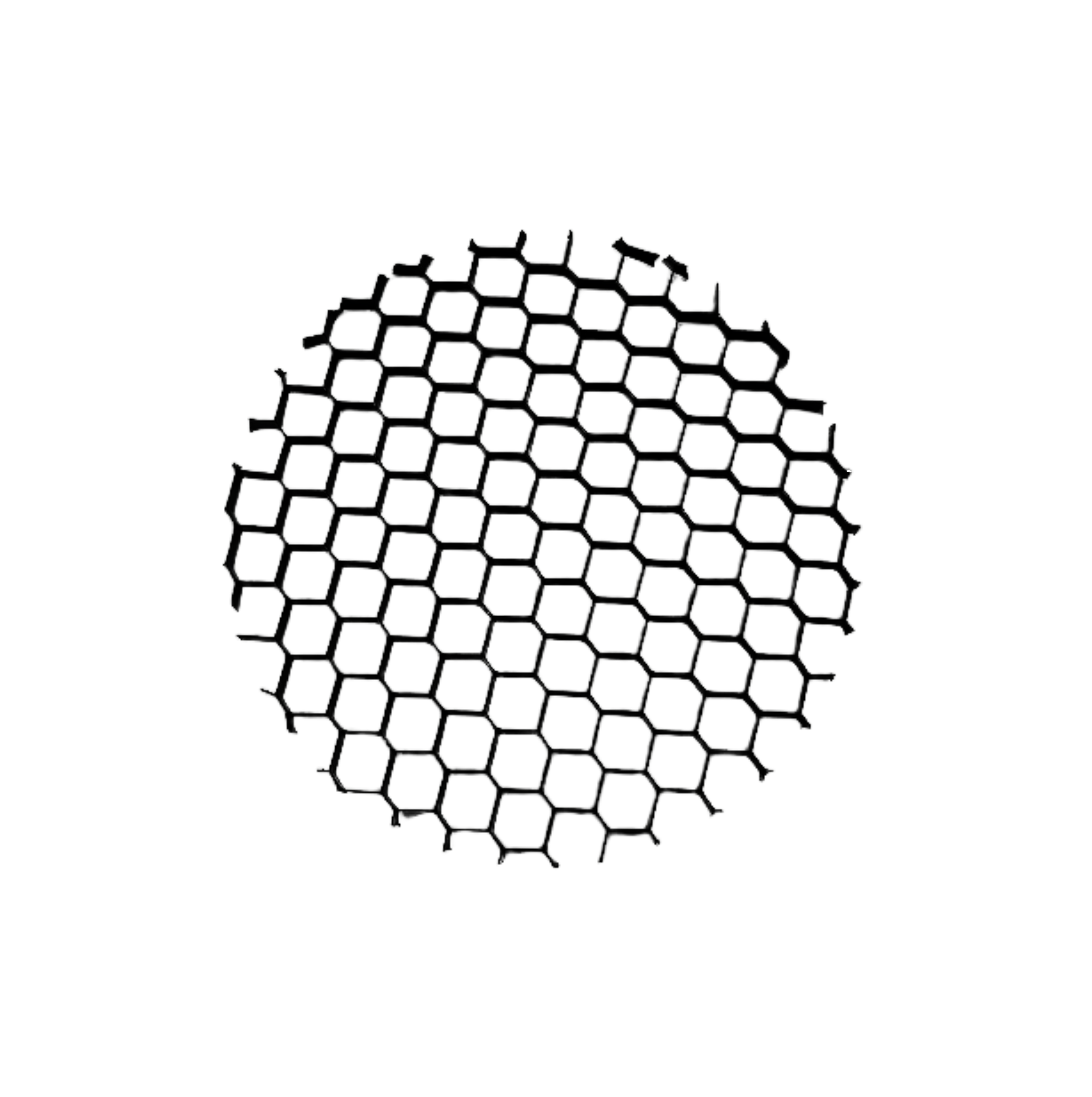

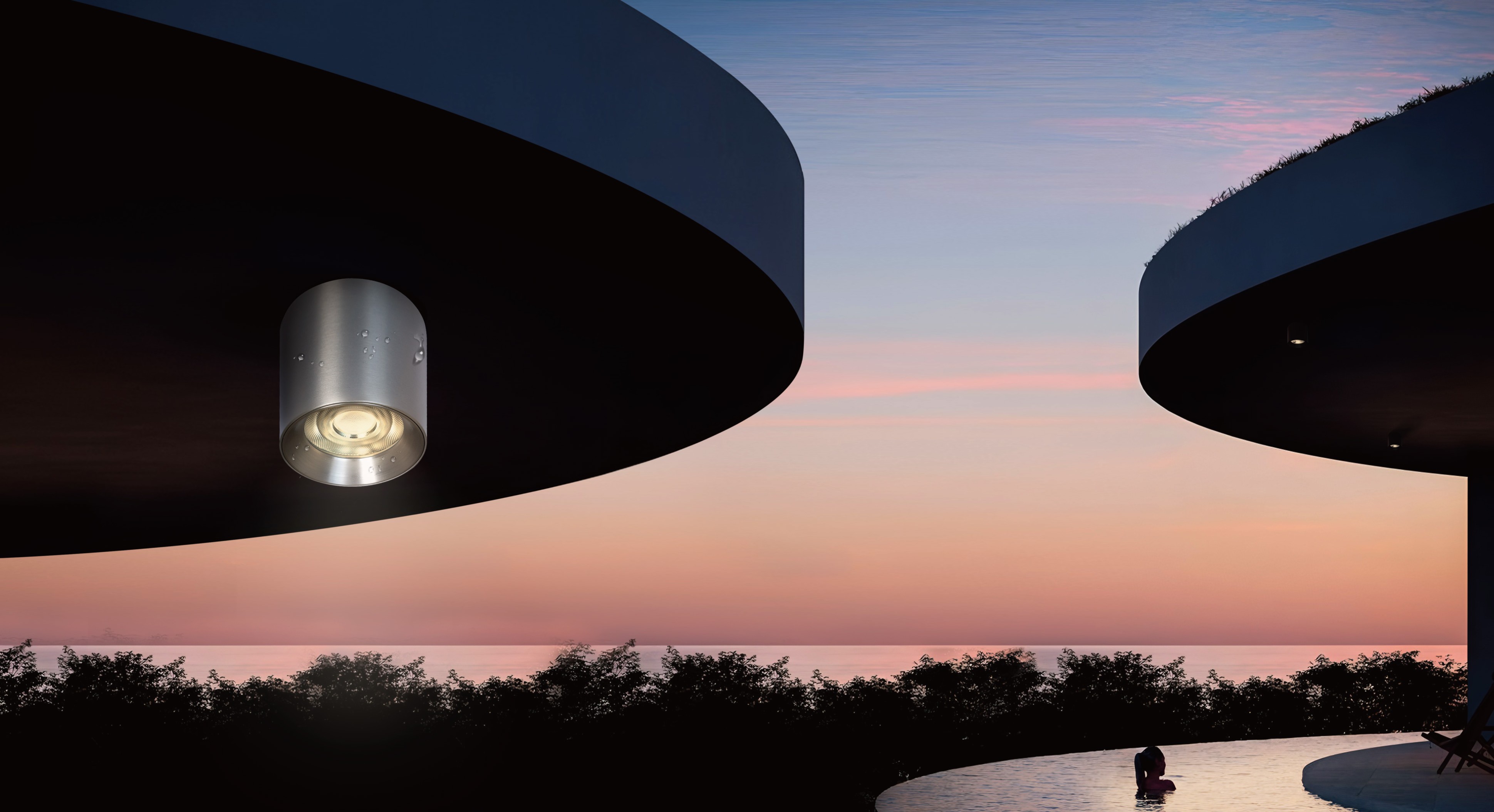

TOP is mounted and ready for operation in a jiffy, the construction disappearing discreetly into the ceiling,more importantly,it has IP54. With an anti-glare screen and a specifically dessigned micro-reflector,it is a discreet pointin the illumination source from sight so as to achieve visual comfort.Rea also adds an eleganttouch as a pendant luminaire and has an impressively wide range of applications.

Features Features

-1P54-Energy-saving, long-life LED surface-mounted downlight

-Lighting fixture makes it ideal for a wide range of applications

-Illuminate the space with precision and efficiency.

Specifications Specifications

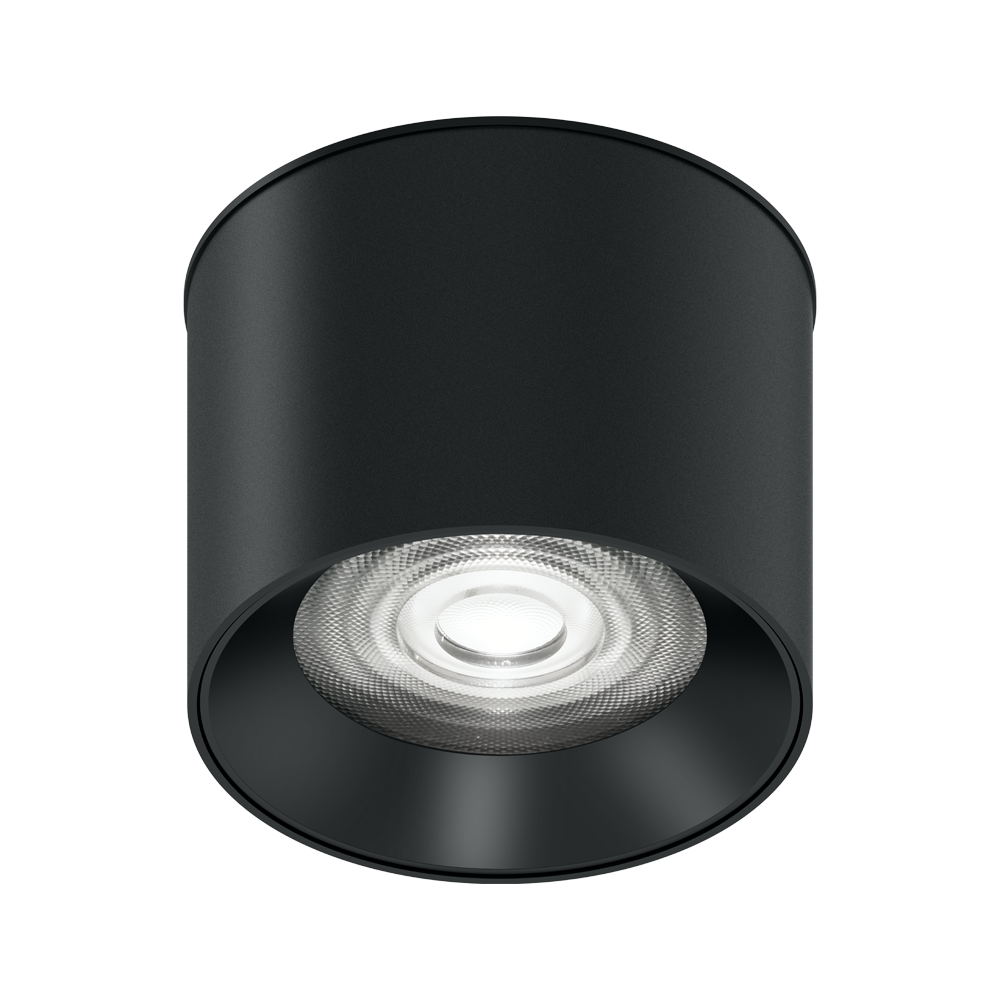

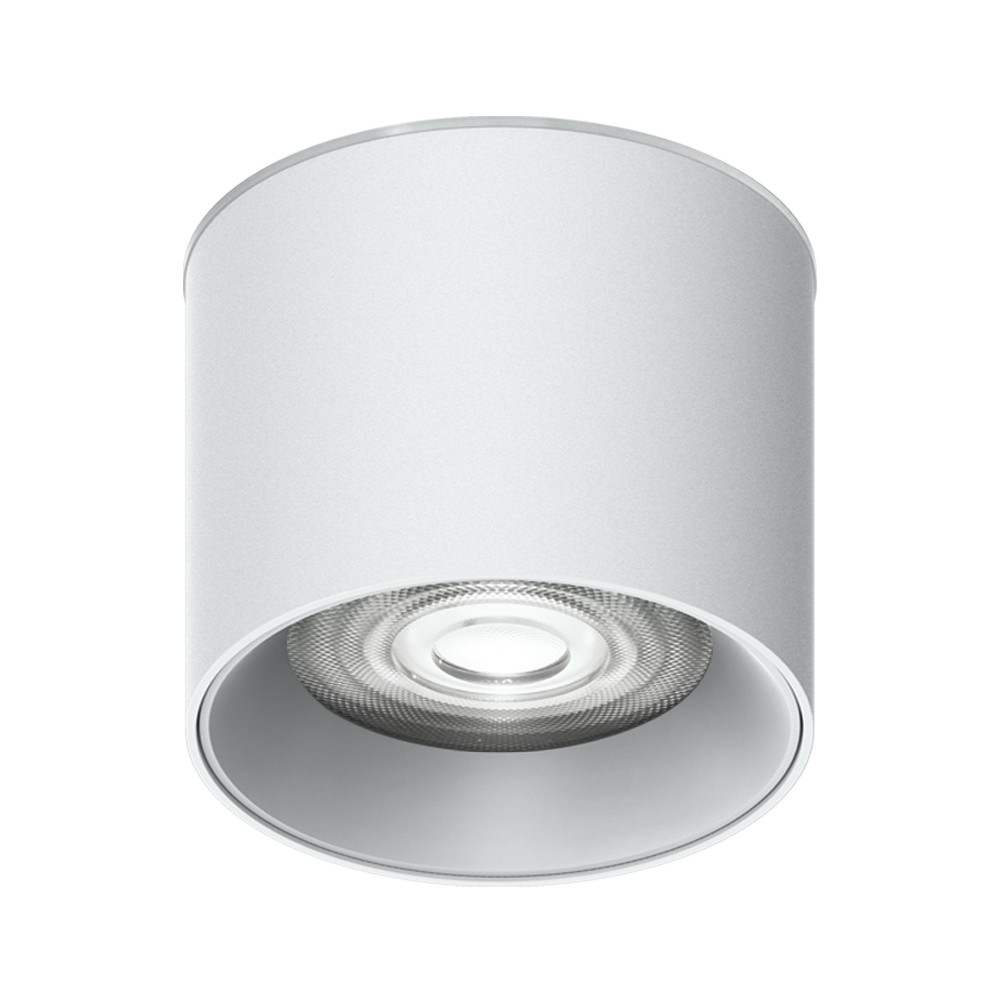

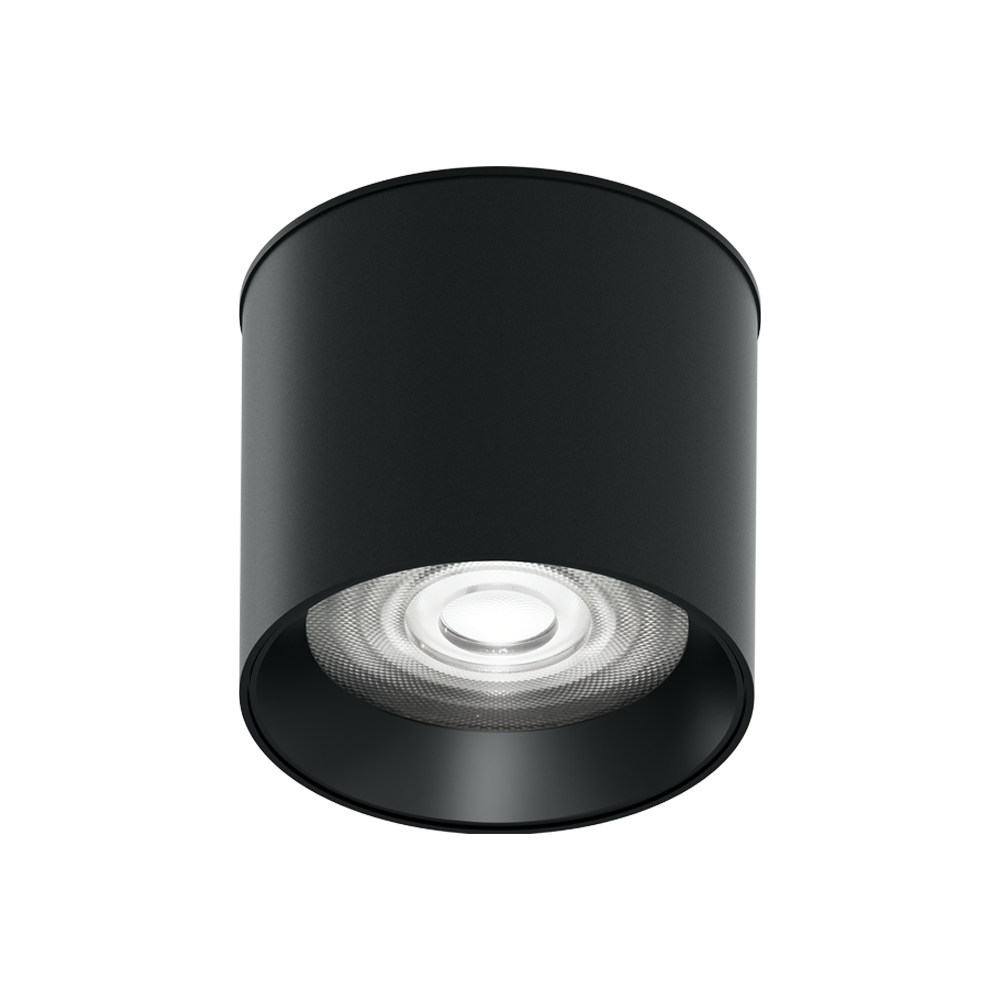

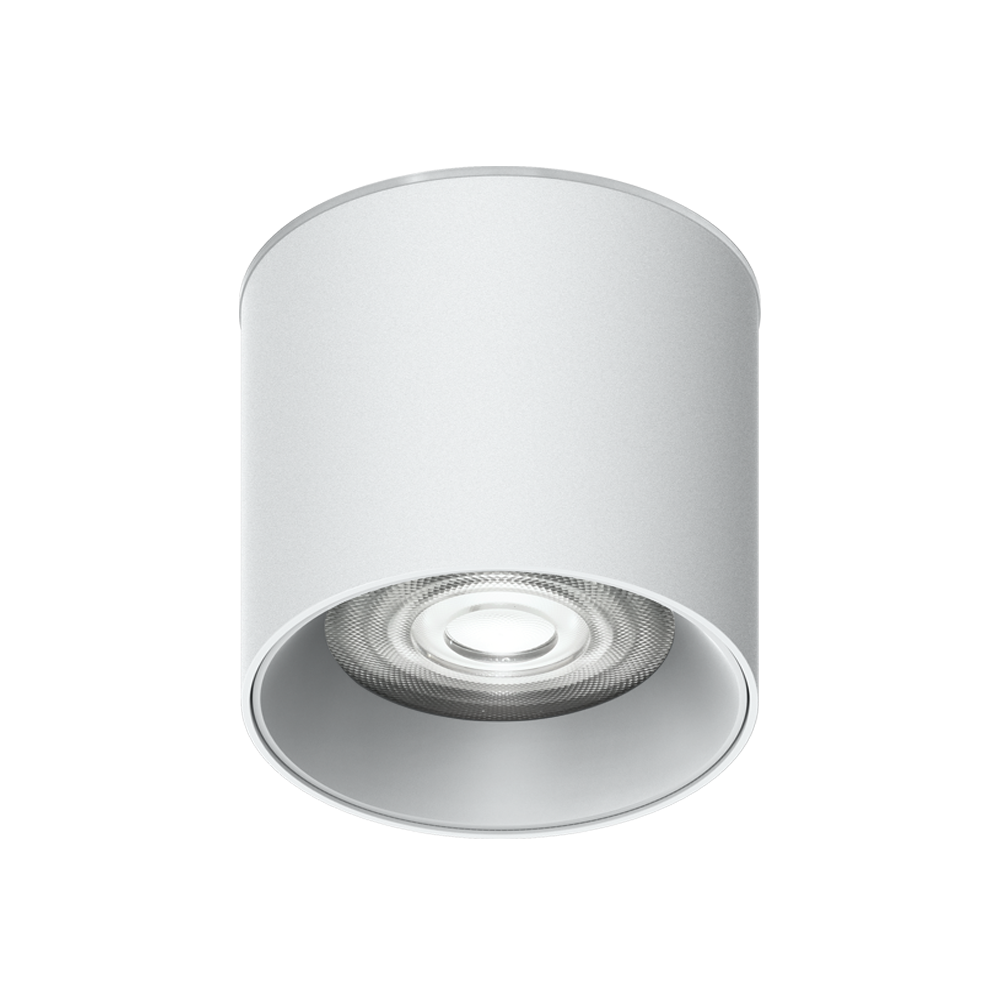

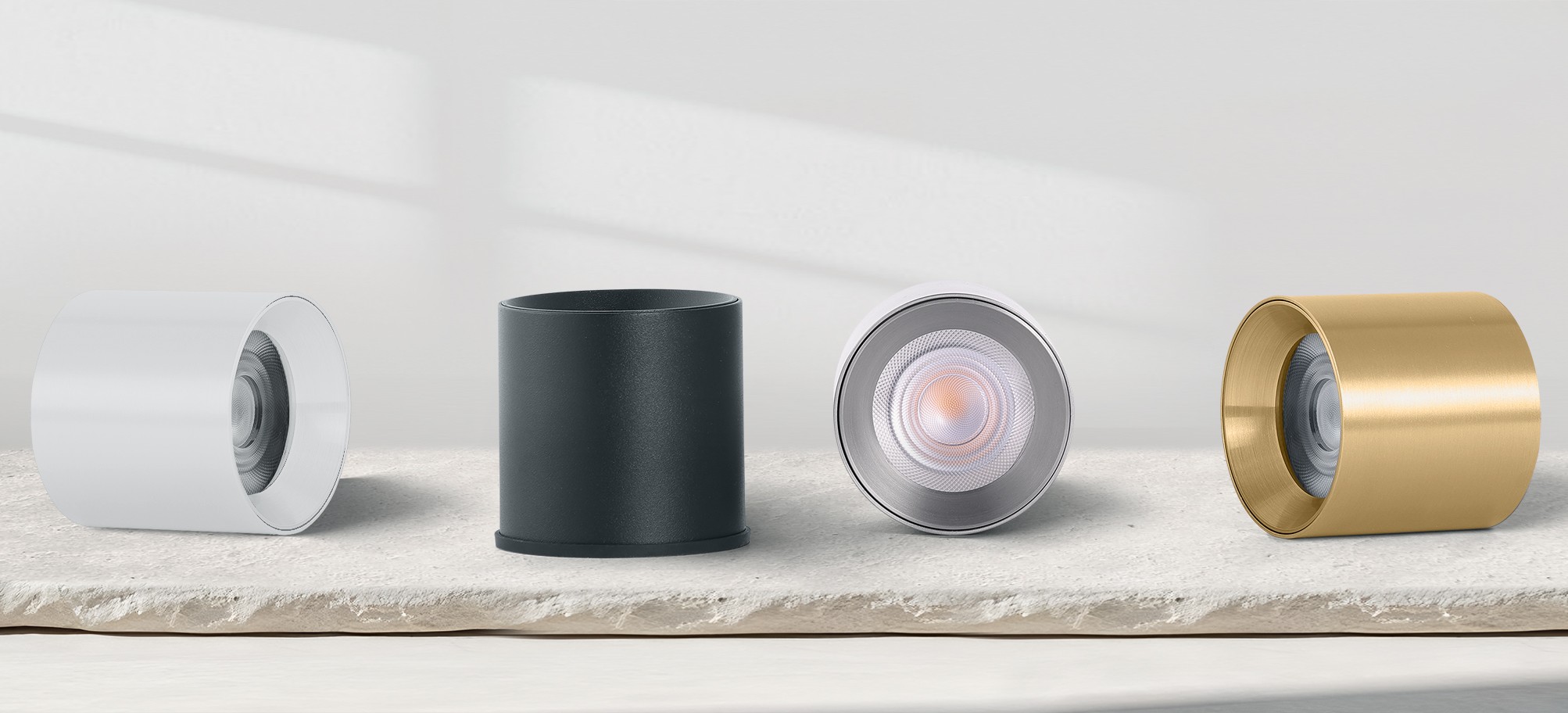

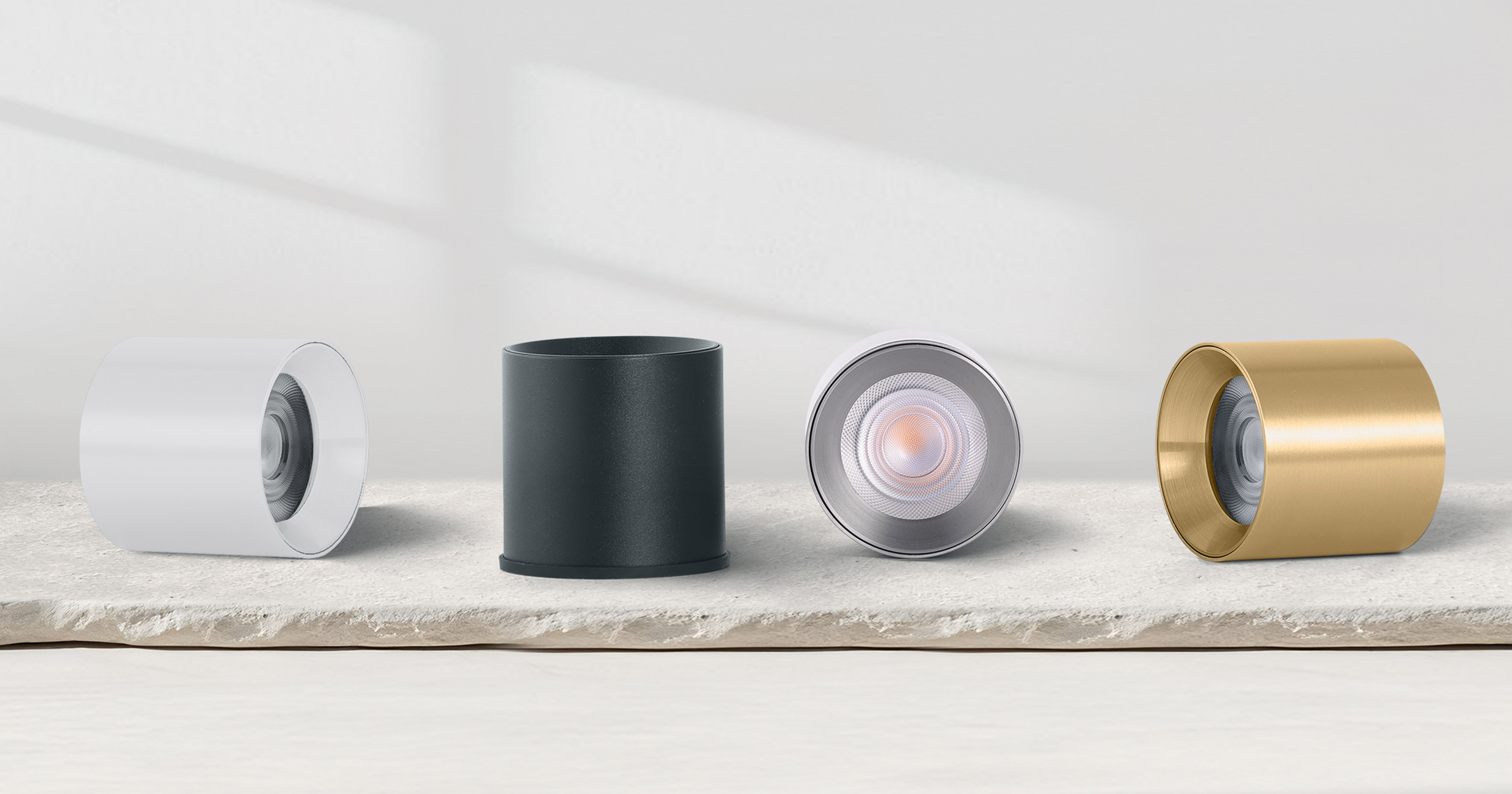

-Black,white,silver & nickel versions available

-IP54

-Aluminium-Powder coated

-ON/OFF, TUNABLE, and DALI control system

-Light colours 3,000 K,4,000 K or 5.000 K

-surface downlight with pleasantly homogeneous luminance levels

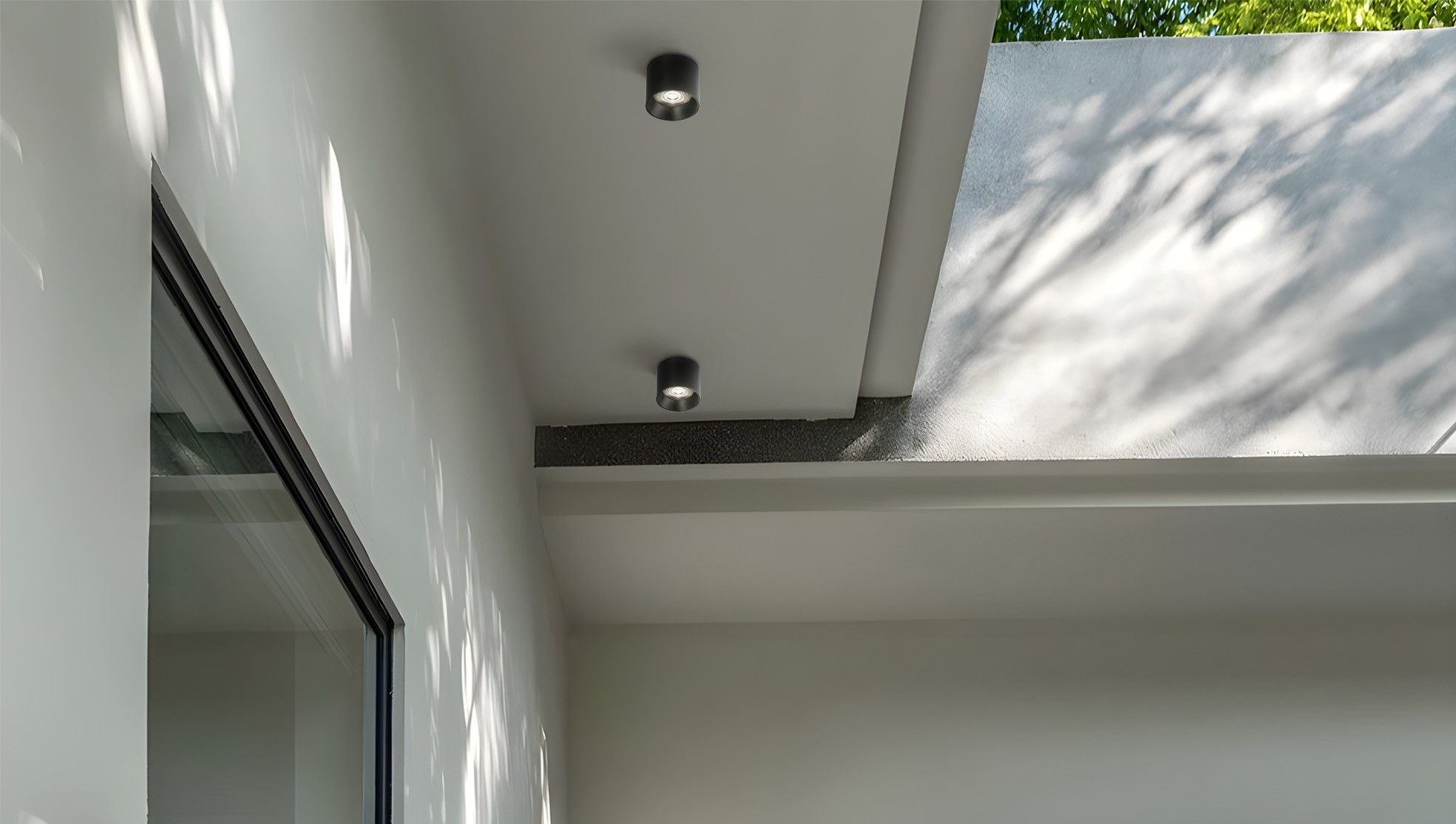

Fields of application Fields of application

Retail & Hospitality

corridors, hotels, conference rooms, retail spaces, living spaces

Home & Living

Version

0 Article

Nominal power

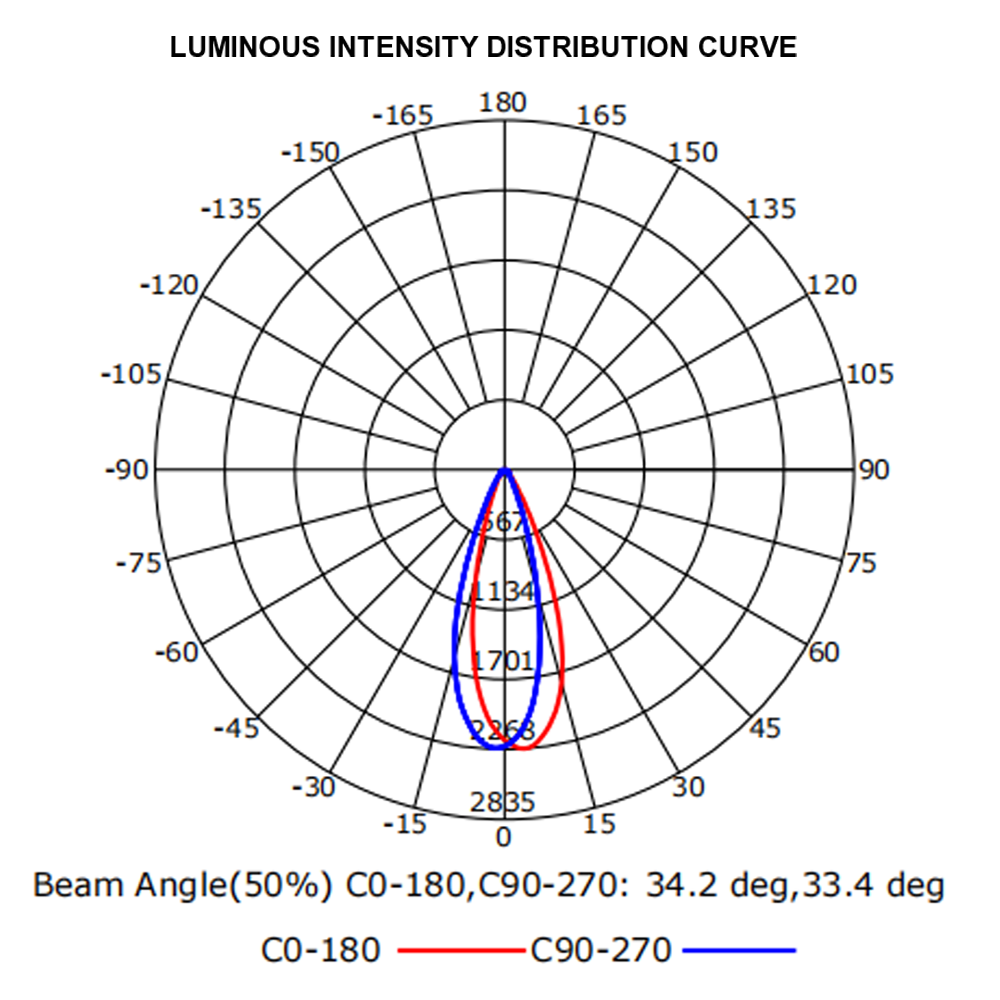

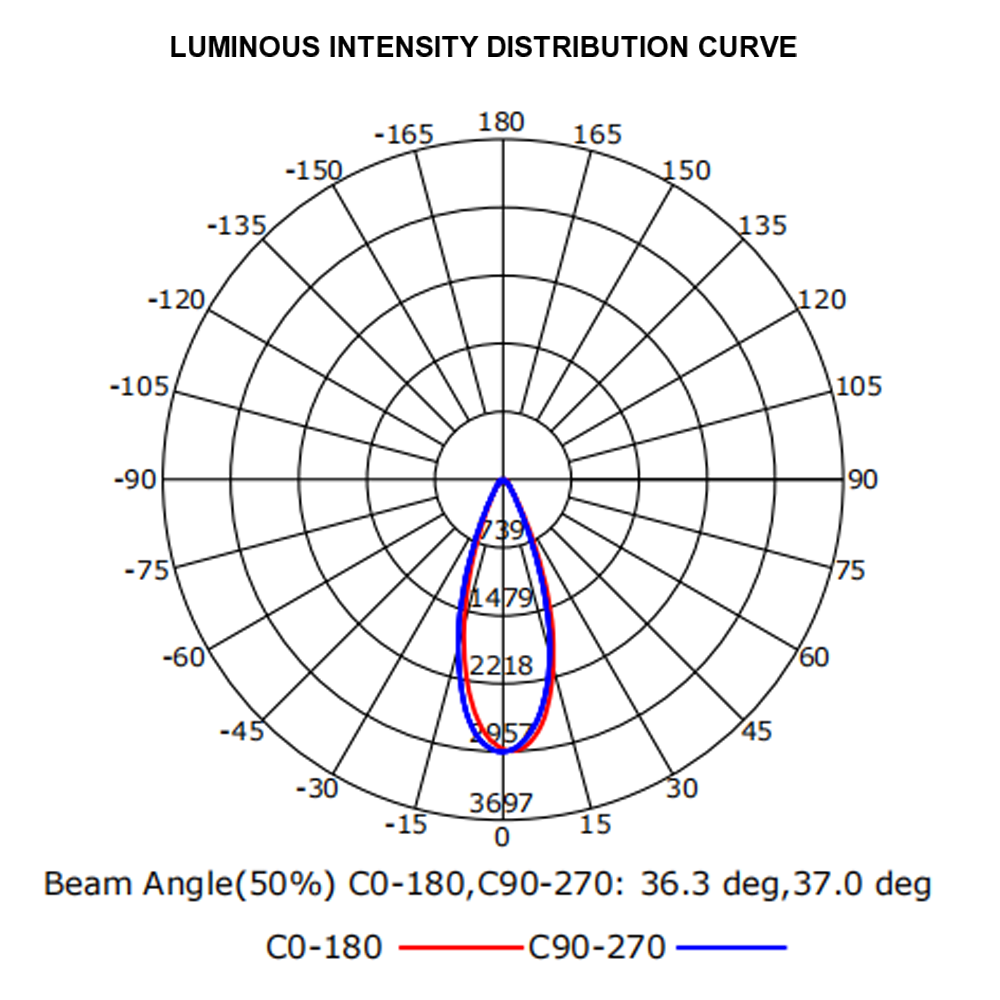

BEAM ANGLE

60°

36°

24°

15°

COLOUR / FINISH

white

black

LIGHT CONTROL

ON/OFF

DALI

Nominal power

10 W

BEAM ANGLE

60°

36°

24°

15°

COLOUR / FINISH

white

black

LIGHT CONTROL

ON/OFF

DALI

Nominal power

15 W

BEAM ANGLE

60°

36°

24°

15°

COLOUR / FINISH

white

black

LIGHT CONTROL

ON/OFF

DALI

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	U-C775-COB2.5-1	U-C775-COB2.5-1	7W	3000K	623lm	15°	black

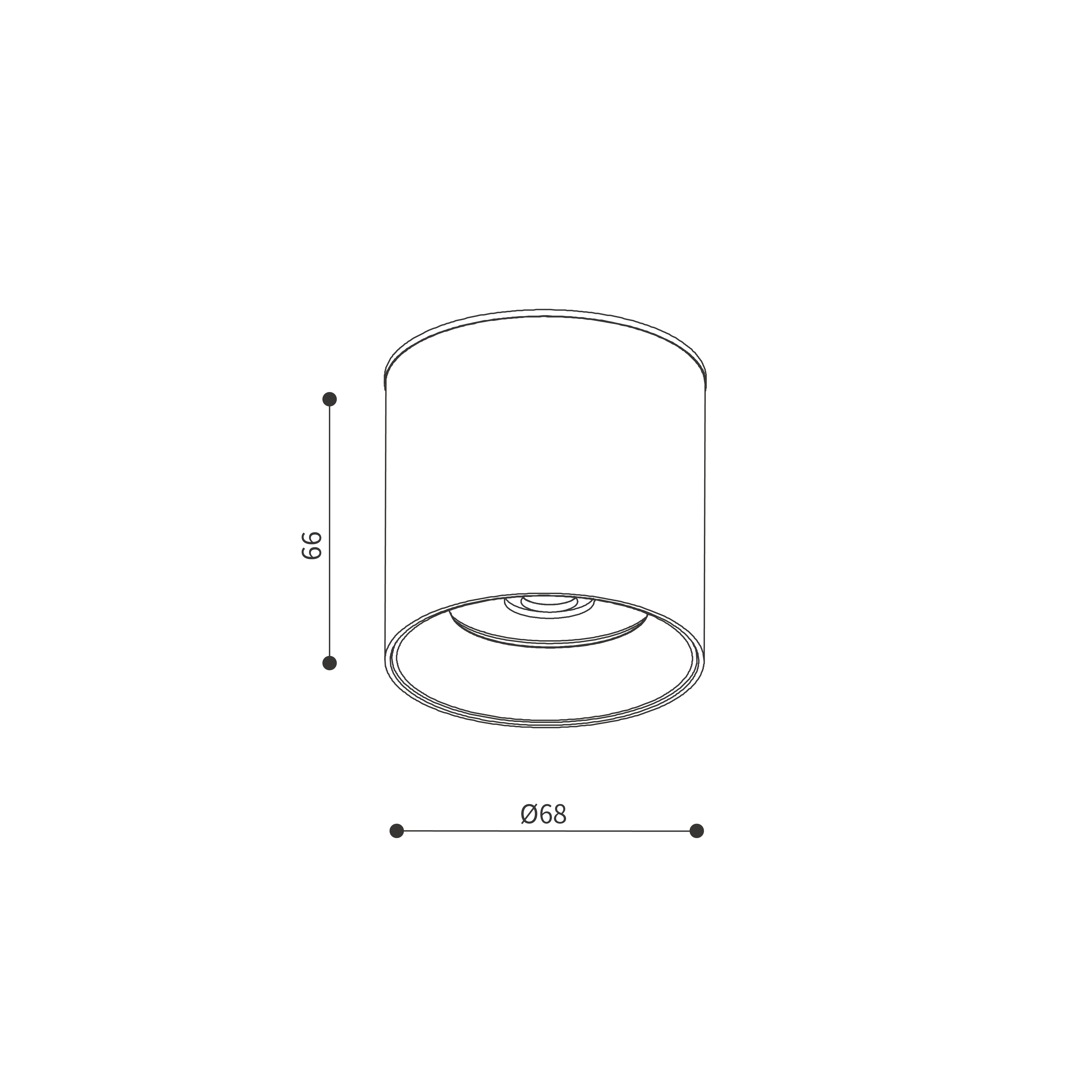

Get in Touch Get in Touch U-C775-COB2.5-1 The TOP surface-mounted luminaire with LED,system power:5 W, luminous flux of luminaire 623 Im,colour rendering index CRl >90,colour temperature 3000 K,neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission,housing in aluminium,white,ON/OFF, protection class I1, ingress protection IP54 Ø=68mm,H=66mm Nominal power 7W Finish black Delivered lumens 623lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.25kg Color Rendering Index(CRI) CRI≥90 Diameter 68mm Unified Glare Rating (UGR) UGR<16 Length 66mm Light Control DALI Width 68mm Beam angle 15° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-C775-COB2.5-2	U-C775-COB2.5-2	7W	3000K	623lm	24°	black
Get in Touch Get in Touch U-C775-COB2.5-2 The TOP surface-mounted luminaire with LED,system power:5 W, luminous flux of luminaire 623 Im,colour rendering index CRl >90,colour temperature 3000 K,neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission,housing in aluminium,white,ON/OFF, protection class I1, ingress protection IP54 Ø=68mm,H=66mm Nominal power 7W Finish black Delivered lumens 623lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.25kg Color Rendering Index(CRI) CRI≥90 Diameter 68mm Unified Glare Rating (UGR) UGR<16 Length 66mm Light Control DALI Width 68mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-C775-COB2.5-3	U-C775-COB2.5-3	7W	3000K	623lm	36°	white
Get in Touch Get in Touch U-C775-COB2.5-3 The TOP surface-mounted luminaire with LED,system power:5 W, luminous flux of luminaire 623 Im,colour rendering index CRl >90,colour temperature 3000 K,neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission,housing in aluminium,white,ON/OFF, protection class I1, ingress protection IP54 Ø=68mm,H=66mm Nominal power 7W Finish white Delivered lumens 623lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.25kg Color Rendering Index(CRI) CRI≥90 Diameter 68mm Unified Glare Rating (UGR) UGR<16 Length 66mm Light Control ON/OFF Width 68mm Beam angle 36° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-C775-COB2.5-4	U-C775-COB2.5-4	7W	3000K	623lm	60°	white
Get in Touch Get in Touch U-C775-COB2.5-4 The TOP surface-mounted luminaire with LED,system power:5 W, luminous flux of luminaire 623 Im,colour rendering index CRl >90,colour temperature 3000 K,neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission,housing in aluminium,white,ON/OFF, protection class I1, ingress protection IP54 Ø=68mm,H=66mm Nominal power 7W Finish white Delivered lumens 623lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.25kg Color Rendering Index(CRI) CRI≥90 Diameter 68mm Unified Glare Rating (UGR) UGR<16 Length 66mm Light Control ON/OFF Width 68mm Beam angle 60° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-C775-COB3-1	U-C775-COB3-1	10 W	3000K	900 lm	15°	black

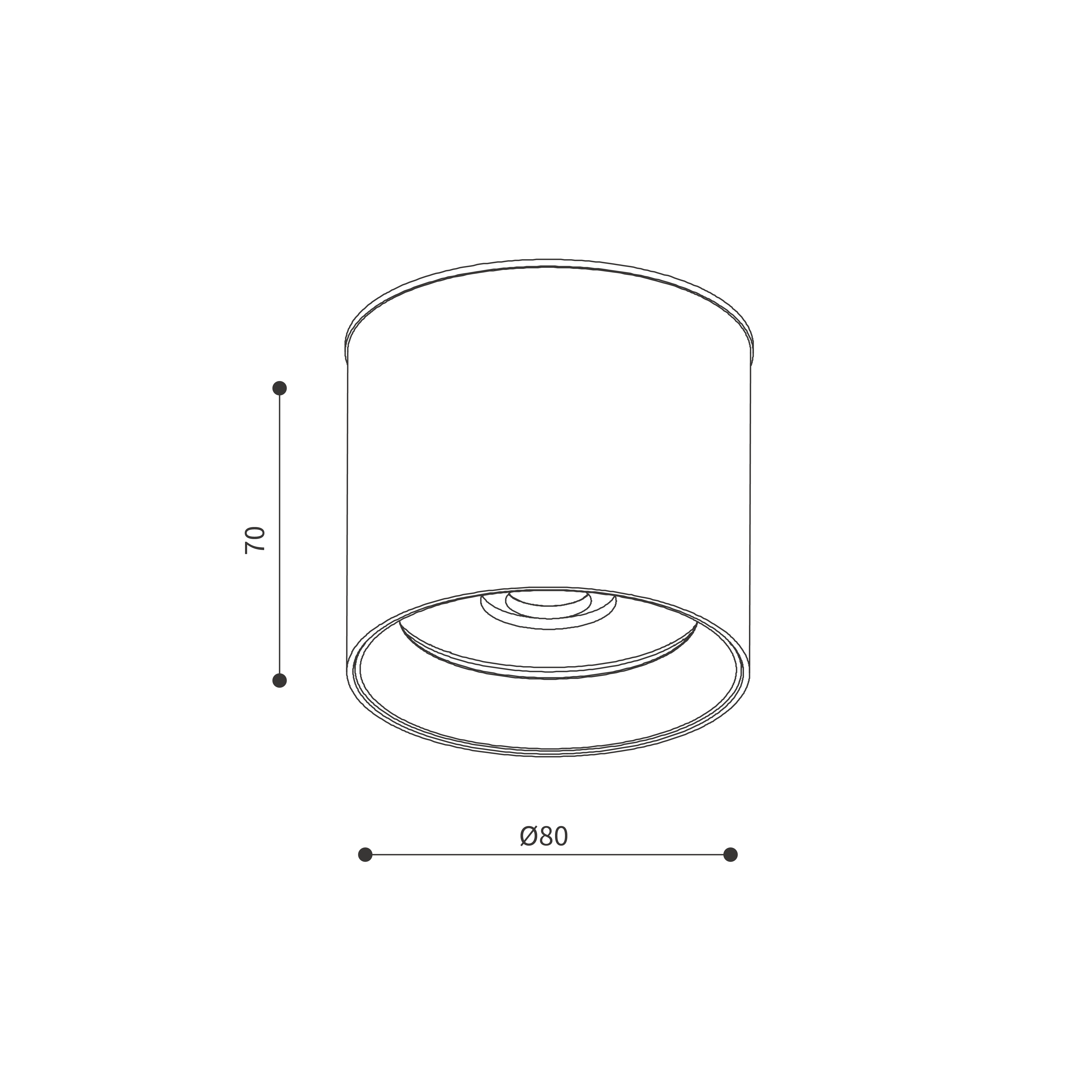

Get in Touch Get in Touch U-C775-COB3-1 The TOP surface-mounted luminaire with LED,system power:10 W,luminous flux of luminaire 900 Im,colour rendering index CRI >90,colour temperature 3000 K,neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission, housing in aluminium,white, ON/OFF, protection class I1, ingress protection lP54 Ø=80mm,H=70mm Nominal power 10 W Finish black Delivered lumens 900 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.34 kg Color Rendering Index(CRI) CRI≥90 Diameter 80 mm Unified Glare Rating (UGR) UGR<16 Length 70 mm Light Control DALI Width 80 mm Beam angle 15° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-C775-COB3-2	U-C775-COB3-2	10 W	3000K	900 lm	24°	black
Get in Touch Get in Touch U-C775-COB3-2 The TOP surface-mounted luminaire with LED,system power:10 W,luminous flux of luminaire 900 Im,colour rendering index CRI >90,colour temperature 3000 K,neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission, housing in aluminium,white, ON/OFF, protection class I1, ingress protection lP54 Ø=80mm,H=70mm Nominal power 10 W Finish black Delivered lumens 900 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.34 kg Color Rendering Index(CRI) CRI≥90 Diameter 80 mm Unified Glare Rating (UGR) UGR<16 Length 70 mm Light Control DALI Width 80 mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-C775-COB3-3	U-C775-COB3-3	10 W	3000K	900 lm	36°	white
Get in Touch Get in Touch U-C775-COB3-3 The TOP surface-mounted luminaire with LED,system power:10 W,luminous flux of luminaire 900 Im,colour rendering index CRI >90,colour temperature 3000 K,neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission, housing in aluminium,white, ON/OFF, protection class I1, ingress protection lP54 Ø=80mm,H=70mm Nominal power 10 W Finish white Delivered lumens 900 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.34 kg Color Rendering Index(CRI) CRI≥90 Diameter 80 mm Unified Glare Rating (UGR) UGR<16 Length 70 mm Light Control ON/OFF Width 80 mm Beam angle 36° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-C775-COB3-4	U-C775-COB3-4	10 W	3000K	900 lm	60°	white
Get in Touch Get in Touch U-C775-COB3-4 The TOP surface-mounted luminaire with LED,system power:10 W,luminous flux of luminaire 900 Im,colour rendering index CRI >90,colour temperature 3000 K,neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission, housing in aluminium,white, ON/OFF, protection class I1, ingress protection lP54 Ø=80mm,H=70mm Nominal power 10 W Finish white Delivered lumens 900 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.34 kg Color Rendering Index(CRI) CRI≥90 Diameter 80 mm Unified Glare Rating (UGR) UGR<16 Length 70 mm Light Control ON/OFF Width 80 mm Beam angle 60° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-C775-COB4-1	U-C775-COB4-1	15 W	3000K	1365 lm	15°	black

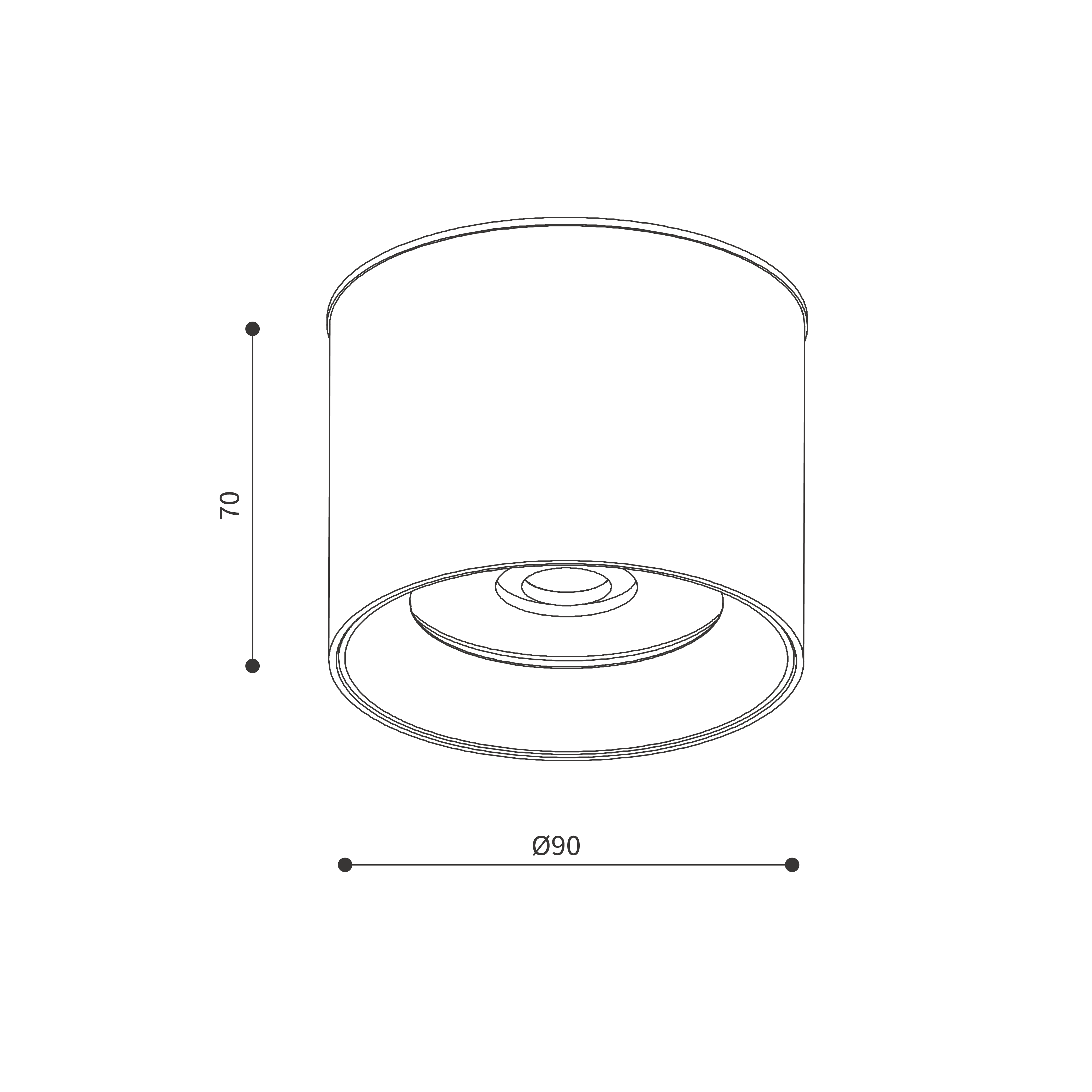

Get in Touch Get in Touch U-C775-COB4-1 The TOP surface-mounted luminaire with LED,system power:15 W,luminous flux of luminaire 1365 Im,colour rendering index CRl >90,colour temperature 3000 K, neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission,housing in aluminium,white, ON/OFF, protection class Il, ingress protection IP54 Ø=90mm,H=70mm Nominal power 15 W Finish black Delivered lumens 1365 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.43 kg Color Rendering Index(CRI) CRI≥90 Diameter 90 mm Unified Glare Rating (UGR) UGR<16 Length 70 mm Light Control DALI Width 90 mm Beam angle 15° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-C775-COB4-2	U-C775-COB4-2	15 W	3000K	1365 lm	24°	black
Get in Touch Get in Touch U-C775-COB4-2 The TOP surface-mounted luminaire with LED,system power:15 W,luminous flux of luminaire 1365 Im,colour rendering index CRl >90,colour temperature 3000 K, neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission,housing in aluminium,white, ON/OFF, protection class Il, ingress protection IP54 Ø=90mm,H=70mm Nominal power 15 W Finish black Delivered lumens 1365 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.43 kg Color Rendering Index(CRI) CRI≥90 Diameter 90 mm Unified Glare Rating (UGR) UGR<16 Length 70 mm Light Control DALI Width 90 mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-C775-COB4-3	U-C775-COB4-3	15 W	3000K	1365 lm	36°	white
Get in Touch Get in Touch U-C775-COB4-3 The TOP surface-mounted luminaire with LED,system power:15 W,luminous flux of luminaire 1365 Im,colour rendering index CRl >90,colour temperature 3000 K, neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission,housing in aluminium,white, ON/OFF, protection class Il, ingress protection IP54 Ø=90mm,H=70mm Nominal power 15 W Finish white Delivered lumens 1365 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.43 kg Color Rendering Index(CRI) CRI≥90 Diameter 90 mm Unified Glare Rating (UGR) UGR<16 Length 70 mm Light Control ON/OFF Width 90 mm Beam angle 36° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-C775-COB4-4	U-C775-COB4-4	15 W	3000K	1365 lm	60°	white
Get in Touch Get in Touch U-C775-COB4-4 The TOP surface-mounted luminaire with LED,system power:15 W,luminous flux of luminaire 1365 Im,colour rendering index CRl >90,colour temperature 3000 K, neutral white,colour tolerances SDCM 3,lifetime LED L70 50'000 h, Photobiological safety: Safe., 230 V, direct light emission,housing in aluminium,white, ON/OFF, protection class Il, ingress protection IP54 Ø=90mm,H=70mm Nominal power 15 W Finish white Delivered lumens 1365 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.43 kg Color Rendering Index(CRI) CRI≥90 Diameter 90 mm Unified Glare Rating (UGR) UGR<16 Length 70 mm Light Control ON/OFF Width 90 mm Beam angle 60° Downloads None Accessories Transparent PVC sheet Honeycomb
