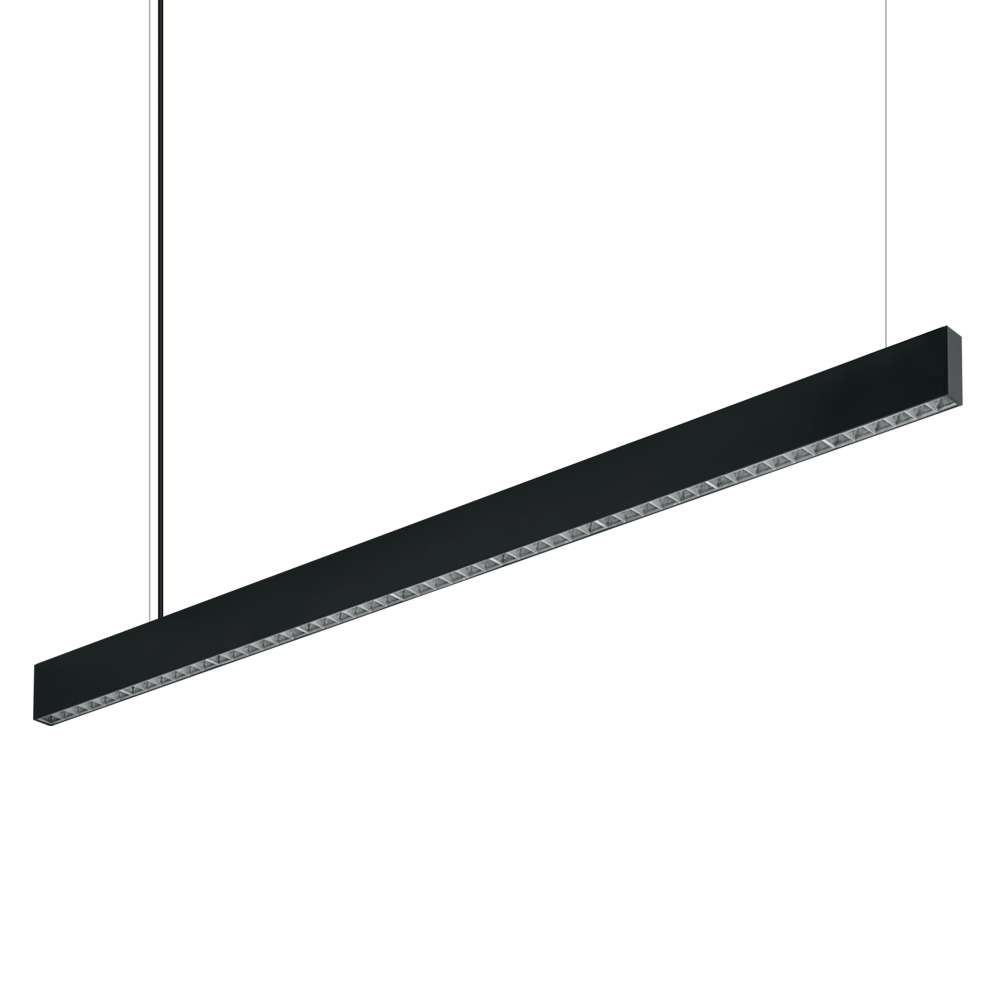

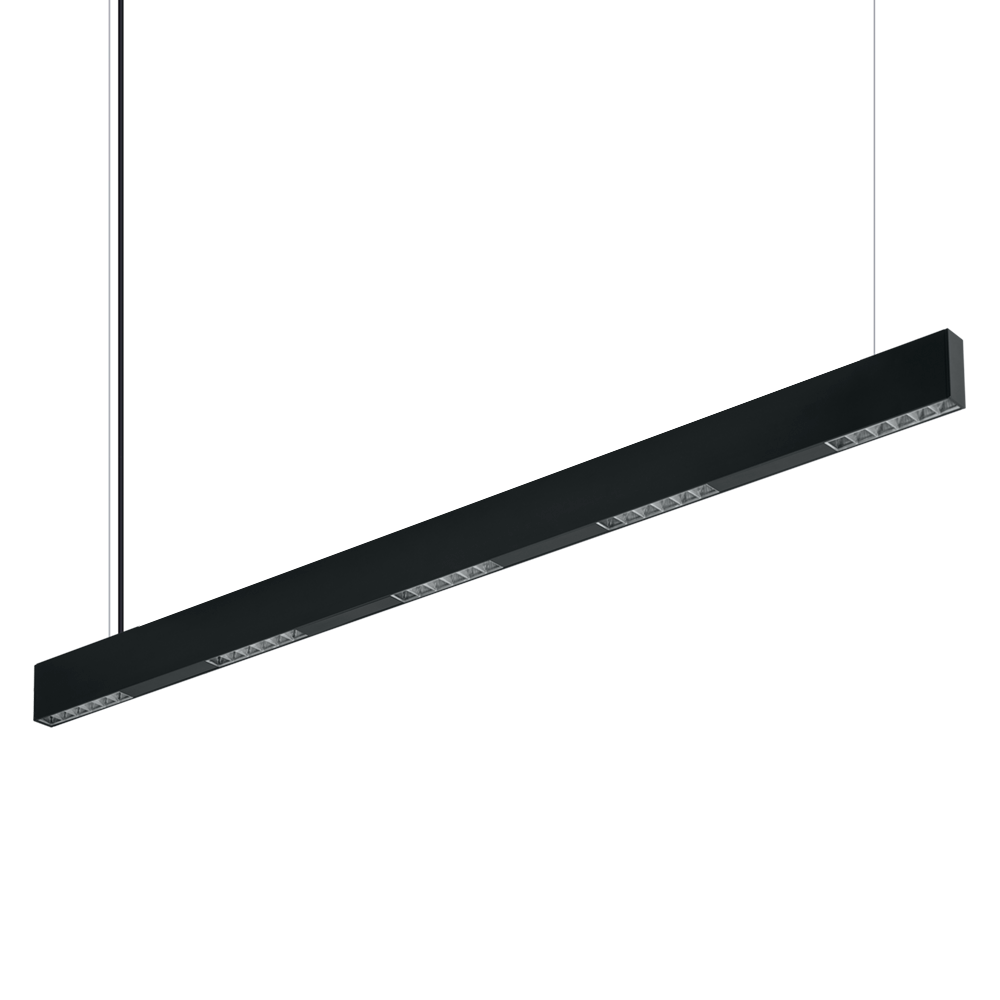

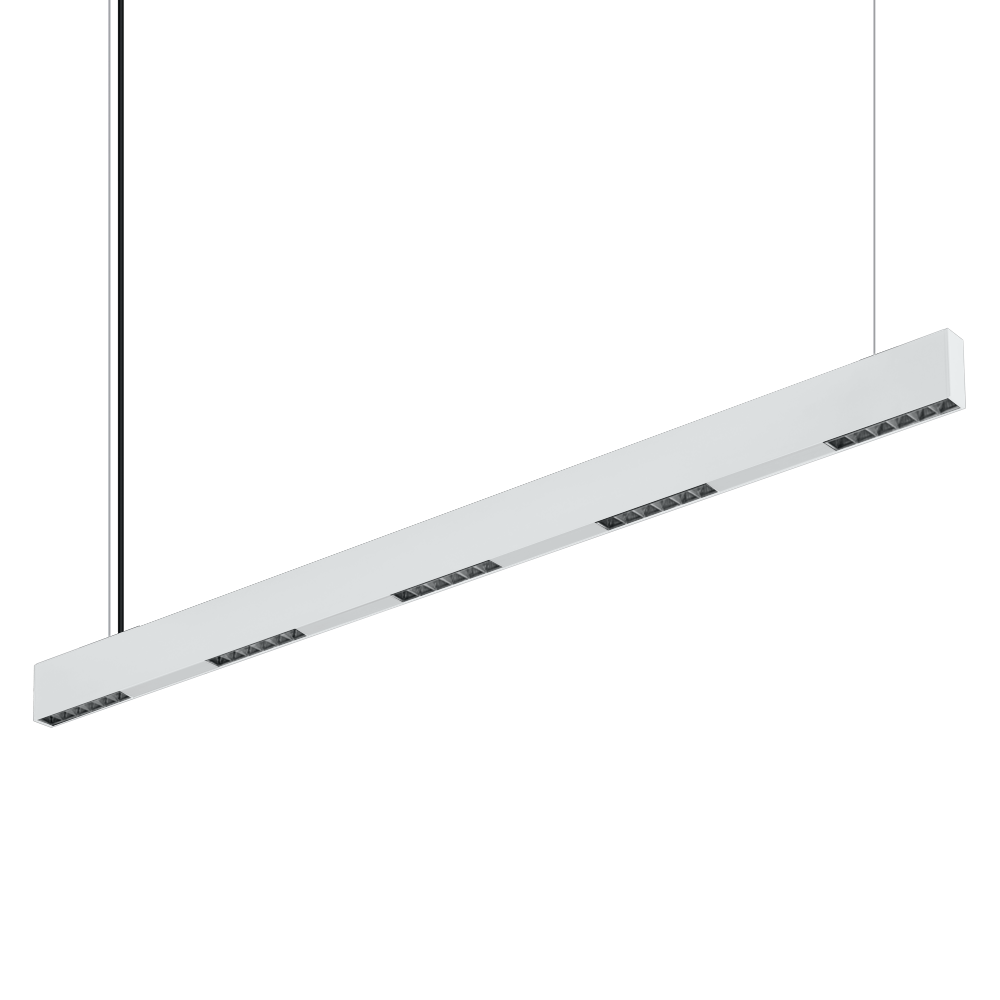

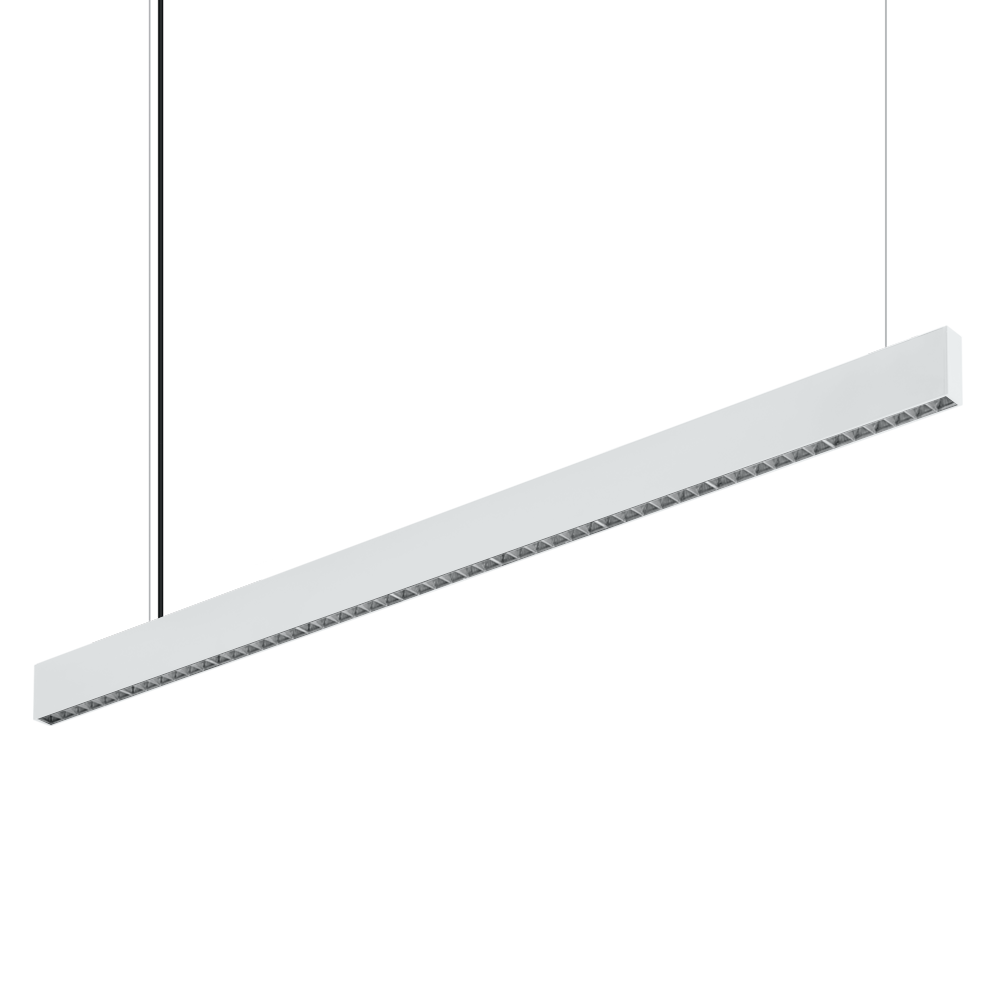

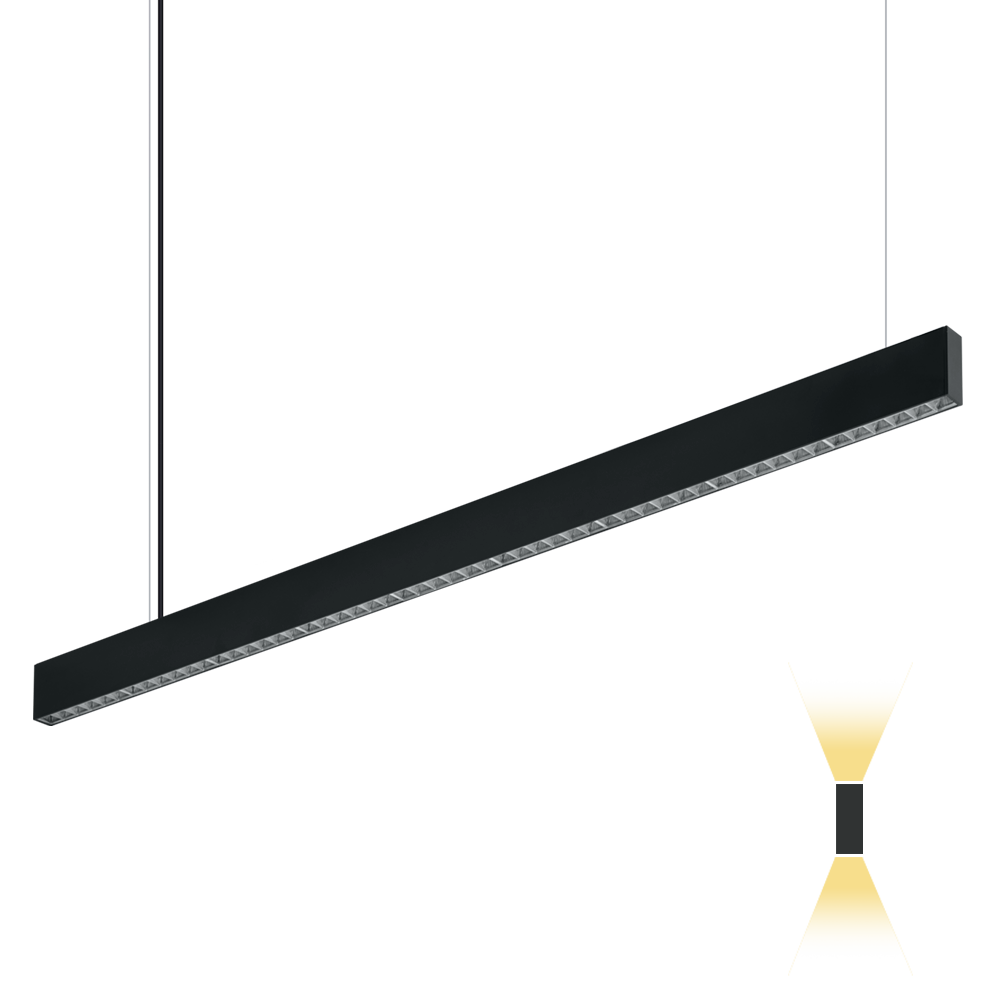

SWING-MINI

Clean geometry, versatile performance.

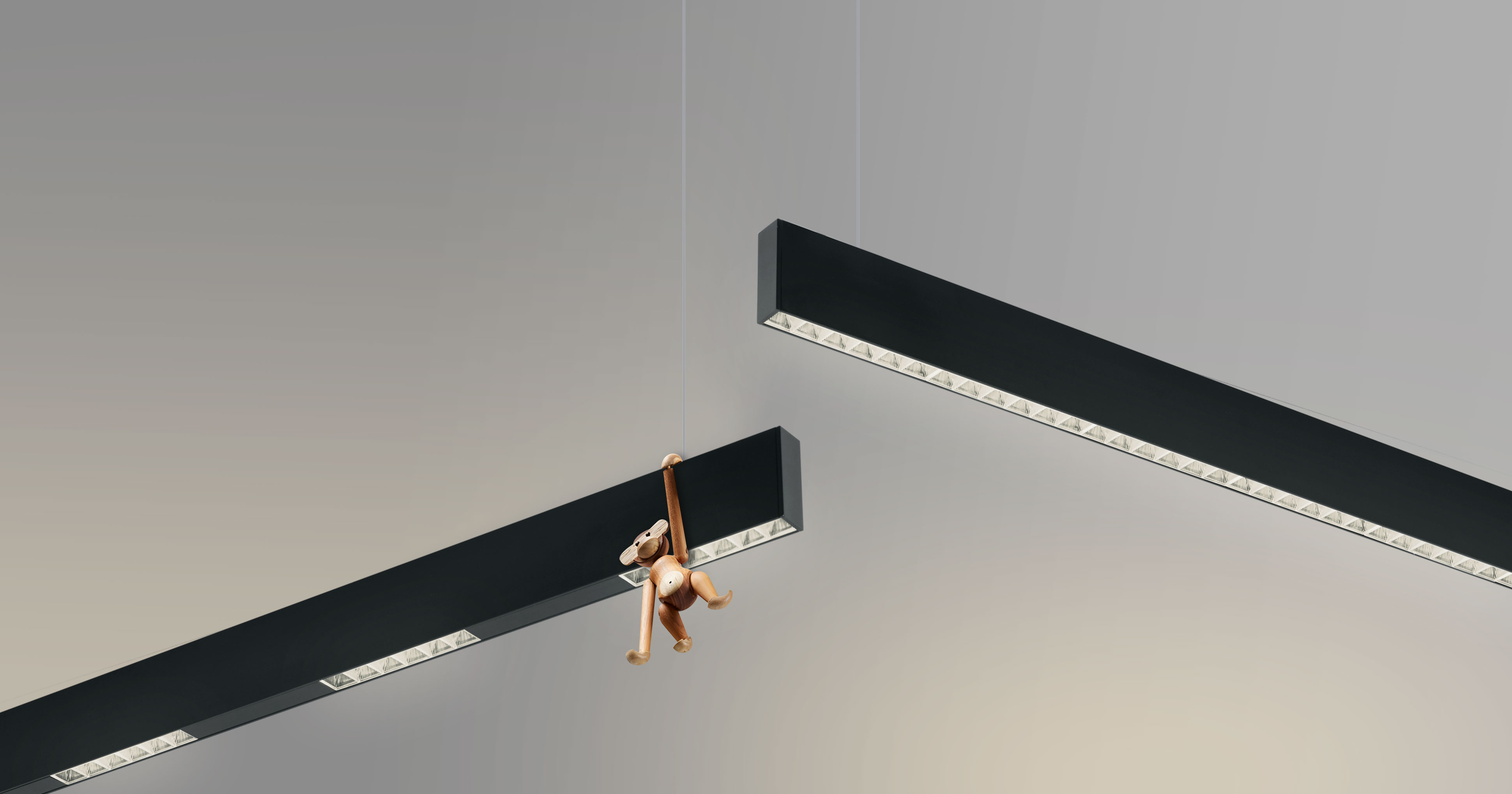

Composed of a series of modules that combine light emissions with dark segments the linkable design makes a flexible application for different spaces.Its elegant appearance and first-class lighting quality make it particularly appealing for offices and adjoining zones.ort.Rea also adds an elegant touch as a pendant luminaire and has an impressively wide range of applications.

Features Features

-Understated, elegant and minimalist design

-Glare-free play of light with transparent optics

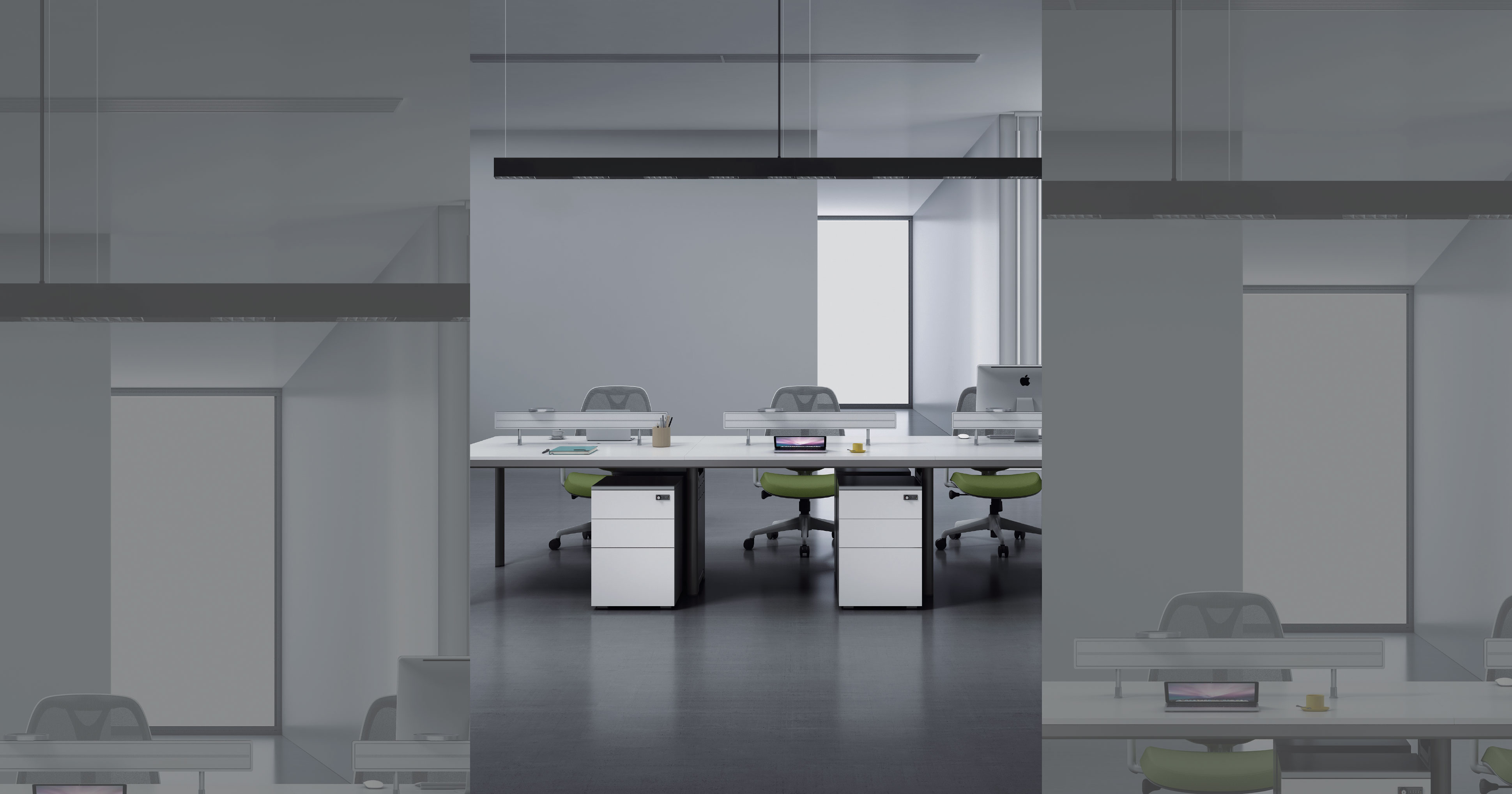

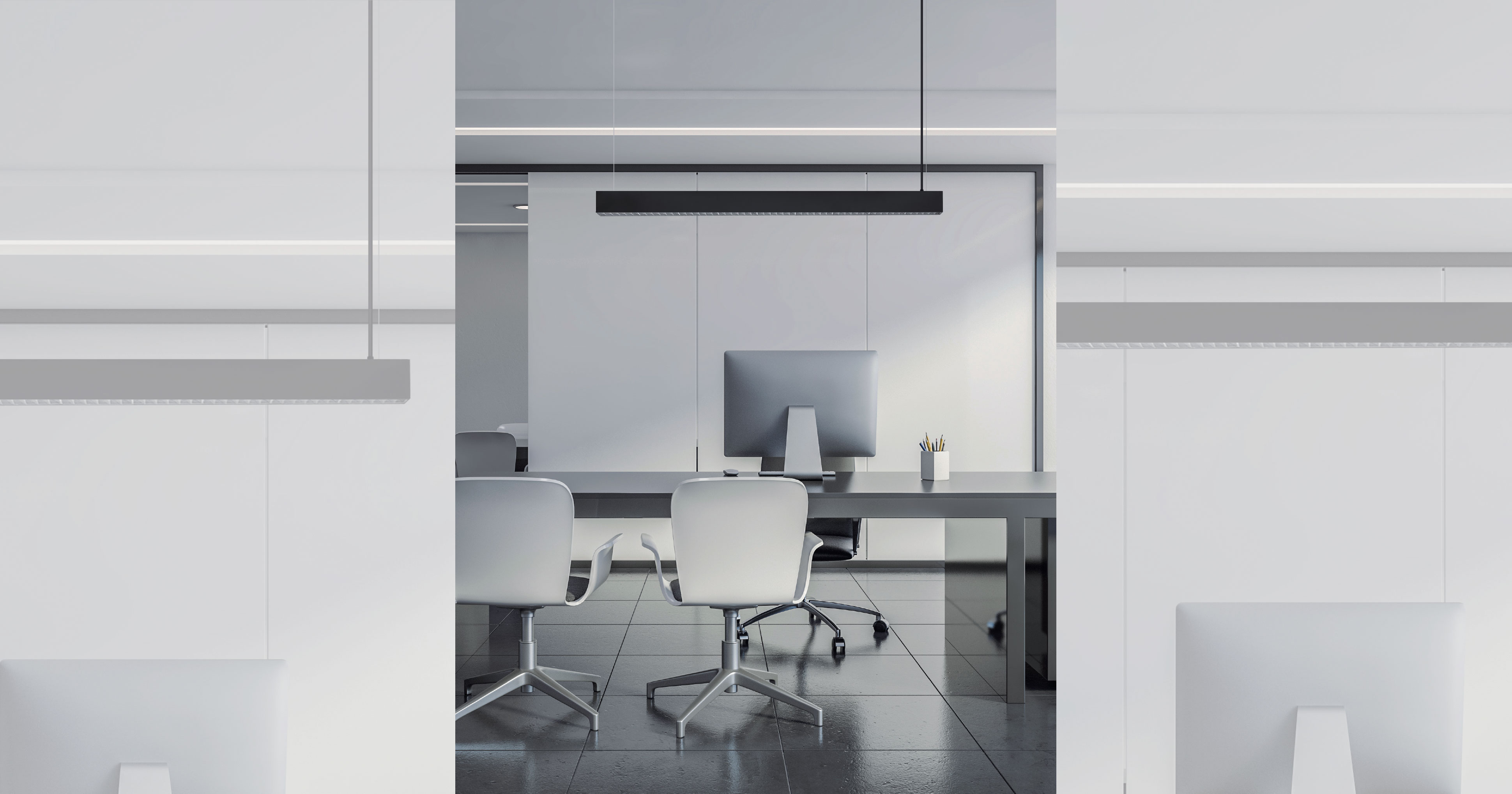

-Suitable for workplace lighting

-Suitable for a wide range of applications,both in theoffice and in the home

Specifications Specifications

-Black&white versions available

-Aluminium-Powder coated

-ON/OFF, TUNABLE, and DALl control system

-Pendant luminaire with a length of 1,201mm

-Available in the light colours 3,000 K, 4,000 K, or5000 K

-High quality of light with a colour rendering index Ra>90

-Operating unit included in delivery

Fields of application Fields of application

- Outdoor building facades – accentuating architectural features with durable, weatherproof lighting

- Hotel lobbies and public areas – combining elegance with functional illumination

- Retail storefronts and showroom exteriors – attracting attention with high-quality outdoor lighting

- Bathrooms and spa facilities – safe and reliable lighting in humid environments

- Corridors and stairwells – providing consistent, comfortable illumination

- Restaurant and café interiors – creating warm and inviting atmospheres

- Residential courtyards and garden areas – enhancing outdoor living spaces

- Gallery and exhibition spaces (wall mount with up/down) – adding dramatic wall-lighting effects

- Any space requiring versatile installation, weatherproof durability, and refined aesthetics

Version

0 Article

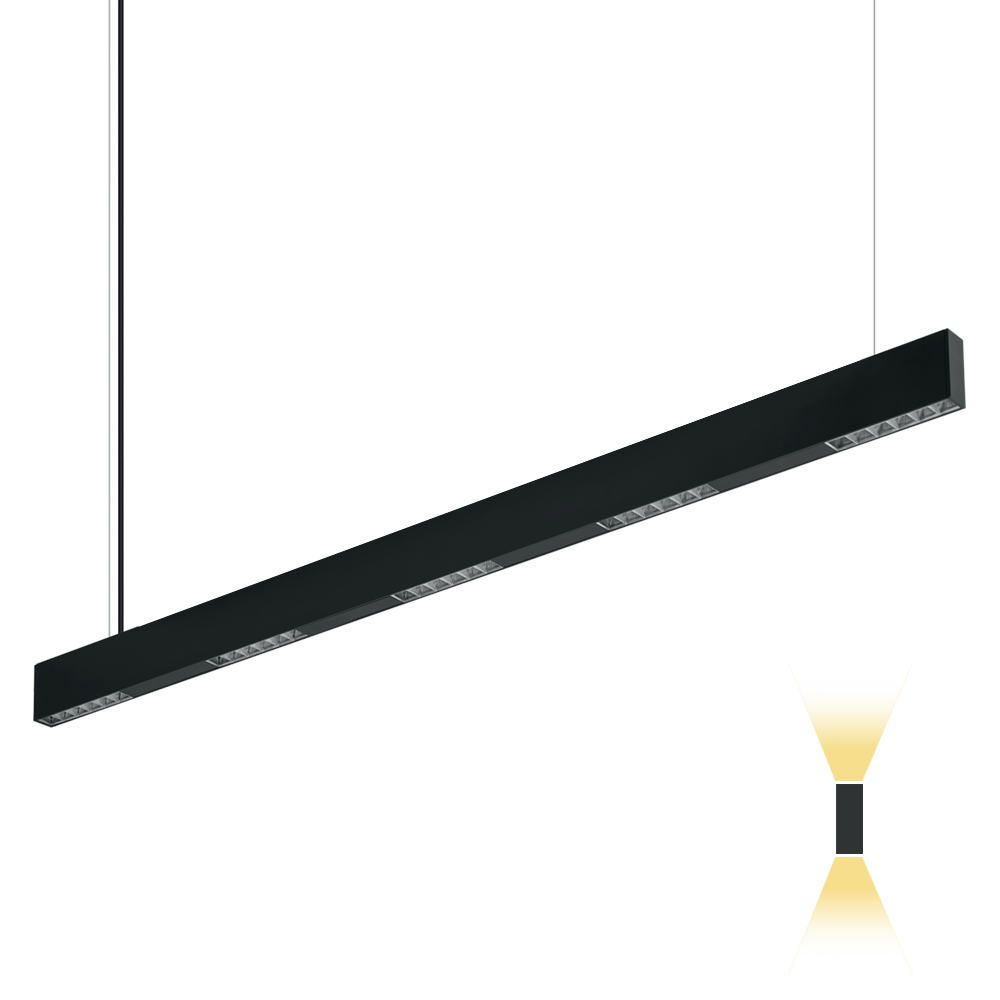

Nominal power

Up10W, Down20W

BEAM ANGLE

Up100°, Down38°

Up100°, Down24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI

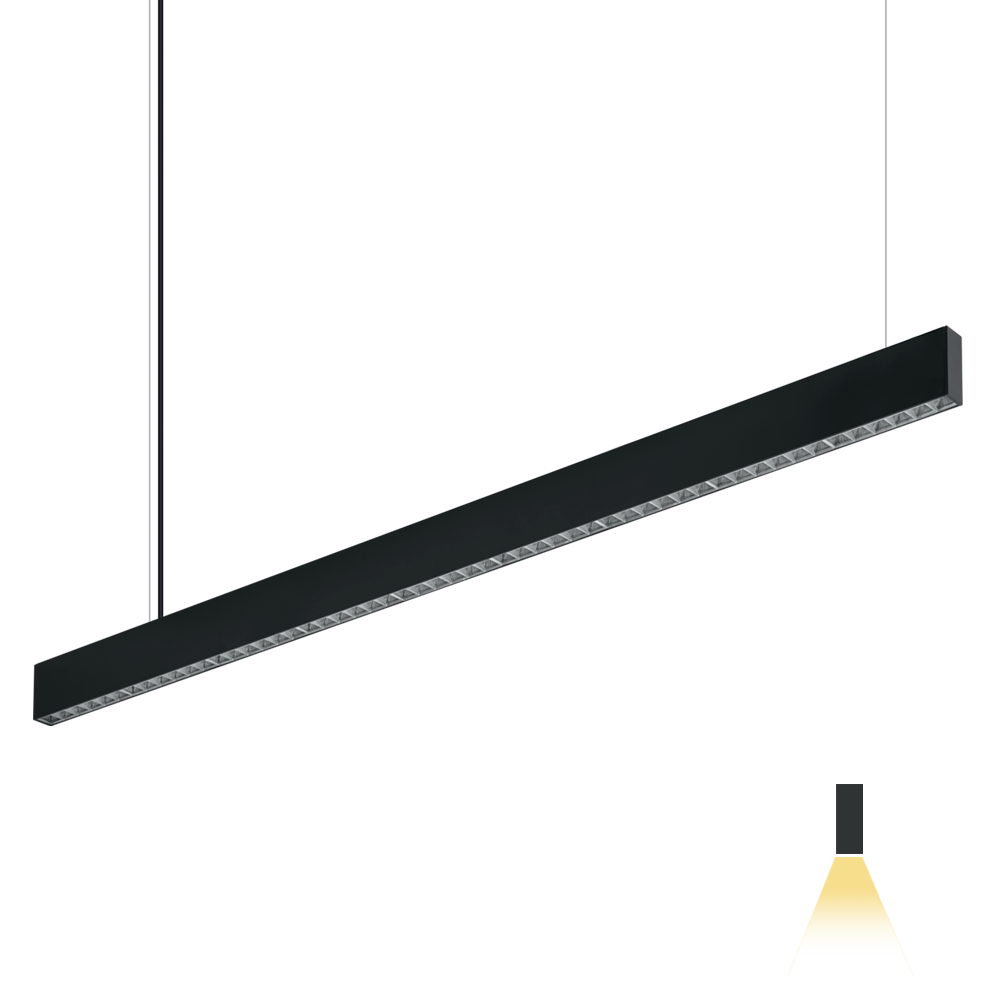

Nominal power

Down20W

BEAM ANGLE

38°

24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI

Nominal power

Up10W, Down30W

BEAM ANGLE

Up100°, Down38°

Up100°, Down24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI

Nominal power

Down30W

BEAM ANGLE

24°

38°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-D351-9PM-30K-24	L-D351-9PM-30K-24	Up10W, Down20W	3000K	Up650lm, Down1400lm	Up100°, Down24°	White/Black
Get in Touch Get in Touch L-D351-9PM-30K-24 SWING-MINI, with LED, system power: up10W, down20W, luminous flux of luminaire up650lm, down1400lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 1000mA, Beam angle: Up100°, Down24°, black/white, ON/OFF \| DALI. ingress protection IP20. L = 1033 mm, W = 24 mm,H = 60mm Nominal power Up10W, Down20W Finish White/Black Delivered lumens Up650lm, Down1400lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 1.42kg Color Rendering Index(CRI) CRI≥90 Height 60mm Unified Glare Rating (UGR) UGR<16 Length 1033mm Light Control ON/OFF \| DALI Width 24mm Beam angle Up100°, Down24° Downloads None Accessories
	L-D351-9PM-30K-38	L-D351-9PM-30K-38	Up10W, Down20W	3000K	Up650lm, Down1400lm	Up100°, Down38°	White/Black
Get in Touch Get in Touch L-D351-9PM-30K-38 SWING-MINI, with LED, system power: up10W, down20W, luminous flux of luminaire up650lm, down1400lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 1000mA, Beam angle: Up100°, Down38°, black/white, ON/OFF \| DALI. ingress protection IP20. L = 1033 mm, W = 24 mm,H = 60mm Nominal power Up10W, Down20W Finish White/Black Delivered lumens Up650lm, Down1400lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 1.42kg Color Rendering Index(CRI) CRI≥90 Height 60mm Unified Glare Rating (UGR) UGR<16 Length 1033mm Light Control ON/OFF \| DALI Width 24mm Beam angle Up100°, Down38° Downloads None Accessories
	L-D351-9PM-X-30K-24	L-D351-9PM-X-30K-24	Down20W	3000K	1400 lm	24°	White/Black
Get in Touch Get in Touch L-D351-9PM-X-30K-24 SWING-MINI, with LED, system power: Down20W, luminous flux of luminaire 1400lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 500mA, Beam angle: 24°, black/white, ON/OFF \| DALI. ingress protection IP20. L = 1033 mm, W = 24 mm,H = 60mm Nominal power Down20W Finish White/Black Delivered lumens 1400 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 1.42kg Color Rendering Index(CRI) CRI≥90 Height 60mm Unified Glare Rating (UGR) UGR<16 Length 1033mm Light Control ON/OFF \| DALI Width 24mm Beam angle 24° Downloads None Accessories
	L-D351-9PM-X-30K-38	L-D351-9PM-X-30K-38	Down20W	3000K	1400 lm	38°	White/Black
Get in Touch Get in Touch L-D351-9PM-X-30K-38 SWING-MINI, with LED, system power: Down20W, luminous flux of luminaire 1400lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 500mA, Beam angle: 38°, black/white, ON/OFF \| DALI. ingress protection IP20. L = 1033 mm, W = 24 mm,H = 60mm Nominal power Down20W Finish White/Black Delivered lumens 1400 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 1.42kg Color Rendering Index(CRI) CRI≥90 Height 60mm Unified Glare Rating (UGR) UGR<16 Length 1033mm Light Control ON/OFF \| DALI Width 24mm Beam angle 38° Downloads None Accessories
	L-D351-9P-30K-24	L-D351-9P-30K-24	Up10W, Down30W	3000K	2130 lm	Up100°, Down24°	White/Black
Get in Touch Get in Touch L-D351-9P-30K-24 SWING-MINI, with LED, system power: up10W, down30W, luminous flux of luminaire up650lm, down2130lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 1000mA, Beam angle: Up100°, Down24°, black/white, ON/OFF \| DALI. ingress protection IP20. L = 1033 mm, W = 24 mm,H = 60mm Nominal power Up10W, Down30W Finish White/Black Delivered lumens 2130 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 1.42kg Color Rendering Index(CRI) CRI≥90 Height 60mm Unified Glare Rating (UGR) UGR<16 Length 1033mm Light Control ON/OFF \| DALI Width 24mm Beam angle Up100°, Down24° Downloads None Accessories
	L-D351-9P-30K-38	L-D351-9P-30K-38	Up10W, Down30W	3000K	2130 lm	Up100°, Down38°	White/Black
Get in Touch Get in Touch L-D351-9P-30K-38 SWING-MINI, with LED, system power: up10W, down30W, luminous flux of luminaire up650lm, down2130lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 1000mA, Beam angle: Up100°, Down38°, black/white, ON/OFF \| DALI. ingress protection IP20. L = 1033 mm, W = 24 mm,H = 60mm Nominal power Up10W, Down30W Finish White/Black Delivered lumens 2130 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 1.42kg Color Rendering Index(CRI) CRI≥90 Height 60mm Unified Glare Rating (UGR) UGR<16 Length 1033mm Light Control ON/OFF \| DALI Width 24mm Beam angle Up100°, Down38° Downloads None Accessories
	L-D351-9P-X-30K-24	L-D351-9P-X-30K-24	Down30W	3000K	2130 lm	24°	White/Black
Get in Touch Get in Touch L-D351-9P-X-30K-24 SWING-MINI, with LED, system power: Down30W, luminous flux of luminaire 2130lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 750mA, Beam angle:24°, black/white, ON/OFF \| DALI. ingress protection IP20. L = 1033 mm, W = 24 mm,H = 60mm Nominal power Down30W Finish White/Black Delivered lumens 2130 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 1.42kg Color Rendering Index(CRI) CRI≥90 Height 60mm Unified Glare Rating (UGR) UGR<16 Length 1033mm Light Control ON/OFF \| DALI Width 24mm Beam angle 24° Downloads None Accessories
	L-D351-9P-X-30K-38	L-D351-9P-X-30K-38	Down30W	3000K	2130 lm	38°	White/Black
Get in Touch Get in Touch L-D351-9P-X-30K-38 SWING-MINI, with LED, system power: Down30W, luminous flux of luminaire 2130lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 750mA, Beam angle: 38°, black/white, ON/OFF \| DALI. ingress protection IP20. L = 1033 mm, W = 24 mm,H = 60mm Nominal power Down30W Finish White/Black Delivered lumens 2130 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 1.42kg Color Rendering Index(CRI) CRI≥90 Height 60mm Unified Glare Rating (UGR) UGR<16 Length 1033mm Light Control ON/OFF \| DALI Width 24mm Beam angle 38° Downloads None Accessories
