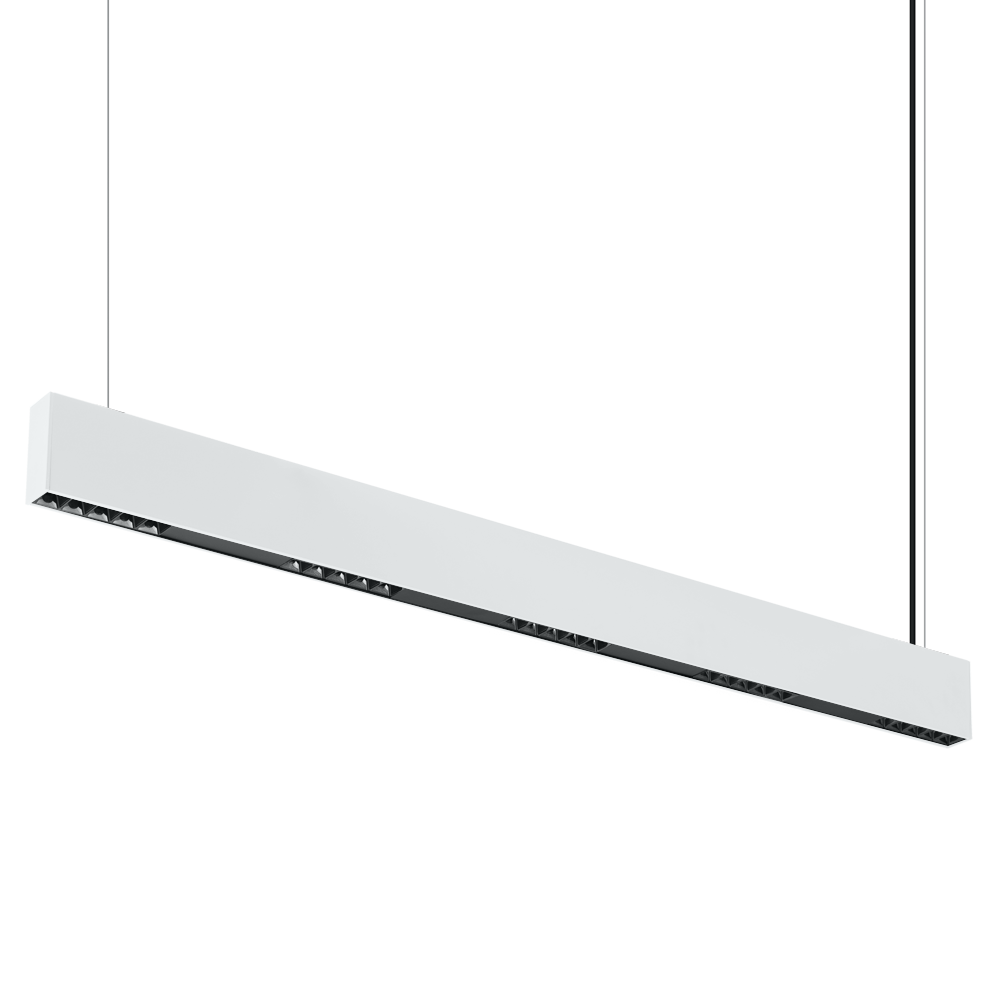

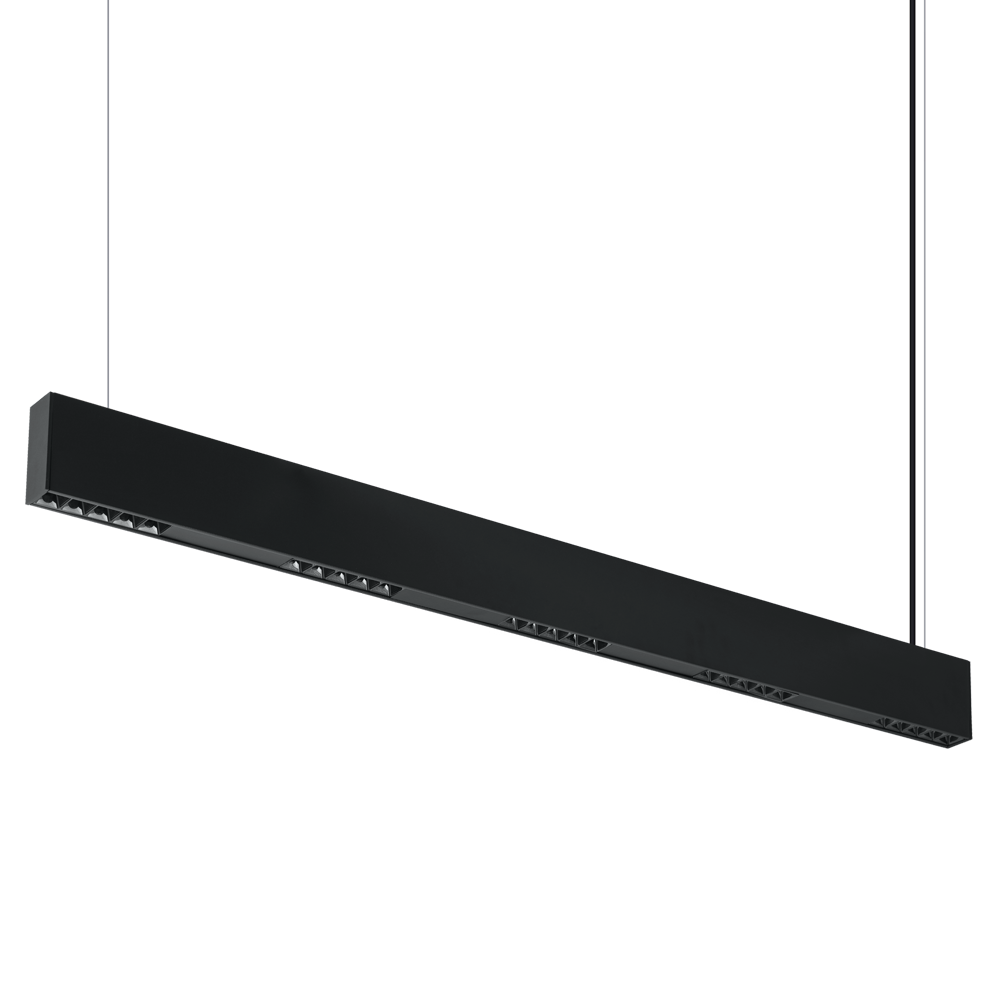

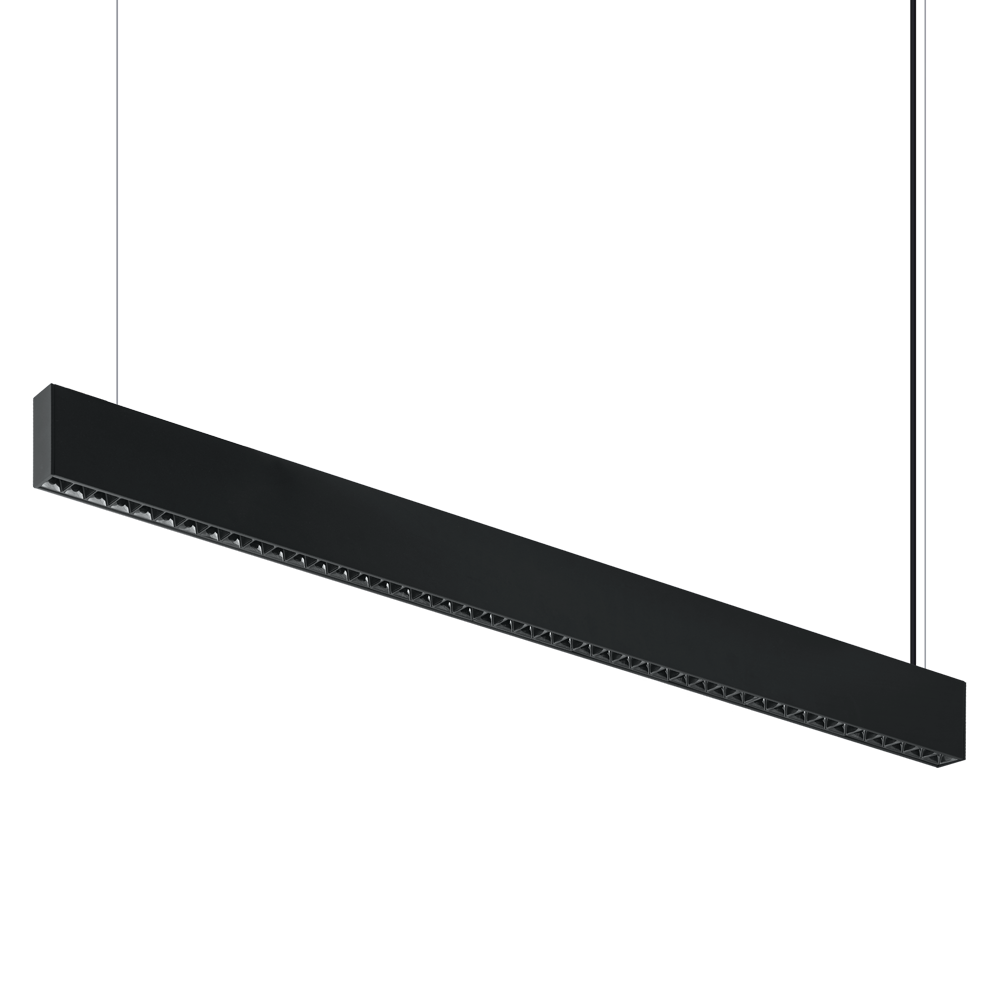

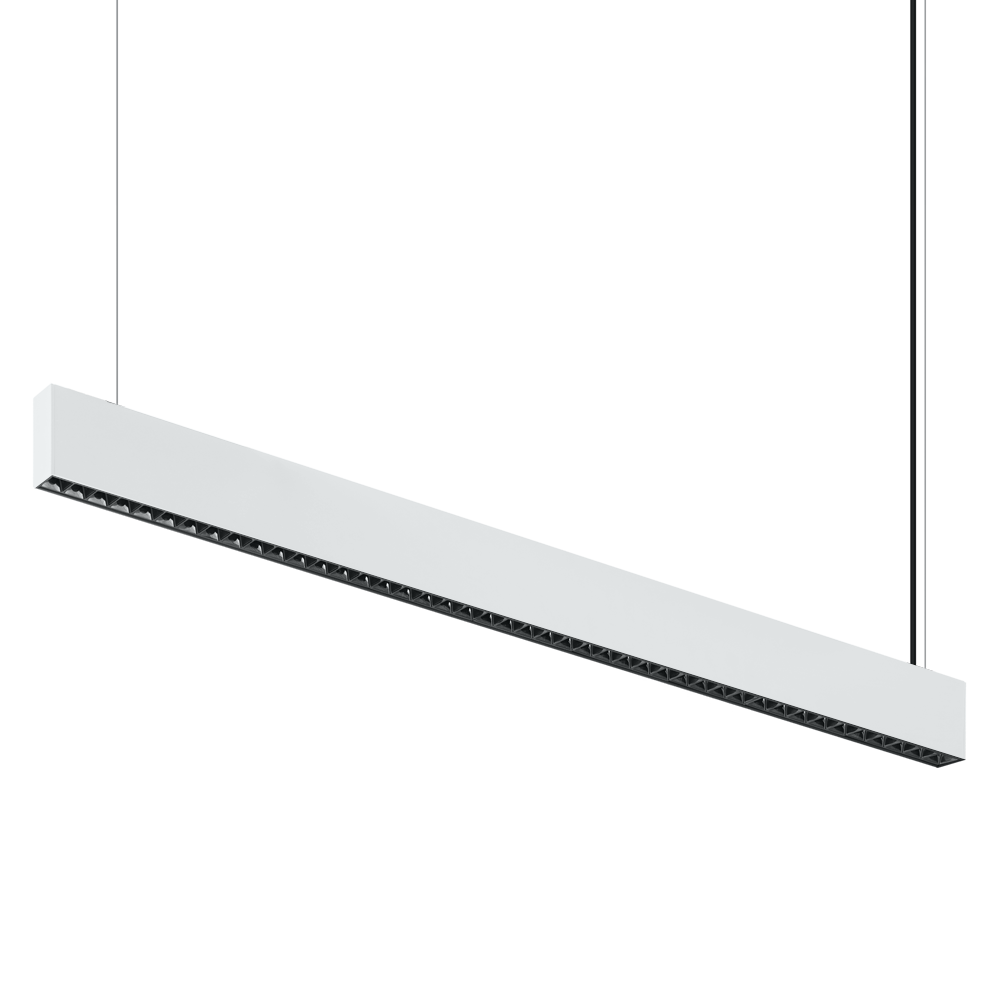

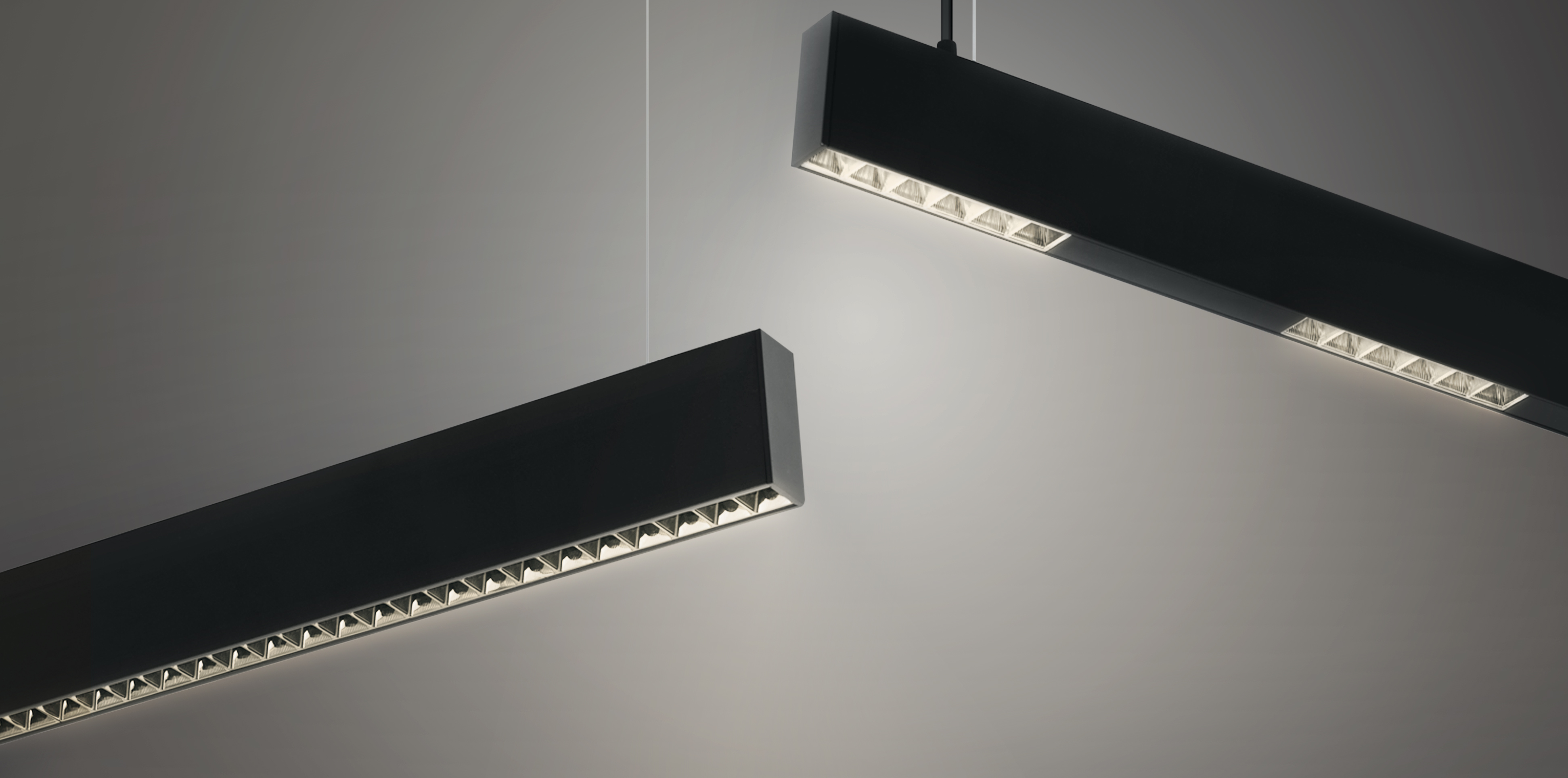

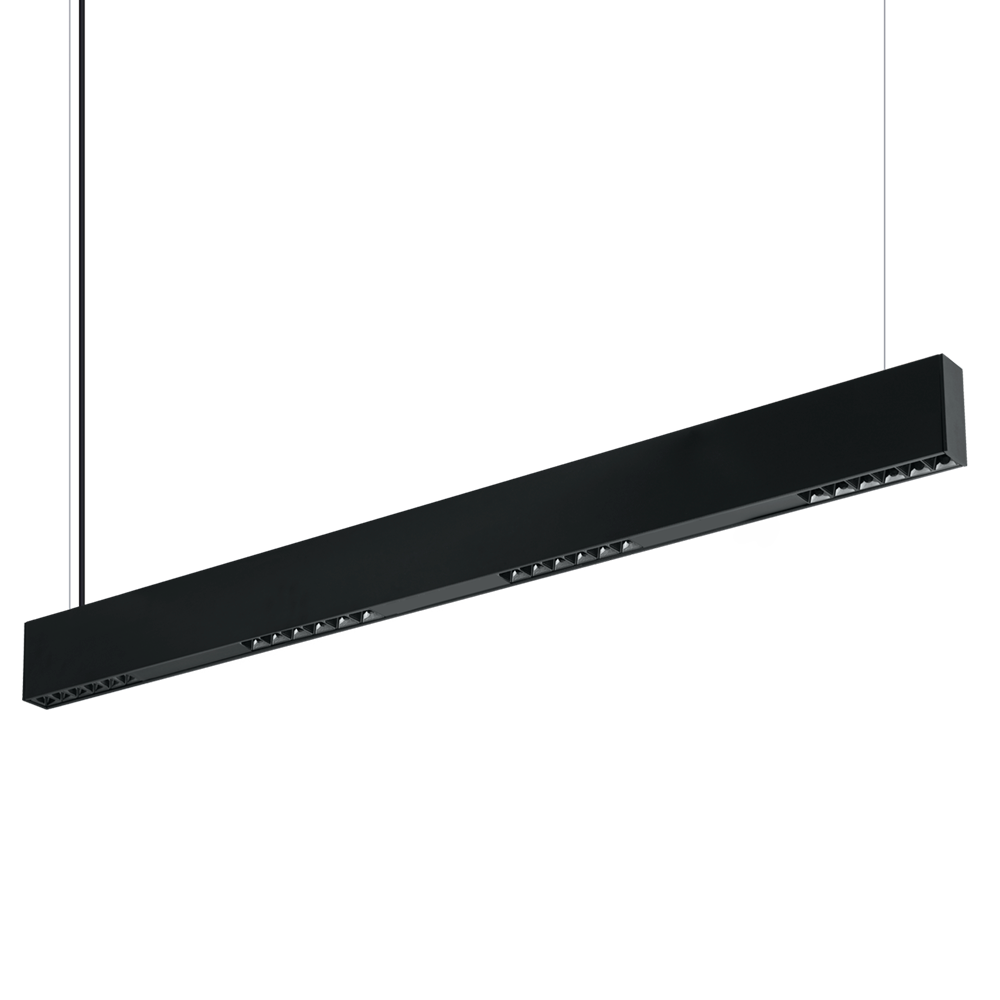

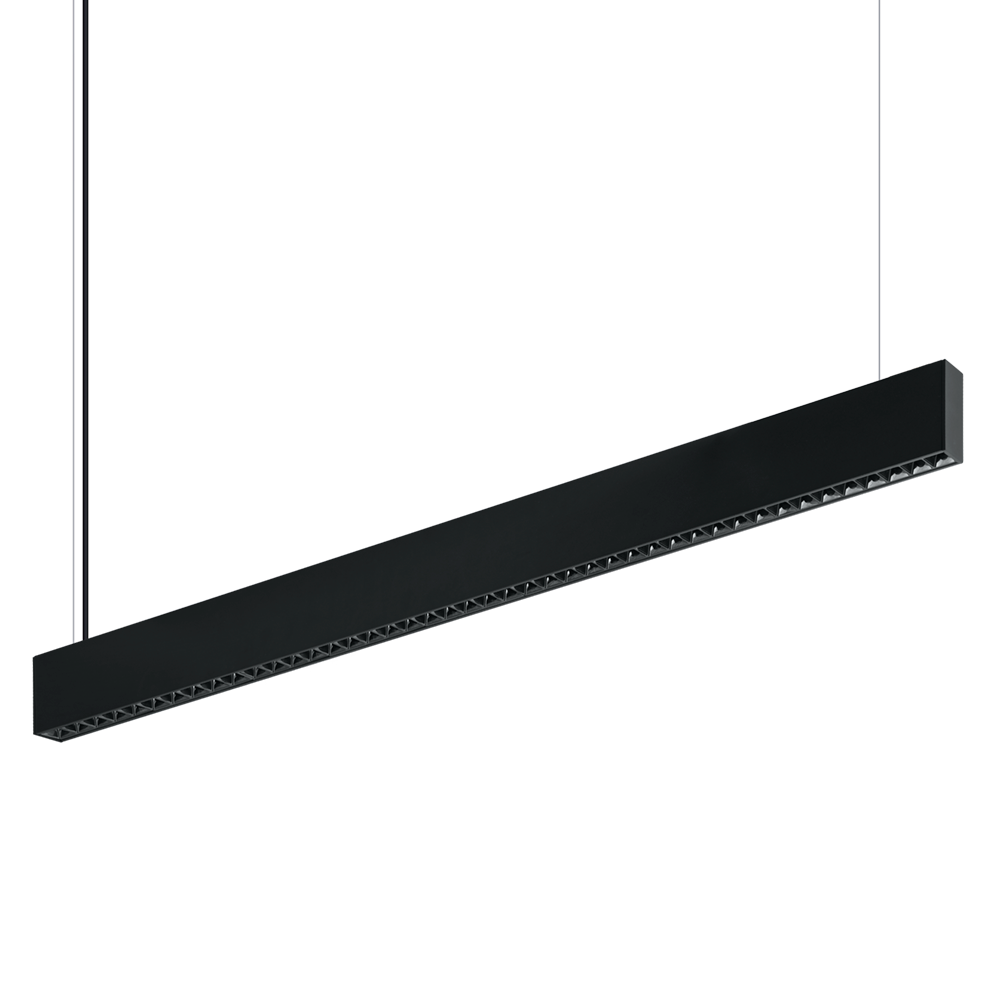

SWING-CLASSIC

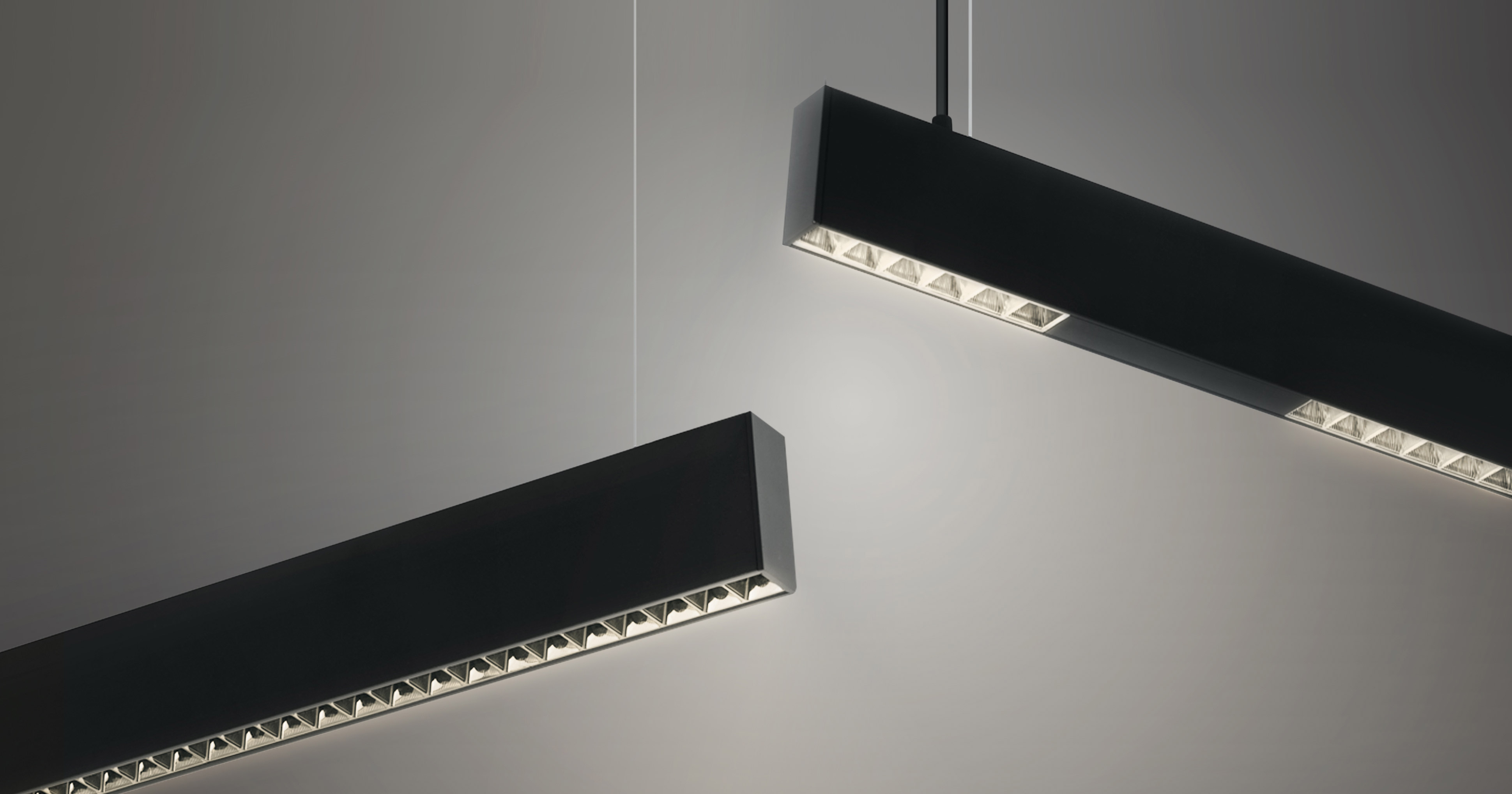

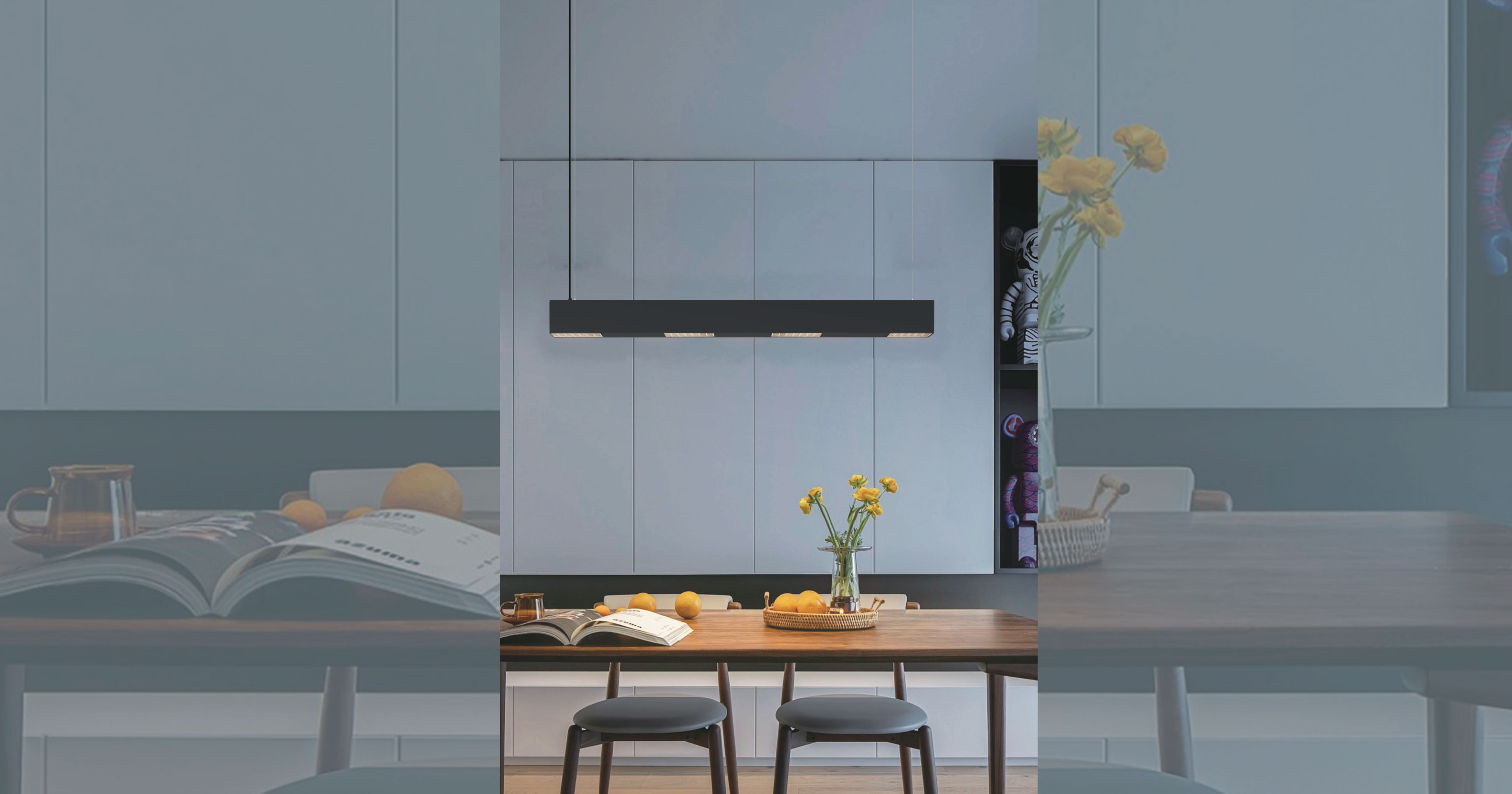

Composed of a series of modules that combine light emissions with dark segments the linkable design makes a flexible

application for different spaces.Its elegant appearance and first-class lighting quality make it particularly appealing for

offices and adjoining zones.ort.Rea also adds an elegant touch as a pendant luminaire and has an impressively wide

range of applications.

Features Features

-Understated, elegant and minimalist design

-Glare-free play of light with transparent optics

-Suitable for workplace lighting

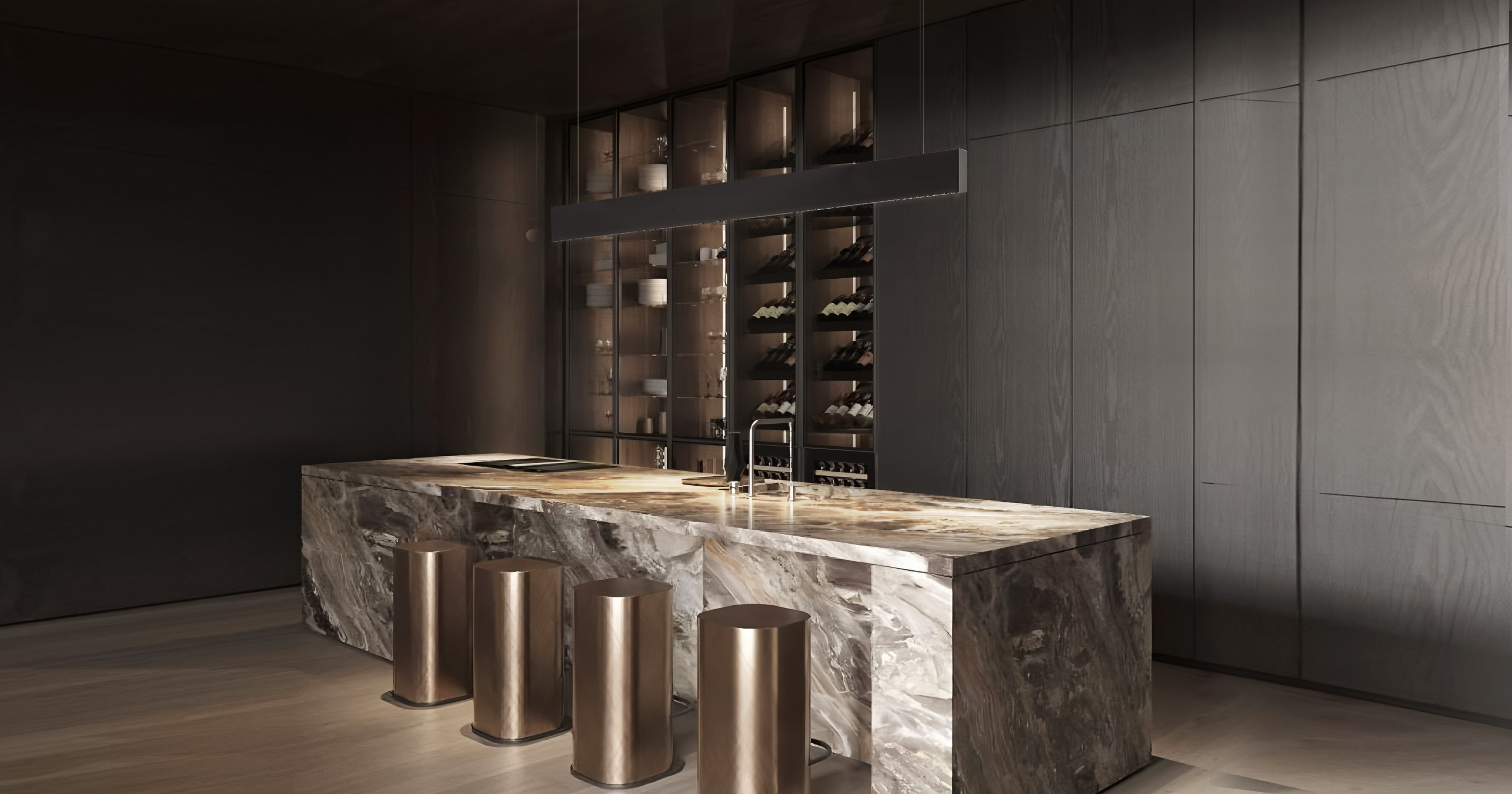

-Suitable for a wide range of applications,both in theoffice and in the home

Specifications Specifications

-Black&white versions available

-Aluminium-Powder coated

-ON/OFF, TUNABLE, and DALl control system

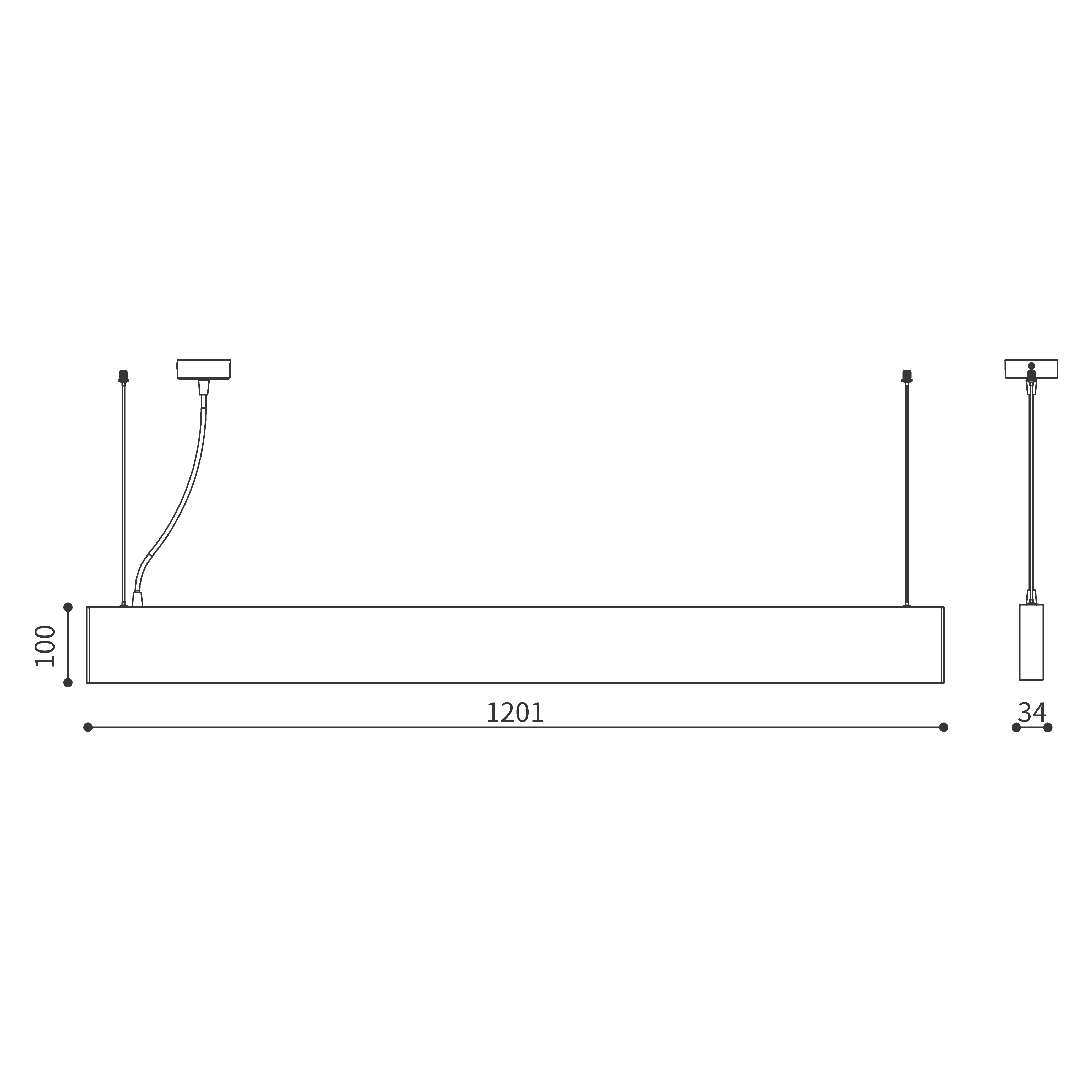

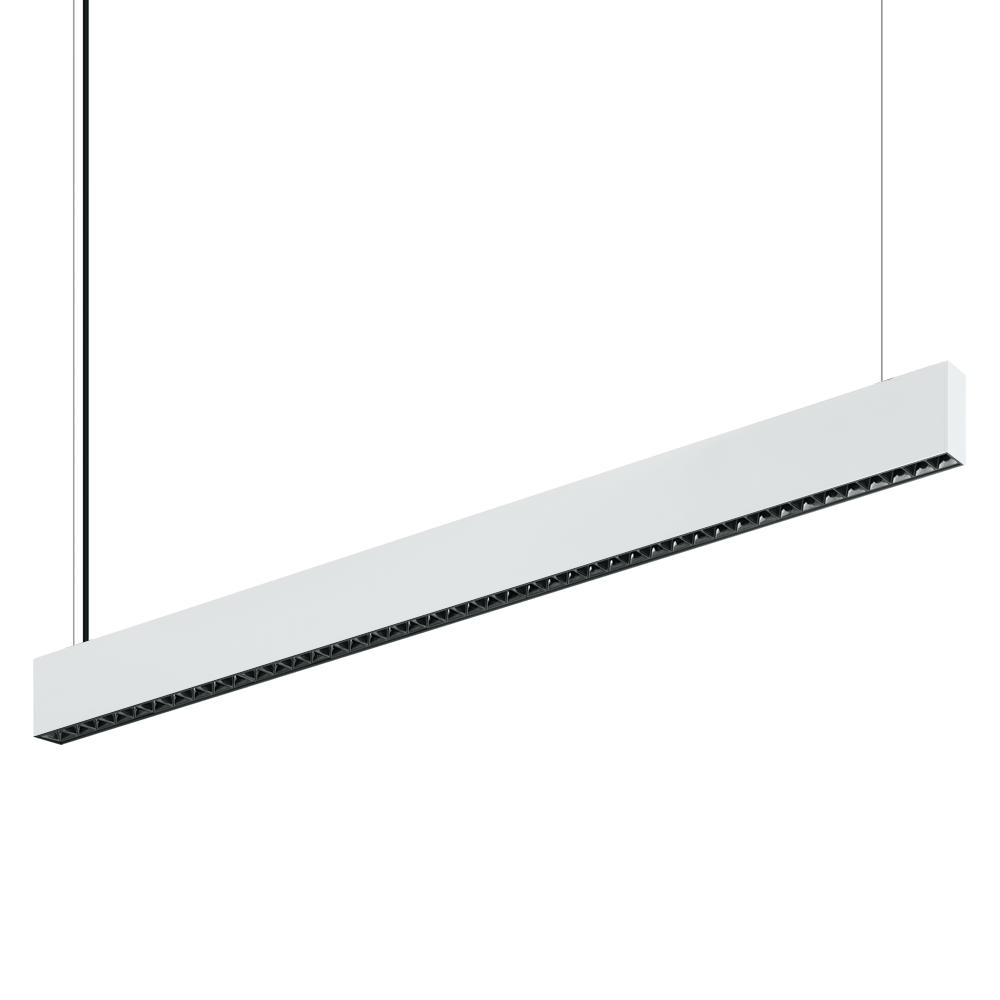

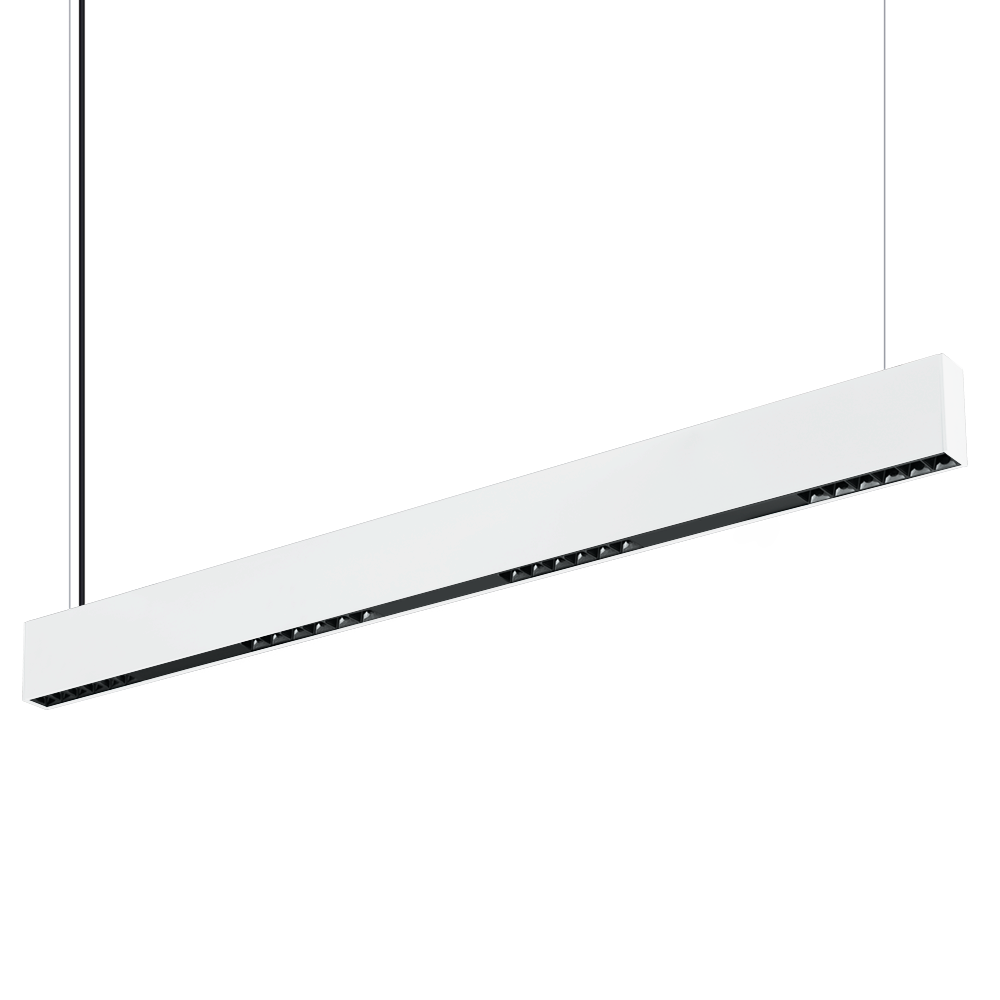

-Pendant luminaire with a length of 1,201mm

-Available in the light colours 3,000 K, 4,000 K, or5000 K

-High quality of light with a colour rendering index Ra>90

-Operating unit included in delivery

Fields of application Fields of application

Office & Education

open-plan offices, individual offices, meeting rooms,

foyers and lobbies, cafeterias, circulation zones, classrooms

Retail & Hospitality

reception areas, circulation zones, Checkout areas

Version

0 Article

Nominal power

Up12W, Down30W

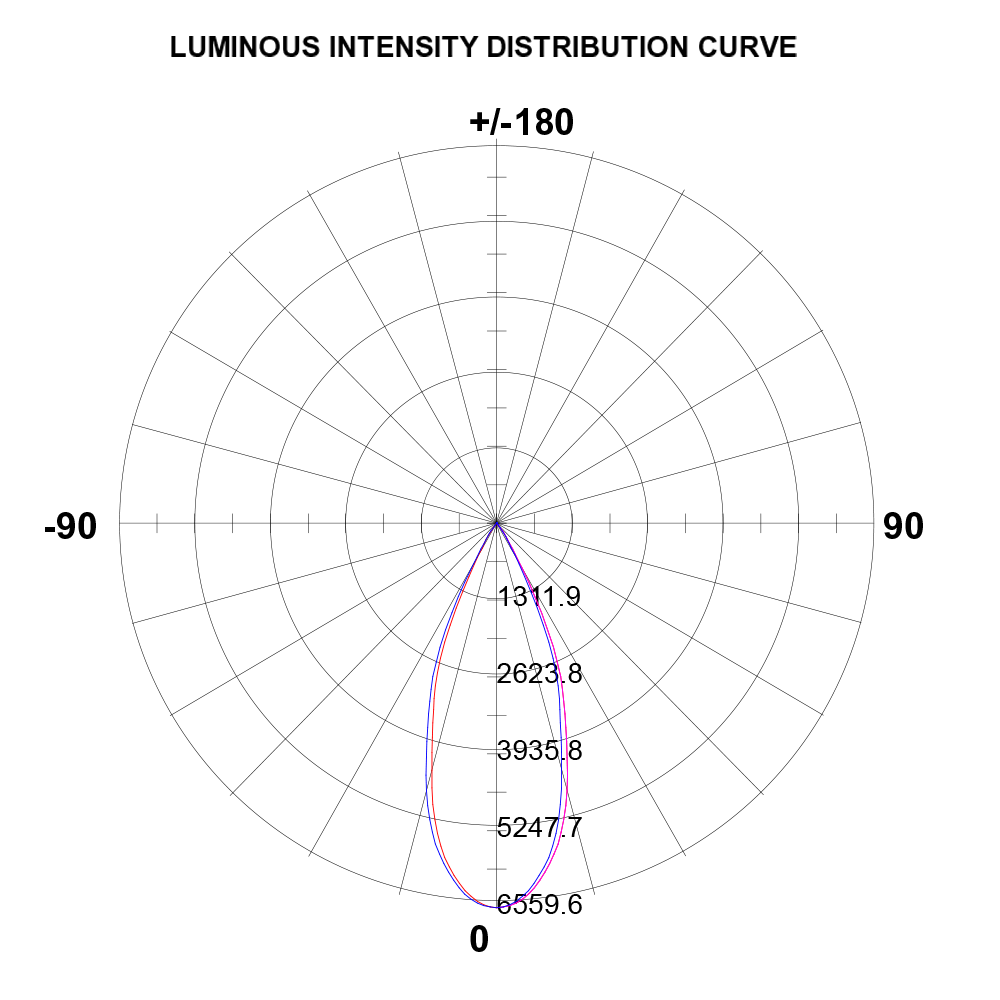

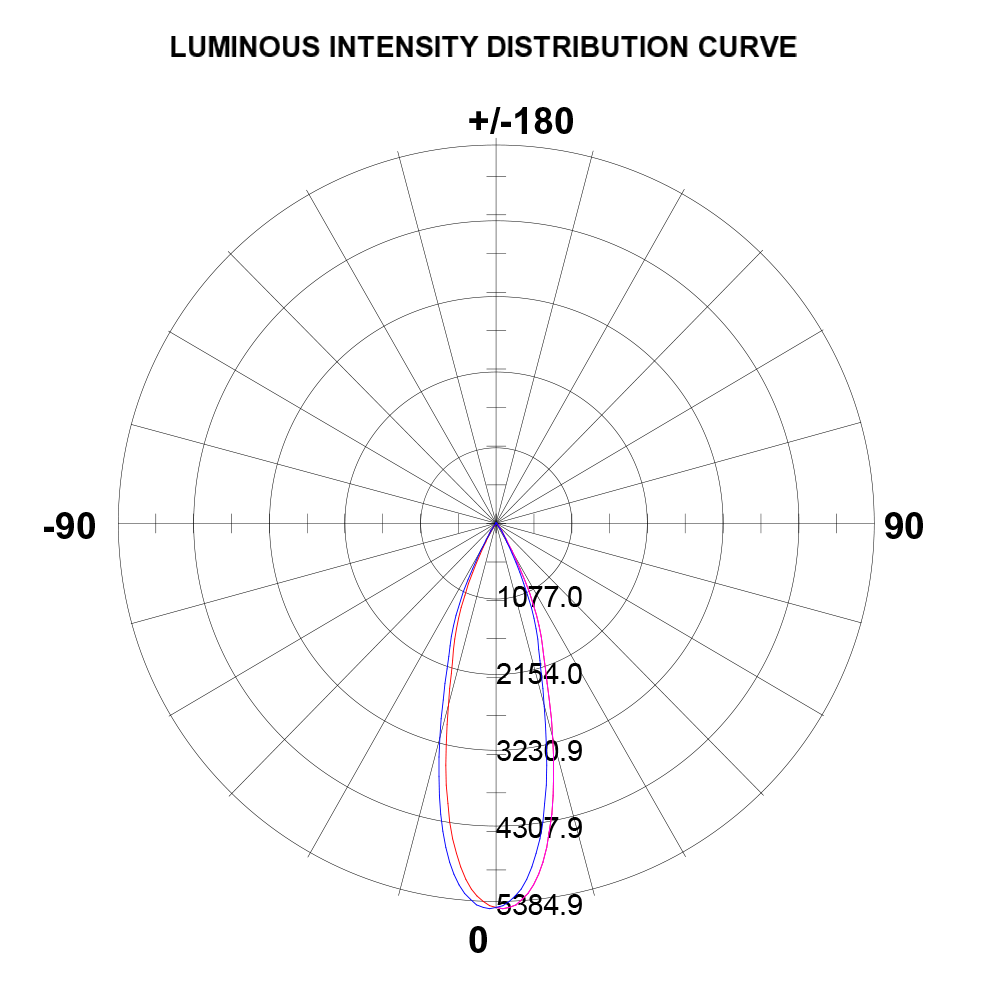

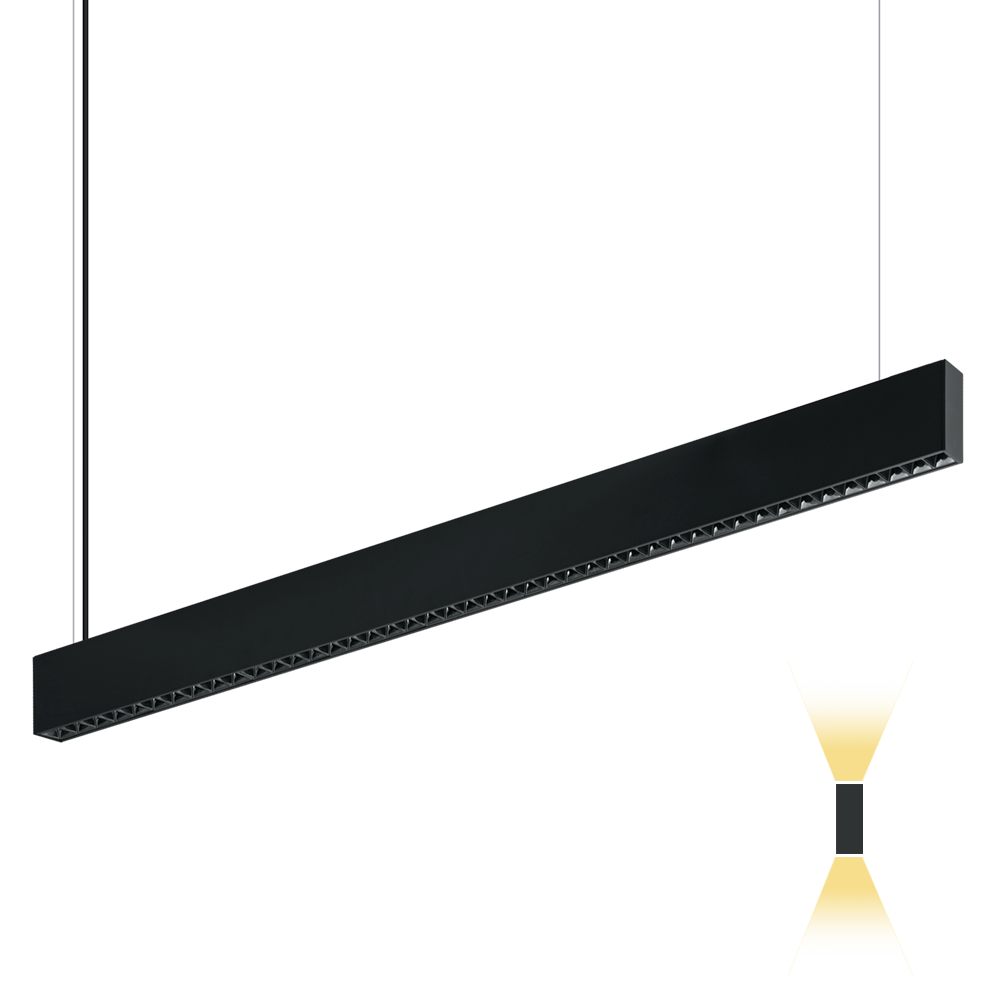

BEAM ANGLE

Up100°, Down35°

Up100°, Down25°

Up100°, Down15°

COLOUR / FINISH

white/Black/nickel/gold

LIGHT CONTROL

ON/OFF

Nominal power

Down30W

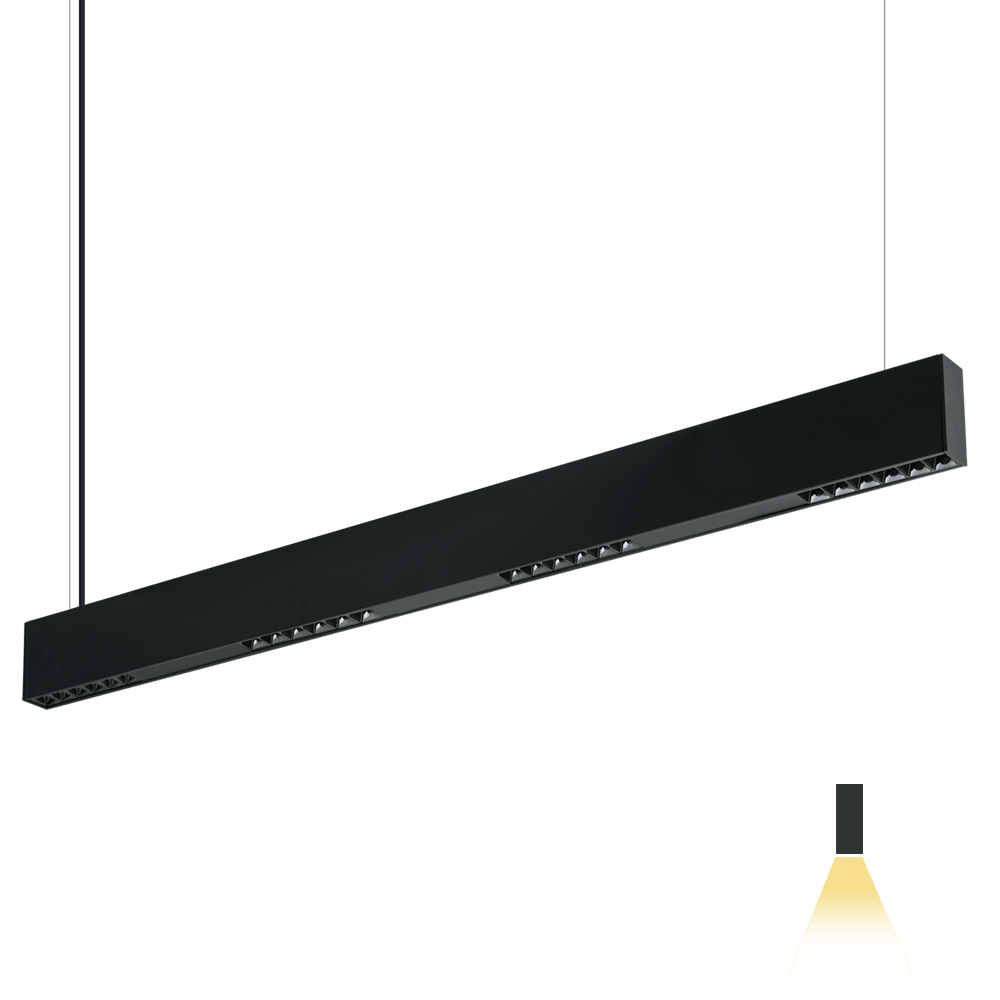

BEAM ANGLE

35°

25°

15°

COLOUR / FINISH

white/Black/nickel/gold

LIGHT CONTROL

ON/OFF

Nominal power

Up12W, Down30W

BEAM ANGLE

Up100°, Down35°

Up100°, Down25°

Up100°, Down15°

COLOUR / FINISH

white/Black/nickel/gold

LIGHT CONTROL

ON/OFF

Nominal power

Down30W

BEAM ANGLE

35°

25°

15°

COLOUR / FINISH

white/Black/nickel/gold

LIGHT CONTROL

ON/OFF

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	U-D107-42P-1	U-D107-42P-1	Up12W, Down30W	3000K	Up780lm, Down2880 lm	Up100°, Down15°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-42P-1 Pendant luminaire SWING-CLASSIC, system power: up:12 W,down:30 W, luminous flux of luminaire up:780 lm,down:2880 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3, lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid, 1 integral control gear, DALI, Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Up12W, Down30W Finish white/Black/nickel/gold Delivered lumens Up780lm, Down2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle Up100°, Down15° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-D107-42P-2	U-D107-42P-2	Up12W, Down30W	3000K	Up780lm, Down2880 lm	Up100°, Down25°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-42P-2 Pendant luminaire SWING-CLASSIC, system power: up:12 W,down:30 W, luminous flux of luminaire up:780 lm,down:2880 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3, lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid, 1 integral control gear, DALI, Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Up12W, Down30W Finish white/Black/nickel/gold Delivered lumens Up780lm, Down2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle Up100°, Down25° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-D107-42P-3	U-D107-42P-3	Up12W, Down30W	3000K	Up780lm, Down2880 lm	Up100°, Down35°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-42P-3 Pendant luminaire SWING-CLASSIC, system power: up:12 W,down:30 W, luminous flux of luminaire up:780 lm,down:2880 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3, lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid, 1 integral control gear, DALI, Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Up12W, Down30W Finish white/Black/nickel/gold Delivered lumens Up780lm, Down2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle Up100°, Down35° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-D107-42P-X-1	U-D107-42P-X-1	Down30W	3000K	2880 lm	15°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-42P-X-1 Pendant luminaire SWING-CLASSIC, system power: 30 W, luminous flux of luminaire :2880 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3,lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid,1 integral control gear, DALI,Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Down30W Finish white/Black/nickel/gold Delivered lumens 2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle 15° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-D107-42P-X-2	U-D107-42P-X-2	Down30W	3000K	2880 lm	25°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-42P-X-2 Pendant luminaire SWING-CLASSIC, system power: 30 W, luminous flux of luminaire :2880 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3,lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid,1 integral control gear, DALI,Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Down30W Finish white/Black/nickel/gold Delivered lumens 2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle 25° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-D107-42P-X-3	U-D107-42P-X-3	Down30W	3000K	2880 lm	35°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-42P-X-3 Pendant luminaire SWING-CLASSIC, system power: 30 W, luminous flux of luminaire :2880 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3,lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid,1 integral control gear, DALI,Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Down30W Finish white/Black/nickel/gold Delivered lumens 2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle 35° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-D107-24PM-1	U-D107-24PM-1	Up12W, Down30W	3000K	Up780lm, Down2880 lm	Up100°, Down15°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-24PM-1 Pendant luminaire SWING-CLASSIC, system power: up:12 W,down:20 W, luminous flux of luminaire up:780 lm,down:1840 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3, lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid, 1 integral control gear, DALI, Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Up12W, Down30W Finish white/Black/nickel/gold Delivered lumens Up780lm, Down2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle Up100°, Down15° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-D107-24PM-2	U-D107-24PM-2	Up12W, Down30W	3000K	Up780lm, Down2880 lm	Up100°, Down25°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-24PM-2 Pendant luminaire SWING-CLASSIC, system power: up:12 W,down:20 W, luminous flux of luminaire up:780 lm,down:1840 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3, lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid, 1 integral control gear, DALI, Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Up12W, Down30W Finish white/Black/nickel/gold Delivered lumens Up780lm, Down2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle Up100°, Down25° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-D107-24PM-3	U-D107-24PM-3	Up12W, Down30W	3000K	Up780lm, Down2880 lm	Up100°, Down35°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-24PM-3 Pendant luminaire SWING-CLASSIC, system power: up:12 W,down:20 W, luminous flux of luminaire up:780 lm,down:1840 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3, lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid, 1 integral control gear, DALI, Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Up12W, Down30W Finish white/Black/nickel/gold Delivered lumens Up780lm, Down2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle Up100°, Down35° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-D107-24PM-X-1	U-D107-24PM-X-1	Down30W	3000K	2880 lm	15°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-24PM-X-1 Pendant luminaire SWING-CLASSIC, system power: 20 W, luminous flux of luminaire :1840 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3,lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid,1 integral control gear, DALI,Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Down30W Finish white/Black/nickel/gold Delivered lumens 2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle 15° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-D107-24PM-X-2	U-D107-24PM-X-2	Down30W	3000K	2880 lm	25°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-24PM-X-2 Pendant luminaire SWING-CLASSIC, system power: 20 W, luminous flux of luminaire :1840 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3,lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid,1 integral control gear, DALI,Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Down30W Finish white/Black/nickel/gold Delivered lumens 2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle 25° Downloads None Accessories Transparent PVC sheet Honeycomb
	U-D107-24PM-X-3	U-D107-24PM-X-3	Down30W	3000K	2880 lm	35°	white/Black/nickel/gold
Get in Touch Get in Touch U-D107-24PM-X-3 Pendant luminaire SWING-CLASSIC, system power: 20 W, luminous flux of luminaire :1840 lm, colour rendering index CRI > 90, 3000 K, neutral white, colour tolerances SDCM 3,lifetime LED L90 50'000 h, office-compatible and glare-free according to EN 12464-1 (UGR < 19; Lmax ≥ 65° ≤ 3000 cd/m²), Photobiological safety: Safe., 230 V, direct light emission, single-part frame in aluminium, black, RAL 9016, with grid,1 integral control gear, DALI,Understated, elegant and minimalist design protection class I, ingress protection IP20 L = 1201 mm, W = 34 mm,H = 100mm Nominal power Down30W Finish white/Black/nickel/gold Delivered lumens 2880 lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 2.58kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR<16 Length 1201mm Light Control ON/OFF Width 34mm Beam angle 35° Downloads None Accessories Transparent PVC sheet Honeycomb
