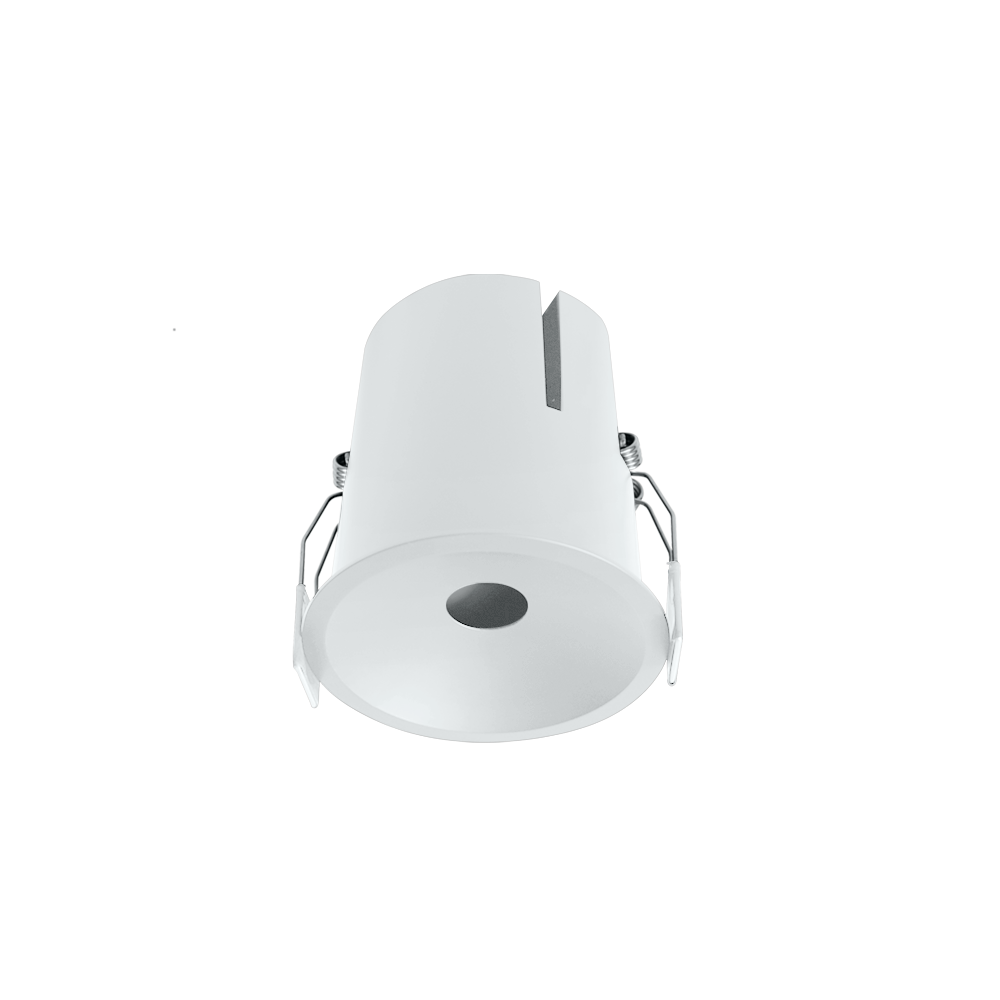

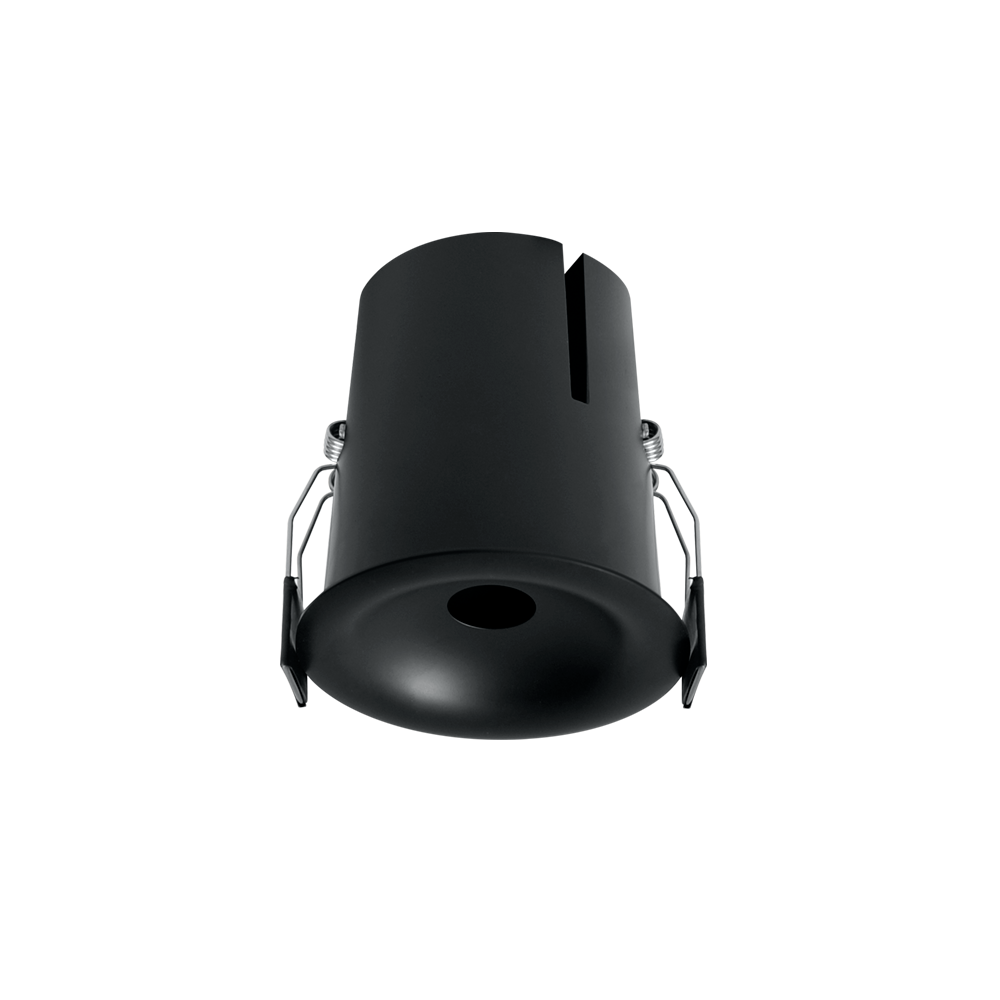

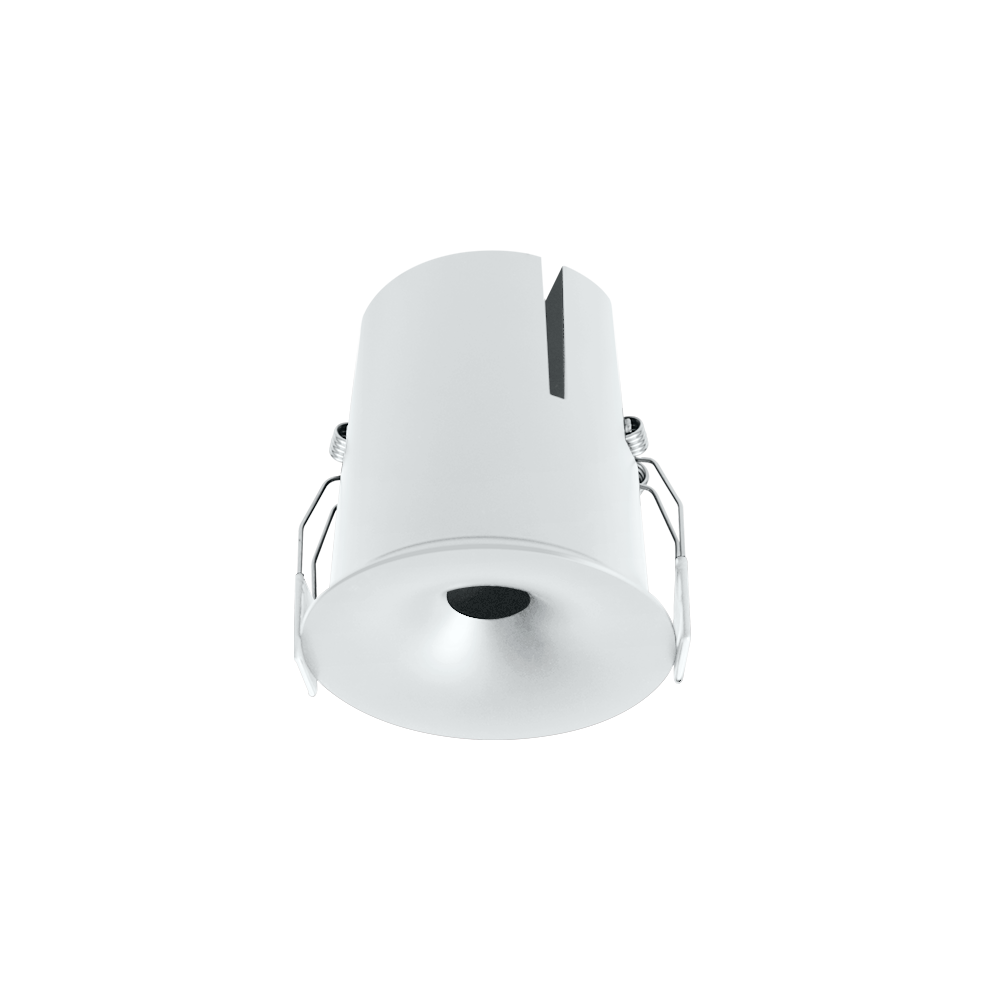

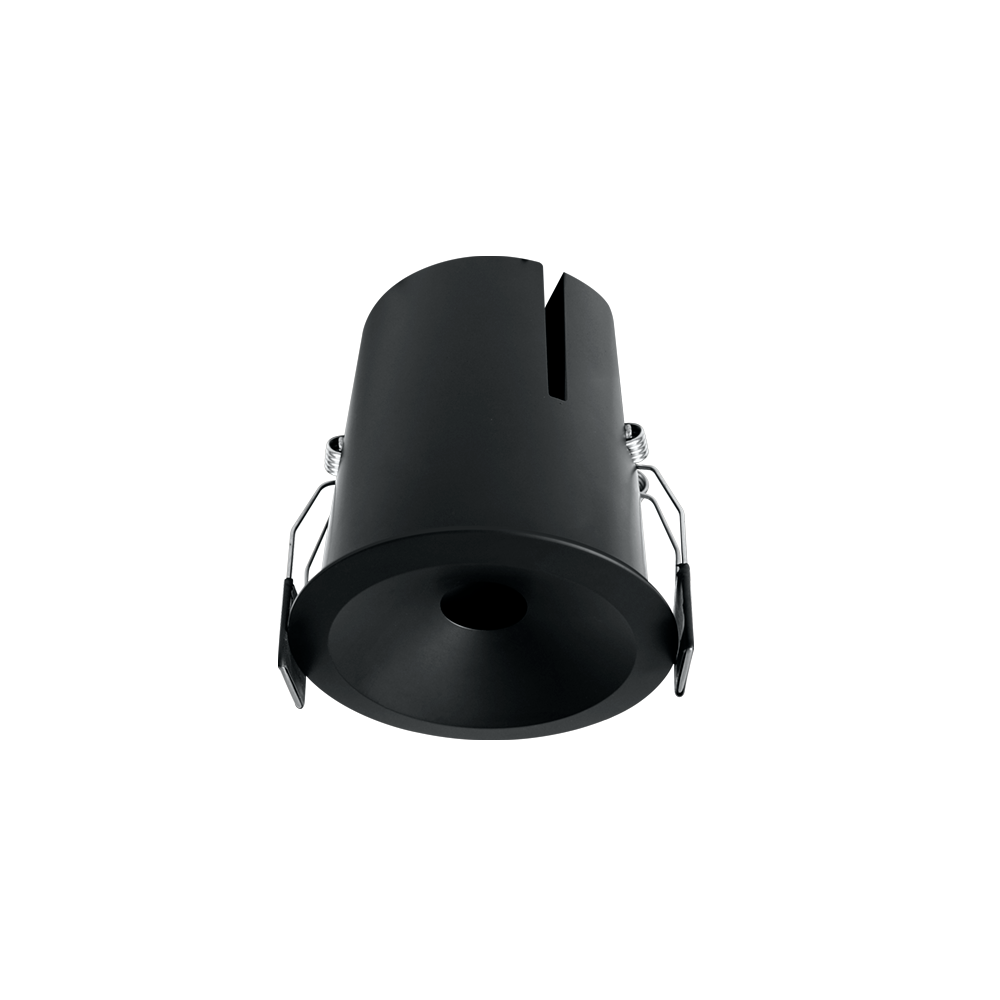

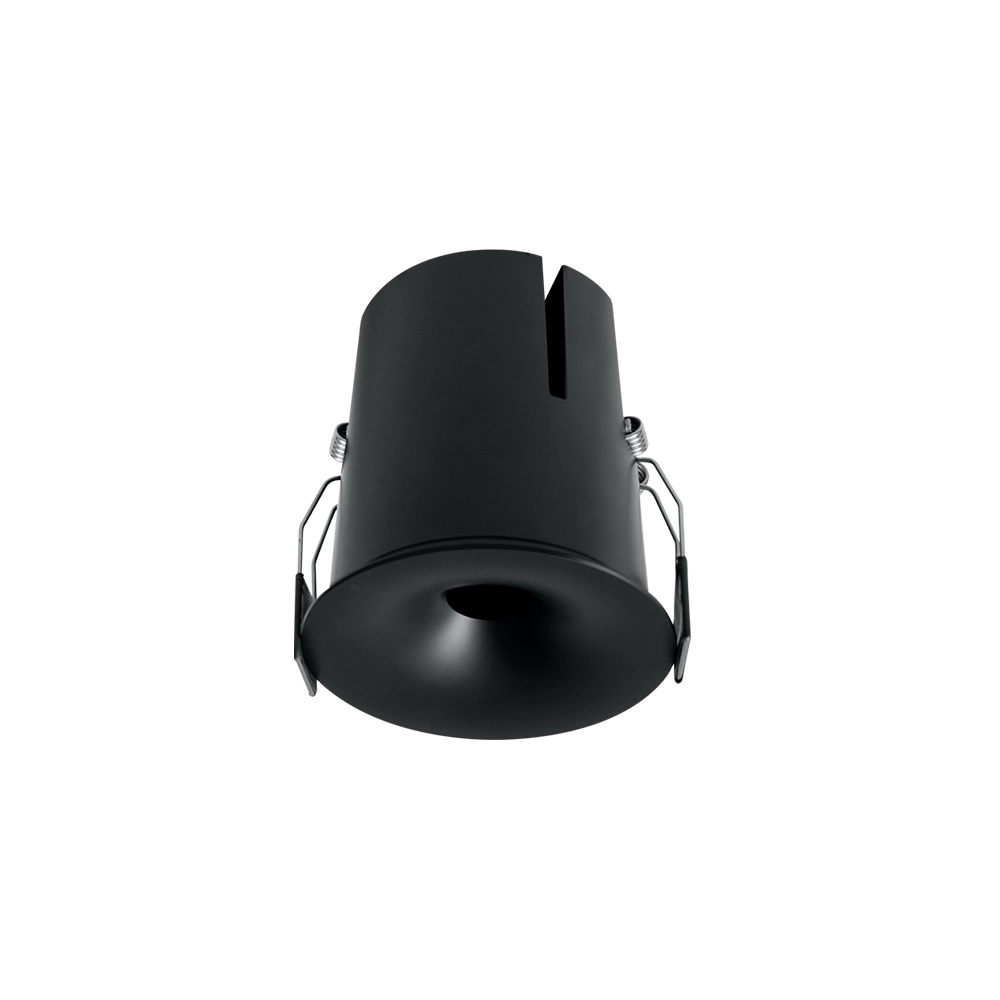

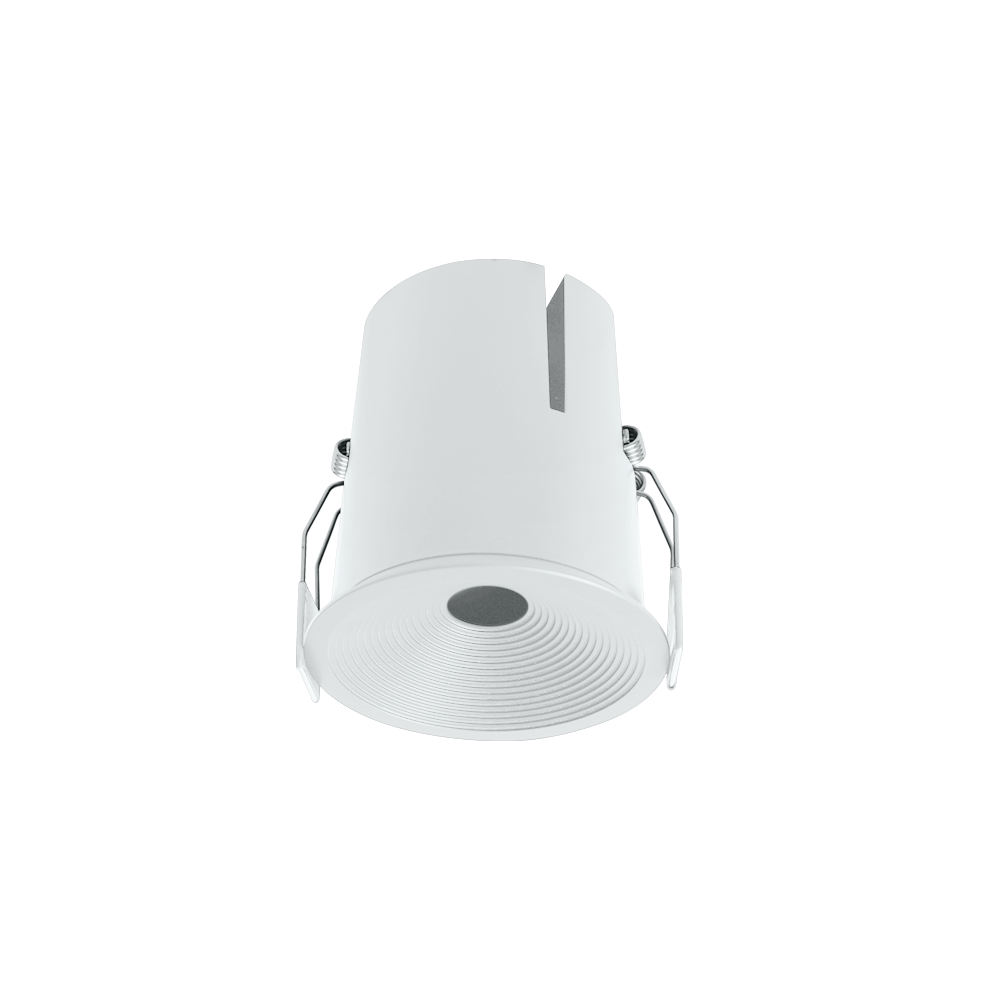

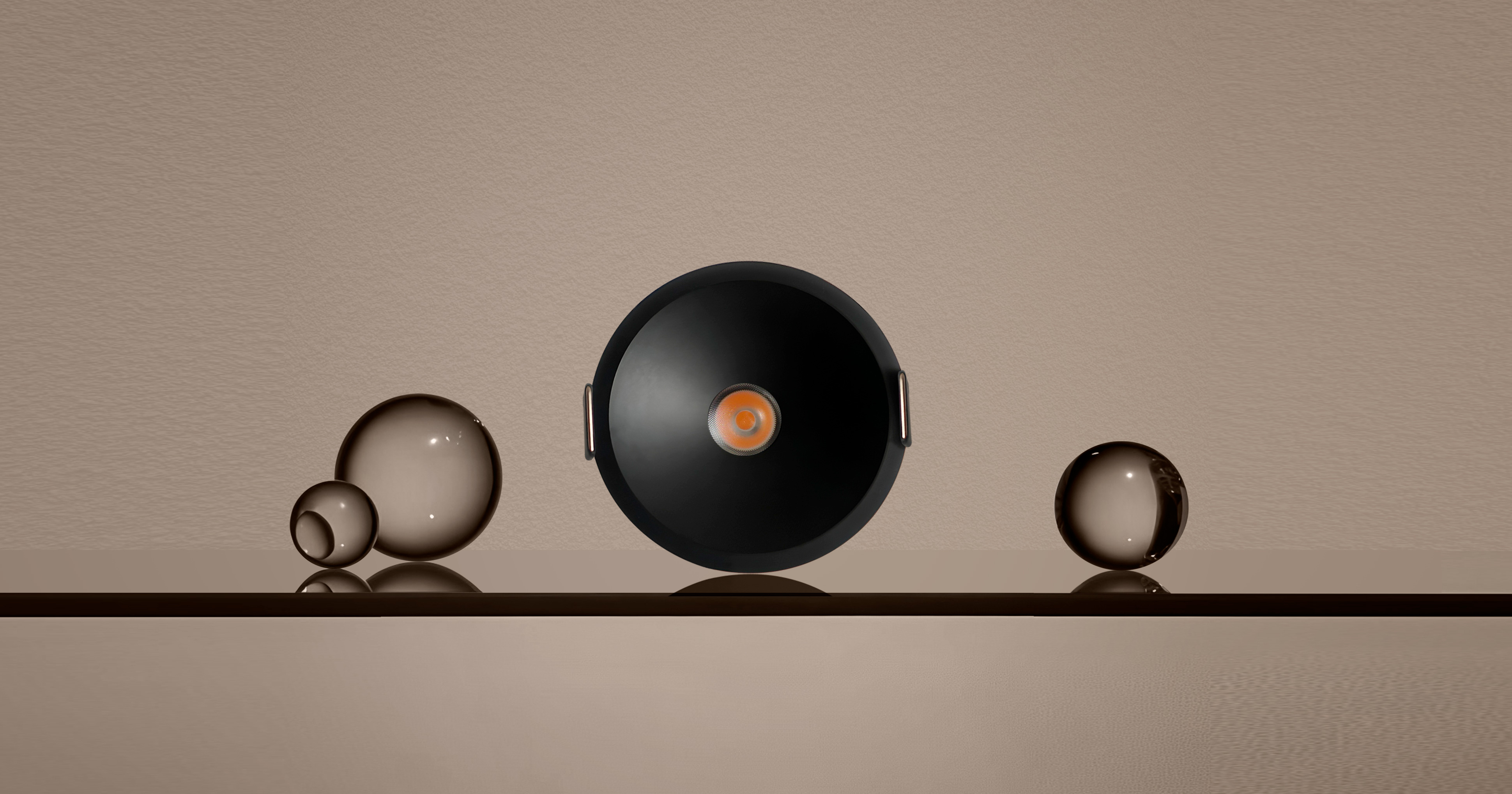

ORIS

Oris series lamps and lanterns are new products designed and developed for various scenarios. They offer extremely high effectiveness despite their small size and compact body.A variety of power and a variety of angles, so that the light in the space as you want it to shine in any area.

Features Features

-Small in size but brings you high power output

-Light source deep integrated for glare control

-High IP makes it applicable to both bedroom and bathroom

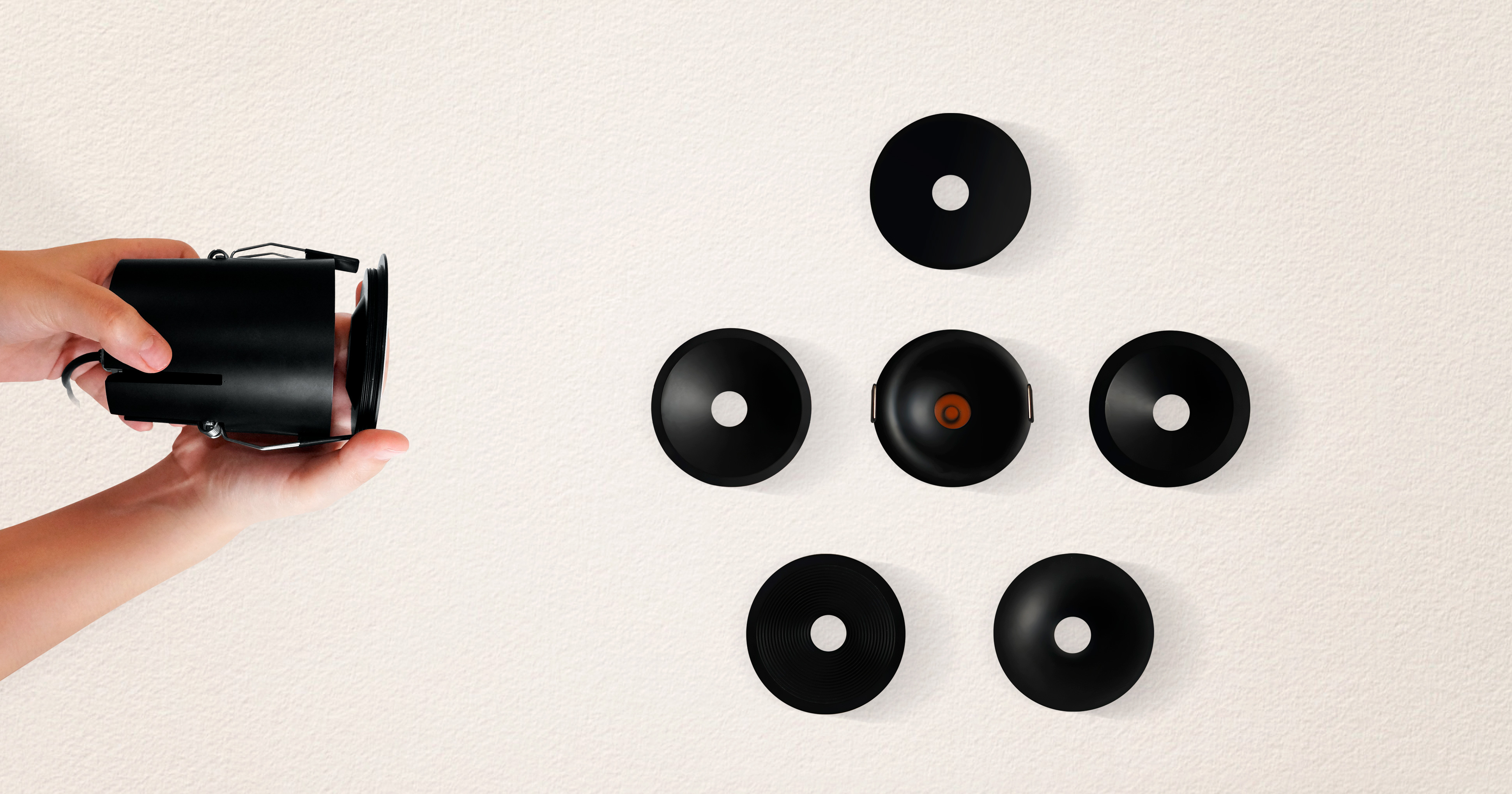

-Module concept provide different ring options with one luminaire

Specifications Specifications

-Black and white versions available

-Aluminium-Powder coated

-ON/OFF, TUNABLE, and DALl control system

-Switchable CCT version in 3000K-3500K-4000K switchable, easier for keeping stock

-Downlight with pleasantly homogeneous luminance levels

-IP54 rating, suitable for indoor environments with moderate moisture and dust levels

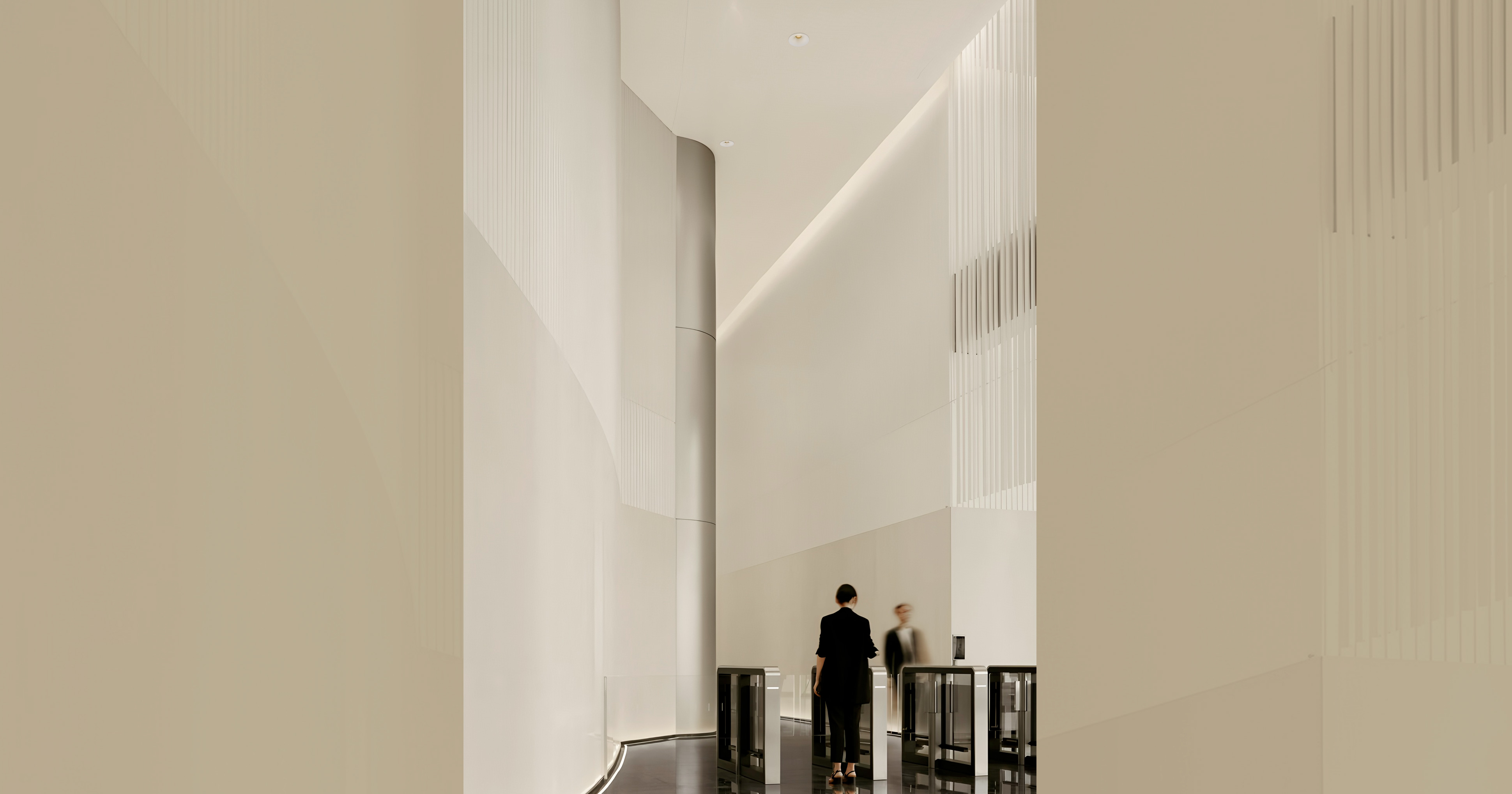

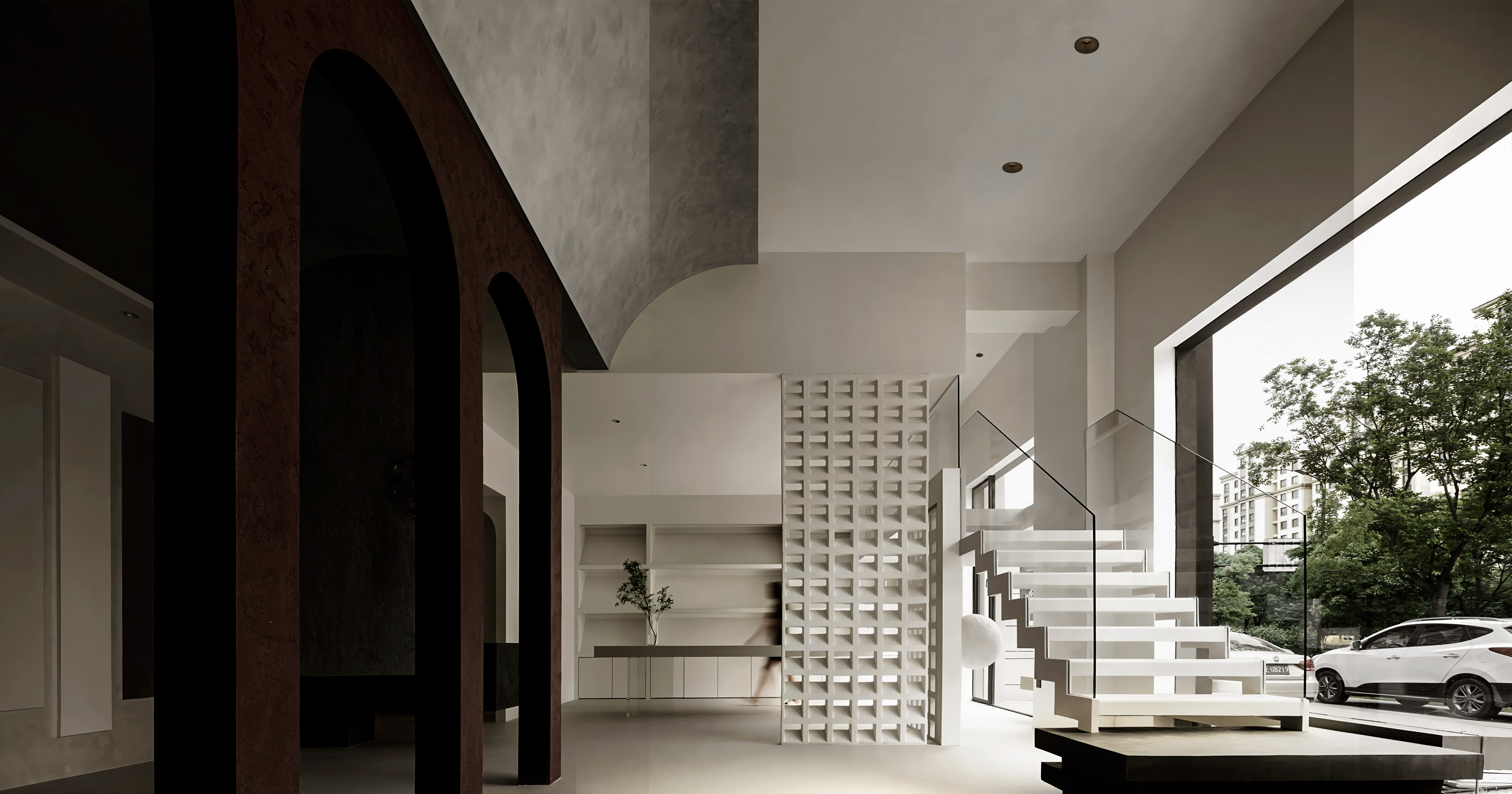

Fields of application Fields of application

Retail & Hospitality

retail spaces, presentation of merchandise, restaurants, hotels,

shop windows,exhibition spaces

Office & Education

offices, conference rooms, art & culture establishments

Home & Living

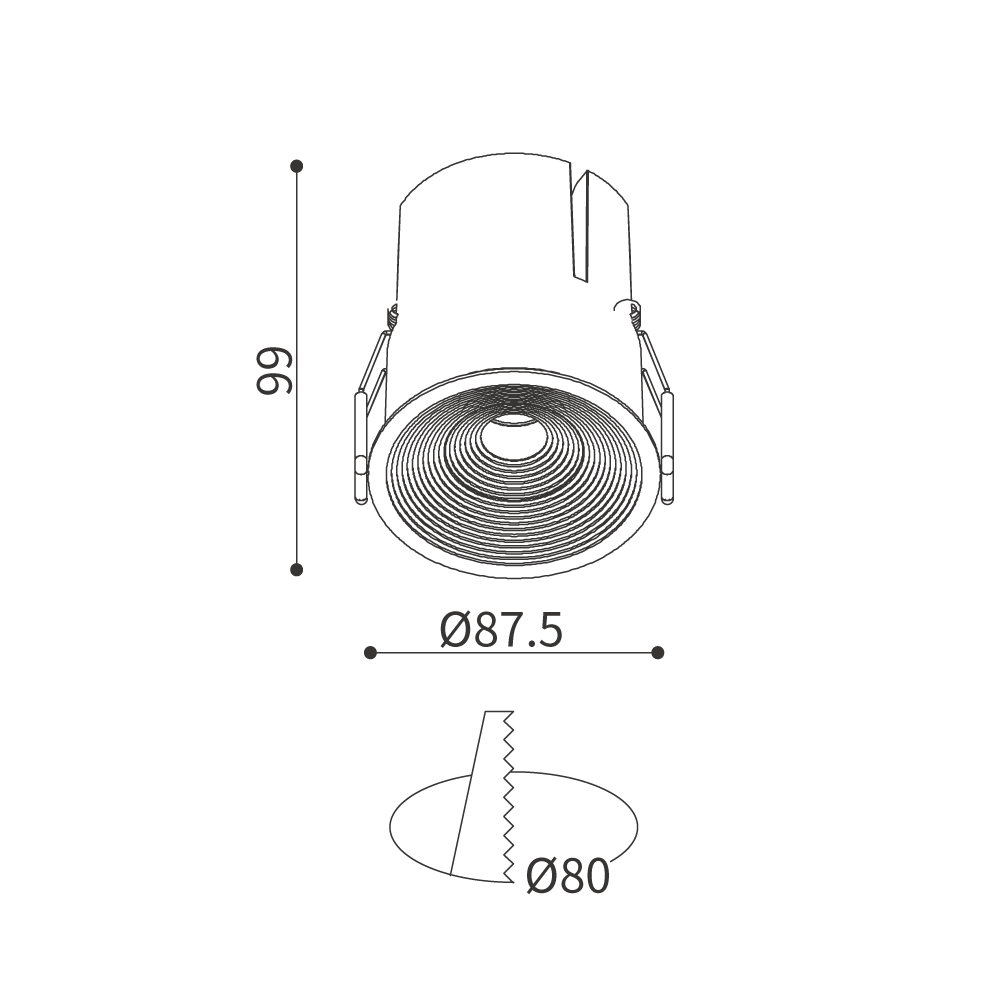

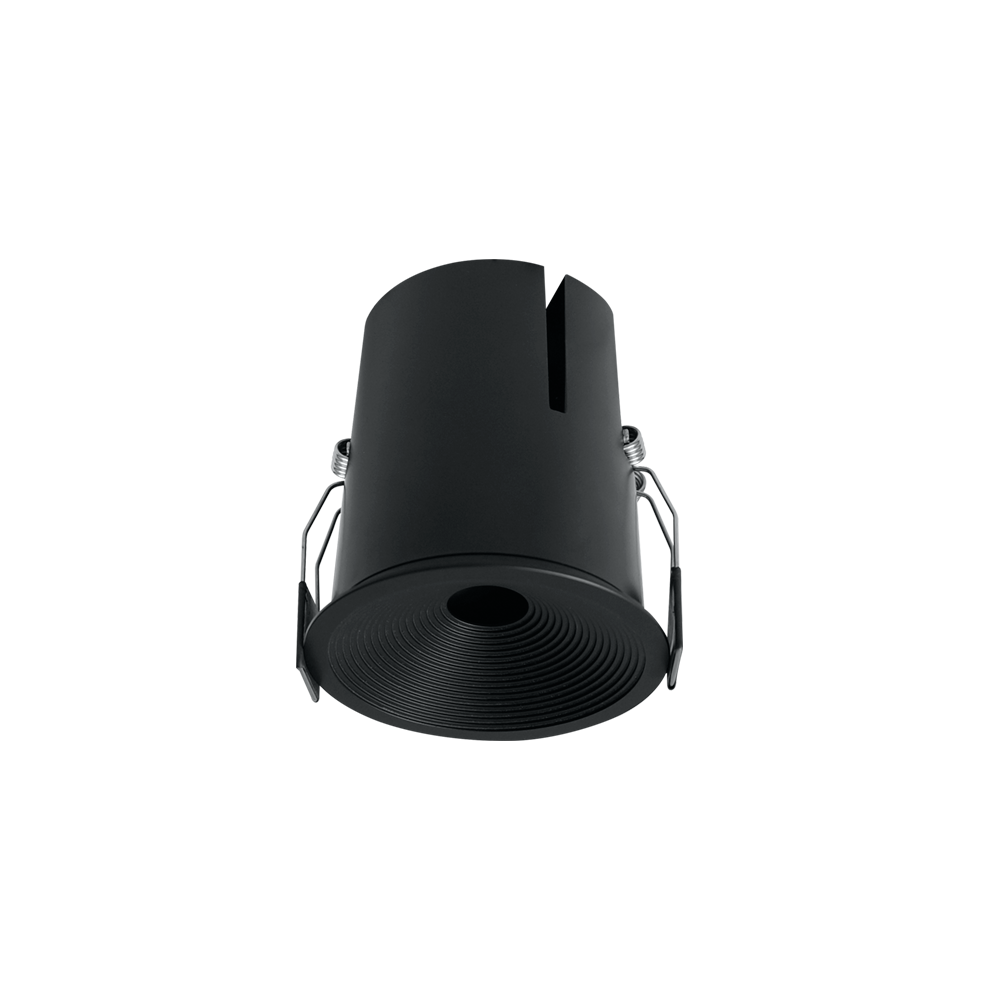

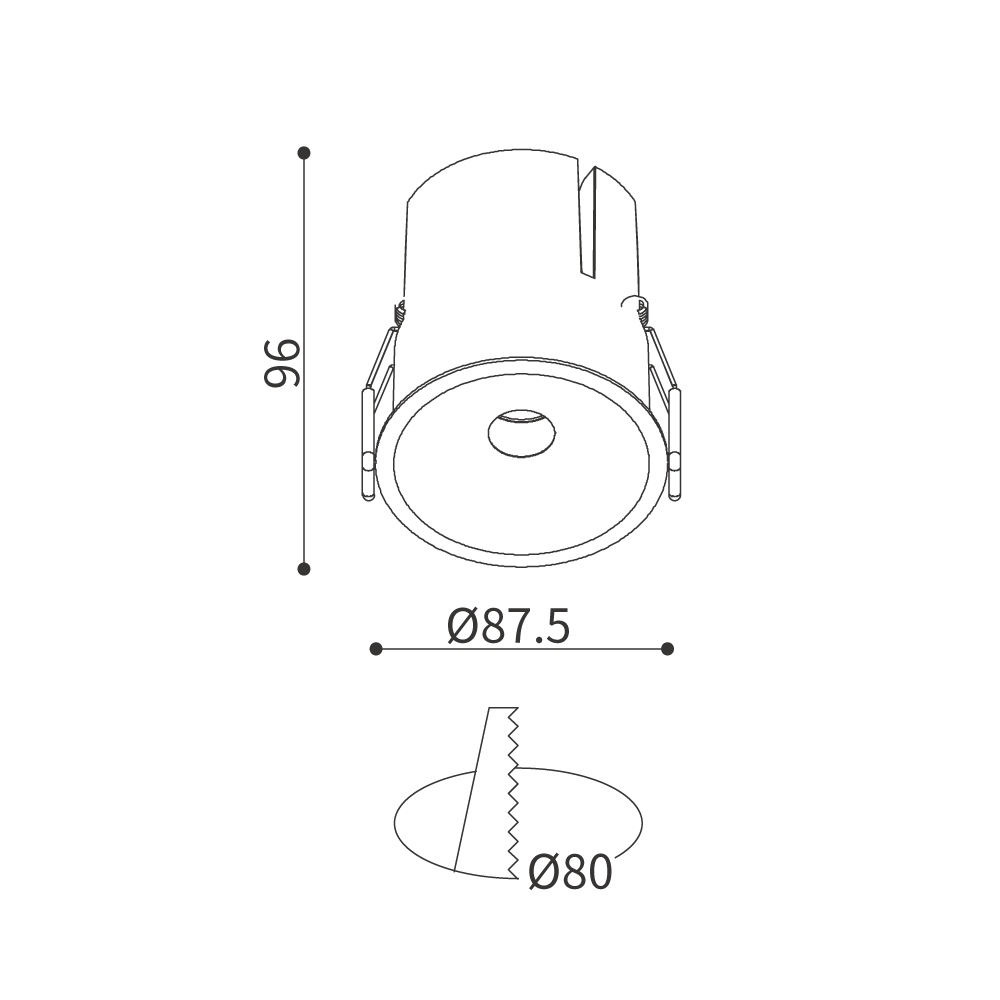

Version

0 Article

Nominal power

20W

BEAM ANGLE

45°

36°

24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

20W

BEAM ANGLE

36°

45°

24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

20W

BEAM ANGLE

45°

36°

24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

20W

BEAM ANGLE

45°

36°

24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

20W

BEAM ANGLE

45°

36°

24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

20W

BEAM ANGLE

45°

36°

24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-D961-COB4-30K-24	L-D961-COB4-30K-24	20W	3000K	1160lm	24°	White/Black
Get in Touch Get in Touch L-D961-COB4-30K-24 Recessed downlight ORIS Round inner ring set back, with LED, system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe,220V, rated current: 600mA, Beam angle:24°, black/white color,ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5 mm, ceiling cutout ø80 mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.494kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR <19 Length 84mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 24° Downloads ORIS-Instruction Manual pdf Accessories
	L-D961-COB4-30K-36	L-D961-COB4-30K-36	20W	3000K	1160lm	36°	White/Black
Get in Touch Get in Touch L-D961-COB4-30K-36 Recessed downlight ORIS Round inner ring set back, with LED, system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe,220V, rated current: 600mA, Beam angle:36°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5 mm, ceiling cutout ø80 mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.494kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR<19 Length 84mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 36° Downloads ORIS-Instruction Manual pdf Accessories
	L-D961-COB4-30K-45	L-D961-COB4-30K-45	20W	3000K	1160lm	45°	White/Black
Get in Touch Get in Touch L-D961-COB4-30K-45 Recessed downlight ORIS Round inner ring set back, with LED, system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe,220V, rated current: 600mA, Beam angle:45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5 mm, ceiling cutout ø80 mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.494kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR<19 Length 84mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 45° Downloads ORIS-Instruction Manual pdf Accessories
	L-D899-COB4-30K-24	L-D899-COB4-30K-24	20W	3000K	1160lm	24°	White/Black
Get in Touch Get in Touch L-D899-COB4-30K-24 Recessed downlight ORIS Round inner ring set back, with LED, system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:24°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5 mm, ceiling cutout ø80 mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.404kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR<19 Length 96mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 24° Downloads ORIS-Instruction Manual pdf Accessories
	L-D899-COB4-30K-36	L-D899-COB4-30K-36	20W	3000K	1160lm	36°	White/Black
Get in Touch Get in Touch L-D899-COB4-30K-36 Recessed downlight ORIS Round inner ring set back, with LED, system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:36°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5 mm, ceiling cutout ø80 mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.404kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR<19 Length 96mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 36° Downloads ORIS-Instruction Manual pdf Accessories
	L-D899-COB4-30-45	L-D899-COB4-30-45	20W	3000K	1160lm	45°	White/Black
Get in Touch Get in Touch L-D899-COB4-30-45 Recessed downlight ORIS Round inner ring set back, with LED, system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5 mm, ceiling cutout ø80 mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.404kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR<19 Length 96mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 45° Downloads ORIS-Instruction Manual pdf Accessories
	L-D903-COB4-30K-24	L-D903-COB4-30K-24	20W	3000K	1160lm	24°	White/Black
Get in Touch Get in Touch L-D903-COB4-30K-24 Recessed downlight ORIS Round inner ring set back, with LED, system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:24°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5mm, ceiling cutout ø80mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.494kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR <19 Length 96mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 24° Downloads ORIS-Instruction Manual pdf Accessories
	L-D903-COB4-30K-36	L-D903-COB4-30K-36	20W	3000K	1160lm	36°	White/Black
Get in Touch Get in Touch L-D903-COB4-30K-36 Recessed downlight ORIS Round inner ring set back, with LED, system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:36°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5 mm, ceiling cutout ø80 mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.494kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR<19 Length 96mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 36° Downloads ORIS-Instruction Manual pdf Accessories
	L-D903-COB4-30K-45	L-D903-COB4-30K-45	20W	3000K	1160lm	45°	White/Black
Get in Touch Get in Touch L-D903-COB4-30K-45 Recessed downlight ORIS Round inner ring set back, with LED, system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5mm, ceiling cutout ø80mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.494kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR<19 Length 96mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 45° Downloads ORIS-Instruction Manual pdf Accessories
	L-D901-COB4-30K-24	L-D901-COB4-30K-24	20W	3000K	1160lm	24°	White/Black
Get in Touch Get in Touch L-D901-COB4-30K-24 Recessed downlight ORIS Round inner ring set back, with LED, system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:24°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5mm, ceiling cutout ø80mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.503kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR <19 Length 96mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 24° Downloads ORIS-Instruction Manual pdf Accessories
	L-D901-COB4-30K-36	L-D901-COB4-30K-36	20W	3000K	1160lm	36°	White/Black
Get in Touch Get in Touch L-D901-COB4-30K-36 Recessed downlight ORIS Round inner ring set back, with LED,system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:36°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5 mm, ceiling cutout ø80 mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.503kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR<19 Length 96mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 36° Downloads ORIS-Instruction Manual pdf Accessories
	L-D901-COB4-30K-45	L-D901-COB4-30K-45	20W	3000K	1160lm	45°	White/Black
Get in Touch Get in Touch L-D901-COB4-30K-45 Recessed downlight ORIS Round inner ring set back, with LED,system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5mm, ceiling cutout ø80mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.503kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR <19 Length 96mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 45° Downloads ORIS-Instruction Manual pdf Accessories
	L-D900-COB4-30K-24	L-D900-COB4-30K-24	20W	3000K	1160lm	24°	White/Black
Get in Touch Get in Touch L-D900-COB4-30K-24 Recessed downlight ORIS Round inner ring set back, with LED,system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA,Beam angle:24°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5mm, ceiling cutout ø80mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.542kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR <19 Length 99mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 24° Downloads ORIS-Instruction Manual pdf Accessories
	L-D900-COB4-30K-36	L-D900-COB4-30K-36	20W	3000K	1160lm	36°	White/Black
Get in Touch Get in Touch L-D900-COB4-30K-36 Recessed downlight ORIS Round inner ring set back, with LED,system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:36°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5mm, ceiling cutout ø80mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.542kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR<19 Length 99mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 36° Downloads ORIS-Instruction Manual pdf Accessories
	L-D900-COB4-30K-45	L-D900-COB4-30K-45	20W	3000K	1160lm	45°	White/Black
Get in Touch Get in Touch L-D900-COB4-30K-45 Recessed downlight ORIS Round inner ring set back, with LED,system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5mm, ceiling cutout ø80mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.542kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR<19 Length 99mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 45° Downloads ORIS-Instruction Manual pdf Accessories
	L-D902-COB4-30K-24	L-D902-COB4-30K-24	20W	3000K	1160lm	24°	White/Black
Get in Touch Get in Touch L-D902-COB4-30K-24 Recessed downlight ORIS Round inner ring set back, with LED,system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:24°,black/white color,ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5mm, ceiling cutout ø80mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.542kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR <19 Length 99mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 24° Downloads ORIS-Instruction Manual pdf Accessories
	L-D902-COB4-30K-36	L-D902-COB4-30K-36	20W	3000K	1160lm	36°	White/Black
Get in Touch Get in Touch L-D902-COB4-30K-36 Recessed downlight ORIS Round inner ring set back, with LED,system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h,Photobiological safety:Safe, 220V,rated current: 600mA, Beam angle:36°,black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5 mm, ceiling cutout ø80 mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.542kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR≥19 Length 99mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 36° Downloads ORIS-Instruction Manual pdf Accessories
	L-D902-COB4-30K-45	L-D902-COB4-30K-45	20W	3000K	1160lm	45°	White/Black
Get in Touch Get in Touch L-D902-COB4-30K-45 Recessed downlight ORIS Round inner ring set back, with LED,system power:20W, luminous flux of luminaire 1160lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP54. Ø=87.5 mm, ceiling cutout ø80 mm Nominal power 20W Finish White/Black Delivered lumens 1160lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP54 Color Temperature(CCT) 3000K Weight 0.542kg Color Rendering Index(CRI) CRI≥90 Diameter 87.5mm Unified Glare Rating (UGR) UGR<19 Length 99mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 87.5mm Beam angle 45° Downloads ORIS-Instruction Manual pdf Accessories
