NOVA


Forged to last, built to shine.

NOVA is a premium recessed downlight series engineered for demanding environments where durability, optical precision, and weather resistance converge. Featuring a forged aluminium heatsink with hard anodized finish, this series delivers exceptional thermal management and corrosion resistance. With IP65 waterproof protection, multiple optical lens options (20°/25°/40°/50°), and high colour rendering (Ra90), NOVA excels in both indoor and outdoor applications. Its clean appearance with no visible cable fixings reflects meticulous attention to detail, making it an ideal choice for high-end residential, hospitality, and architectural projects.



Features Features

- Forged aluminium heatsink – delivers superior thermal conductivity and corrosion resistance for long-term reliability in challenging environments

- Hard anodized finish – creates a refined, durable surface that resists wear and maintains its premium appearance over time

- IP65 waterproof rating – fully protected against dust and water jets, suitable for outdoor use, bathrooms, and humid environments

- Multiple optical lens options – choose from 20°, 25°, 40°, or 50° beam angles to suit different lighting requirements and spatial layouts

- High colour rendering (Ra90) – reproduces natural colours with vivid accuracy, bringing warmth and authenticity to any space

- Internal cable fixing system – maintains a clean exterior with no visible cable-securing components, ensuring a streamlined aesthetic

- Available in 3 sizes – 70mm, 85mm, and 95mm cut-out options with corresponding heights (60mm, 68mm, 75mm) to fit various ceiling plenum depths


Specifications Specifications

- Heatsink: Forged pure aluminium – excellent thermal conductivity and corrosion resistance

- Surface finish: Hard anodized – fine, durable, and premium appearance

- Optical system: Interchangeable lenses – multiple beam angle options

- Beam angles: 20° / 25° / 40° / 50° (selectable)

- Colour rendering: Ra90

- Protection rating: IP65 – dust-tight and protected against water jets

- Cut-out sizes: 70mm / 85mm / 95mm

- Body heights: 60mm / 68mm / 75mm (matching corresponding cut-out sizes)

- Cable fixing: Internal system – no visible components on the surface

- Mounting: Recessed installation

Fields of application Fields of application

- Outdoor building facades and eaves – providing durable, weatherproof accent lighting

- Bathrooms, spas, and wellness facilities – safe and reliable in high-humidity environments

- Hotel guest rooms, suites, and public areas – combining optical flexibility with refined aesthetics

- Residential living rooms, kitchens, and corridors – versatile beam options for different lighting needs

- Retail stores and showrooms – high colour rendering for accurate product presentation

- Gallery and exhibition spaces – precise beam control for highlighting artwork

- Covered outdoor areas such as patios and balconies – weather-resistant illumination

- Any space requiring durable construction, multiple optical choices, and clean aesthetic design

Version
0 Article

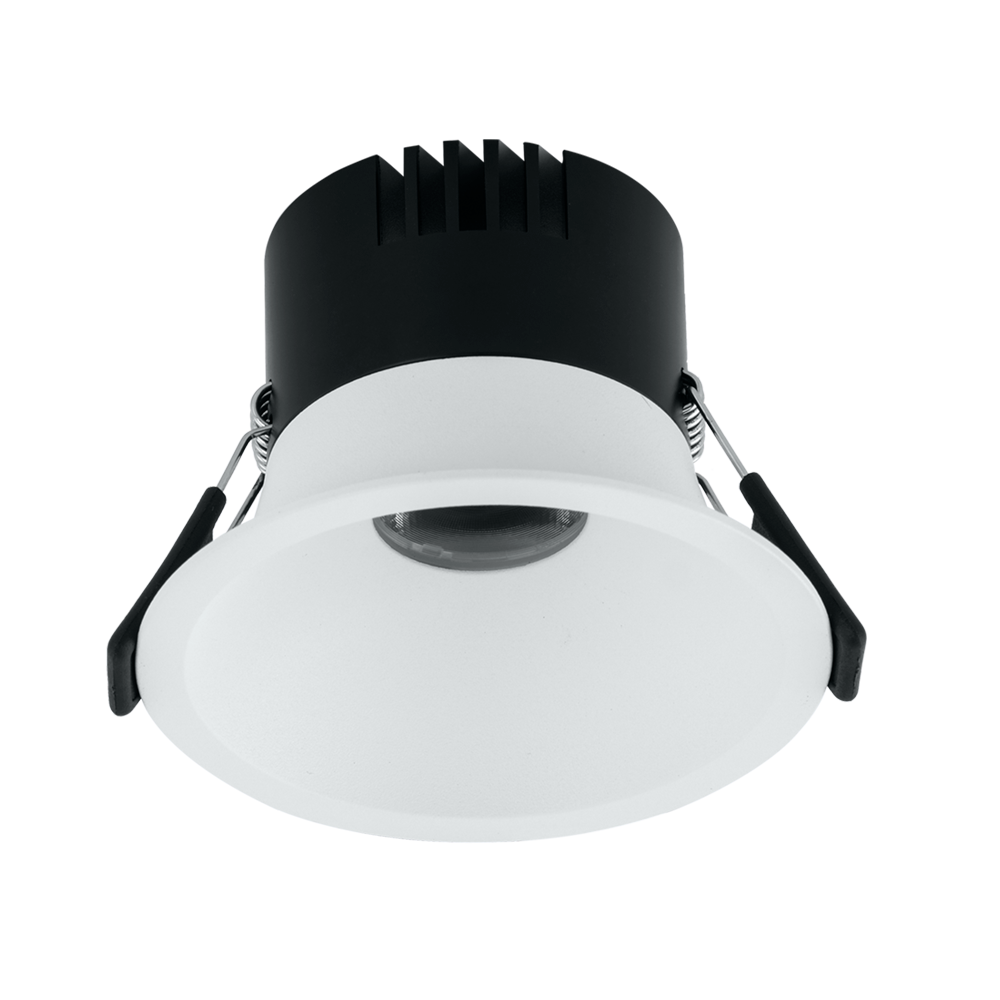

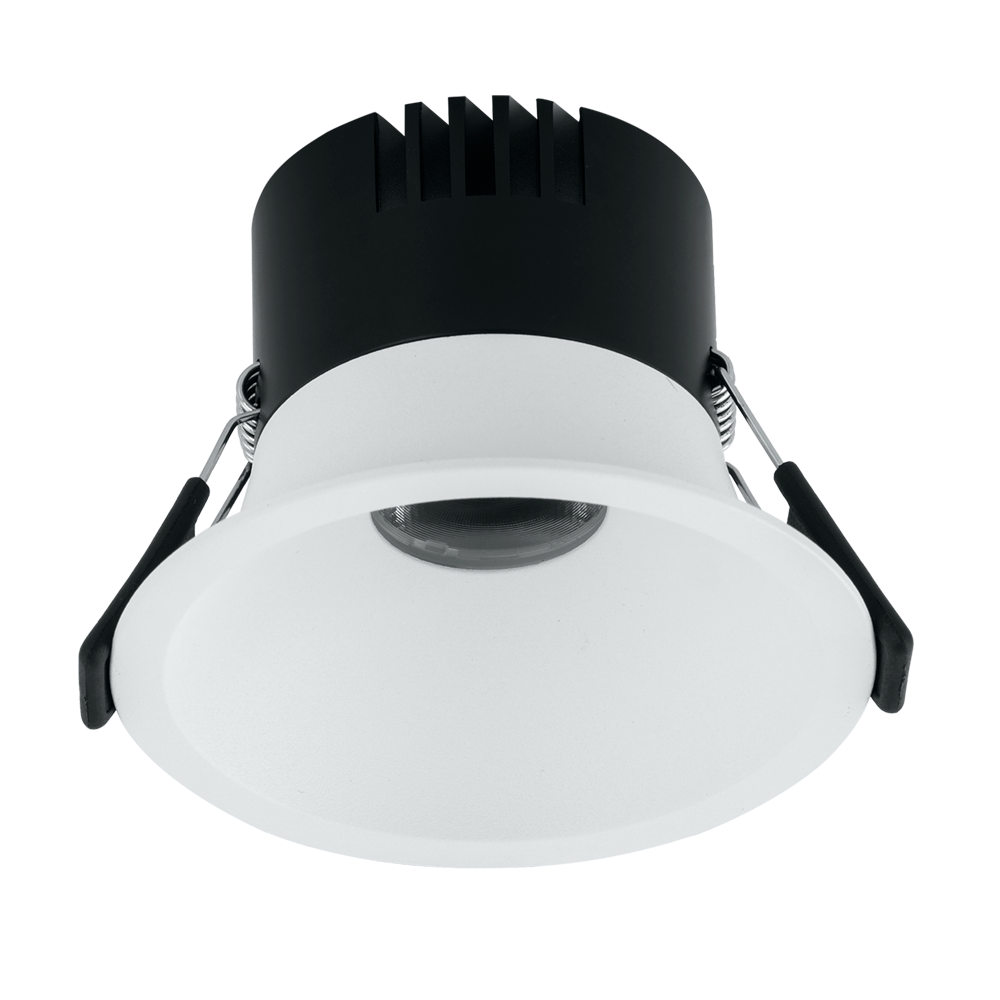

PROH_6853_1.jpg L-D625-COB3-10W
PROH_6853_1.jpg L-D625-COB3.5-15W
PROH_6853_1.jpg L-D625-COB4-18W
Nominal power
10W
BEAM ANGLE
50°
40°
30°
20°
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-D625-COB3-30K-20 L-D625-COB3-30K-20 10W 3000K 760lm 20° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607142681.png
/static/upload/2026/07/14/202607144499.png

L-D625-COB3-30K-20

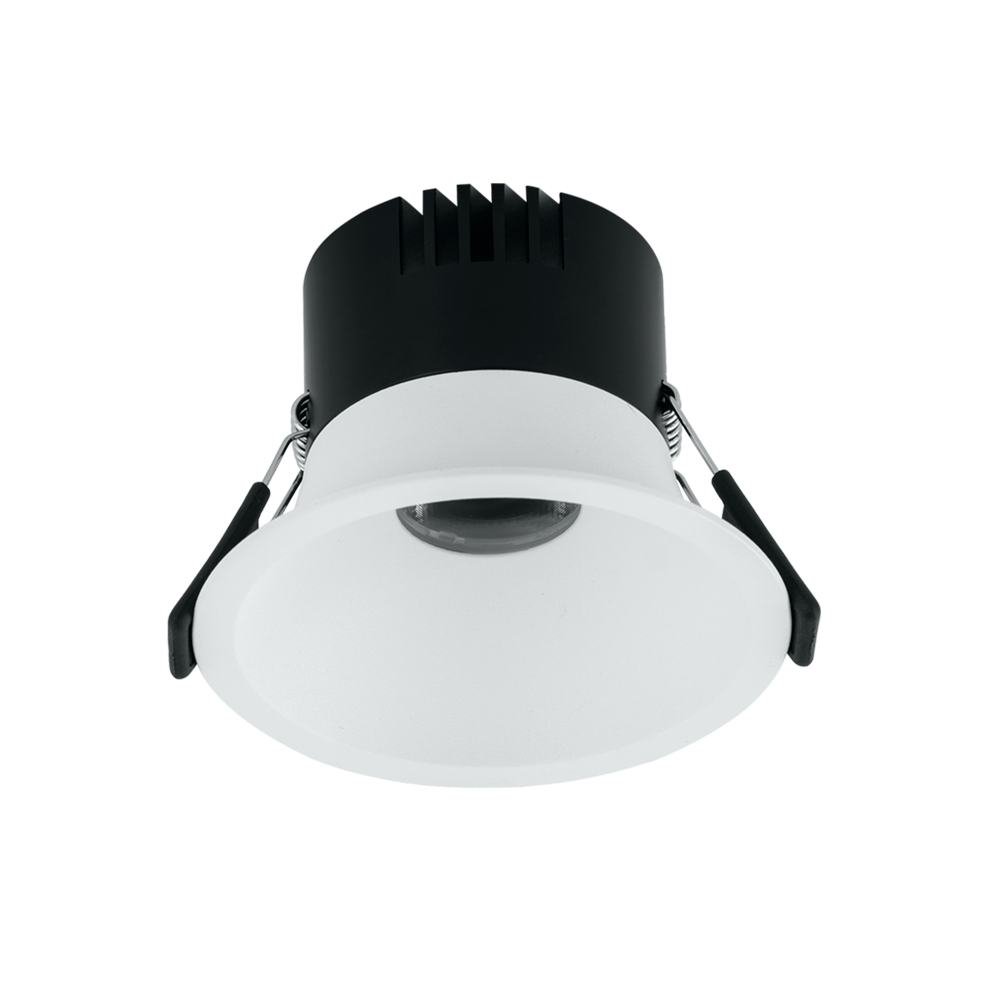

Recessed downlight NOVA Round inner ring set back, with LED,system power: 10W, luminous flux of luminaire 760lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 20°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

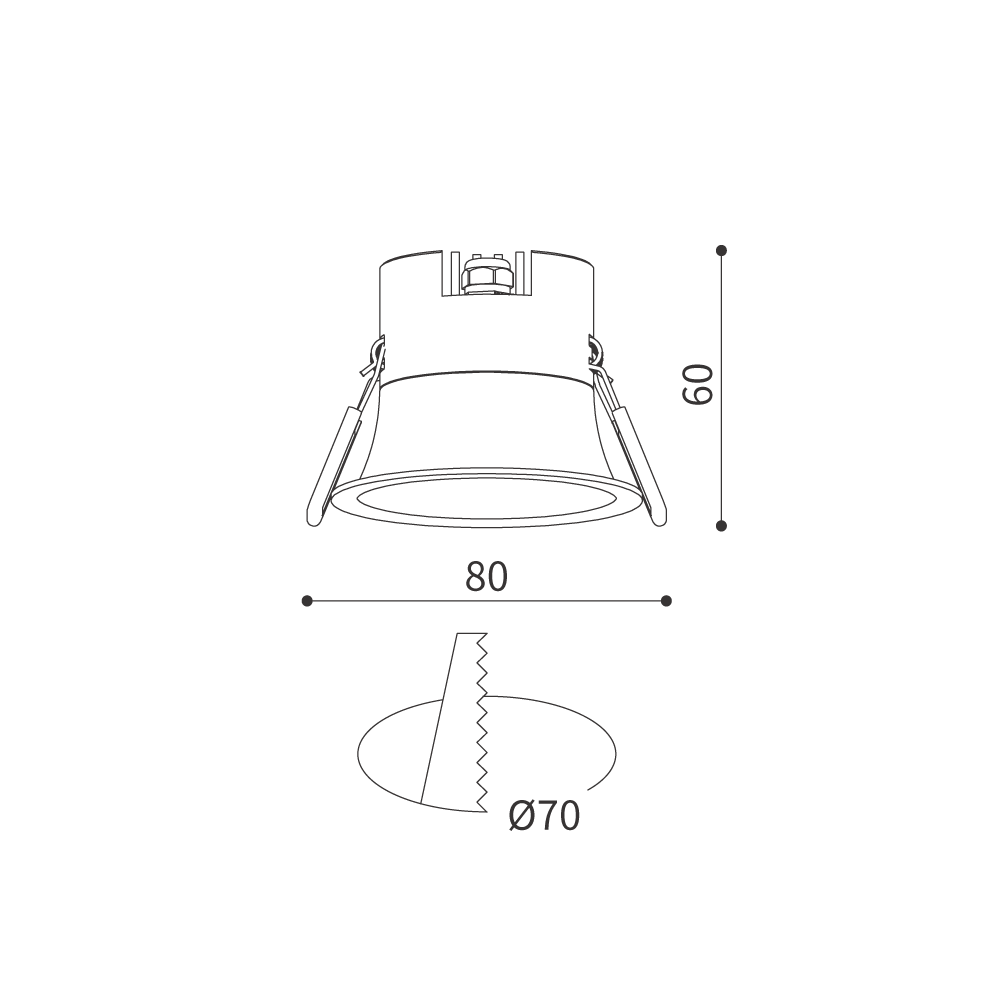

Ø=80 mm, ceiling cutout ø70 mm


Nominal power
10W
Finish
White/Black
Delivered lumens
760lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.24kg
Color Rendering Index(CRI)
CRI≥90
Diameter
60mm
Unified Glare Rating (UGR)
UGR<19
Height
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
80mm
Beam angle
20°
Downloads
    None


Accessories
L-D625-COB3-30K-30 L-D625-COB3-30K-30 10W 3000K 760lm 30° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607142681.png
/static/upload/2026/07/14/202607144499.png

L-D625-COB3-30K-30

Recessed downlight NOVA Round inner ring set back, with LED,system power: 10W, luminous flux of luminaire 760lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 30°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

Ø=80 mm, ceiling cutout ø70 mm


Nominal power
10W
Finish
White/Black
Delivered lumens
760lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.24kg
Color Rendering Index(CRI)
CRI≥90
Diameter
60mm
Unified Glare Rating (UGR)
UGR<19
Height
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
80mm
Beam angle
30°
Downloads
    None


Accessories
L-D625-COB3-30K-40 L-D625-COB3-30K-40 10W 3000K 760lm 40° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607142681.png
/static/upload/2026/07/14/202607144499.png

L-D625-COB3-30K-40

Recessed downlight NOVA Round inner ring set back, with LED,system power: 10W, luminous flux of luminaire 760lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 40°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

Ø=80 mm, ceiling cutout ø70 mm


Nominal power
10W
Finish
White/Black
Delivered lumens
760lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.24kg
Color Rendering Index(CRI)
CRI≥90
Diameter
60mm
Unified Glare Rating (UGR)
UGR<19
Height
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
80mm
Beam angle
40°
Downloads
    None


Accessories
L-D625-COB3-30K-50 L-D625-COB3-30K-50 10W 3000K 760lm 50° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607142681.png
/static/upload/2026/07/14/202607144499.png

L-D625-COB3-30K-50

Recessed downlight NOVA Round inner ring set back, with LED,system power: 10W, luminous flux of luminaire 760lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 50°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

Ø=80 mm, ceiling cutout ø70 mm


Nominal power
10W
Finish
White/Black
Delivered lumens
760lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.24kg
Color Rendering Index(CRI)
CRI≥90
Diameter
60mm
Unified Glare Rating (UGR)
UGR<19
Height
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
80mm
Beam angle
50°
Downloads
    None


Accessories
L-D625-COB3.5-30K-20 L-D625-COB3.5-30K-20 15W 3000K 1065lm 20° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607149246.png
/static/upload/2026/07/14/202607142795.png

L-D625-COB3.5-30K-20

Recessed downlight NOVA Round inner ring set back, with LED,system power: 15W, luminous flux of luminaire 1065lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 20°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

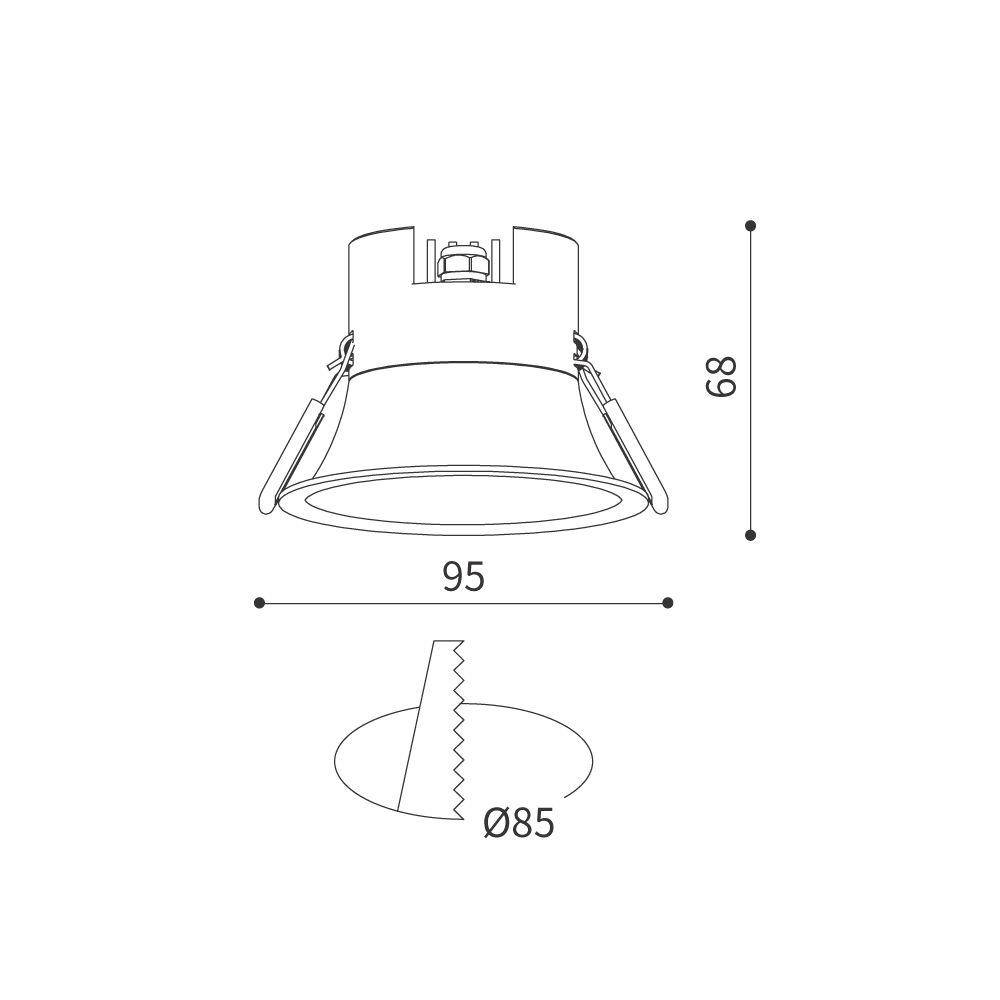

Ø=95 mm, ceiling cutout ø85 mm


Nominal power
15W
Finish
White/Black
Delivered lumens
1065lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.209kg
Color Rendering Index(CRI)
CRI≥90
Diameter
95mm
Unified Glare Rating (UGR)
UGR<19
Height
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
95mm
Beam angle
20°
Downloads
    None


Accessories
L-D625-COB3.5-30K-25 L-D625-COB3.5-30K-25 15W 3000K 1065lm 25° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607149246.png
/static/upload/2026/07/14/202607142795.png

L-D625-COB3.5-30K-25

Recessed downlight NOVA Round inner ring set back, with LED,system power: 15W, luminous flux of luminaire 1065lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 25°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

Ø=95 mm, ceiling cutout ø85 mm


Nominal power
15W
Finish
White/Black
Delivered lumens
1065lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.209kg
Color Rendering Index(CRI)
CRI≥90
Diameter
95mm
Unified Glare Rating (UGR)
UGR<19
Height
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
95mm
Beam angle
25°
Downloads
    None


Accessories
L-D625-COB3.5-30K-40 L-D625-COB3.5-30K-40 15W 3000K 1065lm 40° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607149246.png
/static/upload/2026/07/14/202607142795.png

L-D625-COB3.5-30K-40

Recessed downlight NOVA Round inner ring set back, with LED,system power: 15W, luminous flux of luminaire 1065lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 40°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

Ø=95 mm, ceiling cutout ø85 mm


Nominal power
15W
Finish
White/Black
Delivered lumens
1065lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.209kg
Color Rendering Index(CRI)
CRI≥90
Diameter
95mm
Unified Glare Rating (UGR)
UGR<19
Height
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
95mm
Beam angle
40°
Downloads
    None


Accessories
L-D625-COB3.5-30K-50 L-D625-COB3.5-30K-50 15W 3000K 1065lm 50° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607149246.png
/static/upload/2026/07/14/202607142795.png

L-D625-COB3.5-30K-50

Recessed downlight NOVA Round inner ring set back, with LED,system power: 15W, luminous flux of luminaire 1065lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 50°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

Ø=95 mm, ceiling cutout ø85 mm


Nominal power
15W
Finish
White/Black
Delivered lumens
1065lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.209kg
Color Rendering Index(CRI)
CRI≥90
Diameter
95mm
Unified Glare Rating (UGR)
UGR<19
Height
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
95mm
Beam angle
50°
Downloads
    None


Accessories
L-D625-COB4-30K-15 L-D625-COB4-30K-15 18W 3000K 1332lm 15° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607142998.png
/static/upload/2026/07/14/202607149289.png

L-D625-COB4-30K-15

Recessed downlight NOVA Round inner ring set back, with LED,system power: 18W, luminous flux of luminaire 1332lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 450mA, Beam angle: 15°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

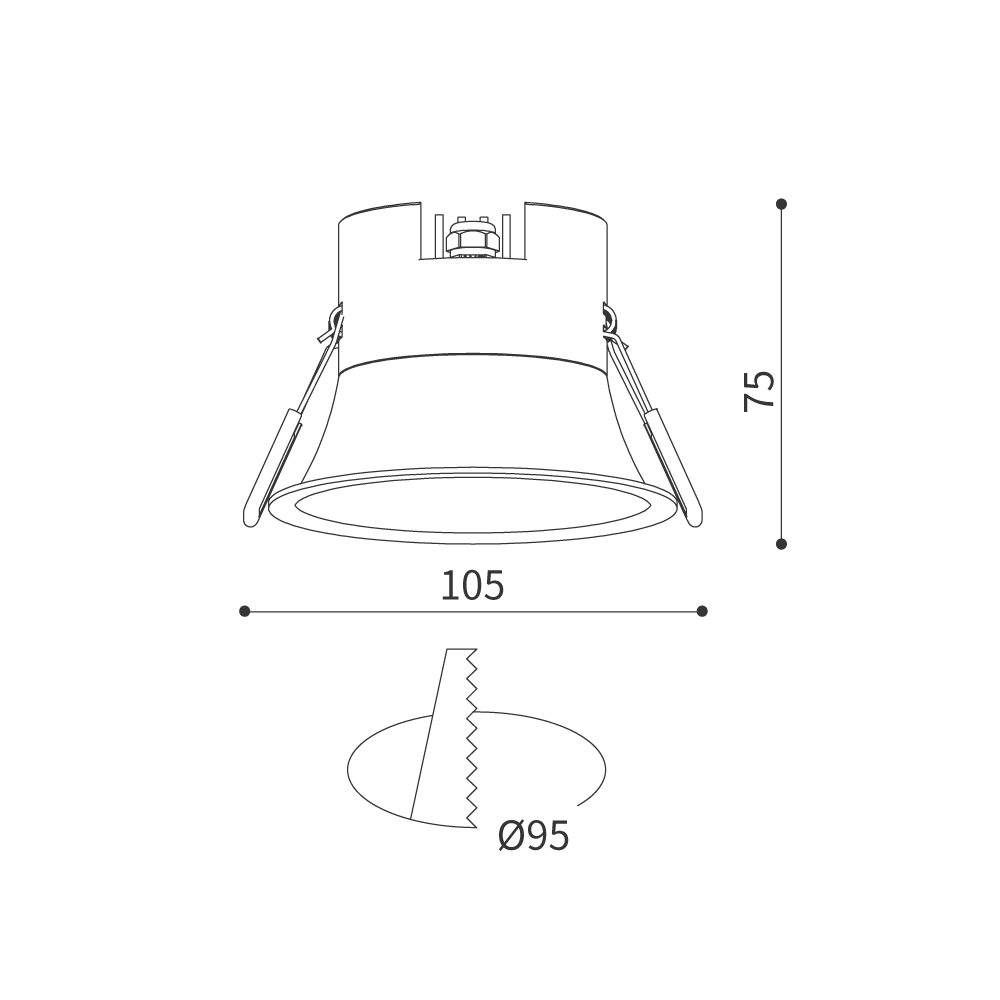

Ø=105 mm, ceiling cutout ø95 mm


Nominal power
18W
Finish
White/Black
Delivered lumens
1332lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.36kg
Color Rendering Index(CRI)
CRI≥90
Diameter
105mm
Unified Glare Rating (UGR)
UGR <19
Height
75mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
105mm
Beam angle
15°
Downloads
    None


Accessories
L-D625-COB4-30K-25 L-D625-COB4-30K-25 18W 3000K 1332lm 25° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607142998.png
/static/upload/2026/07/14/202607149289.png

L-D625-COB4-30K-25

Recessed downlight NOVA Round inner ring set back, with LED,system power: 18W, luminous flux of luminaire 1332lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 450mA, Beam angle: 25°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

Ø=105 mm, ceiling cutout ø95 mm


Nominal power
18W
Finish
White/Black
Delivered lumens
1332lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.36kg
Color Rendering Index(CRI)
CRI≥90
Diameter
105mm
Unified Glare Rating (UGR)
UGR <19
Height
75mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
105mm
Beam angle
25°
Downloads
    None


Accessories
L-D625-COB4-30K-40 L-D625-COB4-30K-40 18W 3000K 1332lm 40° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607142998.png
/static/upload/2026/07/14/202607149289.png

L-D625-COB4-30K-40

Recessed downlight NOVA Round inner ring set back, with LED,system power: 18W, luminous flux of luminaire 1332lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 450mA, Beam angle: 40°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

Ø=105 mm, ceiling cutout ø95 mm


Nominal power
18W
Finish
White/Black
Delivered lumens
1332lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.36kg
Color Rendering Index(CRI)
CRI≥90
Diameter
105mm
Unified Glare Rating (UGR)
UGR <19
Height
75mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
105mm
Beam angle
40°
Downloads
    None


Accessories
L-D625-COB4-30K-50 L-D625-COB4-30K-50 18W 3000K 1332lm 50° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/14/202607142998.png
/static/upload/2026/07/14/202607149289.png

L-D625-COB4-30K-50

Recessed downlight NOVA Round inner ring set back, with LED,system power: 18W, luminous flux of luminaire 1332lm. colour rendering index CRl≥90,colour temperature 3000K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 450mA, Beam angle: 50°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP65.

Ø=105 mm, ceiling cutout ø95 mm


Nominal power
18W
Finish
White/Black
Delivered lumens
1332lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP65
Color Temperature(CCT)
3000K
Weight
0.36kg
Color Rendering Index(CRI)
CRI≥90
Diameter
105mm
Unified Glare Rating (UGR)
UGR <19
Height
75mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
105mm
Beam angle
50°
Downloads
    None


Accessories


RELATED PRODUCTS

Product finder
