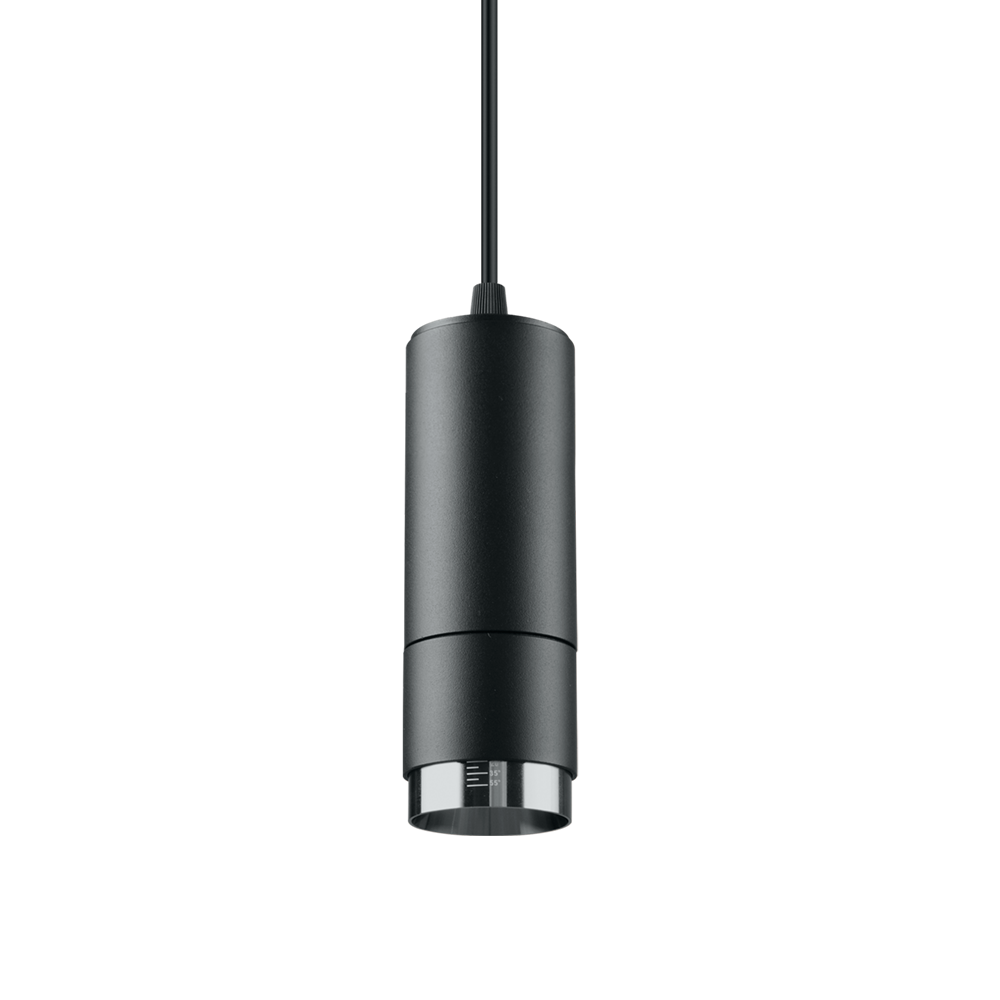

MODULE ZOOM-Suspension

One module, endless possibilities.

MODULE ZOOM - A completely new range of zoom spotlights is created, which is perfect for accent lighting and decorative elements. It is available in two sizes and three colour finishes. The optic enables a continuously adjustable beam angle between 2O° and 55°.Easily adjustable and tilting. Uses: Caffees, Commercial spaces, Gallerys, Hotels, Indoors, Living spaces,Museums, Offices, Restaurants, Showrooms

Features Features

- One modular platform covers almost every classic installation – recessed (trim/trimless), surface mount, or track mount – giving you endless application possibilities with minimal inventory

- Single-head and double-head configurations available – flexibly adapt to different space scales and lighting requirements

- Rich and interchangeable optical options – from spot to flood, 18° to 60°, round or oval beam – easily swap optics without changing the entire fixture

- Premium raw housing surface – smooth and clean, capable of achieving high-end metal finishes like electroplated colours for customized aesthetics

- Compact size with powerful output – delivers up to 15W per head, bright enough for real lighting needs while remaining slim for minimalist aesthetics

- High colour rendering (Ra90) – reproduces natural colours with vivid accuracy

- IP54 rating – protects against dust and water splashes, suitable for various indoor and semi-outdoor environments

- Modular design with quick and safe assembly – tool-friendly installation and easy maintenance

Specifications Specifications

- Housing: High-quality aluminium, eco-friendly die-cast construction – excellent thermal conductivity and corrosion resistance

- Surface finish: Fine textured coating – elegant and durable; custom colours available upon request

- Configurations: Single-head / Double-head

- Installation types: Recessed with trim / Recessed trimless / Surface mount / Track mount

- Optical angles: 18° to 60° – spot, flood, round beam, oval beam (interchangeable)

- Colour rendering: Ra90

- Protection rating: IP54

- Power per head: Up to 15W

- Module design: One unified module for all installation types

- Assembly: Quick and safe, tool-friendly

Fields of application Fields of application

- Residential living rooms, bedrooms, kitchens, and corridors

- Retail stores, showrooms, and boutiques

- Hotels, restaurants, and hospitality spaces

- Art galleries and exhibition spaces

- Office environments and commercial interiors

- Track lighting systems in retail or display areas

- Projects requiring flexible installation methods and customized finishes

- Any space demanding high-quality, versatile, and space-saving lighting solutions

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-D/C/T520-COB1-P-30K-ZOOM	L-D/C/T520-COB1-P-30K-ZOOM	15W	3000K	760lm	20°-55°	White/Black/Gold
Get in Touch Get in Touch L-D/C/T520-COB1-P-30K-ZOOM MODULE ZOOM-Suspension, with LED, system power: 10W, luminous flux of luminaire 760lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 20°-55°, black/white/gold color, ON/OFF \| DALI. ingress protection IP20. Ø=56 mm, H=150 mm Nominal power 15W Finish White/Black/Gold Delivered lumens 760lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.45kg Color Rendering Index(CRI) CRI≥90 Diameter 51mm Unified Glare Rating (UGR) UGR＜16 Height 150mm Light Control ON/OFF \| DALI Width 51mm Beam angle 20°-55° Downloads None Accessories
	L-D/C/T520-COB2-P-30K-ZOOM	L-D/C/T520-COB2-P-30K-ZOOM	15W	3000K	945lm	20°-55°	White/Black/Gold

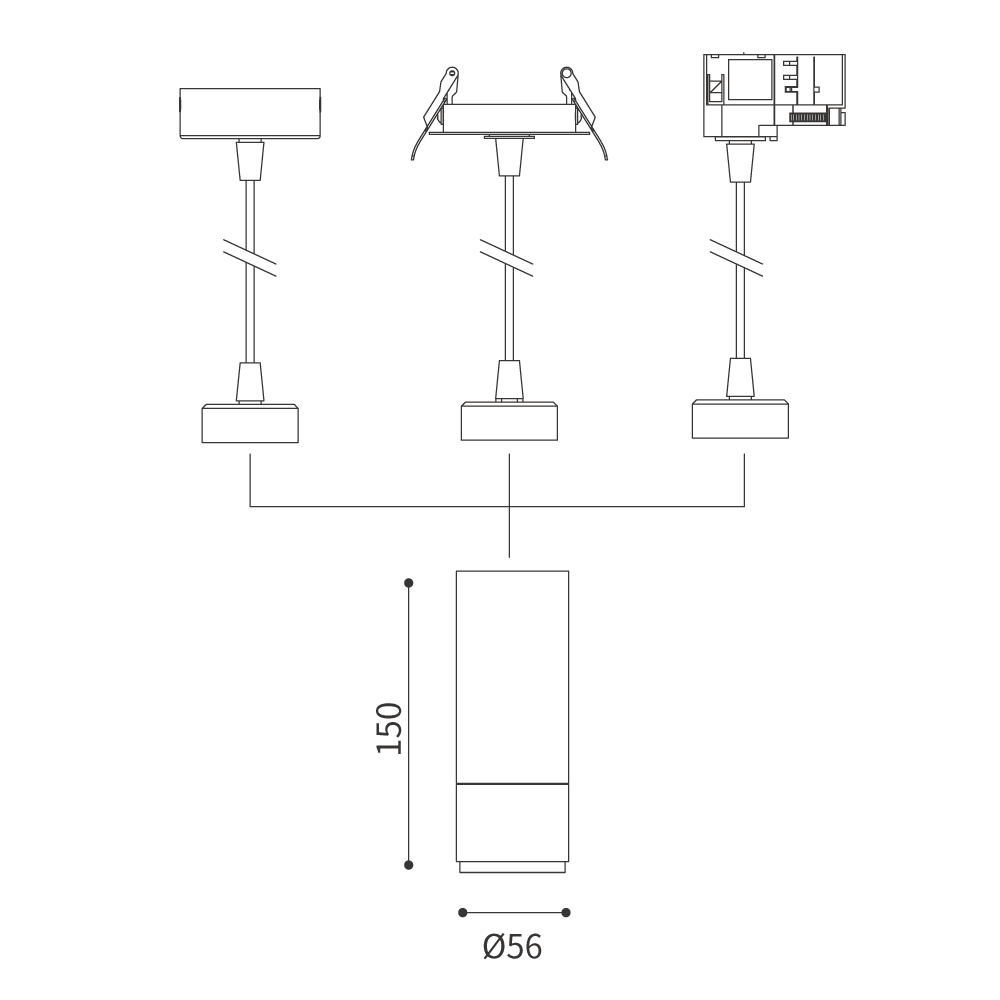

Get in Touch Get in Touch L-D/C/T520-COB2-P-30K-ZOOM MODULE ZOOM-Suspension, with LED, system power: 15W, luminous flux of luminaire 945lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 20°-55°, black/white/gold color, ON/OFF \| DALI. ingress protection IP20. Ø=56 mm, H=150 mm Nominal power 15W Finish White/Black/Gold Delivered lumens 945lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.5kg Color Rendering Index(CRI) CRI≥90 Diameter 56mm Unified Glare Rating (UGR) UGR＜16 Height 150mm Light Control ON/OFF \| DALI Width 56mm Beam angle 20°-55° Downloads None Accessories
