MODULE-SPOT-Recessed


One module, endless possibilities.

MODULE-SPOT is a revolutionary modular lighting platform that consolidates multiple installation styles into a single, compact system. Whether you need recessed, surface-mounted, or track，Suspension-mounted solutions, MODULE-SPOT covers them all with one unified module. Available in single-head or double-head configurations, with interchangeable optical options and premium finish quality, this series delivers exceptional versatility without compromising on performance or aesthetics. Small in size yet powerful in output – up to 15W per head – UNIFIT brings both brightness and minimalist elegance to any space.



Features Features

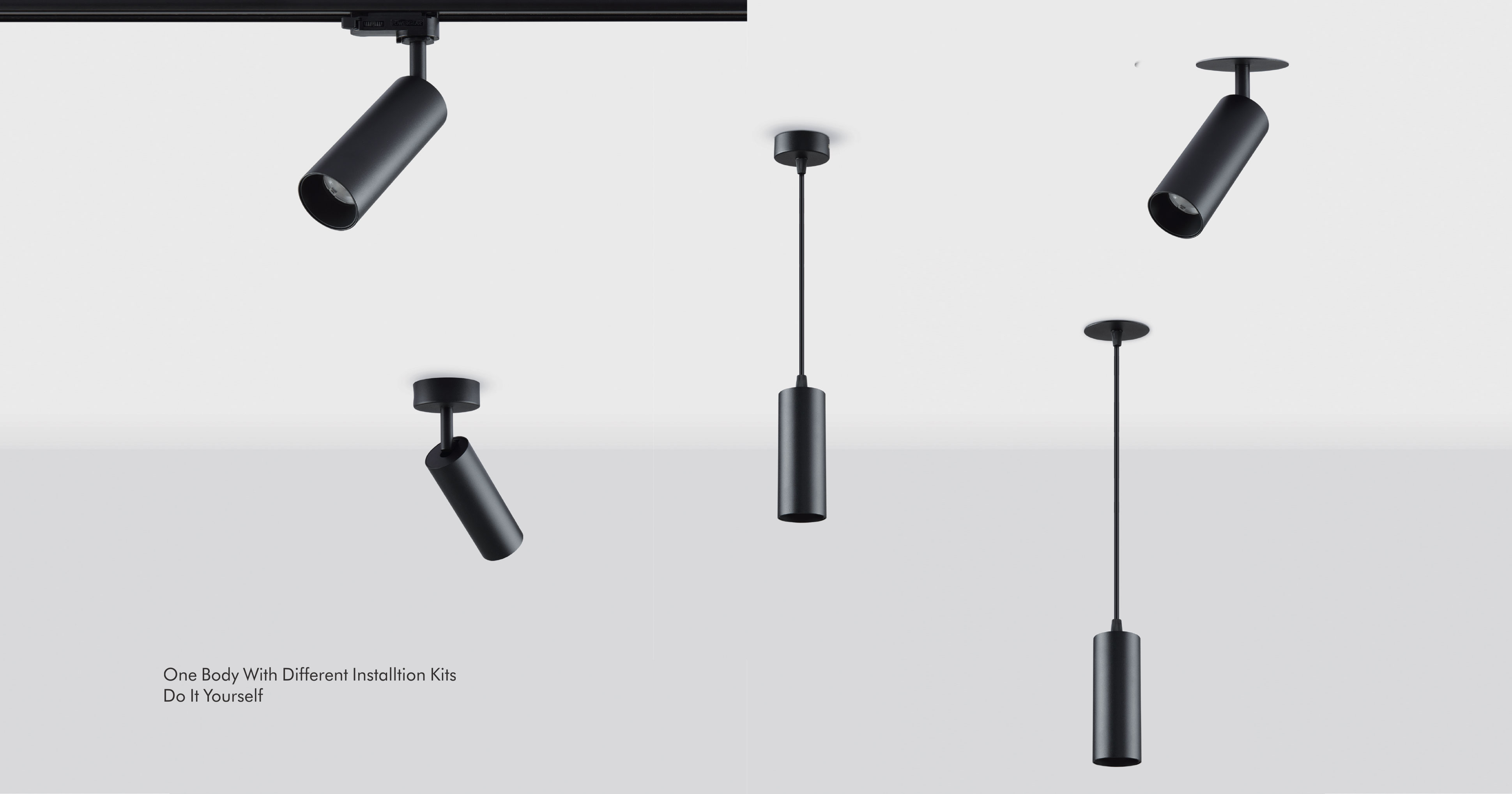

- One modular platform covers almost every classic installation – recessed (trim/trimless), surface mount, or track mount – giving you endless application possibilities with minimal inventory

- Single-head and double-head configurations available – flexibly adapt to different space scales and lighting requirements

- Rich and interchangeable optical options – from spot to flood, 18° to 60°, round or oval beam – easily swap optics without changing the entire fixture

- Premium raw housing surface – smooth and clean, capable of achieving high-end metal finishes like electroplated colours for customized aesthetics

- Compact size with powerful output – delivers up to 15W per head, bright enough for real lighting needs while remaining slim for minimalist aesthetics

- High colour rendering (Ra90) – reproduces natural colours with vivid accuracy

- IP54 rating – protects against dust and water splashes, suitable for various indoor and semi-outdoor environments

- Modular design with quick and safe assembly – tool-friendly installation and easy maintenance

Specifications Specifications

- Housing: High-quality aluminium, eco-friendly die-cast construction – excellent thermal conductivity and corrosion resistance

- Surface finish: Fine textured coating – elegant and durable; custom colours available upon request

- Configurations: Single-head / Double-head

- Installation types: Recessed with trim / Recessed trimless / Surface mount / Track mount

- Optical angles: 18° to 60° – spot, flood, round beam, oval beam (interchangeable)

- Colour rendering: Ra90

- Protection rating: IP54

- Power per head: Up to 15W

- Module design: One unified module for all installation types

- Assembly: Quick and safe, tool-friendly

Fields of application Fields of application

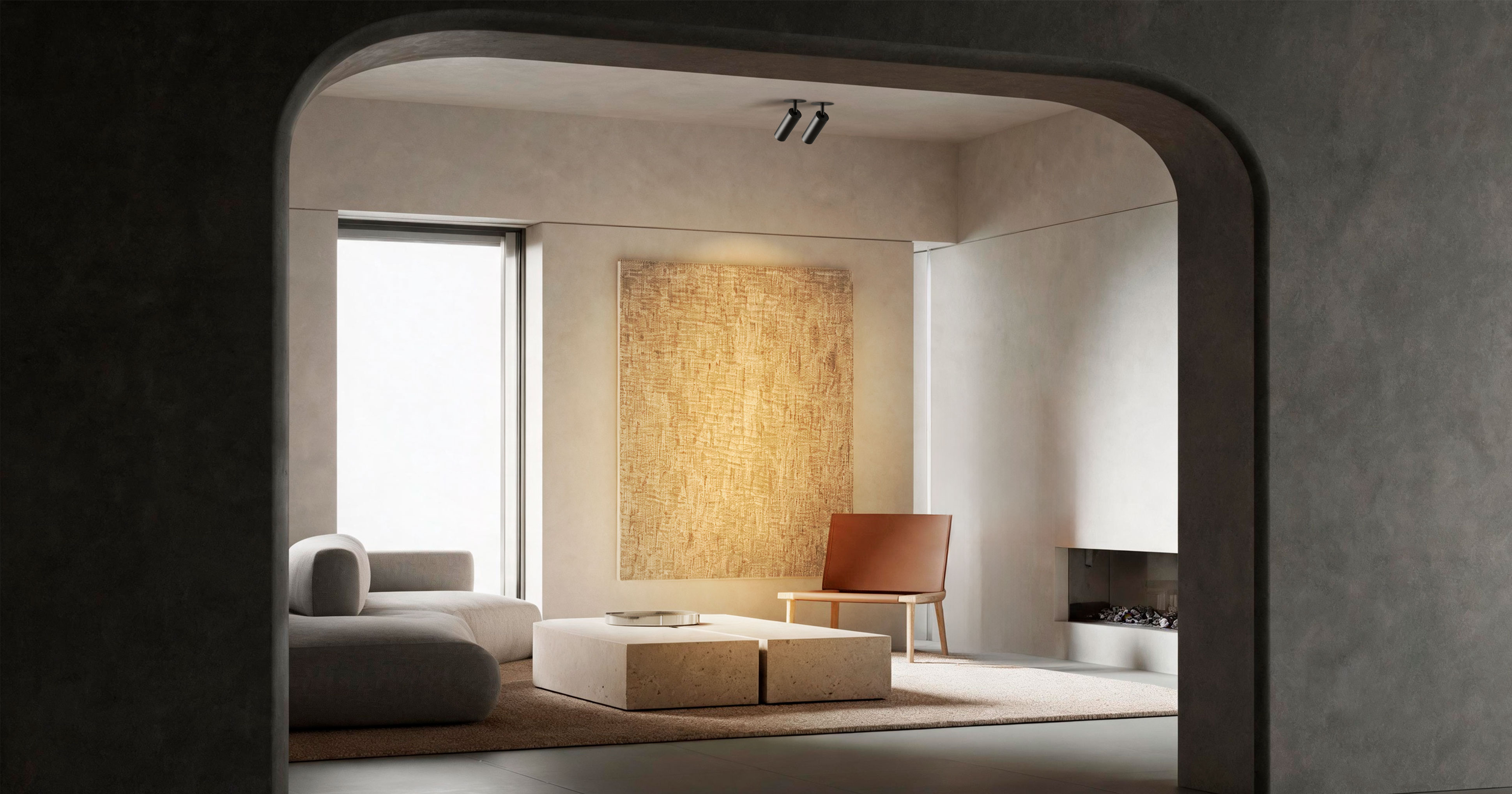

- Residential living rooms, bedrooms, kitchens, and corridors

- Retail stores, showrooms, and boutiques

- Hotels, restaurants, and hospitality spaces

- Art galleries and exhibition spaces

- Office environments and commercial interiors

- Track lighting systems in retail or display areas

- Projects requiring flexible installation methods and customized finishes

- Any space demanding high-quality, versatile, and space-saving lighting solutions


Version
0 Article

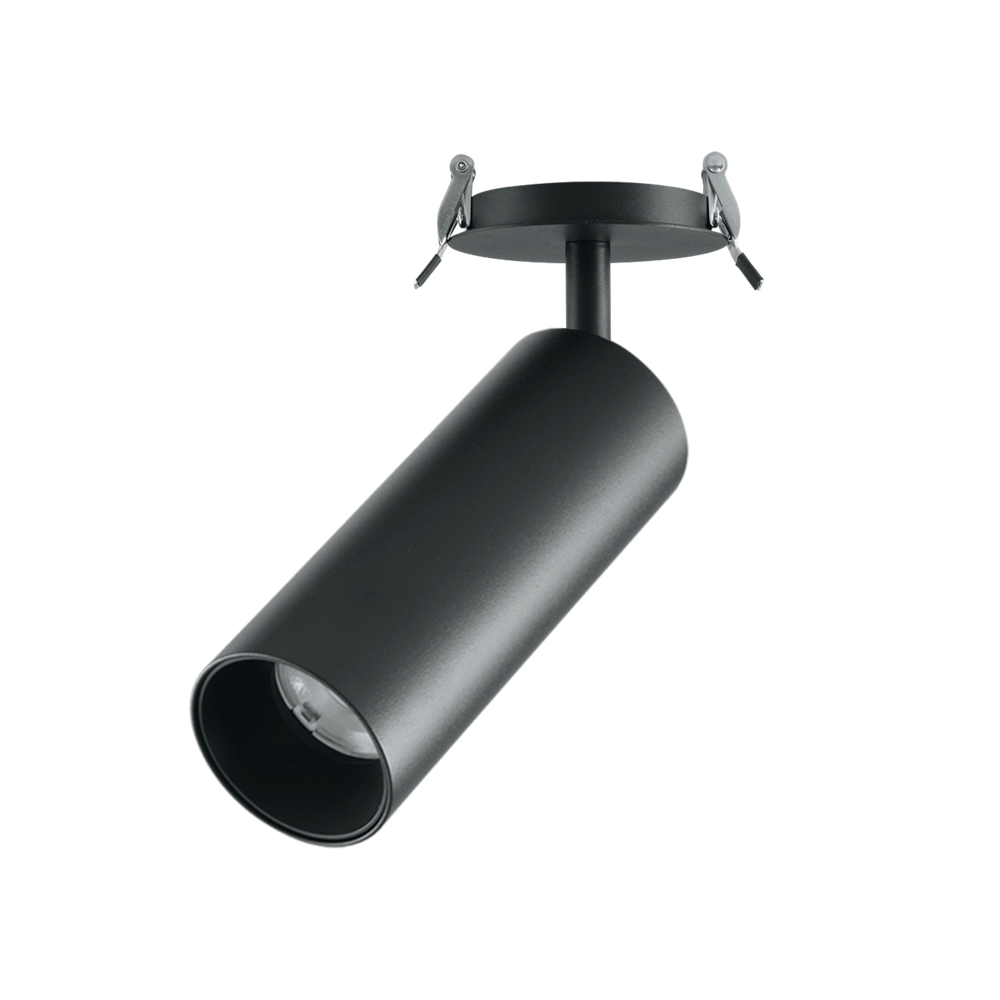

PROH_6853_1.jpg L-D559-COB1-10W
PROH_6853_1.jpg L-D559-COB2-15W
PROH_6853_1.jpg L-D559-COB3-20W
PROH_6853_1.jpg L-D559-COB4-30W
Nominal power
10W
BEAM ANGLE
45°
30°
20°
COLOUR / FINISH
White/Black/Gold
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-D559-COB1-30K-20 L-D559-COB1-30K-20 10W 3000K 810lm 20° White/Black/Gold
Get in Touch Get in Touch

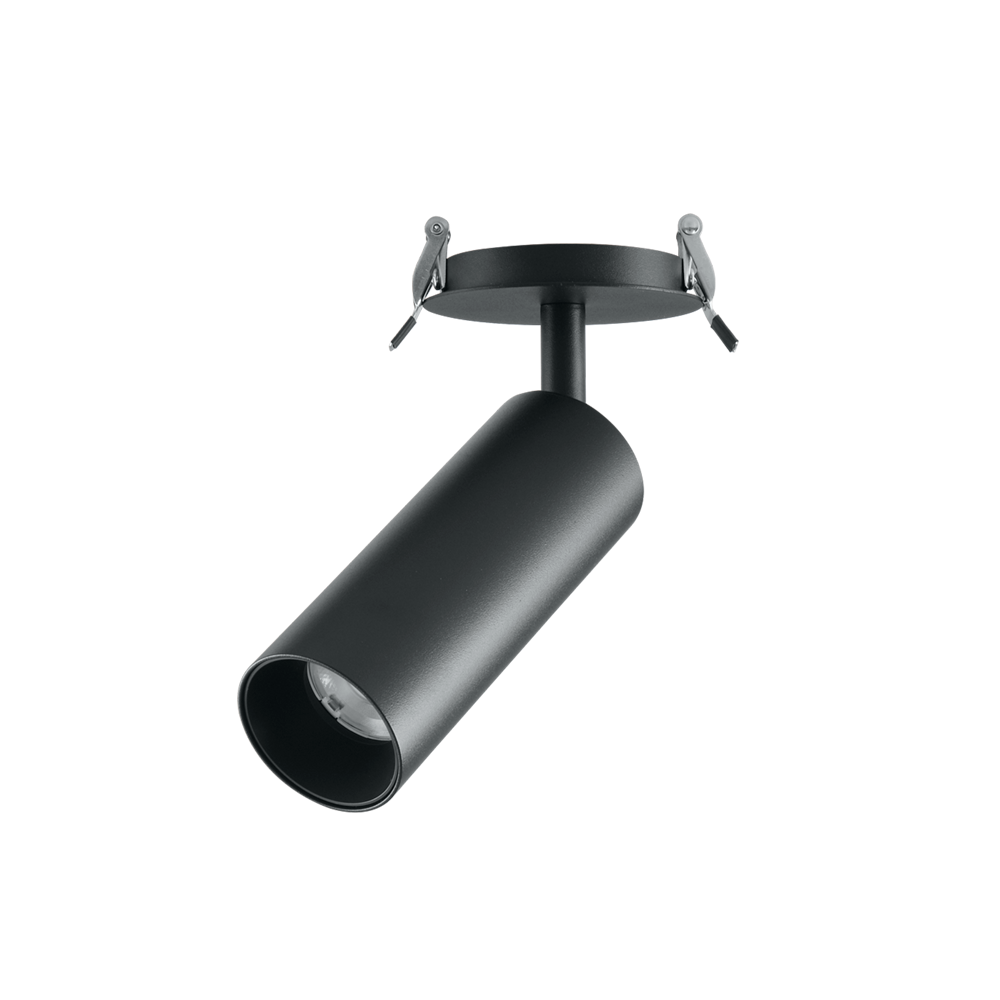

/static/upload/2026/07/30/202607302602.png
/static/upload/2026/07/30/202607307444.png

L-D559-COB1-30K-20

MODULE-SPOT-Recessed, with LED, system power: 10W, luminous flux of luminaire 810lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 20°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=51 mm, ceiling cutout ø/ mm

Nominal power
10W
Finish
White/Black/Gold
Delivered lumens
810lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.45kg
Color Rendering Index(CRI)
CRI≥90
Diameter
56mm
Unified Glare Rating (UGR)
UGR＜16
Height
150mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
56mm
Beam angle
20°
Downloads
    None


Accessories
L-D559-COB1-30K-30 L-D559-COB1-30K-30 10W 3000K 810lm 30° White/Black/Gold
Get in Touch Get in Touch
/static/upload/2026/07/30/202607302602.png
/static/upload/2026/07/30/202607307444.png

L-D559-COB1-30K-30

MODULE-SPOT-Recessed, with LED, system power: 10W, luminous flux of luminaire 810lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 30°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=51 mm, ceiling cutout ø/ mm

Nominal power
10W
Finish
White/Black/Gold
Delivered lumens
810lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.45kg
Color Rendering Index(CRI)
CRI≥90
Diameter
56mm
Unified Glare Rating (UGR)
UGR＜16
Height
150mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
56mm
Beam angle
30°
Downloads
    None


Accessories
L-D559-COB1-30K-45 L-D559-COB1-30K-45 10W 3000K 810lm 45° White/Black/Gold
Get in Touch Get in Touch
/static/upload/2026/07/30/202607302602.png
/static/upload/2026/07/30/202607307444.png

L-D559-COB1-30K-45

MODULE-SPOT-Recessed, with LED, system power: 10W, luminous flux of luminaire 810lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 45°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=51 mm, ceiling cutout ø/ mm

Nominal power
10W
Finish
White/Black/Gold
Delivered lumens
810lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.45kg
Color Rendering Index(CRI)
CRI≥90
Diameter
56mm
Unified Glare Rating (UGR)
UGR＜16
Height
150mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
56mm
Beam angle
45°
Downloads
    None


Accessories
L-D559-COB2-30K-20 L-D559-COB2-30K-20 15W 3000K 1230lm 20° White/Black/Gold
Get in Touch Get in Touch

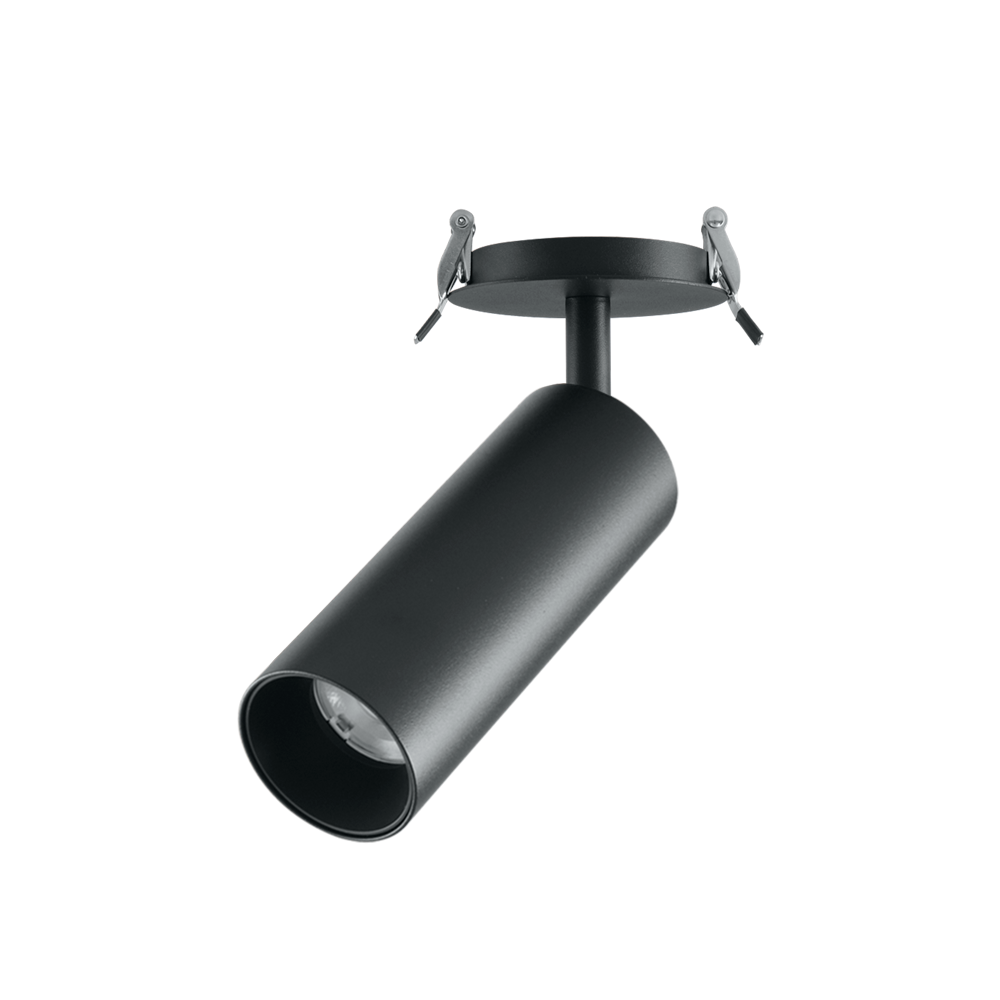

/static/upload/2026/07/30/202607309805.png

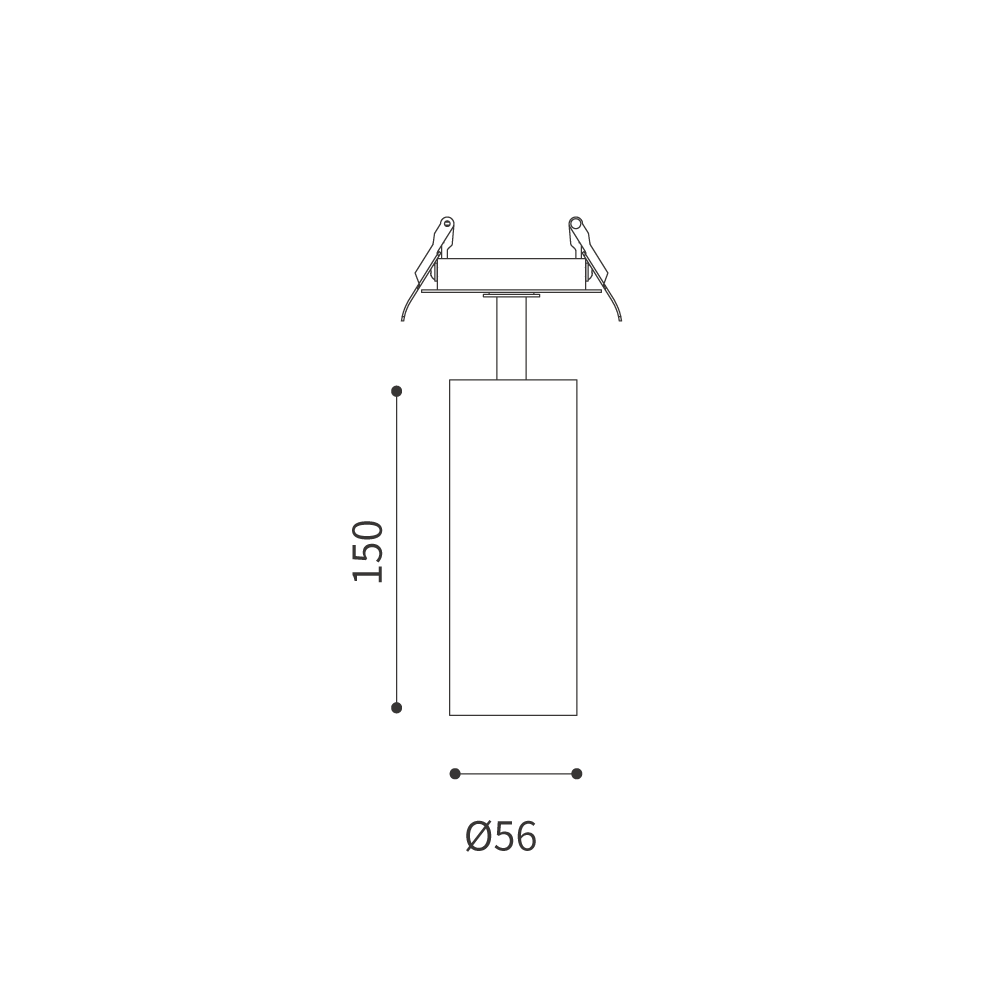

/static/upload/2026/07/30/202607308075.png

L-D559-COB2-30K-20

MODULE-SPOT-Recessed, with LED, system power: 15W, luminous flux of luminaire 1230lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 20°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=56 mm, ceiling cutout ø/ mm

Nominal power
15W
Finish
White/Black/Gold
Delivered lumens
1230lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.55kg
Color Rendering Index(CRI)
CRI≥90
Diameter
56mm
Unified Glare Rating (UGR)
UGR＜16
Height
150mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
56mm
Beam angle
20°
Downloads
    None


Accessories
L-D559-COB2-30K-25 L-D559-COB2-30K-25 15W 3000K 1230lm 25° White/Black/Gold
Get in Touch Get in Touch
/static/upload/2026/07/30/202607309805.png
/static/upload/2026/07/30/202607308075.png

L-D559-COB2-30K-25

MODULE-SPOT-Recessed, with LED, system power: 15W, luminous flux of luminaire 1230lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 25°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=56 mm, ceiling cutout ø/ mm

Nominal power
15W
Finish
White/Black/Gold
Delivered lumens
1230lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.55kg
Color Rendering Index(CRI)
CRI≥90
Diameter
56mm
Unified Glare Rating (UGR)
UGR＜16
Height
150mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
56mm
Beam angle
25°
Downloads
    None


Accessories
L-D559-COB2-30K-50 L-D559-COB2-30K-50 15W 3000K 1230lm 50° White/Black/Gold
Get in Touch Get in Touch
/static/upload/2026/07/30/202607309805.png
/static/upload/2026/07/30/202607308075.png

L-D559-COB2-30K-50

MODULE-SPOT-Recessed, with LED, system power: 15W, luminous flux of luminaire 1230lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 50°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=56 mm, ceiling cutout ø/ mm

Nominal power
15W
Finish
White/Black/Gold
Delivered lumens
1230lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.55kg
Color Rendering Index(CRI)
CRI≥90
Diameter
56mm
Unified Glare Rating (UGR)
UGR＜16
Height
150mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
56mm
Beam angle
50°
Downloads
    None


Accessories
L-D559-COB3-30K-20 L-D559-COB3-30K-20 20W 3000K 1580lm 20° White/Black/Gold
Get in Touch Get in Touch
/static/upload/2026/07/30/202607301558.png
/static/upload/2026/07/30/202607302891.png

L-D559-COB3-30K-20

MODULE-SPOT-Recessed, with LED, system power: 00W, luminous flux of luminaire 1580lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 500mA, Beam angle: 20°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=67 mm, ceiling cutout ø/ mm

Nominal power
20W
Finish
White/Black/Gold
Delivered lumens
1580lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.85kg
Color Rendering Index(CRI)
CRI≥90
Diameter
67mm
Unified Glare Rating (UGR)
UGR＜16
Height
170mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
20°
Downloads
    None


Accessories
L-D559-COB3-30K-25 L-D559-COB3-30K-25 20W 3000K 1580lm 25° White/Black/Gold
Get in Touch Get in Touch
/static/upload/2026/07/30/202607301558.png
/static/upload/2026/07/30/202607302891.png

L-D559-COB3-30K-25

MODULE-SPOT-Recessed, with LED, system power: 00W, luminous flux of luminaire 1580lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 500mA, Beam angle: 25°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=67 mm, ceiling cutout ø/ mm

Nominal power
20W
Finish
White/Black/Gold
Delivered lumens
1580lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.85kg
Color Rendering Index(CRI)
CRI≥90
Diameter
67mm
Unified Glare Rating (UGR)
UGR＜16
Height
170mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
25°
Downloads
    None


Accessories
L-D559-COB3-30K-50 L-D559-COB3-30K-50 20W 3000K 1580lm 50° White/Black/Gold
Get in Touch Get in Touch
/static/upload/2026/07/30/202607301558.png
/static/upload/2026/07/30/202607302891.png

L-D559-COB3-30K-50

MODULE-SPOT-Recessed, with LED, system power: 00W, luminous flux of luminaire 1580lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 500mA, Beam angle: 50°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=67 mm, ceiling cutout ø/ mm

Nominal power
20W
Finish
White/Black/Gold
Delivered lumens
1580lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.85kg
Color Rendering Index(CRI)
CRI≥90
Diameter
67mm
Unified Glare Rating (UGR)
UGR＜16
Height
170mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
50°
Downloads
    None


Accessories
L-D559-COB4-30K-20 L-D559-COB4-30K-20 30W 3000K 2400lm 20° White/Black/Gold
Get in Touch Get in Touch

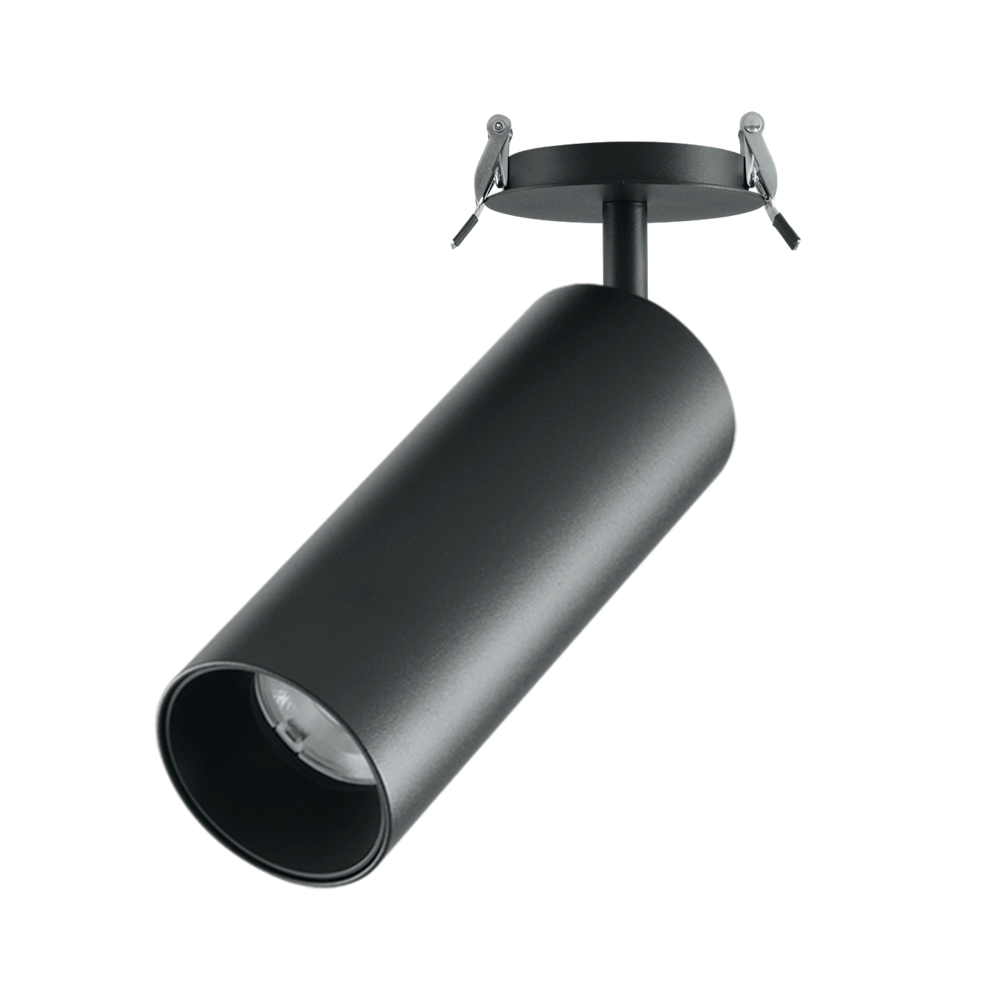

/static/upload/2026/07/30/202607309311.png

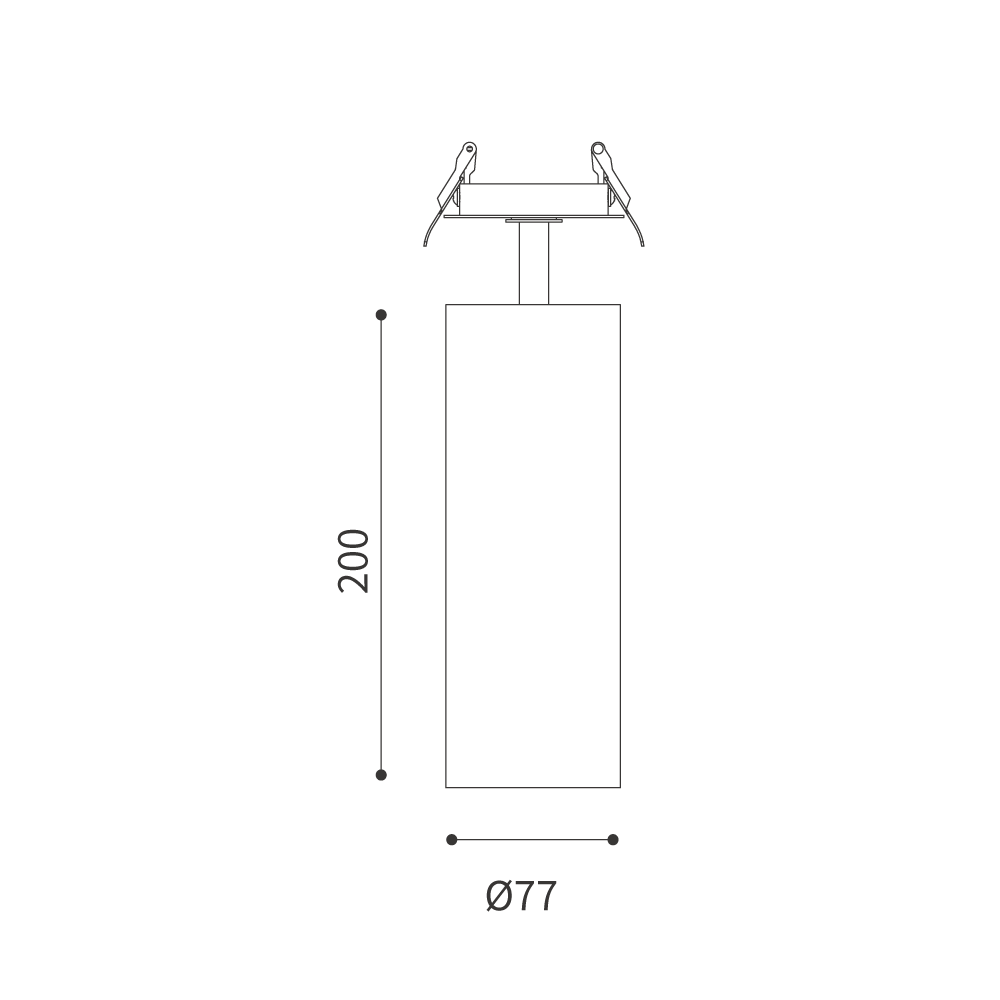

/static/upload/2026/07/30/202607301893.png

L-D559-COB4-30K-20

MODULE-SPOT-Recessed, with LED, system power: 30W, luminous flux of luminaire 2400lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 700mA, Beam angle: 20°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=77 mm, ceiling cutout ø/ mm

Nominal power
30W
Finish
White/Black/Gold
Delivered lumens
2400lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
1.1kg
Color Rendering Index(CRI)
CRI≥90
Diameter
77mm
Unified Glare Rating (UGR)
UGR＜16
Height
200mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
77mm
Beam angle
20°
Downloads
    None


Accessories
L-D559-COB4-30K-25 L-D559-COB4-30K-25 30W 3000K 2400lm 25° White/Black/Gold
Get in Touch Get in Touch
/static/upload/2026/07/30/202607309311.png
/static/upload/2026/07/30/202607301893.png

L-D559-COB4-30K-25

MODULE-SPOT-Recessed, with LED, system power: 30W, luminous flux of luminaire 2400lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 700mA, Beam angle: 25°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=77 mm, ceiling cutout ø/ mm

Nominal power
30W
Finish
White/Black/Gold
Delivered lumens
2400lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
1.1kg
Color Rendering Index(CRI)
CRI≥90
Diameter
77mm
Unified Glare Rating (UGR)
UGR＜16
Height
200mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
77mm
Beam angle
25°
Downloads
    None


Accessories
L-D559-COB4-30K-50 L-D559-COB4-30K-50 30W 3000K 2400lm 50° White/Black/Gold
Get in Touch Get in Touch
/static/upload/2026/07/30/202607309311.png
/static/upload/2026/07/30/202607301893.png

L-D559-COB4-30K-50

MODULE-SPOT-Recessed, with LED, system power: 30W, luminous flux of luminaire 2400lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 700mA, Beam angle: 50°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=77 mm, ceiling cutout ø/ mm

Nominal power
30W
Finish
White/Black/Gold
Delivered lumens
2400lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
1.1kg
Color Rendering Index(CRI)
CRI≥90
Diameter
77mm
Unified Glare Rating (UGR)
UGR＜16
Height
200mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
77mm
Beam angle
50°
Downloads
    None


Accessories


RELATED PRODUCTS

Product finder
