LEUKOS-DEEP

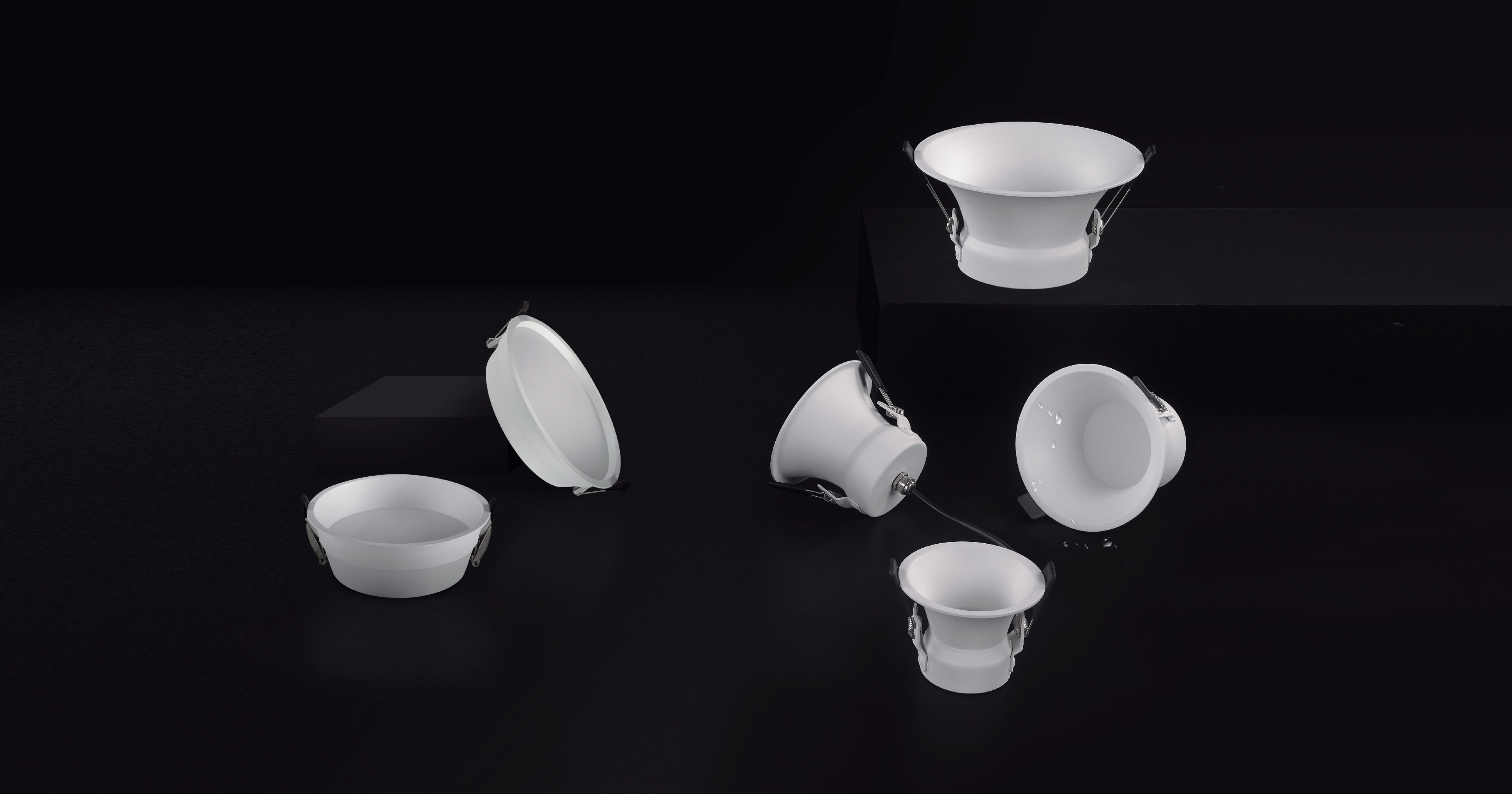

LEUKOS DEEP-smd downlight High IP&Complete Wattage Range make it cover multiple applications,including from residential bedrooms to hotel halls or shopping malls,from indoor to eaves,etc.



Features Features

-Luxury boutiques & gallery accent lighting

-Hotel corridor mood-setting

-Office task lighting with advanced anti-glare

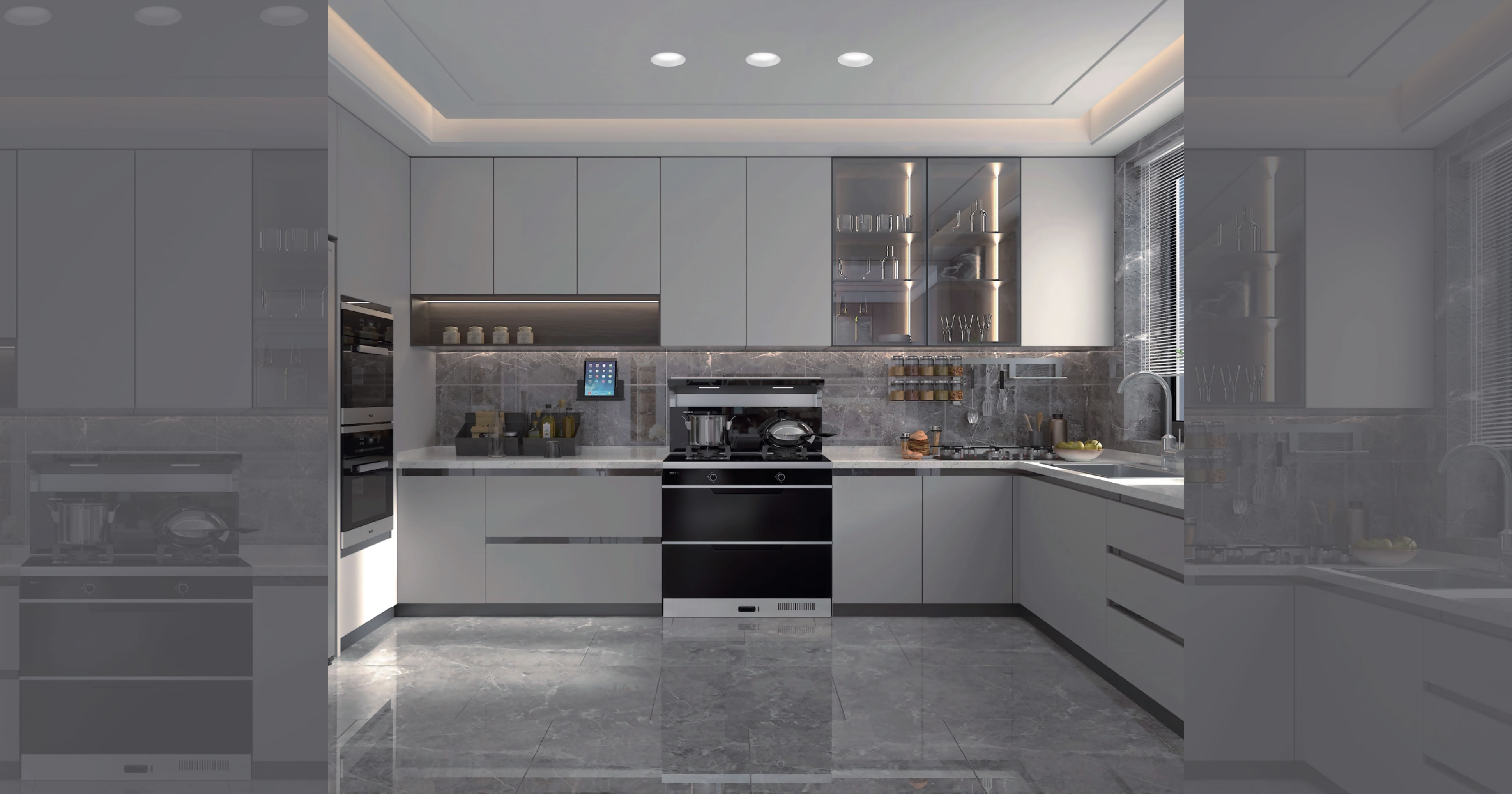

-Residential ceiling light arrays


Specifications Specifications

-Black and white versions available

-Five sizes available

-Aluminium-Powder coated

-ON/OFF, TUNABLE, and DALI control system

-Light colours 3,000 K,4,000 K or 5.000 K

-Downlight with pleasantly homogeneous luminance levels

Fields of application Fields of application

Retail & Hospitality

retail spaces, presentation of merchandise, restaurants, hotels,

shop windows,exhibition spaces

Office & Education

offices, conference rooms, art & culture establishments

Home & Living

Version
0 Article

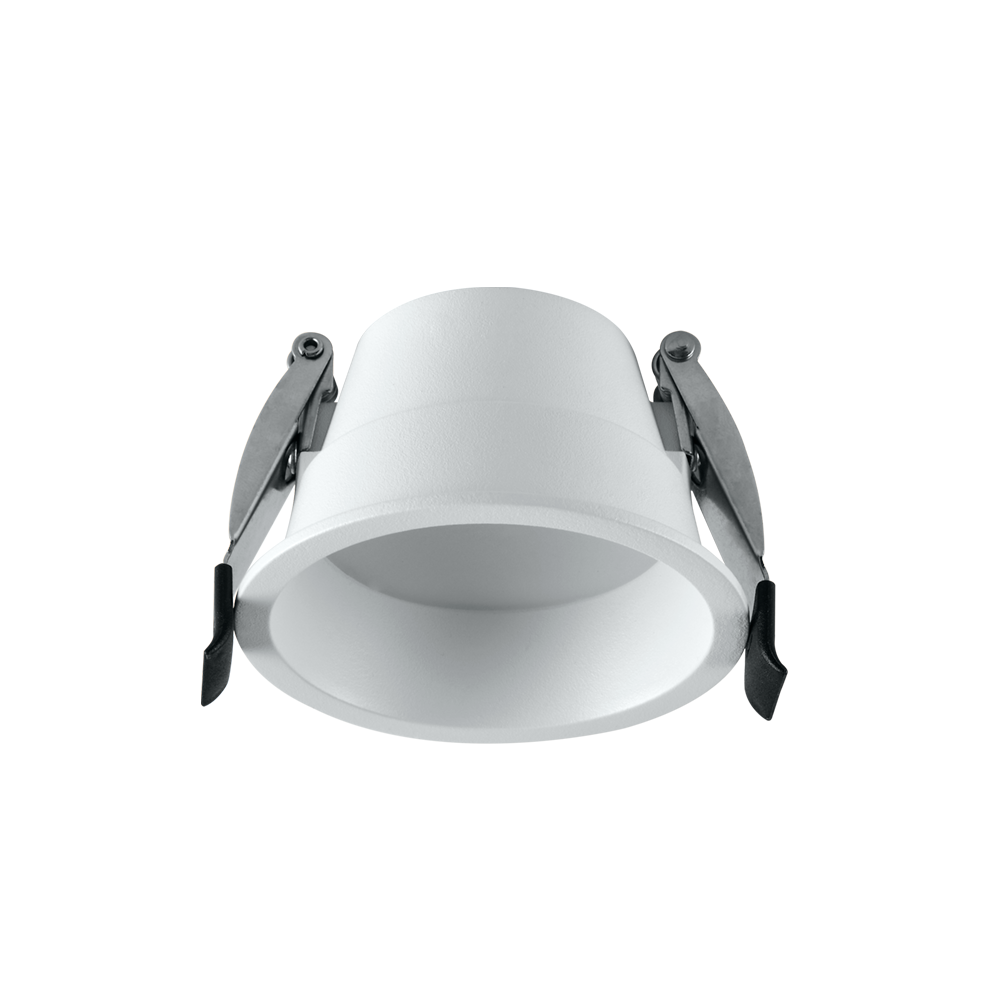

PROH_6853_1.jpg L-D151-SMD2.5-7W
PROH_6853_1.jpg L-D151-SMD4-10W

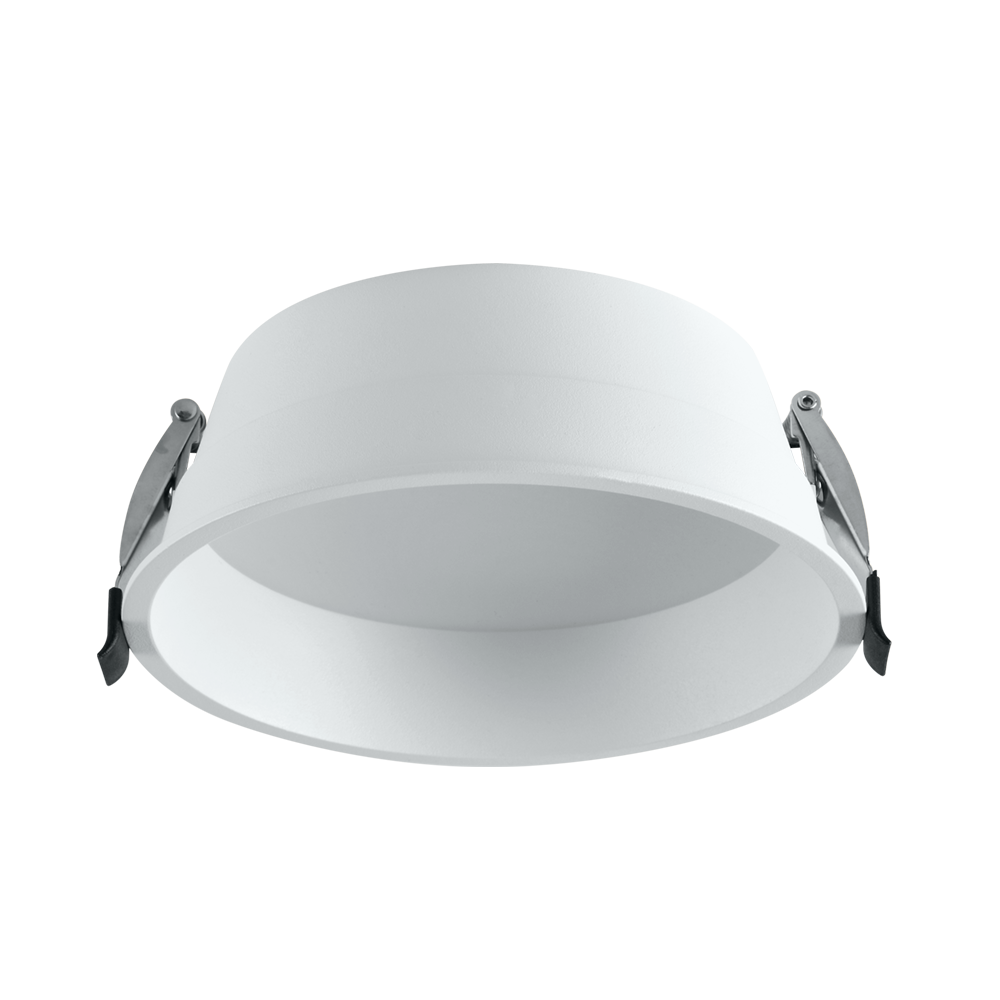

PROH_6853_1.jpg L-D151-SMD6-16W

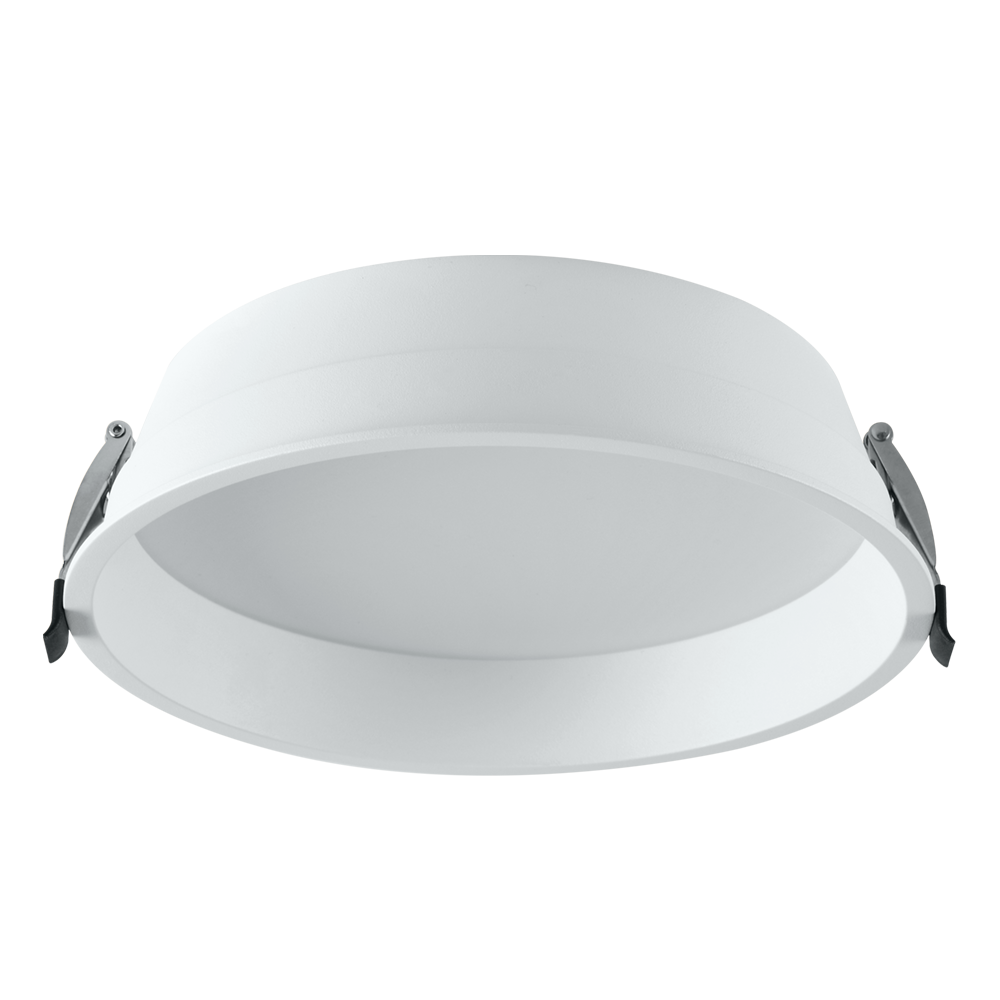

PROH_6853_1.jpg L-D151-SMD8-24W
Nominal power
7W
BEAM ANGLE
90°
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-D151-SMD2.5-30K-90 L-D151-SMD2.5-30K-90 7W 3000K 497lm 90° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/17/202607173047.png
/static/upload/2026/07/17/202607174010.png

L-D151-SMD2.5-30K-90

LEUKOS DEEP-smd recessed downlight, with LED, system power: 7W, luminous flux of luminaire 497lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 150mA, Beam angle: 90°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP44.

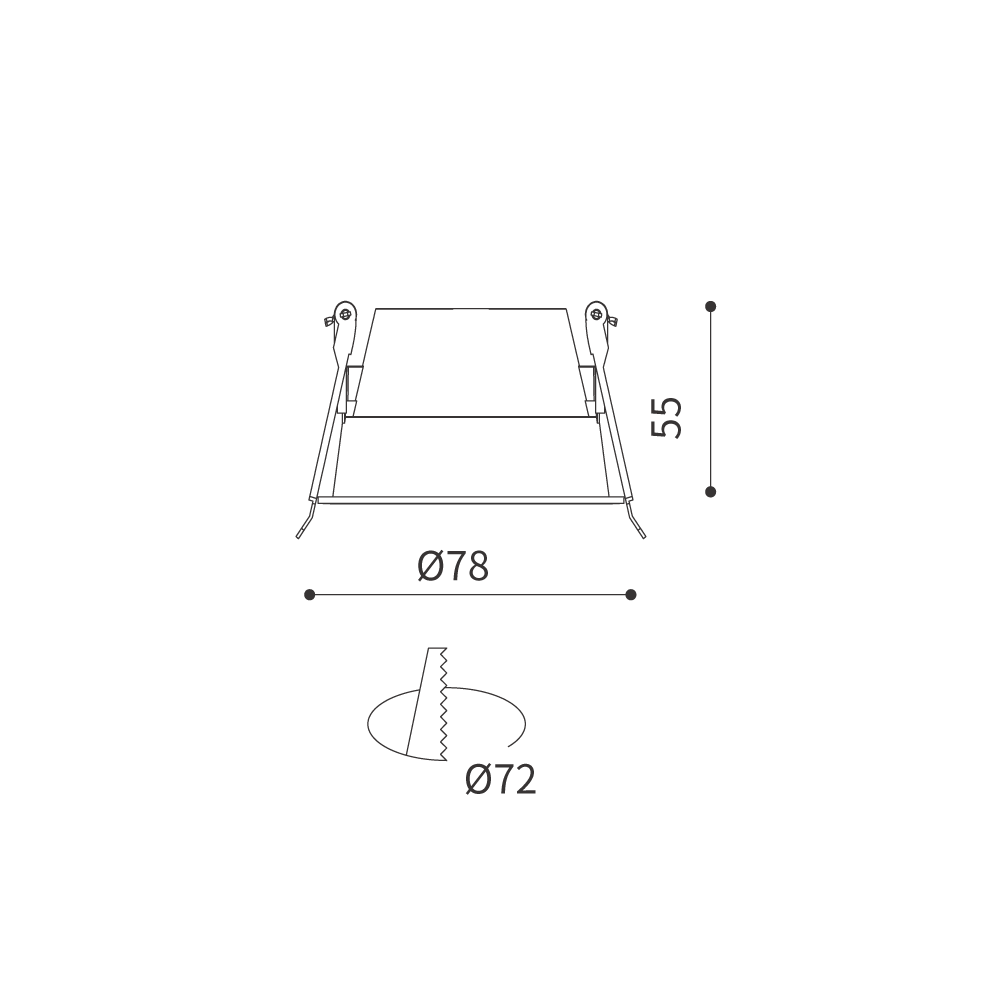

Ø=78 mm, ceiling cutout ø72 mm

Nominal power
7W
Finish
White/Black
Delivered lumens
497lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP44
Color Temperature(CCT)
3000K
Weight
0.19kg
Color Rendering Index(CRI)
CRI≥90
Diameter
78mm
Unified Glare Rating (UGR)
UGR<21
Height
55mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
78mm
Beam angle
90°
Downloads
    None


Accessories
L-D151-SMD4-30K-90 L-D151-SMD4-30K-90 10W 3000K 710lm 90° White/Black
Get in Touch Get in Touch

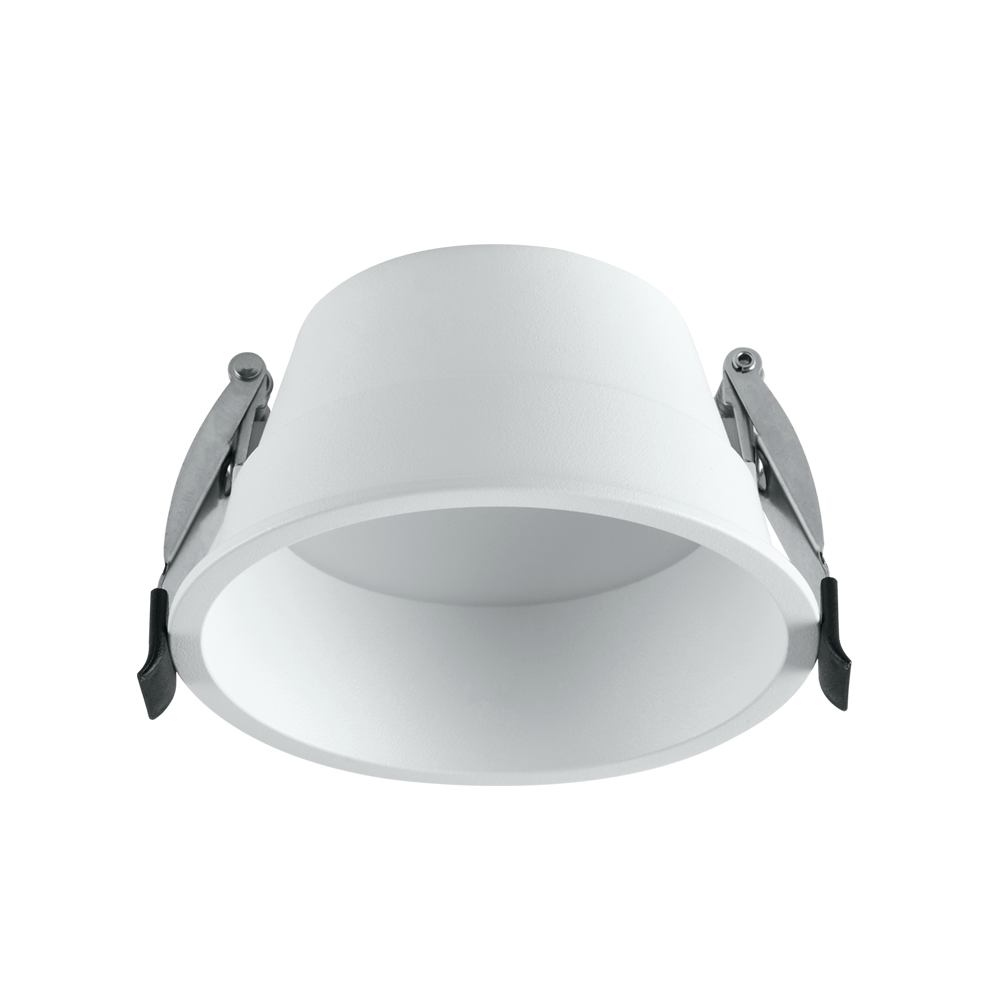

/static/upload/2026/07/17/202607174807.png
/static/upload/2026/07/17/202607173337.png

L-D151-SMD4-30K-90

LEUKOS DEEP-smd recessed downlight, with LED, system power: 10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 90°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP44.

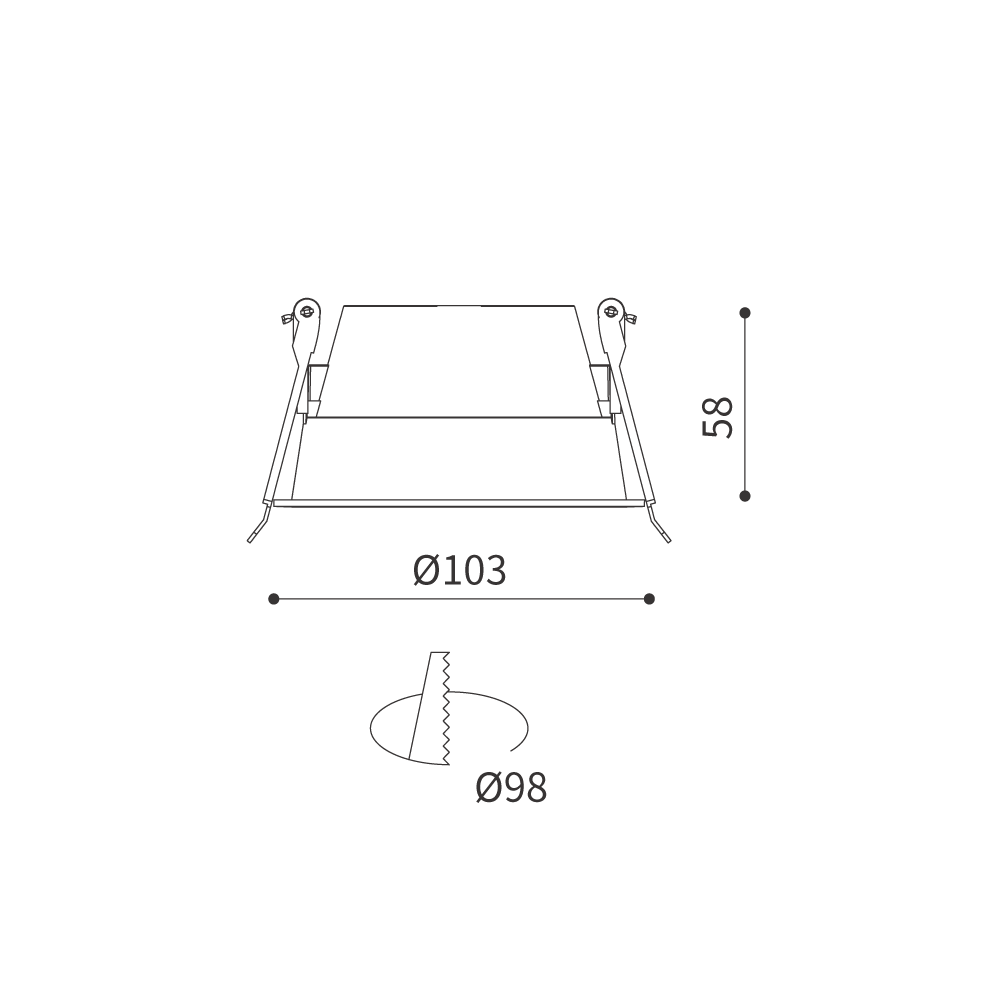

Ø=103 mm, ceiling cutout ø98 mm

Nominal power
10W
Finish
White/Black
Delivered lumens
710lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP44
Color Temperature(CCT)
3000K
Weight
0.19kg
Color Rendering Index(CRI)
CRI≥90
Diameter
103mm
Unified Glare Rating (UGR)
UGR<21
Height
58mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
103mm
Beam angle
90°
Downloads
    None


Accessories
L-D151-SMD6-30K-100 L-D151-SMD6-30K-100 16W 3000K 1328lm 100° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/17/202607175194.png
/static/upload/2026/07/17/202607173681.png

L-D151-SMD6-30K-100

LEUKOS DEEP-smd recessed downlight, with LED, system power: 16W, luminous flux of luminaire 1328lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 400mA, Beam angle: 100°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP44.

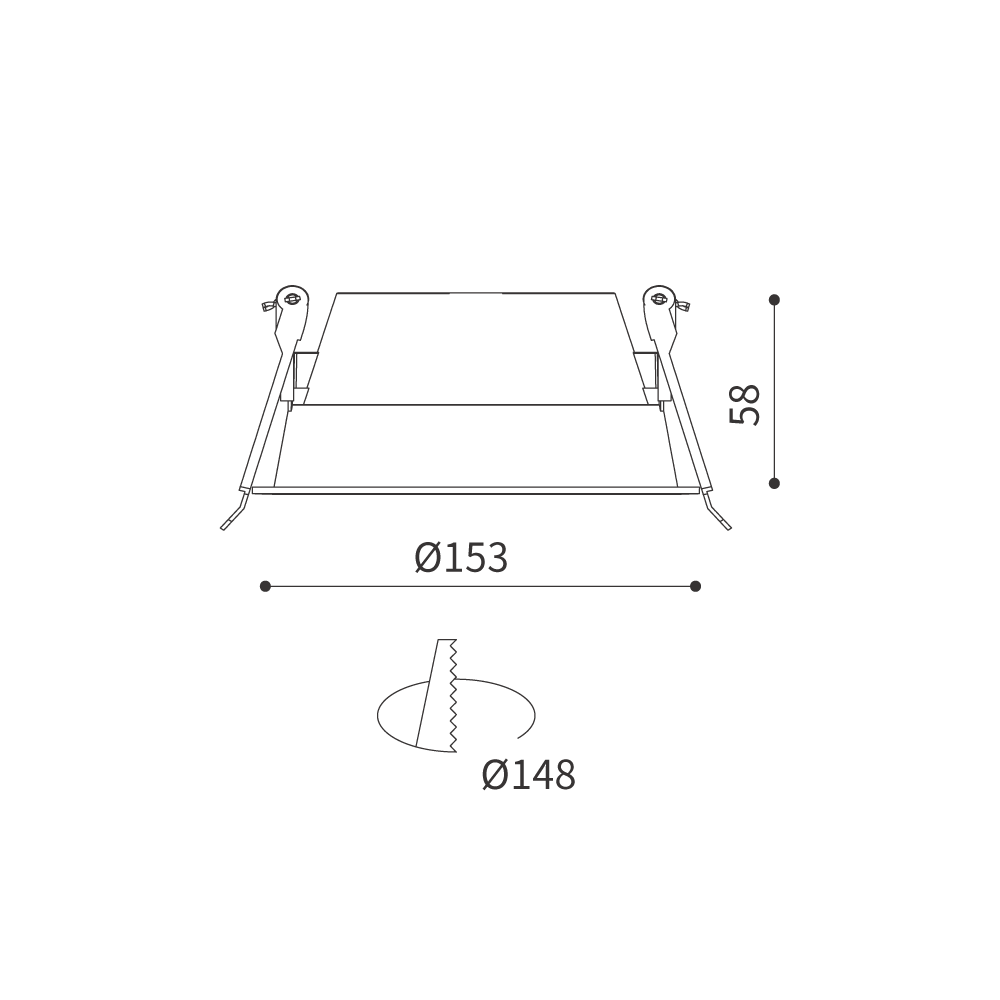

Ø=153 mm, ceiling cutout ø148 mm

Nominal power
16W
Finish
White/Black
Delivered lumens
1328lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP44
Color Temperature(CCT)
3000K
Weight
0.31kg
Color Rendering Index(CRI)
CRI≥90
Diameter
153mm
Unified Glare Rating (UGR)
UGR<21
Height
58mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
153mm
Beam angle
100°
Downloads
    None


Accessories
L-D151-SMD8-30K-100 L-D151-SMD8-30K-100 24W 3000K 2184lm 100° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/17/202607176958.png
/static/upload/2026/07/17/202607171686.png

L-D151-SMD8-30K-100

LEUKOS DEEP-smd recessed downlight, with LED, system power: 24W, luminous flux of luminaire 2184lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 600mA, Beam angle: 100°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP44.

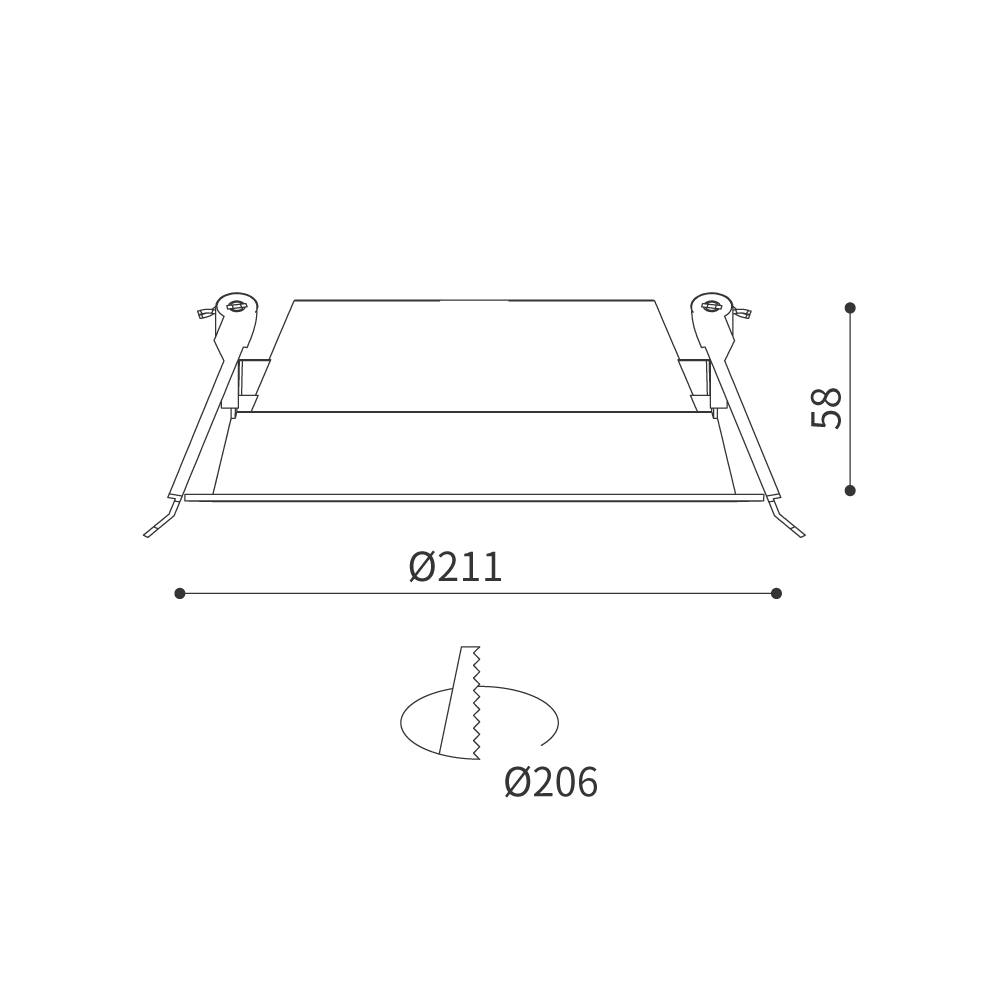

Ø=211 mm, ceiling cutout ø206 mm

Nominal power
24W
Finish
White/Black
Delivered lumens
2184lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP44
Color Temperature(CCT)
3000K
Weight
0.5kg
Color Rendering Index(CRI)
CRI≥90
Diameter
211mm
Unified Glare Rating (UGR)
UGR<21
Height
58mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
211mm
Beam angle
100°
Downloads
    None


Accessories
