FALLS Solo & Duo-TRIMLESS

Single or double, always on point.

FALLS Solo & Duo Trimless is a versatile wall-washing downlight series available in single-head or double-head configurations, with trim or trimless options to suit any ceiling design. Featuring asymmetric wall-wash optics with UGR <19, the series delivers smooth, even, and glare-free illumination across vertical surfaces. The double-head version offers an additional advantage – each head rotates 360° horizontally, allowing independent positioning to achieve diverse projection angles. With Ra90 colour rendering and premium aluminium construction, this series brings exceptional wall-lighting quality to both residential and commercial spaces.




Features Features

- Single-head or double-head configurations – flexibly adapt to different space scales and wall-washing requirements

-  Trim or trimless appearance options – match various ceiling styles and design preferences

- Asymmetric wall-wash optical lens – delivers smooth, even illumination across vertical surfaces; multiple units installed in sequence create a continuous wash of light covering entire walls

- Double-head version features independent 360° horizontal rotation per head – allows flexible positioning to achieve diverse projection angles and tailored wall-washing effects

- Anti-glare performance with UGR <19 – ensures comfortable viewing even in prolonged visual tasks

- High colour rendering (Ra90) – reproduces natural colours with vivid accuracy, enhancing the true beauty of wall finishes and artwork

- Integrated one-piece aluminium die-cast housing – excellent thermal conductivity, corrosion-resistant, and built for lasting durability

- Fine surface finish – delicate, elegant, and premium, designed to withstand the test of time

Specifications Specifications

- Housing: Integrated one-piece aluminium, eco-friendly die-cast construction – excellent thermal conductivity and corrosion resistance

- Surface finish: Fine textured coating – elegant and durable

- Optical system: Asymmetric wall-wash lens with anti-glare design

- Colour rendering: Ra90

- Anti-glare: UGR <19 – comfortable for prolonged viewing

- Configurations: Single-head / Double-head

- Rotation (double-head only): Each head rotates 360° horizontally – independent positioning for diverse projection angles

- Mounting styles: Recessed with trim / Recessed trimless

- Wattages: Multiple options available per configuration


Fields of application Fields of application

- Gallery and museum walls – highlighting artwork with even, glare-free illumination

- Retail store perimeter walls – showcasing merchandise on vertical displays

- Hotel lobbies, corridors, and feature walls – creating atmospheric wall lighting

- Residential living room accent walls – adding depth and warmth to interior spaces

- Office reception areas and meeting rooms – professional, comfortable visual environment

- Architectural feature walls and textured surfaces – emphasizing material beauty

- Spaces requiring flexible head count (single or double) and aesthetic choices (trim or trimless)

- Any space demanding high-quality wall-washing with directional flexibility (double-head recommended)


Version
0 Article

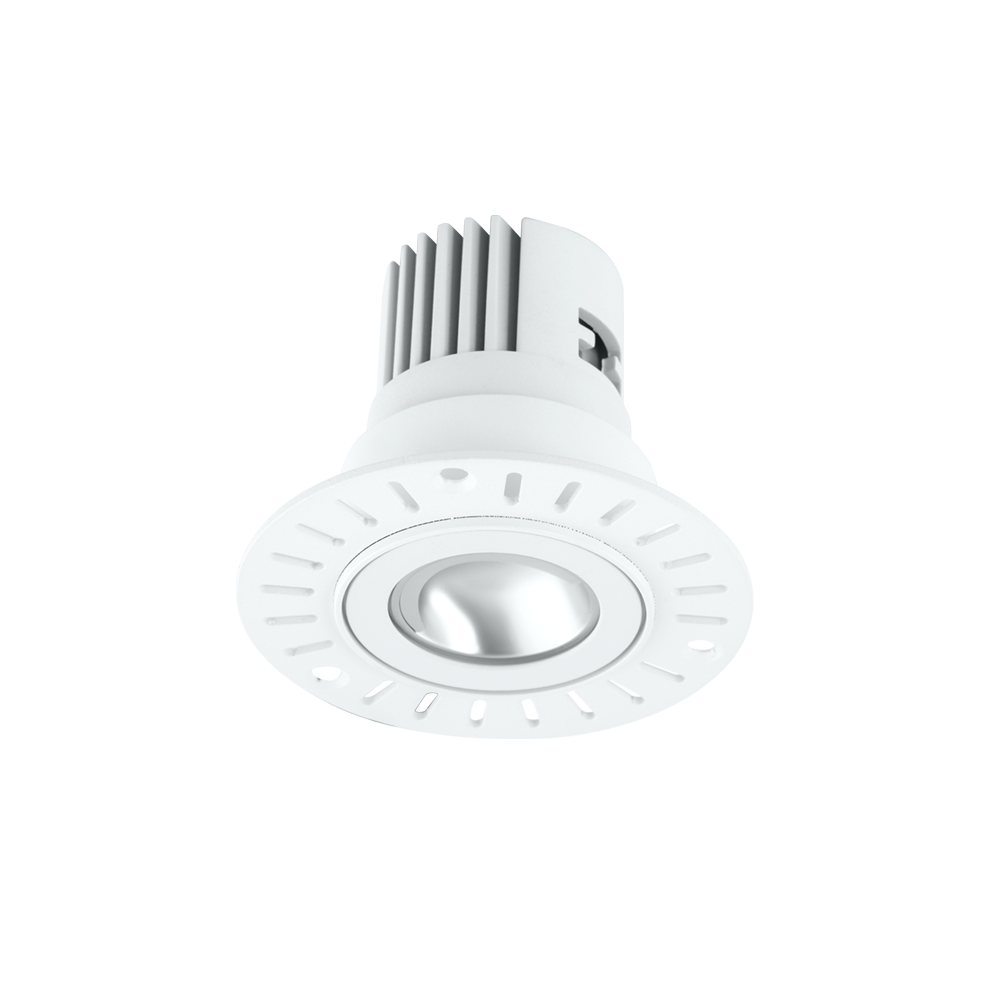

PROH_6853_1.jpg L-D757-COB2-15W

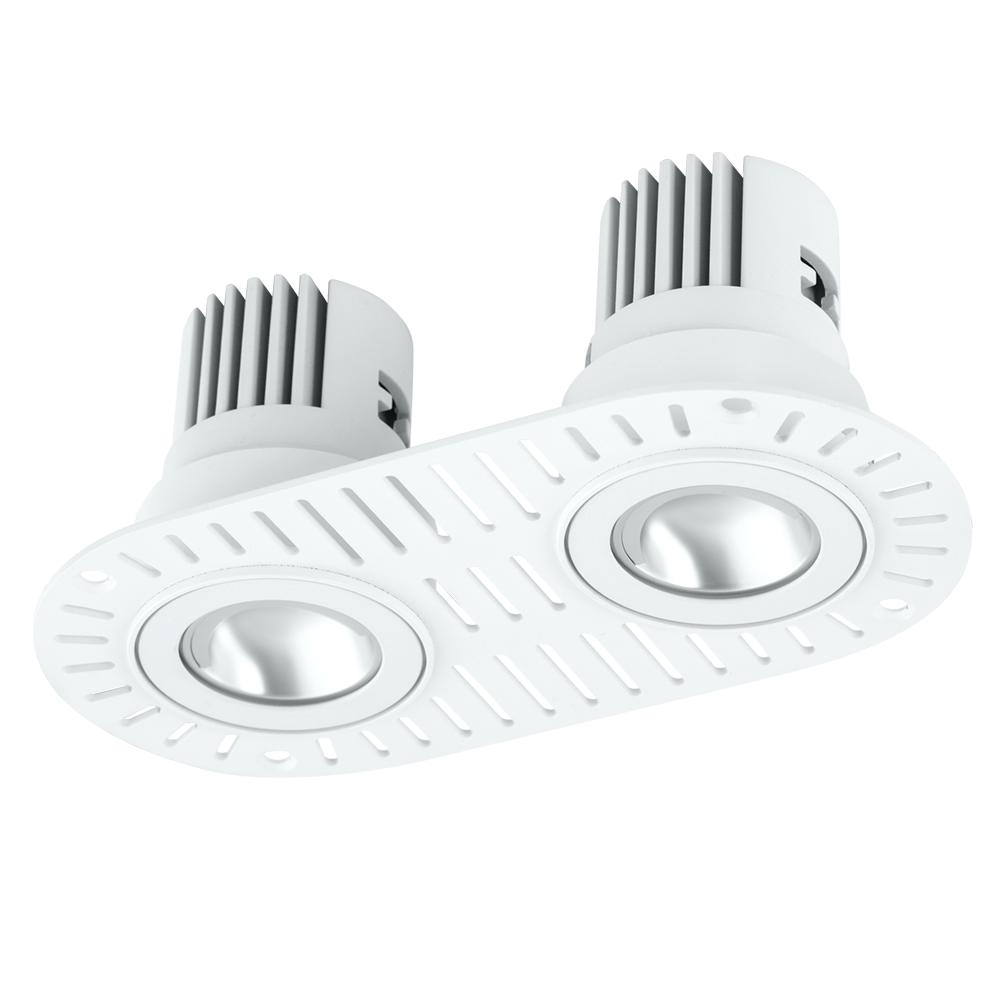

PROH_6853_1.jpg L-D757-COB2-2-30W
Nominal power
15W
BEAM ANGLE
48°x35°x(13°Asym)
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-D757-COB2-30K-ASYM L-D757-COB2-30K-ASYM 15W 3000K 1050lm 48°x35°x(13°Asym) White/Black

L-D757-COB2-30K-ASYM

FALLS Solo & Duo-trimless, with LED, system power: 15W, luminous flux of luminaire 1050lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 48°x35°x(13°Asym), black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

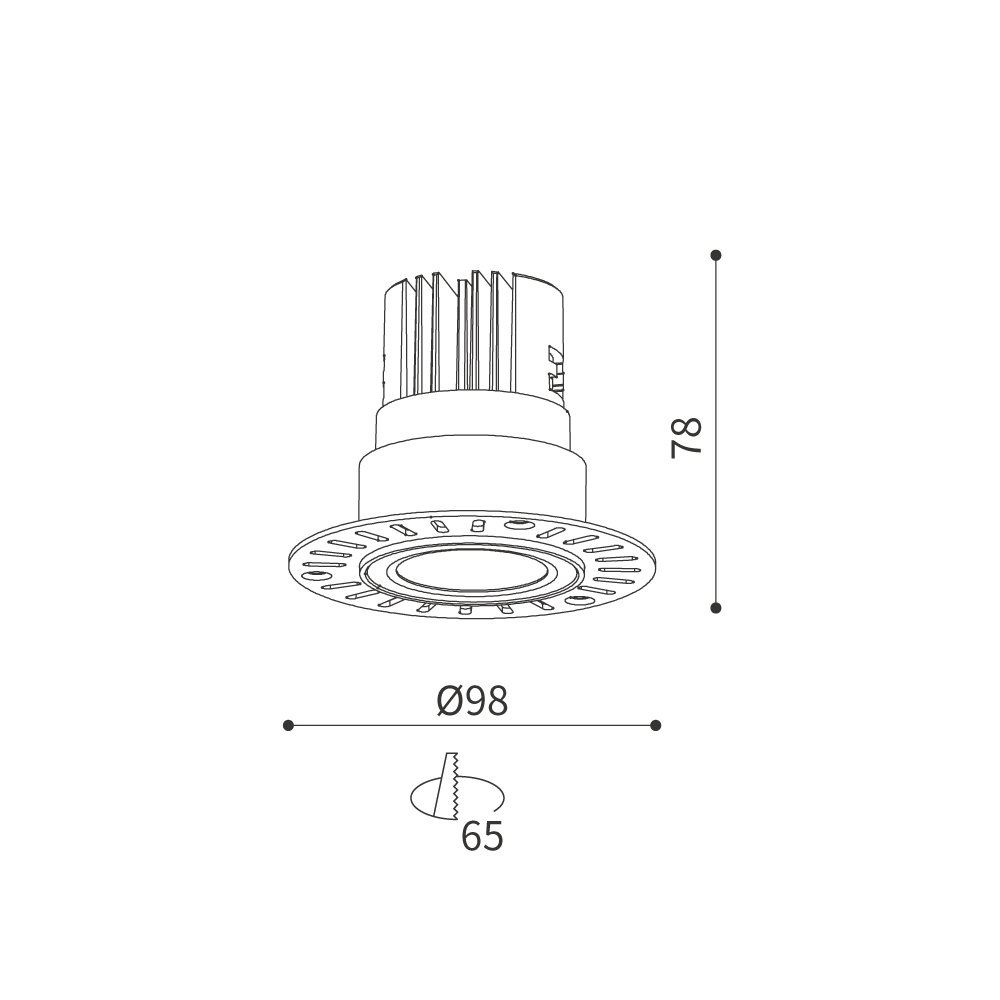

Ø=98 mm, ceiling cutout ø65 mm

Nominal power
15W
Finish
White/Black
Delivered lumens
1050lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.28kg
Color Rendering Index(CRI)
CRI≥90
Diameter
98mm
Unified Glare Rating (UGR)
UGR≤3
Height
78mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
98mm
Beam angle
48°x35°x(13°Asym)
Downloads
    None


L-D757-COB2-2-30K-ASYM L-D757-COB2-2-30K-ASYM 2x15W 3000K 2100lm 48°x35°x(13°Asym) White/Black

L-D757-COB2-2-30K-ASYM

FALLS Solo & Duo-trimless, with LED, system power: 2x15W, luminous flux of luminaire 2100lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 2x350mA, Beam angle: 48°x35°x(13°Asym), black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

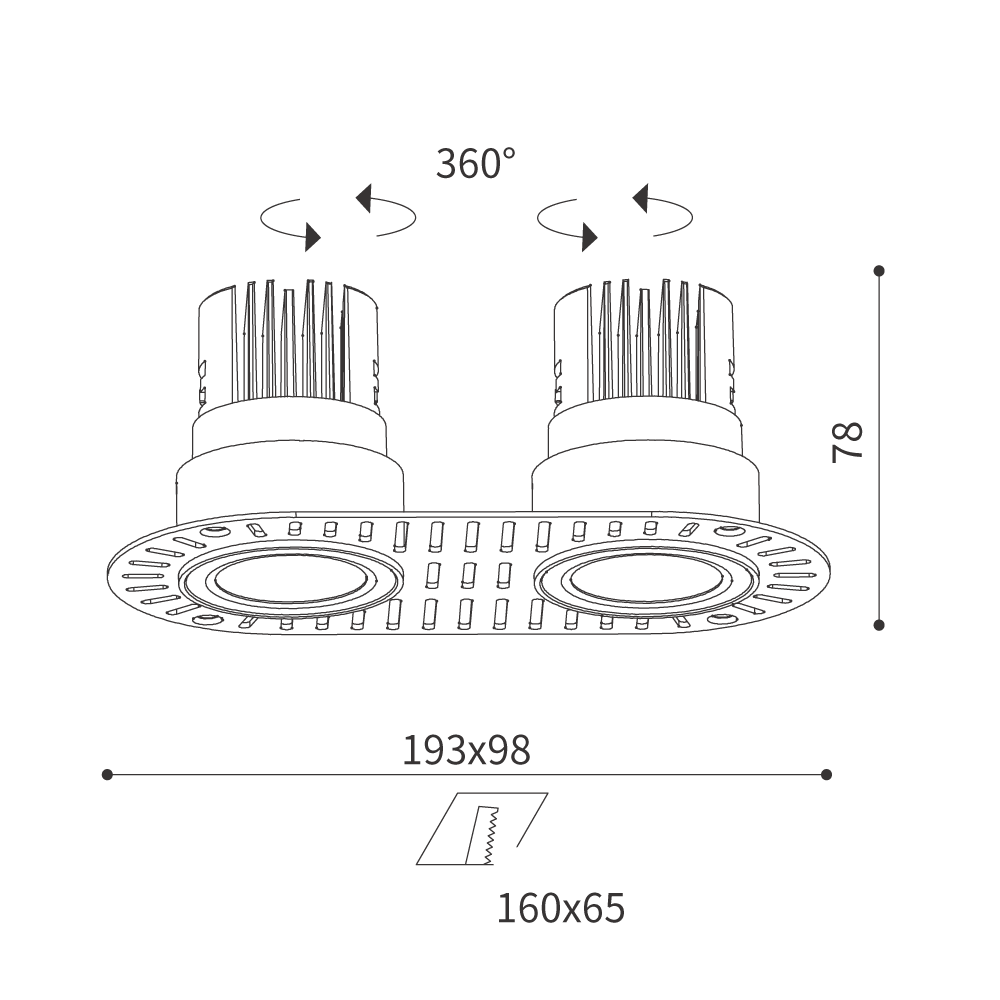

Ø=193x98 mm, ceiling cutout ø160x65 mm

Nominal power
2x15W
Finish
White/Black
Delivered lumens
2100lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.57kg
Color Rendering Index(CRI)
CRI≥90
Length
193mm
Unified Glare Rating (UGR)
UGR≤3
Height
78mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
98mm
Beam angle
48°x35°x(13°Asym)
Downloads
    None
