FALLS with Frame


Modular wall washing, frame-perfect.

FALLS with Frame is a modular wall-washing downlight series featuring an independent mounting frame with spring-loaded ball catch installation. Designed for quick and secure assembly, this series combines the exceptional optical performance of asymmetric wall-wash lenses with a tool-friendly frame system that simplifies both installation and maintenance. With UGR <19 anti-glare performance and Ra90 colour rendering, it delivers smooth, even, and visually comfortable illumination across vertical surfaces.




Features Features

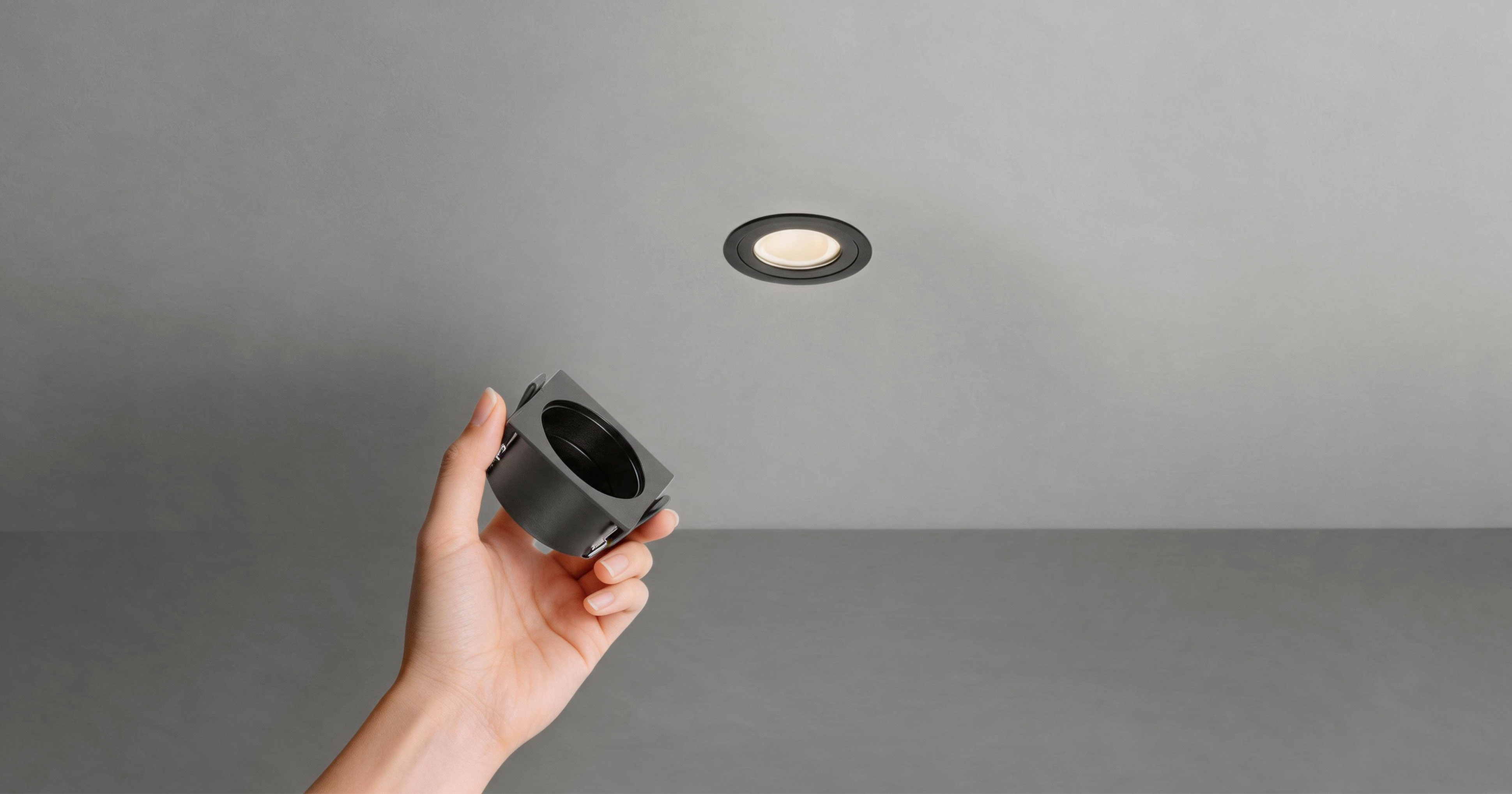

- Independent mounting frame with spring-loaded ball catch – enables quick, secure, and tool-friendly assembly; simplifies maintenance and replacement

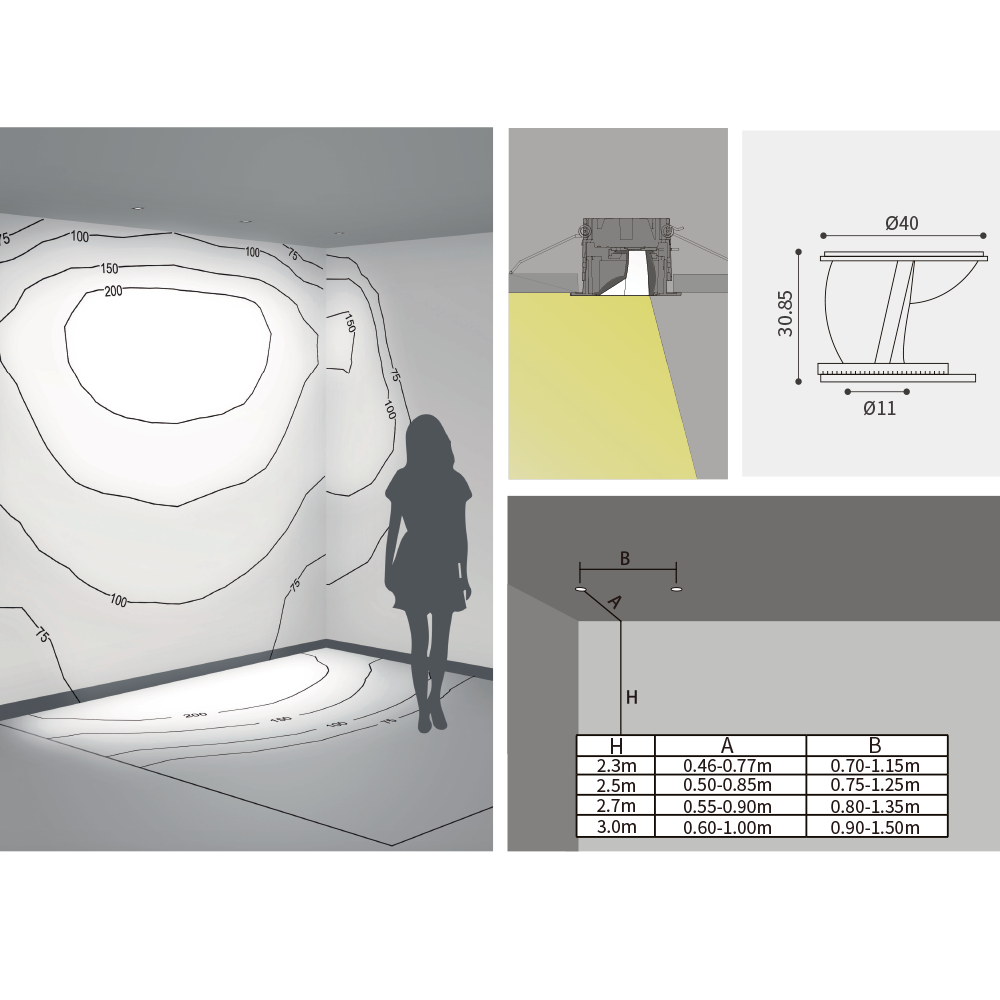

- Asymmetric wall-wash optical lens – delivers smooth, even illumination across vertical surfaces; multiple units installed in sequence create a continuous wash of light covering entire walls

- Fixed orientation with optimized wall-wash beam – ensures consistent and reliable lighting performance for vertical surface illumination

- Anti-glare performance with UGR <19 – ensures comfortable viewing even in prolonged visual tasks

- High colour rendering (Ra90) – reproduces natural colours with vivid accuracy, enhancing the true beauty of wall finishes and artwork

- Integrated one-piece aluminium die-cast housing – excellent thermal conductivity, corrosion-resistant, and built for lasting durability

- Fine surface finish – delicate, elegant, and premium, designed to withstand the test of time

Specifications Specifications

- Housing: Integrated one-piece aluminium, eco-friendly die-cast construction – excellent thermal conductivity and corrosion resistance

- Surface finish: Fine textured coating – elegant and durable

- Optical system: Asymmetric wall-wash lens with anti-glare design

- Colour rendering: Ra90

- Anti-glare: UGR<19 – comfortable for prolonged viewing

- Beam orientation: Fixed wall-wash direction – optimized for vertical surface illumination

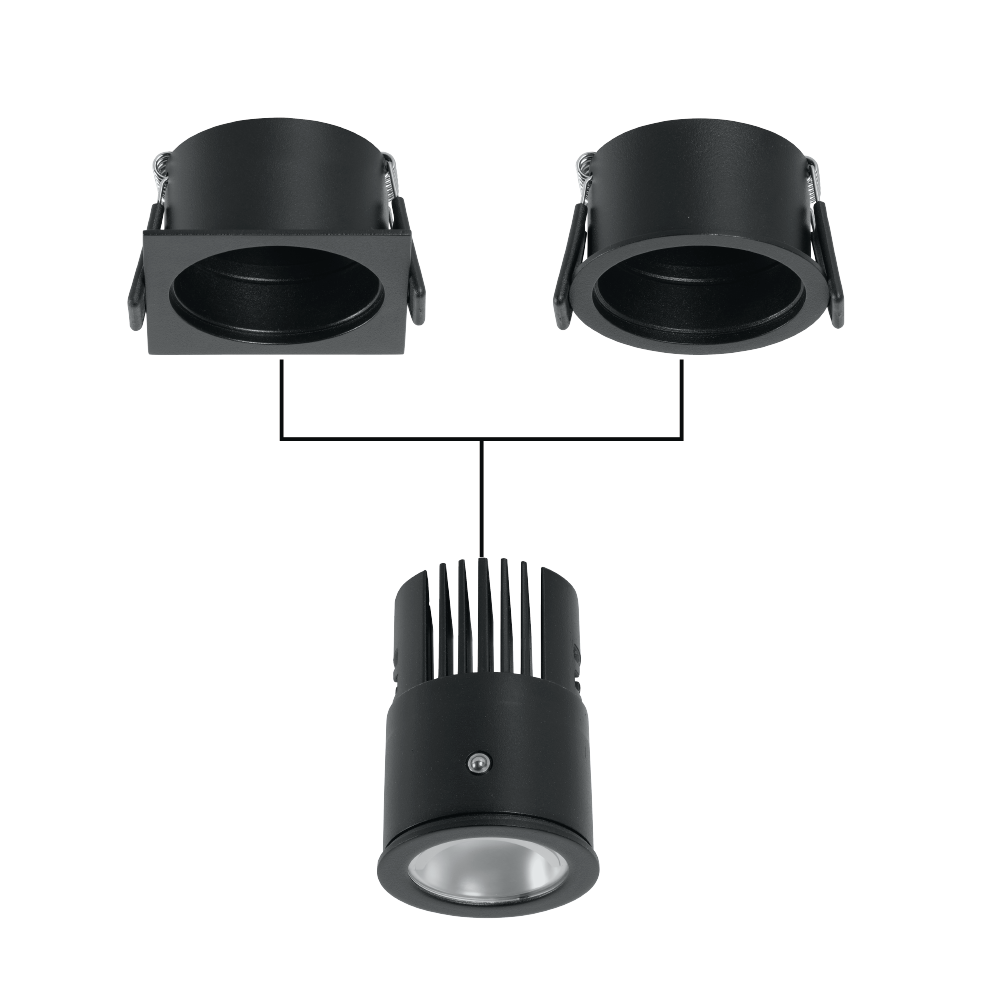

- Installation: Independent mounting frame with spring-loaded ball catch – modular assembly, tool-friendly

- Wattages: Multiple options available

Fields of application Fields of application

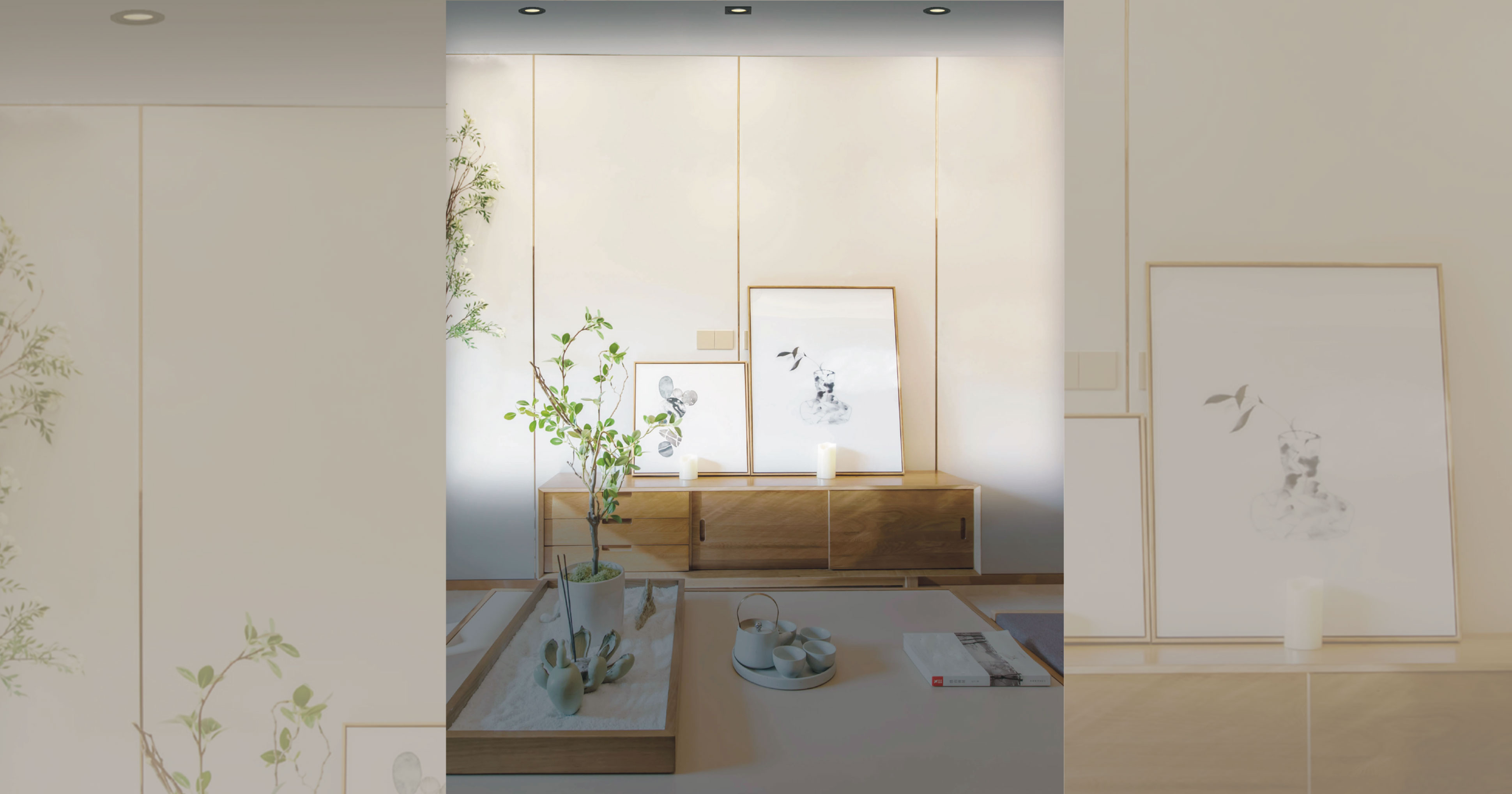

- Gallery and museum walls – highlighting artwork with even, glare-free illumination

- Retail store perimeter walls – showcasing merchandise on vertical displays

- Hotel lobbies, corridors, and feature walls – creating atmospheric wall lighting

- Residential living room accent walls – adding depth and warmth to interior spaces

- Office reception areas – professional, comfortable visual environment

- Architectural feature walls and textured surfaces – emphasizing material beauty

- Projects requiring quick modular installation and easy maintenance

- Any space demanding high-quality wall-washing with reliable, consistent performance

Version
0 Article

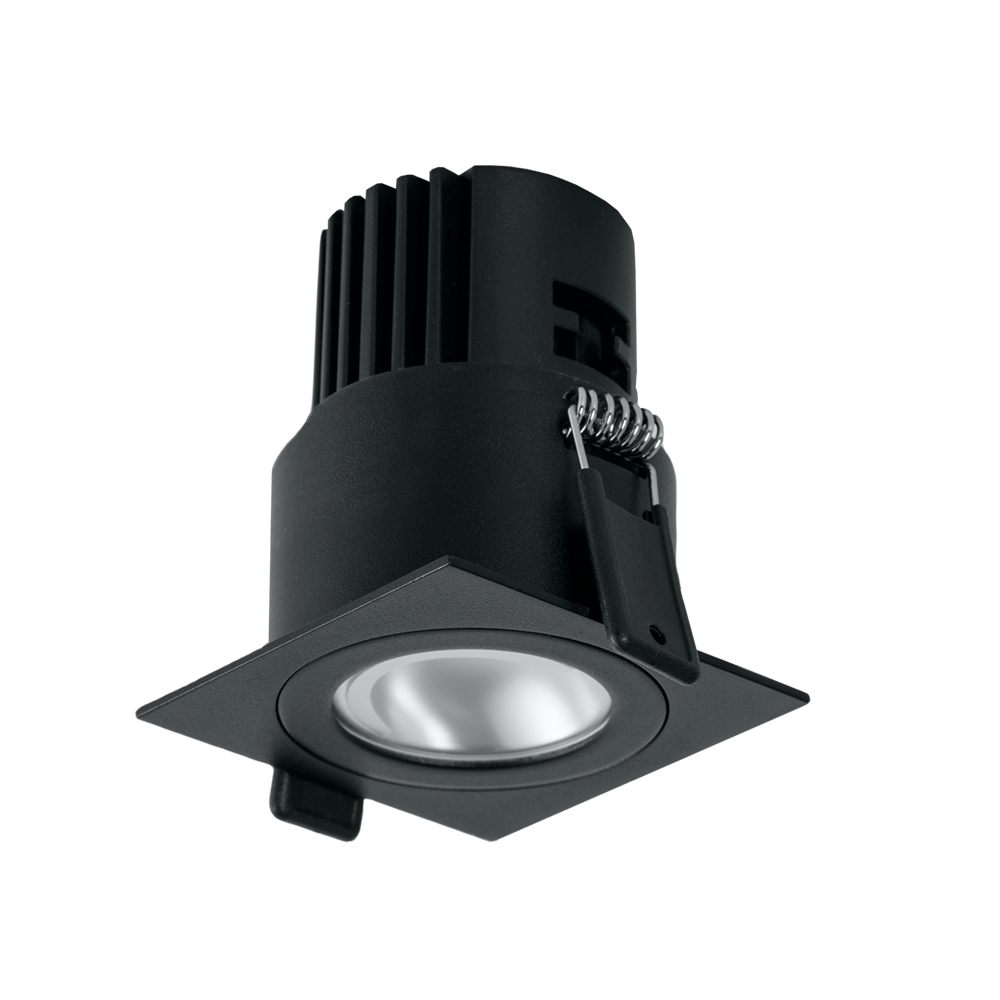

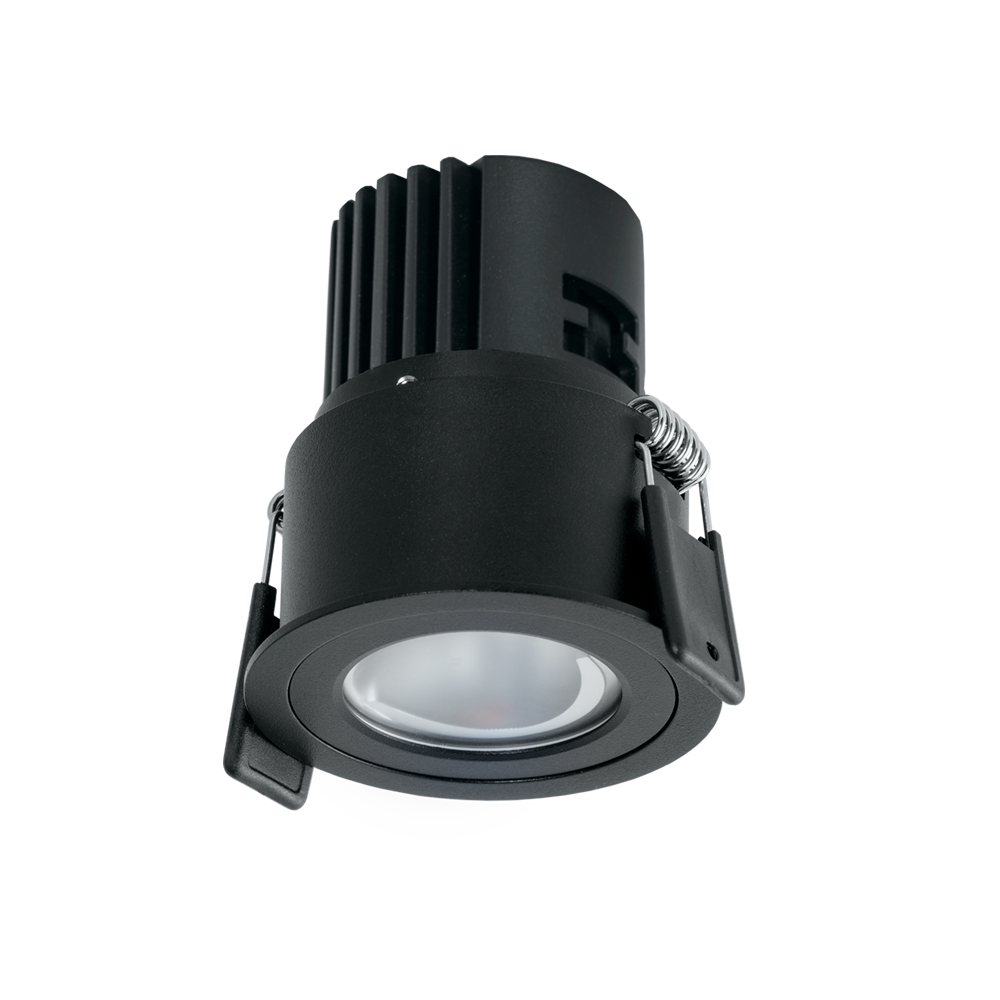

PROH_6853_1.jpg L-D793-COB2-15W
PROH_6853_1.jpg L-D793-COB2S-15W
Nominal power
15W
BEAM ANGLE
48°x35°x(13°Asym)
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-D793-COB2-30K-ASYM L-D793-COB2-30K-ASYM 15W 3000K 1050lm 48°x35°x(13°Asym) White/Black
Get in Touch Get in Touch
/static/upload/2026/07/21/202607213801.png
/static/upload/2026/07/21/202607216633.png
/static/upload/2026/07/21/202607213375.png
/static/upload/2026/07/21/202607215669.png

L-D793-COB2-30K-ASYM

EDGE-wall washer light, with LED, system power: 15W, luminous flux of luminaire 1050lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 48°x35°x(13°Asym), black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

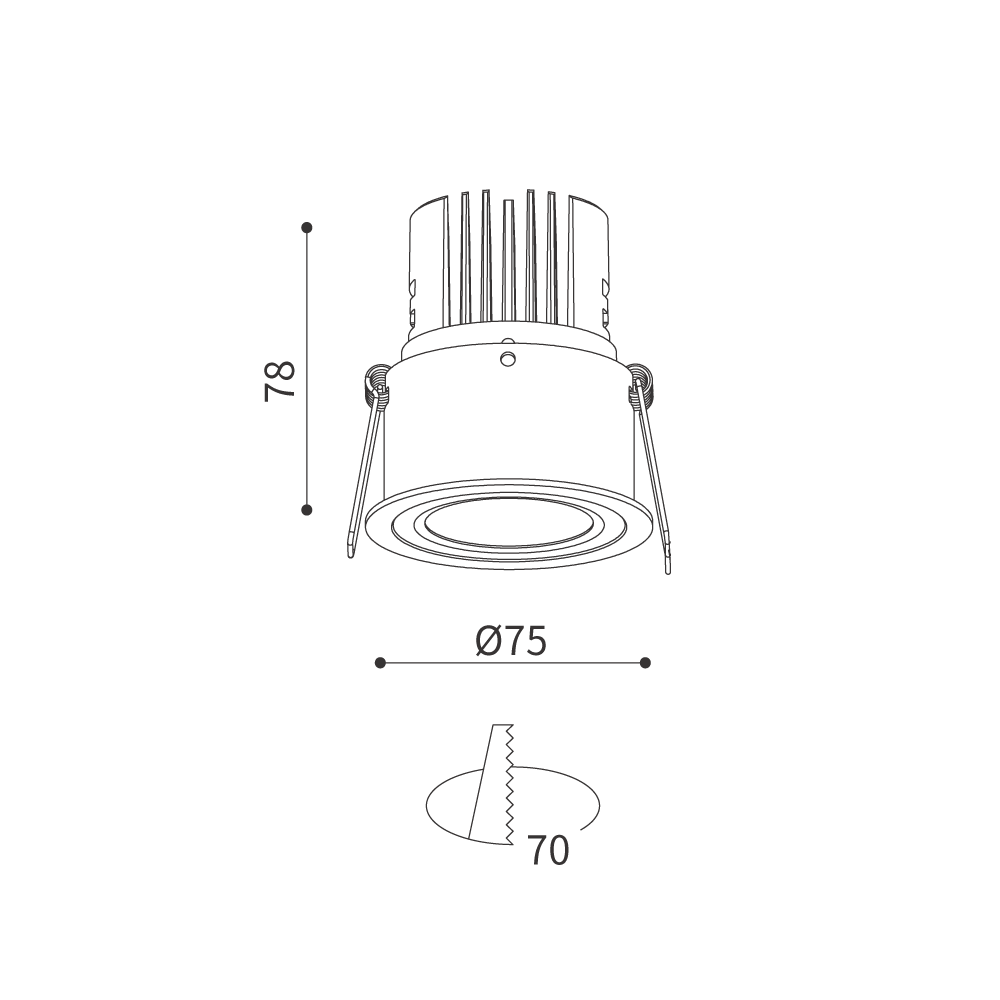

Ø=75 mm, ceiling cutout ø70 mm

Nominal power
15W
Finish
White/Black
Delivered lumens
1050lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.28kg
Color Rendering Index(CRI)
CRI≥90
Diameter
75mm
Unified Glare Rating (UGR)
UGR<10
Height
78mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
78mm
Beam angle
48°x35°x(13°Asym)
Downloads
    None


Accessories
L-D793-COB2S-30K-ASYM L-D793-COB2S-30K-ASYM 15W 3000K 1050lm 48°x35°x(13°Asym) White/Black
Get in Touch Get in Touch
/static/upload/2026/07/21/202607219244.png
/static/upload/2026/07/21/202607212120.png
/static/upload/2026/07/21/202607213375.png
/static/upload/2026/07/21/202607215669.png

L-D793-COB2S-30K-ASYM

FALLS with Frame, with LED, system power: 15W, luminous flux of luminaire 1050lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 48°x35°x(13°Asym), black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

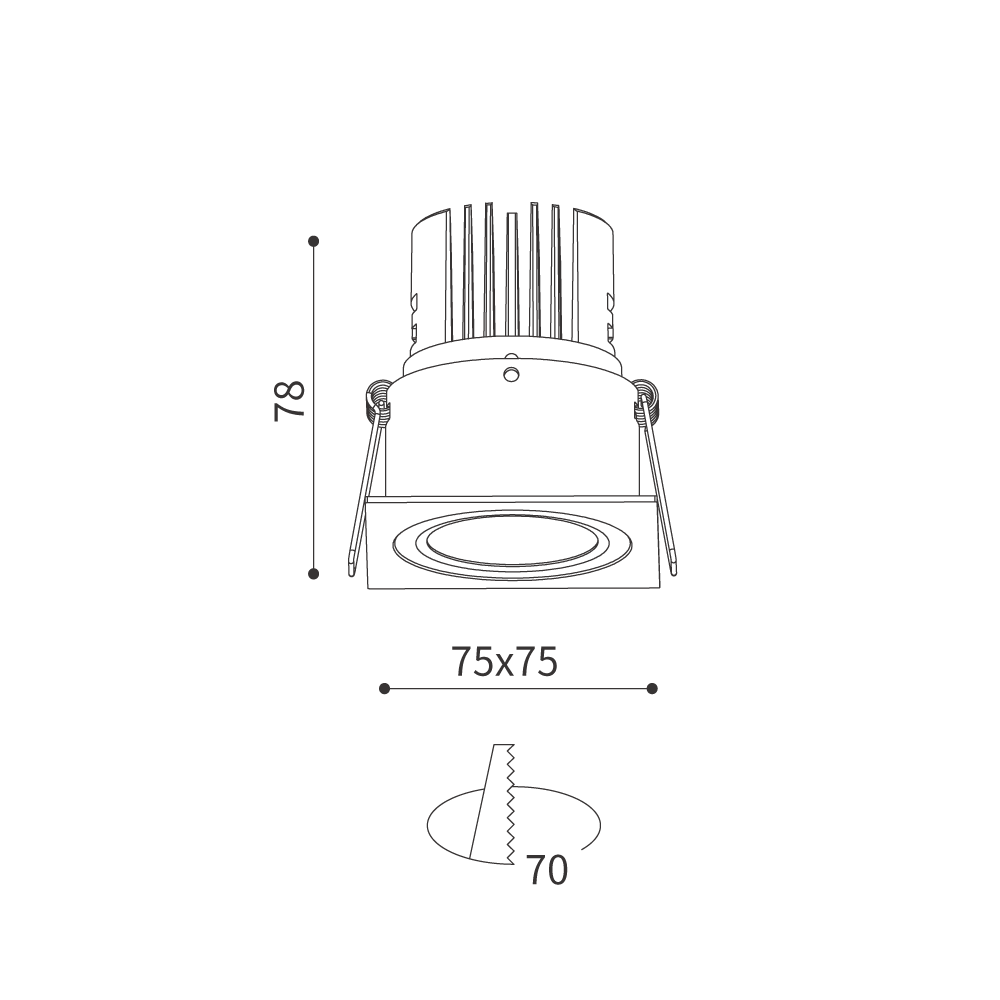

Ø=75x75 mm, ceiling cutout ø70 mm

Nominal power
15W
Finish
White/Black
Delivered lumens
1050lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.29kg
Color Rendering Index(CRI)
CRI≥90
Length
75mm
Unified Glare Rating (UGR)
UGR<10
Height
78mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
75mm
Beam angle
48°x35°x(13°Asym)
Downloads
    None


Accessories
