EDGE-TRIMLESS


Focused light, infinite flexibility.

EDGE TRIMLESS is a refined family of wall washer that blends high-end optical performance with durable construction and elegant minimalism.It is designed for even light distribution on vertical surfaces while providing an excellent wall wash on the floor.




Features Features

- Available in 3 sizes with multiple wattage options – adapts effortlessly to projects of any scale

- Choose between narrow trim or trimless versions – modular design reduces inventory costs

- High colour rendering (Ra90) for vivid, natural colour presentation

- Premium die-cast aluminium housing with a fine, durable finish – corrosion-resistant and aesthetically refined

Specifications Specifications

- Housing: High-quality aluminium, eco-friendly die-cast construction

- Finish: Fine texture, available in classic white and black

- Colour rendering: Ra90

- Sizes: 3 diameters per mounting type, with corresponding wattage variants

Fields of application Fields of application

- High-end retail stores and showrooms

- Office and professional workspaces

- Residential living areas, kitchens, and corridors

- Hotels, restaurants, and hospitality environments

- Gallery and museum lighting (trimless version recommended)

- Any interior space requiring flexible, glare-free, and high-quality illumination

Version
0 Article

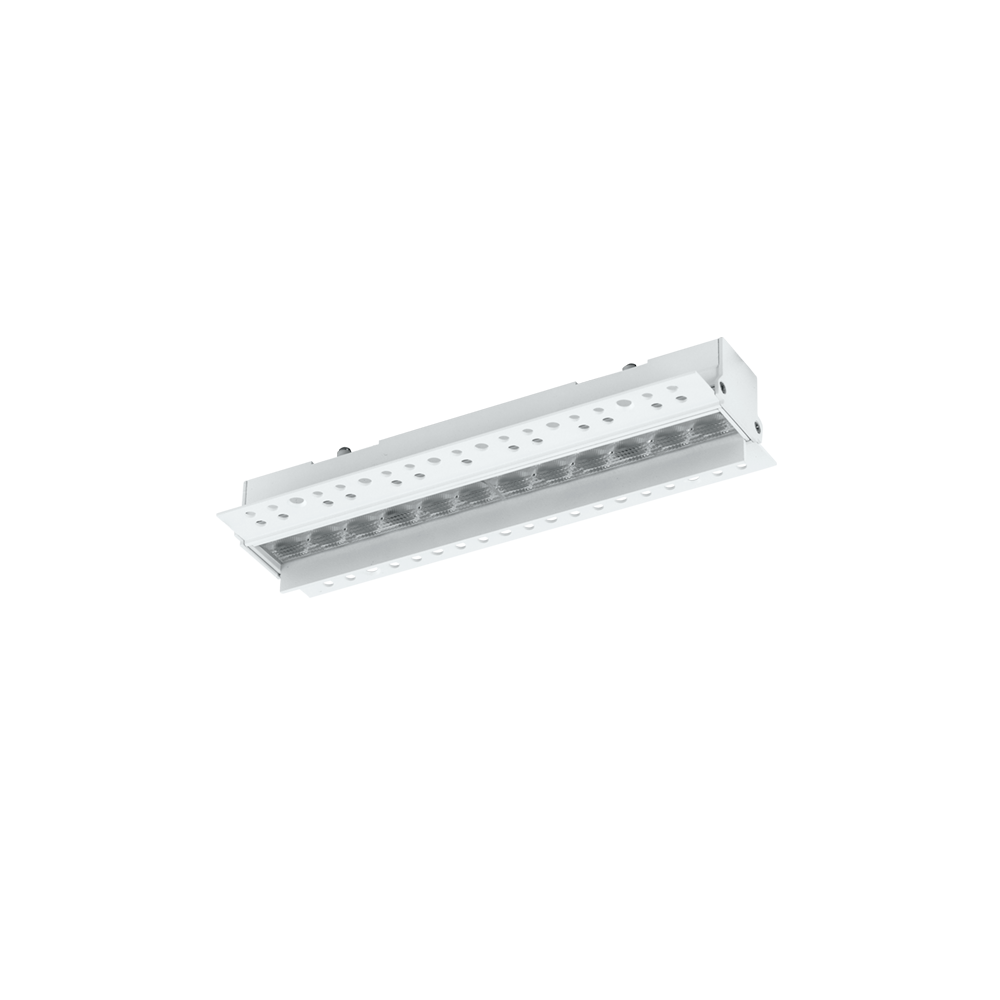

PROH_6853_1.jpg L-D652-SMD12-12W

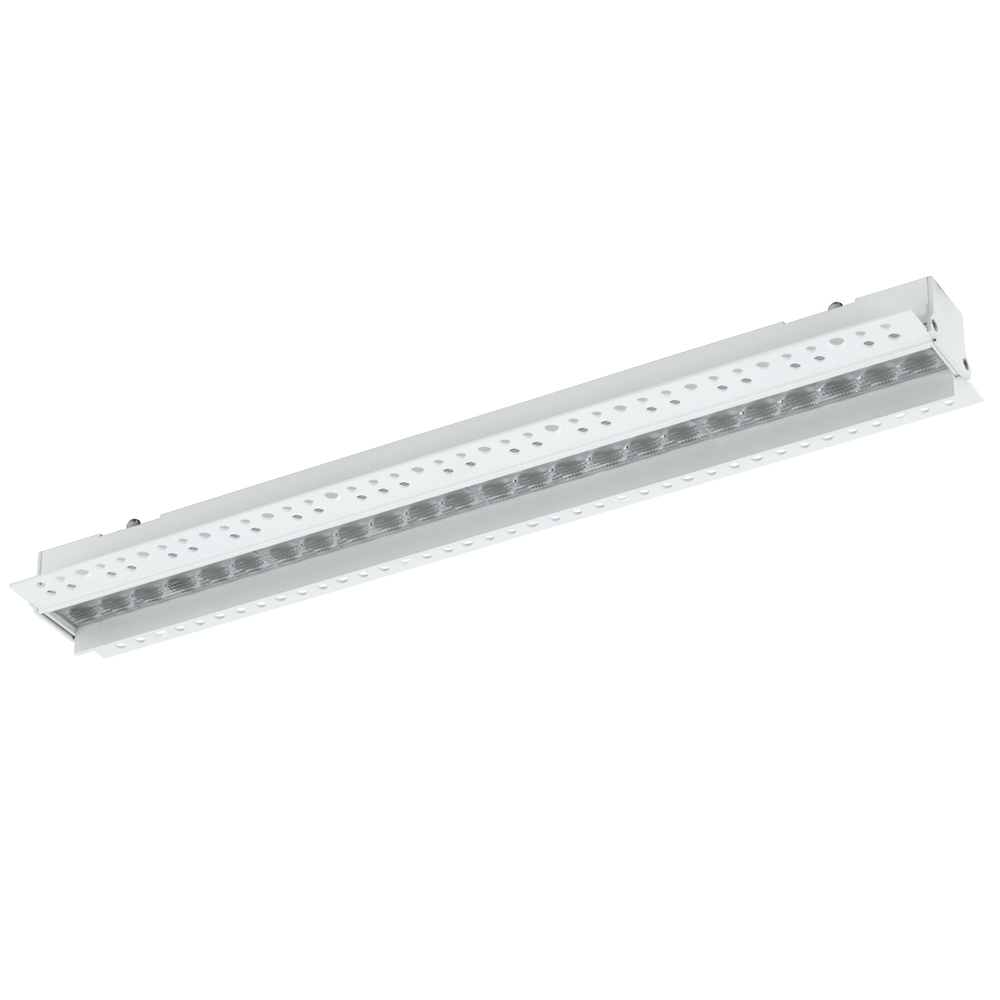

PROH_6853_1.jpg L-D652-SMD24-24W
Nominal power
12W
BEAM ANGLE
28°x36°x(10°Asym)
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-D652-SMD12-30K-ASYM L-D652-SMD12-30K-ASYM 12W 3000K 792lm 28°x36°x(10°Asym) White/Black
Get in Touch Get in Touch
/static/upload/2026/07/21/202607219908.png
/static/upload/2026/07/21/202607218243.png
/static/upload/2026/07/21/202607219570.png

L-D652-SMD12-30K-ASYM

Edge Trimless-wall washer light, with LED, system power: 12W, luminous flux of luminaire792lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 300mA, Beam angle: 28°x36°x(10°Asym), black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

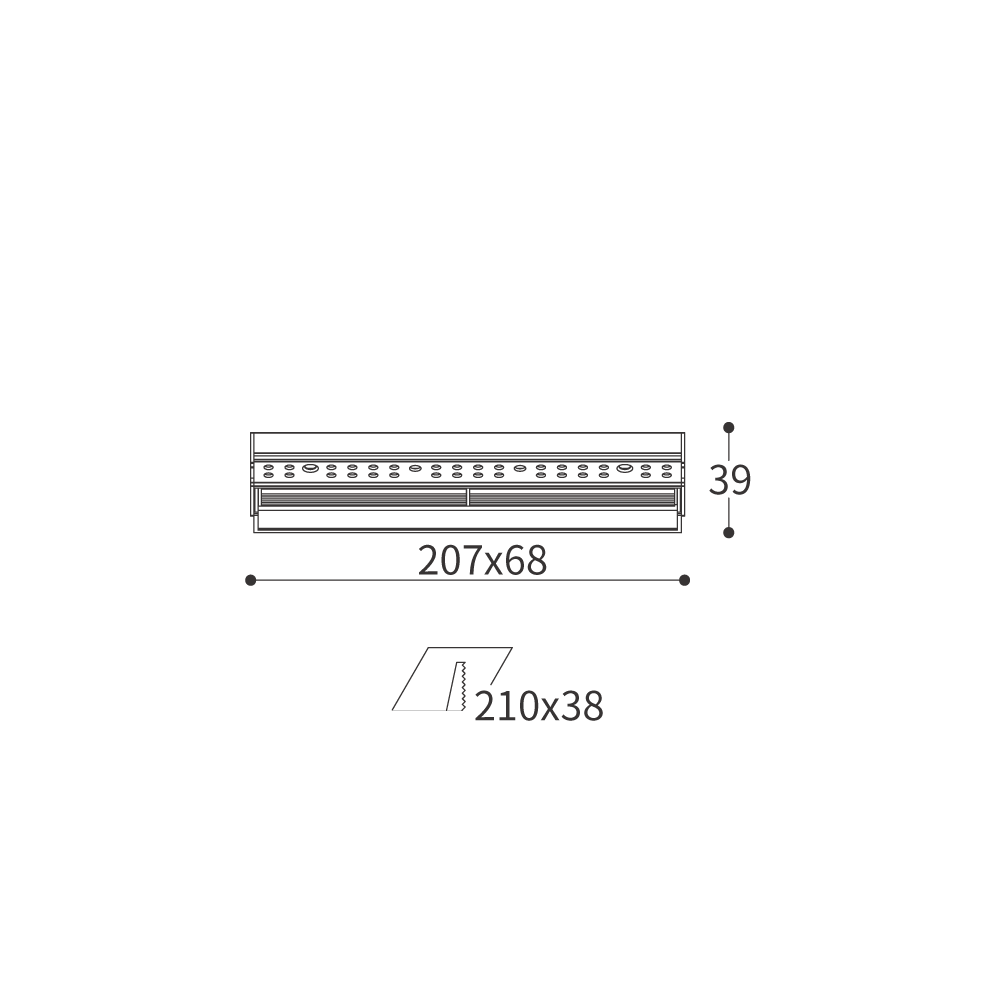

Ø=207x68 mm, ceiling cutout ø210x38 mm

Nominal power
12W
Finish
White/Black
Delivered lumens
792lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.35kg
Color Rendering Index(CRI)
CRI≥90
Length
207mm
Unified Glare Rating (UGR)
UGR<19
Height
39mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
68mm
Beam angle
28°x36°x(10°Asym)
Downloads
    None


Accessories
L-D652-SMD24-30K-ASYM L-D652-SMD24-30K-ASYM 24W 3000K 1560lm 28°x36°x(10°Asym) White/Black
Get in Touch Get in Touch
/static/upload/2026/07/21/202607215086.png
/static/upload/2026/07/21/202607217793.png
/static/upload/2026/07/20/202607202537.png

L-D652-SMD24-30K-ASYM

Edge Trimless-wall washer light, with LED, system power: 24W, luminous flux of luminaire 1560lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 600mA, Beam angle: 28°x36°x(10°Asym), black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

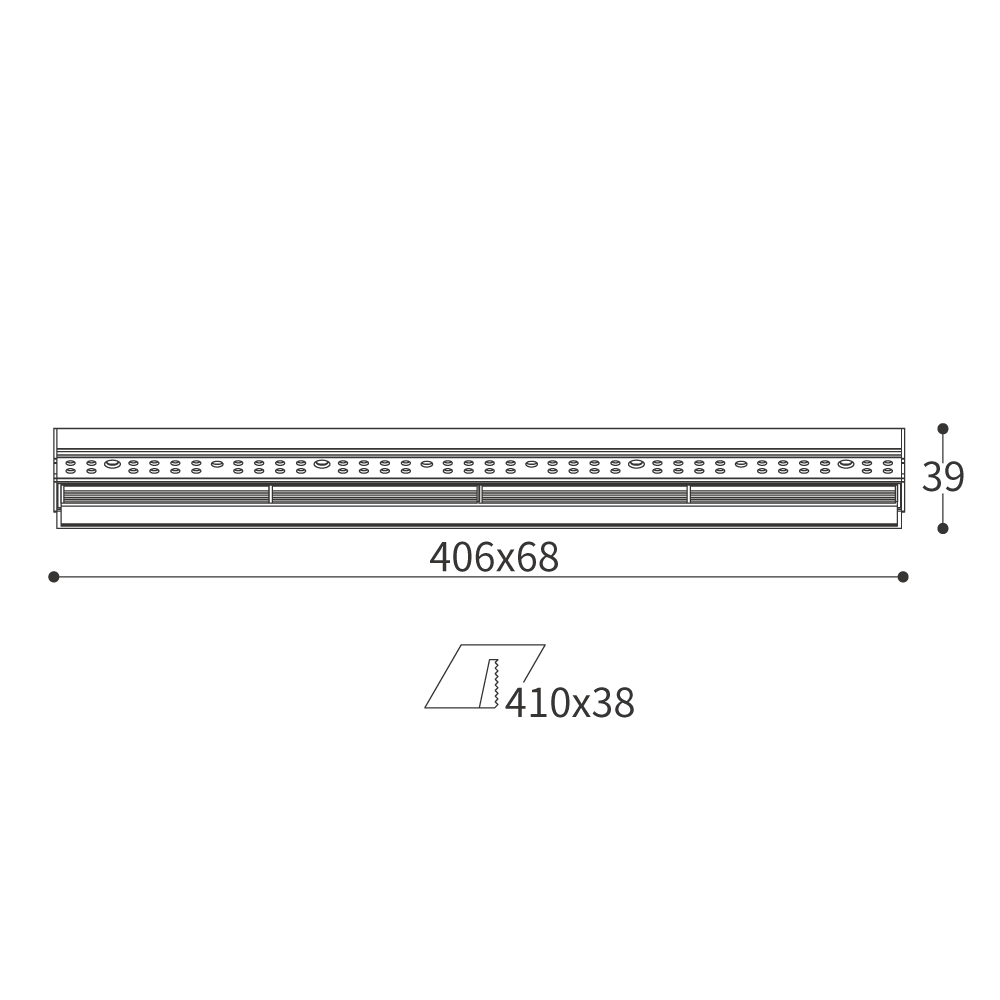

Ø=406x68 mm, ceiling cutout ø410x38 mm

Nominal power
24W
Finish
White/Black
Delivered lumens
1560lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.56kg
Color Rendering Index(CRI)
CRI≥90
Length
406mm
Unified Glare Rating (UGR)
UGR<19
Height
39mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
68mm
Beam angle
28°x36°x(10°Asym)
Downloads
    None


Accessories
