DEEP-WIDE


 DEEP WIDE-smd downlight High IP&Complete Wattage Range make it cover multiple applications,including from residential bedrooms to hotel halls or shopping malls,from indoor to eaves,etc.



Features Features

-Luxury boutiques & gallery accent lighting

-Hotel corridor mood-setting

-Office task lighting with advanced anti-glare

-Residential ceiling light arrays


Specifications Specifications

-Black and white versions available

-Five sizes available

-Aluminium-Powder coated

-ON/OFF, TUNABLE, and DALI control system

-Light colours 3,000 K,4,000 K or 5.000 K

-Downlight with pleasantly homogeneous luminance levels

Fields of application Fields of application

Retail & Hospitality

retail spaces, presentation of merchandise, restaurants, hotels,

shop windows,exhibition spaces

Office & Education

offices, conference rooms, art & culture establishments

Home & Living

Version
0 Article

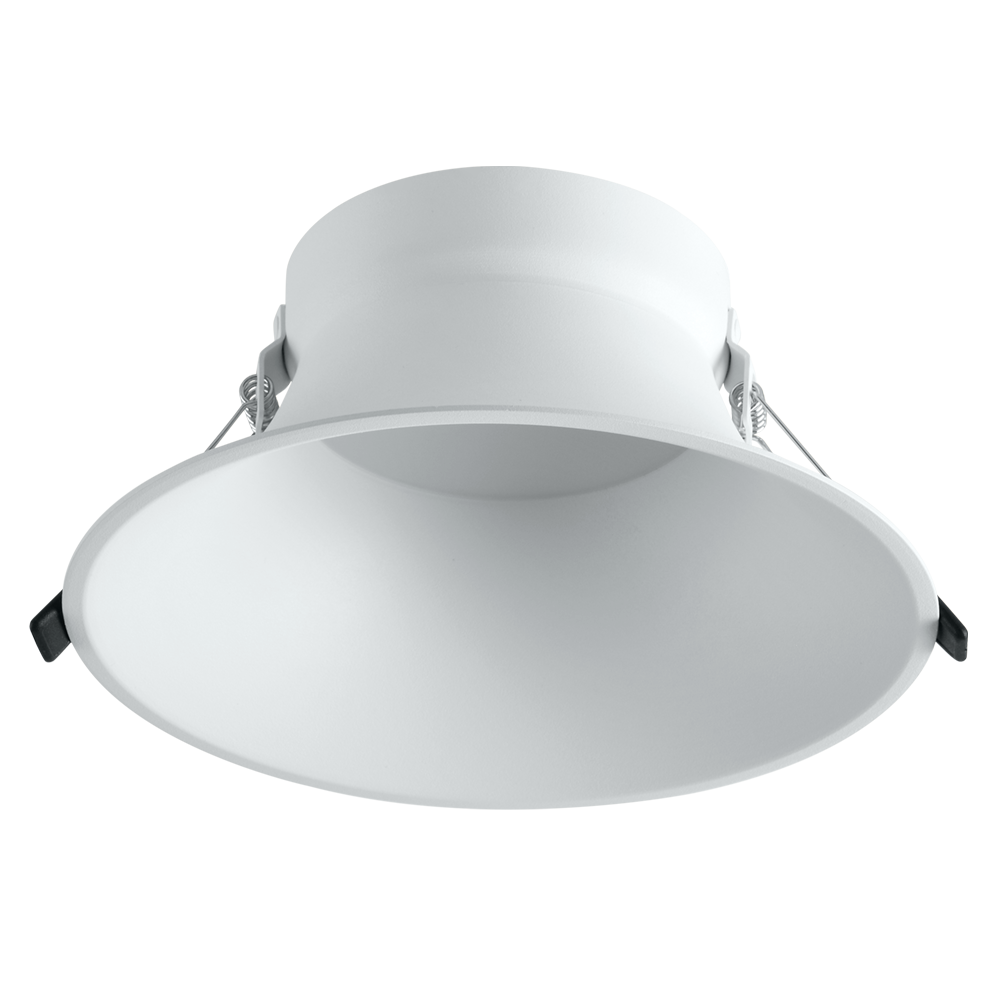

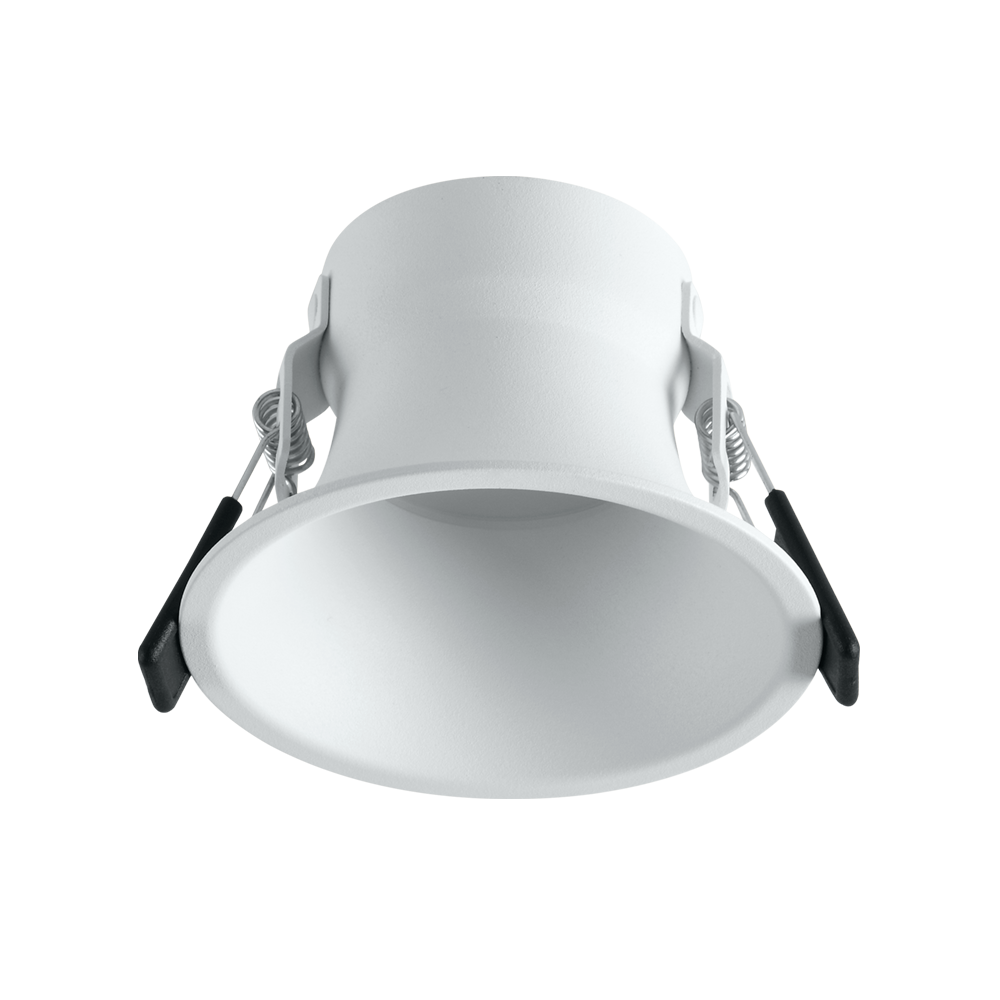

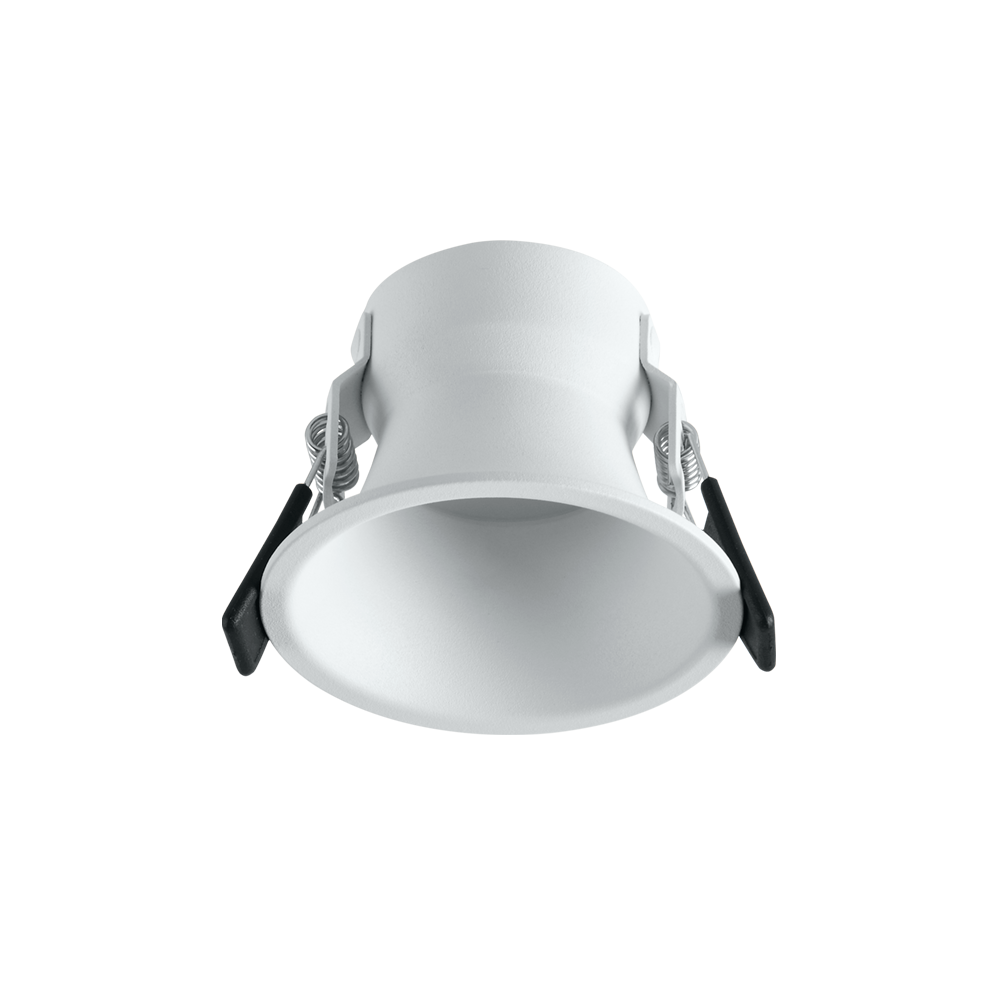

PROH_6853_1.jpg L-D535-SMD3-8W
PROH_6853_1.jpg L-D535-SMD3.5-10W
PROH_6853_1.jpg L-D535-SMD4-12W
PROH_6853_1.jpg L-D535-SMD6-20W
PROH_6853_1.jpg L-D535-SMD8-24W
Nominal power
8W
BEAM ANGLE
80°
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-D535-SMD3-30K-80 L-D535-SMD3-30K-80 8W 3000K 464lm 80° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/16/202607169393.png

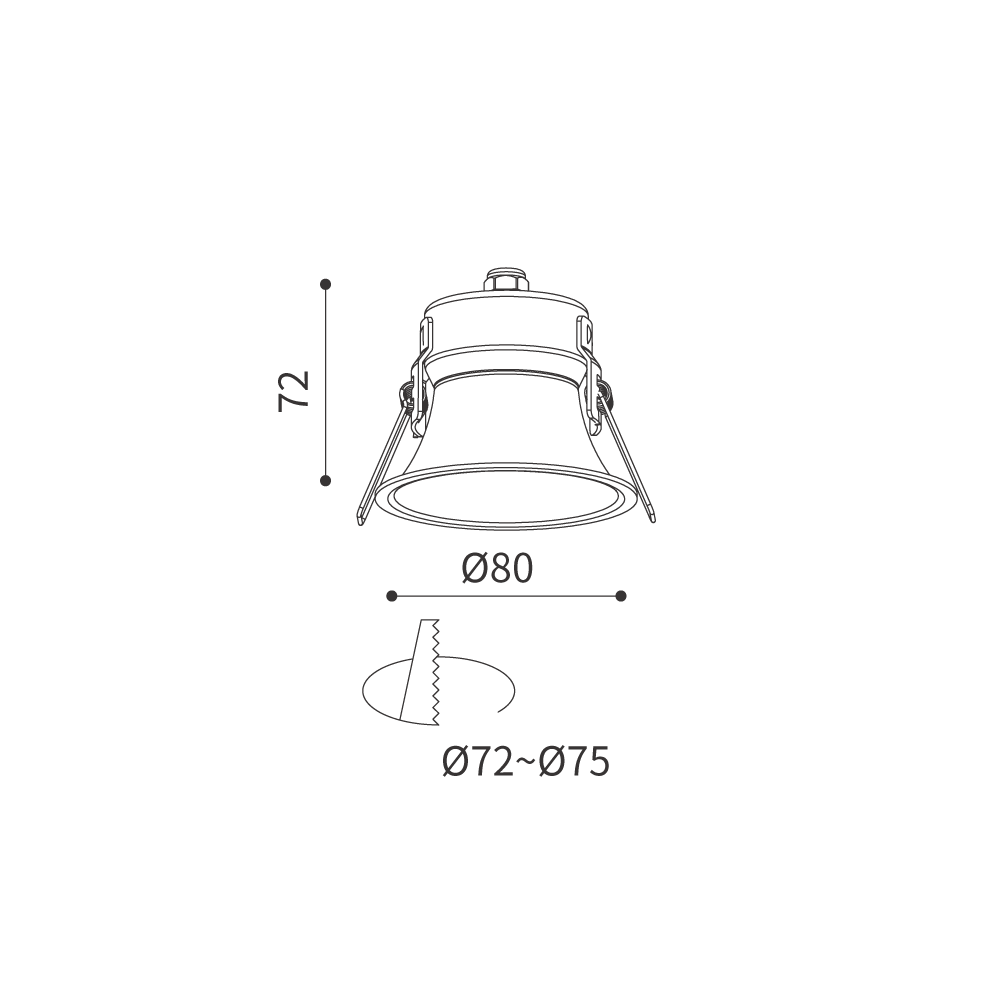

/static/upload/2026/07/16/202607167334.png

L-D535-SMD3-30K-80

SMD recessed downlight Deep-wide, with LED, system power: 8W, luminous flux of luminaire464lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 200mA, Beam angle: 80°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54.

Ø=80 mm, ceiling cutout ø72-75 mm


Nominal power
8W
Finish
White/Black
Delivered lumens
464lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Weight
0.13kg
Color Rendering Index(CRI)
CRI≥90
Diameter
80mm
Unified Glare Rating (UGR)
UGR<19
Height
72mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
80mm
Beam angle
80°
Downloads
    None


Accessories
L-D535-SMD3.5-30K-80 L-D535-SMD3.5-30K-80 10W 3000K 580lm 80° White/Black
Get in Touch Get in Touch

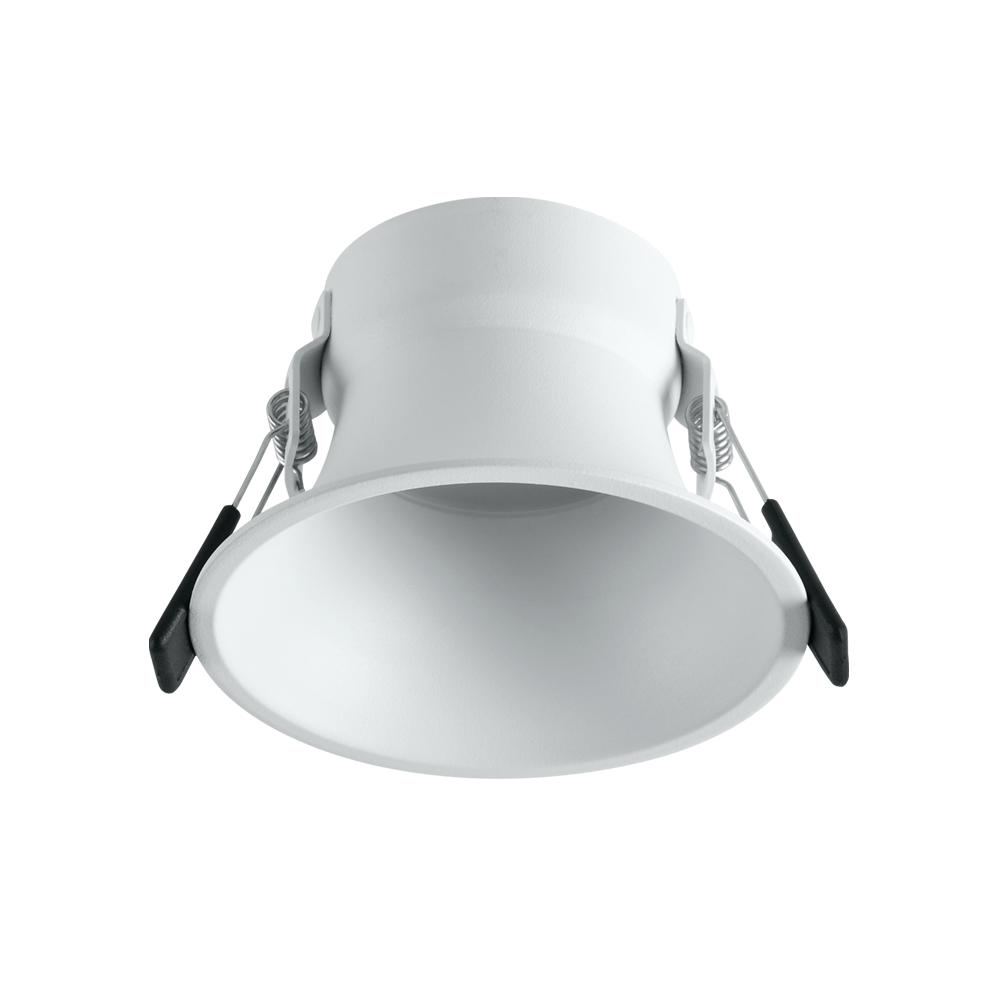

/static/upload/2026/07/16/202607162559.png

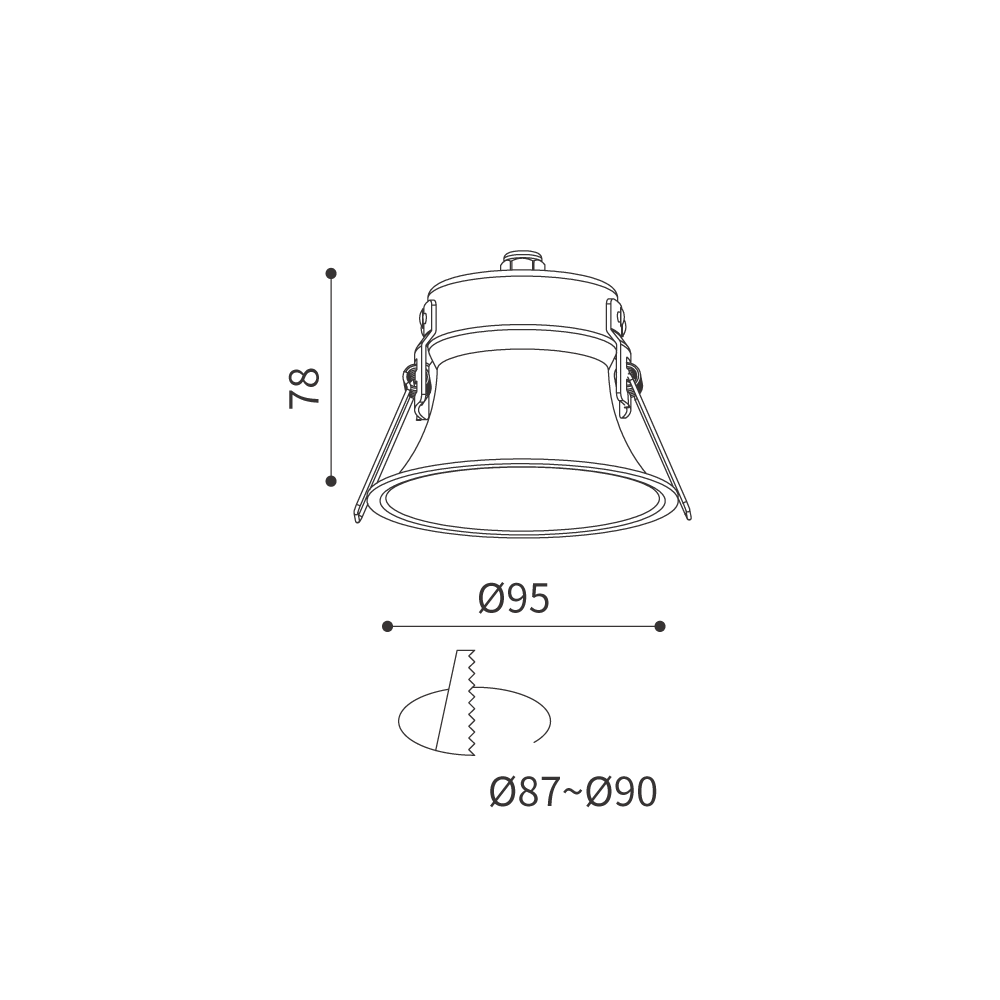

/static/upload/2026/07/16/202607169074.png

L-D535-SMD3.5-30K-80

SMD recessed downlight Deep-wide, with LED, system power: 10W, luminous flux of luminaire580lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 80°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54.

Ø=95 mm, ceiling cutout ø87-90 mm


Nominal power
10W
Finish
White/Black
Delivered lumens
580lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Weight
0.14kg
Color Rendering Index(CRI)
CRI≥90
Diameter
95mm
Unified Glare Rating (UGR)
UGR<19
Height
78mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
95mm
Beam angle
80°
Downloads
    None


Accessories
L-D535-SMD4-30K-80 L-D535-SMD4-30K-80 12W 3000K 780lm 80° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/16/202607161958.png
/static/upload/2026/07/16/202607165126.png

L-D535-SMD4-30K-80

SMD recessed downlight Deep-wide, with LED, system power: 12W, luminous flux of luminaire 780lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 300mA, Beam angle: 80°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54.

Ø=155 mm, ceiling cutout ø147-150 mm


Nominal power
12W
Finish
White/Black
Delivered lumens
780lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Weight
0.15kg
Color Rendering Index(CRI)
CRI≥90
Diameter
105mm
Unified Glare Rating (UGR)
UGR<19
Height
82mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
105mm
Beam angle
80°
Downloads
    None


Accessories
L-D535-SMD6-30K-80 L-D535-SMD6-30K-80 20W 3000K 1560lm 80° White/Black
Get in Touch Get in Touch

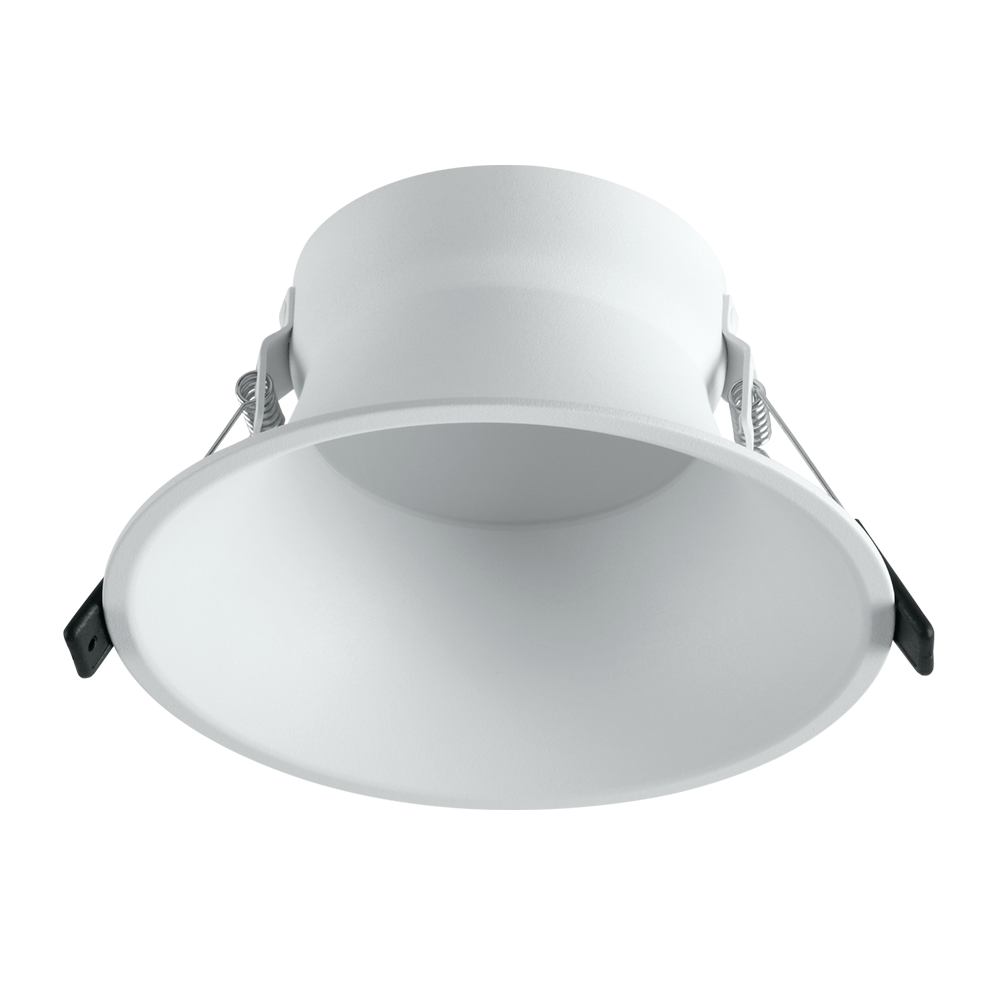

/static/upload/2026/07/16/202607163488.png
/static/upload/2026/07/16/202607167978.png

L-D535-SMD6-30K-80

SMD recessed downlight Deep-wide, with LED, system power: 20W, luminous flux of luminaire 1560lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 500mA, Beam angle: 80°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54.

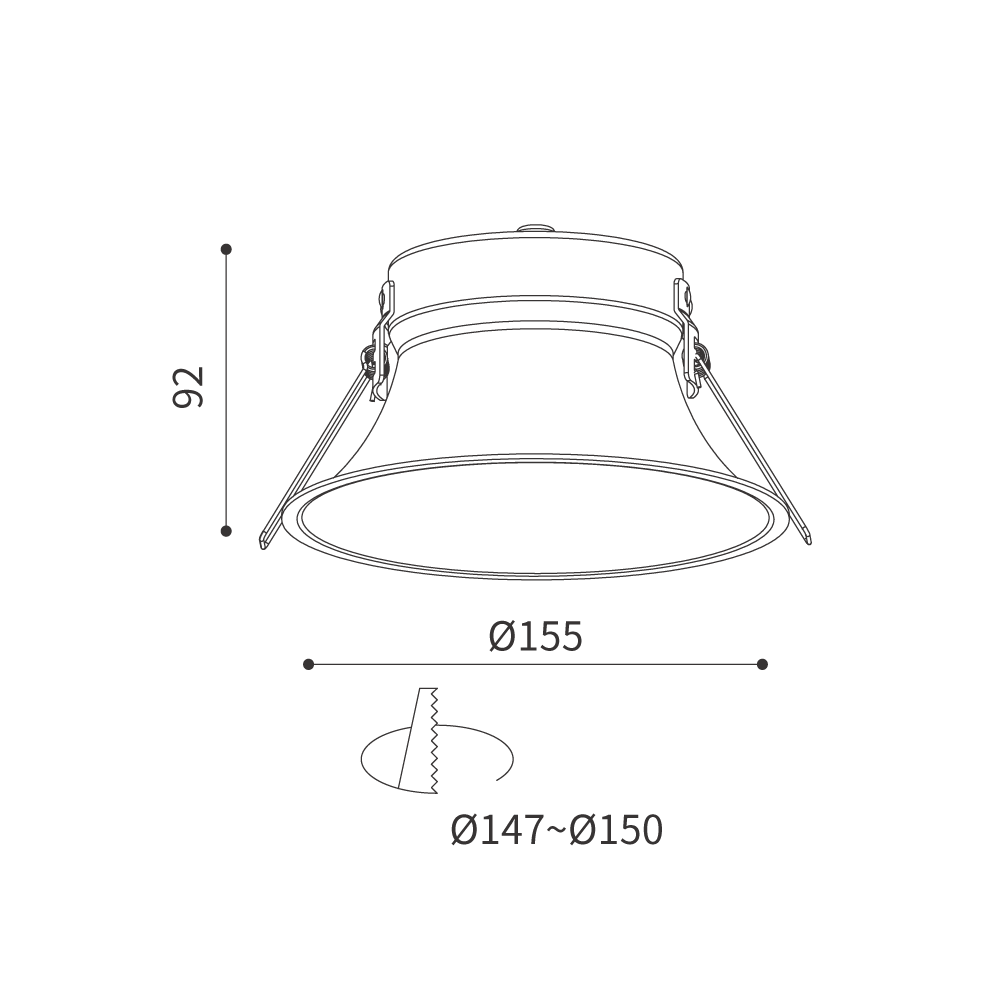

Ø=155 mm, ceiling cutout ø147-150 mm


Nominal power
20W
Finish
White/Black
Delivered lumens
1560lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Weight
0.24kg
Color Rendering Index(CRI)
CRI≥90
Diameter
155mm
Unified Glare Rating (UGR)
UGR<19
Height
92mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
155mm
Beam angle
80°
Downloads
    None


Accessories
L-D535-SMD8-30K-80 L-D535-SMD8-30K-80 24W 3000K 1968lm 80° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/16/202607165400.png
/static/upload/2026/07/16/202607161136.png

L-D535-SMD8-30K-80

SMD recessed downlight Deep-wide, with LED, system power: 24W, luminous flux of luminaire 1968lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 600mA, Beam angle: 80°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54.

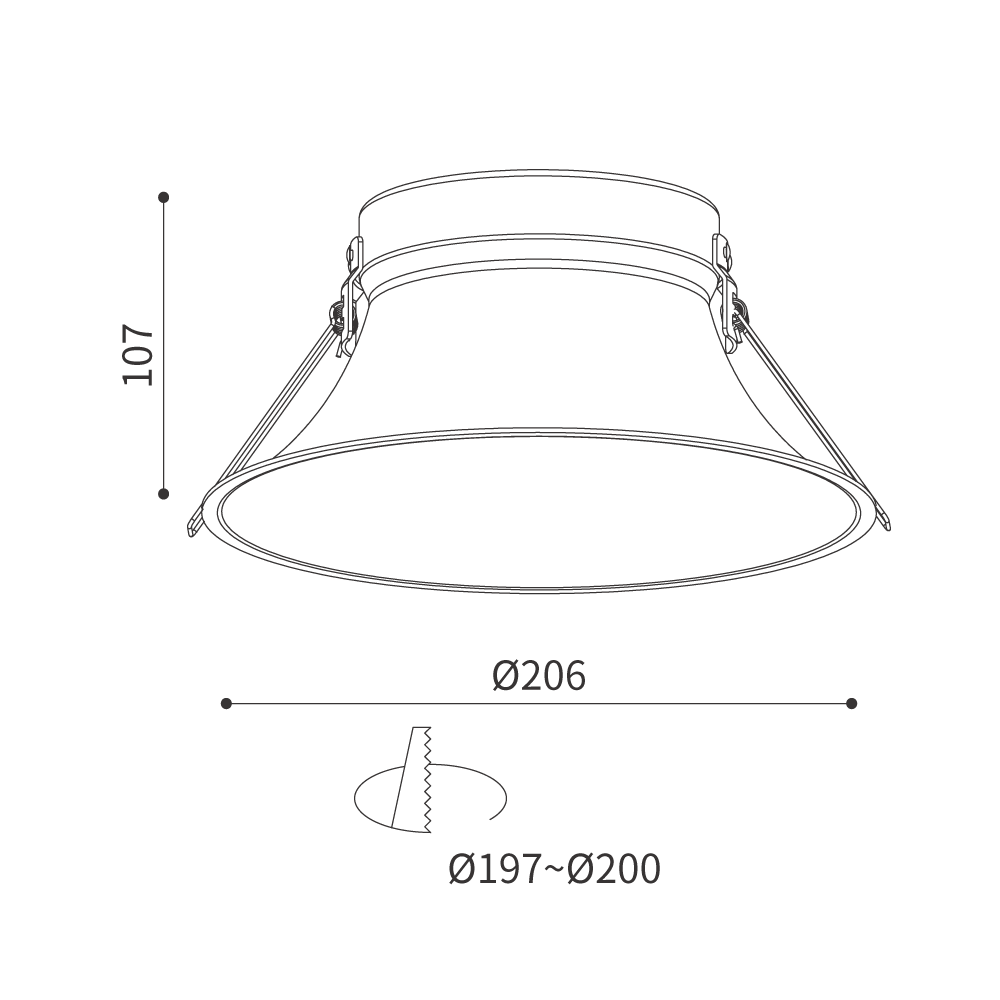

Ø=206 mm, ceiling cutout ø197-200 mm


Nominal power
24W
Finish
White/Black
Delivered lumens
1968lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Weight
0.35kg
Color Rendering Index(CRI)
CRI≥90
Diameter
206mm
Unified Glare Rating (UGR)
UGR<19
Height
107mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
206mm
Beam angle
80°
Downloads
    None


Accessories
