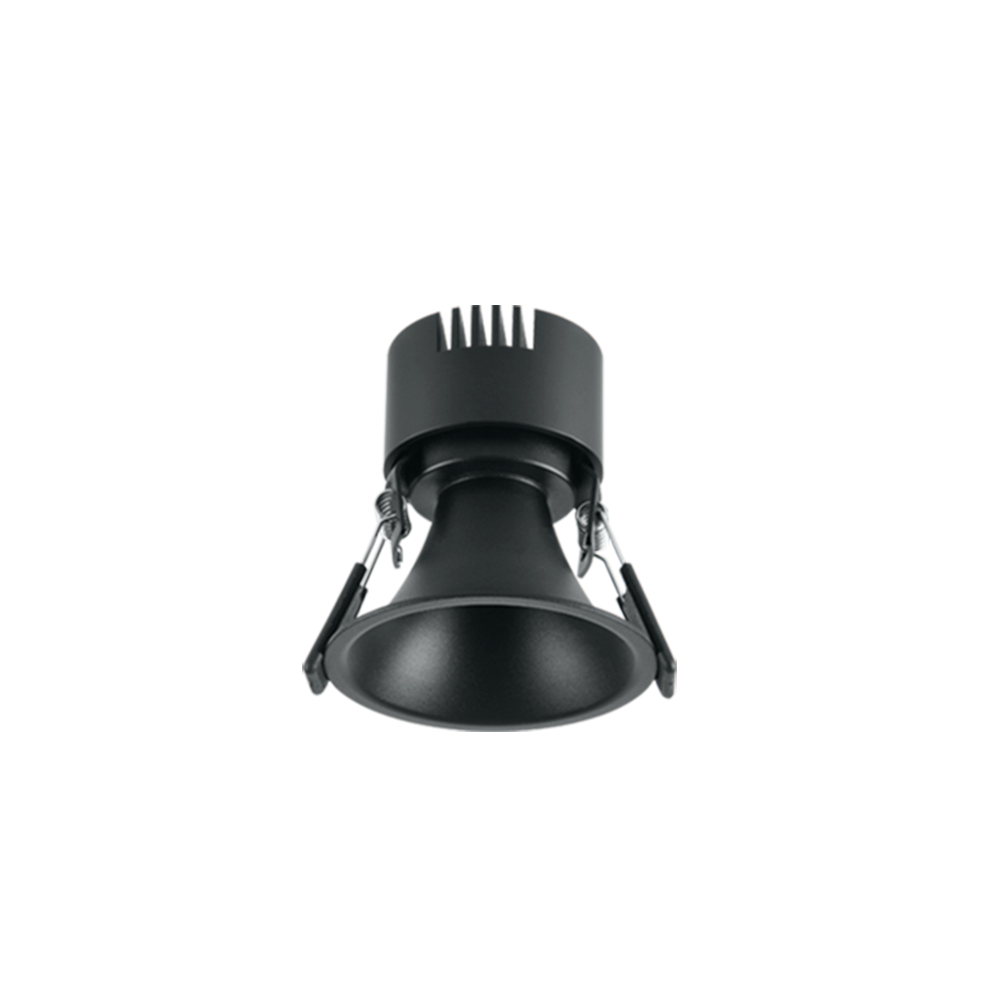

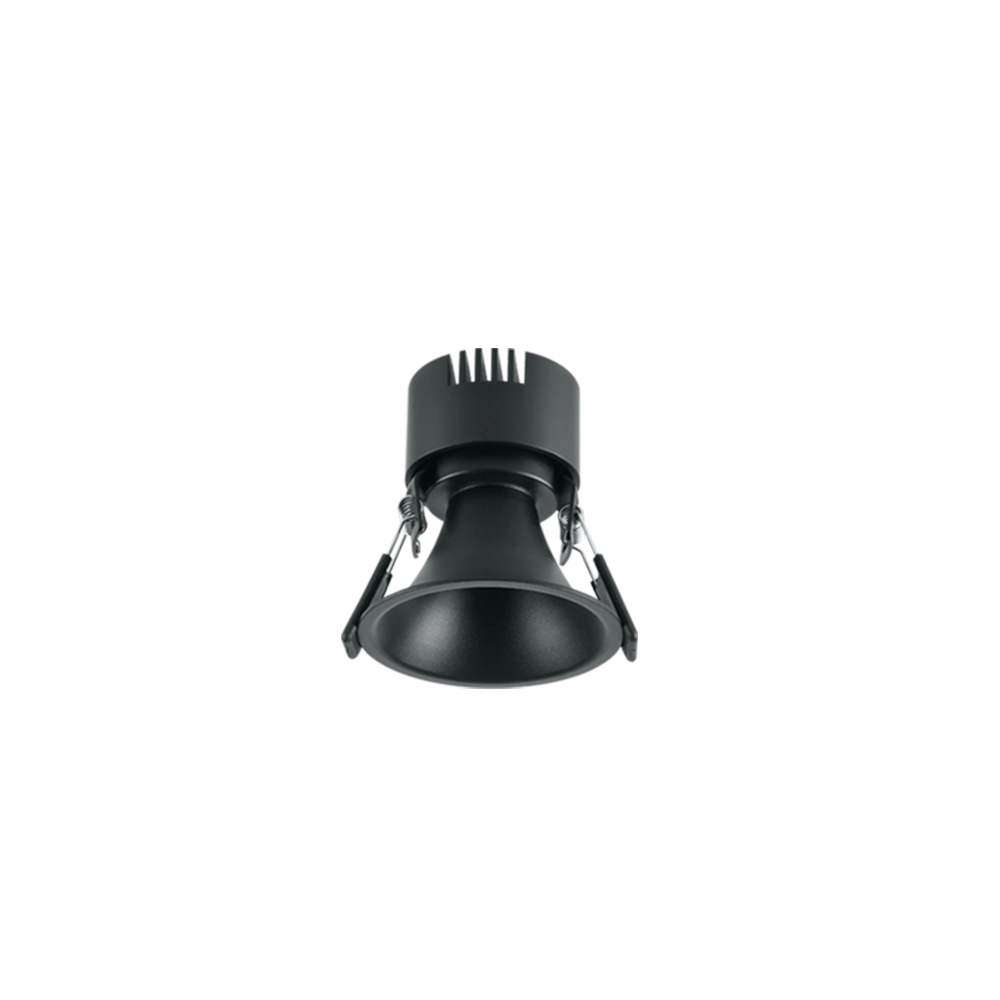

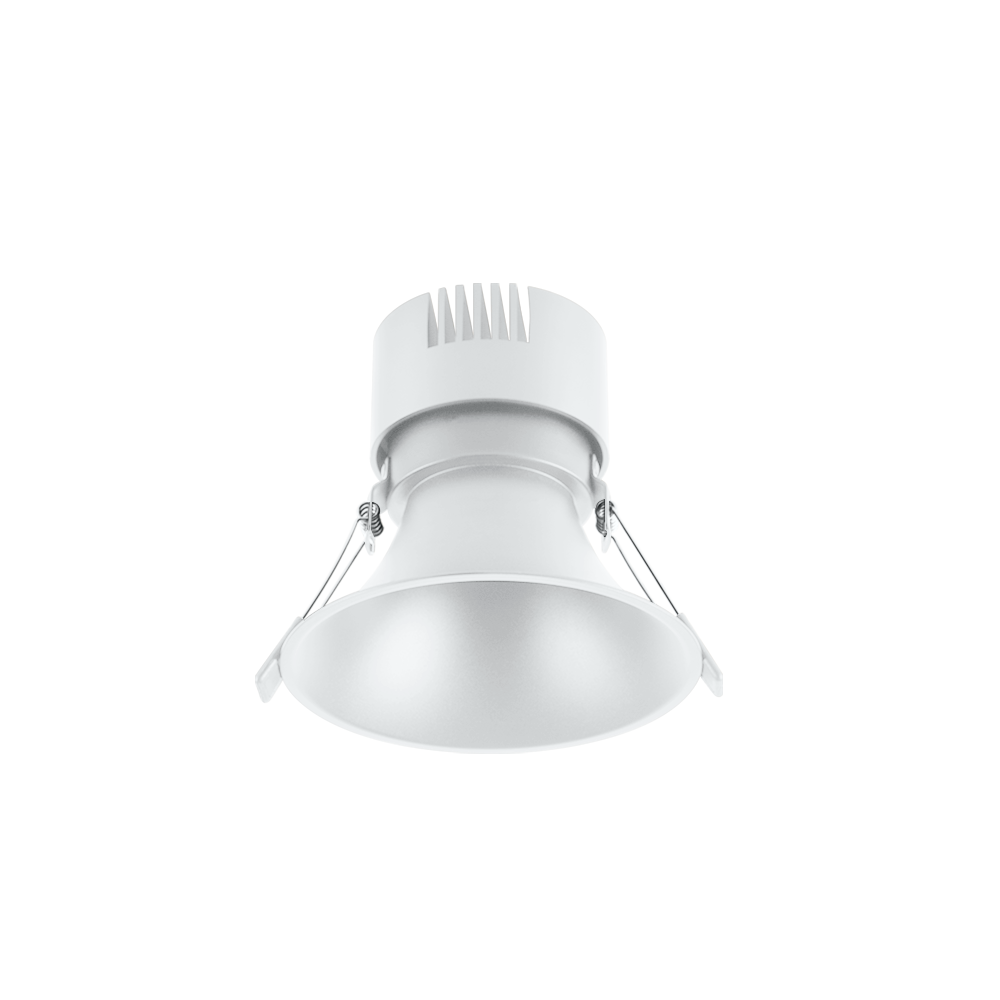

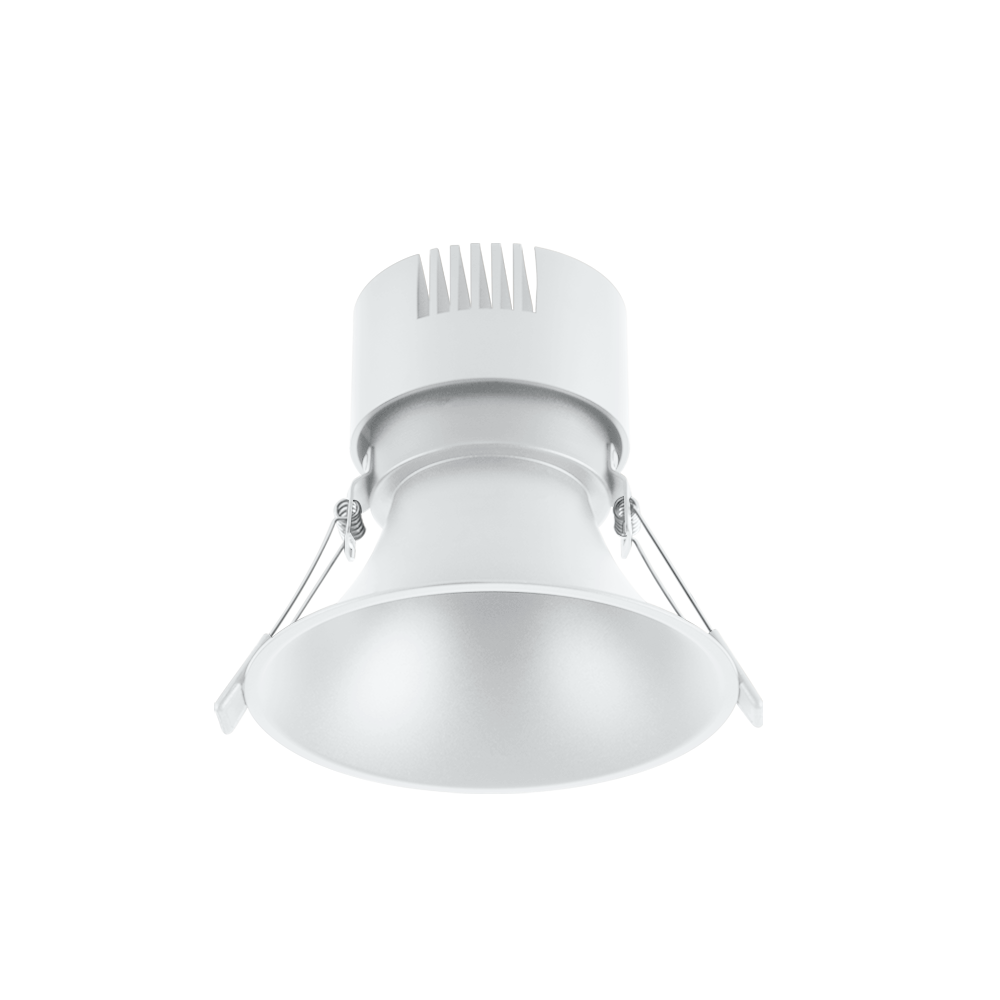

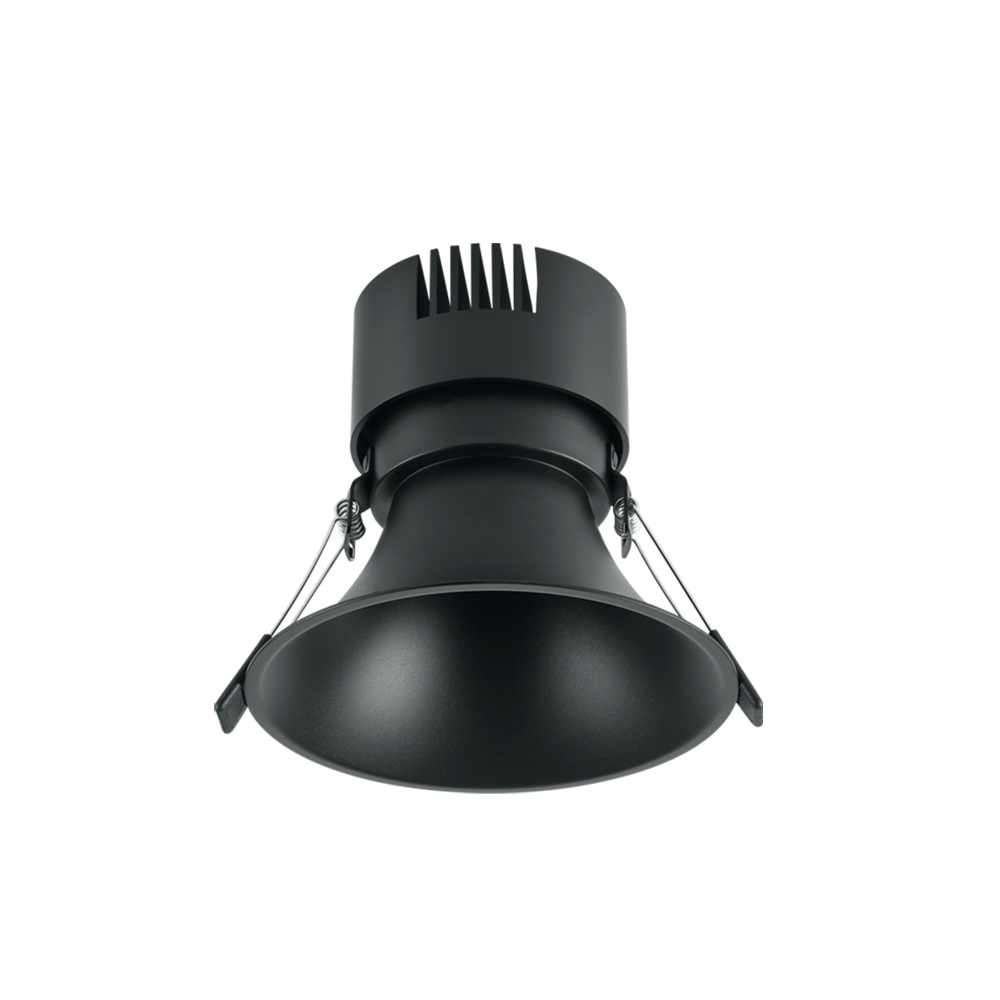

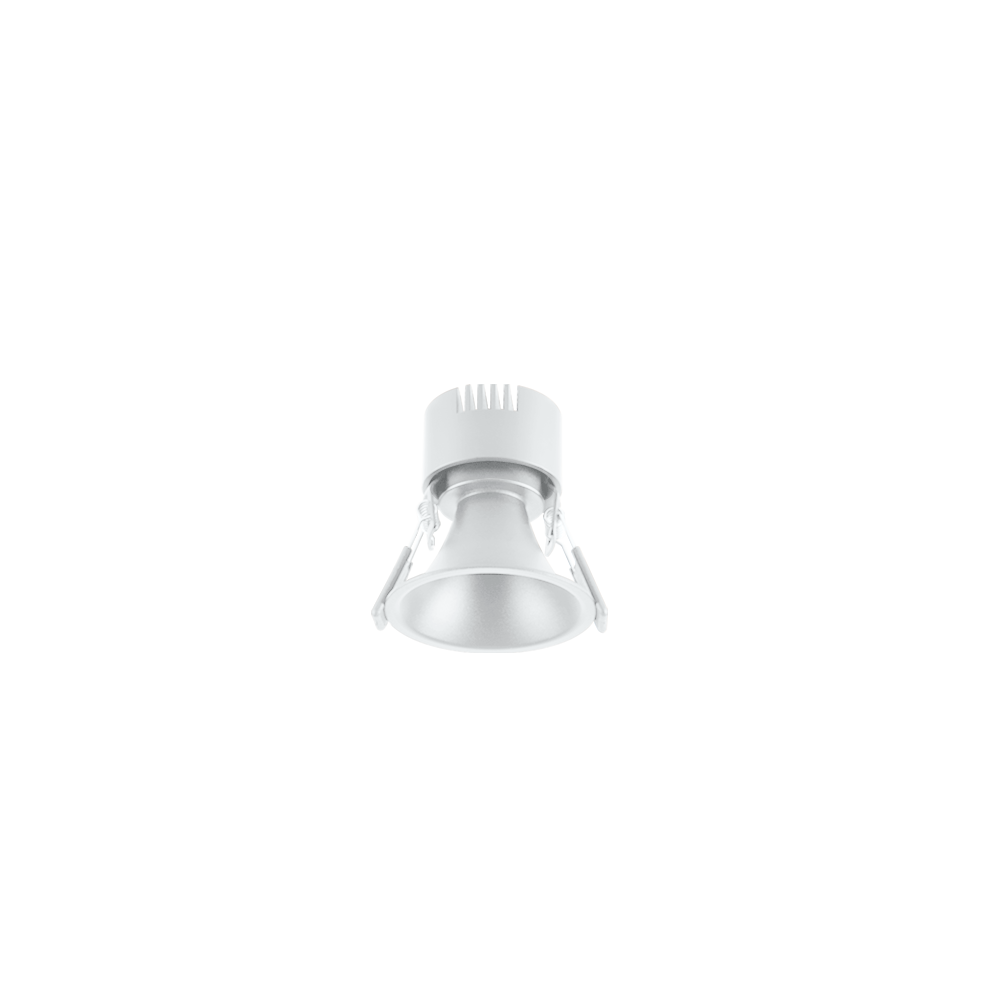

DEEP-FOCUS

High IP&Complete Wattage Range make it cover multiple applications,including from residential bedrooms to hotel halls or shopping malls,from indoor to eaves,etc.

Features Features

-Luxury boutiques & gallery accent lighting

-Hotel corridor mood-setting

-Office task lighting with advanced anti-glare

-Residential ceiling light arrays

Specifications Specifications

-Black and white versions available

-Five sizes available

-Aluminium-Powder coated

-ON/OFF, TUNABLE, and DALI control system

-Light colours 3,000 K,4,000 K or 5.000 K

-Downlight with pleasantly homogeneous luminance levels

Fields of application Fields of application

Retail & Hospitality

retail spaces, presentation of merchandise, restaurants, hotels,

shop windows,exhibition spaces

Office & Education

offices, conference rooms, art & culture establishments

Home & Living

Version

0 Article

Nominal power

BEAM ANGLE

45°

36°

25°

20°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

10W

BEAM ANGLE

20°

25°

45°

36°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

15W

BEAM ANGLE

45°

30°

25°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

18W

BEAM ANGLE

25°

50°

20°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

24W

BEAM ANGLE

15°

50°

30°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-D535-COB2-30K-20	L-D535-COB2-30K-20	7W	3000K	420lm	20°	White/Black
Get in Touch Get in Touch L-D535-COB2-30K-20 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 7W, luminous flux of luminaire 420 lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety: Safe, 230V, rated current: 150mA, Beam angle: 20°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=60 mm, ceiling cutout ø55 mm Nominal power 7W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 60mm Unified Glare Rating (UGR) UGR<10 Length 73mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 60mm Beam angle 20° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB2-30K-25	L-D535-COB2-30K-25	7W	3000K	420lm	25°	White/Black
Get in Touch Get in Touch L-D535-COB2-30K-25 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 7W, luminous flux of luminaire 420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety: Safe, 220V, rated current: 150mA, Beam angle: 25°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=60 mm, ceiling cutout ø55 mm Nominal power 7W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 60mm Unified Glare Rating (UGR) UGR <10 Length 73mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 60mm Beam angle 25° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB2-30K-36	L-D535-COB2-30K-36	7W	3000K	420lm	36°	White/Black
Get in Touch Get in Touch L-D535-COB2-30K-36 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 7W, luminous flux of luminaire 420 lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety: Safe, 220V, rated current: 150 mA, Beam angle: 36°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=60 mm, ceiling cutout ø55 mm Nominal power 7W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 60mm Unified Glare Rating (UGR) UGR <10 Length 73mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 60mm Beam angle 36° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB2-30K-45	L-D535-COB2-30K-45	7W	3000K	420lm	45°	White/Black
Get in Touch Get in Touch L-D535-COB2-30K-45 Recessed downlight Deep-focus Round inner ring set back, with LED,system power: 7W, luminous flux of luminaire 420 lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety: Safe, 220V, rated current: 150mA, Beam angle: 45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=60 mm, ceiling cutout ø55 mm Nominal power 7W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 60mm Unified Glare Rating (UGR) UGR <10 Length 73mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 60mm Beam angle 45° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB3-30K-20	L-D535-COB3-30K-20	10W	3000K	420lm	20°	White/Black
Get in Touch Get in Touch L-D535-COB3-30K-20 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 10W, luminous flux of luminaire 600lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle:20°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=80 mm, ceiling cutout ø75 mm Nominal power 10W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 80mm Unified Glare Rating (UGR) UGR<10 Length 85mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 20° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB3-30K-25	L-D535-COB3-30K-25	10W	3000K	420lm	25°	White/Black
Get in Touch Get in Touch L-D535-COB3-30K-25 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 10W, luminous flux of luminaire 600 lm. colour rendering index CRl>90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety: Safe, 230V, rated current: 250 mA, Beam angle:25°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=80 mm, ceiling cutout ø75 mm Nominal power 10W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI>90 Diameter 80mm Unified Glare Rating (UGR) UGR <10 Length 85mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 25° Downloads L-D535-Instruction Manual pdf L-D535-COB3-3000K-8W-25°-BK-IES rar Accessories
	L-D535-COB3-30K-36	L-D535-COB3-30K-36	10W	3000K	420lm	36°	White/Black
Get in Touch Get in Touch L-D535-COB3-30K-36 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 7W,luminous flux of luminaire 420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety: Safe, 230V, rated current: 250mA, Beam angle:36°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=80 mm, ceiling cutout ø75 mm Nominal power 10W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRII≥90 Diameter 80mm Unified Glare Rating (UGR) UGR<10 Length 85mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 36° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB3-30K-45	L-D535-COB3-30K-45	10W	3000K	420lm	45°	White/Black
Get in Touch Get in Touch L-D535-COB3-30K-45 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 10W, luminous flux of luminaire 600lm. colour rendering index CRI≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=80 mm, ceiling cutout ø75 mm Nominal power 10W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 80mm Unified Glare Rating (UGR) UGR<10 Length 85mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 45° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB3.5-30K-25	L-D535-COB3.5-30K-25	15W	3000K	916lm	25°	White/Black
Get in Touch Get in Touch L-D535-COB3.5-30K-25 Recessed downlight Deep-focus Round inner ring set back, with LED,system power: 15W,luminous flux of luminaire 916lm. colour rendering index CRl≥90,colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 25°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=95 mm, ceiling cutout ø90 mm Nominal power 15W Finish White/Black Delivered lumens 916lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.221kg Color Rendering Index(CRI) CRI≥90 Diameter 95mm Unified Glare Rating (UGR) UGR<10 Length 95mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 95mm Beam angle 25° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB3.5-30K-30	L-D535-COB3.5-30K-30	15W	3000K	916lm	30°	White/Black
Get in Touch Get in Touch L-D535-COB3.5-30K-30 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 15W, luminous flux of luminaire 916lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 30°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=95 mm, ceiling cutout ø90 mm Nominal power 15W Finish White/Black Delivered lumens 916lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.221kg Color Rendering Index(CRI) CRI≥90 Diameter 95mm Unified Glare Rating (UGR) UGR<10 Length 95mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 95mm Beam angle 30° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB3.5-30K-45	L-D535-COB3.5-30K-45	15W	3000K	916lm	45°	White/Black
Get in Touch Get in Touch L-D535-COB3.5-30K-45 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 15W, luminous flux of luminaire 916lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220V, rated current: 350mA, Beam angle: 45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=95 mm, ceiling cutout ø90 mm Nominal power 15W Finish White/Black Delivered lumens 916lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.221kg Color Rendering Index(CRI) CRI≥90 Diameter 95mm Unified Glare Rating (UGR) UGR<10 Length 95mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 95mm Beam angle 45° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB4-30K-20	L-D535-COB4-30K-20	18W	3000K	1260lm	20°	White/Black
Get in Touch Get in Touch L-D535-COB4-30K-20 Recessed downlight Deep-focus Round inner ring set back, with LED,system power: 18W, luminous flux of luminaire 1260lm. colour rendering index CRlI≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety: Safe,220V, rated current: 450mA, Beam angle: 20°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=105 mm, ceiling cutout ø100 mm Nominal power 18W Finish White/Black Delivered lumens 1260lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.3kg Color Rendering Index(CRI) CRI≥90 Diameter 105mm Unified Glare Rating (UGR) UGR <10 Length 108mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 105mm Beam angle 20° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB4-30K-25	L-D535-COB4-30K-25	18W	3000K	1260lm	25°	White/Black
Get in Touch Get in Touch L-D535-COB4-30K-25 Recessed downlight Deep-focus Round inner ring set back, with LED,system power:18W, luminous flux of luminaire 1260 lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220V, rated current: 450mA, Beam angle: 25°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=105mm, ceiling cutout ø100mm Nominal power 18W Finish White/Black Delivered lumens 1260lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.3kg Color Rendering Index(CRI) CRI≥90 Diameter 105mm Unified Glare Rating (UGR) UGR<10 Length 108mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 105mm Beam angle 25° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB4-30K-50	L-D535-COB4-30K-50	18W	3000K	1260lm	50°	White/Black
Get in Touch Get in Touch L-D535-COB4-30K-50 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 18W, luminous flux of luminaire 1260lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety: Safe, 220V, rated current: 450 mA, Beam angle: 50°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=105 mm, ceiling cutout ø100 mm Nominal power 18W Finish White/Black Delivered lumens 1260lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.3kg Color Rendering Index(CRI) CRI≥90 Diameter 105mm Unified Glare Rating (UGR) UGR<10 Length 108mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 105mm Beam angle 50° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB6-30K-15	L-D535-COB6-30K-15	24W	3000K	2064lm	15°	White/Black
Get in Touch Get in Touch L-D535-COB6-30K-15 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 24W, luminous flux of luminaire 2064lm. colour rendering index CRl≥90, colour temperature 3000K,warm white, lifetime LED 50'000 h,Photobiological safety: Safe, 220V, rated current: 600mA, Beam angle: 15°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=155 mm, ceiling cutout ø150 mm Nominal power 24W Finish White/Black Delivered lumens 2064lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.59kg Color Rendering Index(CRI) CRI≥90 Diameter 155mm Unified Glare Rating (UGR) UGR<10 Length 140mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 155mm Beam angle 15° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB6-30K-30	L-D535-COB6-30K-30	24W	3000K	2064lm	30°	White/Black
Get in Touch Get in Touch L-D535-COB6-30K-30 Recessed downlight Deep-focus Round inner ring set back, with LED,system power: 24W, luminous flux of luminaire 2064lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h,Photobiological safety: Safe,220V,rated current: 600mA,Beam angle: 30°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=155 mm, ceiling cutout ø150 mm Nominal power 24W Finish White/Black Delivered lumens 2064lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.59kg Color Rendering Index(CRI) CRI≥90 Diameter 155mm Unified Glare Rating (UGR) UGR<19 Length 140mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 155mm Beam angle 30° Downloads L-D535-Instruction Manual pdf Accessories
	L-D535-COB6-30K-50	L-D535-COB6-30K-50	24W	3000K	2064lm	50°	White/Black
Get in Touch Get in Touch L-D535-COB6-30K-50 Recessed downlight Deep-focus Round inner ring set back, with LED, system power: 24W, luminous flux of luminaire 2064lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 600mA,Beam angle: 50°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP65. Ø=155 mm, ceiling cutout ø150 mm Nominal power 24W Finish White/Black Delivered lumens 2064lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.59kg Color Rendering Index(CRI) CRI≥90 Diameter 155mm Unified Glare Rating (UGR) UGR<19 Length 140mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 155mm Beam angle 50° Downloads L-D535-Instruction Manual pdf Accessories
