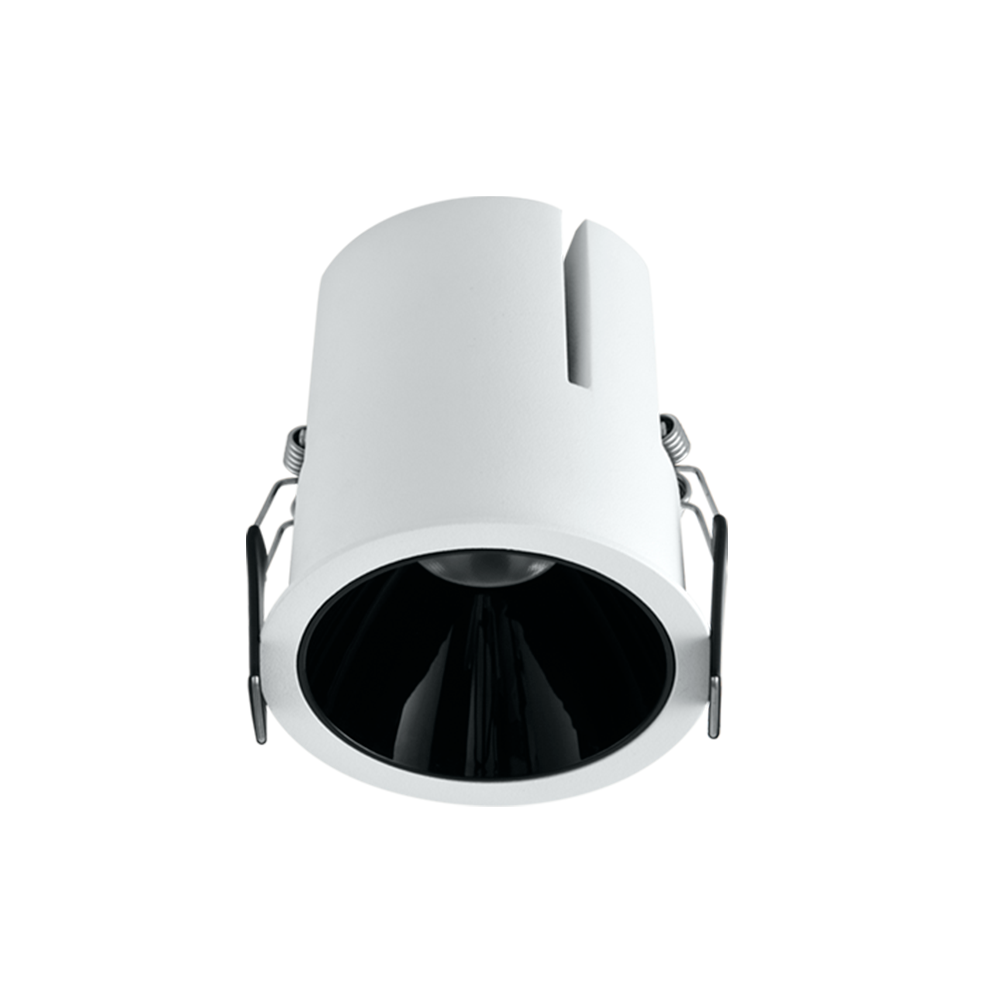

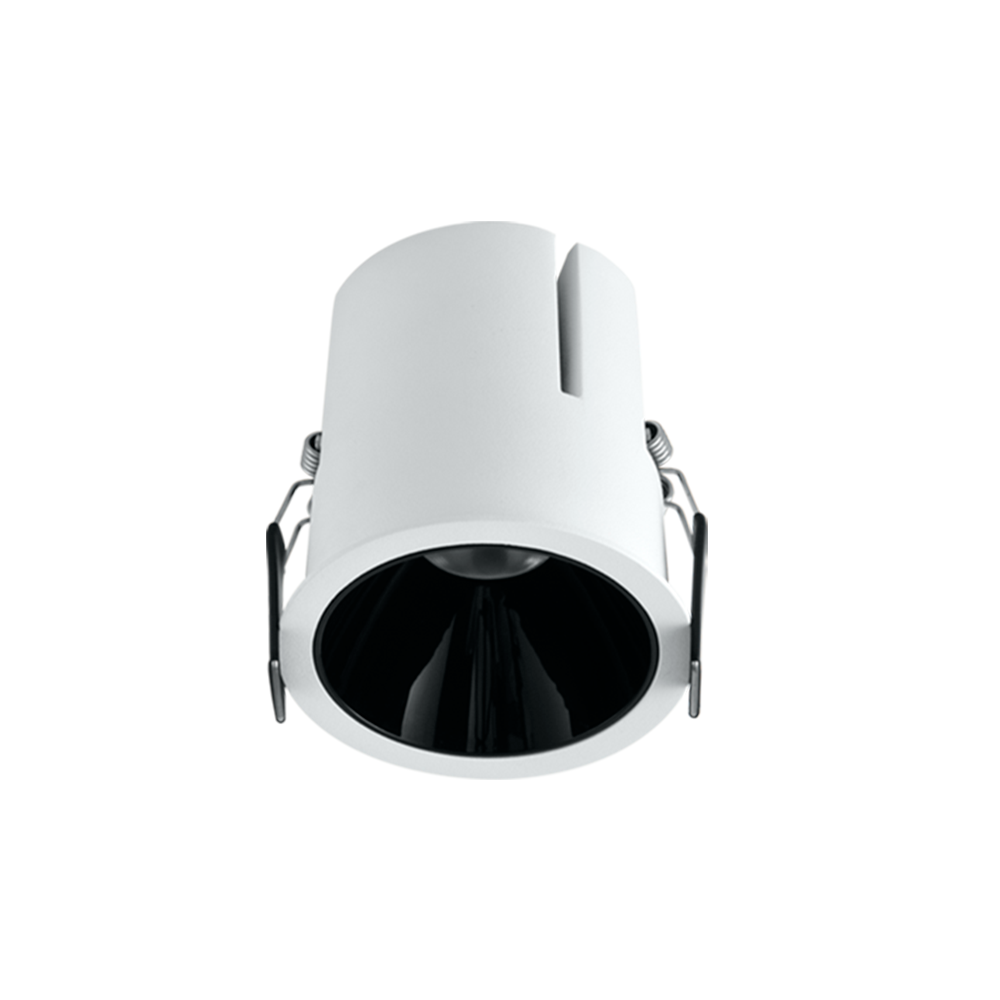

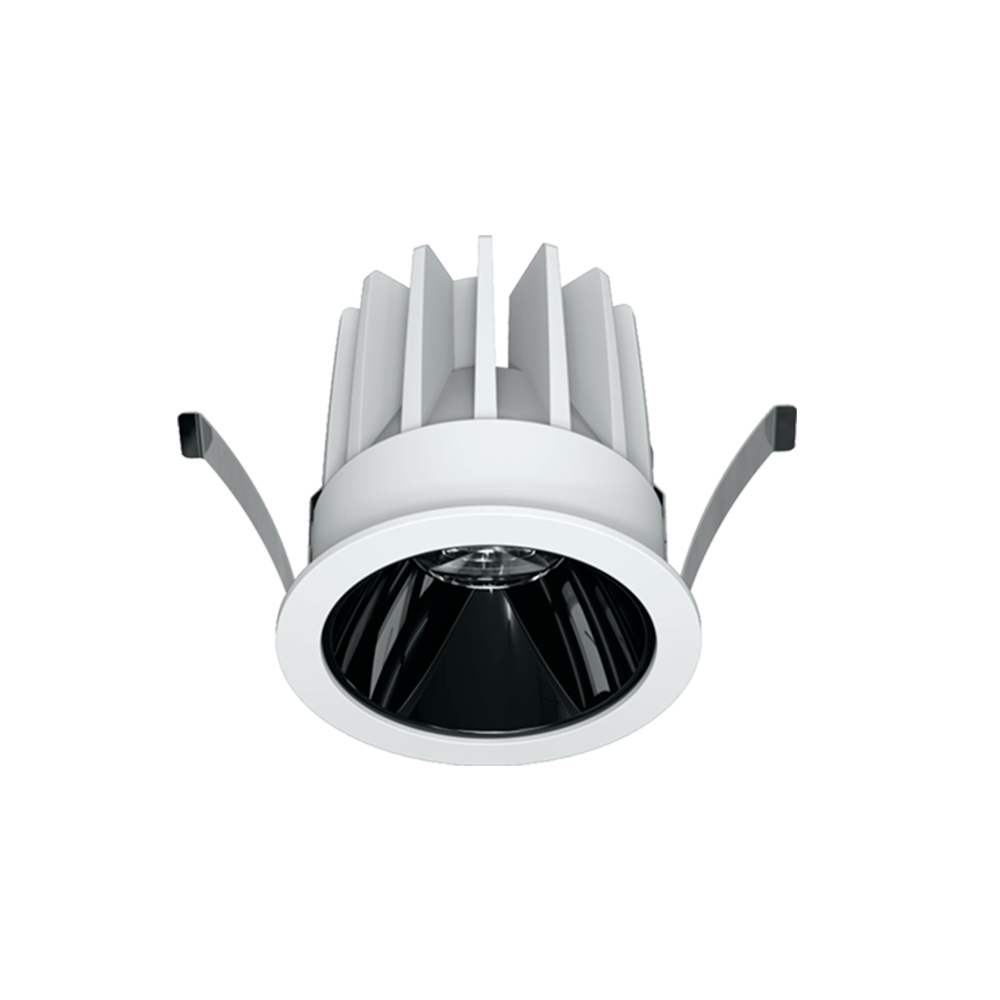

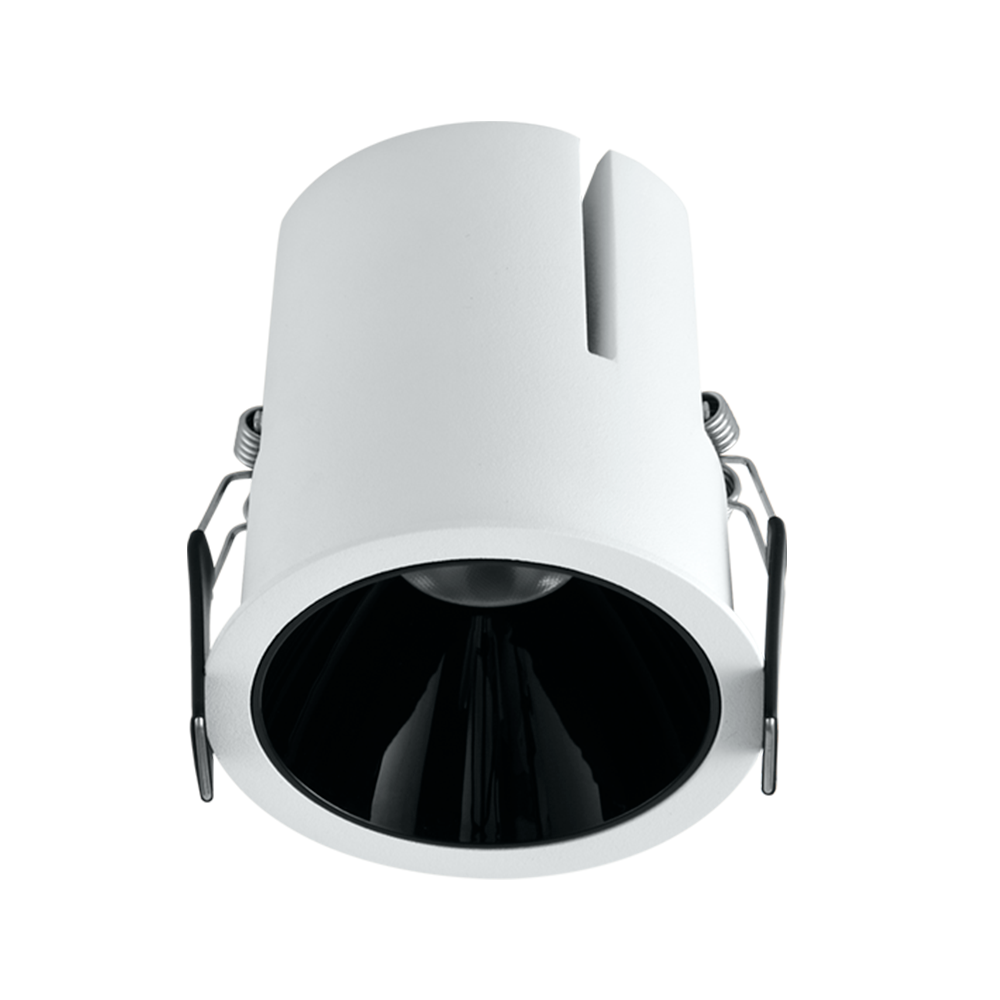

DARK

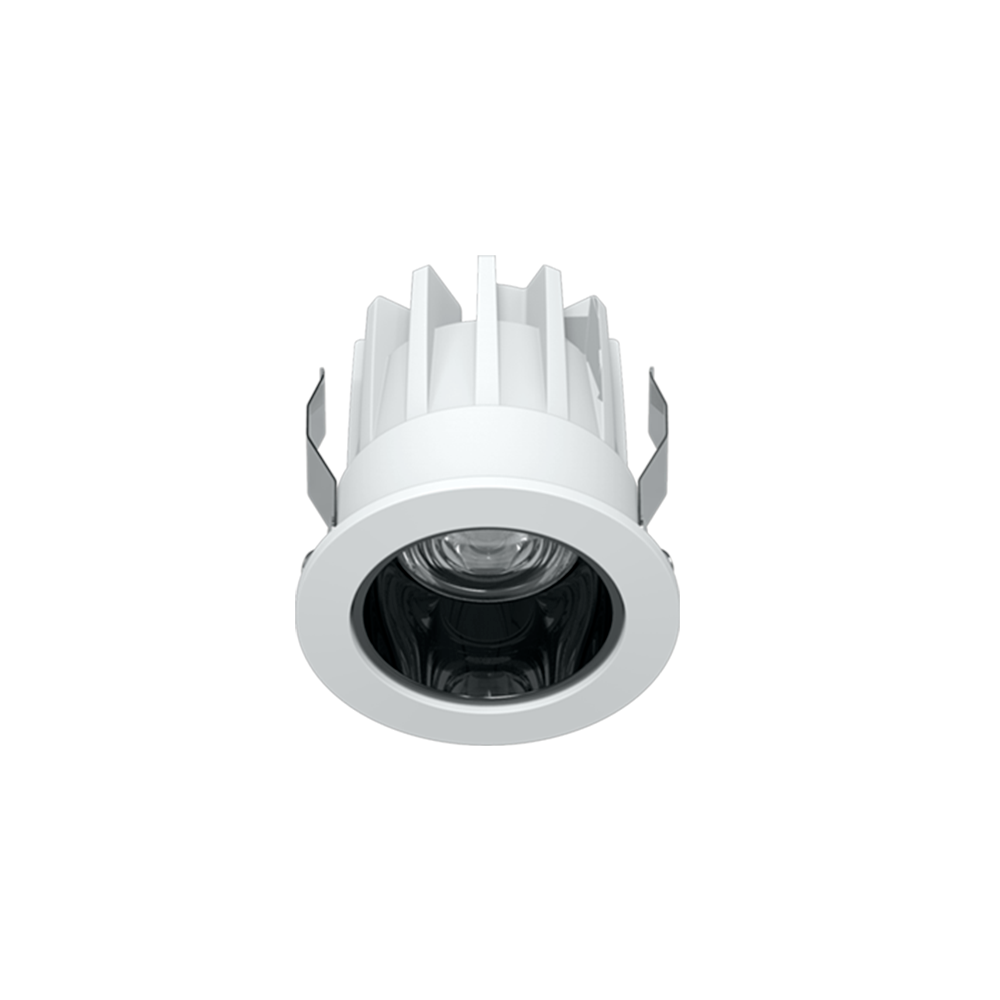

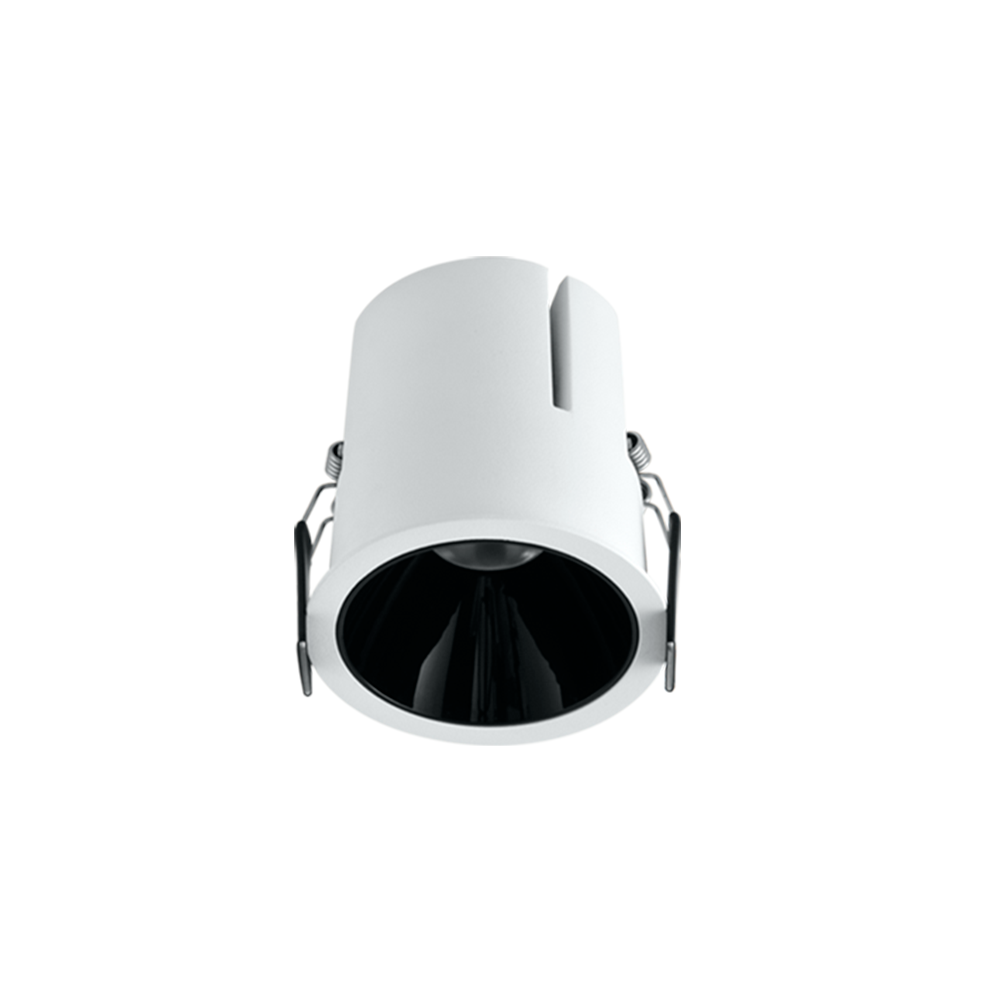

DARK. new downlight is a delight even before being switched on. The installation of thelightweight is a matter of seconds and feasible completely tool-free. The result: a pleasantly softlighting experience which evensen sitive eyes will find enjoyable, yet without compromising efficiency.

Features Features

-Luxury boutiques & gallery accent lighting

-Hotel corridor mood-setting

-Office task lighting with advanced anti-glare

-Residential ceiling light arrays

Specifications Specifications

-Black and white versions available

-Four sizes available

-Aluminium-Powder coated

-ON/OFF, TUNABLE, and DALl control system

-Light colours 3,000 K,4,000 Kor 5.000 K

-Downlight with pleasantly homogeneous luminance levels

Fields of application Fields of application

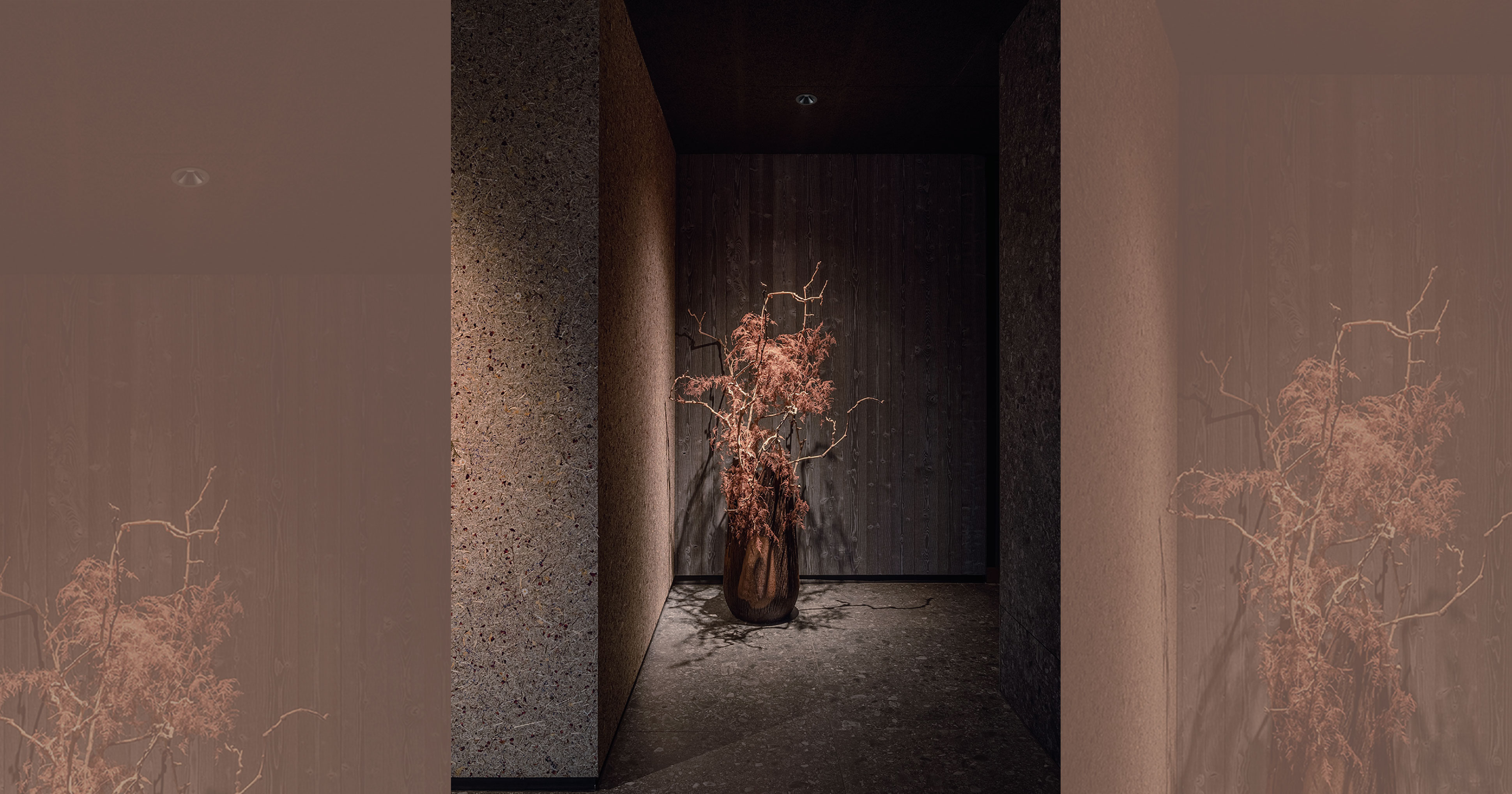

Retail & Hospitality

retail spaces, presentation of merchandise, restaurants, hotels,

shop windows,exhibition spaces

Office & Education

offices, conference rooms, art & culture establishments

Home & Living

Version

0 Article

Nominal power

10W

BEAM ANGLE

45°

32°

25°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

15W

BEAM ANGLE

50°

45°

32°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

15W

BEAM ANGLE

45°

30°

25°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

20W

BEAM ANGLE

45°

30°

25°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

25W

BEAM ANGLE

40°

32°

27°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

35W

BEAM ANGLE

38°

30°

20°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-D319-COB3-30K-25	L-D319-COB3-30K-25	10W	3000K	670lm	25°	White/Black
Get in Touch Get in Touch L-D319-COB3-30K-25 Dark-cob downlight, with LED,system power:10W, luminous flux of luminaire 670lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:25°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=58 mm, ceiling cutout ø52 mm Nominal power 10W Finish White/Black Delivered lumens 670lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 58mm Unified Glare Rating (UGR) UGR<10 Height 68mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 58mm Beam angle 25° Downloads None Accessories
	L-D319-COB3-30K-32	L-D319-COB3-30K-32	10W	3000K	670lm	32°	White/Black
Get in Touch Get in Touch L-D319-COB3-30K-32 Dark-cob downlight, with LED,system power:10W, luminous flux of luminaire 670lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:32°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=58 mm, ceiling cutout ø52 mm Nominal power 10W Finish White/Black Delivered lumens 670lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 58mm Unified Glare Rating (UGR) UGR<10 Height 68mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 58mm Beam angle 32° Downloads None Accessories
	L-D319-COB3-30K-45	L-D319-COB3-30K-45	10W	3000K	670lm	45°	White/Black
Get in Touch Get in Touch L-D319-COB3-30K-45 Dark-cob downlight, with LED,system power:10W, luminous flux of luminaire 670lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=58 mm, ceiling cutout ø52 mm Nominal power 10W Finish White/Black Delivered lumens 670lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 58mm Unified Glare Rating (UGR) UGR<10 Height 68mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 58mm Beam angle 45° Downloads None Accessories
	L-D319-COB4-30K-32	L-D319-COB4-30K-32	15W	3000K	975lm	32°	White/Black
Get in Touch Get in Touch L-D319-COB4-30K-32 Dark-cob downlight, with LED,system power:15W, luminous flux of luminaire 975lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:32°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=66 mm, ceiling cutout ø60 mm Nominal power 15W Finish White/Black Delivered lumens 975lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.22kg Color Rendering Index(CRI) CRI≥90 Diameter 66mm Unified Glare Rating (UGR) UGR<10 Height 68mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 66mm Beam angle 32° Downloads None Accessories
	L-D319-COB4-30K-45	L-D319-COB4-30K-45	15W	3000K	975lm	45°	White/Black
Get in Touch Get in Touch L-D319-COB4-30K-45 Dark-cob downlight, with LED,system power:15W, luminous flux of luminaire 975lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=66 mm, ceiling cutout ø60 mm Nominal power 15W Finish White/Black Delivered lumens 975lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.22kg Color Rendering Index(CRI) CRI≥90 Diameter 66mm Unified Glare Rating (UGR) UGR<10 Height 68mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 66mm Beam angle 45° Downloads None Accessories
	L-D319-COB4-30K-50	L-D319-COB4-30K-50	15W	3000K	975lm	50°	White/Black
Get in Touch Get in Touch L-D319-COB4-30K-50 Dark-cob downlight, with LED,system power:15W, luminous flux of luminaire 975lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:50°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=66 mm, ceiling cutout ø60 mm Nominal power 15W Finish White/Black Delivered lumens 975lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.22kg Color Rendering Index(CRI) CRI≥90 Diameter 66mm Unified Glare Rating (UGR) UGR<10 Height 68mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 66mm Beam angle 50° Downloads None Accessories
	L-D425-COB3-30K-25	L-D425-COB3-30K-25	15W	3000K	945lm	25°	White/Black
Get in Touch Get in Touch L-D425-COB3-30K-25 Dark-cob downlight, with LED,system power:15W, luminous flux of luminaire 945lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current:350mA, Beam angle:25°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=72 mm, ceiling cutout ø65 mm Nominal power 15W Finish White/Black Delivered lumens 945lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.26kg Color Rendering Index(CRI) CRI≥90 Diameter 72mm Unified Glare Rating (UGR) UGR<10 Height 79mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 72mm Beam angle 25° Downloads None Accessories
	L-D425-COB3-30K-30	L-D425-COB3-30K-30	15W	3000K	945lm	30°	White/Black
Get in Touch Get in Touch L-D425-COB3-30K-30 Dark-cob downlight, with LED,system power:15W, luminous flux of luminaire 945lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 350mA, Beam angle:30°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=72 mm, ceiling cutout ø65 mm Nominal power 15W Finish White/Black Delivered lumens 945lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.26kg Color Rendering Index(CRI) CRI≥90 Diameter 72mm Unified Glare Rating (UGR) UGR<10 Height 79mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 72mm Beam angle 30° Downloads None Accessories
	L-D425-COB3-30K-45	L-D425-COB3-30K-45	15W	3000K	945lm	45°	White/Black
Get in Touch Get in Touch L-D425-COB3-30K-45 Dark-cob downlight, with LED,system power:15W, luminous flux of luminaire 945lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 350mA, Beam angle:45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=72 mm, ceiling cutout ø65 mm Nominal power 15W Finish White/Black Delivered lumens 945lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.26kg Color Rendering Index(CRI) CRI≥90 Diameter 72mm Unified Glare Rating (UGR) UGR<10 Height 79mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 72mm Beam angle 45° Downloads None Accessories
	L-D425-COB3.5-30K-25	L-D425-COB3.5-30K-25	20W	3000K	1280lm	25°	White/Black
Get in Touch Get in Touch L-D425-COB3.5-30K-25 Dark-cob downlight, with LED,system power:20W, luminous flux of luminaire 1280lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 500mA, Beam angle:25°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=80 mm, ceiling cutout ø75 mm Nominal power 20W Finish White/Black Delivered lumens 1280lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.28kg Color Rendering Index(CRI) CRI≥90 Diameter 80mm Unified Glare Rating (UGR) UGR<10 Height 86mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 25° Downloads None Accessories
	L-D425-COB3.5-30K-30	L-D425-COB3.5-30K-30	20W	3000K	1280lm	30°	White/Black
Get in Touch Get in Touch L-D425-COB3.5-30K-30 Dark-cob downlight, with LED,system power:20W, luminous flux of luminaire 1280lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 500mA, Beam angle:30°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=80 mm, ceiling cutout ø75 mm Nominal power 20W Finish White/Black Delivered lumens 1280lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.28kg Color Rendering Index(CRI) CRI≥90 Diameter 80mm Unified Glare Rating (UGR) UGR<10 Height 86mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 30° Downloads None Accessories
	L-D425-COB3.5-30K-45	L-D425-COB3.5-30K-45	20W	3000K	1280lm	45°	White/Black
Get in Touch Get in Touch L-D425-COB3.5-30K-45 Dark-cob downlight, with LED,system power:20W, luminous flux of luminaire 1280lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 500mA, Beam angle:45°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=80 mm, ceiling cutout ø75 mm Nominal power 20W Finish White/Black Delivered lumens 1280lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.28kg Color Rendering Index(CRI) CRI≥90 Diameter 80mm Unified Glare Rating (UGR) UGR<10 Height 86mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 45° Downloads None Accessories
	L-D425-COB4-30K-27	L-D425-COB4-30K-27	25W	3000K	1575lm	27°	White/Black
Get in Touch Get in Touch L-D425-COB4-30K-27 Dark-cob downlight, with LED,system power:25W, luminous flux of luminaire 1575lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:27°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=88 mm, ceiling cutout ø80 mm Nominal power 25W Finish White/Black Delivered lumens 1575lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.4kg Color Rendering Index(CRI) CRI≥90 Diameter 88mm Unified Glare Rating (UGR) UGR<10 Height 93mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 88mm Beam angle 27° Downloads None Accessories
	L-D425-COB4-30K-32	L-D425-COB4-30K-32	25W	3000K	1575lm	32°	White/Black
Get in Touch Get in Touch L-D425-COB4-30K-32 Dark-cob downlight, with LED,system power:25W, luminous flux of luminaire 1575lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:32°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=88 mm, ceiling cutout ø80 mm Nominal power 25W Finish White/Black Delivered lumens 1575lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.4kg Color Rendering Index(CRI) CRI≥90 Diameter 88mm Unified Glare Rating (UGR) UGR<10 Height 93mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 88mm Beam angle 32° Downloads None Accessories
	L-D425-COB4-30K-40	L-D425-COB4-30K-40	25W	3000K	1575lm	40°	White/Black
Get in Touch Get in Touch L-D425-COB4-30K-40 Dark-cob downlight, with LED,system power:25W, luminous flux of luminaire 1575lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:40°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=88 mm, ceiling cutout ø80 mm Nominal power 25W Finish White/Black Delivered lumens 1575lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.4kg Color Rendering Index(CRI) CRI≥90 Diameter 88mm Unified Glare Rating (UGR) UGR<10 Height 93mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 88mm Beam angle 40° Downloads None Accessories
	L-D425-COB5-30K-20	L-D425-COB5-30K-20	35W	3000K	2695lm	20°	White/Black
Get in Touch Get in Touch L-D425-COB5-30K-20 Dark-cob downlight, with LED,system power:35W, luminous flux of luminaire 2695lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 850mA, Beam angle:20°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=111 mm, ceiling cutout ø102 mm Nominal power 35W Finish White/Black Delivered lumens 2695lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.7kg Color Rendering Index(CRI) CRI≥90 Diameter 111mm Unified Glare Rating (UGR) UGR<10 Height 115mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 111mm Beam angle 20° Downloads None Accessories
	L-D425-COB5-30K-30	L-D425-COB5-30K-30	35W	3000K	2695lm	30°	White/Black
Get in Touch Get in Touch L-D425-COB5-30K-30 Dark-cob downlight, with LED,system power:35W, luminous flux of luminaire 2695lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 850mA, Beam angle:30°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=111 mm, ceiling cutout ø102 mm Nominal power 35W Finish White/Black Delivered lumens 2695lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.7kg Color Rendering Index(CRI) CRI≥90 Diameter 111mm Unified Glare Rating (UGR) UGR<10 Height 115mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 111mm Beam angle 30° Downloads None Accessories
	L-D425-COB5-30K-38	L-D425-COB5-30K-38	35W	3000K	2695lm	38°	White/Black
Get in Touch Get in Touch L-D425-COB5-30K-38 Dark-cob downlight, with LED,system power:35W, luminous flux of luminaire 2695lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 850mA, Beam angle:38°, black/white color, ON/OFF \| DALI \| TRIAC 0-10V. ingress protection IP20. Ø=111 mm, ceiling cutout ø102 mm Nominal power 35W Finish White/Black Delivered lumens 2695lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.7kg Color Rendering Index(CRI) CRI≥90 Diameter 111mm Unified Glare Rating (UGR) UGR<10 Height 115mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 111mm Beam angle 38° Downloads None Accessories
