Article number |
Nominal power |
Color Temperature(CCT) |
Delivered lumens |
Beam angle |
Finish |
|
L-D960-COB2-30K-24
|
L-D960-COB2-30K-24
|
15W
|
3000K
|
840lm
|
24°
|
White/Black
|
L-D960-COB2-30K-24

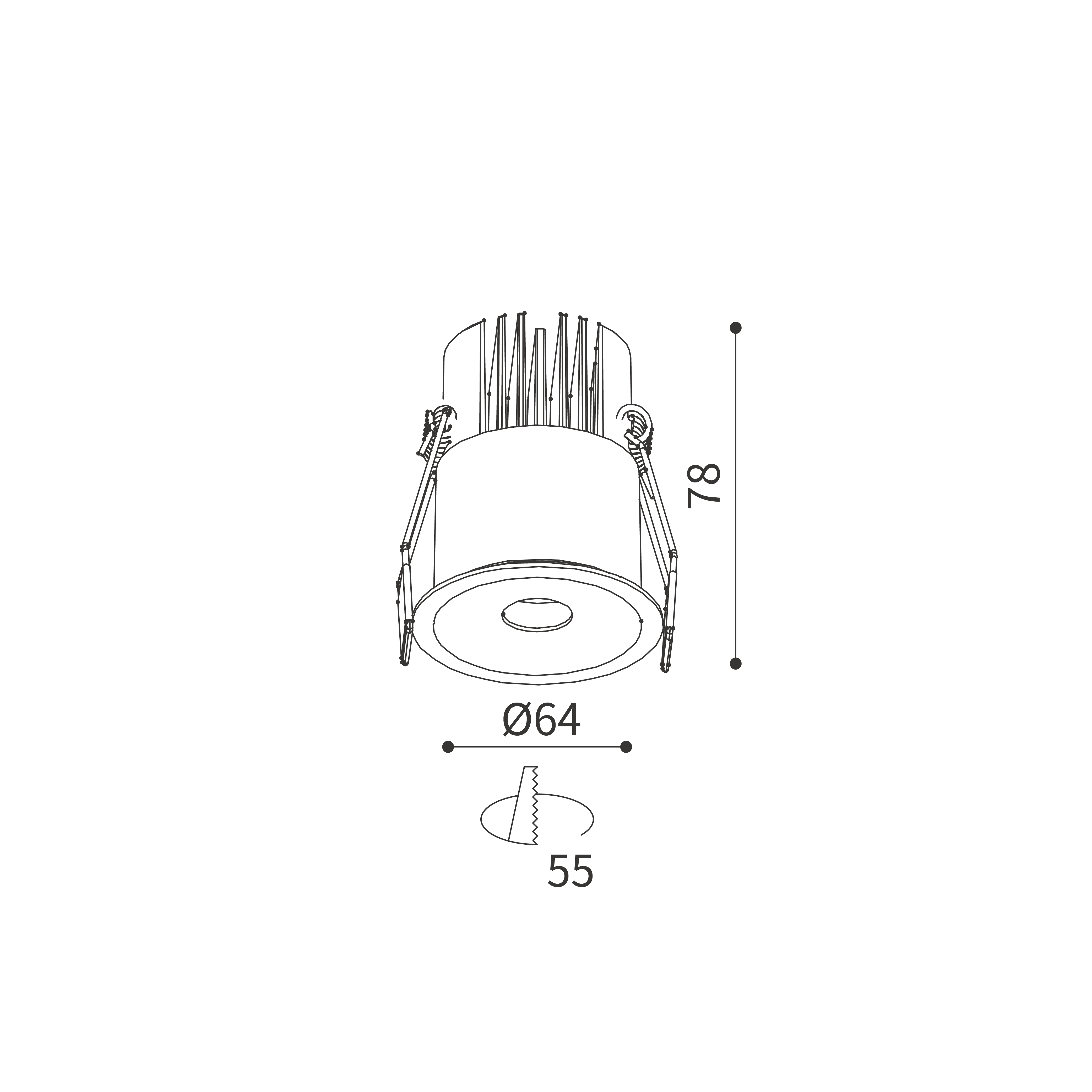

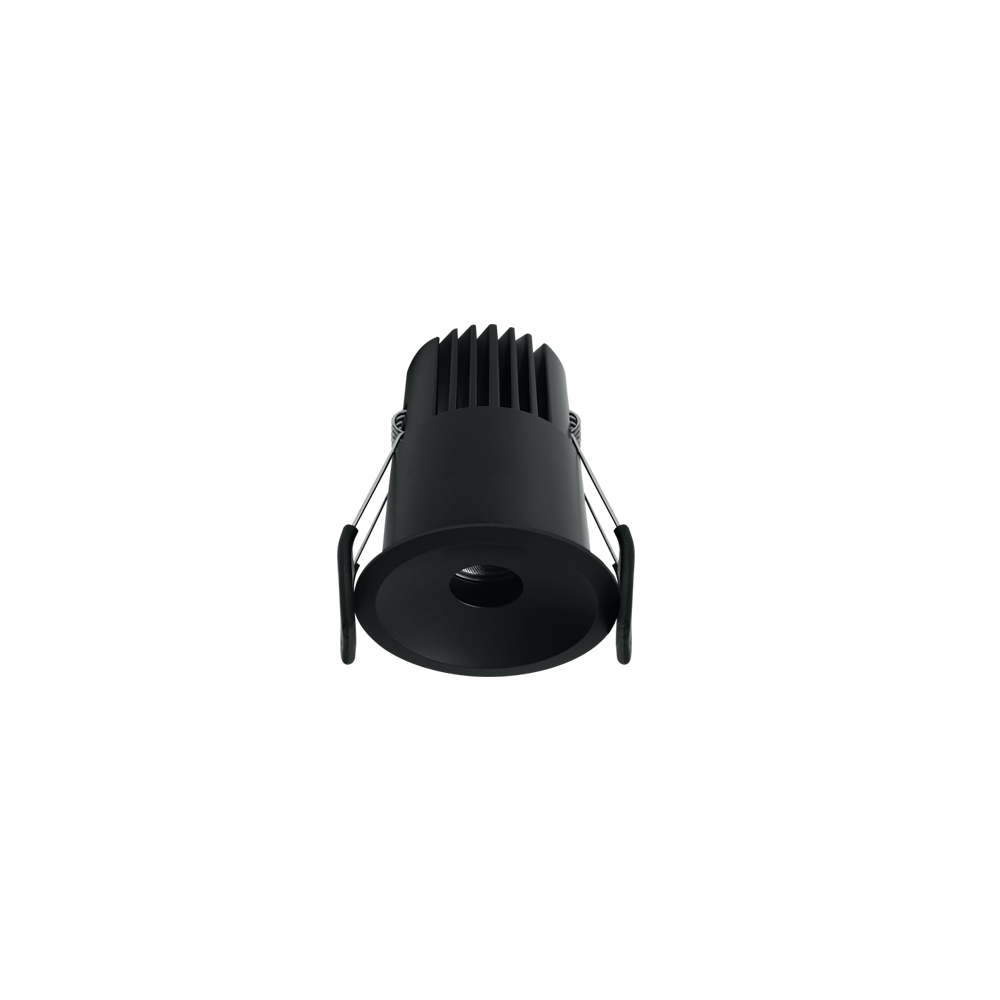

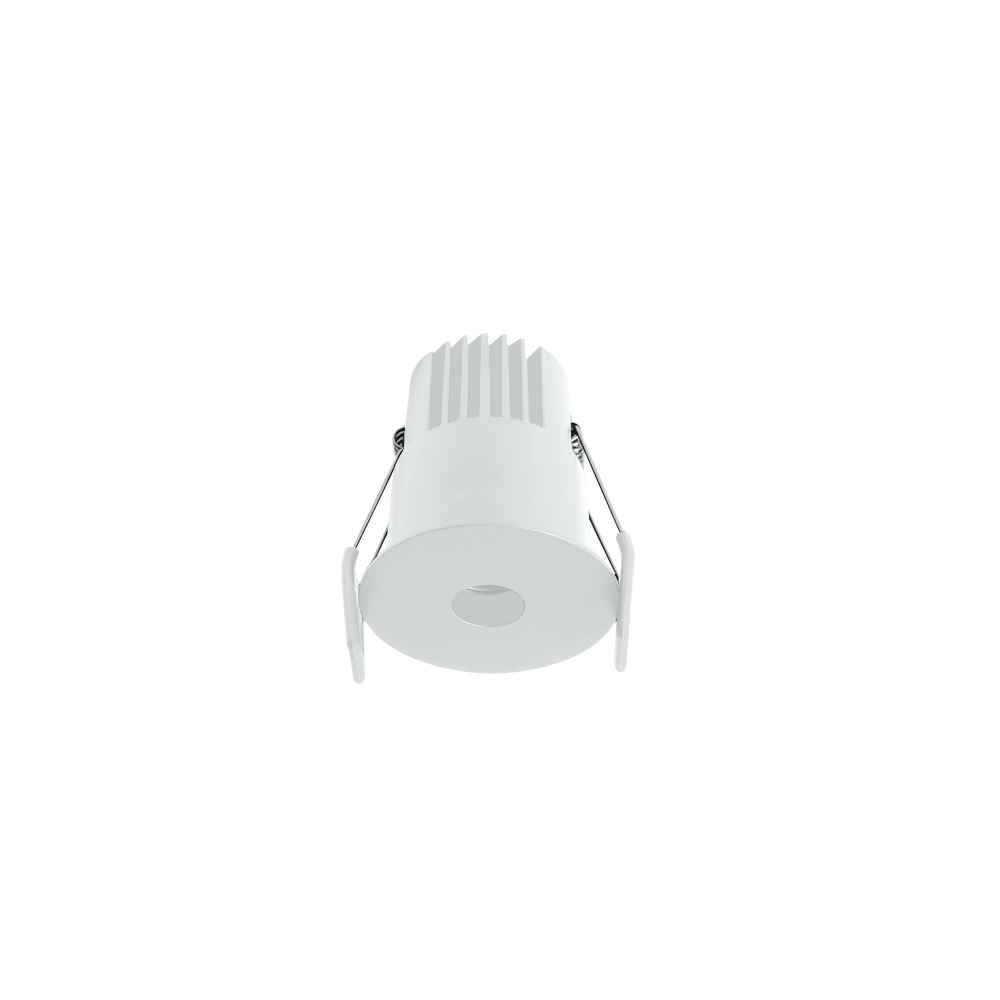

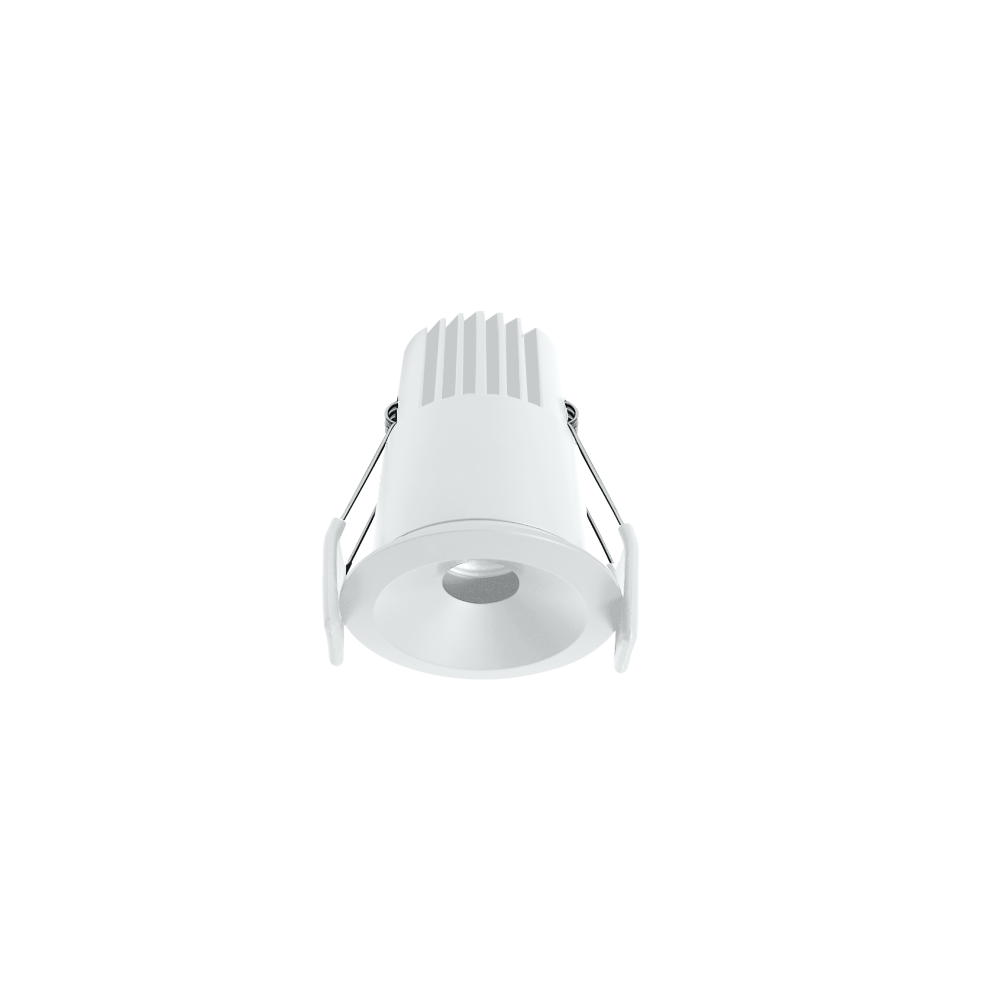

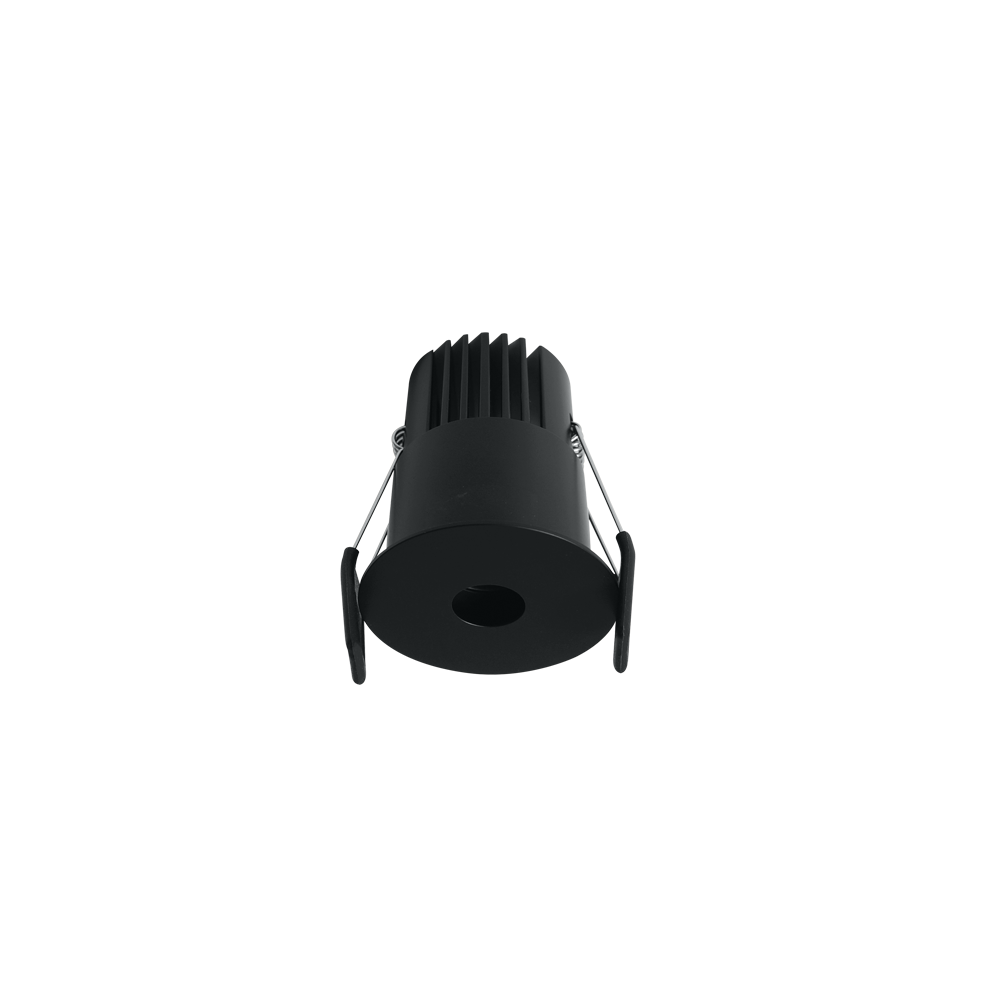

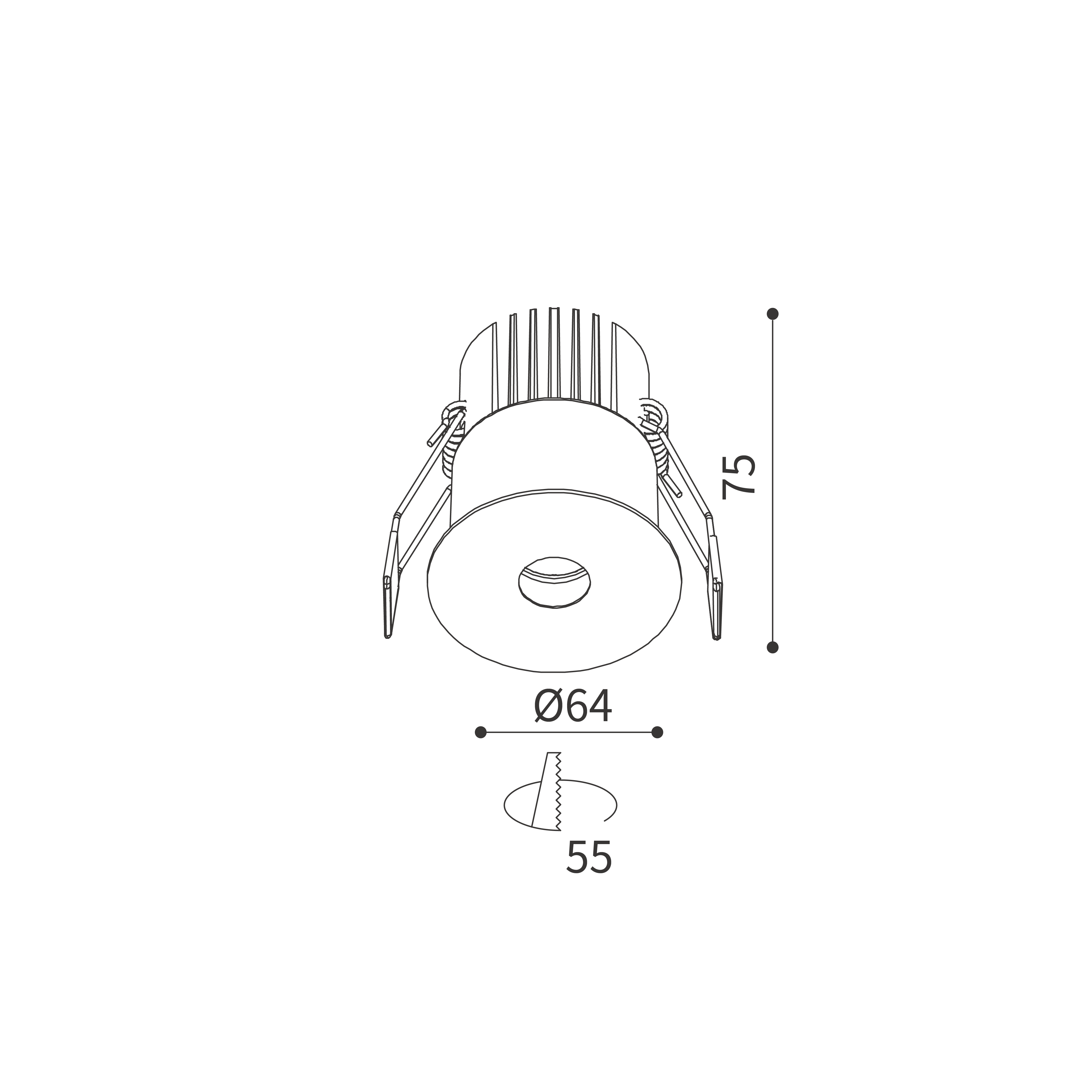

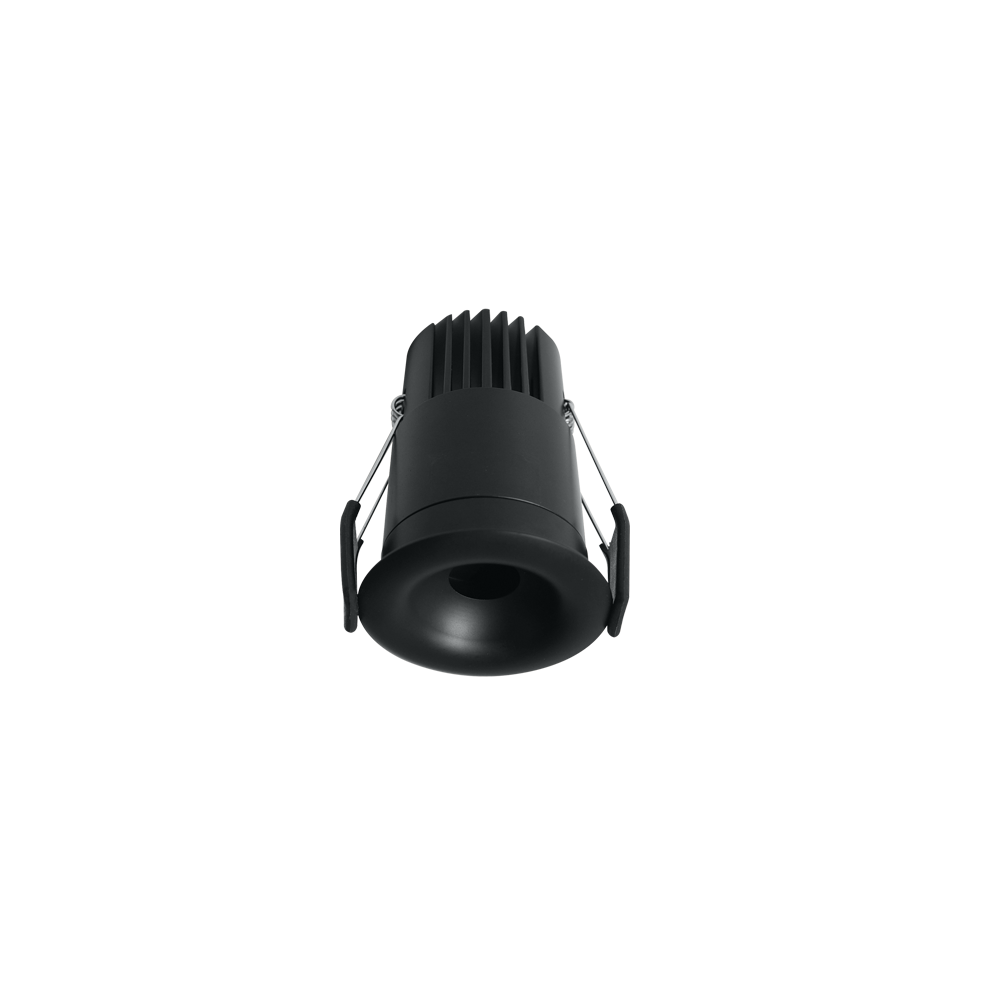

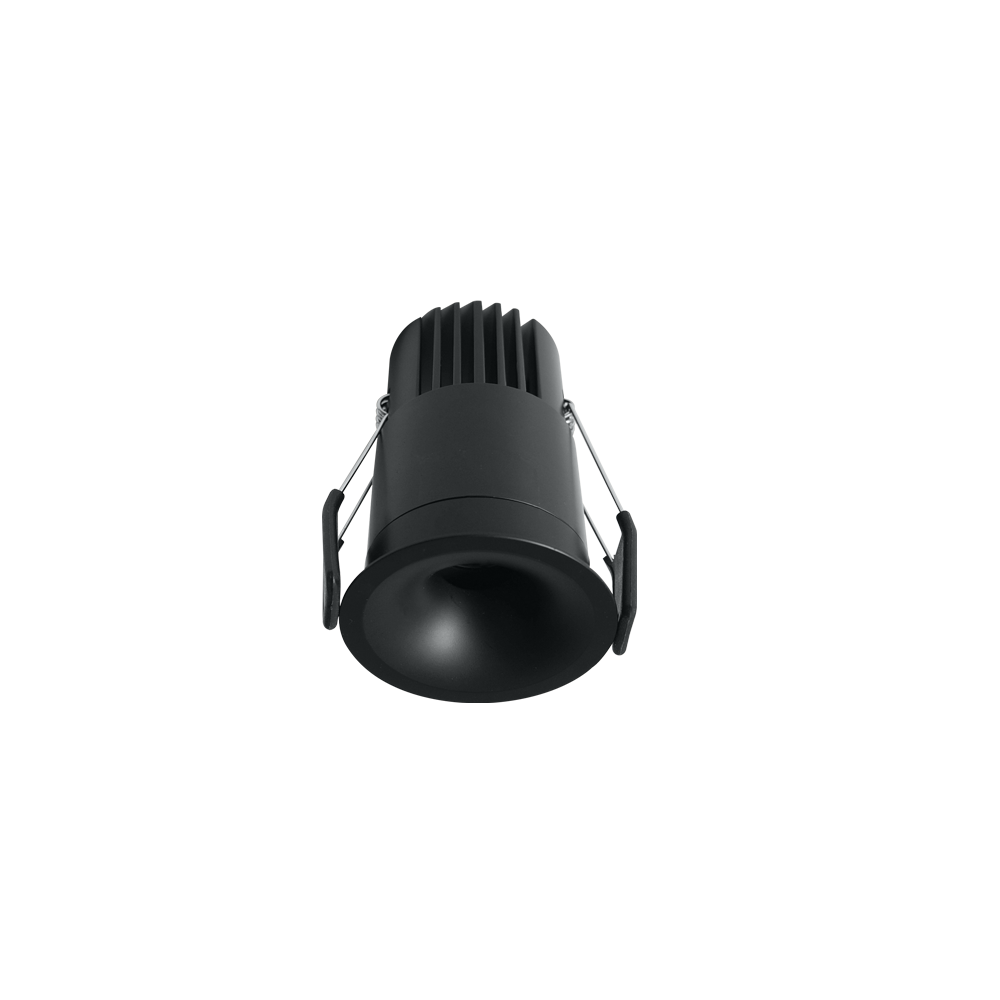

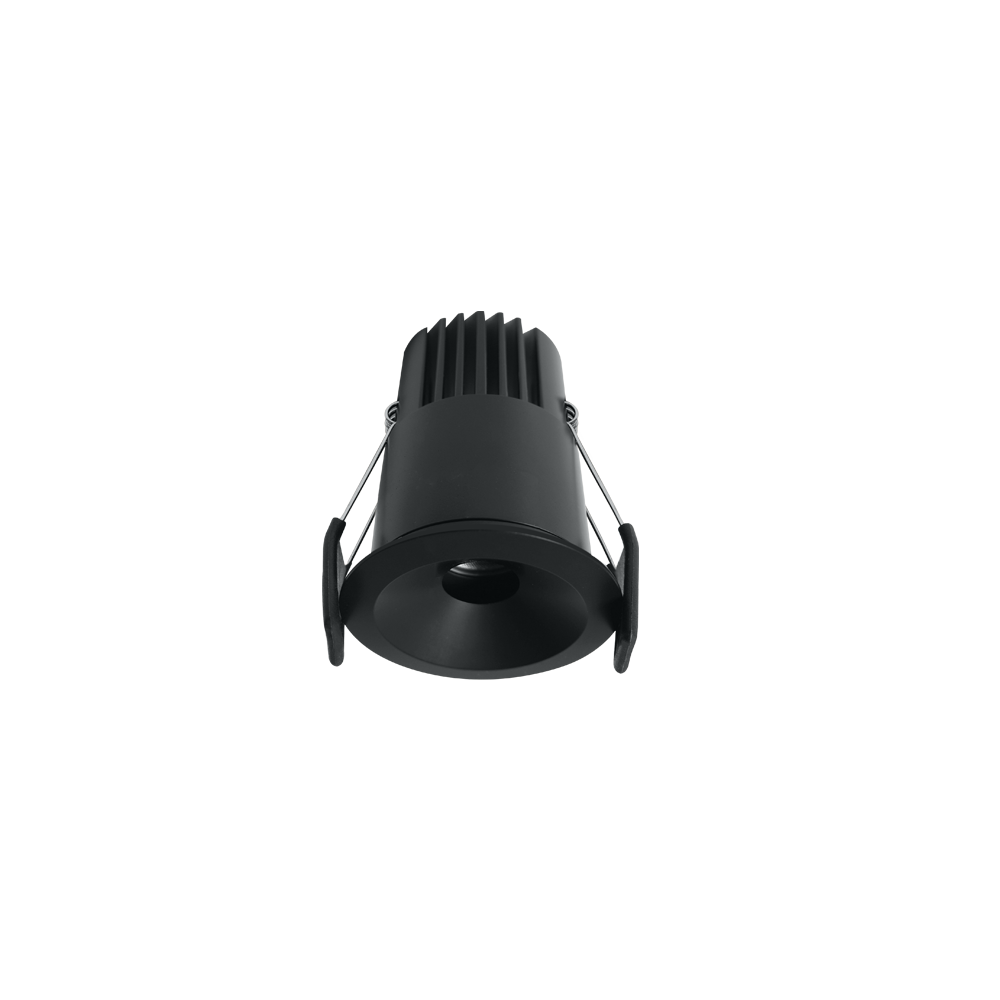

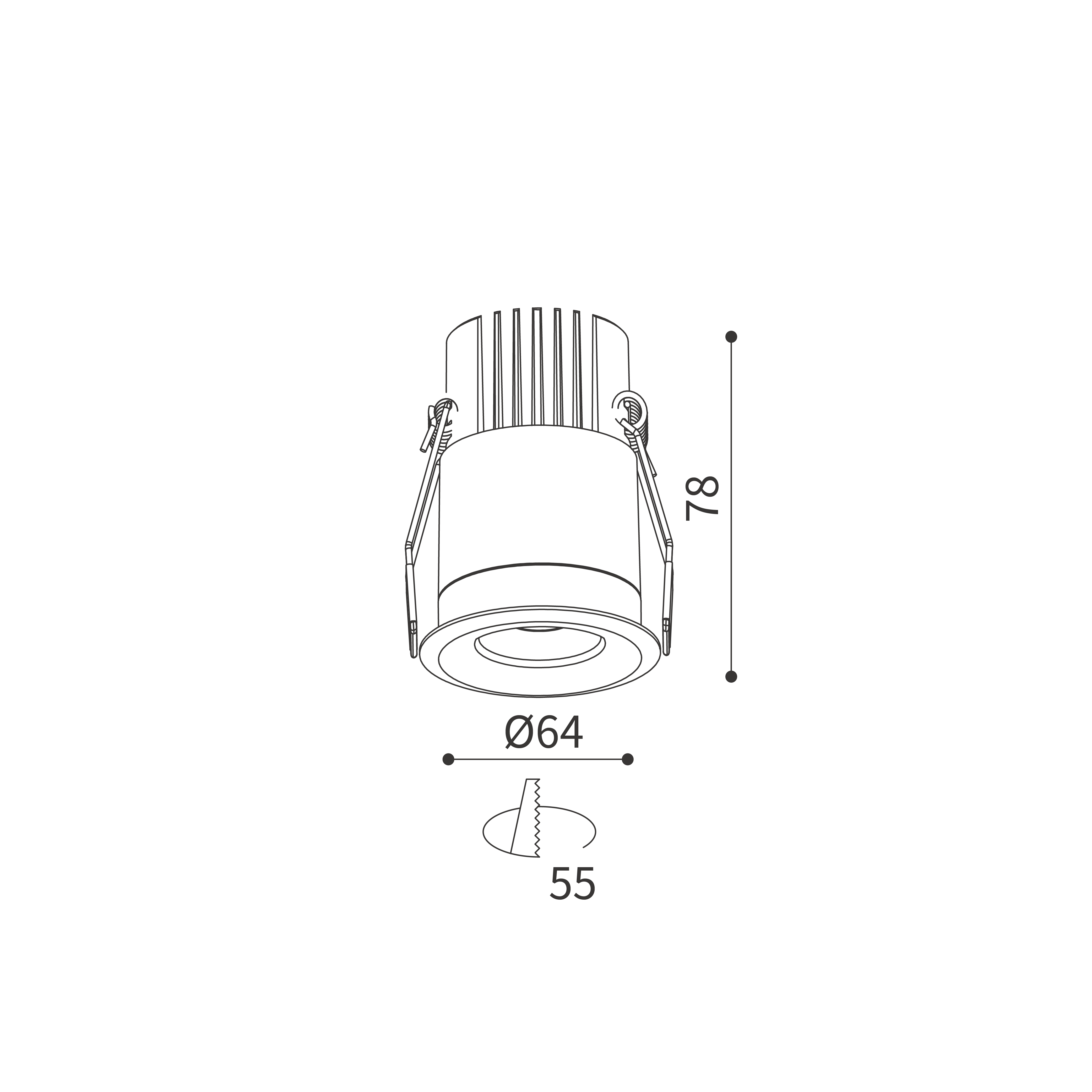

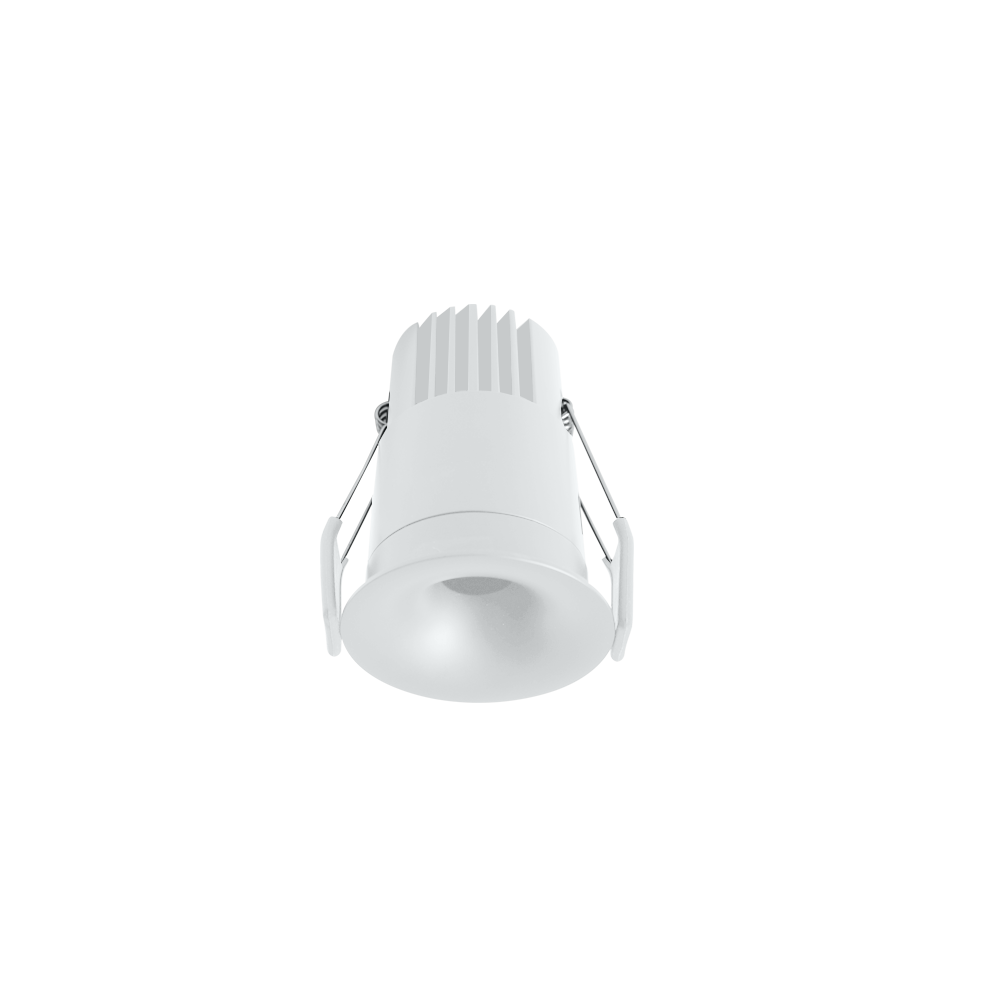

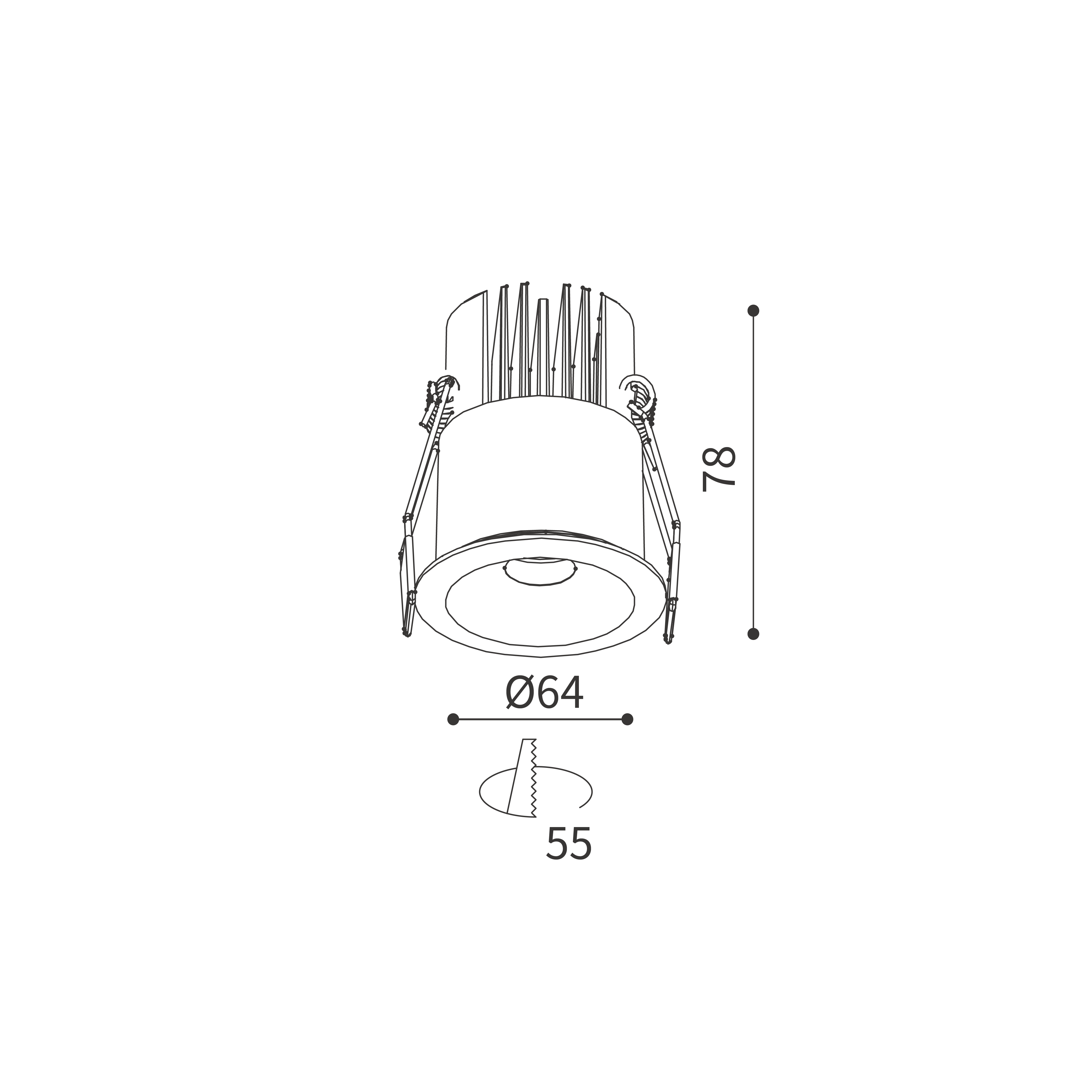

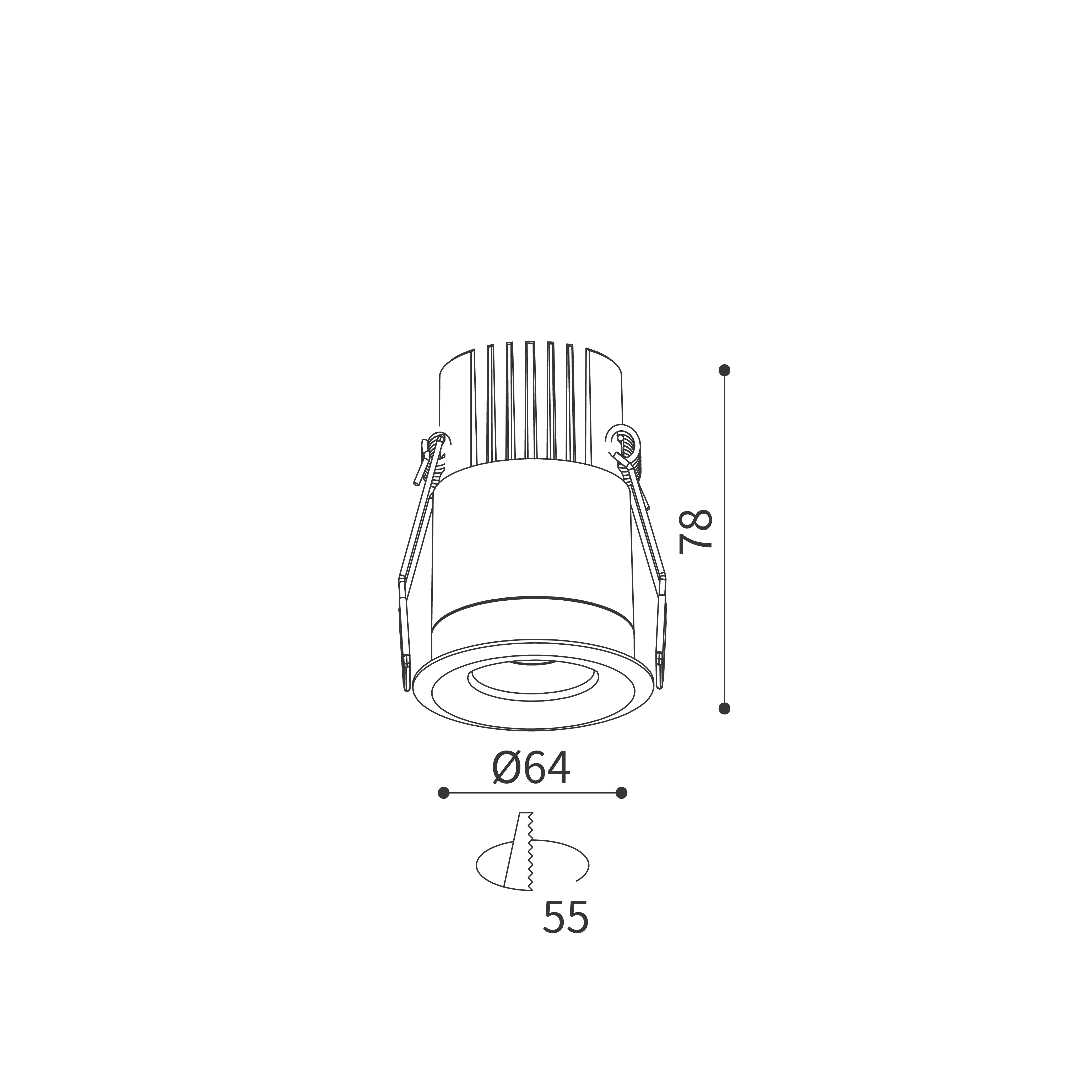

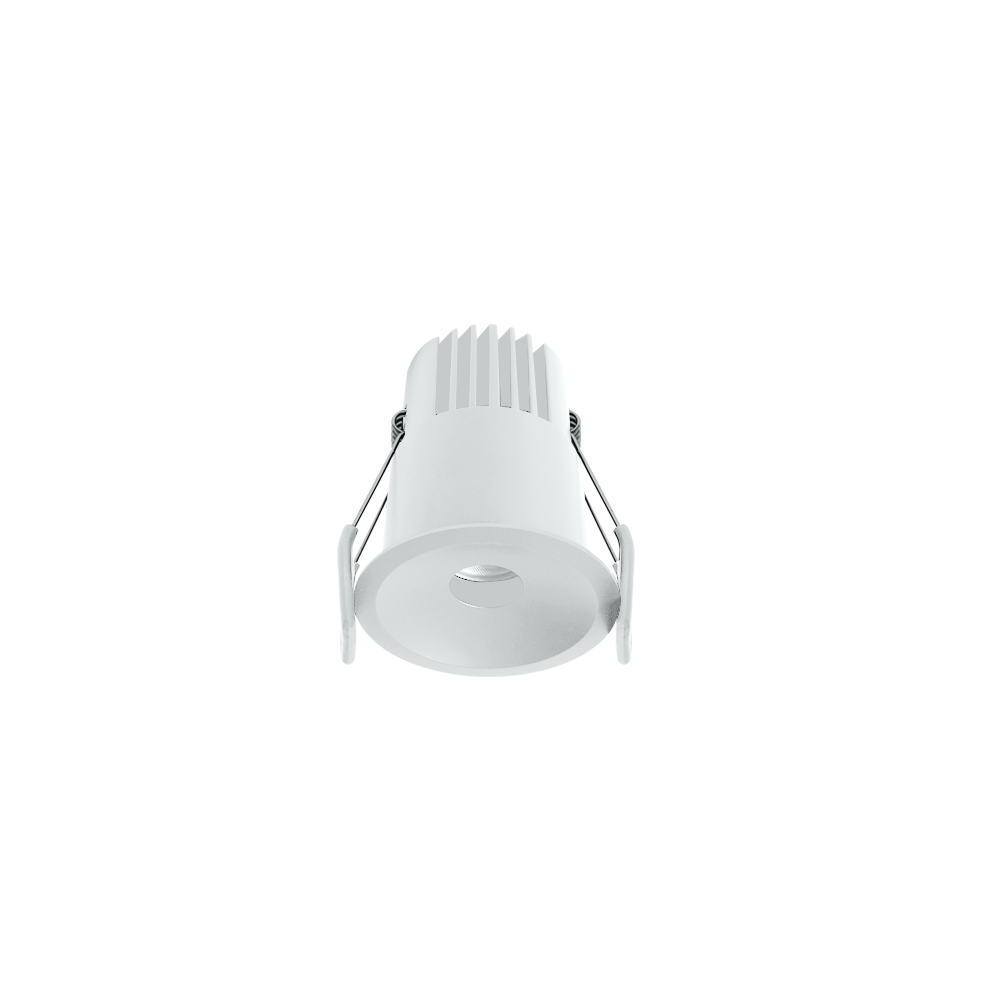

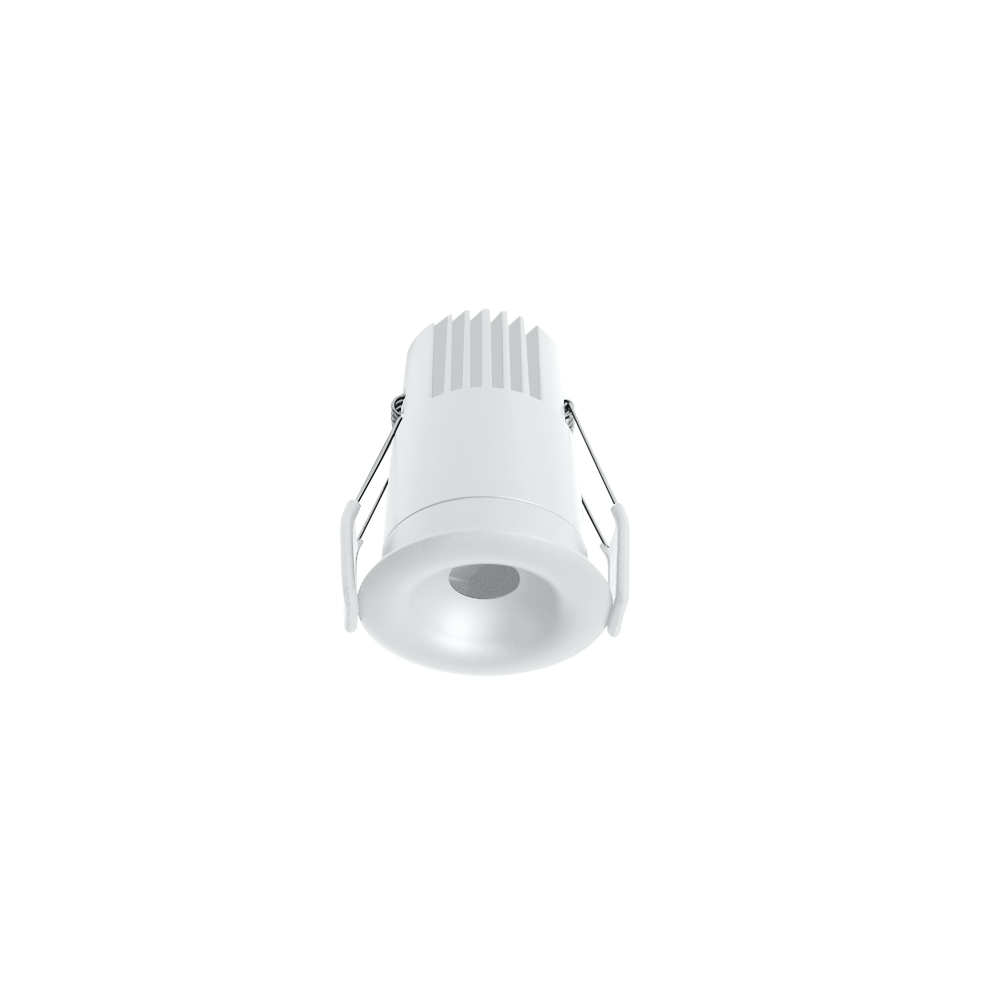

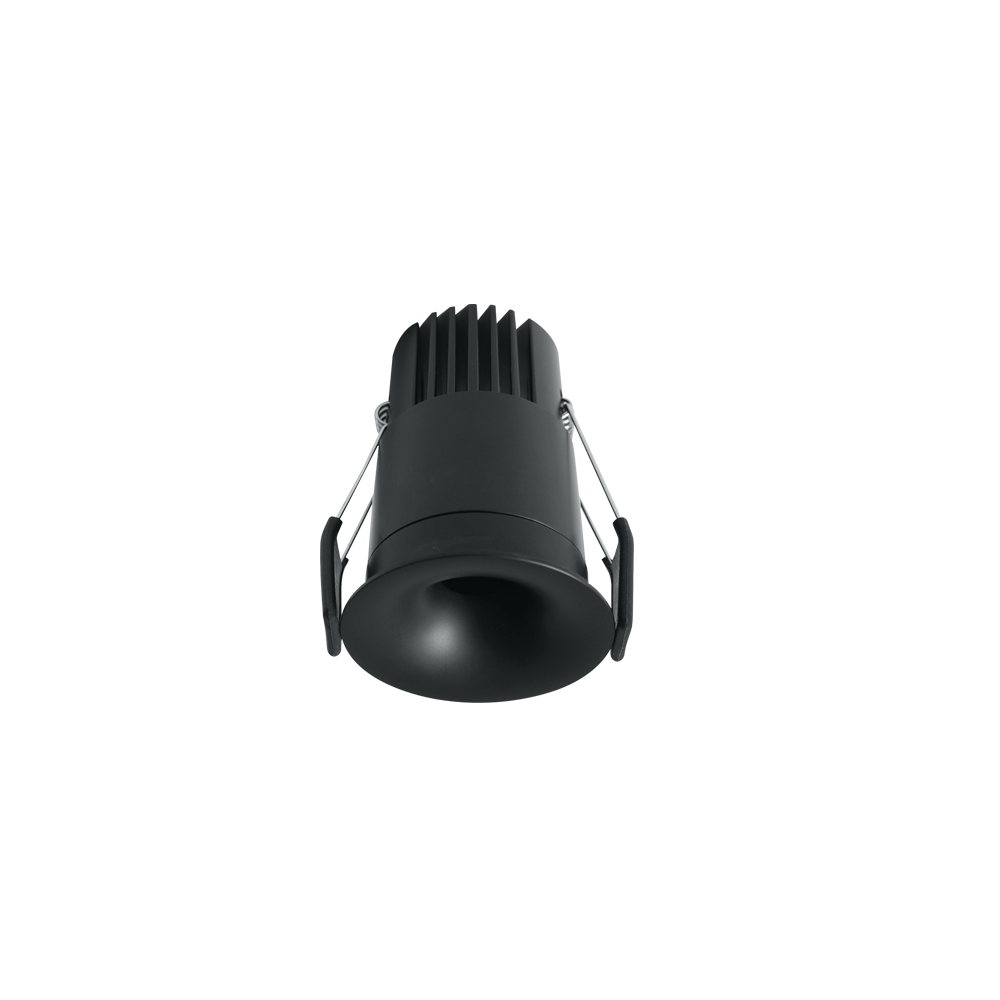

Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W, luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h,Photobiological safety:Safe,230V,rated current: 350mA,Beam angle:24°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=64 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D960-COB2-30K-36
|
L-D960-COB2-30K-36
|
15W
|
3000K
|
840lm
|
36°
|
White/Black
|
L-D960-COB2-30K-36
Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W, luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 230V, rated current: 350mA, Beam angle:36°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=64 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D962-COB2-30K-24
|
L-D962-COB2-30K-24
|
15W
|
3000K
|
840lm
|
24°
|
White/Black
|
L-D962-COB2-30K-24
Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W, luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 230V, rated current: 350mA, Beam angle:24°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=64 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D962-COB2-30K-36
|
L-D962-COB2-30K-36
|
15W
|
3000K
|
840lm
|
36°
|
White/Black
|
L-D962-COB2-30K-36
Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W, luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 230V, rated current: 350mA, Beam angle:36°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=64 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D686-COB2-30K-24
|
L-D686-COB2-30K-24
|
15W
|
3000K
|
840lm
|
24°
|
White/Black
|
L-D686-COB2-30K-24
Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W, luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 230V, rated current: 350mA, Beam angle:24°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=64 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D868-COB2-30K-24
|
L-D868-COB2-30K-24
|
15W
|
3000K
|
840lm
|
24°
|
White/Black
|
L-D868-COB2-30K-24
Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W, luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 230V, rated current: 350mA, Beam angle:24°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=64 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D868-COB2-30K-36
|
L-D868-COB2-30K-36
|
15W
|
3000K
|
840lm
|
36°
|
White/Black
|
L-D868-COB2-30K-36
Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W, luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe,230V, rated current: 350mA, Beam angle:36°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=64 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D686-COB2-30K-36
|
L-D686-COB2-30K-36
|
15W
|
3000K
|
840lm
|
36°
|
White/Black
|
L-D686-COB2-30K-36
Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W, luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 230V, rated current: 350mA, Beam angle:36°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=64 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D869-COB2-30K-24
|
L-D869-COB2-30K-24
|
15W
|
3000K
|
840lm
|
24°
|
White/Black
|
L-D869-COB2-30K-24
Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W, luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 230V, rated current: 350mA, Beam angle:24°,black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=64 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D869-COB2-30K-36
|
L-D869-COB2-30K-36
|
15W
|
3000K
|
840lm
|
36°
|
White/Black
|
L-D869-COB2-30K-36
Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W, luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 230V, rated current: 350mA, Beam angle:36°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=64 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D687-COB2-30K-24
|
L-D687-COB2-30K-24
|
15W
|
3000K
|
840lm
|
24°
|
White/Black
|
L-D687-COB2-30K-24

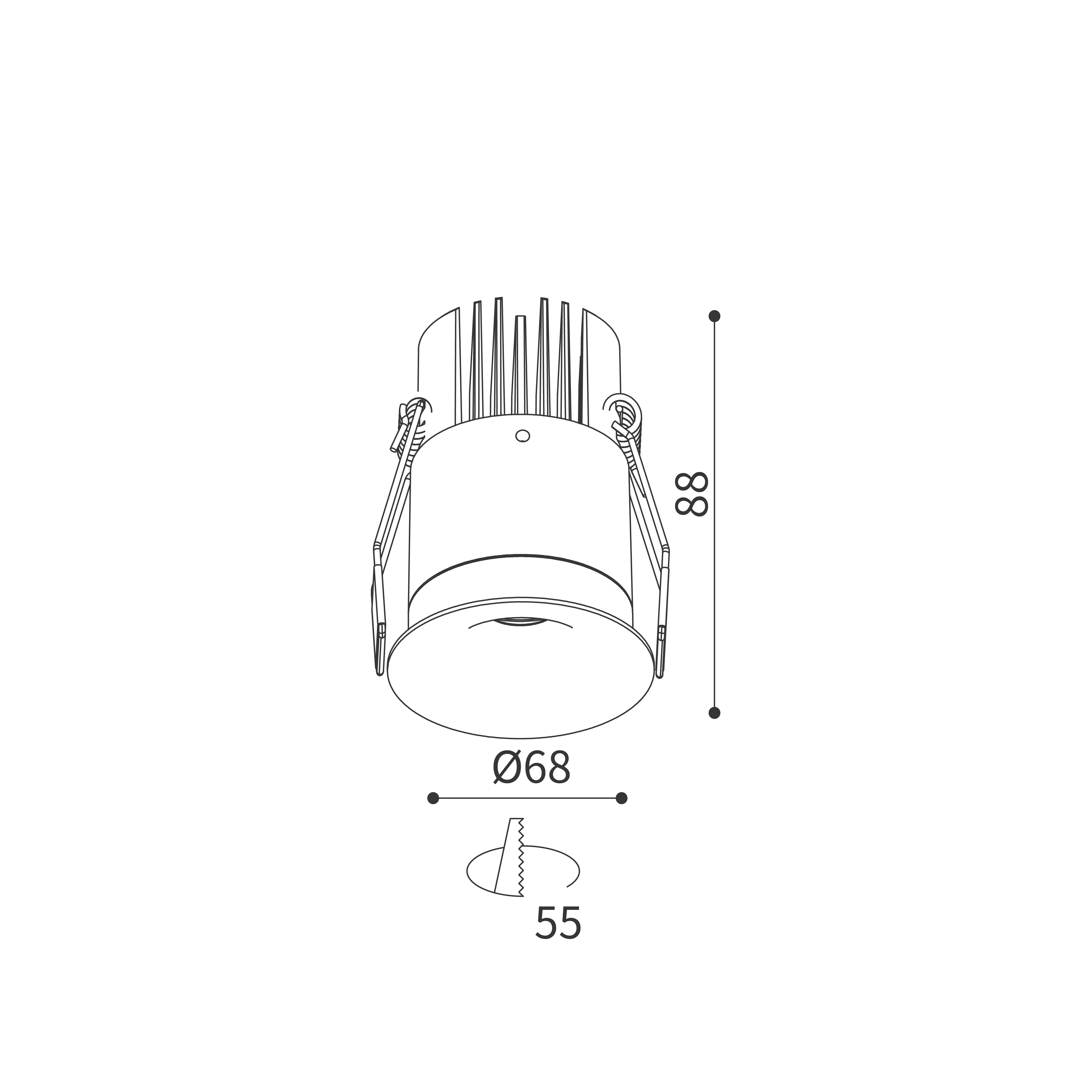

Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W, luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 350mA,Beam angle:24°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=68 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR <19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D687-COB2-30K-36
|
L-D687-COB2-30K-36
|
15W
|
3000K
|
840lm
|
36°
|
White/Black
|
L-D687-COB2-30K-36
Recessed downlight COMFORT Round inner ring set back, with LED, system power:15W,luminous flux of luminaire 840lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe,220V, rated current: 350mA, Beam angle:36°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=68 mm, ceiling cutout ø55 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
