A&C-SQUARE

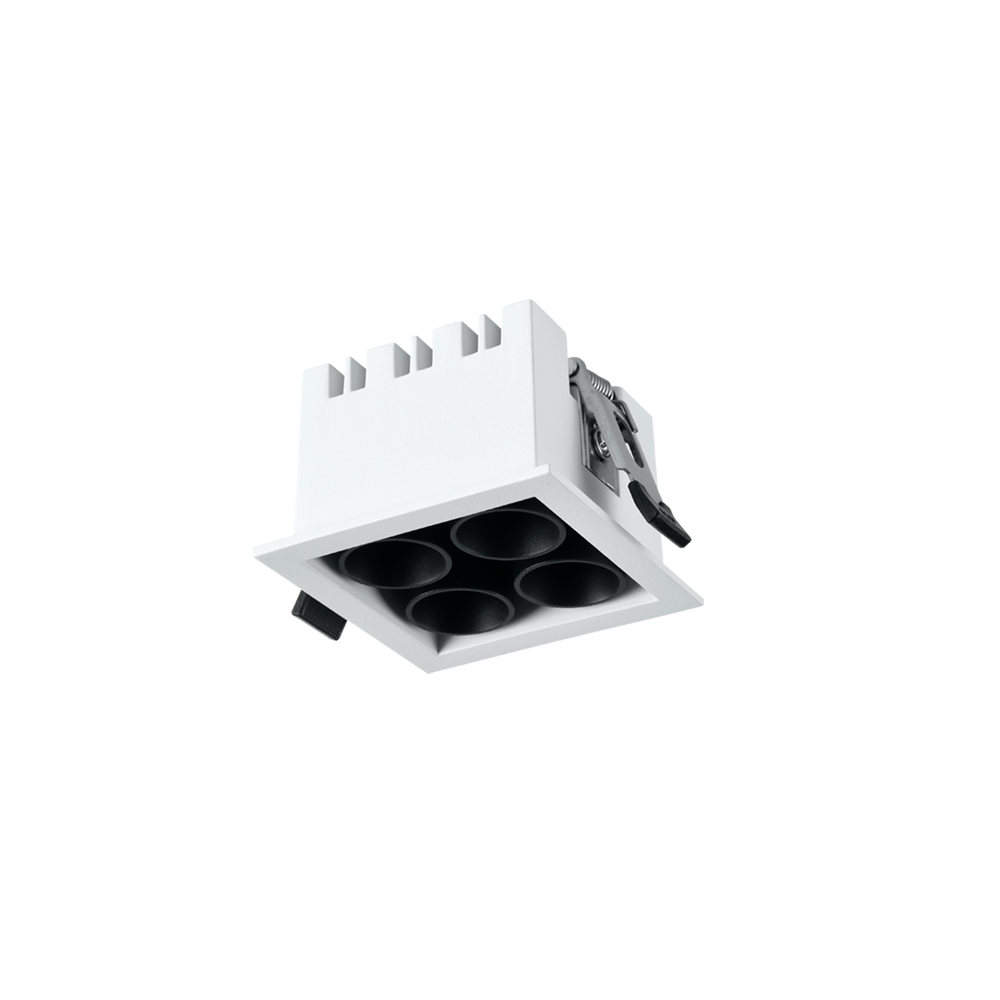

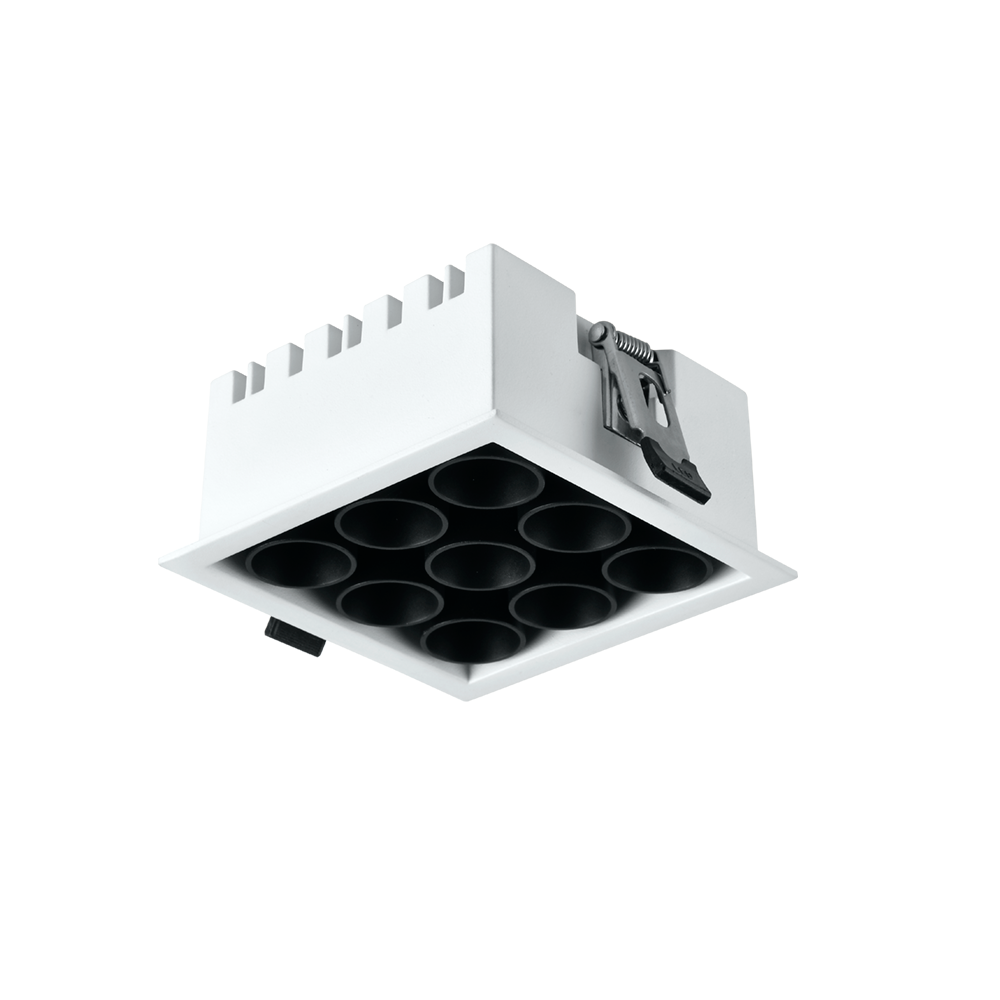

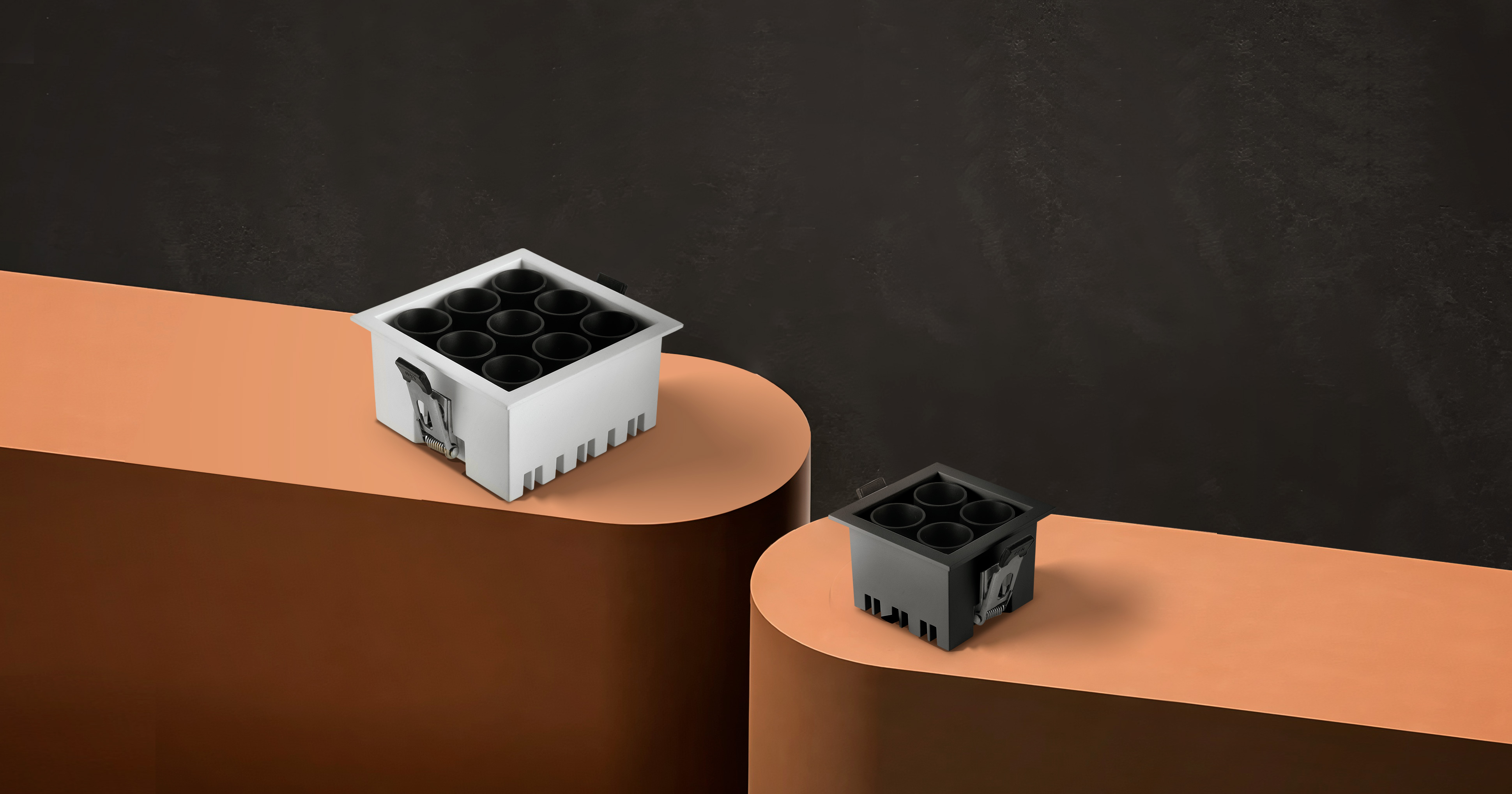

A&C-SQUARE is a series square rectangular luminaires, available in 4 or 9 light versions.This family of luminaires is manufactured in different sizes and power so it is easy to find one that fits best to your lighting needs.

Features Features

-These luminaires long oplics to distribute the light over o more norrow area than with traditional lighting.

-Create a circle of light from a line of LED Downlights

-A narrow line of nano LED Downlights for pure minimalism Superior glare control for high performance

-Trimless Version Trim Version

Specifications Specifications

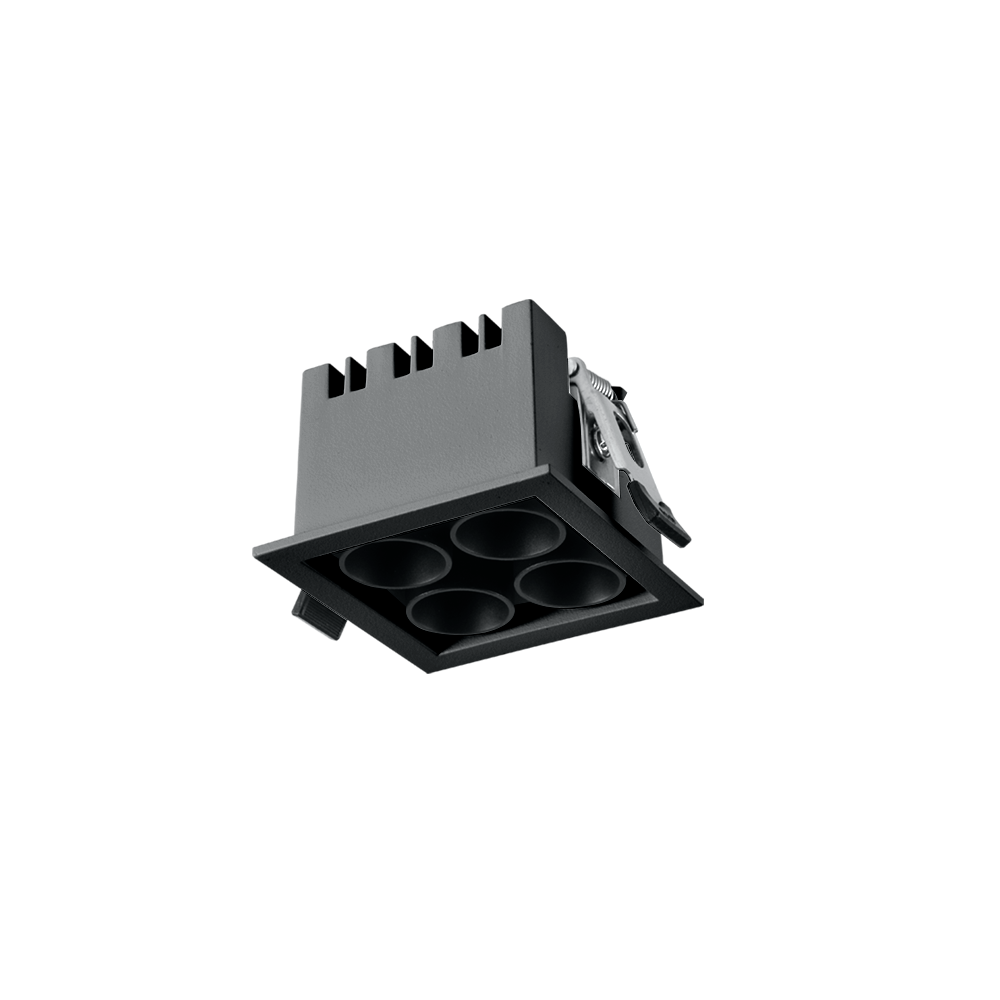

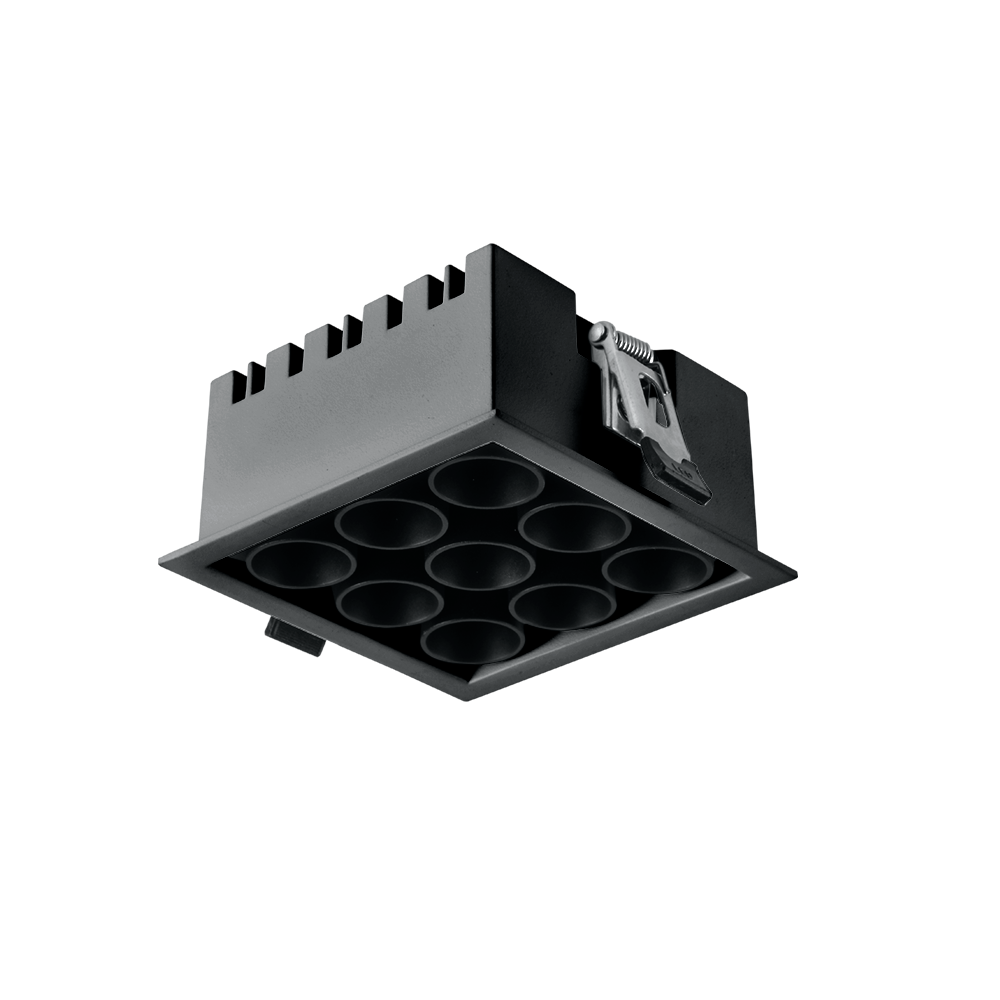

-Black and white versions available

-Aluminum housing and in powder-coated finish, excellent dissipation

-ON/OFF, TRIAC 0-10V, and DALl control system

-Switchable CCT version in 3000K-3500K-4000K switchable, easier for keeping stock

-Downlight with pleasantly homogeneous luminance levels

Fields of application Fields of application

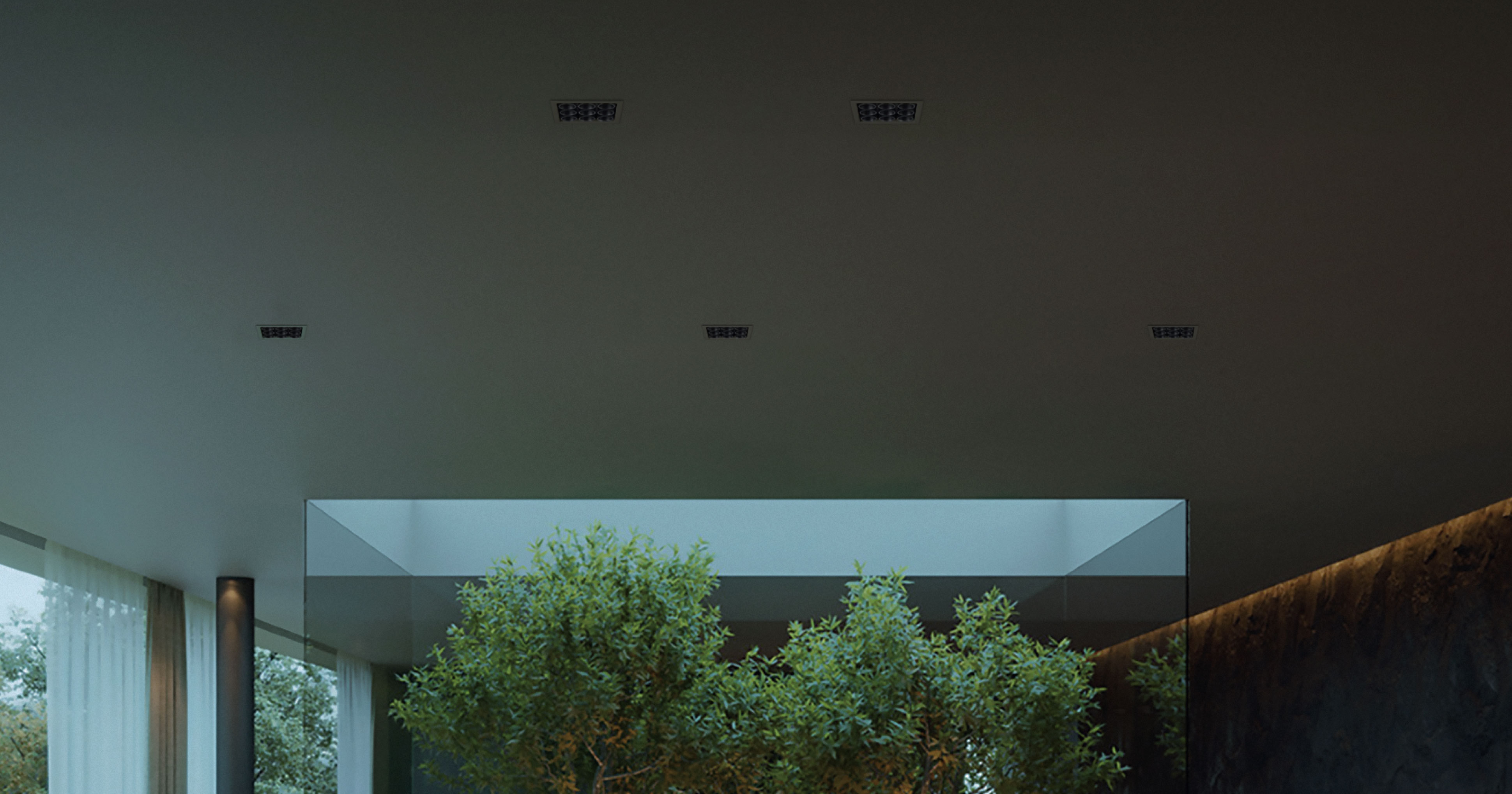

Retail & Hospitality

retail spaces, presentation of merchandise, restaurants, hotels,

shop windows,exhibition spaces

Office & Education

offices, conference rooms, art & culture establishments

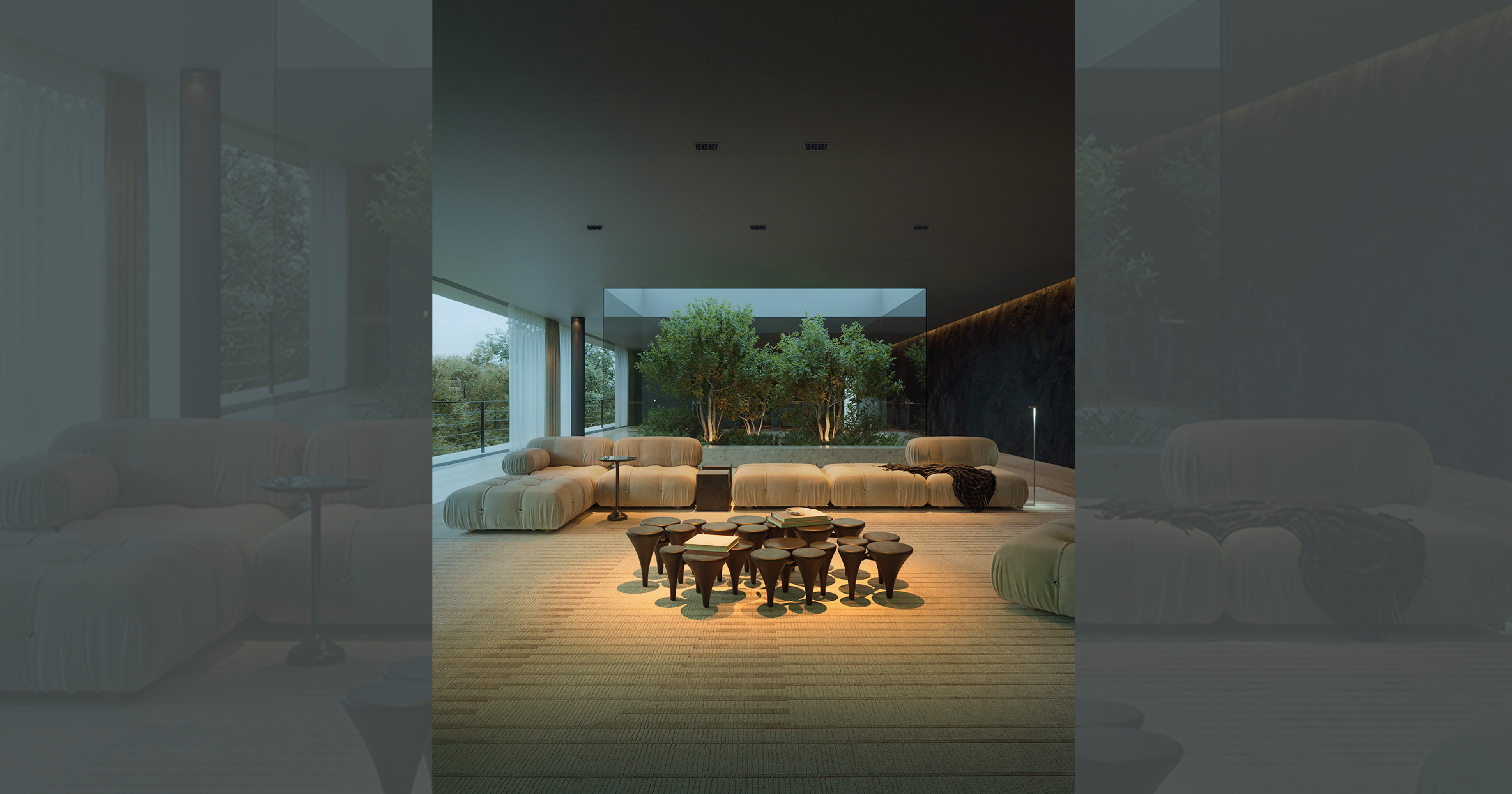

Home & Living

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-D335-4-30K-16	L-D335-4-30K-16	10W	3000K	710lm	16°	White/Black

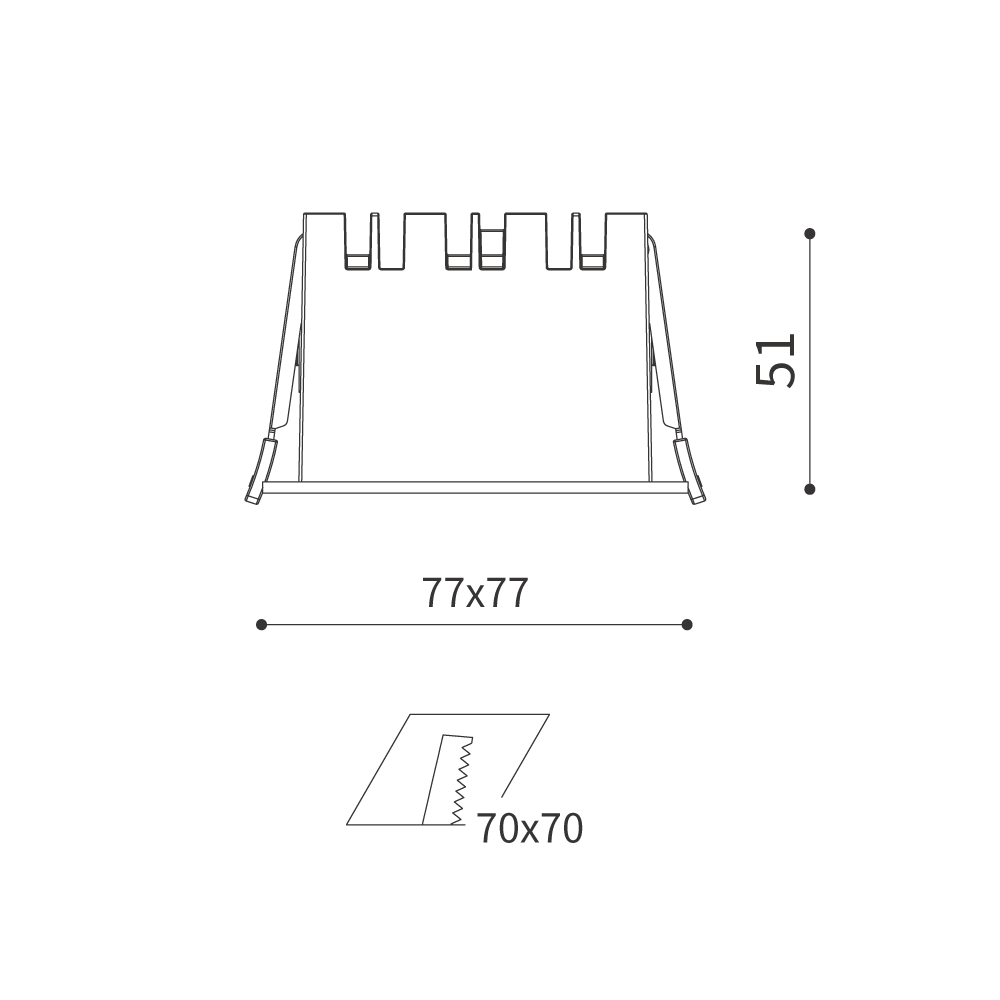

Get in Touch Get in Touch L-D335-4-30K-16 Eyeled spotlight-small A&C, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=77x77 mm, ceiling cutout ø70x70 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.25kg Color Rendering Index(CRI) CRI≥90 Height 51mm Unified Glare Rating (UGR) UGR <10 Length 77mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 77mm Beam angle 16° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D335-4-30K-24	L-D335-4-30K-24	10W	3000K	710lm	24°	White/Black
Get in Touch Get in Touch L-D335-4-30K-24 Eyeled spotlight-small A&C, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=77x77 mm, ceiling cutout ø70x70 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.25kg Color Rendering Index(CRI) CRI≥90 Height 51mm Unified Glare Rating (UGR) UGR <10 Length 77mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 77mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D335-4-30K-38	L-D335-4-30K-38	10W	3000K	710lm	38°	White/Black
Get in Touch Get in Touch L-D335-4-30K-38 Eyeled spotlight-small A&C, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:38°, black/white color, ON/OFF.ingress protection IP20. Ø=77x77 mm, ceiling cutout ø70x70 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.25kg Color Rendering Index(CRI) CRI≥90 Height 51mm Unified Glare Rating (UGR) UGR <10 Length 77mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 77mm Beam angle 38° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D335-9-30K-16	L-D335-9-30K-16	20W	3000K	1460lm	16°	White/Black

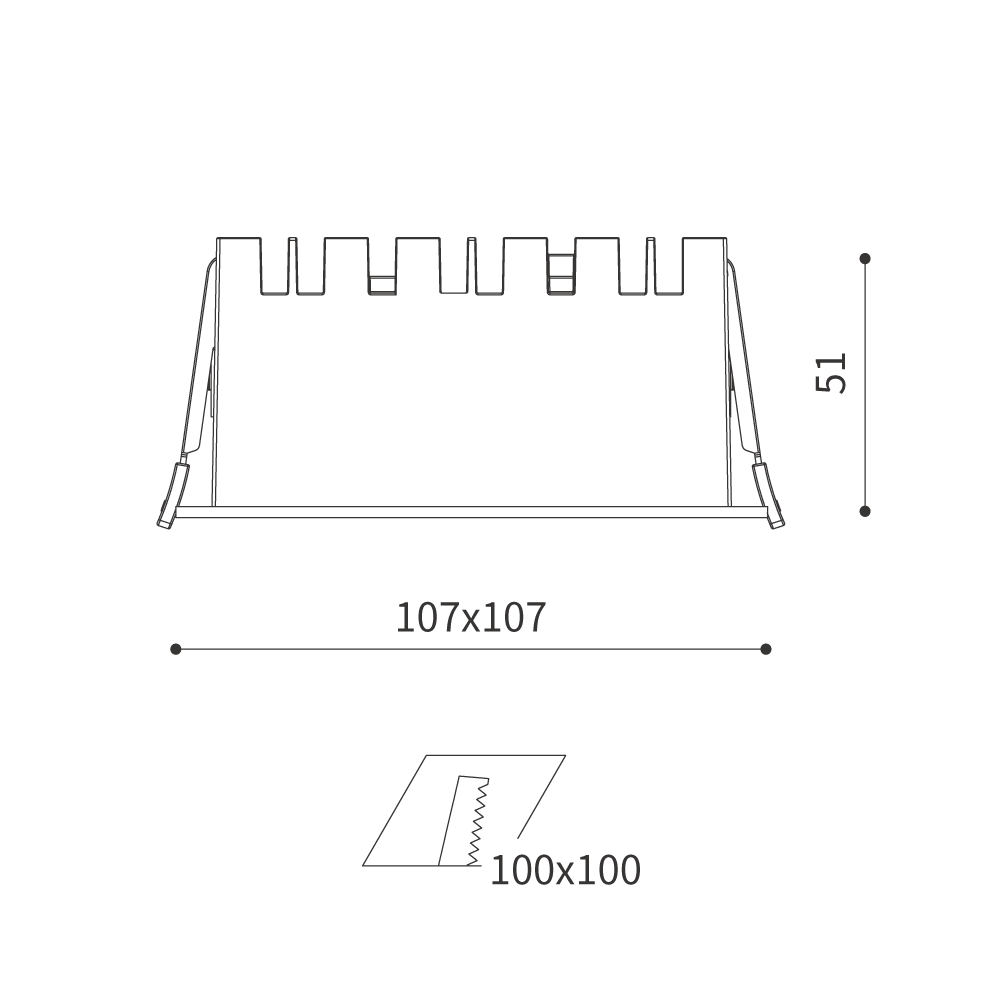

Get in Touch Get in Touch L-D335-9-30K-16 Eyeled spotlight-small A&C, with LED,system power:20W, luminous flux of luminaire 1460lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=107x107 mm, ceiling cutout ø100x100 mm Nominal power 20W Finish White/Black Delivered lumens 1460lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.44kg Color Rendering Index(CRI) CRI≥90 Height 51mm Unified Glare Rating (UGR) UGR <10 Length 107mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 107mm Beam angle 16° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D335-9-30K-24	L-D335-9-30K-24	20W	3000K	1460lm	24°	White/Black
Get in Touch Get in Touch L-D335-9-30K-24 Eyeled spotlight-small A&C, with LED,system power:20W, luminous flux of luminaire 1460lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=107x107 mm, ceiling cutout ø100x100 mm Nominal power 20W Finish White/Black Delivered lumens 1460lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.44kg Color Rendering Index(CRI) CRI≥90 Height 51mm Unified Glare Rating (UGR) UGR <10 Length 107mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 107mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D335-9-30K-38	L-D335-9-30K-38	20W	3000K	1460lm	38°	White/Black
Get in Touch Get in Touch L-D335-9-30K-38 Eyeled spotlight-small A&C, with LED,system power:20W, luminous flux of luminaire 1460lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:38°, black/white color, ON/OFF.ingress protection IP20. Ø=107x107 mm, ceiling cutout ø100x100 mm Nominal power 20W Finish White/Black Delivered lumens 1460lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.44kg Color Rendering Index(CRI) CRI≥90 Height 51mm Unified Glare Rating (UGR) UGR <10 Length 107mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 107mm Beam angle 38° Downloads None Accessories Transparent PVC sheet Honeycomb
