A&C

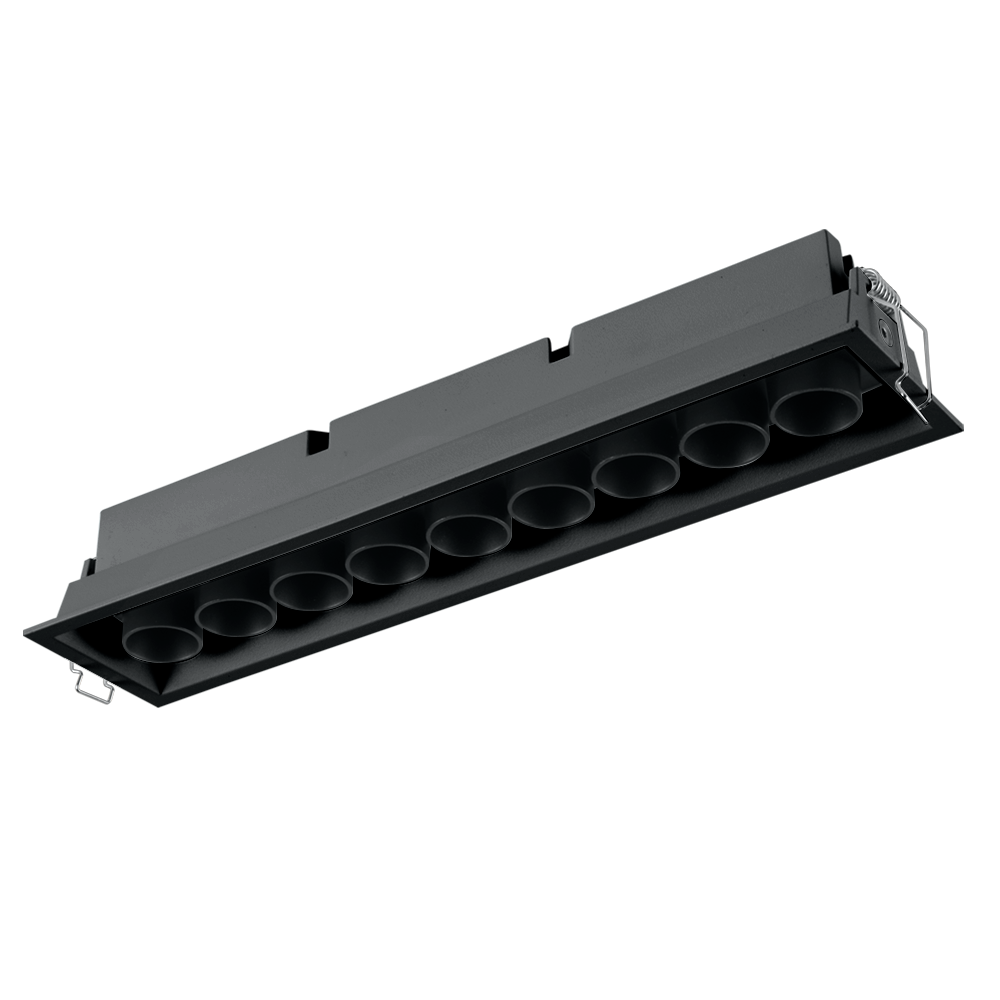

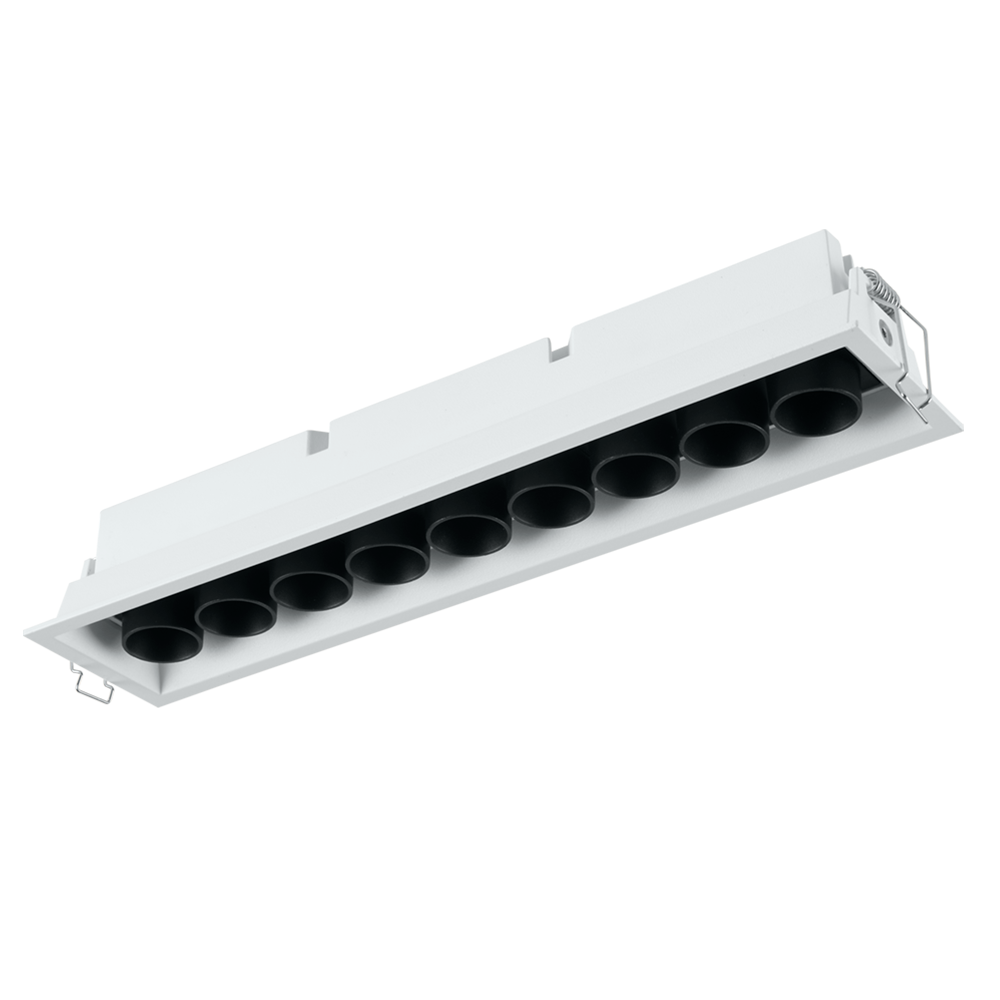

This is our adjustable  Eyeled spotlight-small A&C,Linear lighting offers a perfect blend of style, functionality and flexibility.The versatility of our lighting ranges leads them to be a popular option for adiverse range of applications from shopfitting lighting to high-end architectural projects. Today we see linear lighting in offices, retail, education and many commercial spaces. Linear lighting is defined as a linear shape luminaire (opposed to square or round).




Features Features

-These luminaires long oplics to distribute the light over o more norrow area than with traditional lighting.

-Create a circle of light from a line of LED Downlights

-A narrow line of nano LED Downlights for pure minimalism Superior glare control for high performance

-Trimless Version Trim Version

Specifications Specifications

-Black and white versions available

-Aluminum housing and in powder-coated finish, excellent dissipation

-ON/OFF, TRIAC 0-10V, and DALl control system

-Switchable CCT version in 3000K-4000K-5000K switchable, easier for keeping stock

-Downlight with pleasantly homogeneous luminance levels

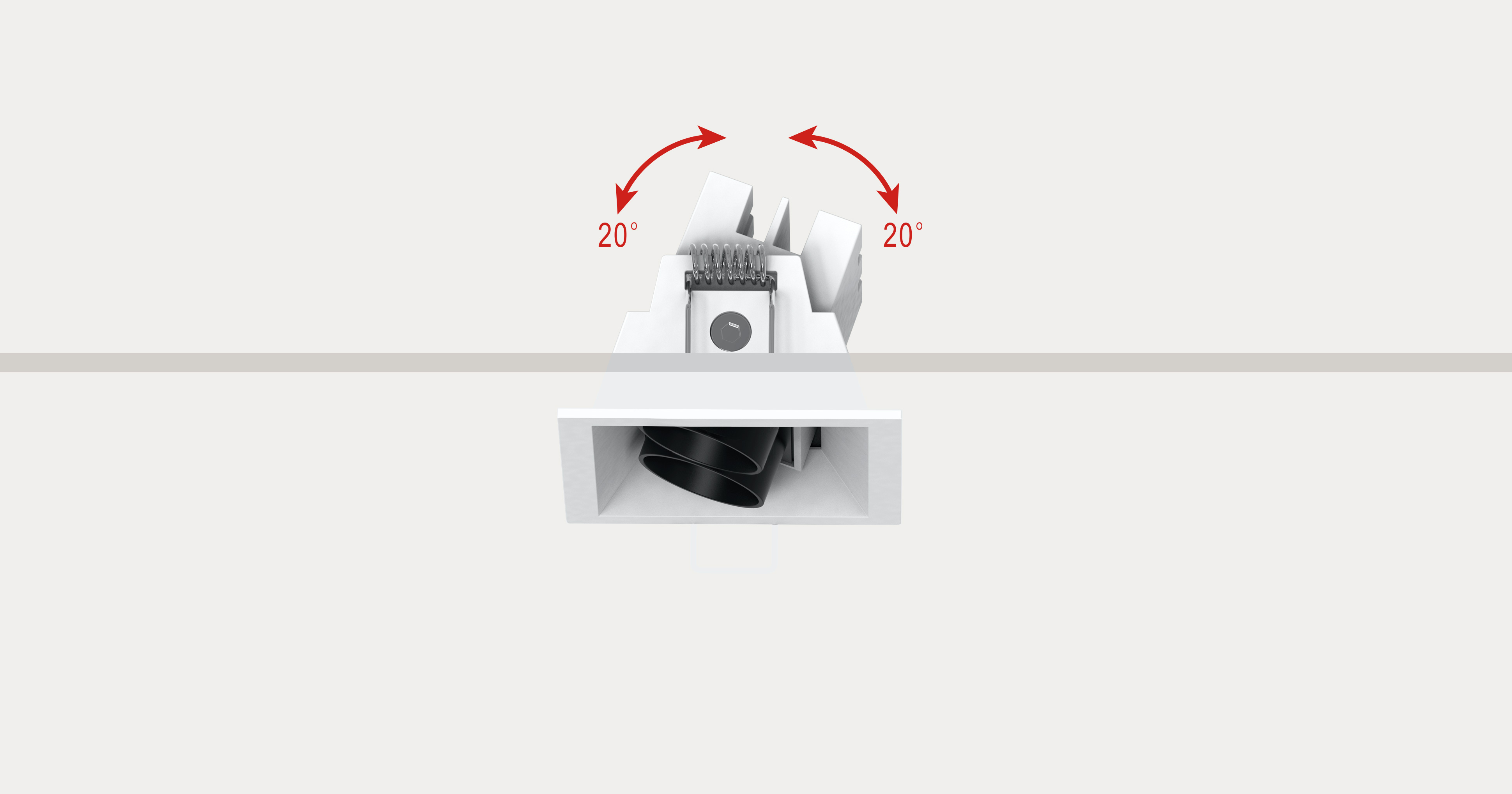

-Tilt left and right 20°

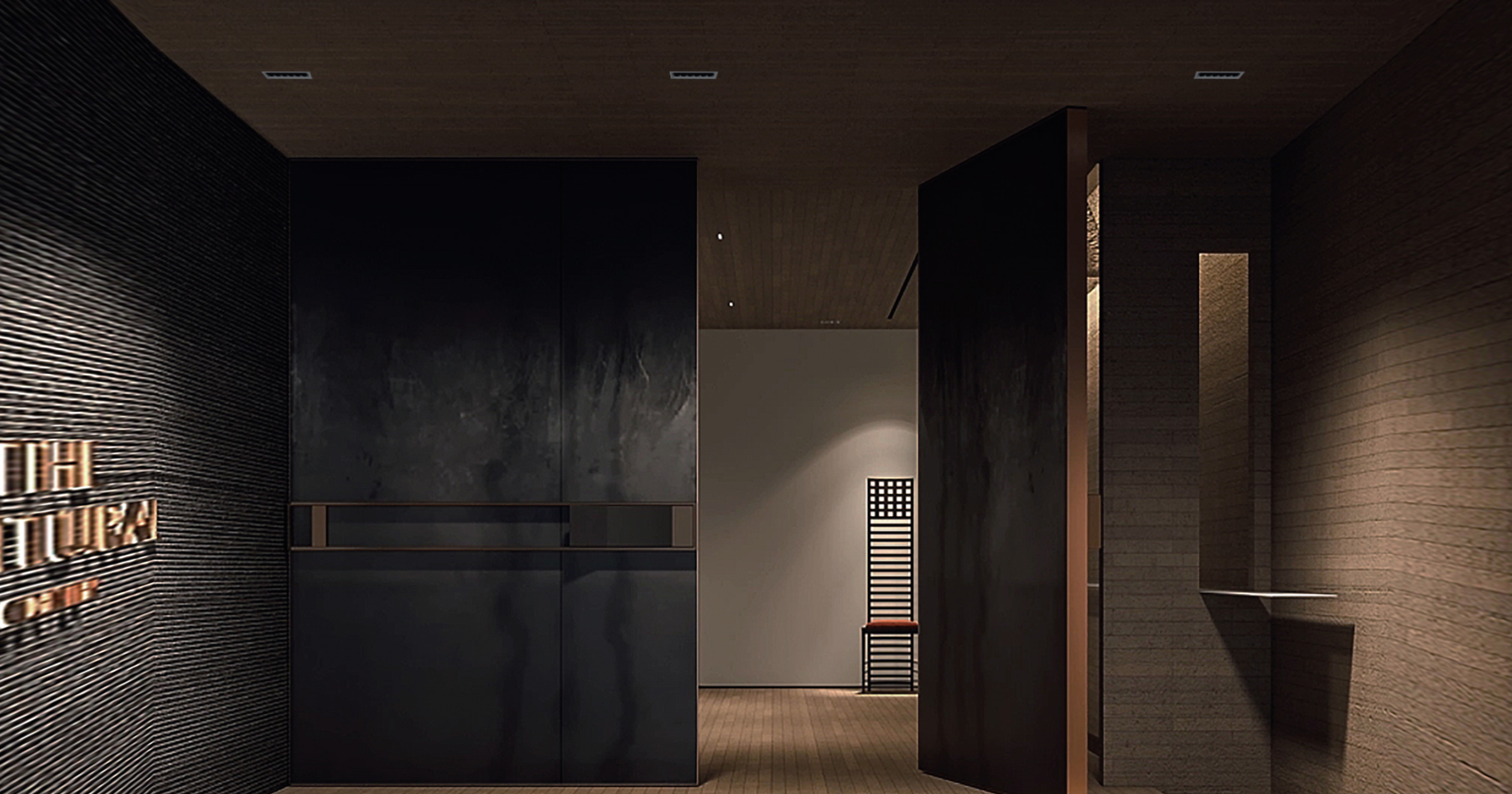

Fields of application Fields of application

Retail & Hospitality

retail spaces, presentation of merchandise, restaurants, hotels,

shop windows,exhibition spaces

Office & Education

offices, conference rooms, art & culture establishments

Home & Living


Version
0 Article

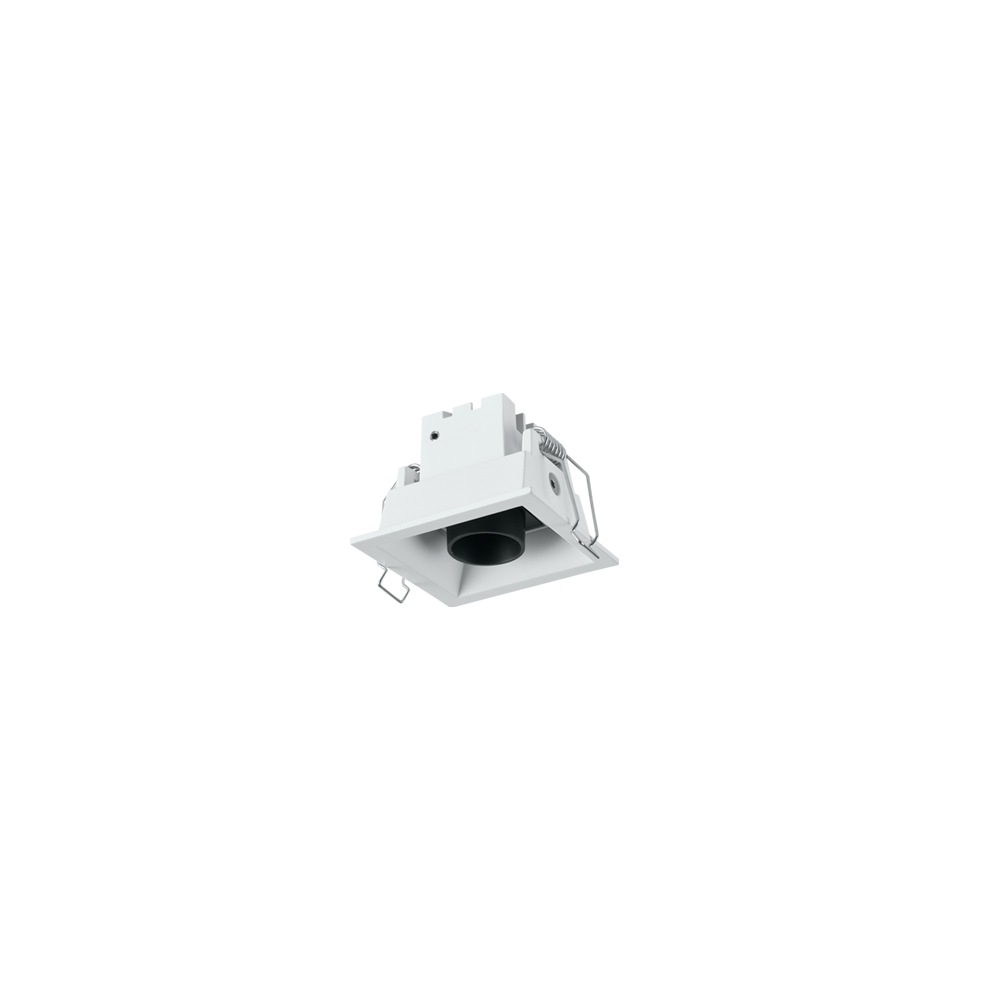

PROH_6853_1.jpg L-D332-1-3W
PROH_6853_1.jpg L-D332-2-5W

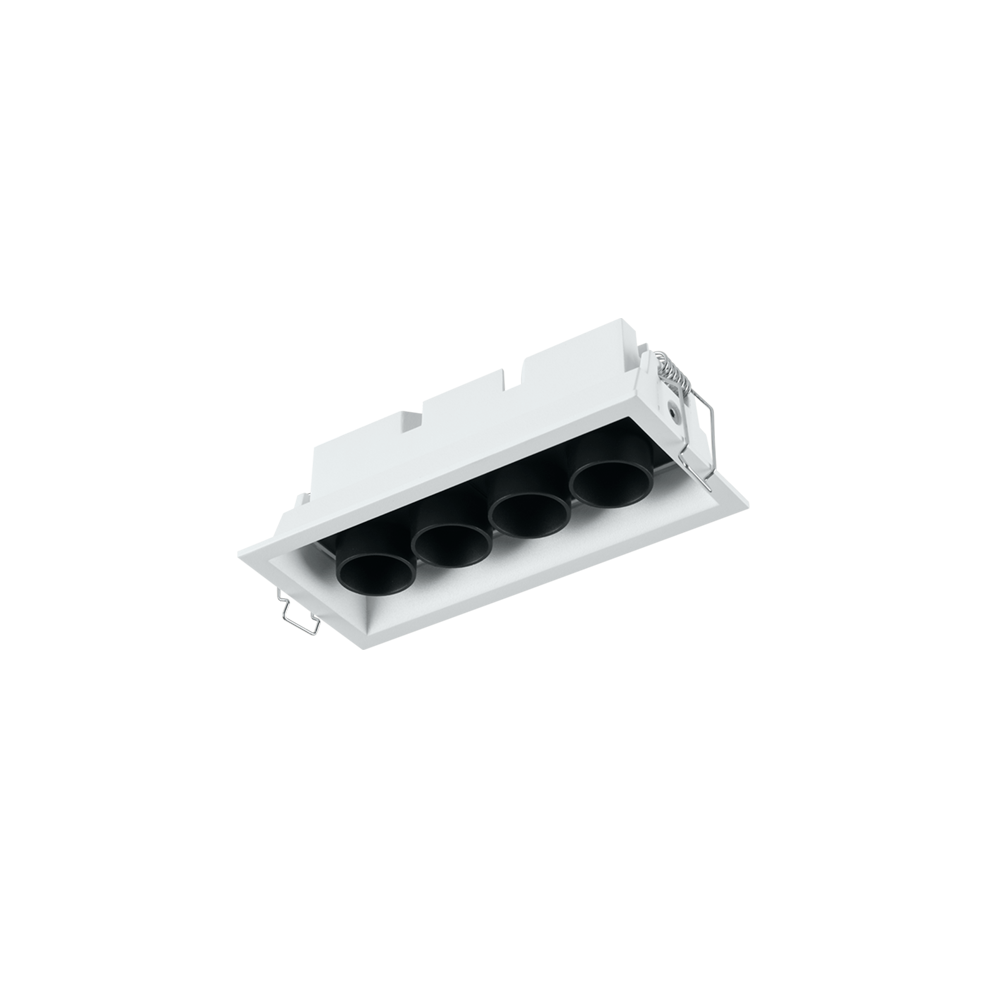

PROH_6853_1.jpg L-D332-4-10W
PROH_6853_1.jpg L-D332-6-15W
PROH_6853_1.jpg L-D332-9-20W
Nominal power
3W
BEAM ANGLE
32°
24°
16°
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-D332-1-30K-16 L-D332-1-30K-16 3W 3000K 126lm 16° White/Black
Get in Touch Get in Touch

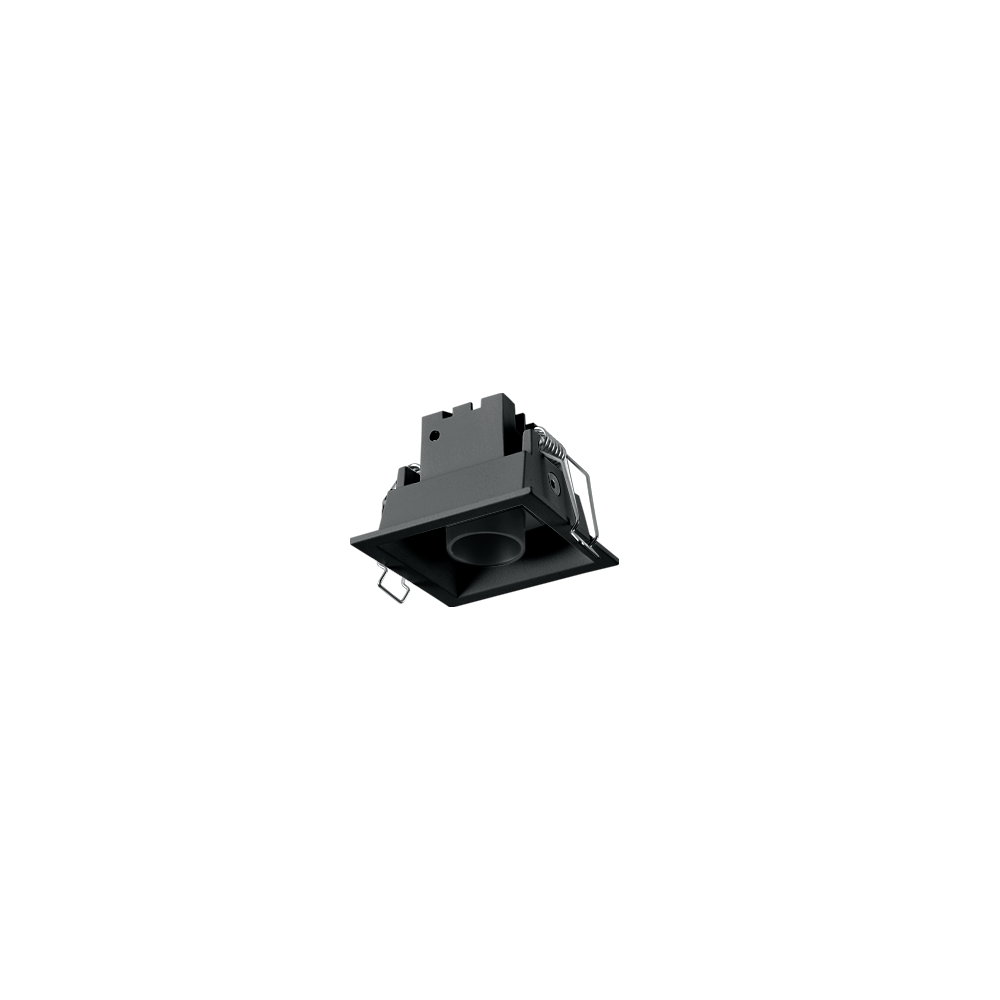

/static/upload/2026/07/07/202607076934.png
/static/upload/2026/07/07/202607072658.png
/static/upload/2026/07/07/202607076505.png

L-D332-1-30K-16

Eyeled spotlight-small A&C, with LED,system power:3W, luminous flux of luminaire 126lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 500mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20.

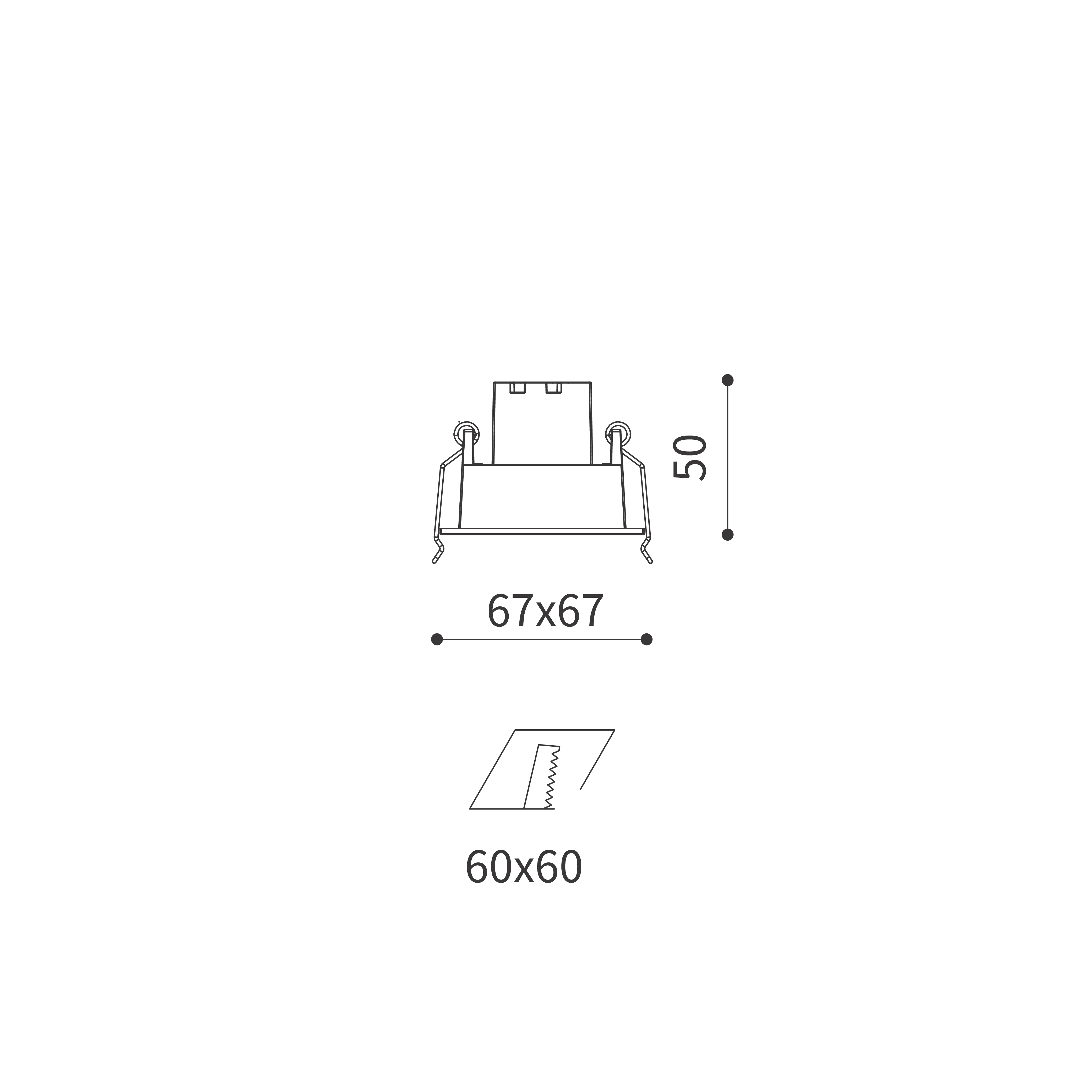

Ø=67x67 mm, ceiling cutout ø60x60 mm

Nominal power
3W
Finish
White/Black
Delivered lumens
126lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.15kg
Color Rendering Index(CRI)
CRI≥90
Diameter
67mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
16°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-1-30K-24 L-D332-1-30K-24 3W 3000K 126lm 24° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607076934.png
/static/upload/2026/07/07/202607072658.png
/static/upload/2026/07/07/202607076505.png

L-D332-1-30K-24

Eyeled spotlight-small A&C, with LED,system power:3W, luminous flux of luminaire 126lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 500mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20.

Ø=67x67 mm, ceiling cutout ø60x60 mm

Nominal power
3W
Finish
White/Black
Delivered lumens
126lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.15kg
Color Rendering Index(CRI)
CRI≥90
Diameter
67mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
24°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-1-30K-32 L-D332-1-30K-32 3W 3000K 126lm 32° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607076934.png
/static/upload/2026/07/07/202607072658.png
/static/upload/2026/07/07/202607076505.png

L-D332-1-30K-32

Eyeled spotlight-small A&C, with LED,system power:3W, luminous flux of luminaire 126lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 500mA, Beam angle:32°, black/white color, ON/OFF.ingress protection IP20.

Ø=67x67 mm, ceiling cutout ø60x60 mm

Nominal power
3W
Finish
White/Black
Delivered lumens
126lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.15kg
Color Rendering Index(CRI)
CRI≥90
Diameter
67mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
32°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

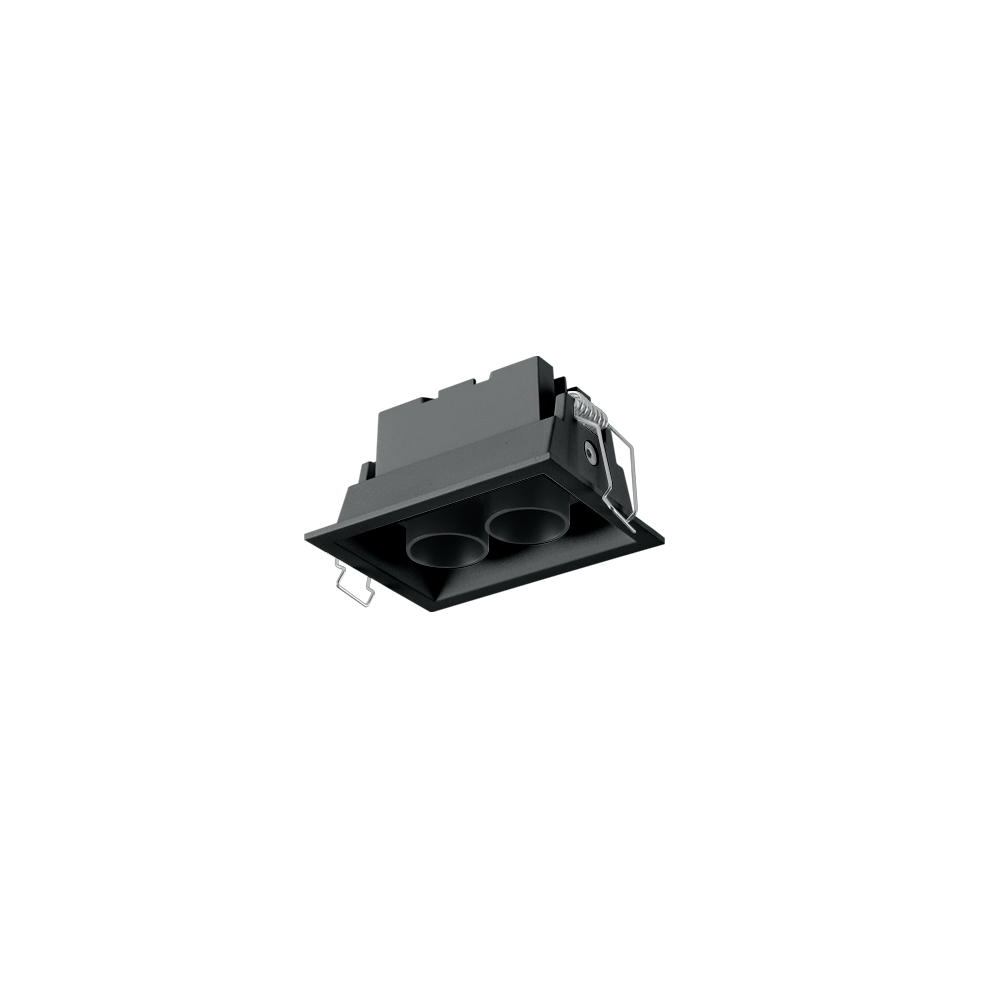

 L-D332-2-30K-16 L-D332-2-30K-16 5W 3000K 290lm 16° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607077530.png

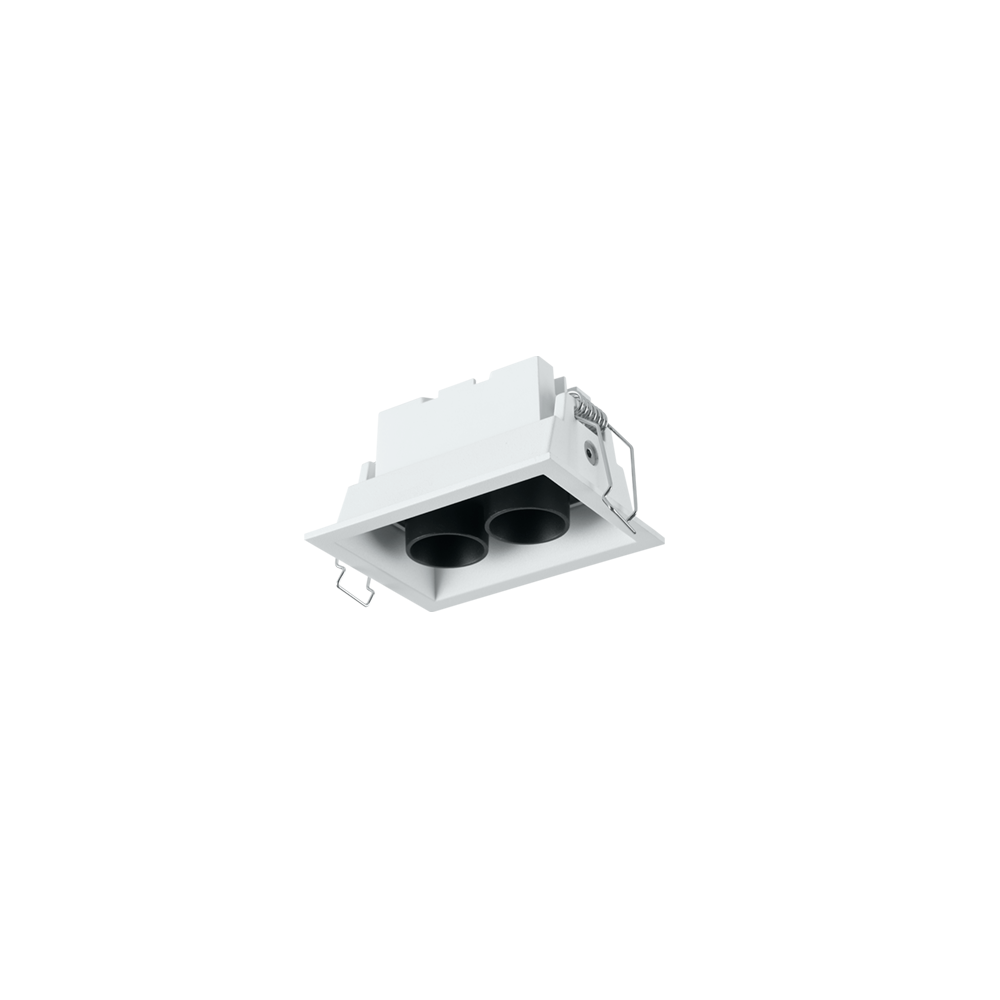

/static/upload/2026/07/07/202607075287.png
/static/upload/2026/07/07/202607079204.png

L-D332-2-30K-16

Eyeled spotlight-small A&C, with LED,system power:5W, luminous flux of luminaire 290lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20.

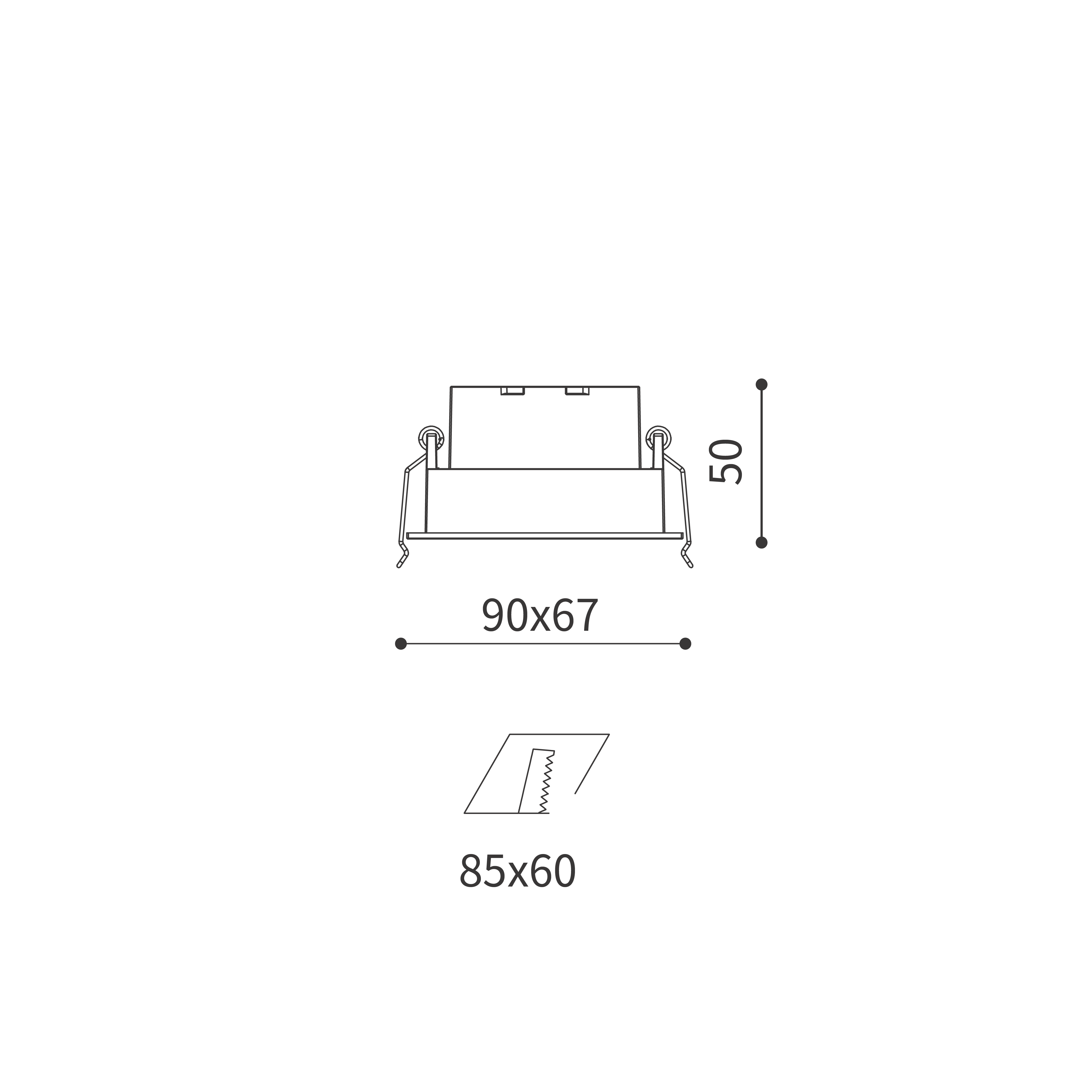

Ø=90x67 mm, ceiling cutout ø85x60 mm

Nominal power
5W
Finish
White/Black
Delivered lumens
290lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.32kg
Color Rendering Index(CRI)
CRI≥90
Diameter
90mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
16°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-2-30K-24 L-D332-2-30K-24 5W 3000K 290lm 24° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607077530.png
/static/upload/2026/07/07/202607075287.png
/static/upload/2026/07/07/202607079204.png

L-D332-2-30K-24

Eyeled spotlight-small A&C, with LED,system power:5W, luminous flux of luminaire 290lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20.

Ø=90x67 mm, ceiling cutout ø85x60 mm

Nominal power
5W
Finish
White/Black
Delivered lumens
290lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.32kg
Color Rendering Index(CRI)
CRI≥90
Diameter
90mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
24°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-2-30K-32 L-D332-2-30K-32 5W 3000K 290lm 32° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607077530.png
/static/upload/2026/07/07/202607075287.png
/static/upload/2026/07/07/202607079204.png

L-D332-2-30K-32

Eyeled spotlight-small A&C, with LED,system power:5W, luminous flux of luminaire 290lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:32°, black/white color, ON/OFF.ingress protection IP20.

Ø=90x67 mm, ceiling cutout ø85x60 mm

Nominal power
5W
Finish
White/Black
Delivered lumens
290lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.32kg
Color Rendering Index(CRI)
CRI≥90
Diameter
90mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
32°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-4-30K-16 L-D332-4-30K-16 10W 3000K 630lm 16° White/Black
Get in Touch Get in Touch

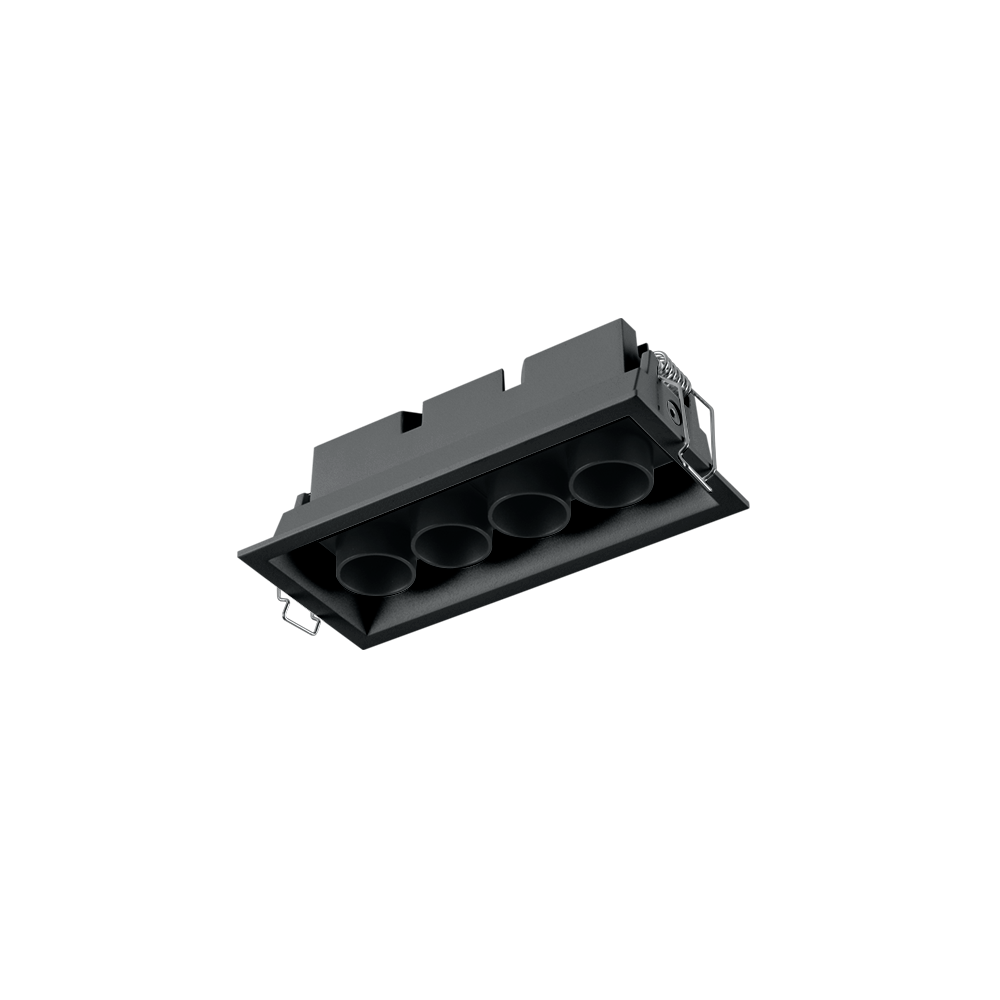

/static/upload/2026/07/07/202607076070.png
/static/upload/2026/07/07/202607074178.png
/static/upload/2026/07/07/202607075663.png

L-D332-4-30K-16

Eyeled spotlight-small A&C, with LED,system power:10W, luminous flux of luminaire 630lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20.

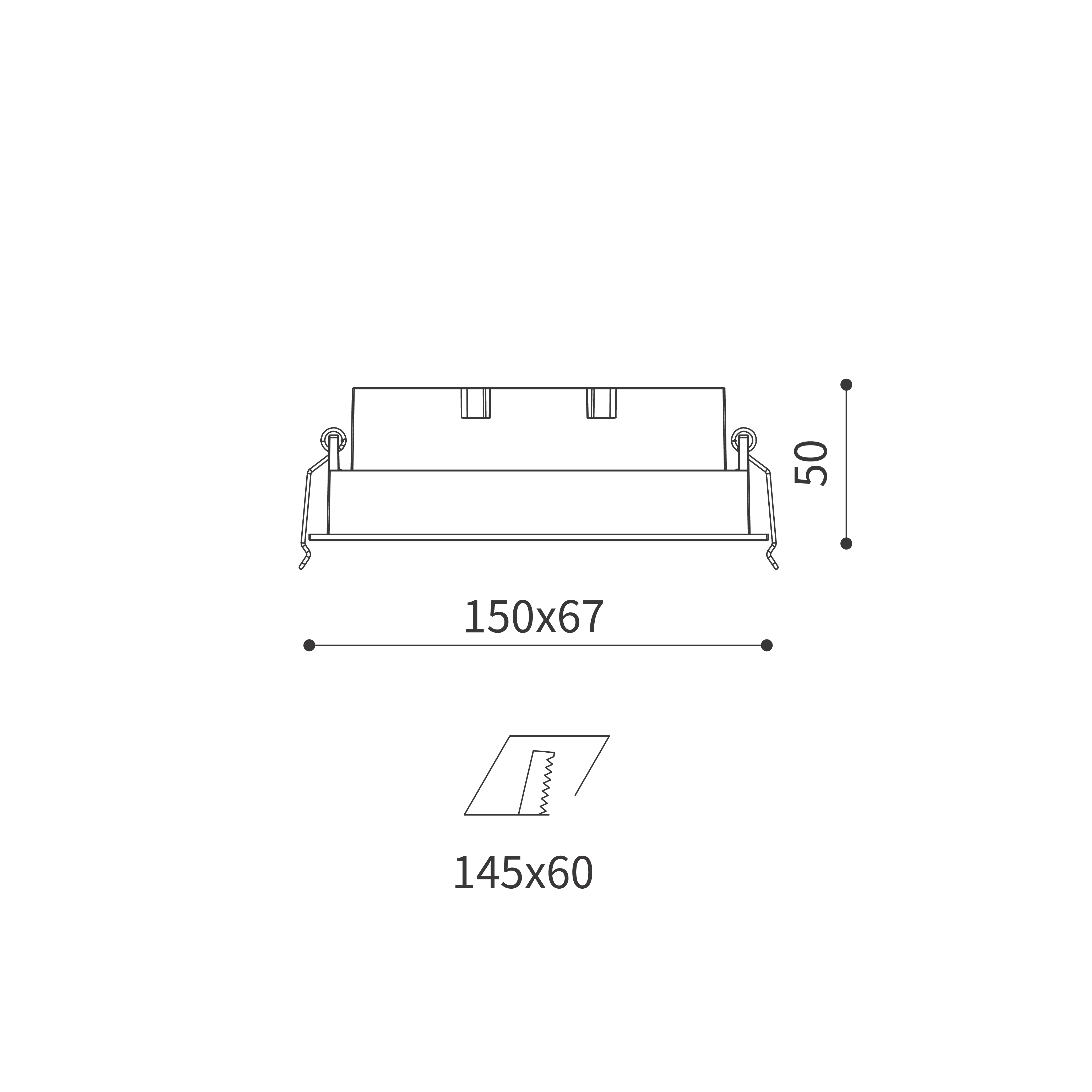

Ø=150x67 mm, ceiling cutout ø145x60 mm

Nominal power
10W
Finish
White/Black
Delivered lumens
630lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.32kg
Color Rendering Index(CRI)
CRI≥90
Diameter
150mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
16°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-4-30K-20 L-D332-4-30K-20 10W 3000K 630lm 24° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607076070.png
/static/upload/2026/07/07/202607074178.png
/static/upload/2026/07/07/202607075663.png

L-D332-4-30K-20

Eyeled spotlight-small A&C, with LED,system power:10W, luminous flux of luminaire 630lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20.

Ø=150x67 mm, ceiling cutout ø145x60 mm

Nominal power
10W
Finish
White/Black
Delivered lumens
630lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.32kg
Color Rendering Index(CRI)
CRI≥90
Diameter
150mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
24°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-4-30K-35 L-D332-4-30K-35 10W 3000K 630lm 35° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607076070.png
/static/upload/2026/07/07/202607074178.png
/static/upload/2026/07/07/202607075663.png

L-D332-4-30K-35

Eyeled spotlight-small A&C, with LED,system power:10W, luminous flux of luminaire 630lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:35°, black/white color, ON/OFF.ingress protection IP20.

Ø=150x67 mm, ceiling cutout ø145x60 mm

Nominal power
10W
Finish
White/Black
Delivered lumens
630lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.32kg
Color Rendering Index(CRI)
CRI≥90
Diameter
150mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
35°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

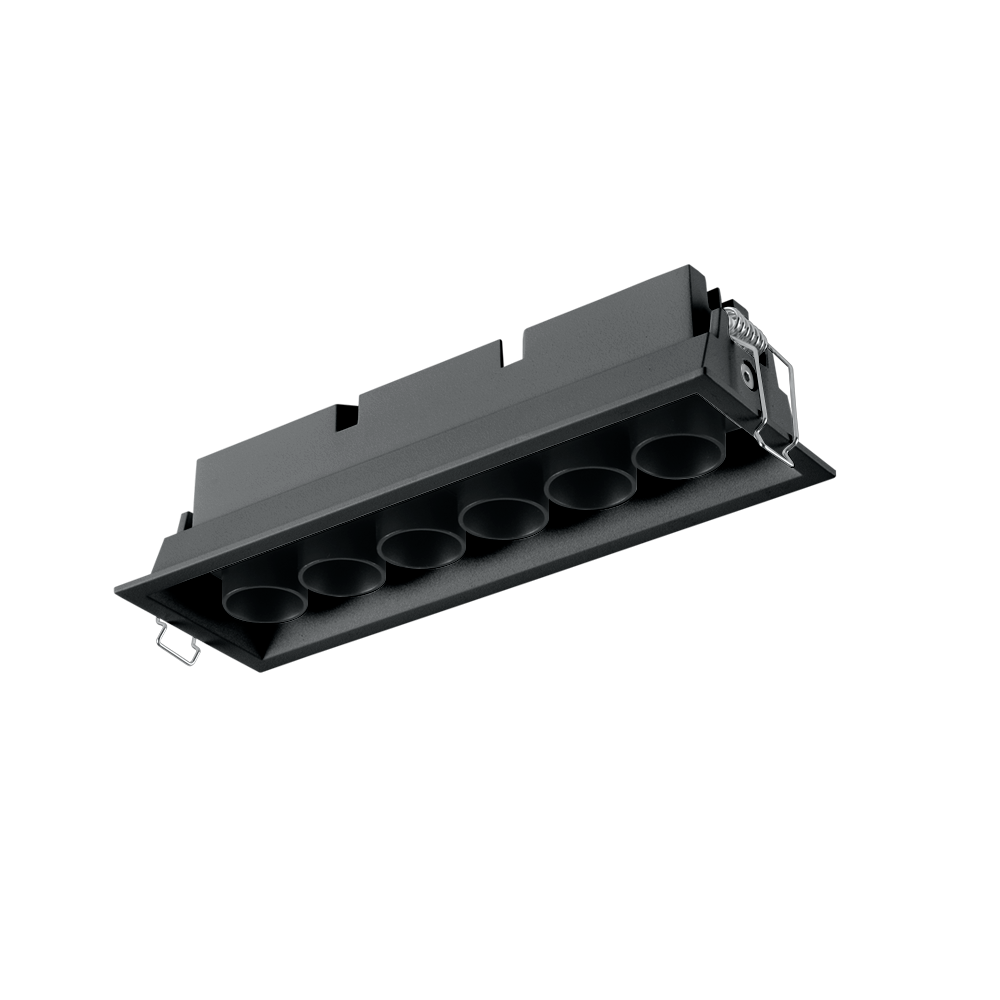

 L-D332-6-30K-16 L-D332-6-30K-16 15W 3000K 950lm 16° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607071104.png

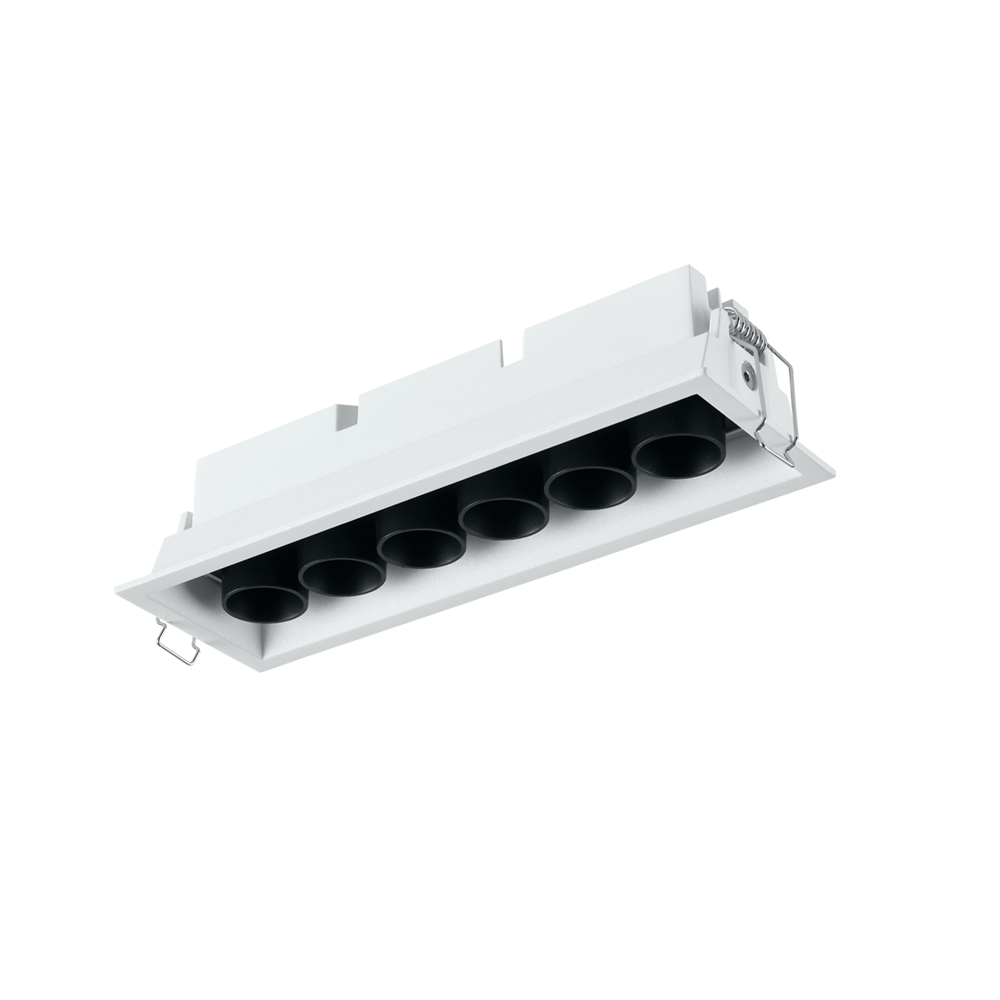

/static/upload/2026/07/07/202607075479.png
/static/upload/2026/07/07/202607073653.png

L-D332-6-30K-16

Eyeled spotlight-small A&C, with LED,system power:15W, luminous flux of luminaire 950lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20.

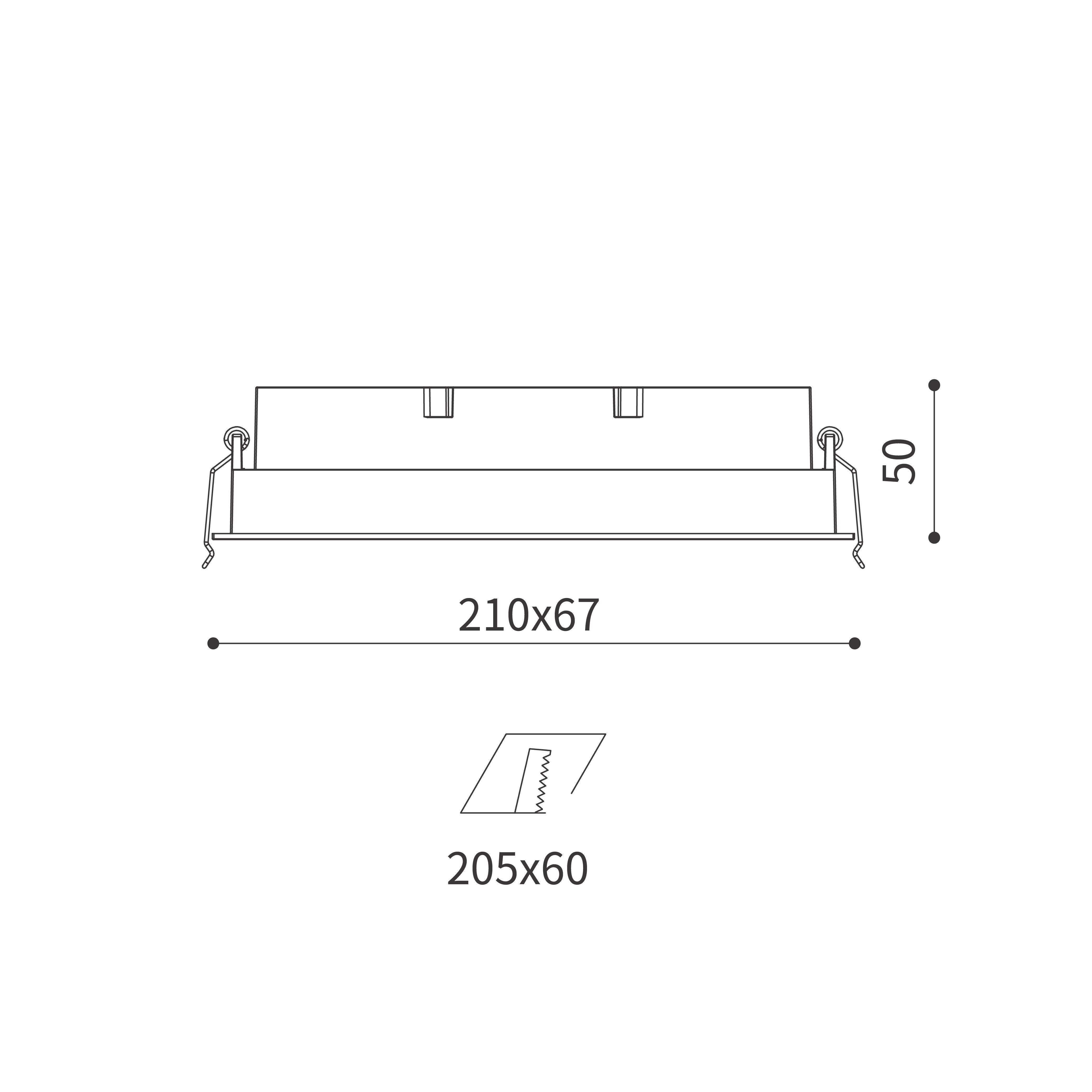

Ø=210x67 mm, ceiling cutout ø205x60 mm

Nominal power
15W
Finish
White/Black
Delivered lumens
950lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.44kg
Color Rendering Index(CRI)
CRI≥90
Diameter
210mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
16°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-6-30K-24 L-D332-6-30K-24 15W 3000K 950lm 24° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607071104.png
/static/upload/2026/07/07/202607075479.png
/static/upload/2026/07/07/202607073653.png

L-D332-6-30K-24

Eyeled spotlight-small A&C, with LED,system power:15W, luminous flux of luminaire 950lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20.

Ø=210x67 mm, ceiling cutout ø205x60 mm

Nominal power
15W
Finish
White/Black
Delivered lumens
950lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.44kg
Color Rendering Index(CRI)
CRI≥90
Diameter
210mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
24°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-6-30K-35 L-D332-6-30K-35 15W 3000K 950lm 35° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607071104.png
/static/upload/2026/07/07/202607075479.png
/static/upload/2026/07/07/202607073653.png

L-D332-6-30K-35

Eyeled spotlight-small A&C, with LED,system power:15W, luminous flux of luminaire 950lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:35°, black/white color, ON/OFF.ingress protection IP20.

Ø=210x67 mm, ceiling cutout ø205x60 mm

Nominal power
15W
Finish
White/Black
Delivered lumens
950lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.44kg
Color Rendering Index(CRI)
CRI≥90
Diameter
210mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
35°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-9-30K-16 L-D332-9-30K-16 20W 3000K 1420lm 16° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607078305.png
/static/upload/2026/07/07/202607078523.png
/static/upload/2026/07/07/202607071251.png

L-D332-9-30K-16

Eyeled spotlight-small A&C, with LED,system power:20W, luminous flux of luminaire 1420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20.

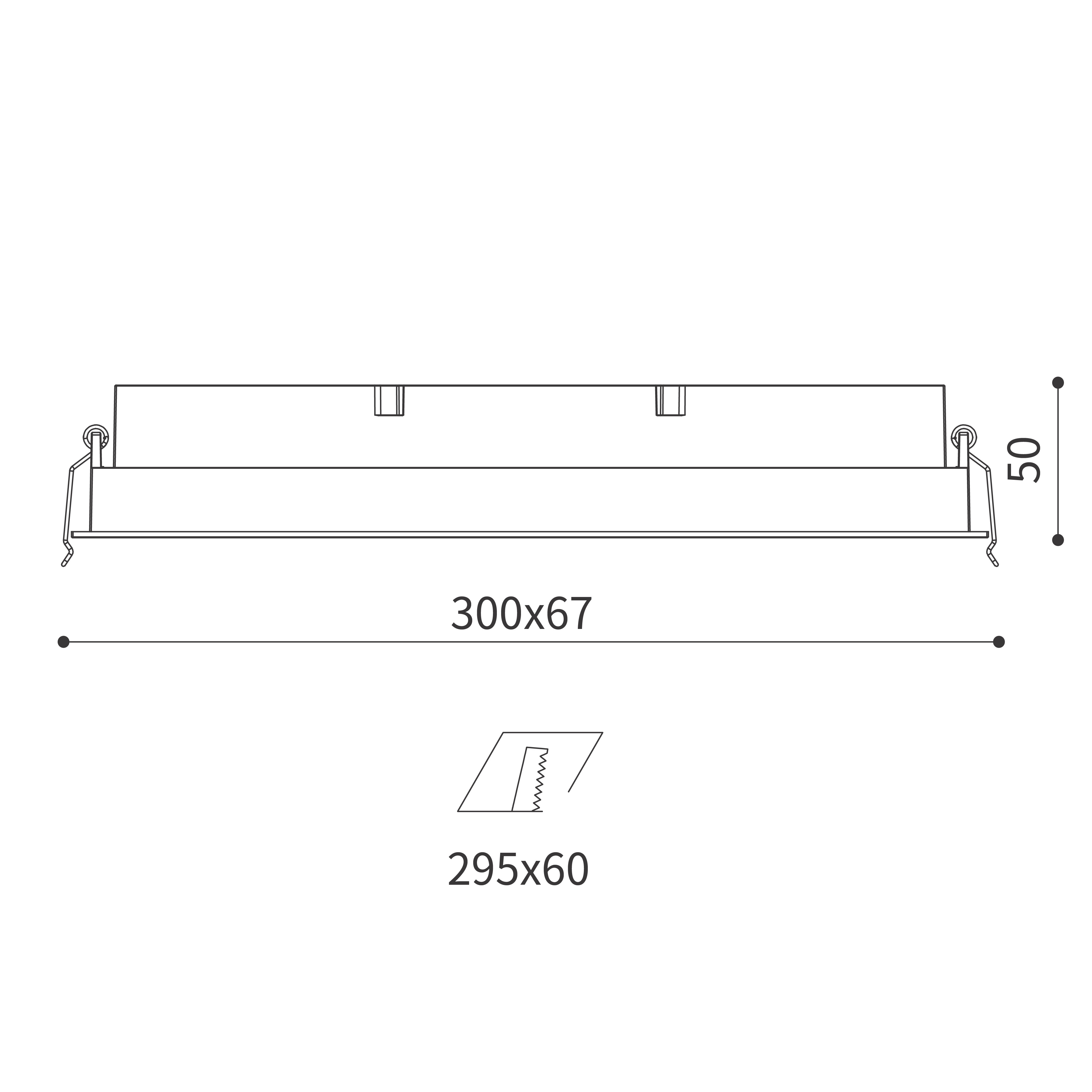

Ø=300x67 mm, ceiling cutout ø295x60 mm

Nominal power
20W
Finish
White/Black
Delivered lumens
1420lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.62kg
Color Rendering Index(CRI)
CRI≥90
Diameter
300mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
16°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-9-30K-24 L-D332-9-30K-24 20W 3000K 1420lm 24° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607078305.png
/static/upload/2026/07/07/202607078523.png
/static/upload/2026/07/07/202607071251.png

L-D332-9-30K-24

Eyeled spotlight-small A&C, with LED,system power:20W, luminous flux of luminaire 1420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20.

Ø=300x67 mm, ceiling cutout ø295x60 mm

Nominal power
20W
Finish
White/Black
Delivered lumens
1420lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.62kg
Color Rendering Index(CRI)
CRI≥90
Diameter
300mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
24°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D332-9-30K-35 L-D332-9-30K-35 20W 3000K 1420lm 35° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/07/202607078305.png
/static/upload/2026/07/07/202607078523.png
/static/upload/2026/07/07/202607071251.png

L-D332-9-30K-35

Eyeled spotlight-small A&C, with LED,system power:20W, luminous flux of luminaire 1420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:35°, black/white color, ON/OFF.ingress protection IP20.

Ø=300x67 mm, ceiling cutout ø295x60 mm

Nominal power
20W
Finish
White/Black
Delivered lumens
1420lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.62kg
Color Rendering Index(CRI)
CRI≥90
Diameter
300mm
Unified Glare Rating (UGR)
UGR <10
Length
50mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
67mm
Beam angle
35°
Downloads


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb



RELATED PRODUCTS

Product finder
