ASTER-TRIMLESS

Compact star, brilliant performance.

ASTER TRIMLESS is a compact yet powerful mini-downlight series that redefines what a small luminaire can achieve. With a cut-out of just 45mm and a body height of 75mm, it delivers an impressive 10W of power – making it an ideal choice for spaces where size matters but performance cannot be compromised. Featuring black-hole optical lens technology, deep anti-glare design, and high colour rendering (Ra90), ASTER provides exceptional visual comfort. Its modular front-ring system allows for interchangeable colour options – black, white, chrome, and gold – giving you the freedom to personalize the look to match any interior style. Available in both trim and trimless versions, this series combines aesthetic versatility with robust construction, backed by a registered design patent.



Features Features

- Ultra-compact dimensions – 45mm cut-out and 75mm body height – deliver 10W of powerful output in a remarkably small form factor

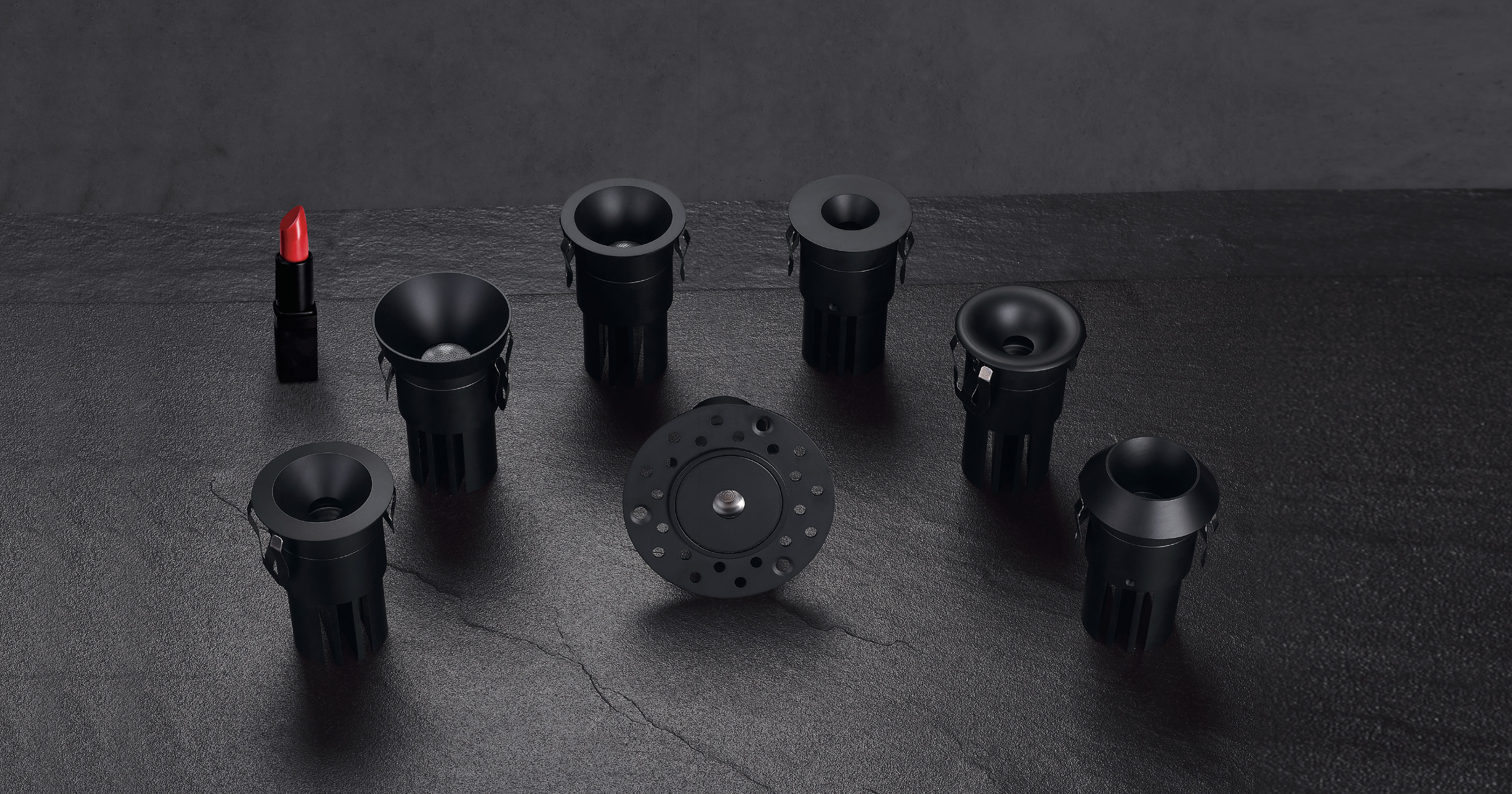

- Interchangeable front-ring system – easily swap colours (black, white, chrome, gold) to match different ceiling finishes and design preferences without changing the entire fixture; custom ring finishes available for project-specific needs

- Black-hole optical lens technology – delivers bright, soft, and uniform light with high transmittance; resistant to yellowing for long-term optical stability

- Deep anti-glare design – effectively eliminates glare, making it perfect for no-main-light layouts; human eyes perceive the light as soft and natural

- High colour rendering (Ra90) – reproduces natural colours with vivid accuracy, bringing warmth and authenticity to any space

- Modular design – one heatsink platform accommodates multiple front-ring options, simplifying inventory management while enabling design flexibility

- Machined aluminium front ring with smooth finish – available in custom colours to match specific application environments and design schemes

- Available in trim and trimless versions – adapt to different ceiling styles and aesthetic preferences

- Registered design patent – protects the unique aesthetic and structural innovation of the series

- Tool-friendly installation and easy maintenance – quick to mount and simple to replace rings or maintain

Specifications Specifications

- Housing: Forged pure aluminium – excellent thermal conductivity and corrosion resistance

- Surface finish: Fine textured coating – elegant and durable; custom colours available for front rings

- Optical system: Black-hole lens technology with deep anti-glare design

- Colour rendering: Ra90

- Anti-glare: Deep anti-glare, glare-free – ideal for no-main-light applications

- Cut-out diameter: 45mm

- Body height: 75mm

- Power: Up to 10W

- Front-ring options: Black / White / Chrome / Gold (interchangeable); custom finishes available

- Mounting styles: Trim / Trimless

- Design: Modular platform – one heatsink for multiple front-ring styles; registered design patent

- Installation: Tool-friendly, quick-mount design


Fields of application Fields of application

- Residential living rooms, bedrooms, kitchens, and corridors – discreet illumination with powerful output

- Hotel rooms, suites, and luxury bathrooms – refined aesthetics with personalized colour accents

- Retail boutiques and showrooms – high colour rendering for accurate product presentation

- Restaurants and cafés – creating warm, inviting atmospheres with glare-free light

- Galleries and exhibition spaces – precise, comfortable illumination for artwork

- No-main-light layouts – where the light source itself becomes part of the design statement

- Projects requiring customized ring colours to match specific interior themes

- Any space demanding compact size, powerful output, and personalized aesthetic flexibility


Version
0 Article
PROH_6853_1.jpg L-D491-COB2-10W
Nominal power
10W
BEAM ANGLE
55°
35°
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-D491-COB2-30K-35 L-D491-COB2-30K-35 10W 3000K 430lm 35° White/Black

L-D491-COB2-30K-35

Recessed downlight Aster Trimless Round inner ring set back, with LED,system power:10W, luminous flux of luminaire 430lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:35°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54.

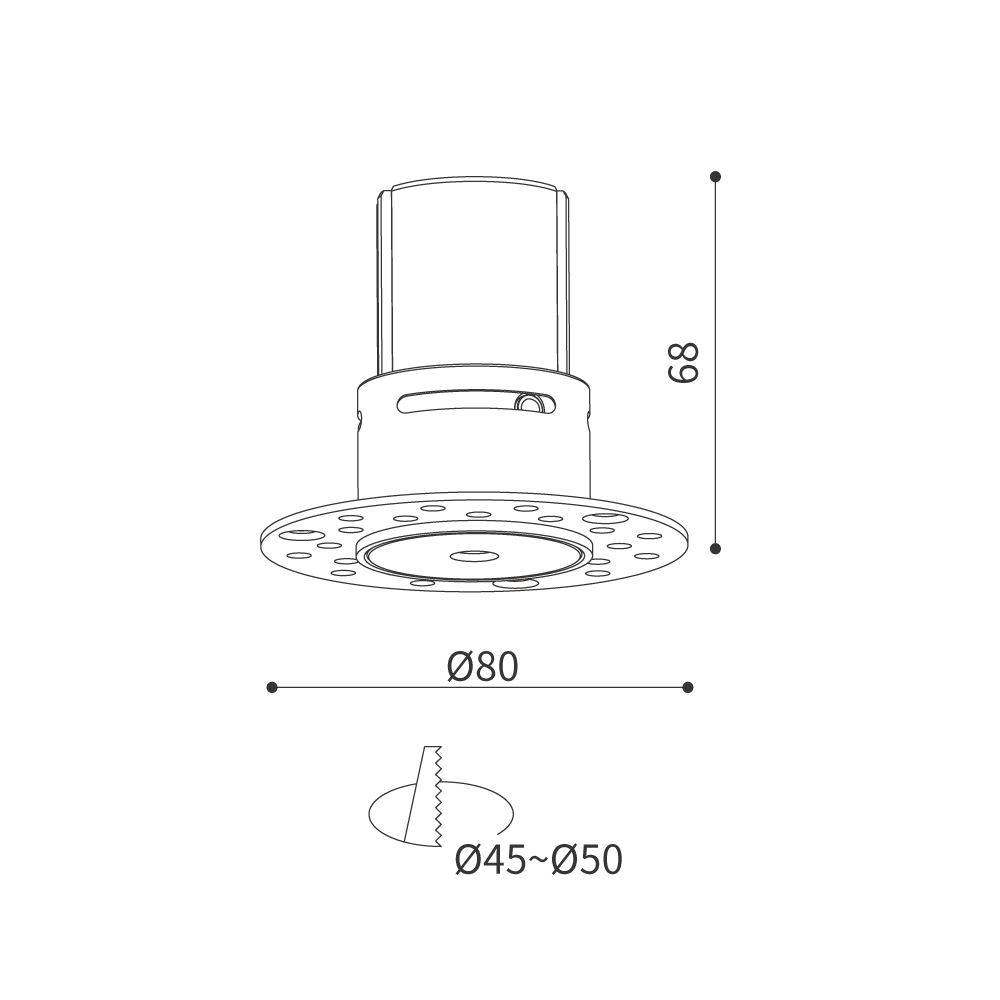

Ø=80 mm, ceiling cutout ø45-50 mm

Nominal power
10W
Finish
White/Black
Delivered lumens
430lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Weight
0.19kg
Color Rendering Index(CRI)
CRI≥90
Diameter
80mm
Unified Glare Rating (UGR)
UGR<3
Height
80mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
80mm
Beam angle
35°
Downloads
    None


Accessories
L-D491-COB2-30K-55 L-D491-COB2-30K-55 10W 3000K 430lm 55° White/Black

L-D491-COB2-30K-55

Recessed downlight Aster Trimless Round inner ring set back, with LED,system power:10W, luminous flux of luminaire 430lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:55°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54.

Ø=80 mm, ceiling cutout ø45-50 mm

Nominal power
10W
Finish
White/Black
Delivered lumens
430lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Weight
0.19kg
Color Rendering Index(CRI)
CRI≥90
Diameter
80mm
Unified Glare Rating (UGR)
UGR<3
Height
80mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
80mm
Beam angle
55°
Downloads
    None


Accessories
