Article number |
Nominal power |
Color Temperature(CCT) |
Delivered lumens |
Beam angle |
Finish |
|
L-D777-COB2-30K-35
|
L-D777-COB2-30K-35
|
10W
|
3000K
|
430lm
|
35°
|
White/Black
|
L-D777-COB2-30K-35

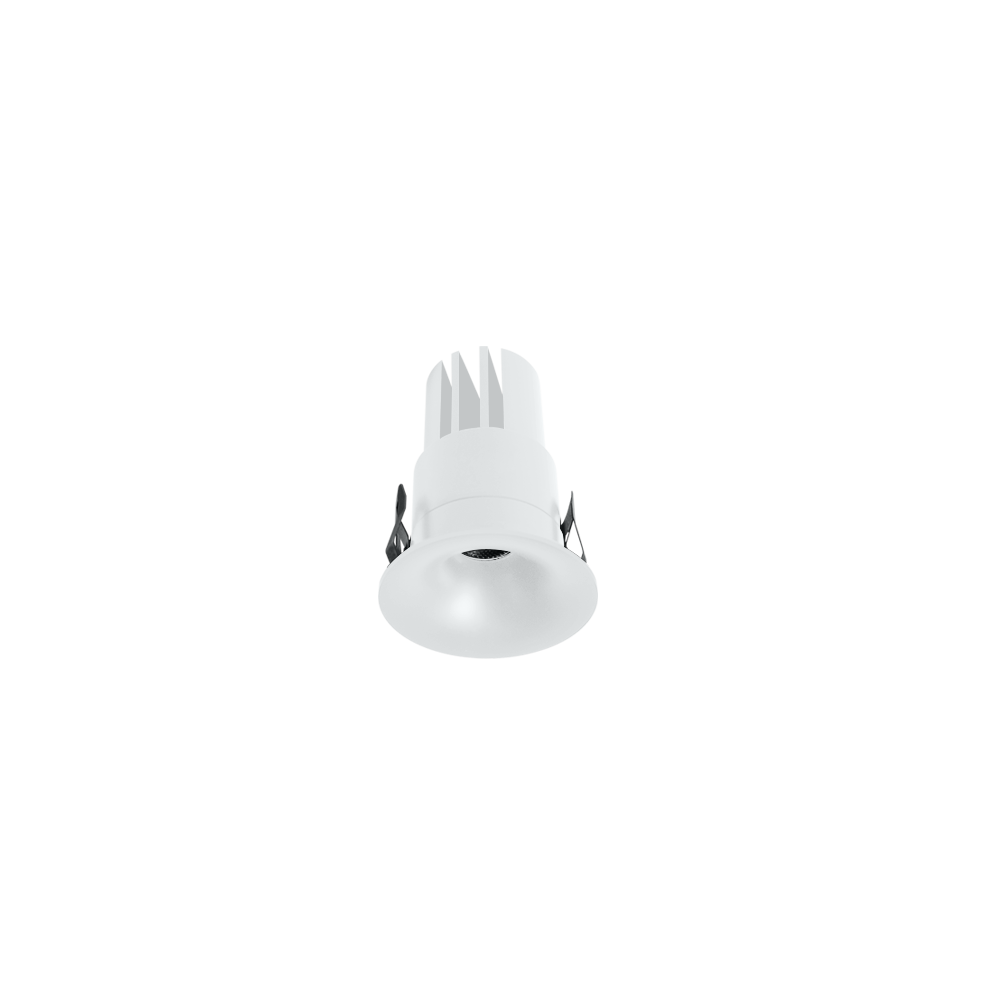

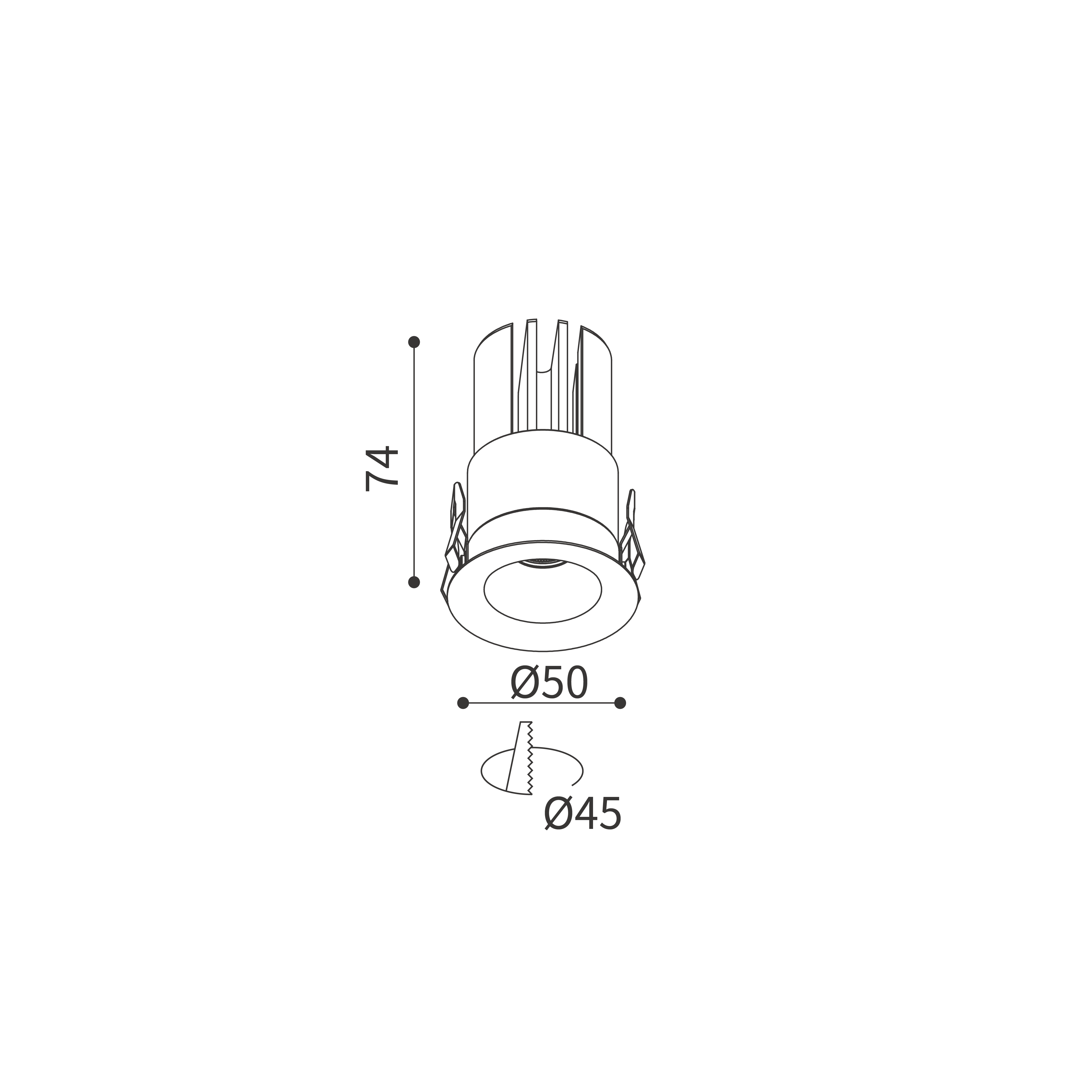

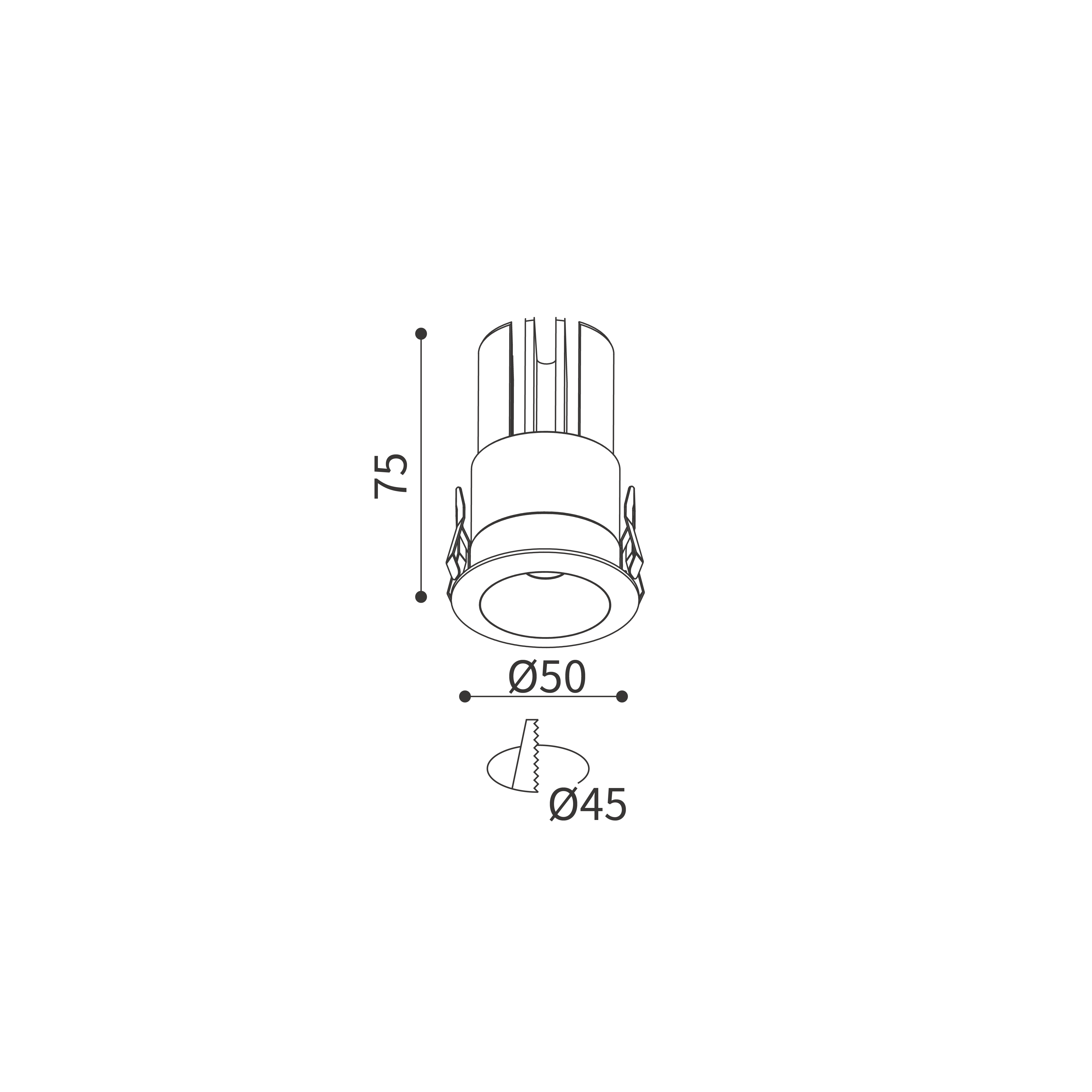

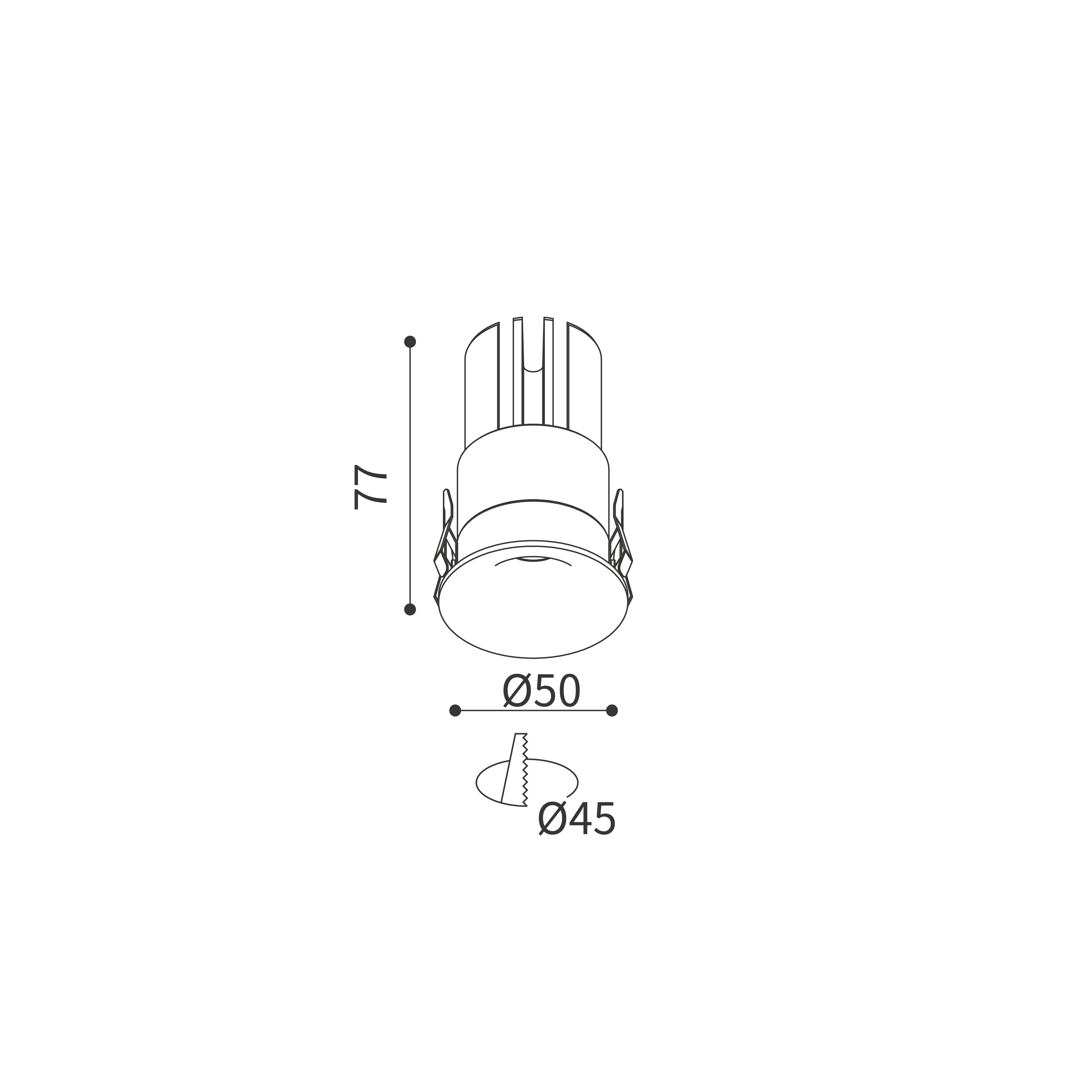

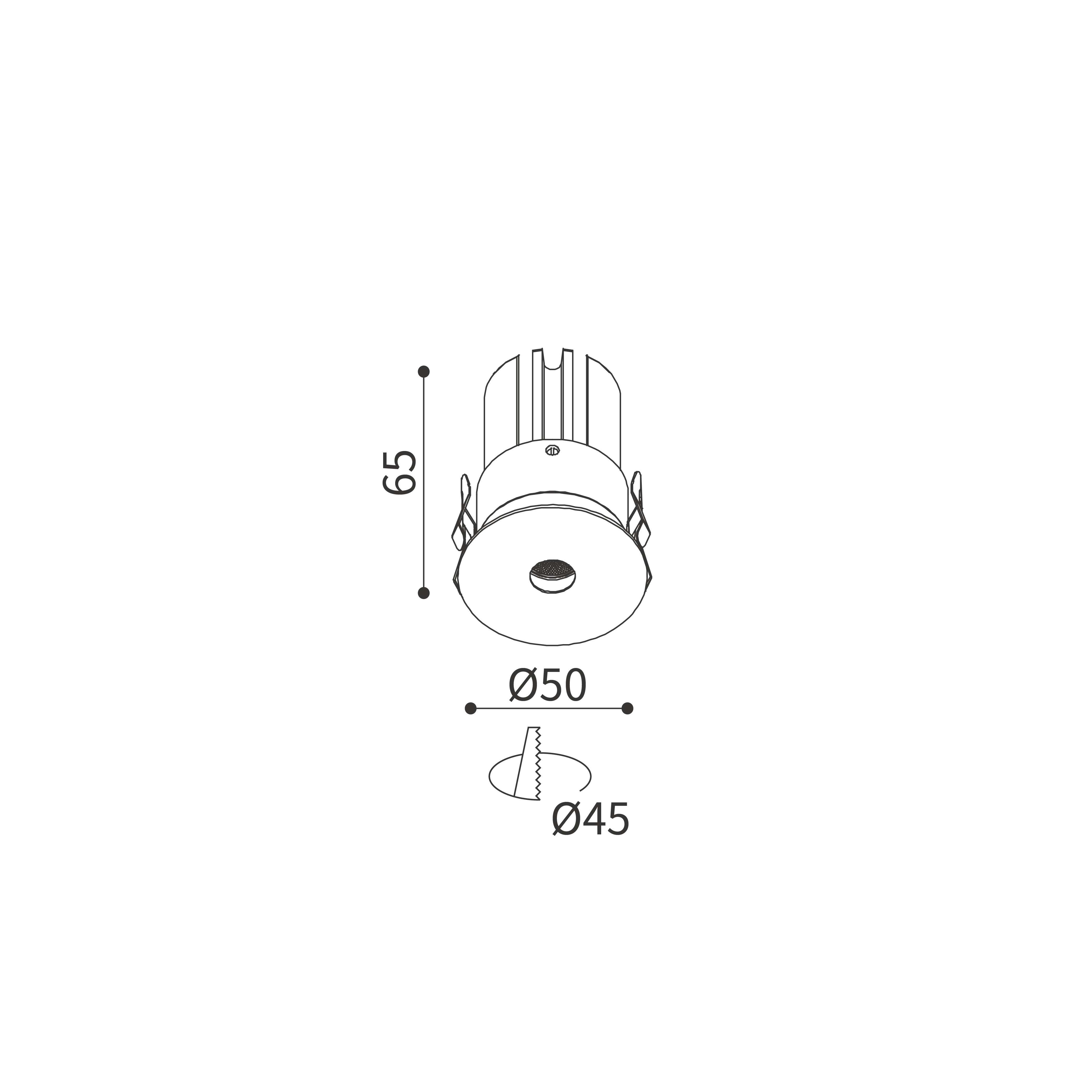

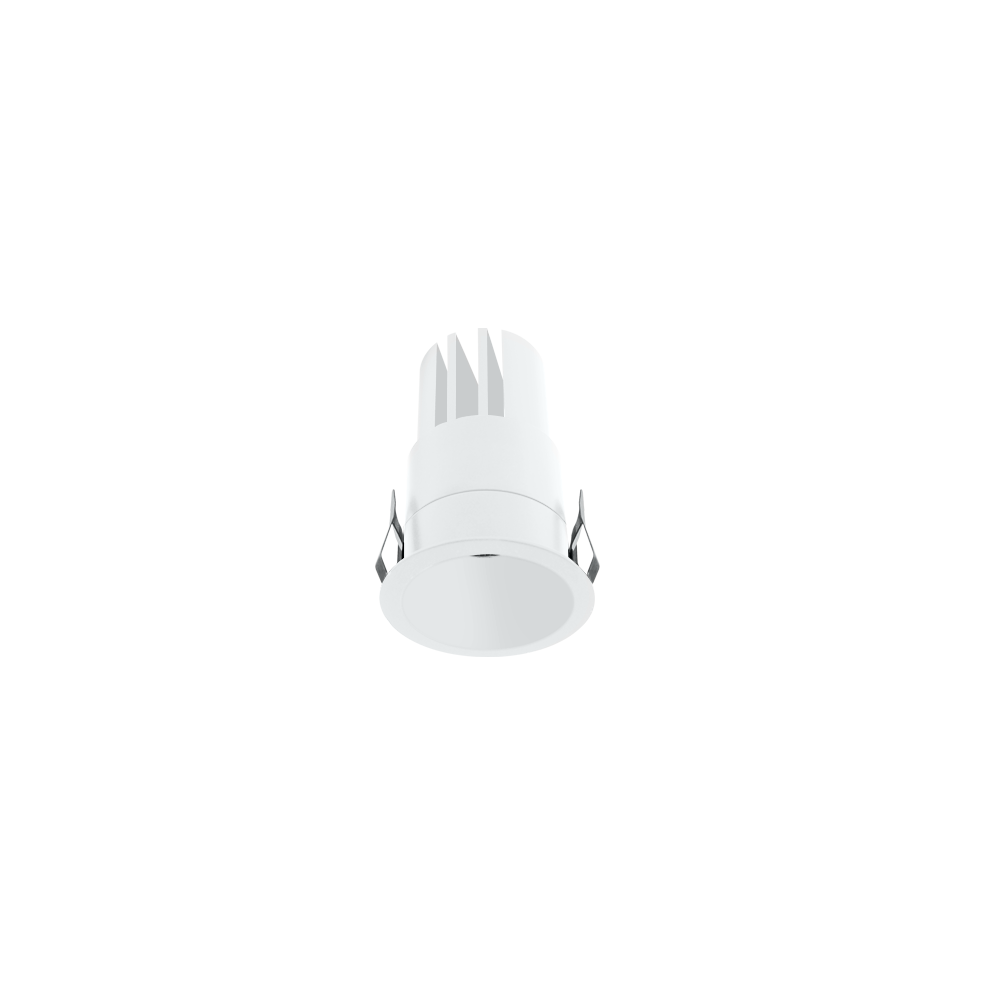

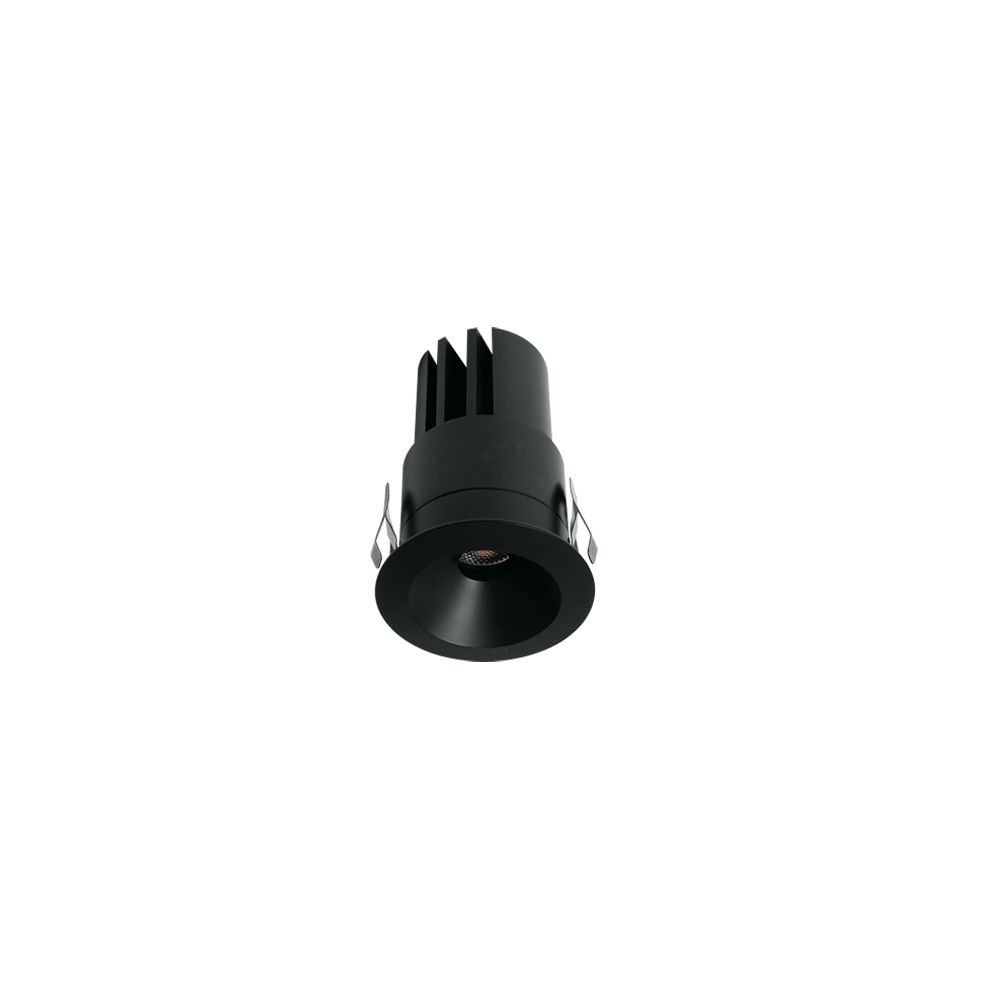

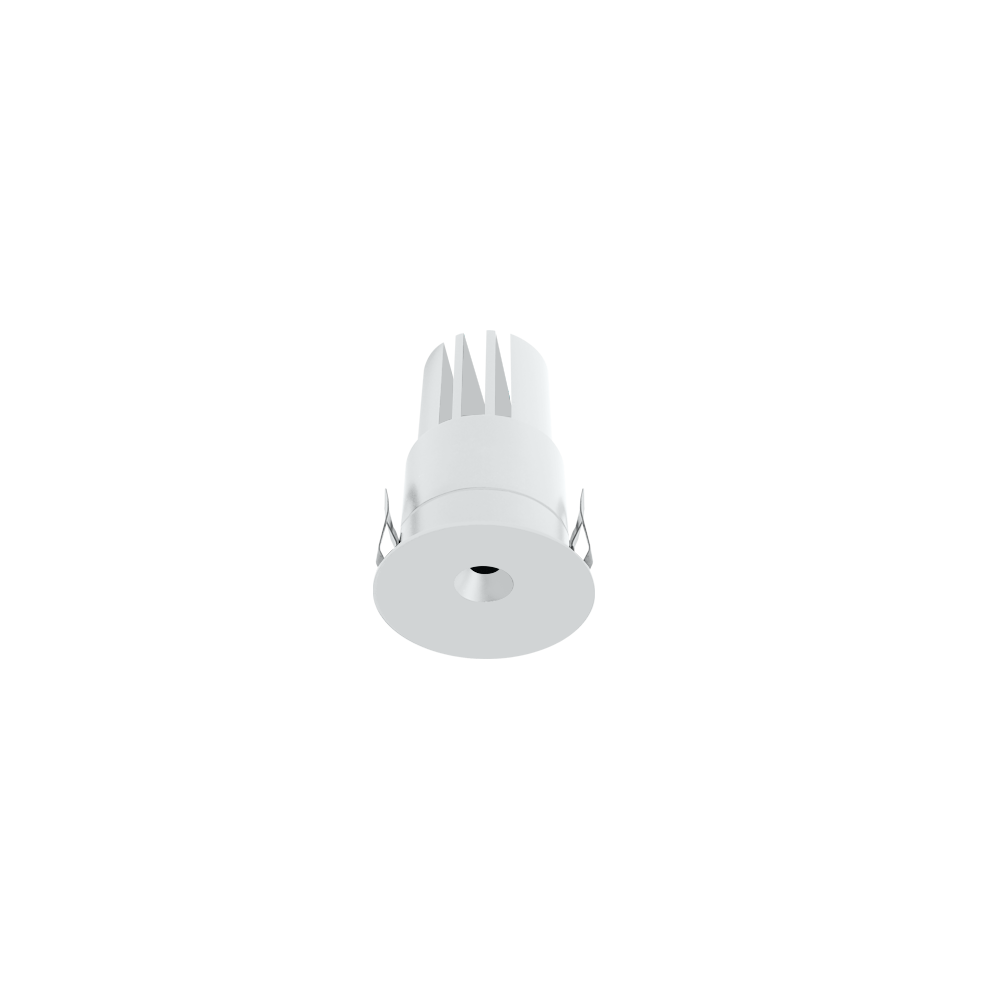

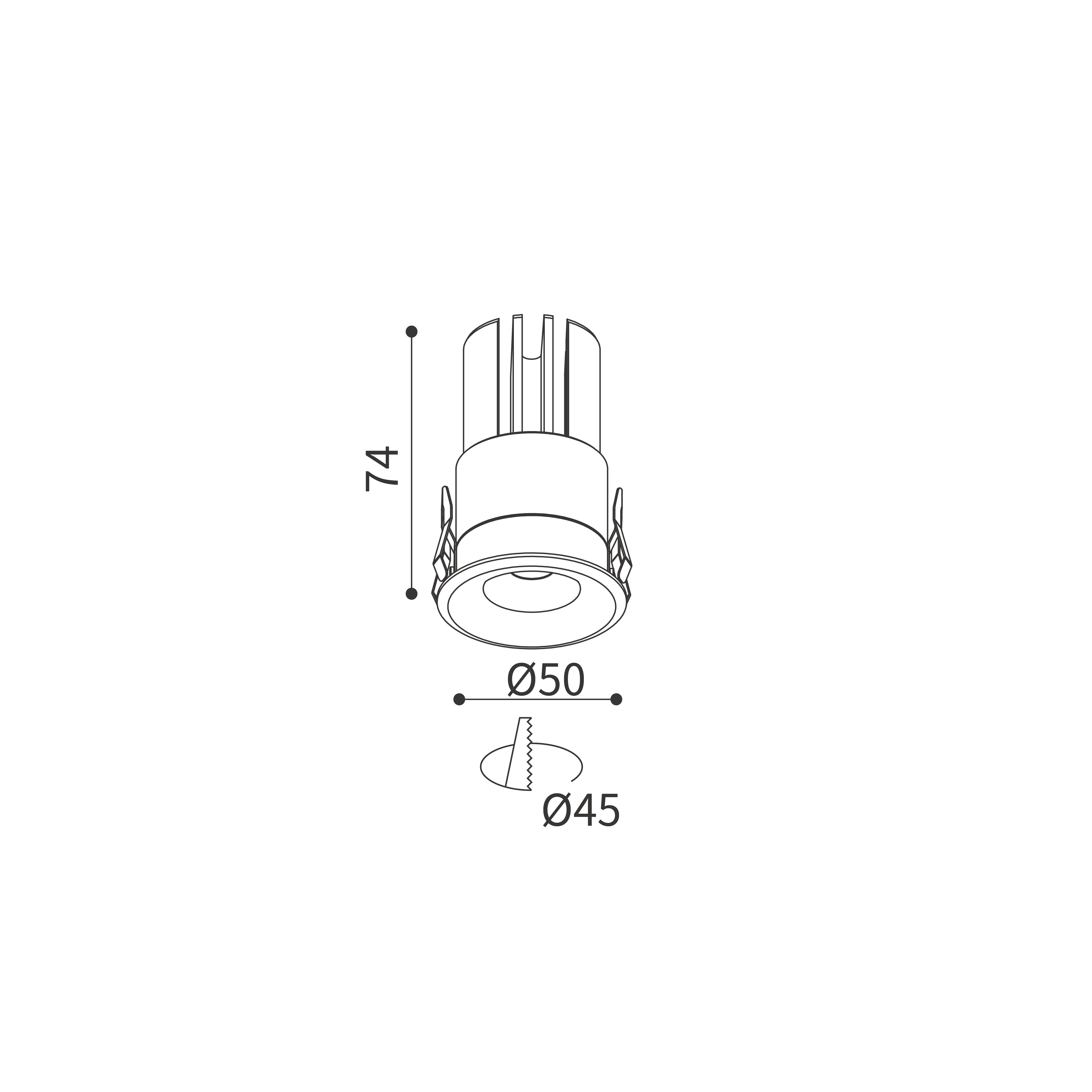

Recessed downlight ASTER, with LED, system power:10W, luminous flux of luminaire 430lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:35°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50 mm, ceiling cutout ø45 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D777-COB2-30K-55
|
L-D777-COB2-30K-55
|
10W
|
3000K
|
430lm
|
55°
|
White/Black
|
L-D777-COB2-30K-55
Recessed downlight ASTER, with LED, system power:10W, luminous flux of luminaire 430lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:55°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50 mm, ceiling cutout ø45 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D501-COB2-30K-35
|
L-D501-COB2-30K-35
|
10W
|
3000K
|
550lm
|
35°
|
White/Black
|
L-D501-COB2-30K-35

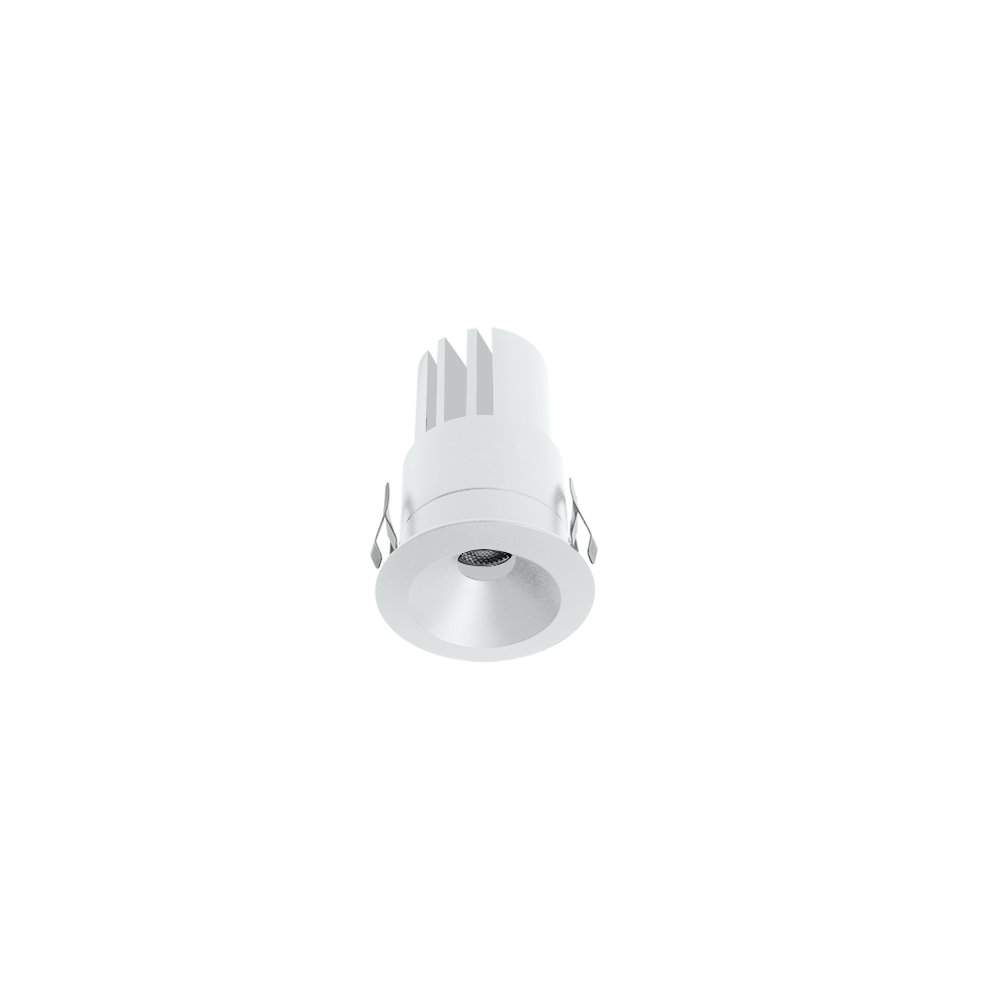

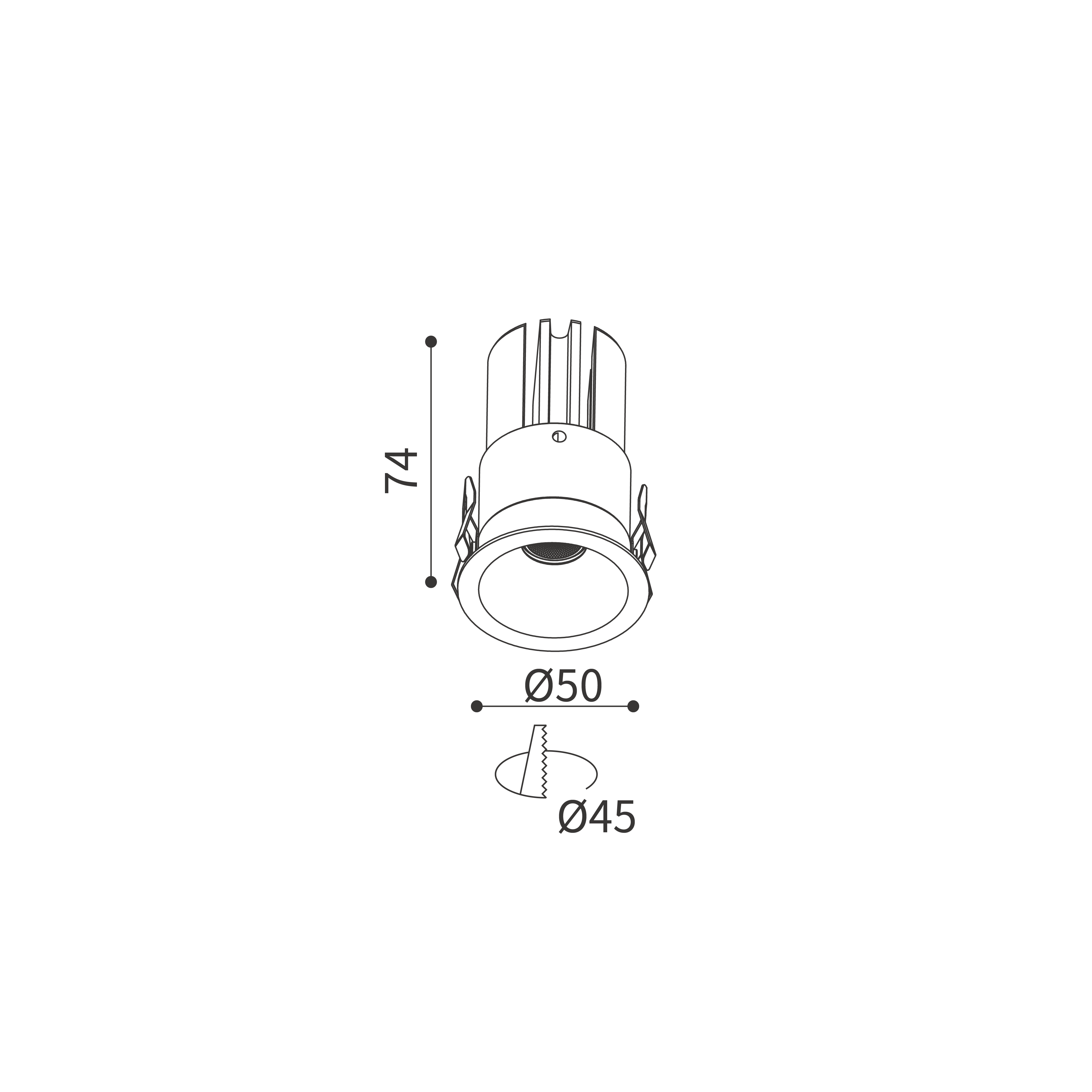

Recessed downlight ASTER, with LED, system power:10W, luminous flux of luminaire 550lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:35°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50 mm, ceiling cutout ø45 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D501-COB2-30K-55
|
L-D501-COB2-30K-55
|
10W
|
3000K
|
550lm
|
55°
|
White/Black
|
L-D501-COB2-30K-55
Recessed downlight ASTER, with LED, system power:10W, luminous flux of luminaire 550lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:55°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50 mm, ceiling cutout ø45 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D726-COB2-30K-35
|
L-D726-COB2-30K-35
|
10W
|
3000K
|
550lm
|
35°
|
White/Black
|
L-D726-COB2-30K-35
Recessed downlight ASTER, with LED, system power:10W, luminous flux of luminaire 550lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:35°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50 mm, ceiling cutout ø45 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D726-COB2-30K-55
|
L-D726-COB2-30K-55
|
10W
|
3000K
|
550lm
|
55°
|
White/Black
|
L-D726-COB2-30K-55
Recessed downlight ASTER, with LED, system power:10W, luminous flux of luminaire 550lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:55°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50 mm, ceiling cutout ø45 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D503-COB2-30K-35
|
L-D503-COB2-30K-35
|
10W
|
3000K
|
430lm
|
35°
|
White/Black
|
L-D503-COB2-30K-35
Recessed downlight ASTER , with LED, system power:10W, luminous flux of luminaire 430lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:35°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50 mm, ceiling cutout ø45 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D503-COB2-30K-55
|
L-D503-COB2-30K-55
|
10W
|
3000K
|
430lm
|
55°
|
White/Black
|
L-D503-COB2-30K-55
Recessed downlight ASTER , with LED, system power:10W, luminous flux of luminaire 430lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:55°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50 mm, ceiling cutout ø45 mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D727-COB2-30K-35
|
L-D727-COB2-30K-35
|
10W
|
3000K
|
550lm
|
35°
|
White/Black
|
L-D727-COB2-30K-35
Recessed downlight ASTER , with LED, system power:10W, luminous flux of luminaire 550lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:35°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50mm, ceiling cutout ø45mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D727-COB2-30K-55
|
L-D727-COB2-30K-55
|
10W
|
3000K
|
550lm
|
55°
|
White/Black
|
L-D727-COB2-30K-55
Recessed downlight ASTER , with LED, system power:10W, luminous flux of luminaire 550lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:55°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50mm, ceiling cutout ø45mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D729-COB2-30K-35
|
L-D729-COB2-30K-35
|
10W
|
3000K
|
550lm
|
35°
|
White/Black
|
L-D729-COB2-30K-35
Recessed downlight ASTER , with LED, system power:10W, luminous flux of luminaire 550lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:35°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50mm, ceiling cutout ø45mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D729-COB2-30K-55
|
L-D729-COB2-30K-55
|
10W
|
3000K
|
550lm
|
55°
|
White/Black
|
L-D729-COB2-30K-55
Recessed downlight ASTER , with LED, system power:10W, luminous flux of luminaire 550lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:55°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50mm, ceiling cutout ø45mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D959-COB2-30K-35
|
L-D959-COB2-30K-35
|
10W
|
3000K
|
550lm
|
35°
|
White/Black
|
L-D959-COB2-30K-35
Recessed downlight ASTER Round inner ring set back, with LED, system power:10W, luminous flux of luminaire 550lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:35°,black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50mm, ceiling cutout ø45mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
|
L-D959-COB2-30K-55
|
L-D959-COB2-30K-55
|
10W
|
3000K
|
550lm
|
55°
|
White/Black
|
L-D959-COB2-30K-55
Recessed downlight ASTER Round inner ring set back, with LED, system power:10W, luminous flux of luminaire 550lm. colour rendering index CRl≥90, colour temperature 3000 K,warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 250mA, Beam angle:55°,black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP54. Ø=50mm, ceiling cutout ø45mm
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP54
Color Temperature(CCT)
3000K
Color Rendering Index(CRI)
CRI≥90
Unified Glare Rating (UGR)
UGR<19
Light Control
ON/OFF | DALI | TRIAC 0-10V
|
