FALLS Dual Asym

Dual-beam wall wash, corner to corner.

FALLS Dual Asym is a specialized wall-washing downlight featuring dual-beam asymmetric optics that distribute light in two opposite directions. Perfect for corners, narrow spaces, and areas where light needs to spread bilaterally, this series delivers smooth and even illumination across adjacent walls simultaneously. With UGR<20 anti-glare performance and Ra90 colour rendering, it ensures visually comfortable, high-quality light that brings architectural details to life.




Features Features

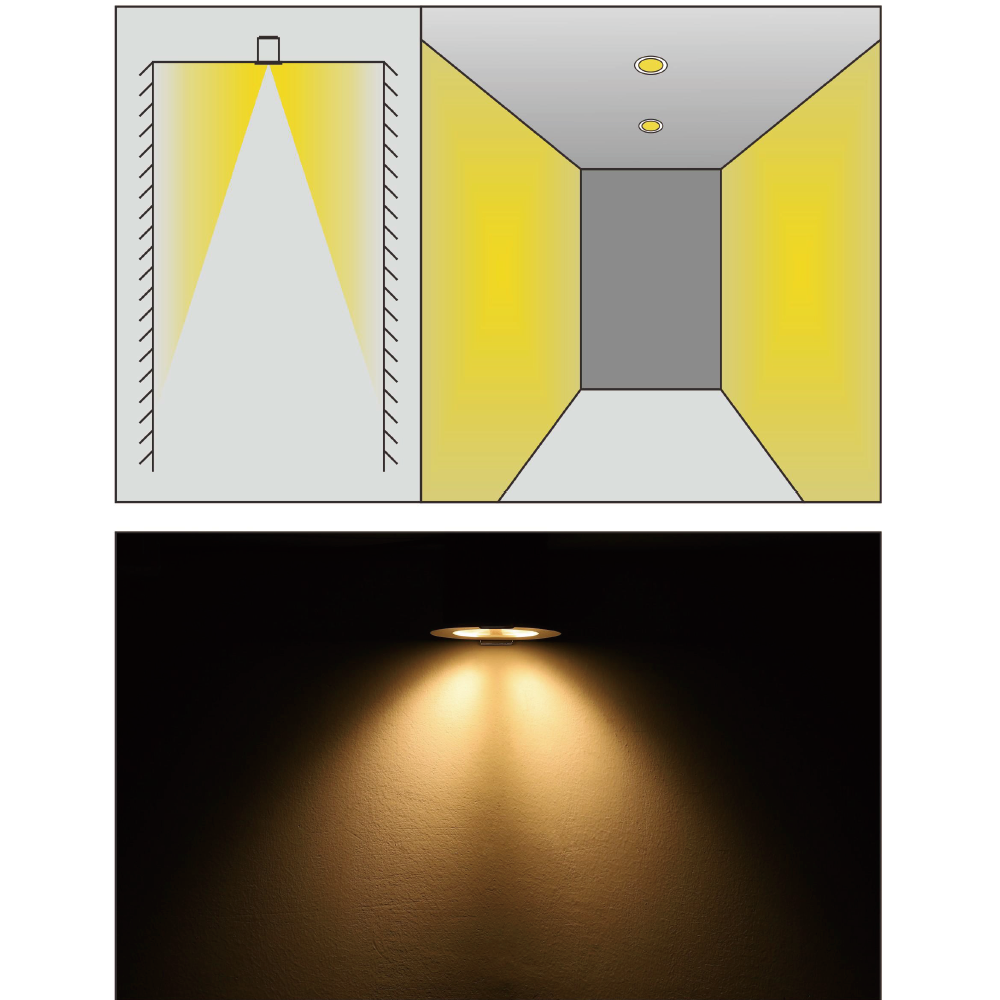

- Dual-beam asymmetric optical design – distributes light in two opposite directions simultaneously, perfect for corners and narrow spaces where bilateral wall-washing is needed

- Illuminates adjacent walls at once – creates a seamless, continuous wash of light covering multiple vertical surfaces from a single luminaire

- Fixed dual-orientation beam – engineered for consistent bilateral wall-washing performance, delivering reliable illumination across adjacent surfaces without the need for adjustment

- Anti-glare performance with UGR<20 – ensures comfortable viewing even in prolonged visual tasks

- High colour rendering (Ra90) – reproduces natural colours with vivid accuracy, enhancing the true beauty of wall finishes and artwork

- Integrated one-piece aluminium die-cast housing – excellent thermal conductivity, corrosion-resistant, and built for lasting durability

- Fine surface finish – delicate, elegant, and premium, designed to withstand the test of time

Specifications Specifications

- Housing: Integrated one-piece aluminium, eco-friendly die-cast construction – excellent thermal conductivity and corrosion resistance

- Surface finish: Fine textured coating – elegant and durable

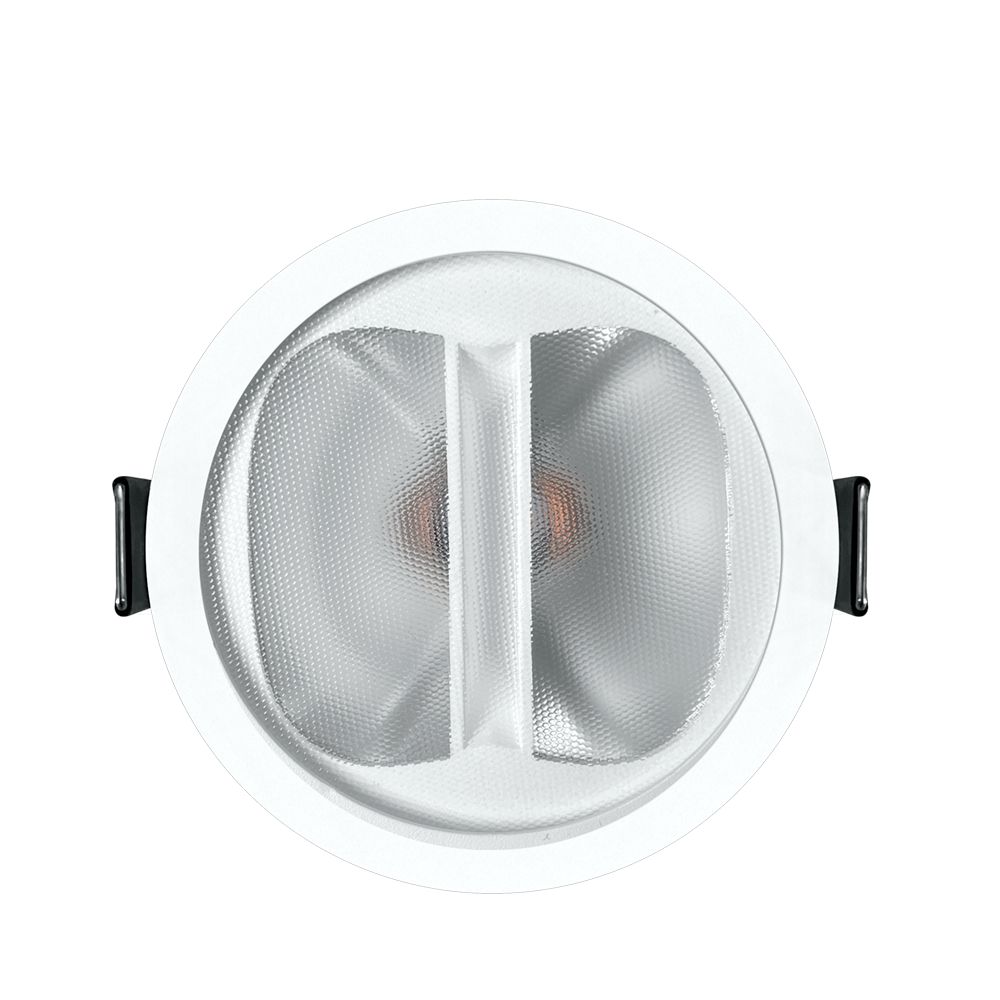

- Optical system: Dual-beam asymmetric lens – bilateral wall-wash distribution

- Colour rendering: Ra90

- Anti-glare: UGR<20 – comfortable for prolonged viewing

- Beam orientation: Fixed dual-direction – optimized for simultaneous illumination of adjacent walls

- Mounting: Recessed installation

- Wattages: Multiple options available


Fields of application Fields of application

- Gallery and museum corners – illuminating artworks on adjacent walls simultaneously

- Retail store corner displays – showcasing merchandise on two perpendicular walls

- Hotel corridor intersections and lobby corners – creating seamless wall-lighting continuity

- Residential living room corners – adding depth and warmth to angular spaces

- Architectural feature corners – emphasizing material and texture where two walls meet

- Narrow spaces and passageways – where bilateral light distribution maximizes illumination efficiency

- Any interior requiring simultaneous wall-washing on adjacent surfaces

- Spaces demanding consistent, reliable bilateral wall-lighting performance


Version
0 Article

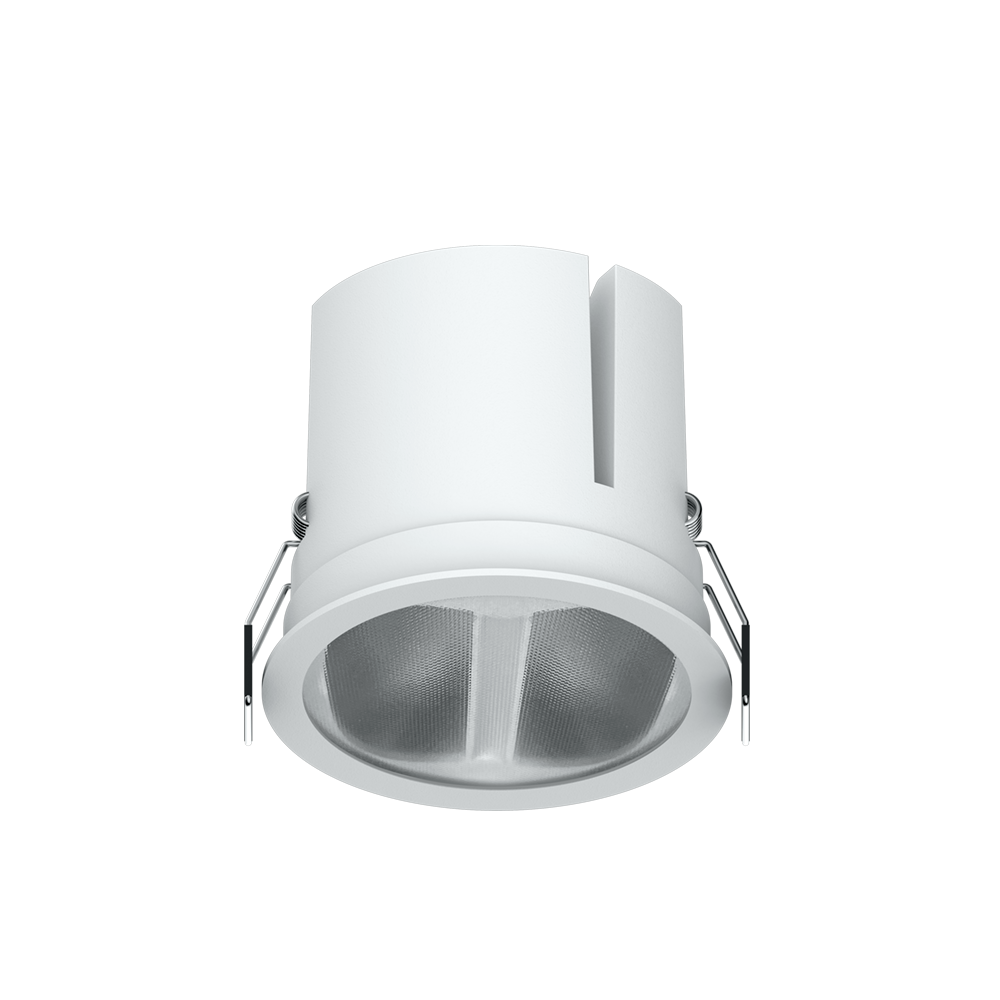

PROH_6853_1.jpg L-D796-COB3B-15W
Nominal power
5W
BEAM ANGLE
42°x54°x(22°Asym)
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-D796-COB3B-30K-ASYM L-D796-COB3B-30K-ASYM 5W 3000K 1050lm 42°x54°x(22°Asym) White/Black

L-D796-COB3B-30K-ASYM

FALLS Dual Asym, with LED, system power: 15W, luminous flux of luminaire 1050lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 42°x54°x(22°Asym), black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=87 mm, ceiling cutout ø80 mm

Nominal power
5W
Finish
White/Black
Delivered lumens
1050lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.333kg
Color Rendering Index(CRI)
CRI≥90
Diameter
87mm
Unified Glare Rating (UGR)
UGR<20
Height
74mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
87mm
Beam angle
42°x54°x(22°Asym)
