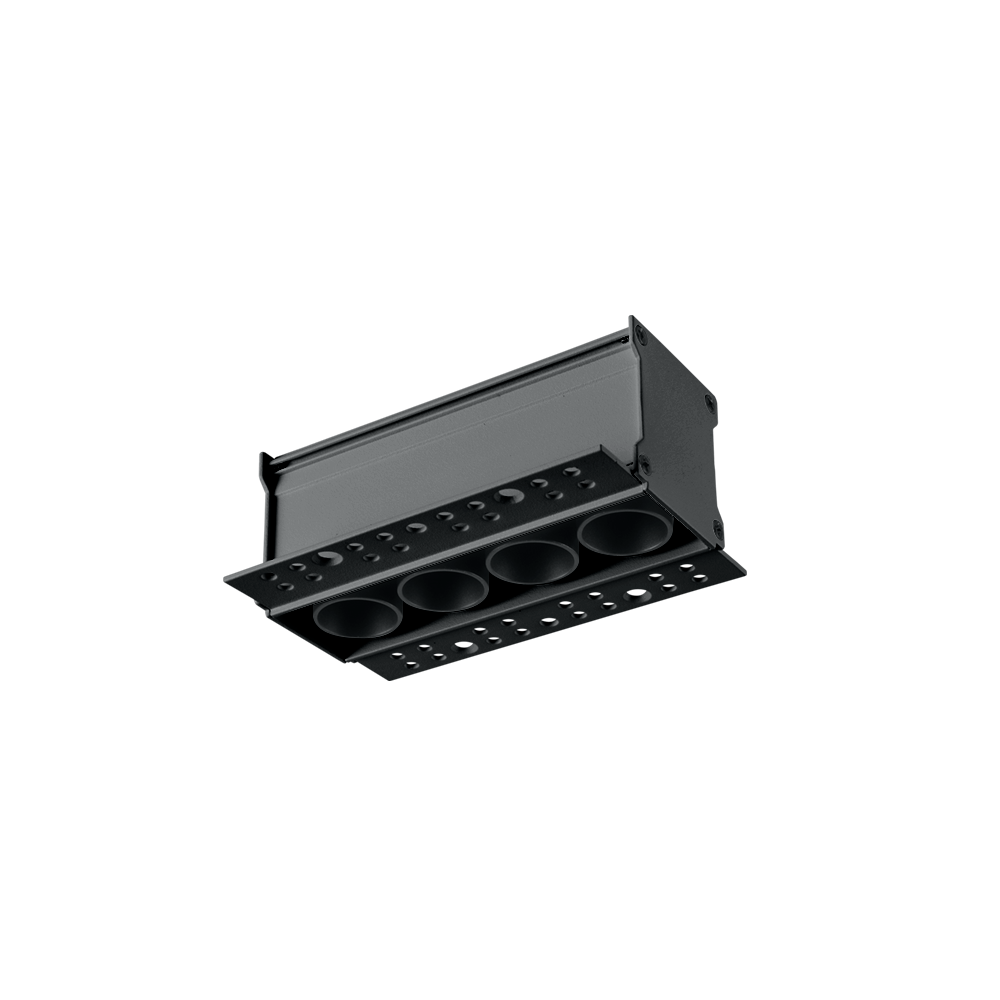

A&C TRIMLESS

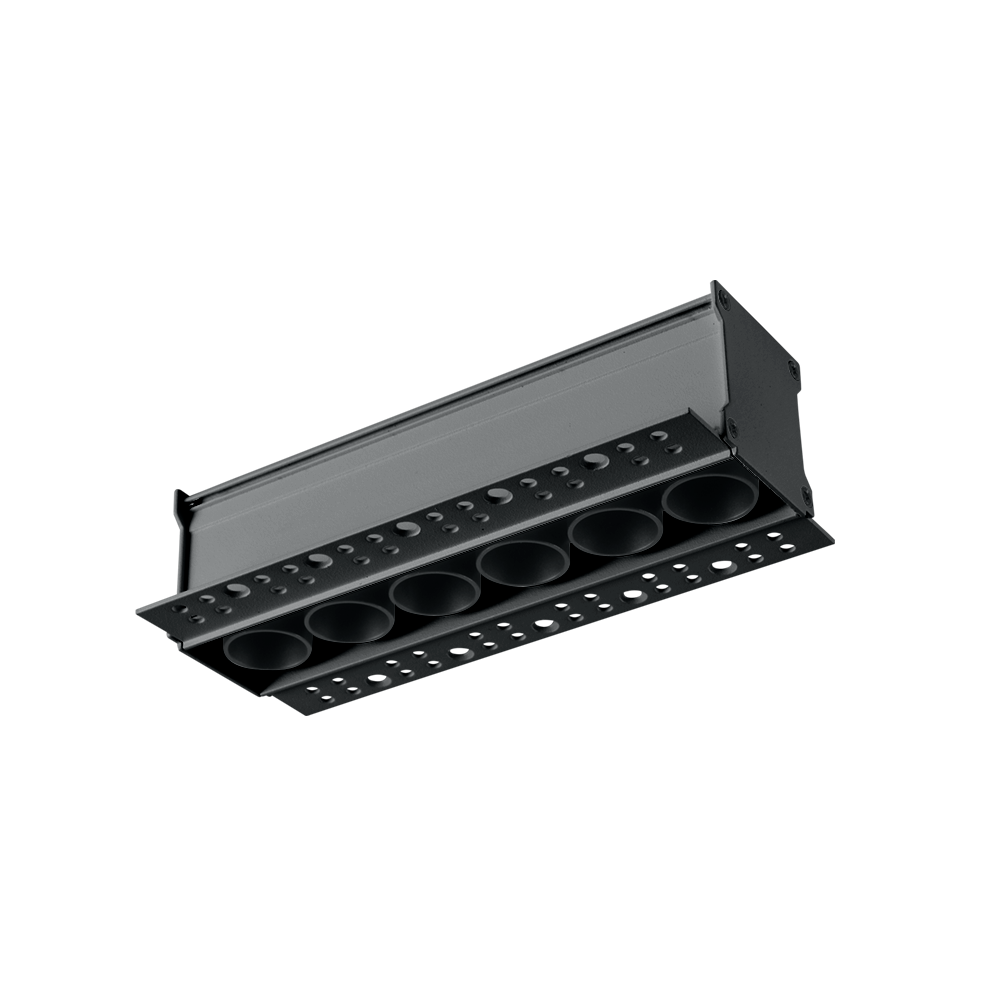

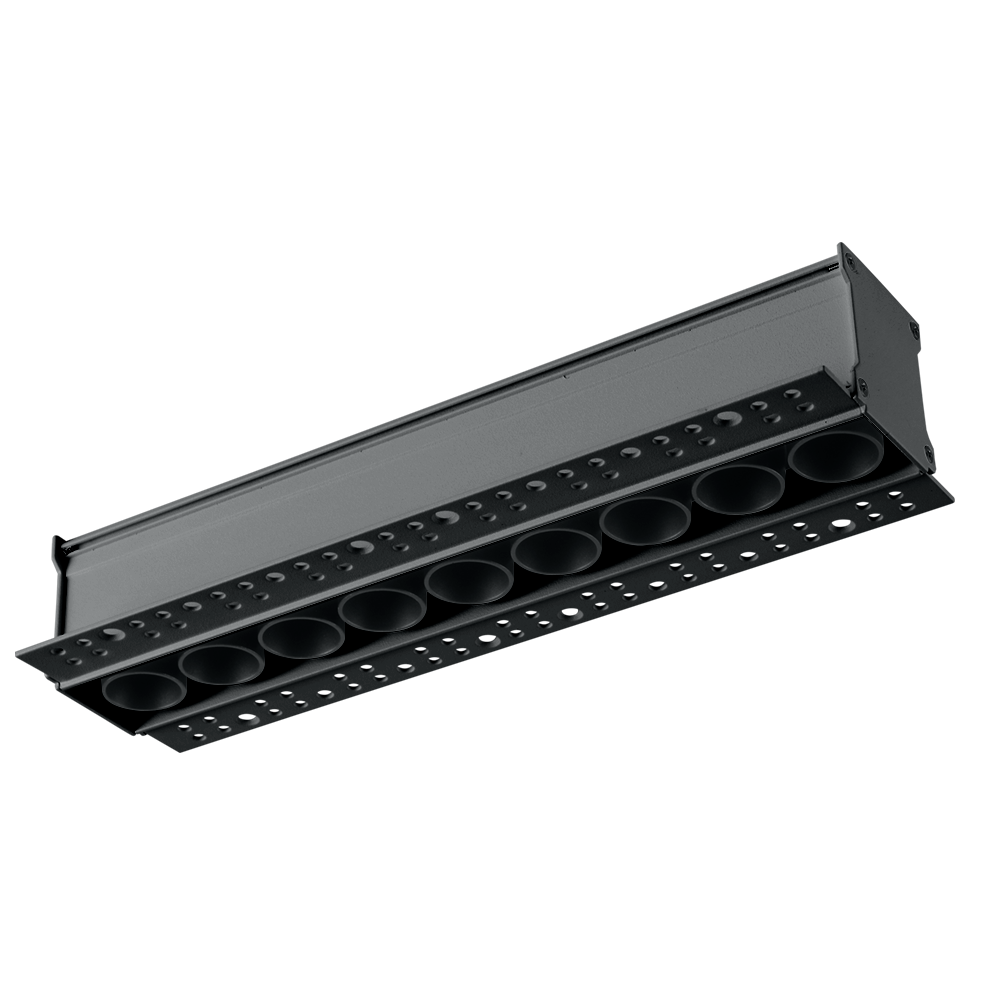

This is our Eyeled spotlight-small A&C TRIMLESS,Linear lighting offers a perfect blend of style, functionality and flexibility.The versatility of our lighting ranges leads them to be a popular option for adiverse range of applications from shopfitting lighting to high-end architectural projects. Today we see linear lighting in offices, retail, education and many commercial spaces. Linear lighting is defined as a linear shape luminaire (opposed to square or round).

Features Features

-These luminaires long oplics to distribute the light over o more norrow area than with traditional lighting.

-Create a circle of light from a line of LED Downlights

-A narrow line of nano LED Downlights for pure minimalism Superior glare control for high performance

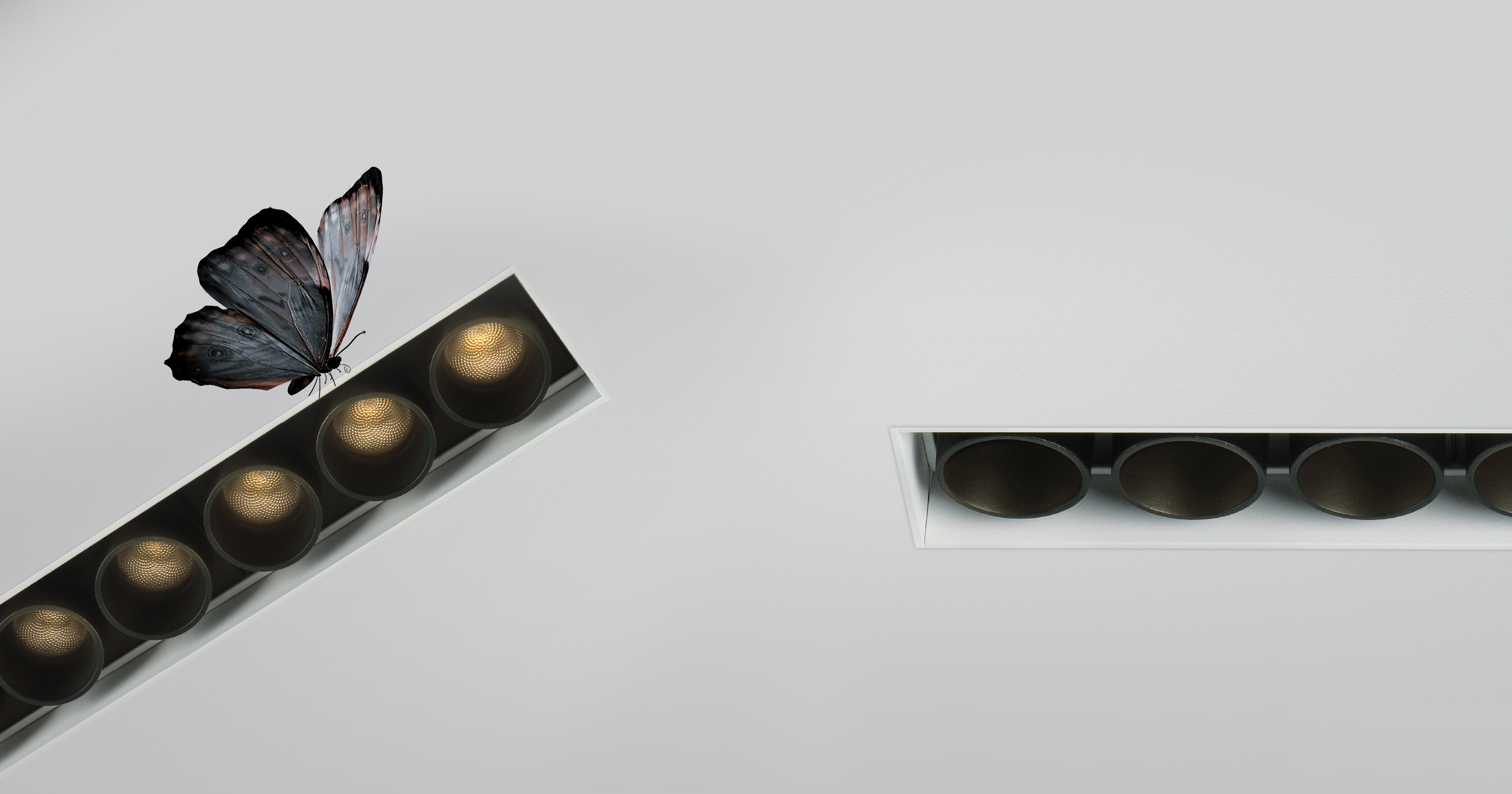

-Trimless Version Trim Version

Specifications Specifications

-Black and white versions available

-Aluminum housing and in powder-coated finish, excellent dissipation

-ON/OFF, TRIAC 0-10V, and DALl control system

-Switchable CCT version in 3000K-3500K-4000K switchable, easier for keeping stock

-Downlight with pleasantly homogeneous luminance levels

Fields of application Fields of application

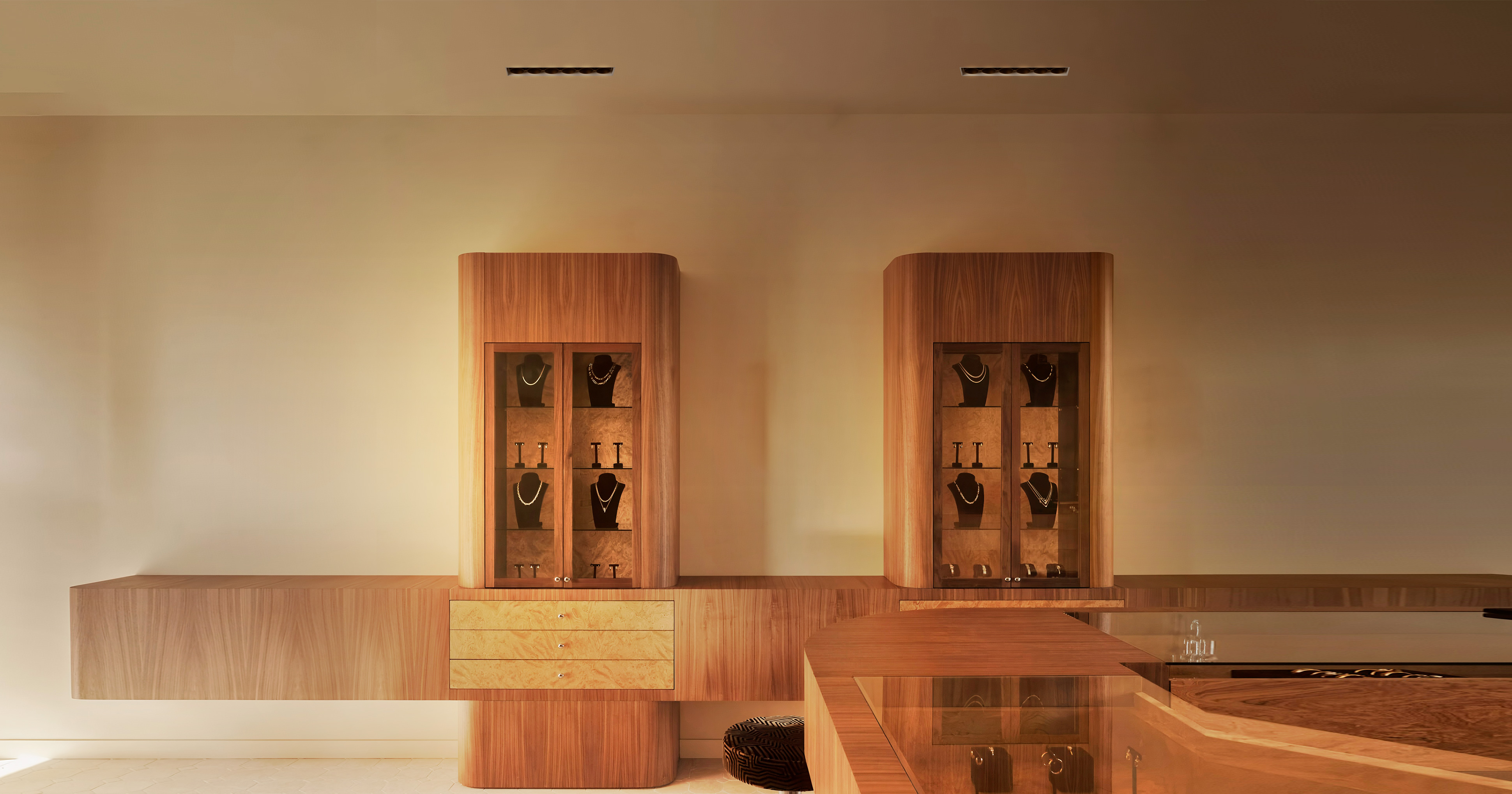

Retail & Hospitality

retail spaces, presentation of merchandise, restaurants, hotels,

shop windows,exhibition spaces

Office & Education

offices, conference rooms, art & culture establishments

Home & Living

Version

0 Article

Nominal power

BEAM ANGLE

32°

24°

16°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

BEAM ANGLE

32°

24°

16°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

10W

BEAM ANGLE

24°

35°

16°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

15W

BEAM ANGLE

35°

24°

16°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

20W

BEAM ANGLE

35°

24°

16°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish

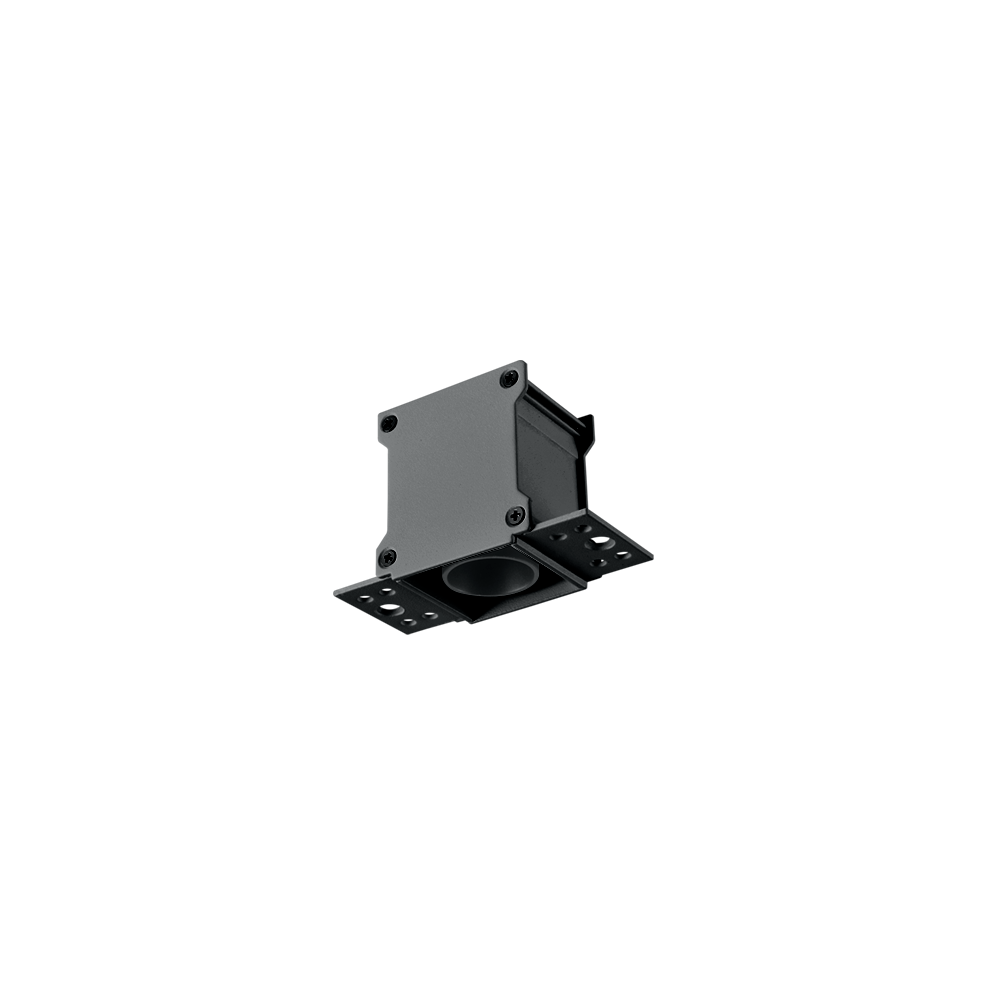

	L-D336-1-30K-16	L-D336-1-30K-16	3W	3000K	126lm	16°	White/Black

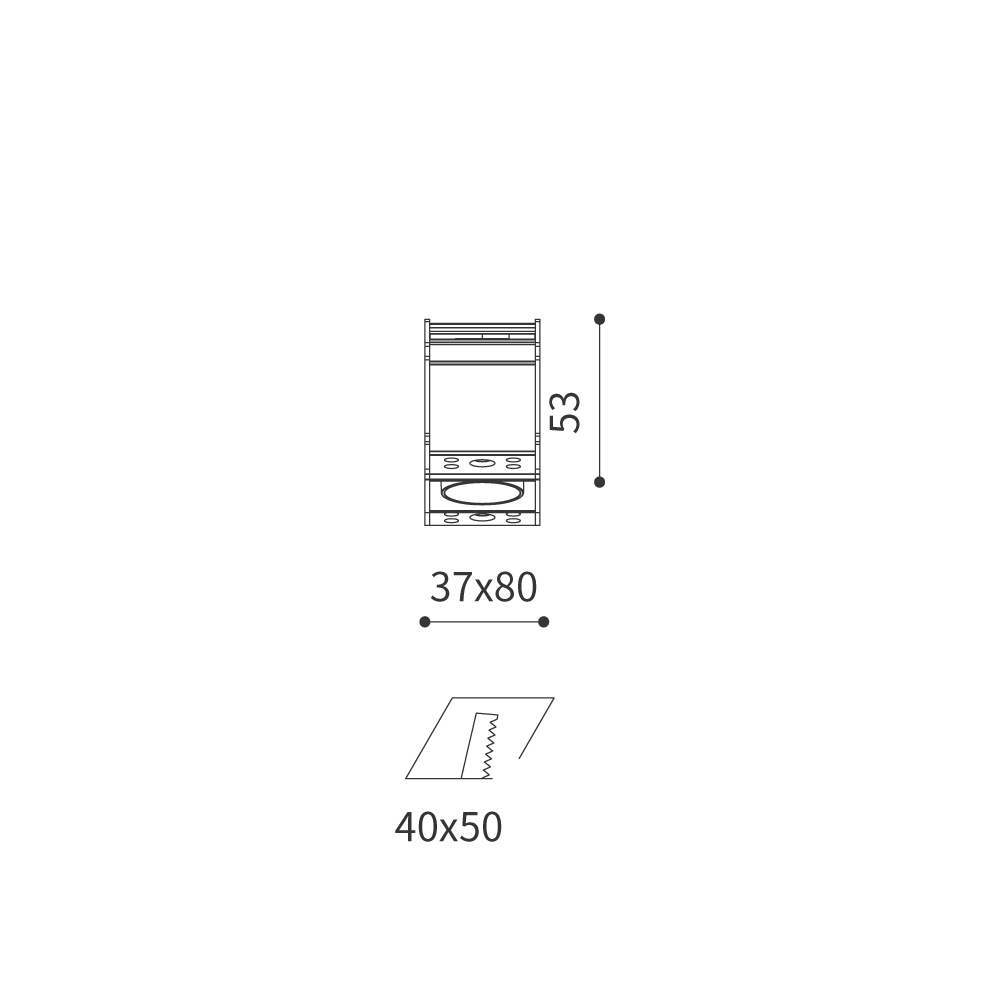

Get in Touch Get in Touch L-D336-1-30K-16 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:3W, luminous flux of luminaire 126lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 500mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=37x80 mm, ceiling cutout ø40x50 mm Nominal power 3W Finish White/Black Delivered lumens 126lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 67mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 16° Downloads L-D336-Instruction Manual pdf L-D336-1-3000K-WH-Spectral test pdf Accessories Transparent PVC sheet Honeycomb
	L-D336-1-30K-24	L-D336-1-30K-24	3W	3000K	126lm	24°	White/Black
Get in Touch Get in Touch L-D336-1-30K-24 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:3W, luminous flux of luminaire 126lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 500mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=37x80 mm, ceiling cutout ø40x50 mm Nominal power 3W Finish White/Black Delivered lumens 126lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 67mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 24° Downloads L-D336-Instruction Manual pdf L-D336-1-3000K-WH-Spectral test pdf Accessories Transparent PVC sheet Honeycomb
	L-D336-1-30K-32	L-D336-1-30K-32	3W	3000K	126lm	32°	White/Black
Get in Touch Get in Touch L-D336-1-30K-32 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:3W, luminous flux of luminaire 126lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 500mA, Beam angle:32°, black/white color, ON/OFF.ingress protection IP20. Ø=37x80 mm, ceiling cutout ø40x50 mm Nominal power 3W Finish White/Black Delivered lumens 126lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.17kg Color Rendering Index(CRI) CRI≥90 Diameter 67mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 32° Downloads L-D336-Instruction Manual pdf L-D336-1-3000K-WH-Spectral test pdf L-D336-1-3000K-3W-32°WH-IES rar Accessories Transparent PVC sheet Honeycomb

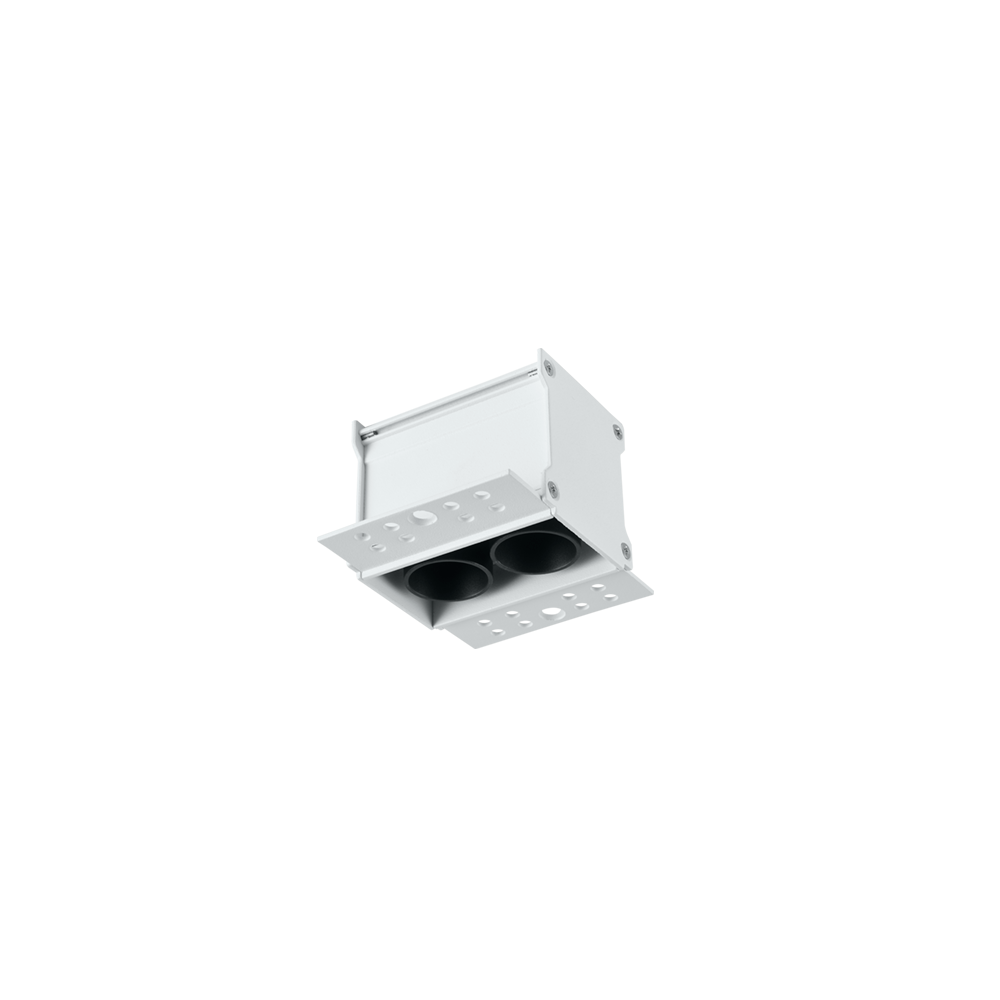

	L-D336-2-30K-16	L-D336-2-30K-16	5W	3000K	290lm	16°	White/Black

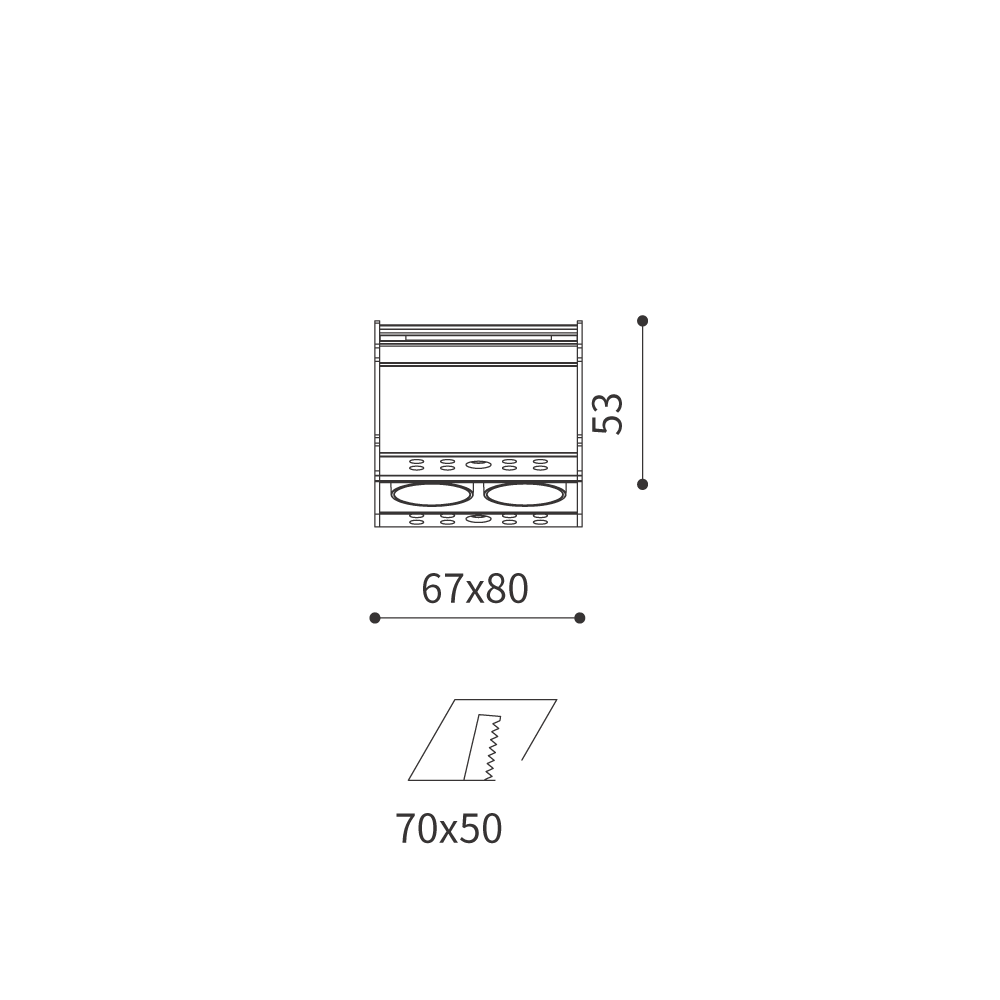

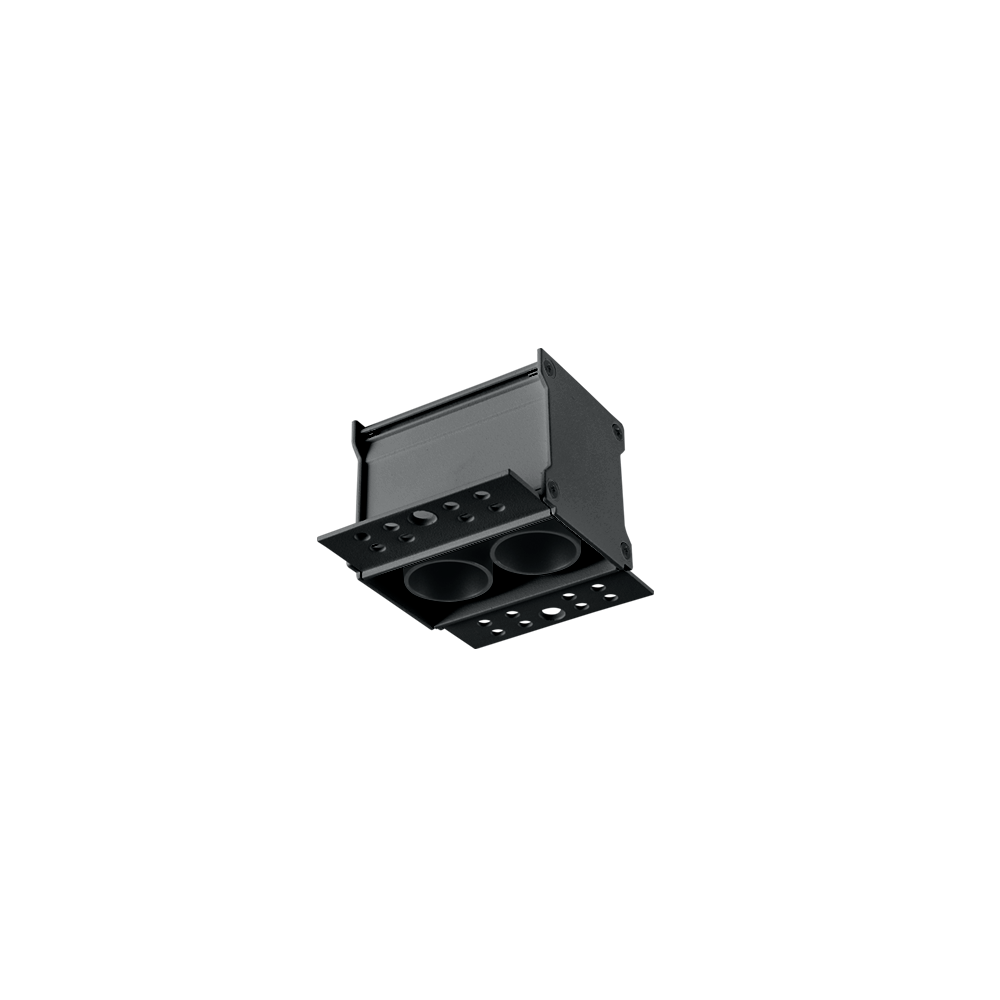

Get in Touch Get in Touch L-D336-2-30K-16 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:5W, luminous flux of luminaire 290lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=67x80 mm, ceiling cutout ø70x50 mm Nominal power 5W Finish White/Black Delivered lumens 290lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.24kg Color Rendering Index(CRI) CRI≥90 Diameter 67mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 16° Downloads L-D336-Instruction Manual pdf L-D336-2-3000K-WH-Spectral test pdf Accessories Transparent PVC sheet Honeycomb
	L-D336-2-30K-24	L-D336-2-30K-24	5W	3000K	290lm	24°	White/Black
Get in Touch Get in Touch L-D336-2-30K-24 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:5W, luminous flux of luminaire 290lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=67x80 mm, ceiling cutout ø70x50 mm Nominal power 5W Finish White/Black Delivered lumens 290lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.24kg Color Rendering Index(CRI) CRI≥90 Diameter 67mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 24° Downloads L-D336-Instruction Manual pdf L-D336-2-3000K-WH-Spectral test pdf Accessories Transparent PVC sheet Honeycomb
	L-D336-2-30K-32	L-D336-2-30K-32	5W	3000K	290lm	32°	White/Black
Get in Touch Get in Touch L-D336-2-30K-32 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:5W, luminous flux of luminaire 290lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:32°, black/white color, ON/OFF.ingress protection IP20. Ø=67x80 mm, ceiling cutout ø70x50 mm Nominal power 5W Finish White/Black Delivered lumens 290lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.24kg Color Rendering Index(CRI) CRI≥90 Diameter 67mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 32° Downloads L-D336-Instruction Manual pdf L-D336-2-3000K-WH-Spectral test pdf L-D366-2-3000K-5W-32°WH-IES rar Accessories Transparent PVC sheet Honeycomb
	L-D336-4-30K-16	L-D336-4-30K-16	10W	3000K	630lm	16°	White/Black

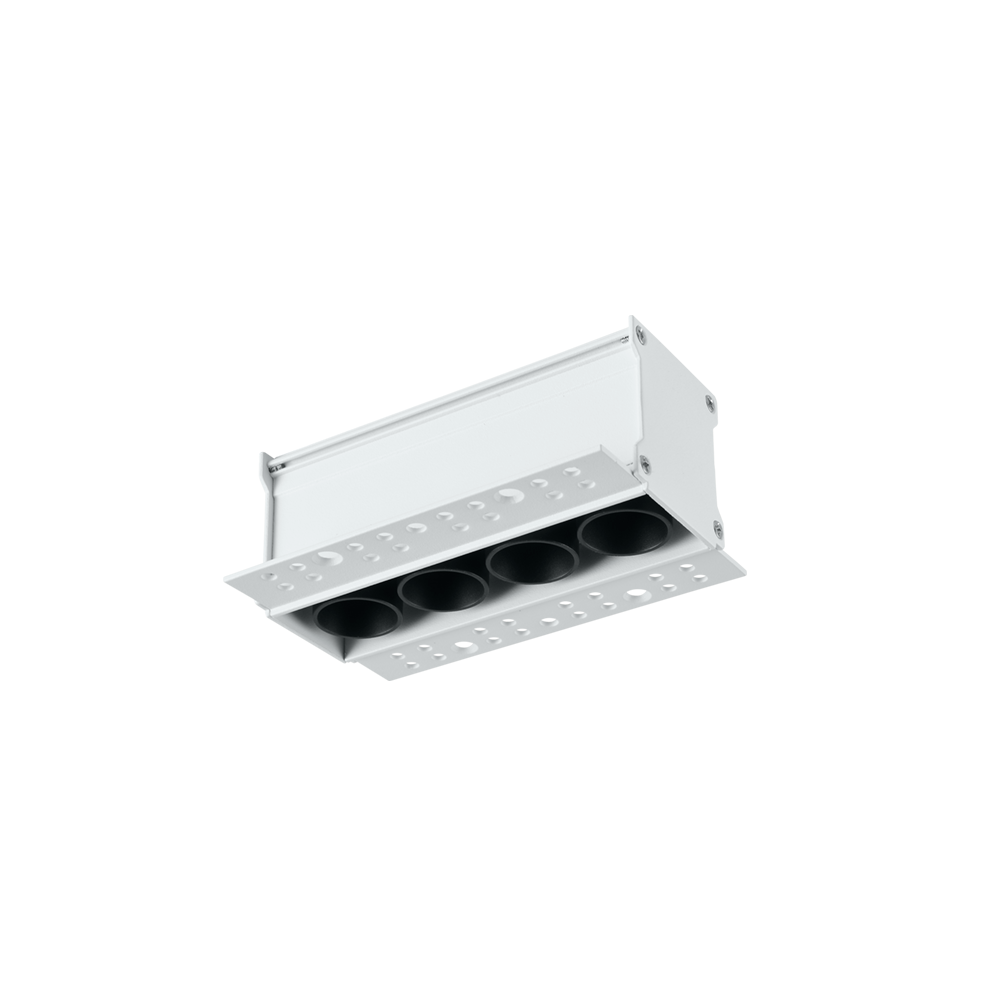

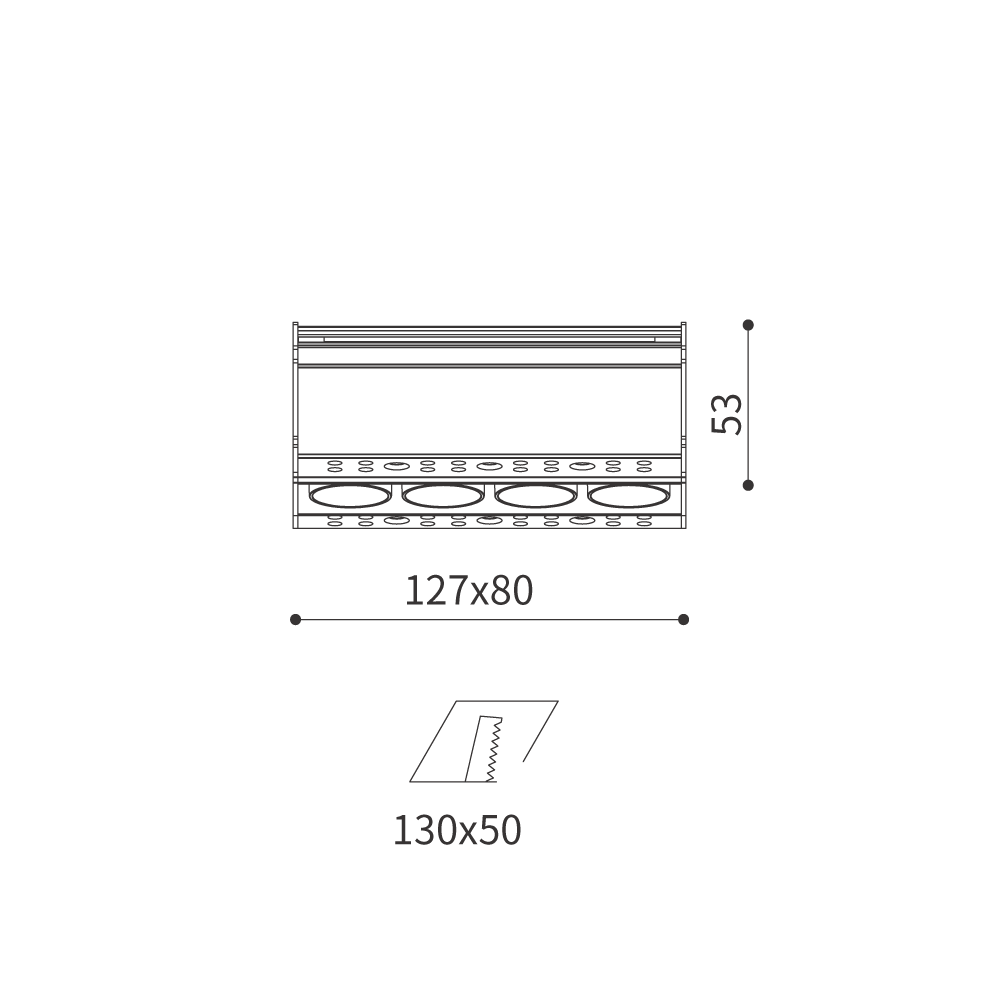

Get in Touch Get in Touch L-D336-4-30K-16 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:10W, luminous flux of luminaire 630lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=127x/80 mm, ceiling cutout ø130x50 mm Nominal power 10W Finish White/Black Delivered lumens 630lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.37kg Color Rendering Index(CRI) CRI≥90 Diameter 127mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 16° Downloads L-D336-Instruction Manual pdf L-D336-4-3000K-WH-Spectral test pdf Accessories Transparent PVC sheet Honeycomb
	L-D336-4-30K-24	L-D336-4-30K-24	10W	3000K	630lm	24°	White/Black
Get in Touch Get in Touch L-D336-4-30K-24 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:10W, luminous flux of luminaire 630lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=127x/80 mm, ceiling cutout ø130x50 mm Nominal power 10W Finish White/Black Delivered lumens 630lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.37kg Color Rendering Index(CRI) CRI≥90 Diameter 127mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 24° Downloads L-D336-Instruction Manual pdf L-D336-4-3000K-WH-Spectral test pdf Accessories Transparent PVC sheet Honeycomb
	L-D336-4-30K-35	L-D336-4-30K-35	10W	3000K	630lm	35°	White/Black
Get in Touch Get in Touch L-D336-4-30K-35 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:10W, luminous flux of luminaire 630lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:35°, black/white color, ON/OFF.ingress protection IP20. Ø=127x/80 mm, ceiling cutout ø130x50 mm Nominal power 10W Finish White/Black Delivered lumens 630lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.37kg Color Rendering Index(CRI) CRI≥90 Diameter 127mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 35° Downloads L-D336-Instruction Manual pdf L-D336-4-3000K-WH-Spectral test pdf L-D366-4-3000K-10W-35°WH-IES rar Accessories Transparent PVC sheet Honeycomb

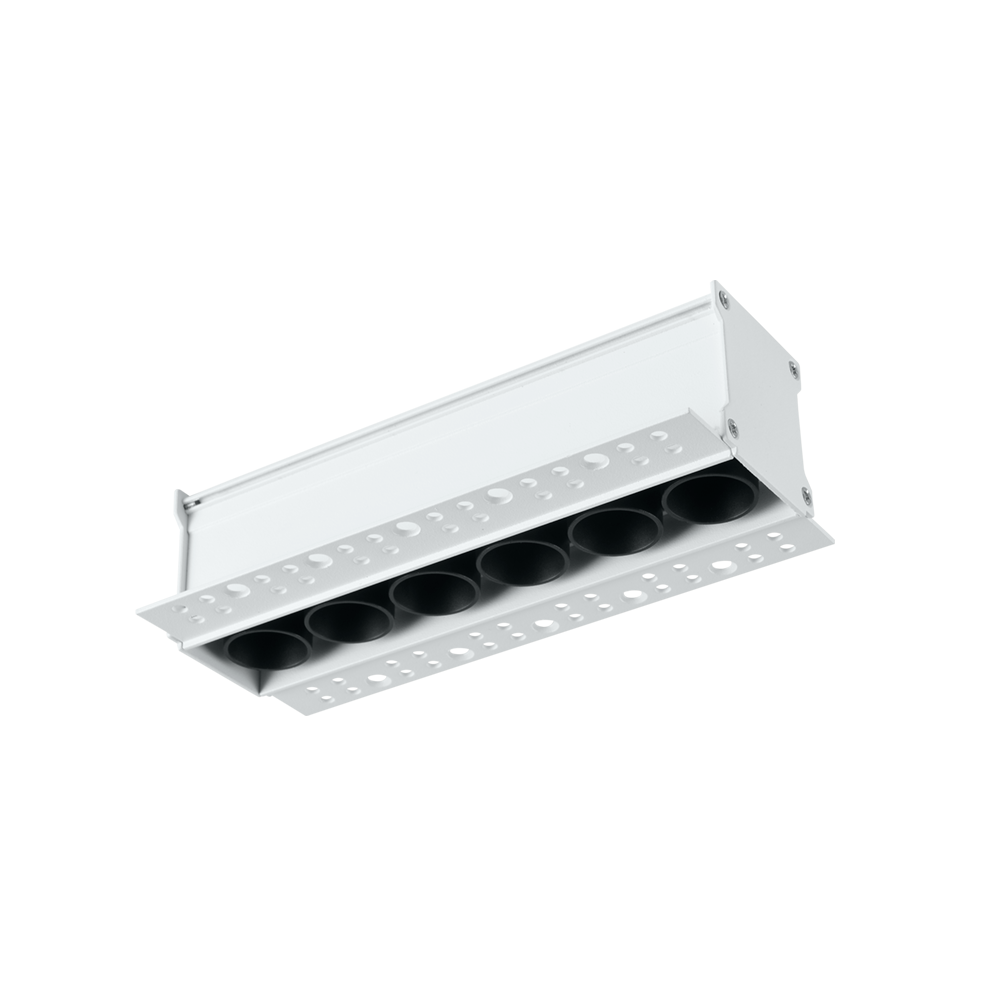

	L-D336-6-30K-16	L-D336-6-30K-16	15W	3000K	950lm	16°	White/Black

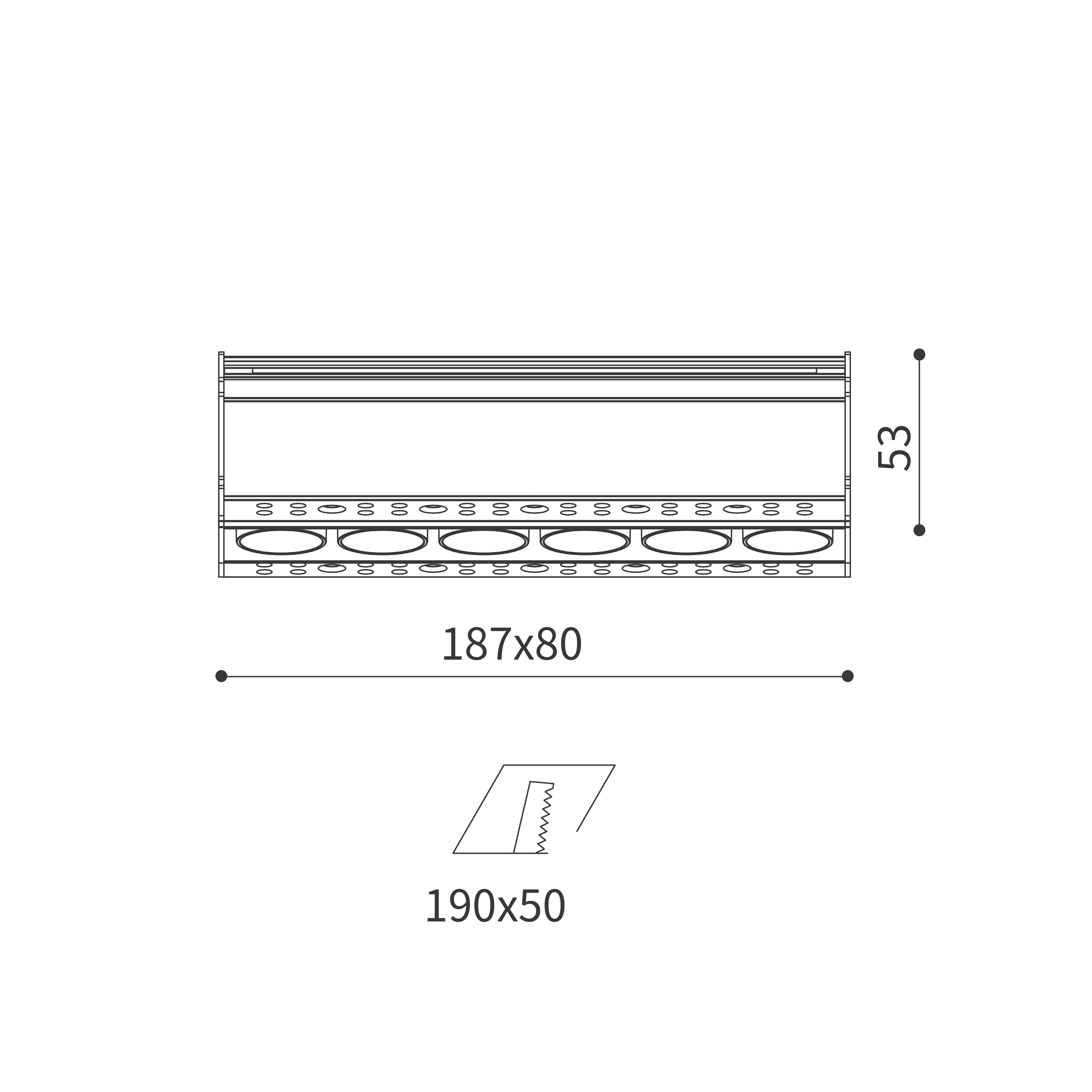

Get in Touch Get in Touch L-D336-6-30K-16 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:15W, luminous flux of luminaire 950lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=187x80 mm, ceiling cutout ø190x50 mm Nominal power 15W Finish White/Black Delivered lumens 950lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.51kg Color Rendering Index(CRI) CRI≥90 Diameter 187mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 16° Downloads L-D336-Instruction Manual pdf L-D336-6-3000K-WH-Spectral test pdf Accessories Transparent PVC sheet Honeycomb
	L-D336-6-30K-24	L-D336-6-30K-24	15W	3000K	950lm	24°	White/Black
Get in Touch Get in Touch L-D336-6-30K-24 Eyeled spotlight-small A&C A&C TRIMLESS, with LED,system power:15W, luminous flux of luminaire 950lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=187x80 mm, ceiling cutout ø190x50 mm Nominal power 15W Finish White/Black Delivered lumens 950lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.51kg Color Rendering Index(CRI) CRI≥90 Diameter 187mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 24° Downloads L-D336-Instruction Manual pdf L-D336-6-3000K-WH-Spectral test pdf Accessories Transparent PVC sheet Honeycomb
	L-D336-6-30K-35	L-D336-6-30K-35	15W	3000K	950lm	35°	White/Black
Get in Touch Get in Touch L-D336-6-30K-35 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:15W, luminous flux of luminaire 950lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:35°, black/white color, ON/OFF.ingress protection IP20. Ø=187x80 mm, ceiling cutout ø190x50 mm Nominal power 15W Finish White/Black Delivered lumens 950lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.51kg Color Rendering Index(CRI) CRI≥90 Diameter 187mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 35° Downloads L-D336-Instruction Manual pdf L-D336-6-3000K-WH-Spectral test pdf L-D366-6-3000K-15W-35°WH-IES rar Accessories Transparent PVC sheet Honeycomb
	L-D336-9-30K-16	L-D336-9-30K-16	20W	3000K	1420lm	16°	White/Black

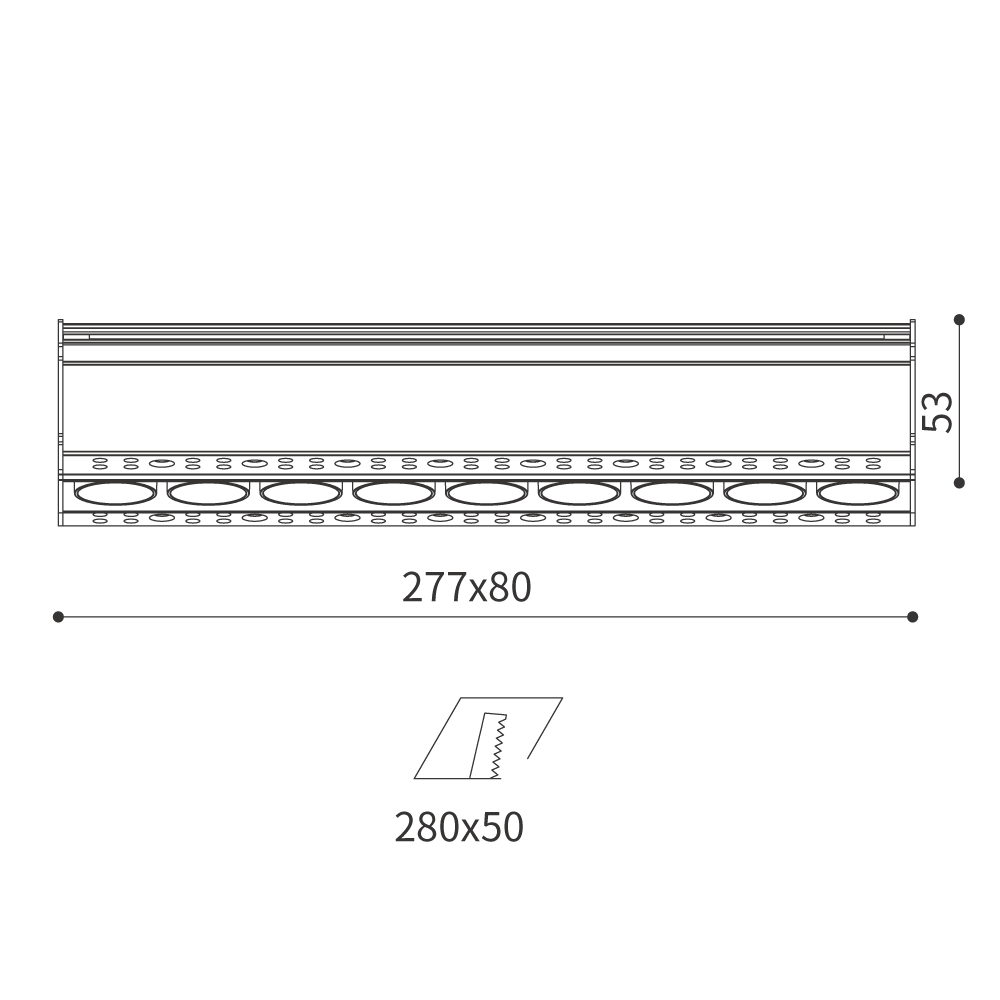

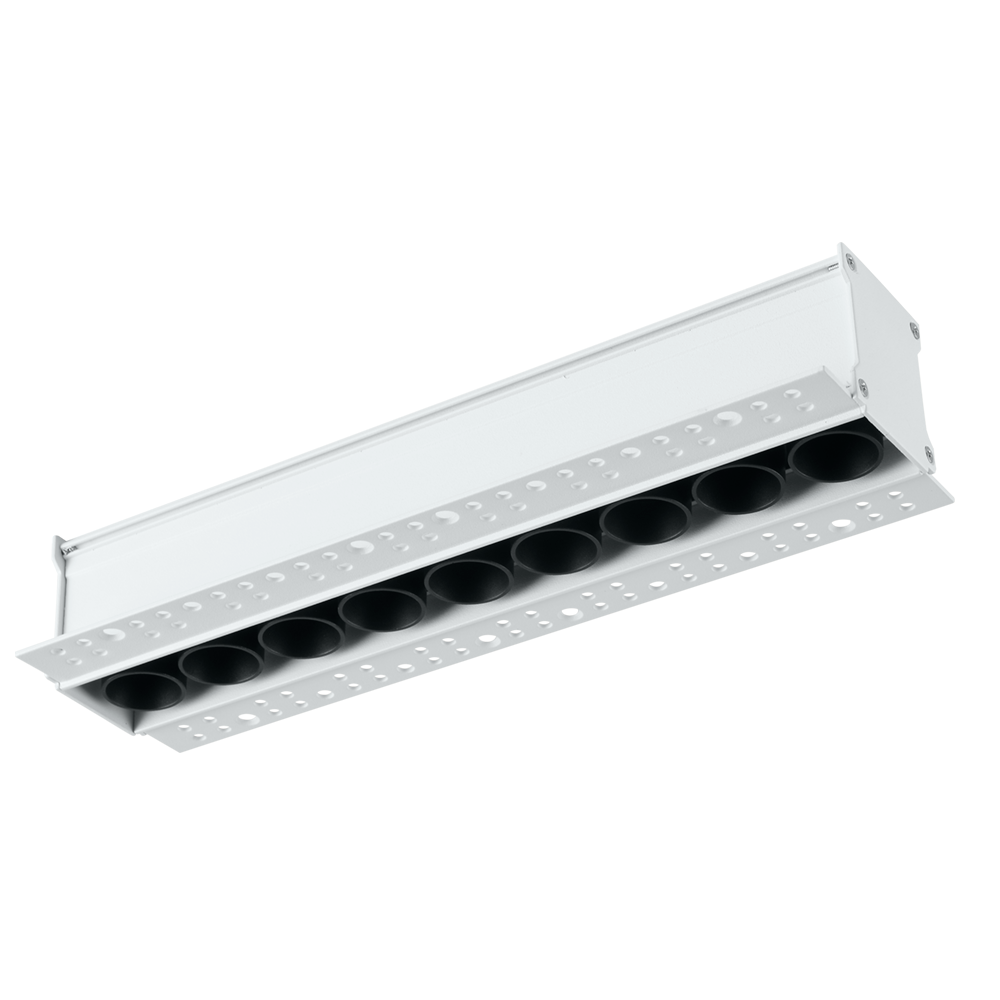

Get in Touch Get in Touch L-D336-9-30K-16 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:20W, luminous flux of luminaire 1420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=277x80 mm, ceiling cutout ø280x50 mm Nominal power 20W Finish White/Black Delivered lumens 1420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.66kg Color Rendering Index(CRI) CRI≥90 Diameter 277mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 16° Downloads L-D336-Instruction Manual pdf Accessories Transparent PVC sheet Honeycomb
	L-D336-9-30K-24	L-D336-9-30K-24	20W	3000K	1420lm	24°	White/Black
Get in Touch Get in Touch L-D336-9-30K-24 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:20W, luminous flux of luminaire 1420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=277x80 mm, ceiling cutout ø280x50 mm Nominal power 20W Finish White/Black Delivered lumens 1420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.66kg Color Rendering Index(CRI) CRI≥90 Diameter 277mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 24° Downloads L-D336-Instruction Manual pdf Accessories Transparent PVC sheet Honeycomb
	L-D336-9-30K-35	L-D336-9-30K-35	20W	3000K	1420lm	35°	White/Black
Get in Touch Get in Touch L-D336-9-30K-35 Eyeled spotlight-small A&C TRIMLESS, with LED,system power:20W, luminous flux of luminaire 1420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:35°, black/white color, ON/OFF.ingress protection IP20. Ø=277x80 mm, ceiling cutout ø280x50 mm Nominal power 20W Finish White/Black Delivered lumens 1420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.66kg Color Rendering Index(CRI) CRI≥90 Diameter 277mm Unified Glare Rating (UGR) UGR <10 Length 53mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 80mm Beam angle 35° Downloads L-D336-Instruction Manual pdf Accessories Transparent PVC sheet Honeycomb
