A&C PLUS - FULL TO TILT


A&C PLUS-FULL TO TILT-Diversity Design with Adjustable Spot Light,These adjustable luminaires are perfect for extraordinary accent lighting in varied settings. Featuring excellent luminous efficiency and an exclusive aesthetic,they come with multiple optics and a great range of accessories.




Features Features

-These luminaires long oplics to distribute the light over o more norrow area than with traditional lighting.

-Create a circle of light from a line of LED Downlights

-A narrow line of nano LED Downlights for pure minimalism Superior glare control for high performance

-Trimless Version Trim Version

Specifications Specifications

-Black and white versions available

-Aluminum housing and in powder-coated finish, excellent dissipation

-ON/OFF, TRIAC 0-10V, and DALl control system

-Switchable CCT version in 3000K-4000K-5000K switchable, easier for keeping stock

-Downlight with pleasantly homogeneous luminance levels

Fields of application Fields of application

Retail & Hospitality

retail spaces, presentation of merchandise, restaurants, hotels,

shop windows,exhibition spaces

Office & Education

offices, conference rooms, art & culture establishments

Home & Living


Version
0 Article

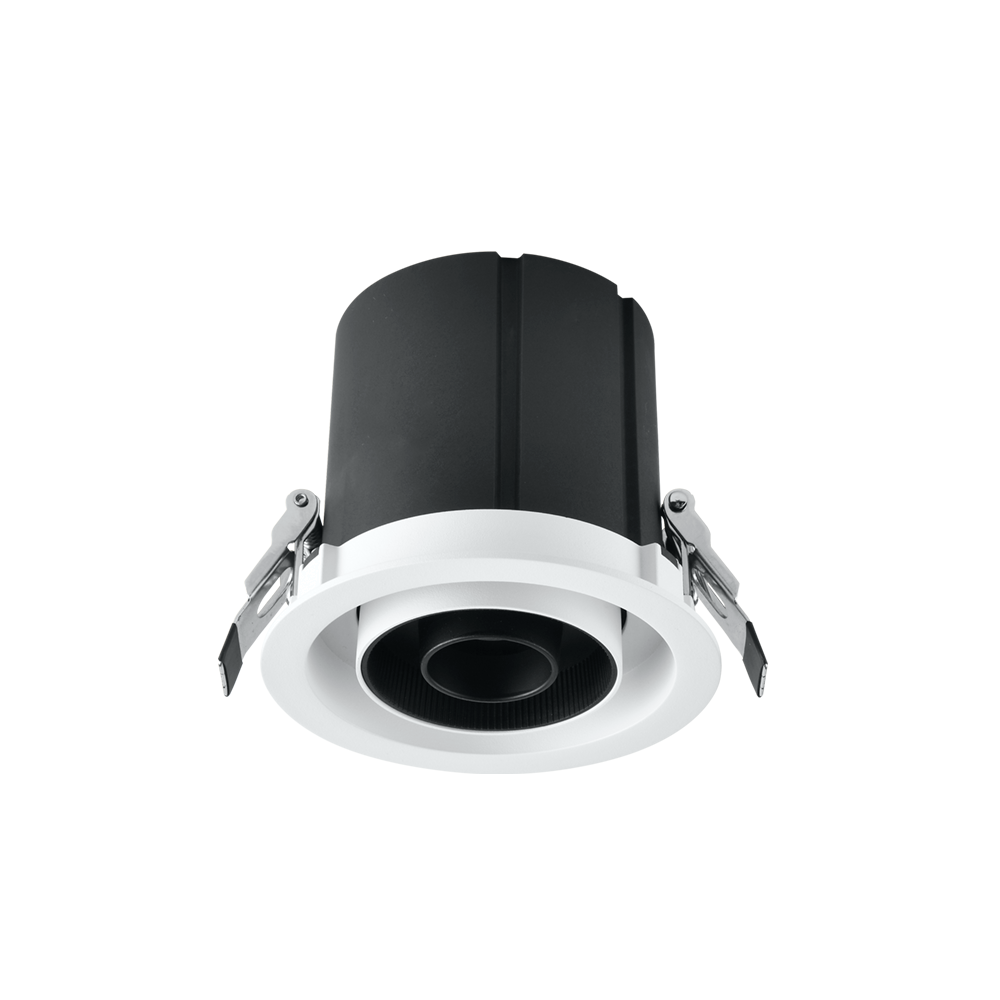

PROH_6853_1.jpg L-D331-COB3-6W

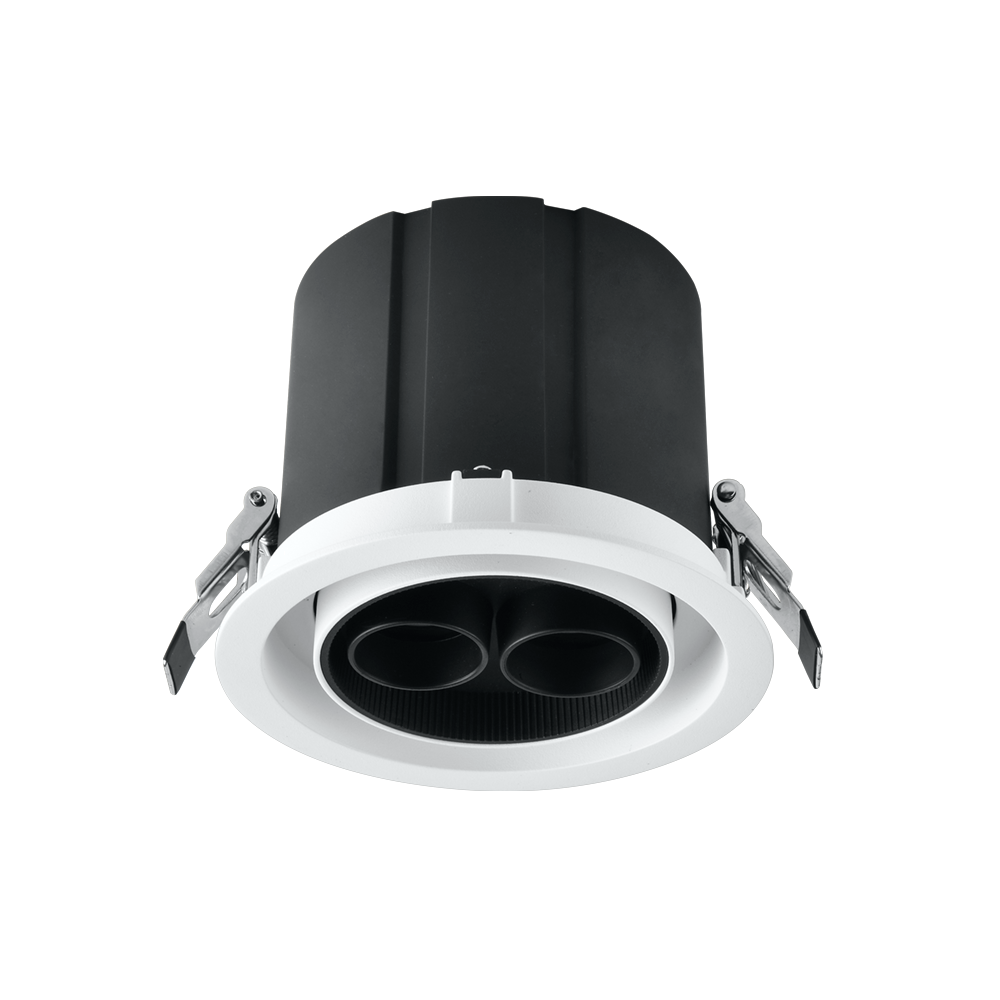

PROH_6853_1.jpg L-D331-COB4-12W
PROH_6853_1.jpg L-D331-COB5-24W
Nominal power
6W
BEAM ANGLE
60°
40°
24°
16°
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-D331-COB3-30K-16 L-D331-COB3-30K-16 6W 3000K 420lm 16° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/10/202607109552.png
/static/upload/2026/07/10/202607104570.png
/static/upload/2026/07/10/202607106993.png

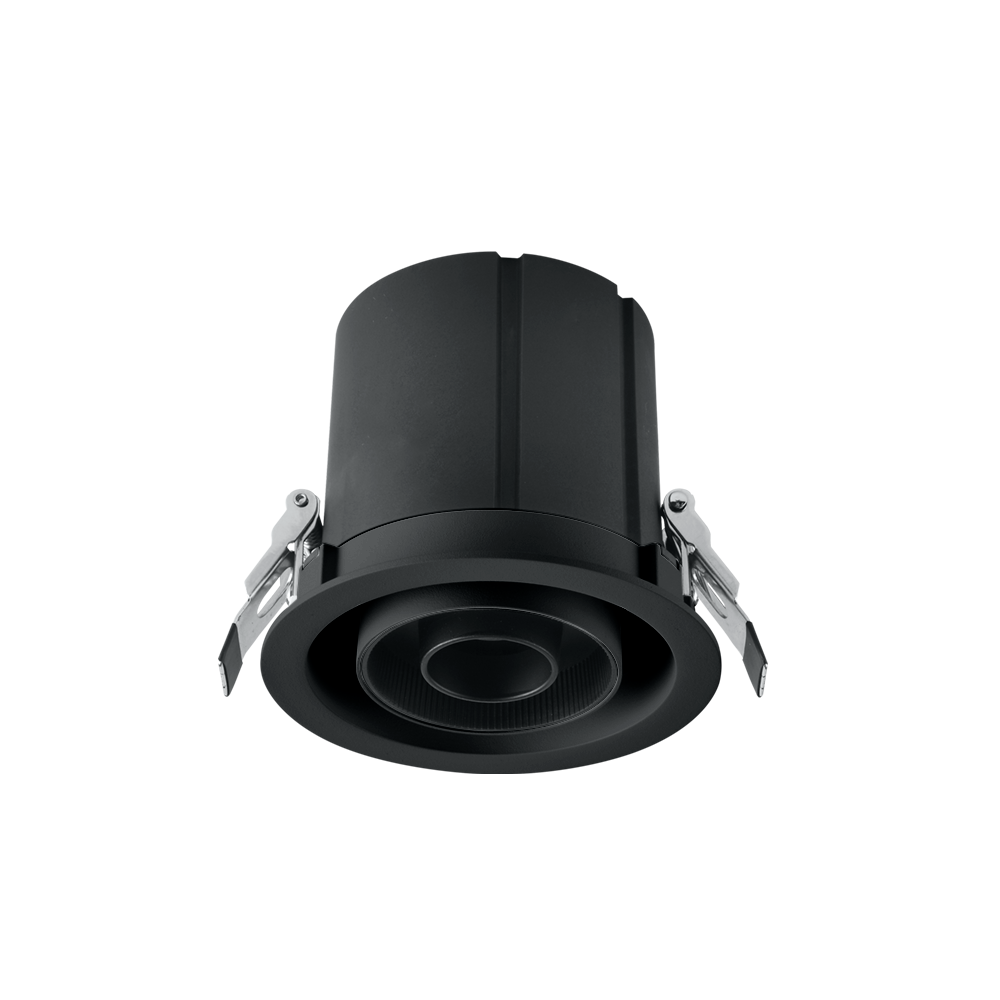

L-D331-COB3-30K-16

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:6W, luminous flux of luminaire 420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 150mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20.

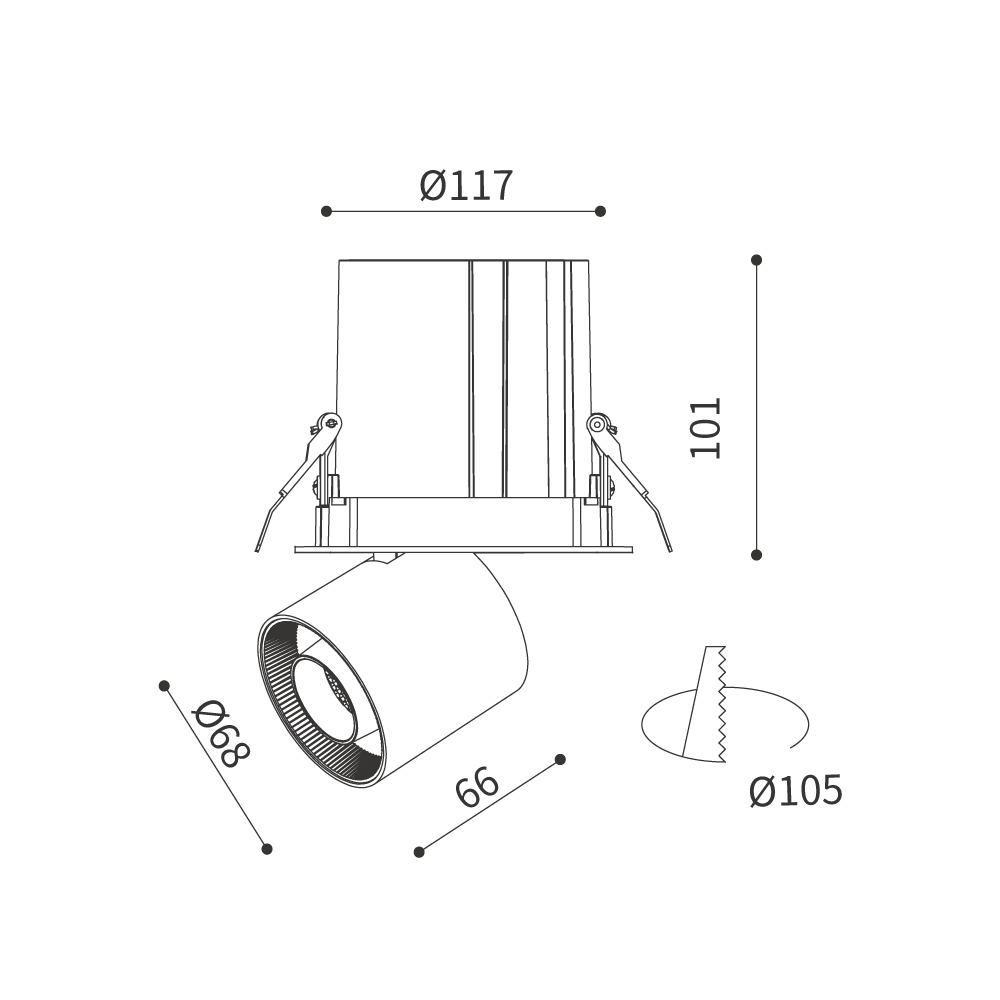

Ø=117 mm, ceiling cutout ø105 mm

Nominal power
6W
Finish
White/Black
Delivered lumens
420lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.67kg
Color Rendering Index(CRI)
CRI≥90
Height
101mm
Unified Glare Rating (UGR)
UGR <10
Diameter
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
68mm
Beam angle
16°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D331-COB3-30K-24 L-D331-COB3-30K-24 6W 3000K 420lm 24° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/10/202607109552.png
/static/upload/2026/07/10/202607104570.png
/static/upload/2026/07/10/202607106993.png

L-D331-COB3-30K-24

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:6W, luminous flux of luminaire 420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 150mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20.

Ø=117 mm, ceiling cutout ø105 mm

Nominal power
6W
Finish
White/Black
Delivered lumens
420lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.67kg
Color Rendering Index(CRI)
CRI≥90
Height
101mm
Unified Glare Rating (UGR)
UGR <10
Diameter
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
68mm
Beam angle
24°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D331-COB3-30K-40 L-D331-COB3-30K-40 6W 3000K 420lm 40° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/10/202607109552.png
/static/upload/2026/07/10/202607104570.png
/static/upload/2026/07/10/202607106993.png

L-D331-COB3-30K-40

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:6W, luminous flux of luminaire 420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 150mA, Beam angle:40°, black/white color, ON/OFF.ingress protection IP20.

Ø=117 mm, ceiling cutout ø105 mm

Nominal power
6W
Finish
White/Black
Delivered lumens
420lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.67kg
Color Rendering Index(CRI)
CRI≥90
Height
101mm
Unified Glare Rating (UGR)
UGR <10
Diameter
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
68mm
Beam angle
40°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D331-COB3-30K-60 L-D331-COB3-30K-60 6W 3000K 420lm 60° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/10/202607109552.png
/static/upload/2026/07/10/202607104570.png
/static/upload/2026/07/10/202607106993.png

L-D331-COB3-30K-60

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:6W, luminous flux of luminaire 420lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 150mA, Beam angle:60°, black/white color, ON/OFF.ingress protection IP20.

Ø=117 mm, ceiling cutout ø105 mm

Nominal power
6W
Finish
White/Black
Delivered lumens
420lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.67kg
Color Rendering Index(CRI)
CRI≥90
Height
101mm
Unified Glare Rating (UGR)
UGR <10
Diameter
68mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
68mm
Beam angle
60°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D331-COB4-30K-16 L-D331-COB4-30K-16 12W 3000K 864lm 16° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/10/202607104145.png
/static/upload/2026/07/10/202607101913.png
/static/upload/2026/07/10/202607106225.png

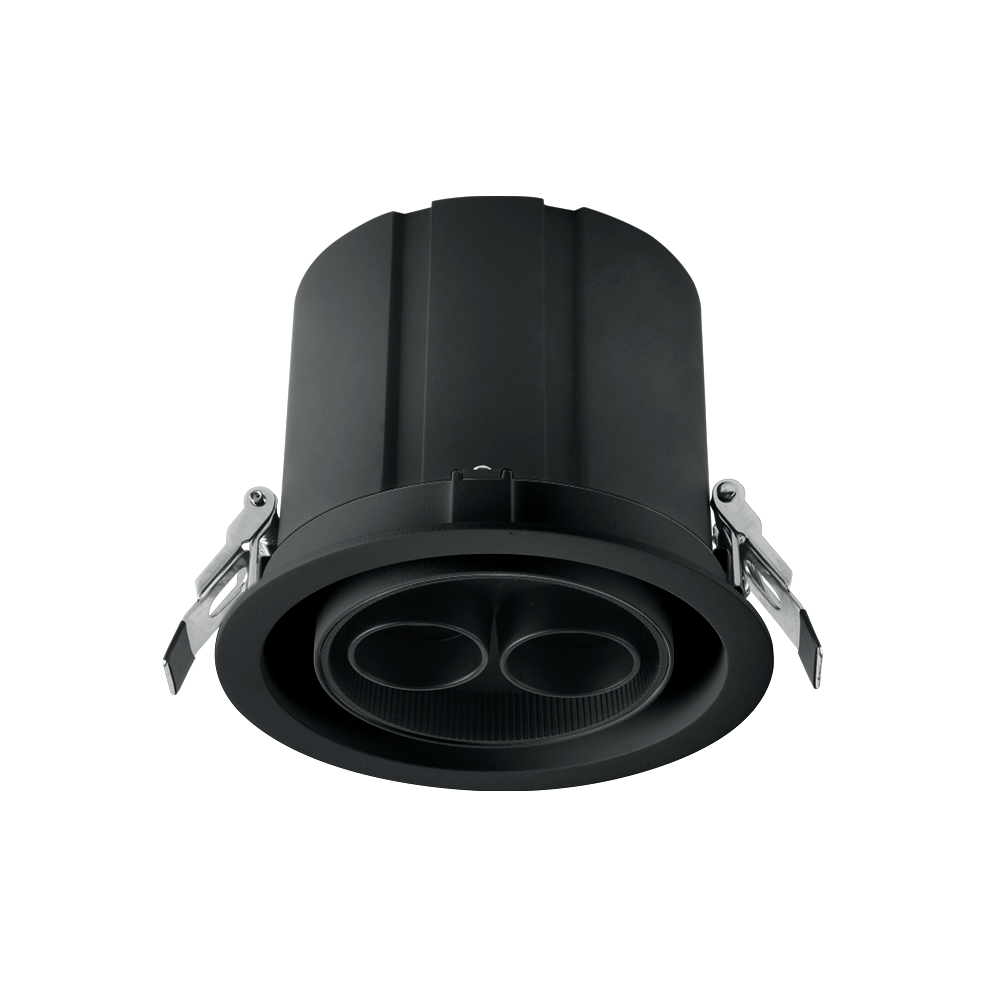

L-D331-COB4-30K-16

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:12W, luminous flux of luminaire 864lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20.

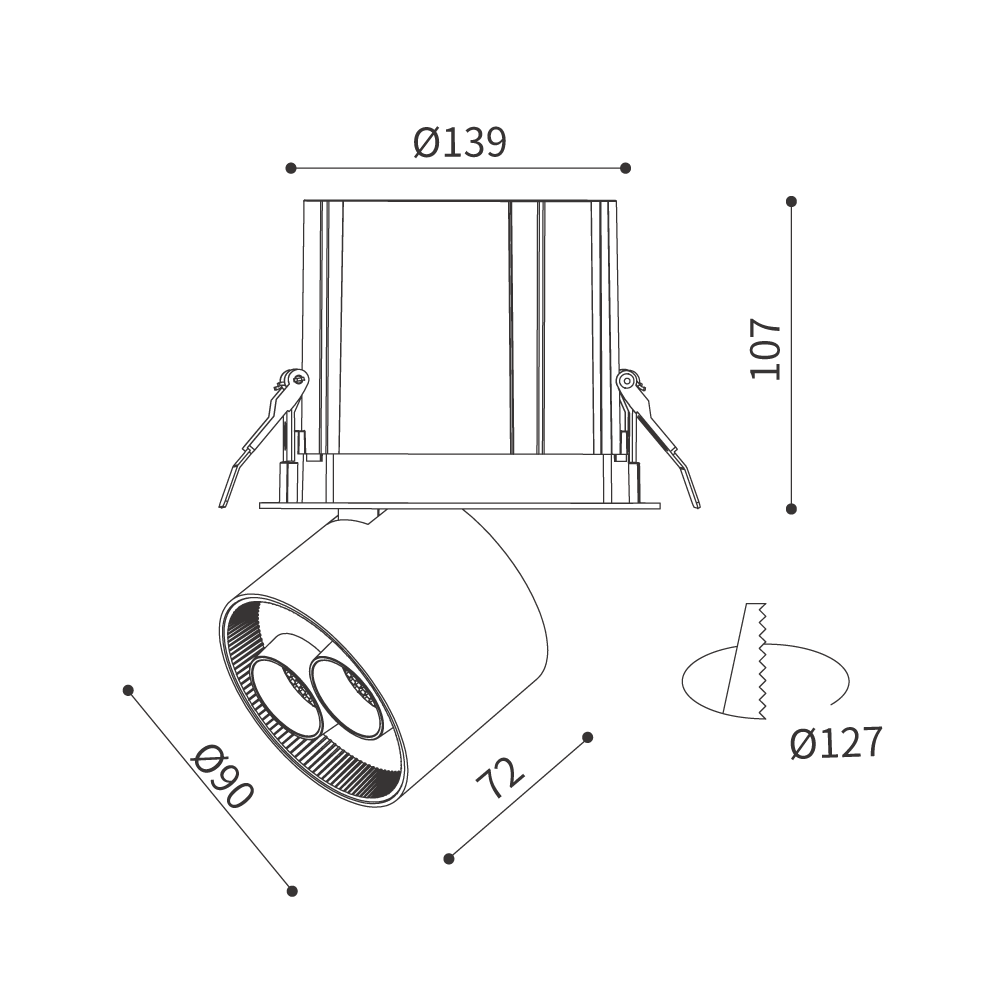

Ø=139 mm, ceiling cutout ø127 mm

Nominal power
12W
Finish
White/Black
Delivered lumens
864lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.67kg
Color Rendering Index(CRI)
CRI≥90
Height
107mm
Unified Glare Rating (UGR)
UGR <10
Diameter
90mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
90mm
Beam angle
16°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D331-COB4-30K-24 L-D331-COB4-30K-24 12W 3000K 864lm 24° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/10/202607104145.png
/static/upload/2026/07/10/202607101913.png
/static/upload/2026/07/10/202607106225.png

L-D331-COB4-30K-24

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:12W, luminous flux of luminaire 864lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20.

Ø=139 mm, ceiling cutout ø127 mm

Nominal power
12W
Finish
White/Black
Delivered lumens
864lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.67kg
Color Rendering Index(CRI)
CRI≥90
Height
107mm
Unified Glare Rating (UGR)
UGR <10
Diameter
90mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
90mm
Beam angle
24°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D331-COB4-30K-40 L-D331-COB4-30K-40 12W 3000K 864lm 40° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/10/202607104145.png
/static/upload/2026/07/10/202607101913.png
/static/upload/2026/07/10/202607106225.png

L-D331-COB4-30K-40

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:12W, luminous flux of luminaire 864lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:40°, black/white color, ON/OFF.ingress protection IP20.

Ø=139 mm, ceiling cutout ø127 mm

Nominal power
12W
Finish
White/Black
Delivered lumens
864lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.67kg
Color Rendering Index(CRI)
CRI≥90
Height
107mm
Unified Glare Rating (UGR)
UGR <10
Diameter
90mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
90mm
Beam angle
40°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D331-COB4-30K-55 L-D331-COB4-30K-55 12W 3000K 864lm 55° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/10/202607104145.png
/static/upload/2026/07/10/202607101913.png
/static/upload/2026/07/10/202607106225.png

L-D331-COB4-30K-55

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:12W, luminous flux of luminaire 864lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:55°, black/white color, ON/OFF.ingress protection IP20.

Ø=139 mm, ceiling cutout ø127 mm

Nominal power
12W
Finish
White/Black
Delivered lumens
864lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.67kg
Color Rendering Index(CRI)
CRI≥90
Height
107mm
Unified Glare Rating (UGR)
UGR <10
Diameter
90mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
90mm
Beam angle
55°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D331-COB5-30K-16 L-D331-COB5-30K-16 24W 3000K 1800lm 16° White/Black
Get in Touch Get in Touch

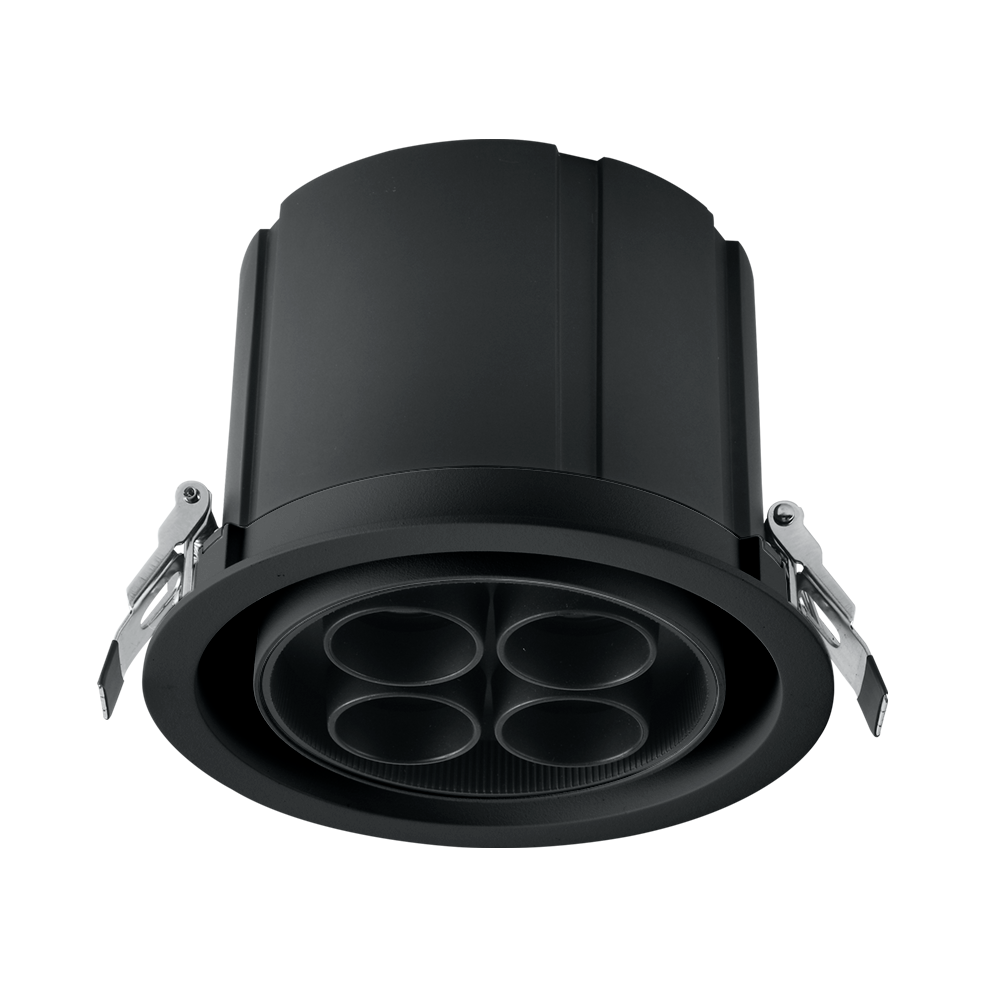

/static/upload/2026/07/10/202607109325.png
/static/upload/2026/07/10/202607103236.png
/static/upload/2026/07/10/202607105327.png

L-D331-COB5-30K-16

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:24W, luminous flux of luminaire 1800lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20.

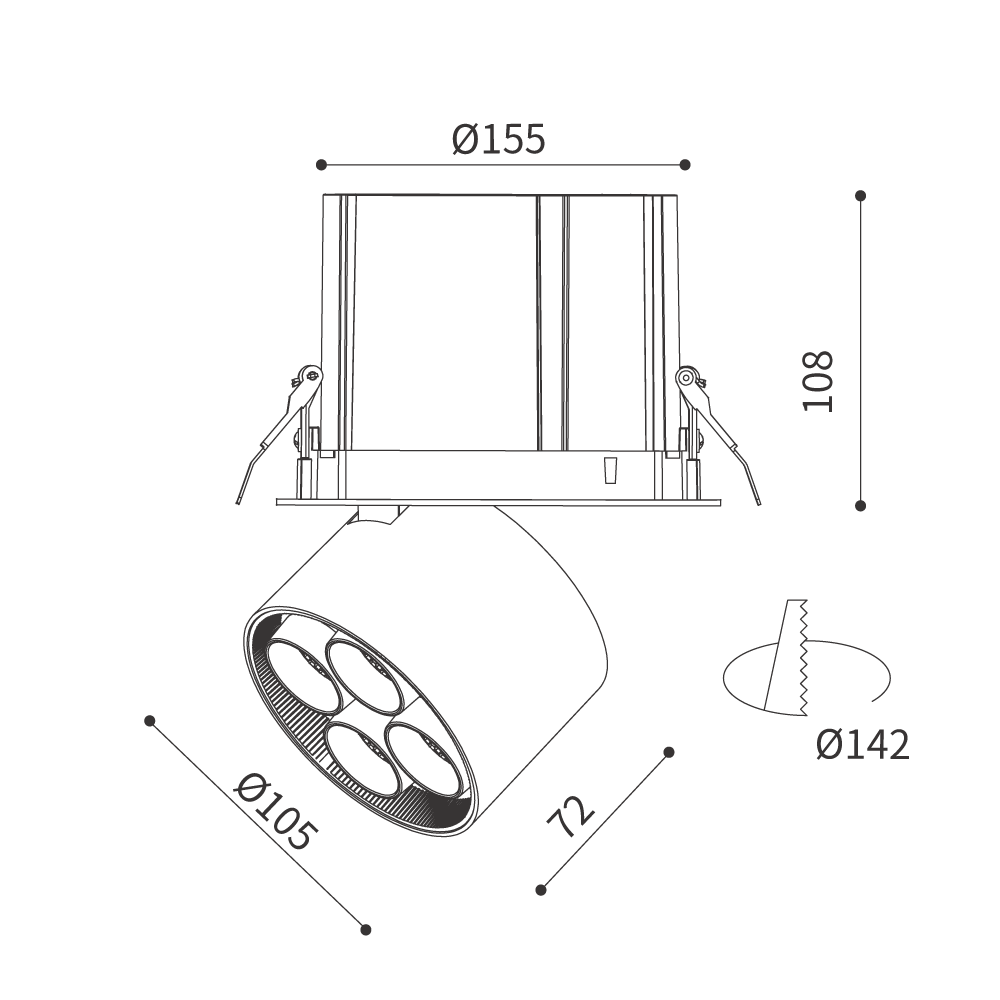

Ø=155 mm, ceiling cutout ø142 mm

Nominal power
24W
Finish
White/Black
Delivered lumens
1800lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.89kg
Color Rendering Index(CRI)
CRI≥90
Height
108mm
Unified Glare Rating (UGR)
UGR <10
Diameter
105mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
105mm
Beam angle
16°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D331-COB5-30K-24 L-D331-COB5-30K-24 24W 3000K 1800lm 24° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/10/202607109325.png
/static/upload/2026/07/10/202607103236.png
/static/upload/2026/07/10/202607105327.png

L-D331-COB5-30K-24

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:24W, luminous flux of luminaire 1800lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20.

Ø=155 mm, ceiling cutout ø142 mm

Nominal power
24W
Finish
White/Black
Delivered lumens
1800lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.89kg
Color Rendering Index(CRI)
CRI≥90
Height
108mm
Unified Glare Rating (UGR)
UGR <10
Diameter
105mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
105mm
Beam angle
24°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D331-COB5-30K-40 L-D331-COB5-30K-40 24W 3000K 1800lm 40° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/10/202607109325.png
/static/upload/2026/07/10/202607103236.png
/static/upload/2026/07/10/202607105327.png

L-D331-COB5-30K-40

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:24W, luminous flux of luminaire 1800lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:40°, black/white color, ON/OFF.ingress protection IP20.

Ø=155 mm, ceiling cutout ø142 mm

Nominal power
24W
Finish
White/Black
Delivered lumens
1800lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.89kg
Color Rendering Index(CRI)
CRI≥90
Height
108mm
Unified Glare Rating (UGR)
UGR <10
Diameter
105mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
105mm
Beam angle
40°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb

 L-D331-COB5-30K-55 L-D331-COB5-30K-55 24W 3000K 1800lm 55° White/Black
Get in Touch Get in Touch
/static/upload/2026/07/10/202607109325.png
/static/upload/2026/07/10/202607103236.png
/static/upload/2026/07/10/202607105327.png

L-D331-COB5-30K-55

Eyeled spotlight-A&C PLUS-FULL TO TILT, with LED,system power:24W, luminous flux of luminaire 1800lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 600mA, Beam angle:55°, black/white color, ON/OFF.ingress protection IP20.

Ø=155 mm, ceiling cutout ø142 mm

Nominal power
24W
Finish
White/Black
Delivered lumens
1800lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.89kg
Color Rendering Index(CRI)
CRI≥90
Height
108mm
Unified Glare Rating (UGR)
UGR <10
Diameter
105mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
105mm
Beam angle
55°
Downloads
    None


Accessories
Matrix

Transparent PVC sheet

Matrix

Honeycomb



RELATED PRODUCTS

Product finder
