A&C PLUS-ADJUSTABLE

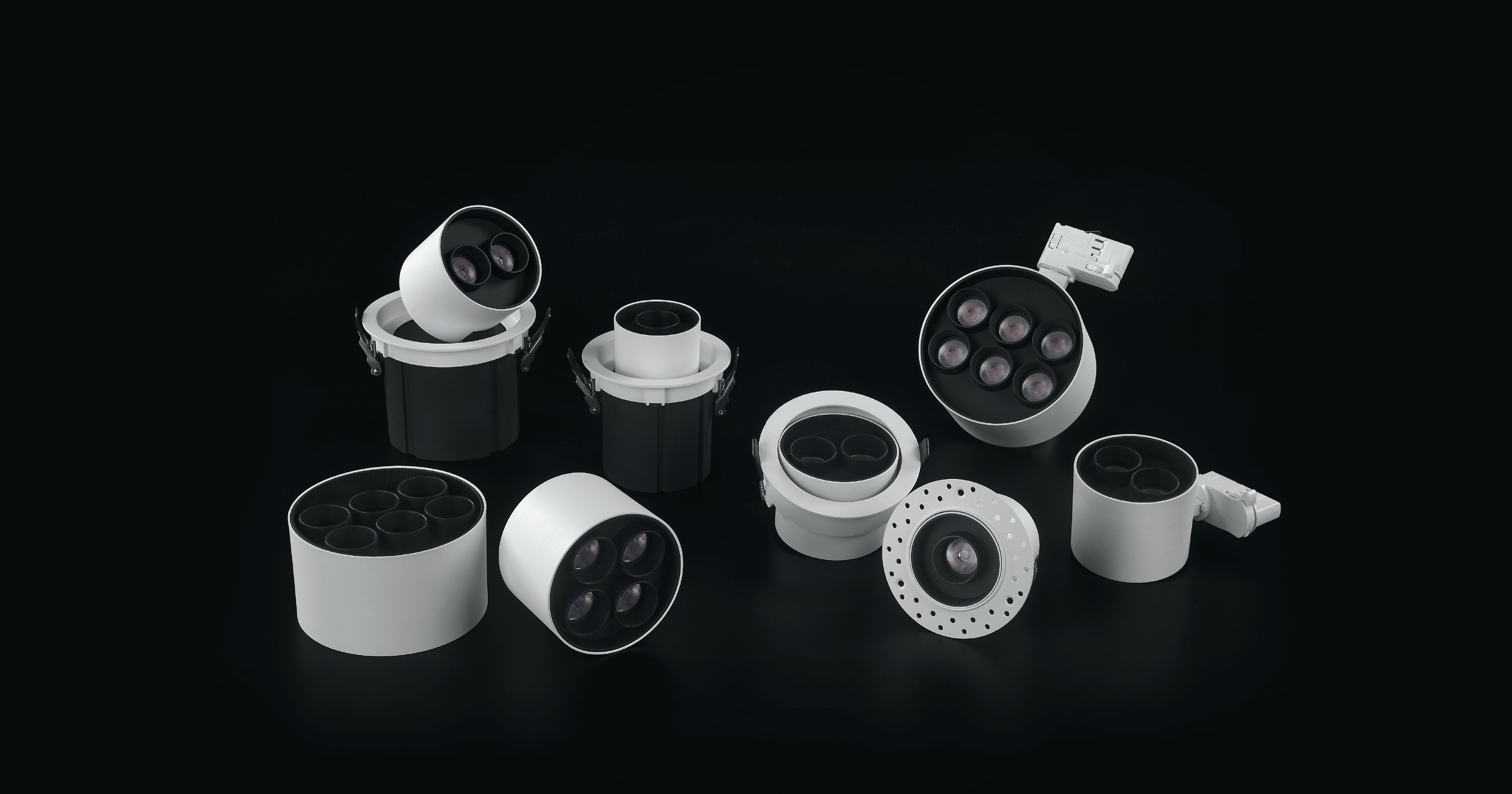

A&C PLUS-ADJUSTABLE-diversity design with djustable spot light,These adjustable luminaires are perfect for extraordinary accent lighting in varied settings. Featuring excellent luminous efficiency and an exclusive aesthetic,they come with multiple optics and a great range of accessories.

Features Features

-These luminaires long oplics to distribute the light over o more norrow area than with traditional lighting.

-Create a circle of light from a line of LED Downlights

-A narrow line of nano LED Downlights for pure minimalism Superior glare control for high performance

-Trimless Version Trim Version

Specifications Specifications

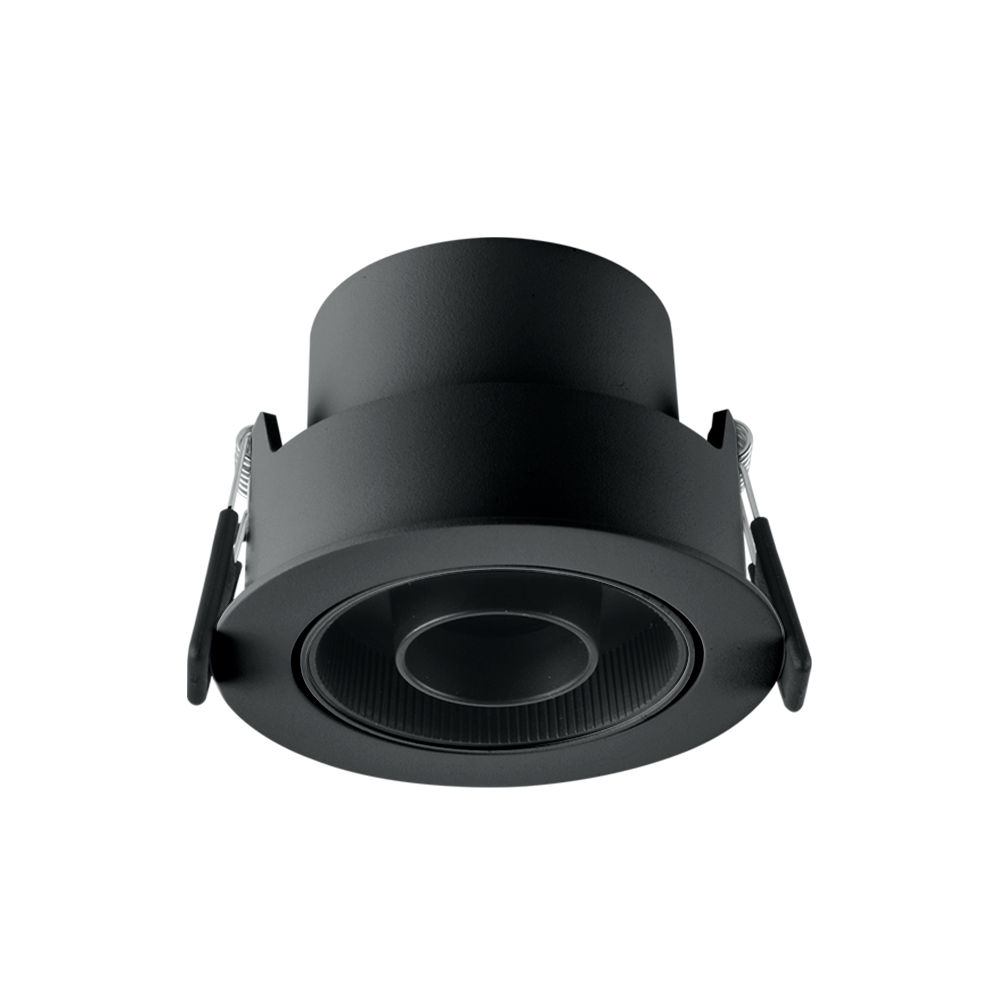

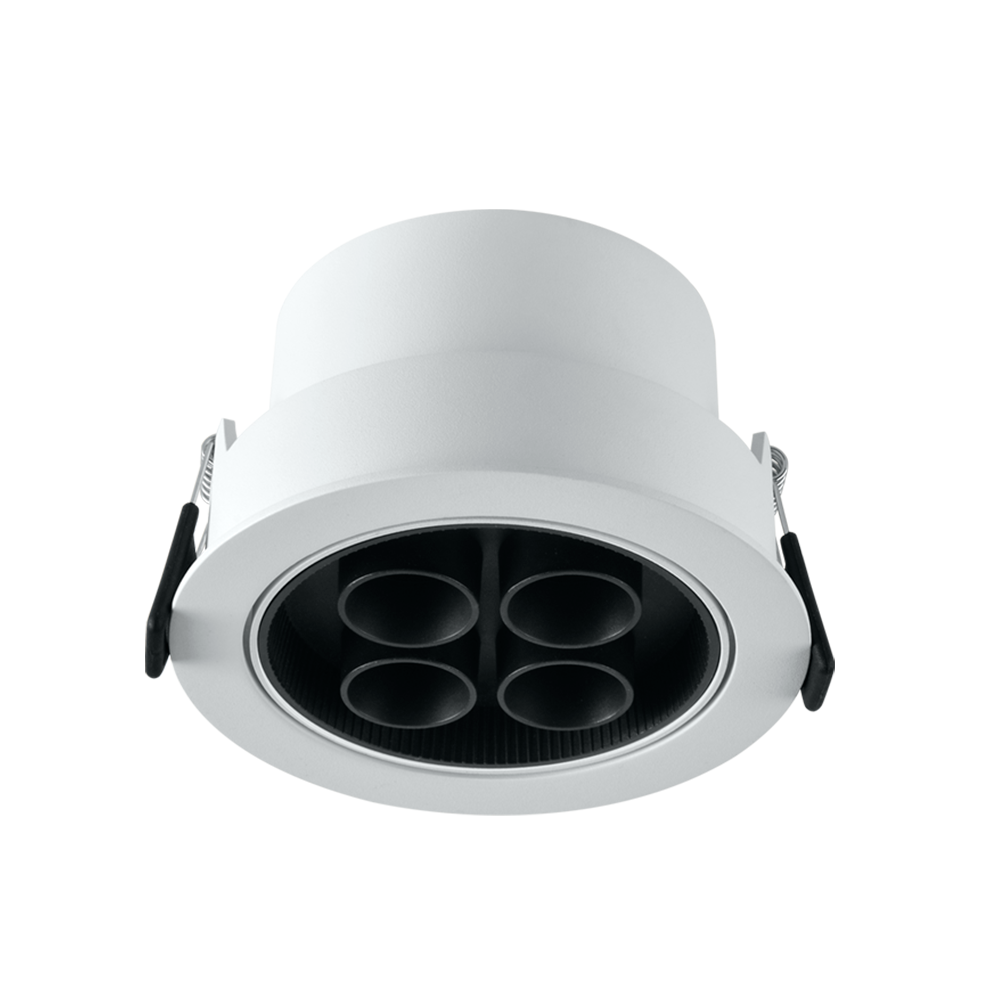

-Black and white versions available

-Aluminum housing and in powder-coated finish, excellent dissipation

-ON/OFF, TRIAC 0-10V, and DALl control system

-Switchable CCT version in 3000K-4000K-5000K switchable, easier for keeping stock

-Downlight with pleasantly homogeneous luminance levels

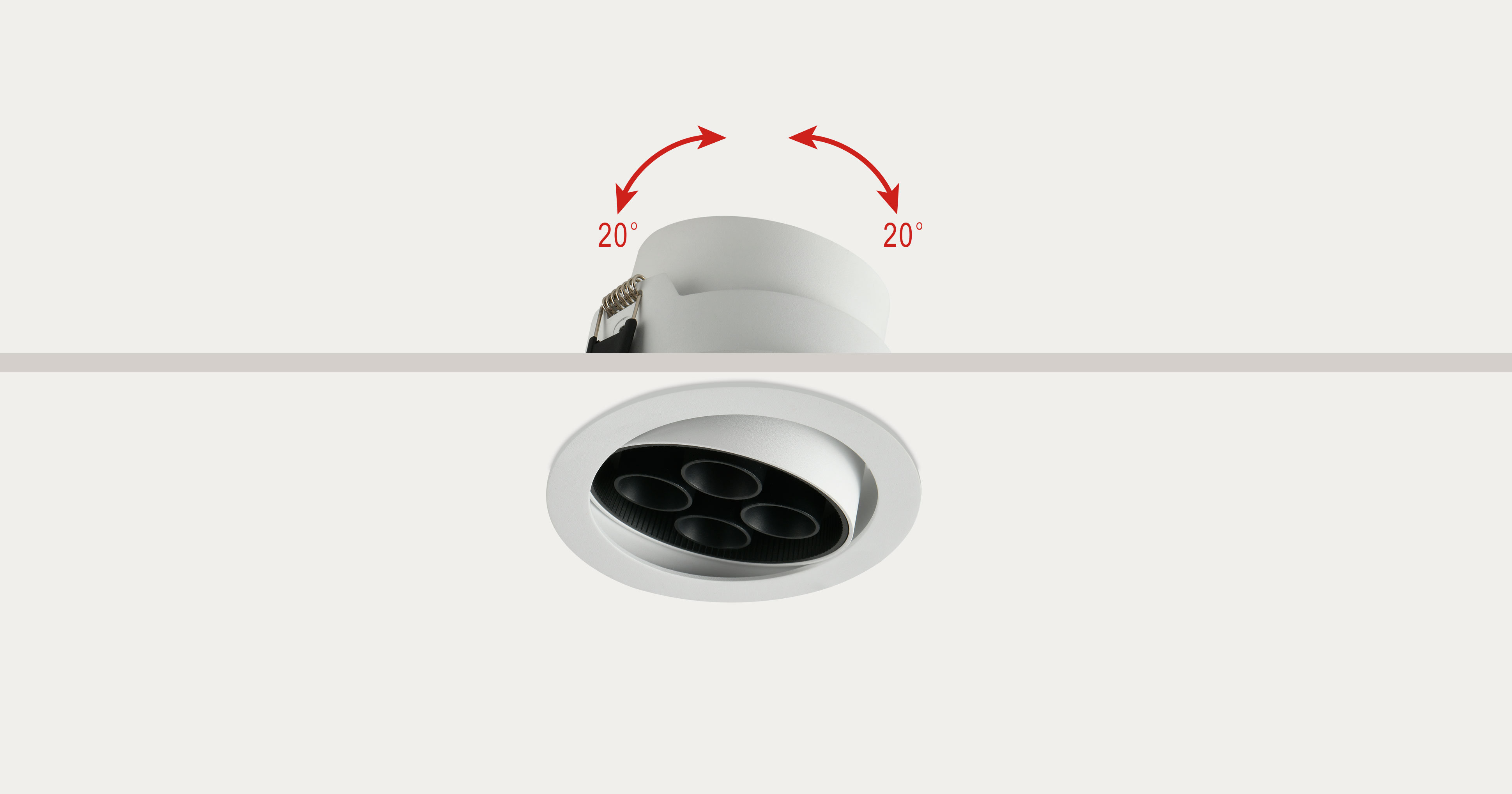

-Tilt left and right 20°

Fields of application Fields of application

Retail & Hospitality

retail spaces, presentation of merchandise, restaurants, hotels,

shop windows,exhibition spaces

Office & Education

offices, conference rooms, art & culture establishments

Home & Living

Version

0 Article

Nominal power

BEAM ANGLE

60°

40°

24°

16°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

12W

BEAM ANGLE

55°

40°

24°

16°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

Nominal power

10W

BEAM ANGLE

24°

38°

16°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI | TRIAC 0-10V

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish

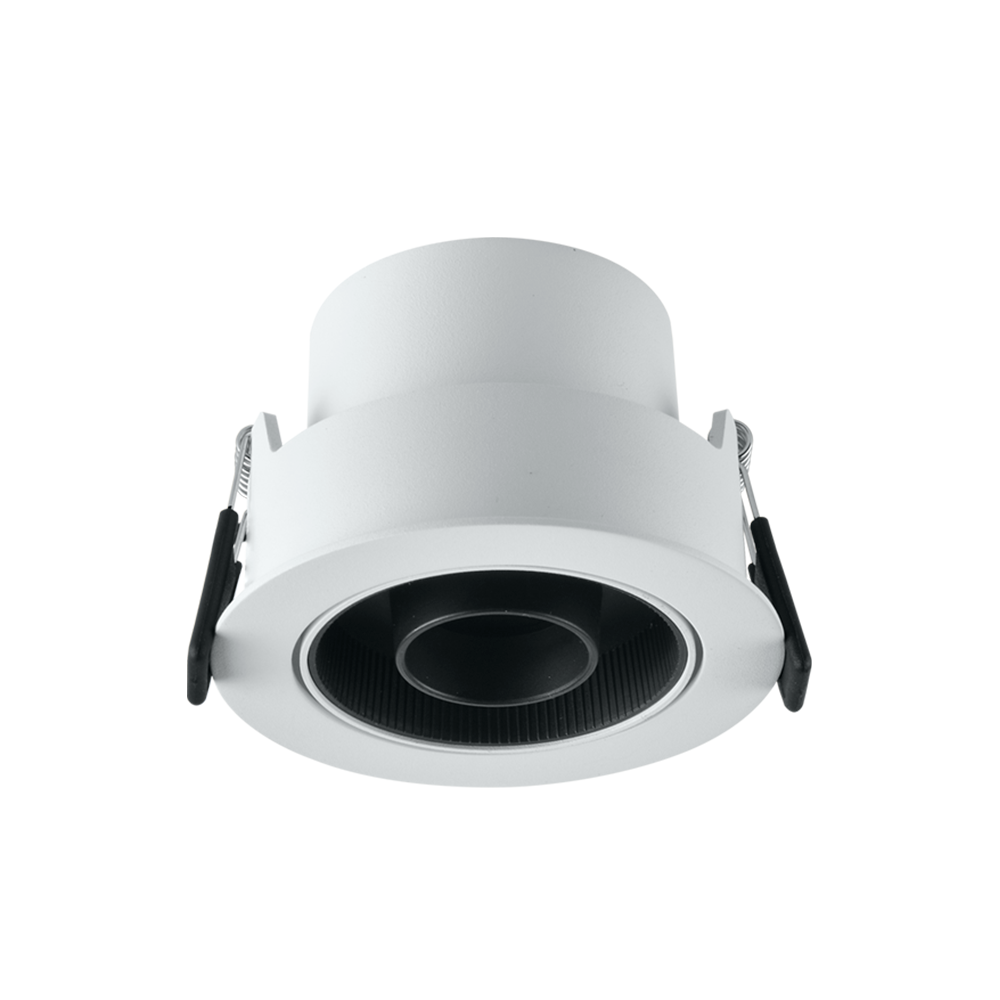

	L-D459-COB3-30K-16	L-D459-COB3-30K-16	6W	3000K	420lm	16°	White/Black

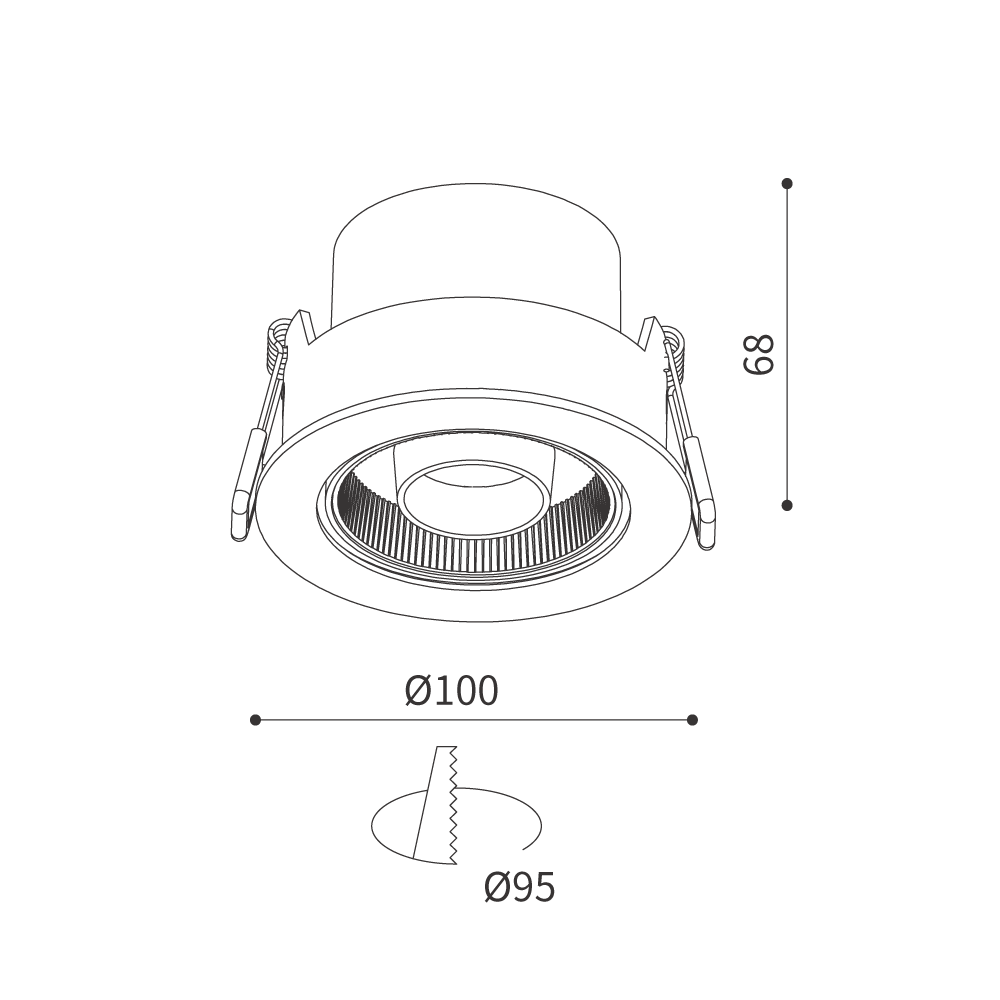

Get in Touch Get in Touch L-D459-COB3-30K-16 Eyeled spotlight-large A&C plus-adjustable, with LED,system power:6W, luminous flux of luminaire 420lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=100 mm, ceiling cutout ø95 mm Nominal power 6W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.49kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR <10 Length 68mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 100mm Beam angle 16° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D459-COB3-30K-24	L-D459-COB3-30K-24	6W	3000K	420lm	24°	White/Black
Get in Touch Get in Touch L-D459-COB3-30K-24 Eyeled spotlight-large A&C plus-adjustable, with LED,system power:6W, luminous flux of luminaire 420lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=100 mm, ceiling cutout ø95 mm Nominal power 6W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.49kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR <10 Length 68mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 100mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D459-COB3-30K-40	L-D459-COB3-30K-40	6W	3000K	420lm	40°	White/Black
Get in Touch Get in Touch L-D459-COB3-30K-40 Eyeled spotlight-large A&C plus-adjustable, with LED,system power:6W, luminous flux of luminaire 420lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:40°, black/white color, ON/OFF.ingress protection IP20. Ø=100 mm, ceiling cutout ø95 mm Nominal power 6W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.49kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR <10 Length 68mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 100mm Beam angle 40° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D459-COB3-30K-60	L-D459-COB3-30K-60	6W	3000K	420lm	60°	White/Black
Get in Touch Get in Touch L-D459-COB3-30K-60 Eyeled spotlight-large A&C plus-adjustable, with LED,system power:6W, luminous flux of luminaire 420lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:60°, black/white color, ON/OFF.ingress protection IP20. Ø=100 mm, ceiling cutout ø95 mm Nominal power 6W Finish White/Black Delivered lumens 420lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.49kg Color Rendering Index(CRI) CRI≥90 Diameter 100mm Unified Glare Rating (UGR) UGR <10 Length 68mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 100mm Beam angle 60° Downloads None Accessories Transparent PVC sheet Honeycomb

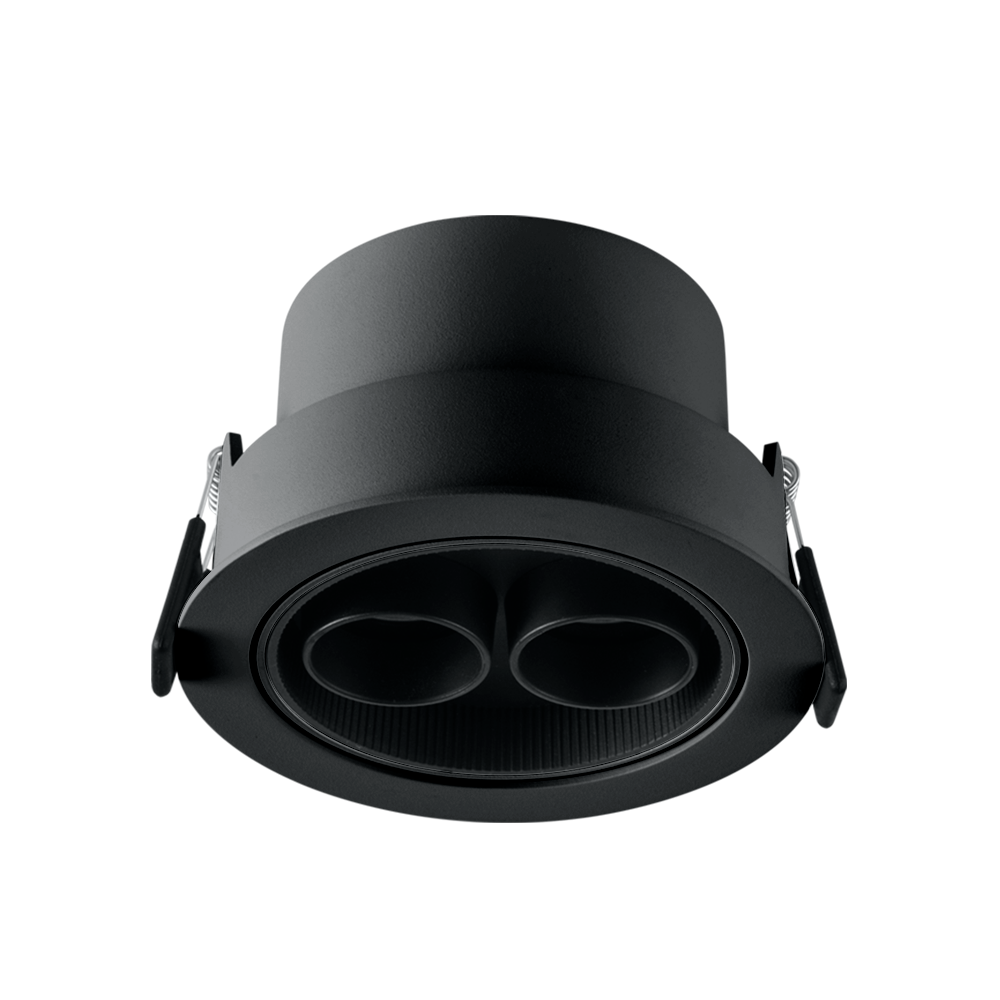

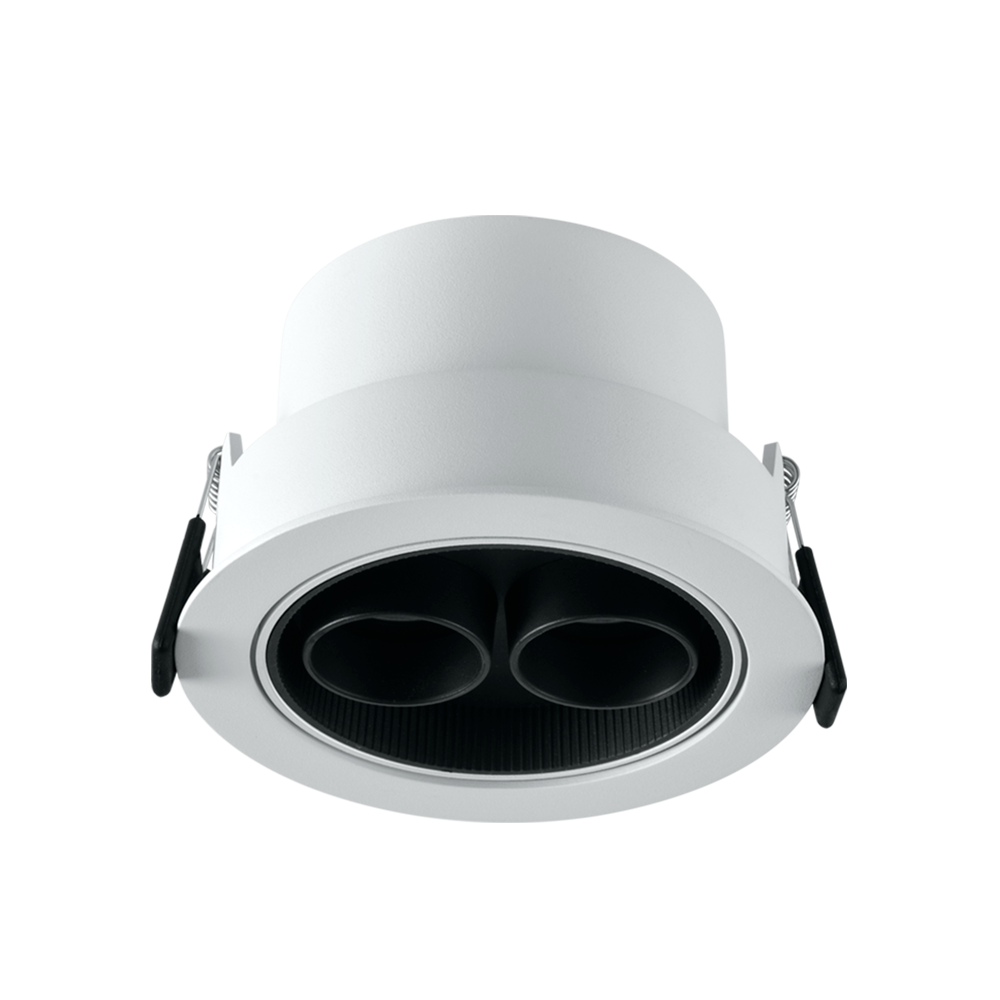

	L-D459-COB4-30K-16	L-D459-COB4-30K-16	12W	3000K	864lm	16°	White/Black

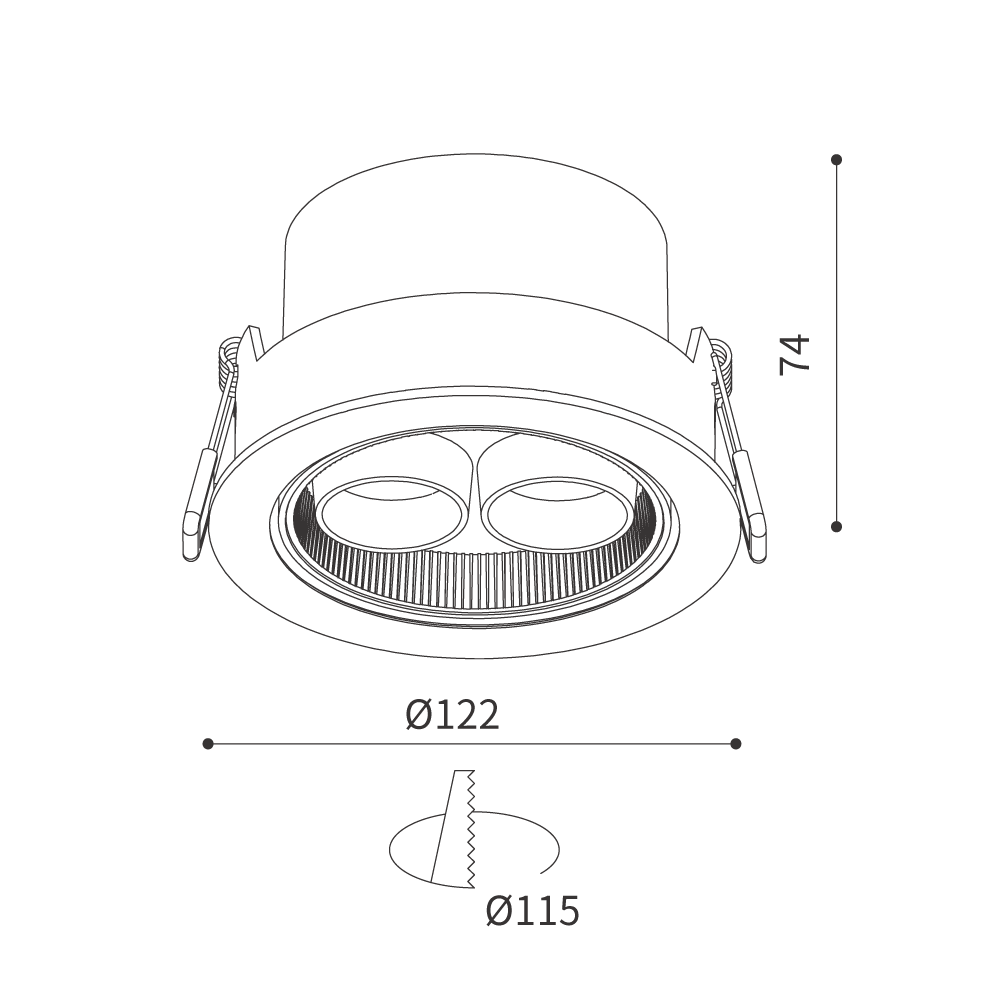

Get in Touch Get in Touch L-D459-COB4-30K-16 Eyeled spotlight-large A&C plus-adjustable, with LED,system power:12W, luminous flux of luminaire 864lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=122 mm, ceiling cutout ø115 mm Nominal power 12W Finish White/Black Delivered lumens 864lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.49kg Color Rendering Index(CRI) CRI≥90 Diameter 122mm Unified Glare Rating (UGR) UGR <10 Length 74mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 122mm Beam angle 16° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D459-COB4-30K-24	L-D459-COB4-30K-24	12W	3000K	864lm	24°	White/Black
Get in Touch Get in Touch L-D459-COB4-30K-24 Eyeled spotlight-large A&C plus-adjustable, with LED,system power:12W, luminous flux of luminaire 864lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=122 mm, ceiling cutout ø115 mm Nominal power 12W Finish White/Black Delivered lumens 864lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.49kg Color Rendering Index(CRI) CRI≥90 Diameter 122mm Unified Glare Rating (UGR) UGR <10 Length 74mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 122mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D459-COB4-30K-40	L-D459-COB4-30K-40	12W	3000K	864lm	40°	White/Black
Get in Touch Get in Touch L-D459-COB4-30K-40 Eyeled spotlight-large A&C plus-adjustable, with LED,system power:12W, luminous flux of luminaire 864lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:40°, black/white color, ON/OFF.ingress protection IP20. Ø=122 mm, ceiling cutout ø115 mm Nominal power 12W Finish White/Black Delivered lumens 864lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.49kg Color Rendering Index(CRI) CRI≥90 Diameter 122mm Unified Glare Rating (UGR) UGR <10 Length 74mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 122mm Beam angle 40° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D459-COB4-30K-55	L-D459-COB4-30K-55	12W	3000K	864lm	55°	White/Black
Get in Touch Get in Touch L-D459-COB4-30K-55 Eyeled spotlight-large A&C plus-adjustable, with LED,system power:12W, luminous flux of luminaire 864lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 300mA, Beam angle:55°, black/white color, ON/OFF.ingress protection IP20. Ø=122 mm, ceiling cutout ø115 mm Nominal power 12W Finish White/Black Delivered lumens 864lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.49kg Color Rendering Index(CRI) CRI≥90 Diameter 122mm Unified Glare Rating (UGR) UGR <10 Length 74mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 122mm Beam angle 55° Downloads None Accessories Transparent PVC sheet Honeycomb

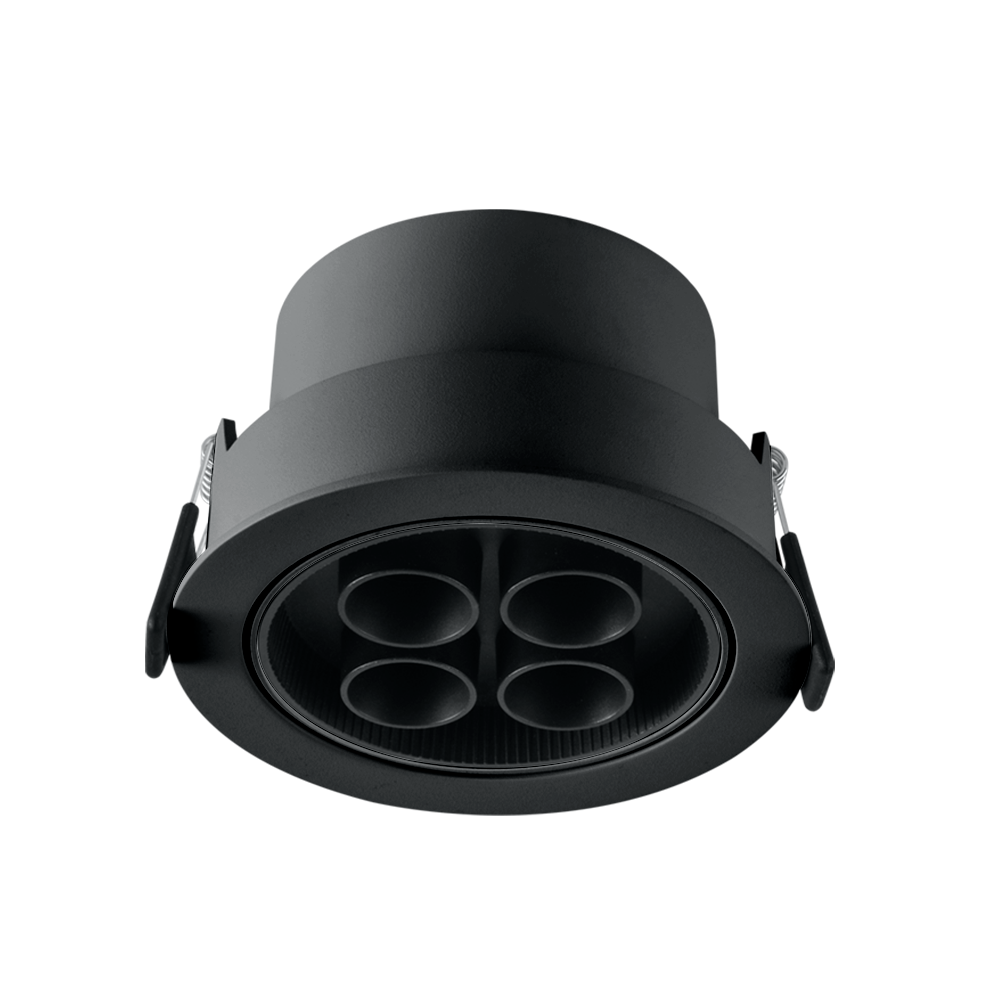

	L-D459-SMD4-30K-16	L-D459-SMD4-30K-16	10W	3000K	710lm	16°	White/Black

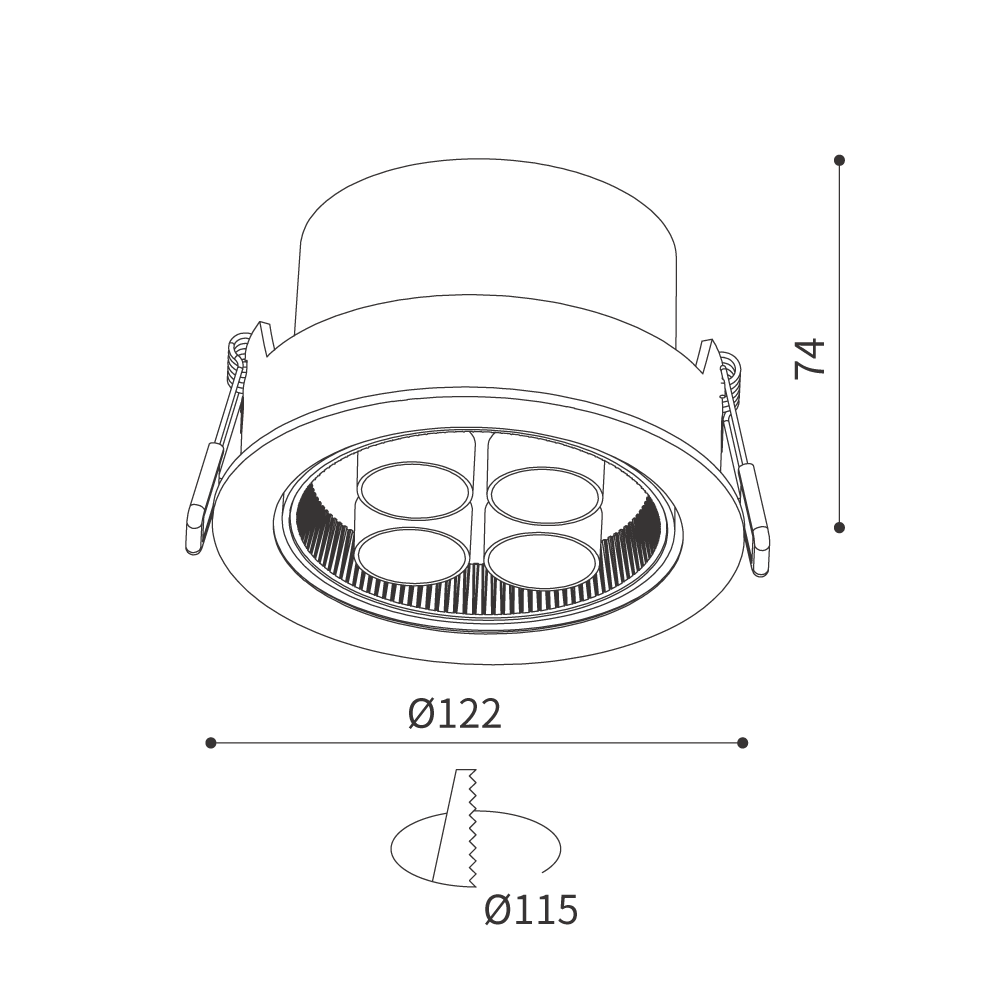

Get in Touch Get in Touch L-D459-SMD4-30K-16 Eyeled spotlight-large A&C plus-adjustable, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:16°, black/white color, ON/OFF.ingress protection IP20. Ø=122 mm, ceiling cutout ø115 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.49kg Color Rendering Index(CRI) CRI≥90 Diameter 122mm Unified Glare Rating (UGR) UGR <10 Length 74mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 122mm Beam angle 16° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D459-SMD4-30K-24	L-D459-SMD4-30K-24	10W	3000K	710lm	24°	White/Black
Get in Touch Get in Touch L-D459-SMD4-30K-24 Eyeled spotlight-large A&C plus-adjustable, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:24°, black/white color, ON/OFF.ingress protection IP20. Ø=122 mm, ceiling cutout ø115 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.49kg Color Rendering Index(CRI) CRI≥90 Diameter 122mm Unified Glare Rating (UGR) UGR <10 Length 74mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 122mm Beam angle 24° Downloads None Accessories Transparent PVC sheet Honeycomb
	L-D459-SMD4-30K-38	L-D459-SMD4-30K-38	10W	3000K	710lm	38°	White/Black
Get in Touch Get in Touch L-D459-SMD4-30K-38 Eyeled spotlight-large A&C plus-adjustable, with LED,system power:10W, luminous flux of luminaire 710lm. colour rendering index CRl≥90, colour temperature 3000 K, warm white, lifetime LED 50'000 h, Photobiological safety:Safe, 220V, rated current: 700mA, Beam angle:38°, black/white color, ON/OFF.ingress protection IP20. Ø=122 mm, ceiling cutout ø115 mm Nominal power 10W Finish White/Black Delivered lumens 710lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP20 Color Temperature(CCT) 3000K Weight 0.49kg Color Rendering Index(CRI) CRI≥90 Diameter 122mm Unified Glare Rating (UGR) UGR <10 Length 74mm Light Control ON/OFF \| DALI \| TRIAC 0-10V Width 122mm Beam angle 38° Downloads None Accessories Transparent PVC sheet Honeycomb
