POINT

Freedom of movement.

POINT

Multiple options for different mounting applications with a dark-light design. It brings both comfort and stylist decorative effect. Wattages are available in small to large which covers the usage of residential and commercial.




Features Features

- The entire series incorporates cross-emitting lenses to ensure optimal anti-glare performance, with a low UGR of <12.

- Utilizing Unite's proprietary lens optical technology, it achieves a wide 65° beam angle even with a compact front ring.

- Equipped with high-power COB LEDs, with a single chip capable of up to 2.5W, ensuring high luminous efficacy.

- Linear Downlight Series: Available in trim and trimless designs, with 7W and 15W options.

- Breaking away from traditional square frames, the series adopts a curved design, adding distinctive aesthetic appeal.

Specifications Specifications

- Housing: Integrated one-piece aluminium, eco-friendly die-cast construction – excellent thermal conductivity and corrosion resistance

- Surface finish: Fine textured coating – elegant and durable

- Optical system: Dual-beam asymmetric lens – bilateral wall-wash distribution

- Colour rendering: Ra90

- Anti-glare: UGR<20 – comfortable for prolonged viewing

- Beam orientation: Fixed dual-direction – optimized for simultaneous illumination of adjacent walls

- Mounting: Recessed installation

- Wattages: Multiple options available


Fields of application Fields of application

- Gallery and museum corners – illuminating artworks on adjacent walls simultaneously

- Retail store corner displays – showcasing merchandise on two perpendicular walls

- Hotel corridor intersections and lobby corners – creating seamless wall-lighting continuity

- Residential living room corners – adding depth and warmth to angular spaces

- Architectural feature corners – emphasizing material and texture where two walls meet

- Narrow spaces and passageways – where bilateral light distribution maximizes illumination efficiency

- Any interior requiring simultaneous wall-washing on adjacent surfaces

- Spaces demanding consistent, reliable bilateral wall-lighting performance


Version
0 Article

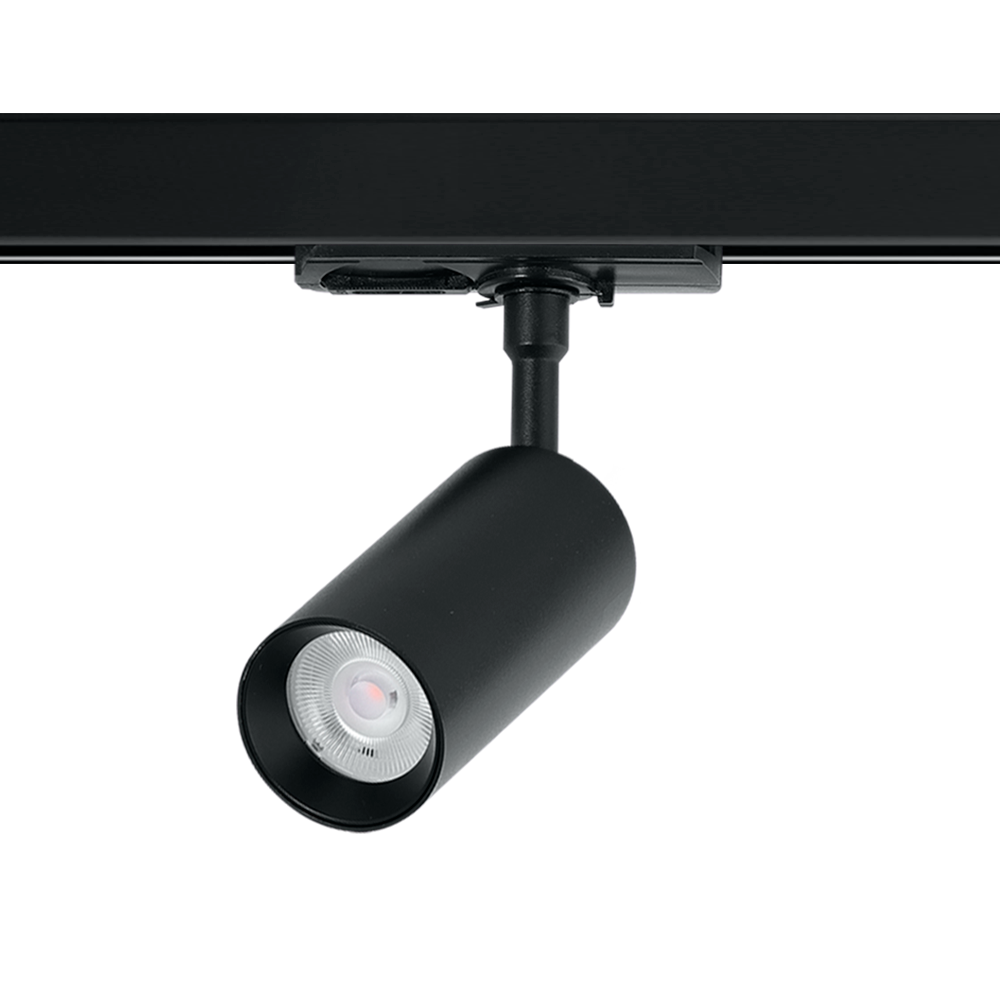

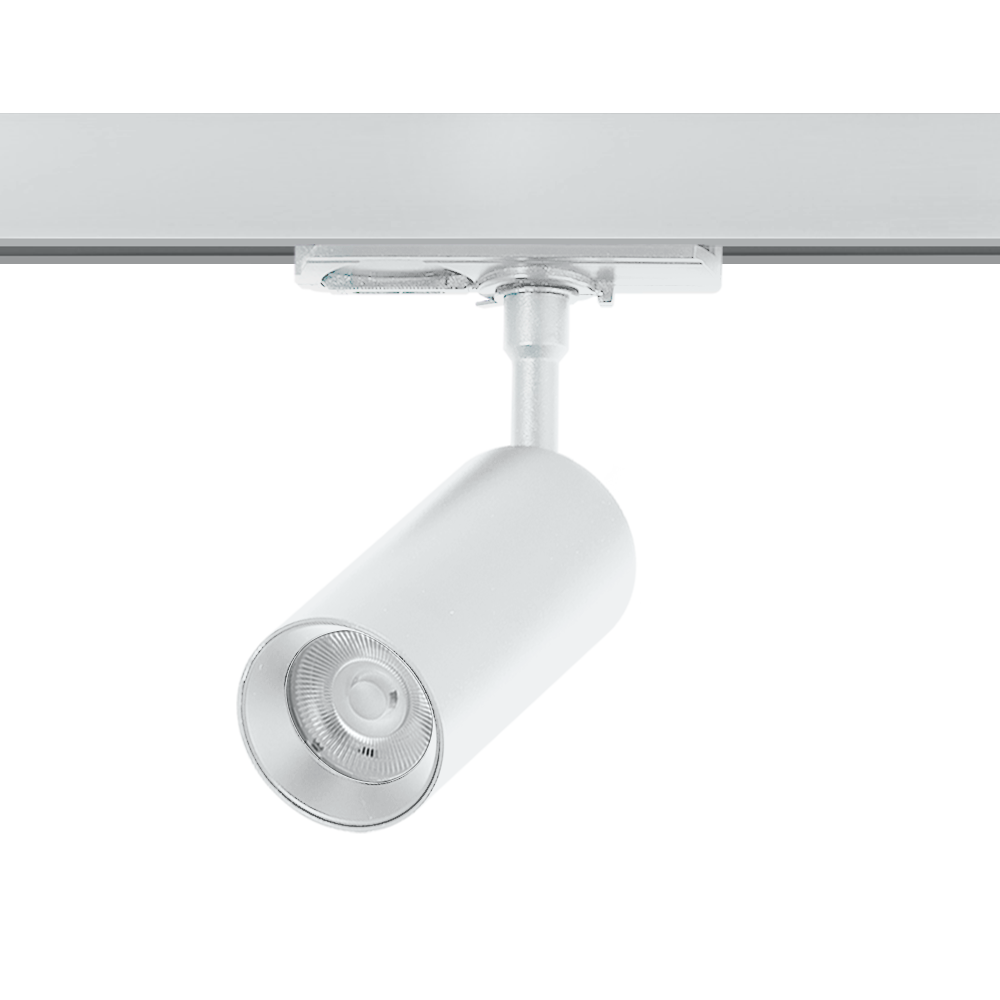

PROH_6853_1.jpg L-T559-COB-D-10W
PROH_6853_1.jpg L-T559-COB1-D-10W

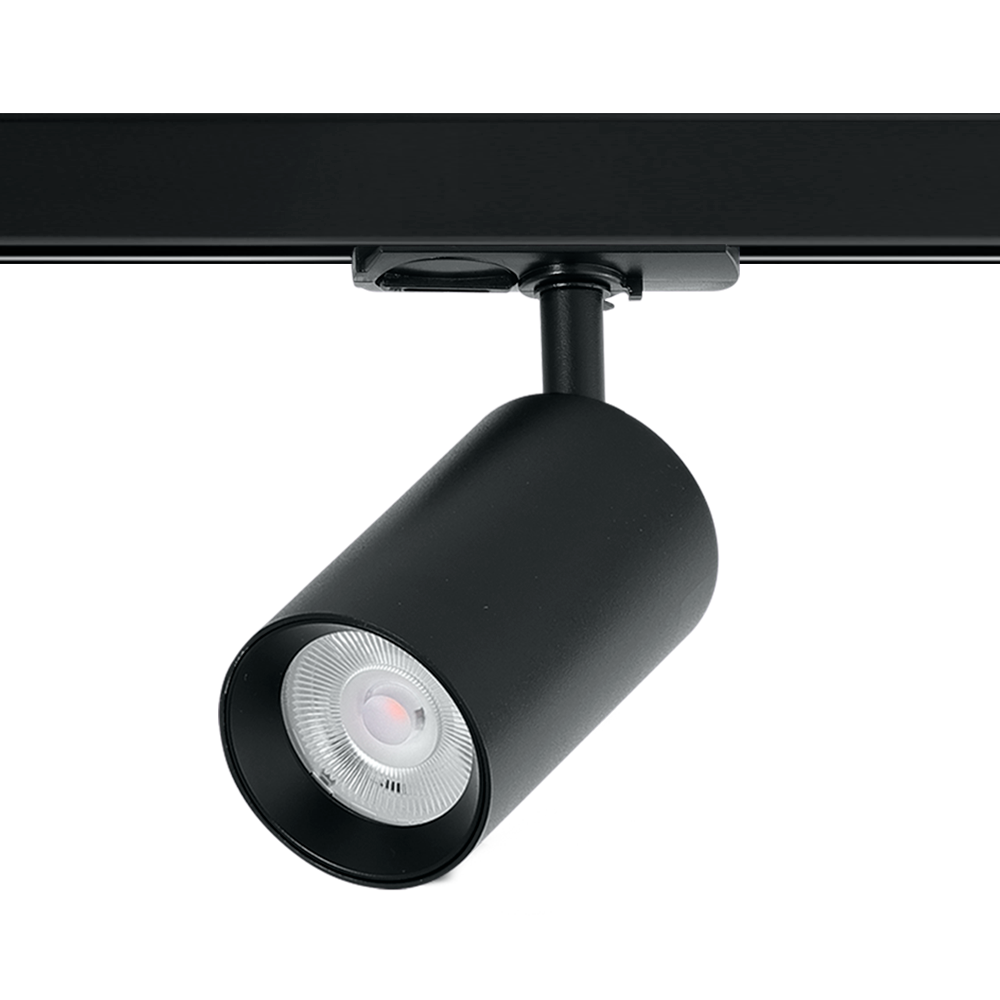

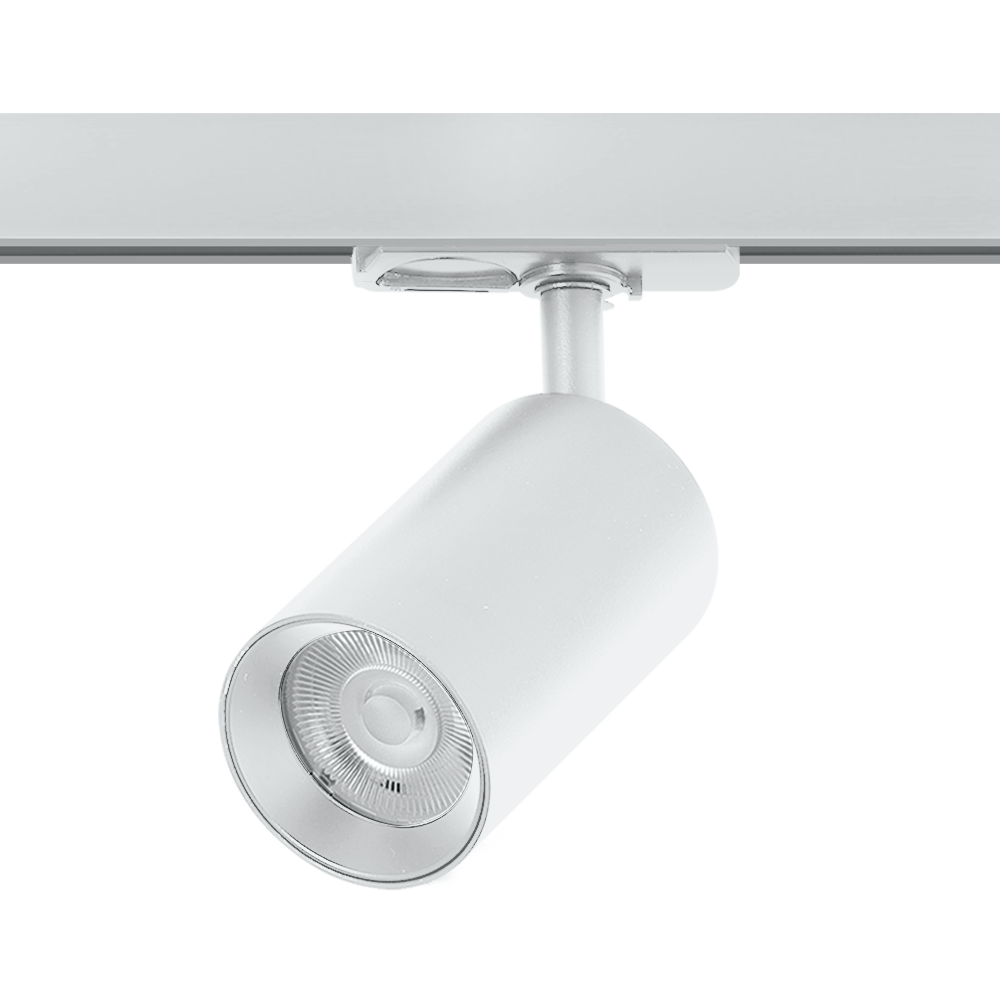

PROH_6853_1.jpg L-T559-COB2-D-15W
Nominal power
7W
BEAM ANGLE
50°
36°
24°
15°
COLOUR / FINISH
White/Black/Gold
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-T559-COB-D-30K-15 L-T559-COB-D-30K-15 7W 3000K 560lm 15° White/Black/Gold

L-T559-COB-D-30K-15

POINT, with LED, system power: 7W, luminous flux of luminaire 560lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 150mA, Beam angle: 15°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

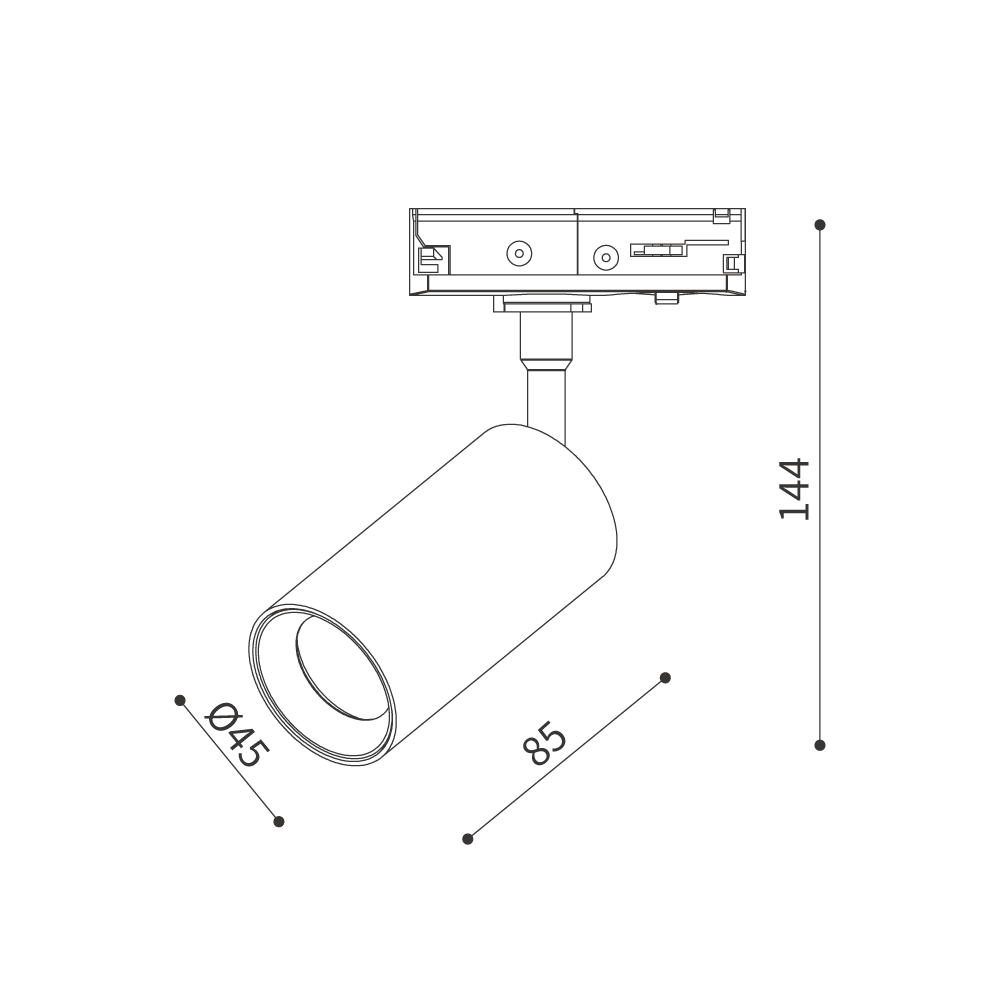

Ø=45 mm, W=85 mm, H=144 mm,

Nominal power
7W
Finish
White/Black/Gold
Delivered lumens
560lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.19kg
Color Rendering Index(CRI)
CRI≥90
Diameter
45mm
Unified Glare Rating (UGR)
UGR<16
Height
144mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
85mm
Beam angle
15°
Downloads
    None


L-T559-COB-D-30K-24 L-T559-COB-D-30K-24 7W 3000K 560lm 24° White/Black/Gold

L-T559-COB-D-30K-24

POINT, with LED, system power: 7W, luminous flux of luminaire 560lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 150mA, Beam angle: 24°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=45 mm, W=85 mm, H=144 mm,

Nominal power
7W
Finish
White/Black/Gold
Delivered lumens
560lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.19kg
Color Rendering Index(CRI)
CRI≥90
Diameter
45mm
Unified Glare Rating (UGR)
UGR<16
Height
144mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
85mm
Beam angle
24°
Downloads
    None


L-T559-COB-D-30K-36 L-T559-COB-D-30K-36 7W 3000K 560lm 36° White/Black/Gold

L-T559-COB-D-30K-36

POINT, with LED, system power: 7W, luminous flux of luminaire 560lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 150mA, Beam angle: 36°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=45 mm, W=85 mm, H=144 mm,

Nominal power
7W
Finish
White/Black/Gold
Delivered lumens
560lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.19kg
Color Rendering Index(CRI)
CRI≥90
Diameter
45mm
Unified Glare Rating (UGR)
UGR<16
Height
144mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
85mm
Beam angle
36°
Downloads
    None


L-T559-COB-D-30K-50 L-T559-COB-D-30K-50 7W 3000K 560lm 50° White/Black/Gold

L-T559-COB-D-30K-50

POINT, with LED, system power: 7W, luminous flux of luminaire 560lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 150mA, Beam angle: 50°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=45 mm, W=85 mm, H=144 mm,

Nominal power
7W
Finish
White/Black/Gold
Delivered lumens
560lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.19kg
Color Rendering Index(CRI)
CRI≥90
Diameter
45mm
Unified Glare Rating (UGR)
UGR<16
Height
144mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
85mm
Beam angle
50°
Downloads
    None


L-T559-COB1-D-30K-15 L-T559-COB1-D-30K-15 10W 3000K 800lm 15° White/Black/Gold

L-T559-COB1-D-30K-15

POINT, with LED, system power: 10W, luminous flux of luminaire 800lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 15°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

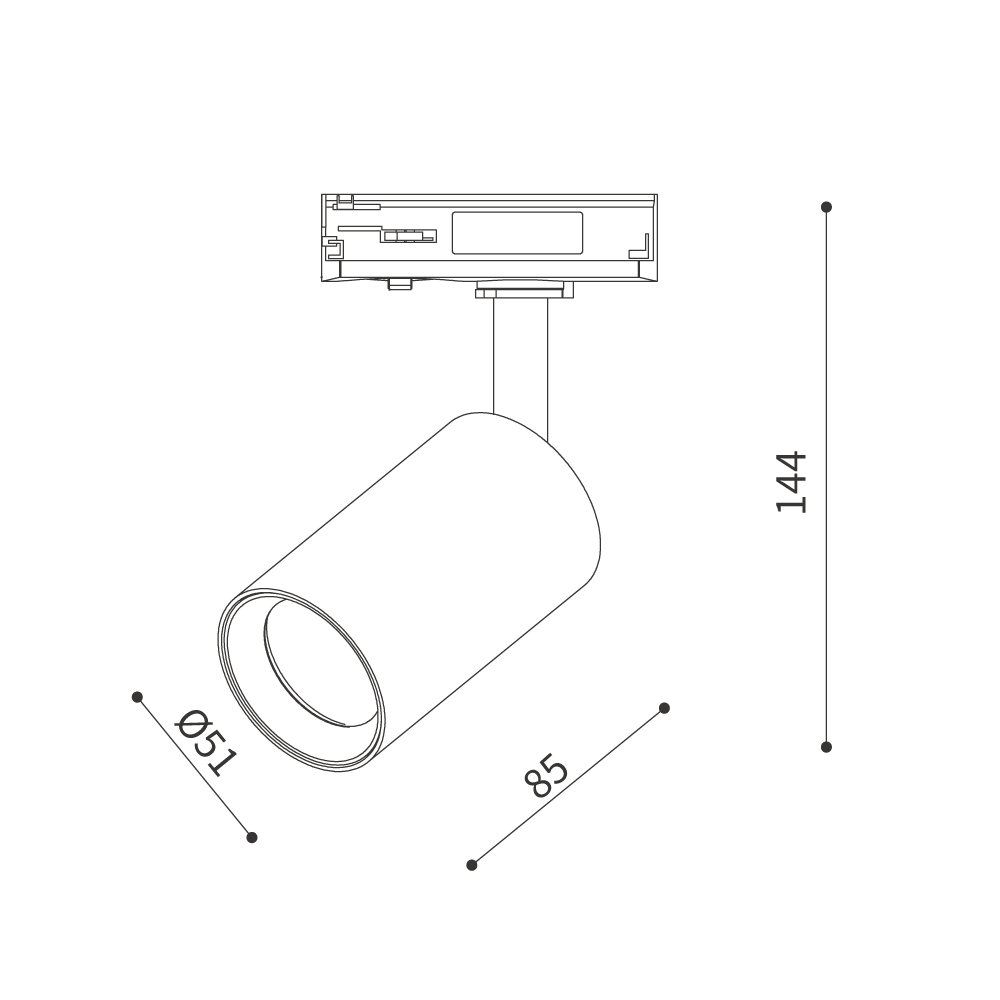

Ø=51 mm, W=85 mm, H=144 mm,

Nominal power
10W
Finish
White/Black/Gold
Delivered lumens
800lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.26kg
Color Rendering Index(CRI)
CRI≥90
Diameter
51mm
Unified Glare Rating (UGR)
UGR<16
Height
144mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
85mm
Beam angle
15°
Downloads
    None


L-T559-COB1-D-30K-24 L-T559-COB1-D-30K-24 10W 3000K 800lm 24° White/Black/Gold

L-T559-COB1-D-30K-24

POINT, with LED, system power: 10W, luminous flux of luminaire 800lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 24°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=51 mm, W=85 mm, H=144 mm,

Nominal power
10W
Finish
White/Black/Gold
Delivered lumens
800lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.26kg
Color Rendering Index(CRI)
CRI≥90
Diameter
51mm
Unified Glare Rating (UGR)
UGR<16
Height
144mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
85mm
Beam angle
24°
Downloads
    None


L-T559-COB1-D-30K-36 L-T559-COB1-D-30K-36 10W 3000K 800lm 36° White/Black/Gold

L-T559-COB1-D-30K-36

POINT, with LED, system power: 10W, luminous flux of luminaire 800lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 36°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=51 mm, W=85 mm, H=144 mm,

Nominal power
10W
Finish
White/Black/Gold
Delivered lumens
800lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.26kg
Color Rendering Index(CRI)
CRI≥90
Diameter
51mm
Unified Glare Rating (UGR)
UGR<16
Height
144mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
85mm
Beam angle
36°
Downloads
    None


L-T559-COB1-D-30K-50 L-T559-COB1-D-30K-50 10W 3000K 800lm 50° White/Black/Gold

L-T559-COB1-D-30K-50

POINT, with LED, system power: 10W, luminous flux of luminaire 800lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 50°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=51 mm, W=85 mm, H=144 mm,

Nominal power
10W
Finish
White/Black/Gold
Delivered lumens
800lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.26kg
Color Rendering Index(CRI)
CRI≥90
Diameter
51mm
Unified Glare Rating (UGR)
UGR<16
Height
144mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
85mm
Beam angle
50°
Downloads
    None


L-T559-COB2-D-30K-15 L-T559-COB2-D-30K-15 15W 3000K 1230lm 15° White/Black/Gold

L-T559-COB2-D-30K-15

POINT, with LED, system power: 15W, luminous flux of luminaire 1230lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 15°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

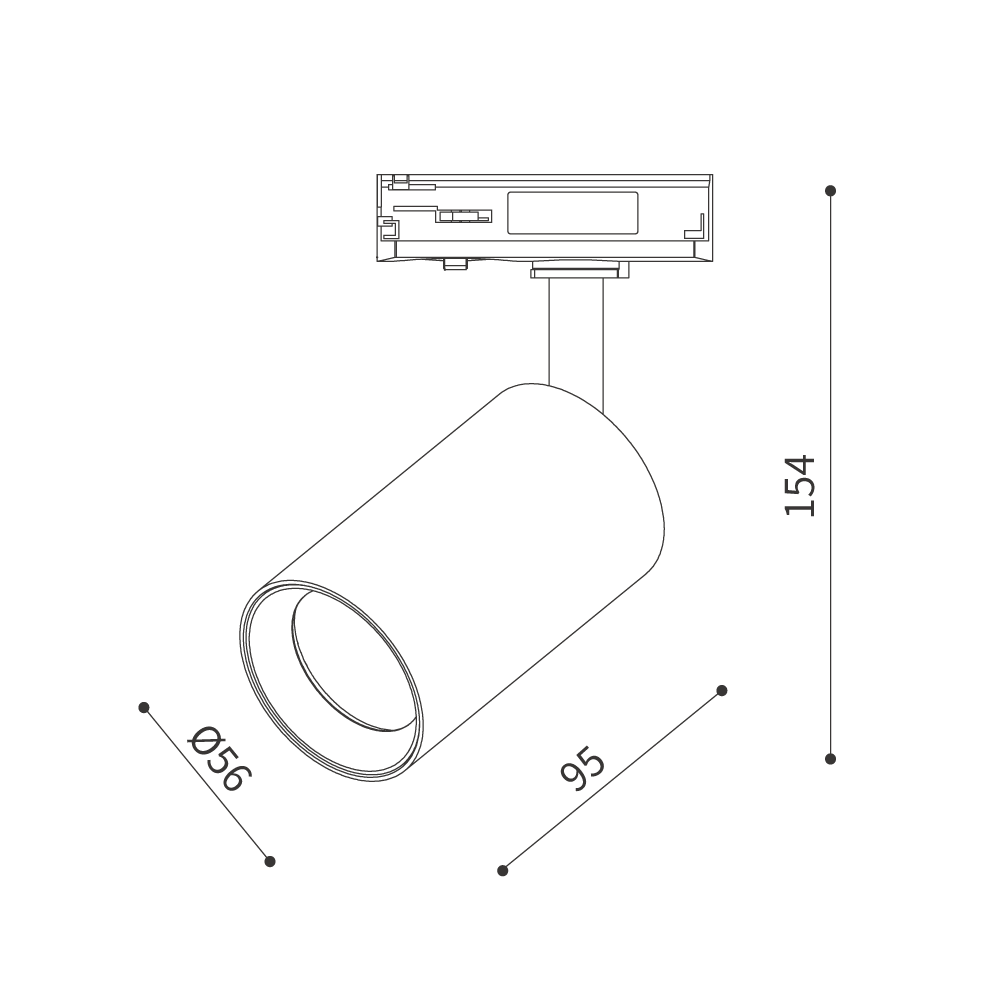

Ø=56 mm, W=95 mm, H=154 mm,

Nominal power
15W
Finish
White/Black/Gold
Delivered lumens
1230lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.31kg
Color Rendering Index(CRI)
CRI≥90
Diameter
56mm
Unified Glare Rating (UGR)
UGR<16
Height
154mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
95mm
Beam angle
15°
Downloads
    None


L-T559-COB2-D-30K-24 L-T559-COB2-D-30K-24 15W 3000K 1230lm 24° White/Black/Gold

L-T559-COB2-D-30K-24

POINT, with LED, system power: 15W, luminous flux of luminaire 1230lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 24°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=56 mm, W=95 mm, H=154 mm,

Nominal power
15W
Finish
White/Black/Gold
Delivered lumens
1230lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.31kg
Color Rendering Index(CRI)
CRI≥90
Diameter
56mm
Unified Glare Rating (UGR)
UGR<16
Height
154mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
95mm
Beam angle
24°
Downloads
    None


L-T559-COB2-D-30K-36 L-T559-COB2-D-30K-36 15W 3000K 1230lm 36° White/Black/Gold

L-T559-COB2-D-30K-36

POINT, with LED, system power: 15W, luminous flux of luminaire 1230lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 36°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=56 mm, W=95 mm, H=154 mm,

Nominal power
15W
Finish
White/Black/Gold
Delivered lumens
1230lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.31kg
Color Rendering Index(CRI)
CRI≥90
Diameter
56mm
Unified Glare Rating (UGR)
UGR<16
Height
154mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
95mm
Beam angle
36°
Downloads
    None


L-T559-COB2-D-30K-50 L-T559-COB2-D-30K-50 15W 3000K 1230lm 50° White/Black/Gold

L-T559-COB2-D-30K-50

POINT, with LED, system power: 15W, luminous flux of luminaire 1230lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 350mA, Beam angle: 50°, black/white/gold color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=56 mm, W=95 mm, H=154 mm,

Nominal power
15W
Finish
White/Black/Gold
Delivered lumens
1230lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.31kg
Color Rendering Index(CRI)
CRI≥90
Diameter
56mm
Unified Glare Rating (UGR)
UGR<16
Height
154mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
95mm
Beam angle
50°
Downloads
    None
