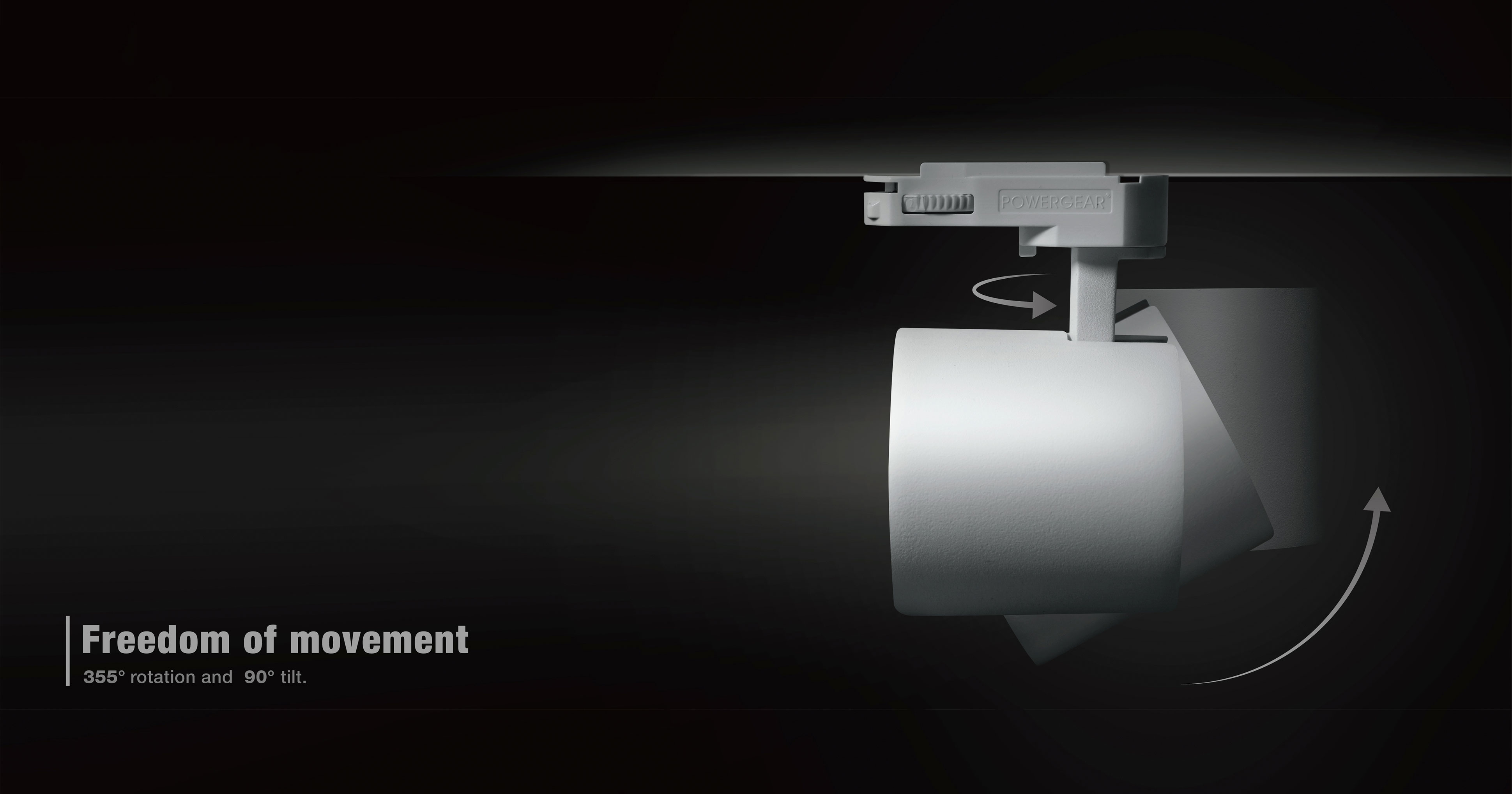

Freedom of movement.

PALCO

Multiple options for different mounting applications with a dark-light design. It brings both comfort and stylist decorative effect. Wattages are available in small to large which covers the usage of residential and commercial.




Features Features

- The entire series incorporates cross-emitting lenses to ensure optimal anti-glare performance, with a low UGR of <12.

- Utilizing Unite's proprietary lens optical technology, it achieves a wide 65° beam angle even with a compact front ring.

- Equipped with high-power COB LEDs, with a single chip capable of up to 2.5W, ensuring high luminous efficacy.

- Linear Downlight Series: Available in trim and trimless designs, with 7W and 15W options.

- Breaking away from traditional square frames, the series adopts a curved design, adding distinctive aesthetic appeal.

Specifications Specifications

- Housing: Integrated one-piece aluminium, eco-friendly die-cast construction – excellent thermal conductivity and corrosion resistance

- Surface finish: Fine textured coating – elegant and durable

- Optical system: Dual-beam asymmetric lens – bilateral wall-wash distribution

- Colour rendering: Ra90

- Anti-glare: UGR<20 – comfortable for prolonged viewing

- Beam orientation: Fixed dual-direction – optimized for simultaneous illumination of adjacent walls

- Mounting: Recessed installation

- Wattages: Multiple options available


Fields of application Fields of application

- Gallery and museum corners – illuminating artworks on adjacent walls simultaneously

- Retail store corner displays – showcasing merchandise on two perpendicular walls

- Hotel corridor intersections and lobby corners – creating seamless wall-lighting continuity

- Residential living room corners – adding depth and warmth to angular spaces

- Architectural feature corners – emphasizing material and texture where two walls meet

- Narrow spaces and passageways – where bilateral light distribution maximizes illumination efficiency

- Any interior requiring simultaneous wall-washing on adjacent surfaces

- Spaces demanding consistent, reliable bilateral wall-lighting performance


Version
0 Article

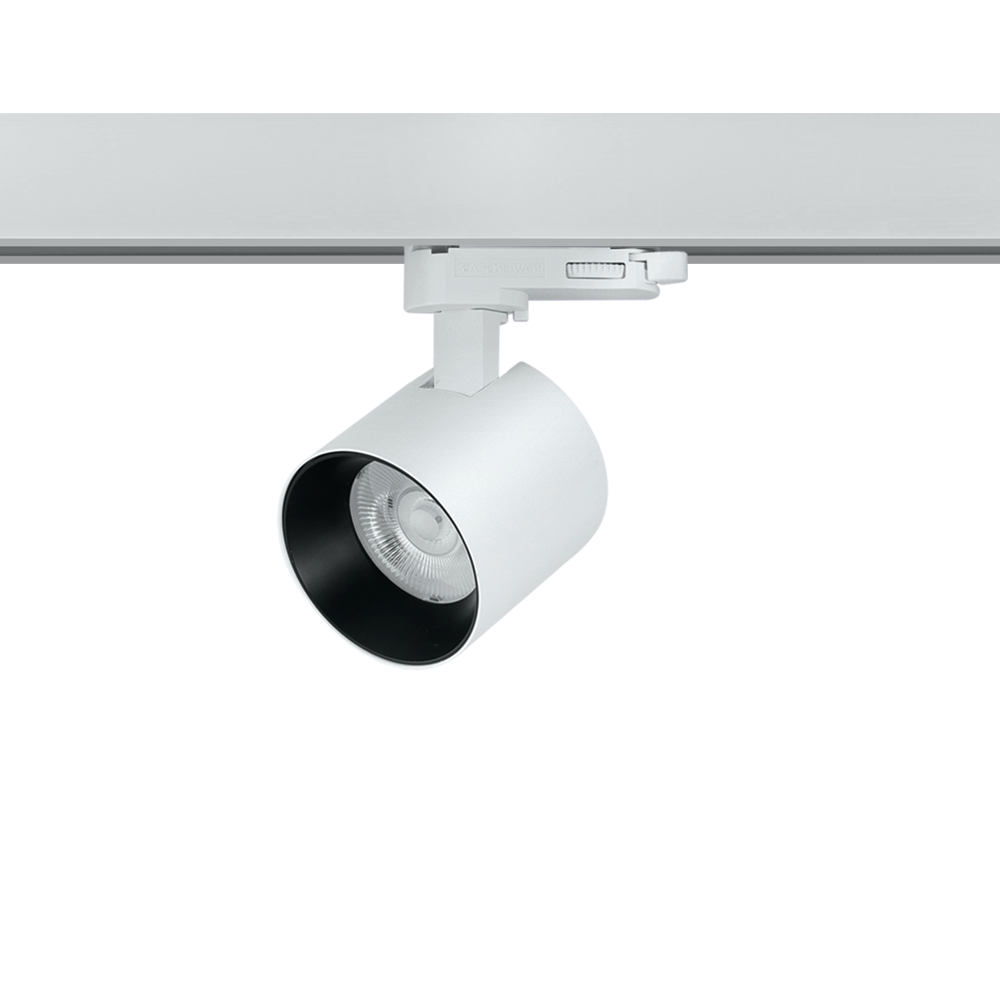

PROH_6853_1.jpg L-T419-COB3-7W

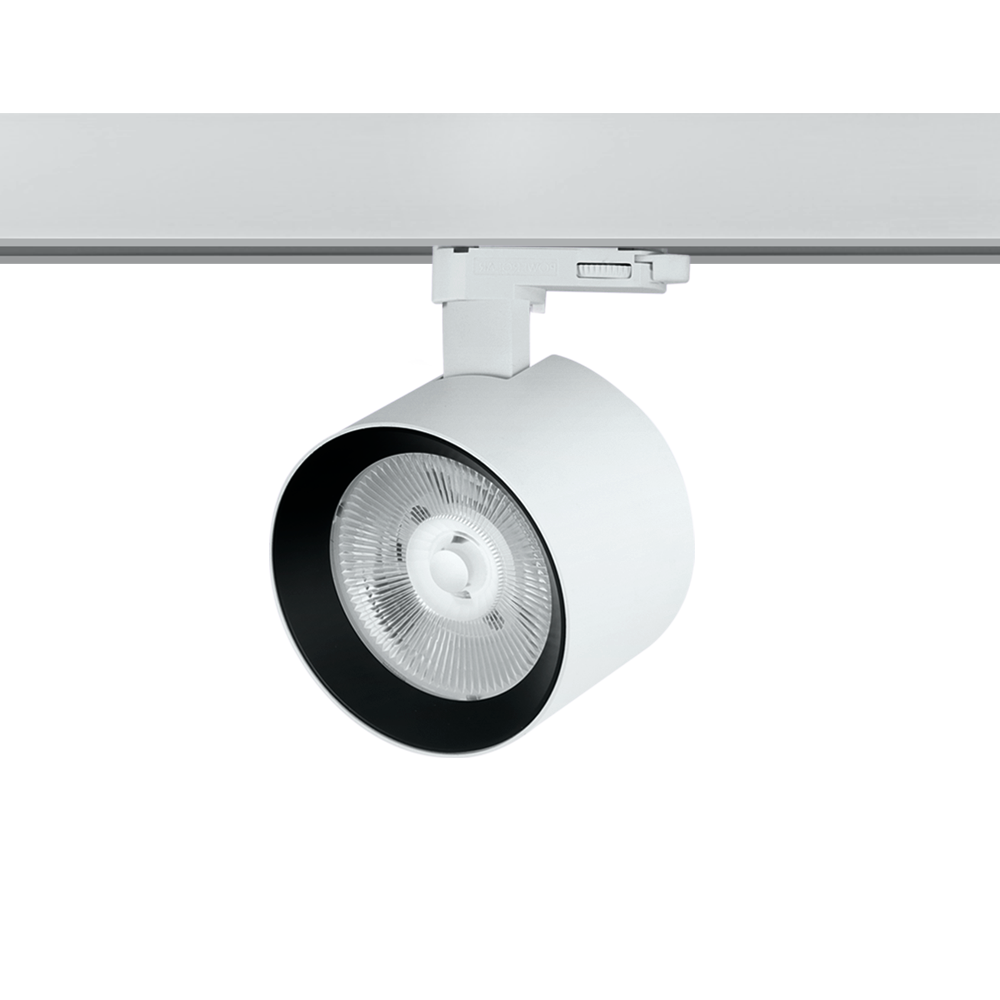

PROH_6853_1.jpg L-T419-COB4-12W

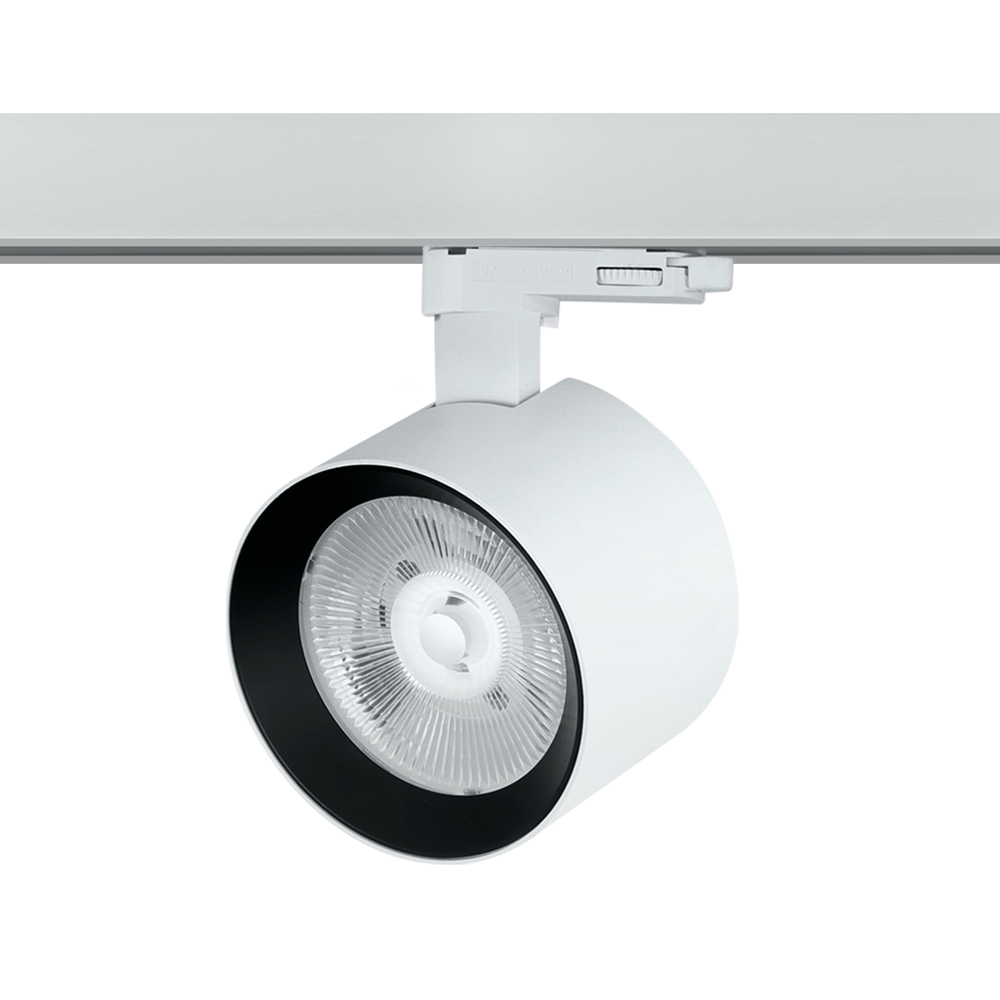

PROH_6853_1.jpg L-T419-COB5-24W
Nominal power
7W
BEAM ANGLE
55°
30°
20°
12°
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-T419-COB3-30K-12 L-T419-COB3-30K-12 7W 3000K 770lm 12° White/Black

L-T419-COB3-30K-12

PALCO, with LED, system power: 7W, luminous flux of luminaire 770lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 150mA, Beam angle: 12°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

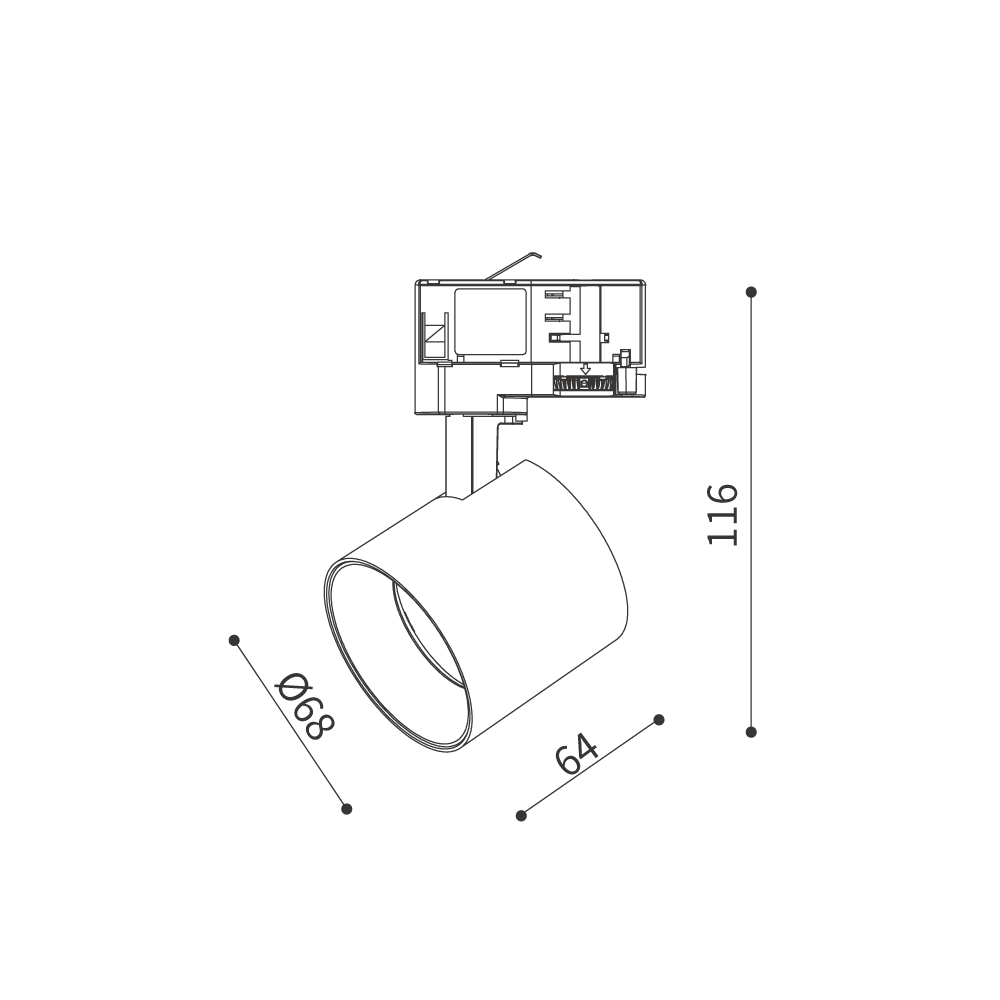

Ø=68 mm, W=64 mm, H=116 mm,

Nominal power
7W
Finish
White/Black
Delivered lumens
770lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.27kg
Color Rendering Index(CRI)
CRI≥90
Diameter
68mm
Unified Glare Rating (UGR)
UGR<19
Height
116mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
64mm
Beam angle
12°
Downloads
    None


L-T419-COB3-30K-20 L-T419-COB3-30K-20 7W 3000K 770lm 20° White/Black

L-T419-COB3-30K-20

PALCO, with LED, system power: 7W, luminous flux of luminaire 770lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 150mA, Beam angle: 20°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=68 mm, W=64 mm, H=116 mm,

Nominal power
7W
Finish
White/Black
Delivered lumens
770lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.27kg
Color Rendering Index(CRI)
CRI≥90
Diameter
68mm
Unified Glare Rating (UGR)
UGR<19
Height
116mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
64mm
Beam angle
20°
Downloads
    None


L-T419-COB3-30K-30 L-T419-COB3-30K-30 7W 3000K 770lm 30° White/Black

L-T419-COB3-30K-30

PALCO, with LED, system power: 7W, luminous flux of luminaire 770lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 150mA, Beam angle: 30°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=68 mm, W=64 mm, H=116 mm,

Nominal power
7W
Finish
White/Black
Delivered lumens
770lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.27kg
Color Rendering Index(CRI)
CRI≥90
Diameter
68mm
Unified Glare Rating (UGR)
UGR<19
Height
116mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
64mm
Beam angle
30°
Downloads
    None


L-T419-COB3-30K-55 L-T419-COB3-30K-55 7W 3000K 770lm 55° White/Black

L-T419-COB3-30K-55

PALCO, with LED, system power: 7W, luminous flux of luminaire 770lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 150mA, Beam angle: 55°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=68 mm, W=64 mm, H=116 mm,

Nominal power
7W
Finish
White/Black
Delivered lumens
770lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.27kg
Color Rendering Index(CRI)
CRI≥90
Diameter
68mm
Unified Glare Rating (UGR)
UGR<19
Height
116mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
64mm
Beam angle
55°
Downloads
    None


L-T419-COB4-30K-12 L-T419-COB4-30K-12 12W 3000K 1440lm 12° White/Black

L-T419-COB4-30K-12

PALCO, with LED, system power: 12W, luminous flux of luminaire 1440lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 300mA, Beam angle: 12°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

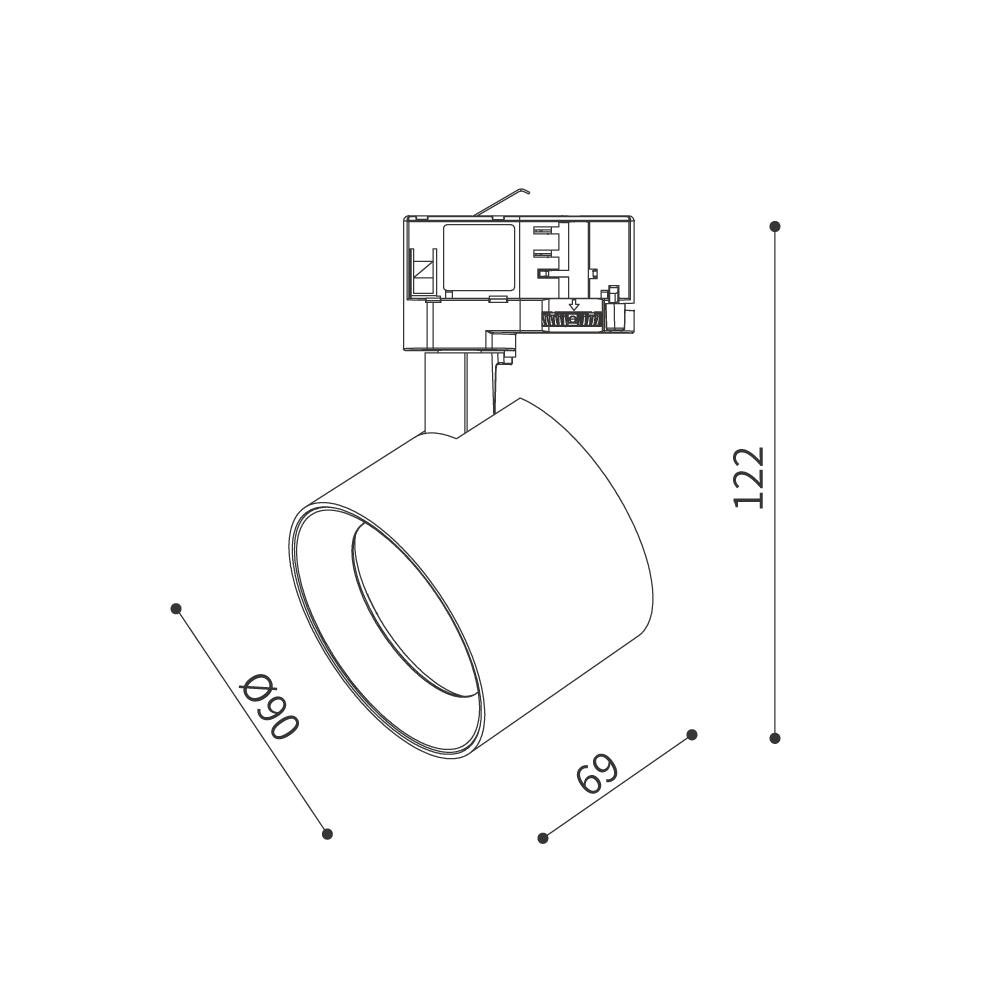

Ø=90 mm, W=69 mm, H=122 mm,

Nominal power
12W
Finish
White/Black
Delivered lumens
1440lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.47kg
Color Rendering Index(CRI)
CRI≥90
Diameter
90mm
Unified Glare Rating (UGR)
UGR<19
Height
122mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
69mm
Beam angle
12°
Downloads
    None


L-T419-COB4-30K-20 L-T419-COB4-30K-20 12W 3000K 1440lm 20° White/Black

L-T419-COB4-30K-20

PALCO, with LED, system power: 12W, luminous flux of luminaire 1440lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 300mA, Beam angle: 20°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=90 mm, W=69 mm, H=122 mm,

Nominal power
12W
Finish
White/Black
Delivered lumens
1440lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.47kg
Color Rendering Index(CRI)
CRI≥90
Diameter
90mm
Unified Glare Rating (UGR)
UGR<19
Height
122mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
69mm
Beam angle
20°
Downloads
    None


L-T419-COB4-30K-32 L-T419-COB4-30K-32 12W 3000K 1440lm 32° White/Black

L-T419-COB4-30K-32

PALCO, with LED, system power: 12W, luminous flux of luminaire 1440lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 300mA, Beam angle: 32°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=90 mm, W=69 mm, H=122 mm,

Nominal power
12W
Finish
White/Black
Delivered lumens
1440lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.47kg
Color Rendering Index(CRI)
CRI≥90
Diameter
90mm
Unified Glare Rating (UGR)
UGR<19
Height
122mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
69mm
Beam angle
32°
Downloads
    None


L-T419-COB4-30K-55 L-T419-COB4-30K-55 12W 3000K 1440lm 55° White/Black

L-T419-COB4-30K-55

PALCO, with LED, system power: 12W, luminous flux of luminaire 1440lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 300mA, Beam angle: 55°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=90 mm, W=69 mm, H=122 mm,

Nominal power
12W
Finish
White/Black
Delivered lumens
1440lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.47kg
Color Rendering Index(CRI)
CRI≥90
Diameter
90mm
Unified Glare Rating (UGR)
UGR<19
Height
122mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
69mm
Beam angle
55°
Downloads
    None


L-T419-COB5-30K-18 L-T419-COB5-30K-18 24W 3000K 2760lm 18° White/Black

L-T419-COB5-30K-18

PALCO, with LED, system power: 24W, luminous flux of luminaire 2760lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 600mA, Beam angle: 18°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

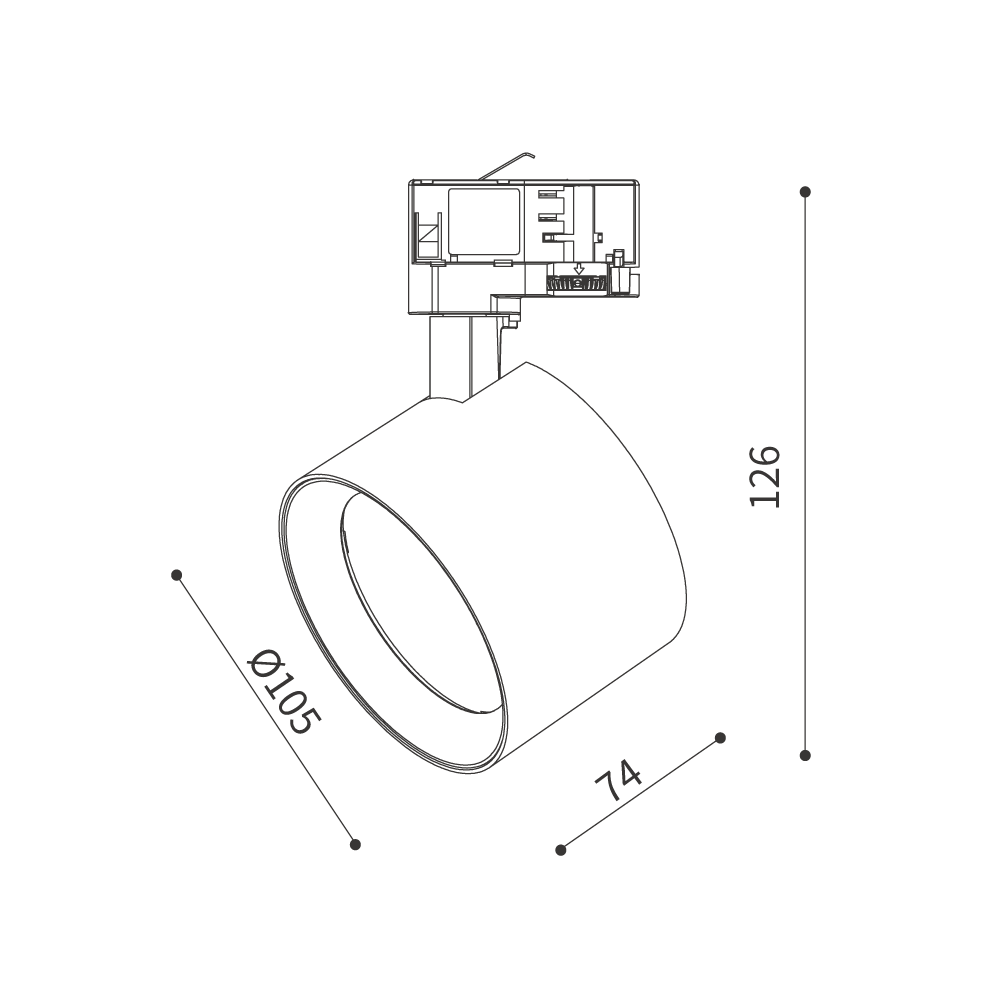

Ø=105 mm, W=74 mm, H=126 mm,

Nominal power
24W
Finish
White/Black
Delivered lumens
2760lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.6kg
Color Rendering Index(CRI)
CRI≥90
Diameter
105mm
Unified Glare Rating (UGR)
UGR<19
Height
126mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
74mm
Beam angle
18°
Downloads
    None


L-T419-COB5-30K-25 L-T419-COB5-30K-25 24W 3000K 2760lm 25° White/Black

L-T419-COB5-30K-25

PALCO, with LED, system power: 24W, luminous flux of luminaire 2760lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 600mA, Beam angle: 25°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=105 mm, W=74 mm, H=126 mm,

Nominal power
24W
Finish
White/Black
Delivered lumens
2760lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.6kg
Color Rendering Index(CRI)
CRI≥90
Diameter
105mm
Unified Glare Rating (UGR)
UGR<19
Height
126mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
74mm
Beam angle
25°
Downloads
    None


L-T419-COB5-30K-36 L-T419-COB5-30K-36 24W 3000K 2760lm 36° White/Black

L-T419-COB5-30K-36

PALCO, with LED, system power: 24W, luminous flux of luminaire 2760lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 600mA, Beam angle: 36°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=105 mm, W=74 mm, H=126 mm,

Nominal power
24W
Finish
White/Black
Delivered lumens
2760lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.6kg
Color Rendering Index(CRI)
CRI≥90
Diameter
105mm
Unified Glare Rating (UGR)
UGR<19
Height
126mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
74mm
Beam angle
36°
Downloads
    None


L-T419-COB5-30K-55 L-T419-COB5-30K-55 24W 3000K 2760lm 55° White/Black

L-T419-COB5-30K-55

PALCO, with LED, system power: 24W, luminous flux of luminaire 2760lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 600mA, Beam angle: 55°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=105 mm, W=74 mm, H=126 mm,

Nominal power
24W
Finish
White/Black
Delivered lumens
2760lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.6kg
Color Rendering Index(CRI)
CRI≥90
Diameter
105mm
Unified Glare Rating (UGR)
UGR<19
Height
126mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
74mm
Beam angle
55°
Downloads
    None
