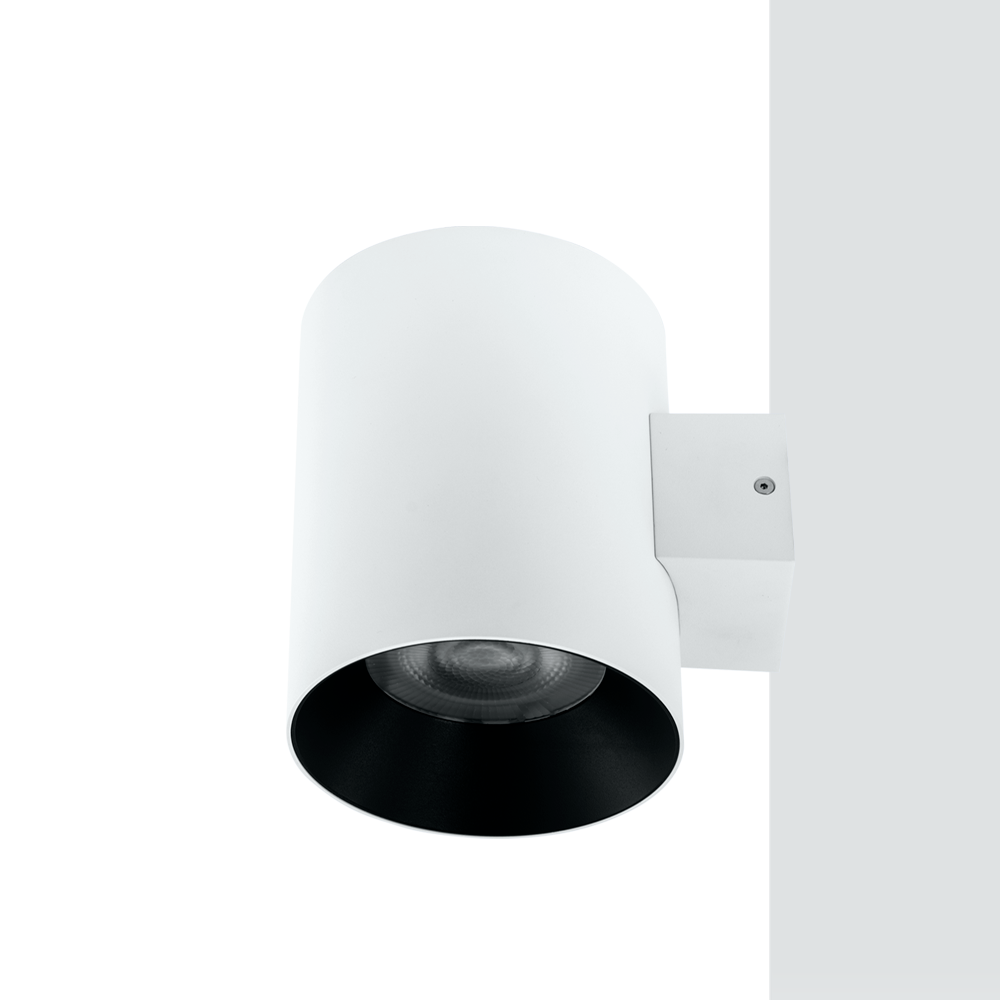

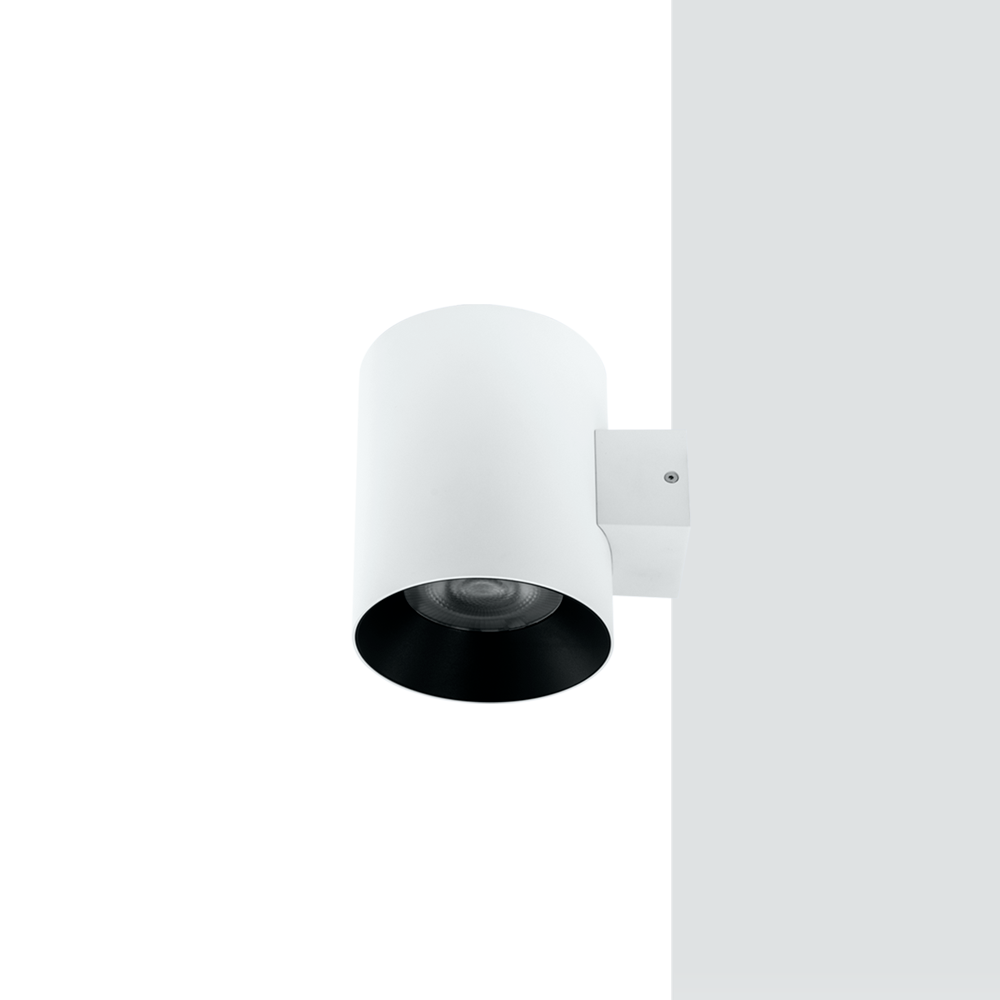

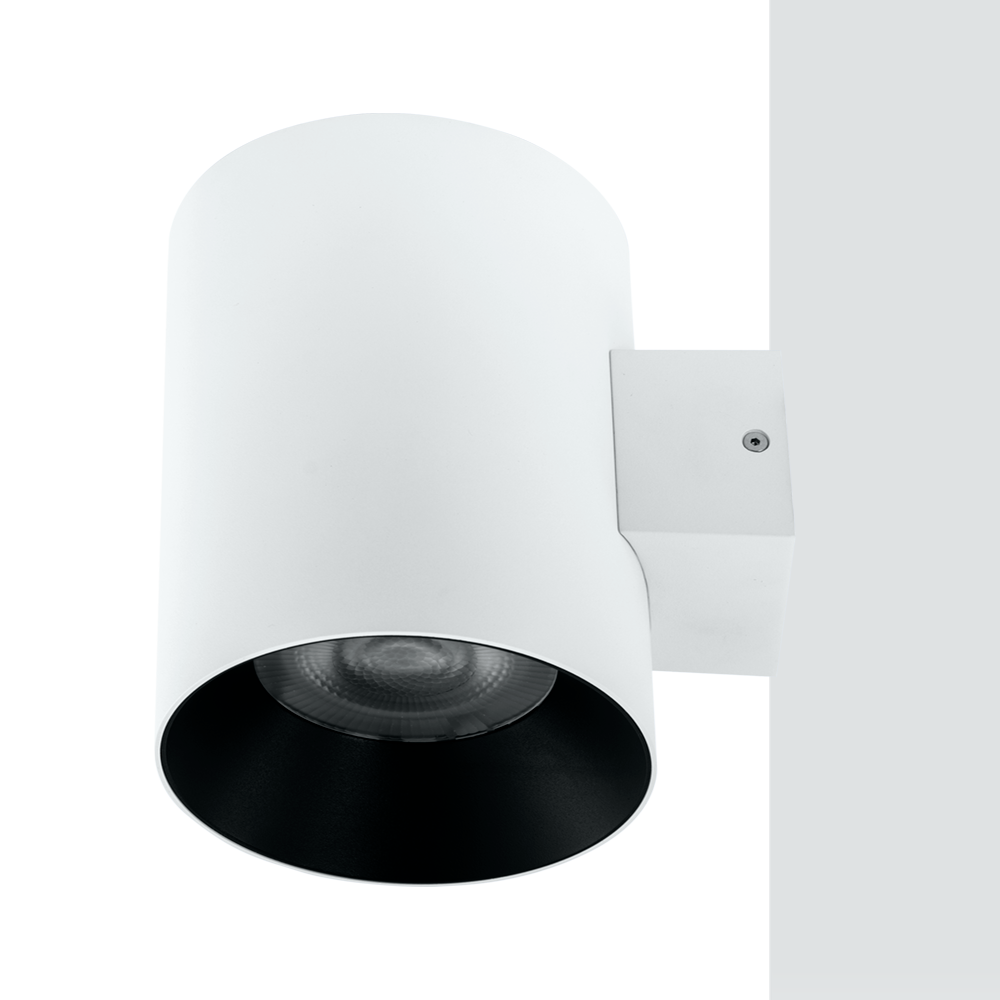

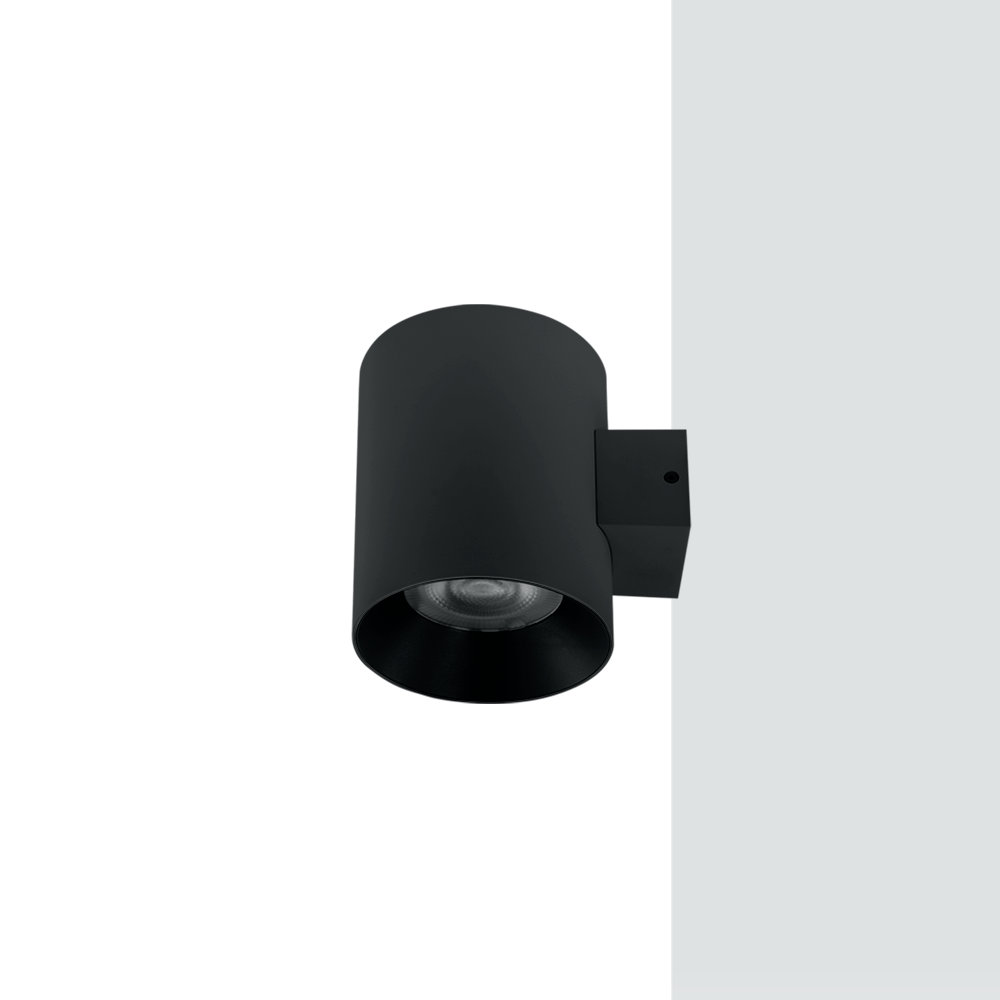

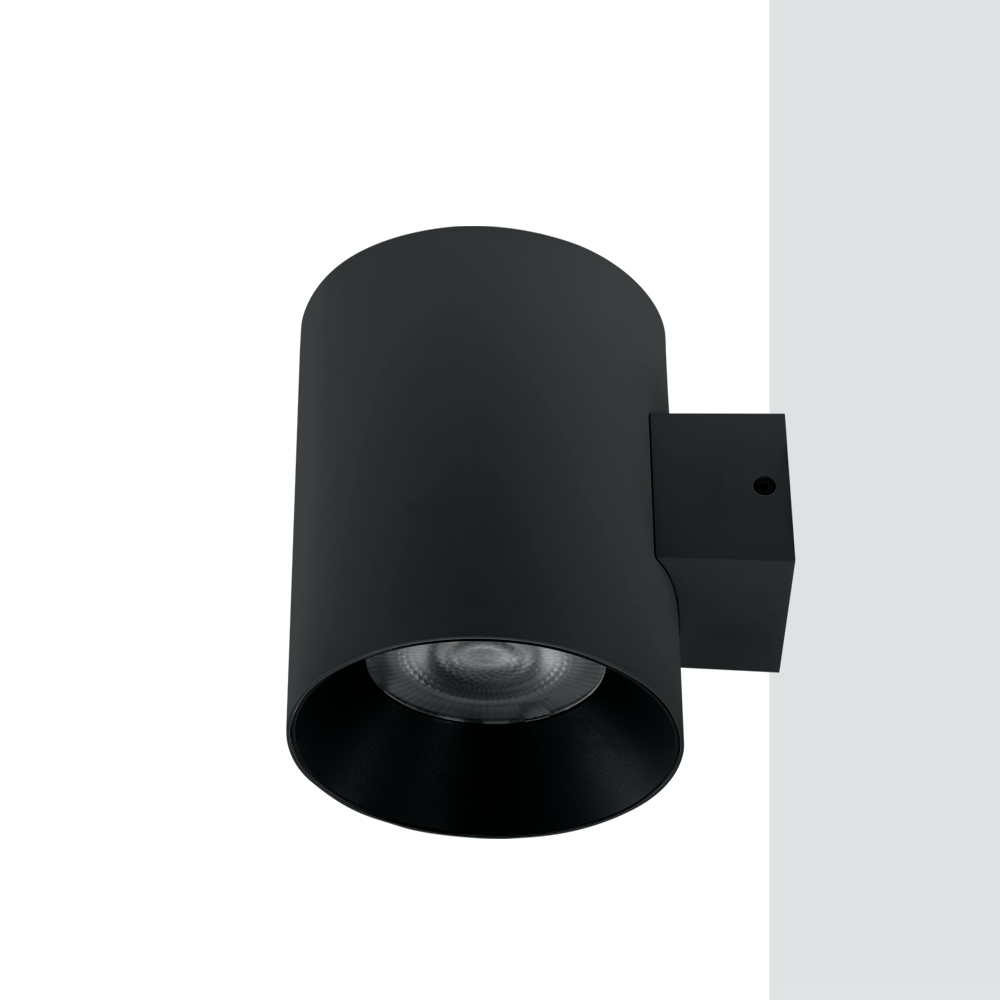

CYLINDER-WALL-UP&DOWN

Clean geometry, versatile performance.

CYLINDER is a versatile, high-performance cylindrical lighting family engineered for both indoor and outdoor applications. Featuring a robust die-cast and machined aluminium housing with IP65 protection, this series withstands moisture, dust, and challenging weather conditions while delivering exceptional thermal management and optical performance. Available in three sizes with 15W, 25W, and 40W power options, CYLINDER offers multiple installation styles – pendant, surface ceiling mount, and wall mount (with up/down lighting capability for wall versions). Its clean, minimalist design with no visible screws makes it a refined choice for contemporary architectural spaces.

Features Features

- Multiple installation styles – pendant mount, surface ceiling mount, and wall mount – adapt to diverse spatial requirements and design layouts

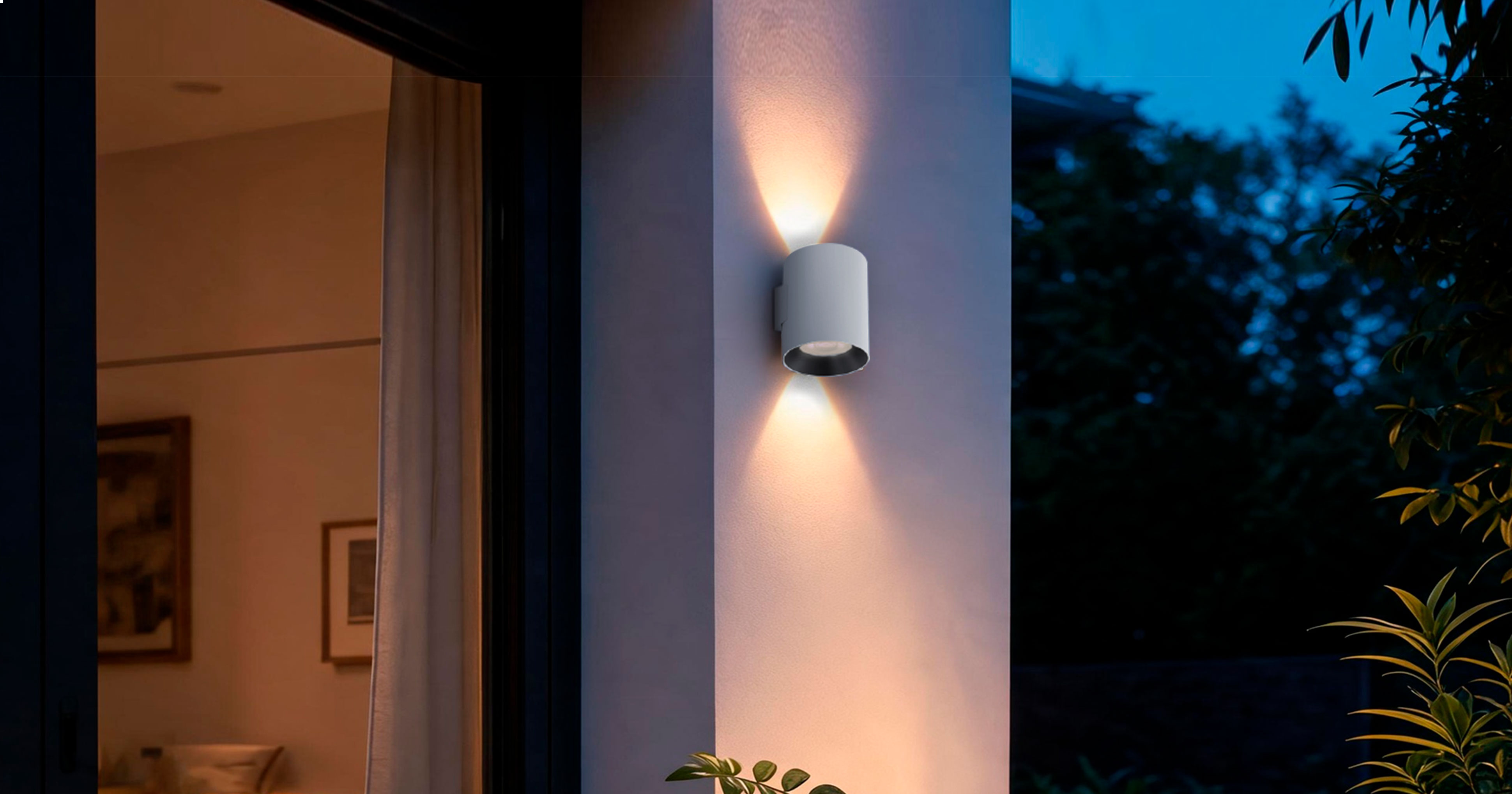

- Wall mount version features up/down lighting – directs light both upward and downward for dramatic wall-washing effects and enhanced spatial atmosphere

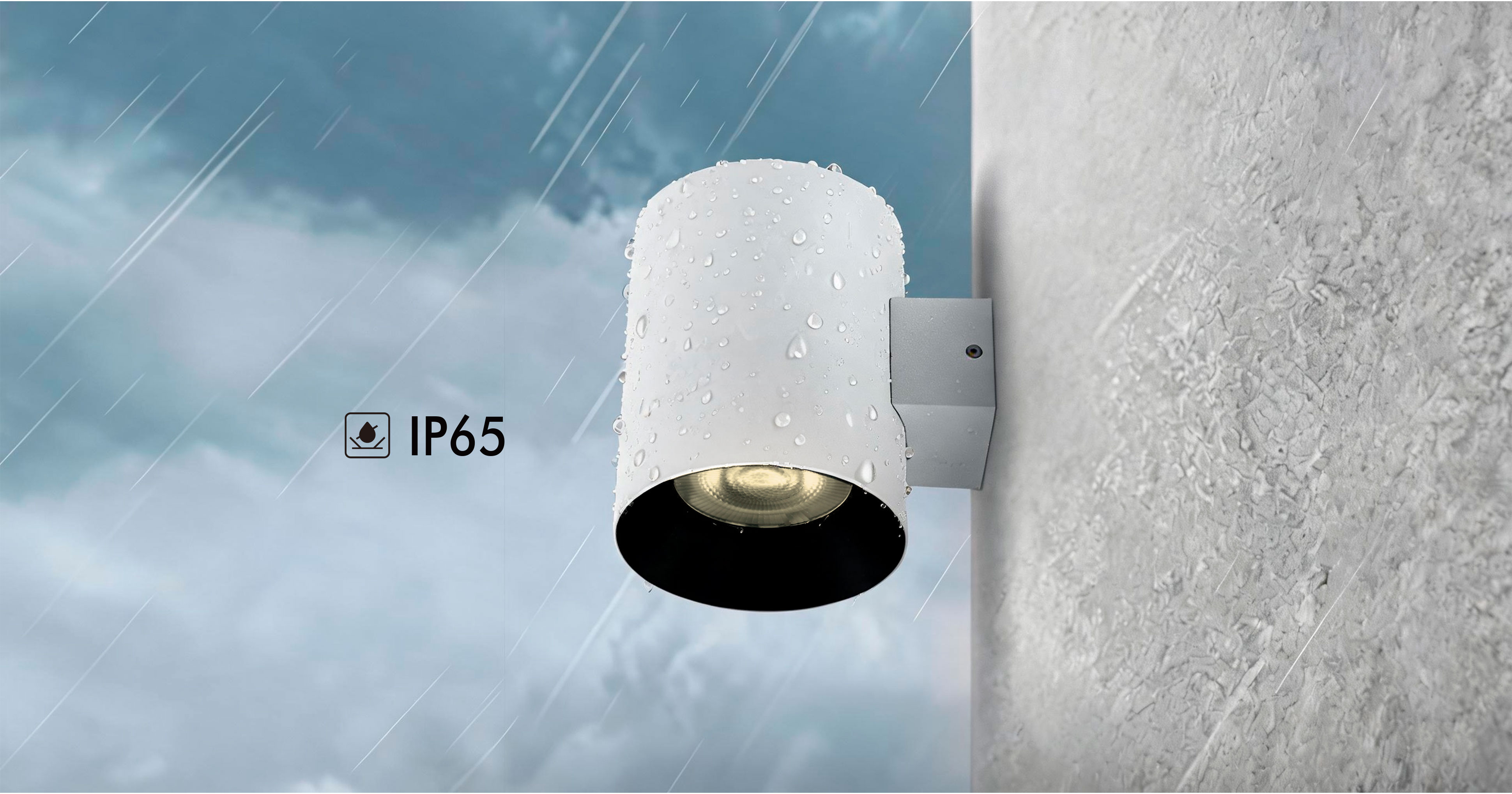

- IP65 waterproof rating – fully protected against dust and water jets, suitable for outdoor use, bathrooms, and other humid environments

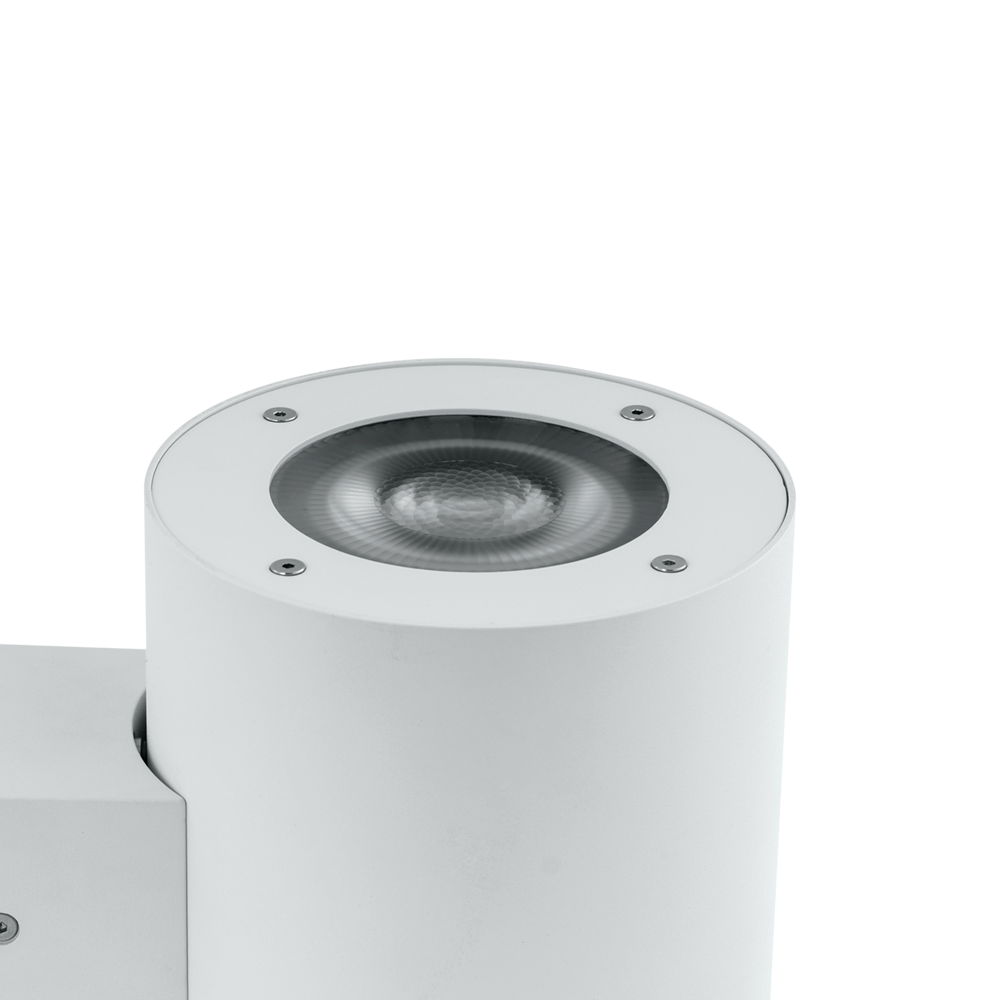

- Anti-glare optical design with cutoff angle >30° – delivers soft, natural light that is gentle on the eyes

- High colour rendering (Ra90) – reproduces natural colours with vivid accuracy, bringing warmth and authenticity to any space

- Clean, minimalist appearance with no visible screws – seamless aesthetic that integrates beautifully into modern architecture

- Comprehensive internal structural design – ensures reliable waterproofing and stable performance across all installation types

- Surface colour available upon request – customized finishes to match specific project design schemes

Specifications Specifications

- Housing: Die-cast + precision machined aluminium – excellent thermal conductivity and corrosion resistance

- Surface finish: Fine textured coating – elegant and durable; custom colours available

- Optical design: Anti-glare, cutoff angle >30°

- Colour rendering: Ra90

- Protection rating: IP65 – dust-tight and protected against water jets

- Sizes: 3 size options available

- Power options: 15W / 25W / 40W (matching corresponding sizes)

- Installation types: Pendant mount / Surface ceiling mount / Wall mount

- Wall mount feature: Up/down bi-directional lighting

- Design: No visible screws – clean, minimalist appearance

- Internal structure: Comprehensive waterproofing design for reliable performance in demanding environments

Fields of application Fields of application

- Outdoor building facades – accentuating architectural features with durable, weatherproof lighting

- Hotel lobbies and public areas – combining elegance with functional illumination

- Retail storefronts and showroom exteriors – attracting attention with high-quality outdoor lighting

- Bathrooms and spa facilities – safe and reliable lighting in humid environments

- Corridors and stairwells – providing consistent, comfortable illumination

- Restaurant and café interiors – creating warm and inviting atmospheres

- Residential courtyards and garden areas – enhancing outdoor living spaces

- Gallery and exhibition spaces (wall mount with up/down) – adding dramatic wall-lighting effects

- Any space requiring versatile installation, weatherproof durability, and refined aesthetics

Version

0 Article

Nominal power

Up10W, Down10W

BEAM ANGLE

Up38°, Down38°

Up24°, Down24°

COLOUR / FINISH

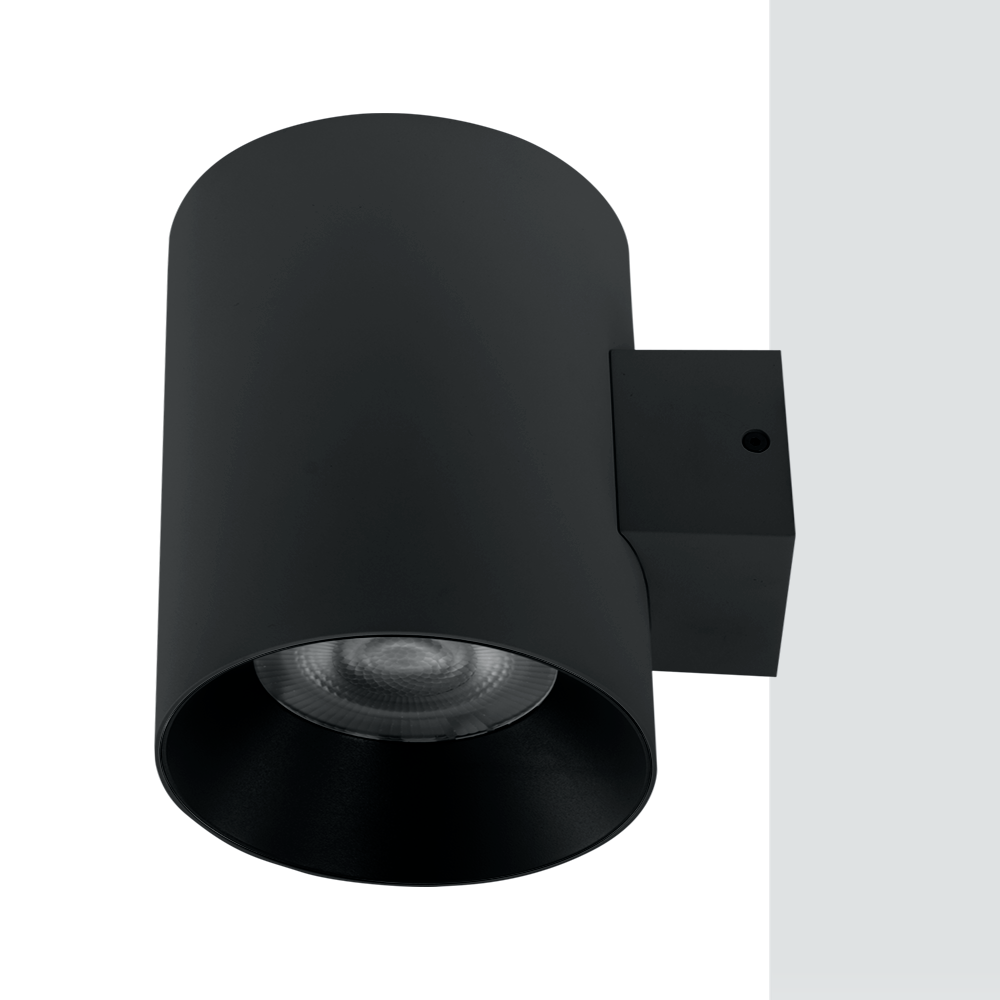

White/Black

LIGHT CONTROL

ON/OFF | DALI

Nominal power

Up15W, Down15W

BEAM ANGLE

Up38°, Down38°

Up24°, Down24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI

Nominal power

Up25W, Down25W

BEAM ANGLE

Up38°, Down38°

Up24°, Down24°

COLOUR / FINISH

White/Black

LIGHT CONTROL

ON/OFF | DALI

	Article number	Nominal power	Color Temperature(CCT)	Delivered lumens	Beam angle	Finish
	L-W438-COB3-2-30K-24	L-W438-COB3-2-30K-24	Up10W, Down10W	3000K	Up720lm, Down680lm	Up24°, Down24°	White/Black

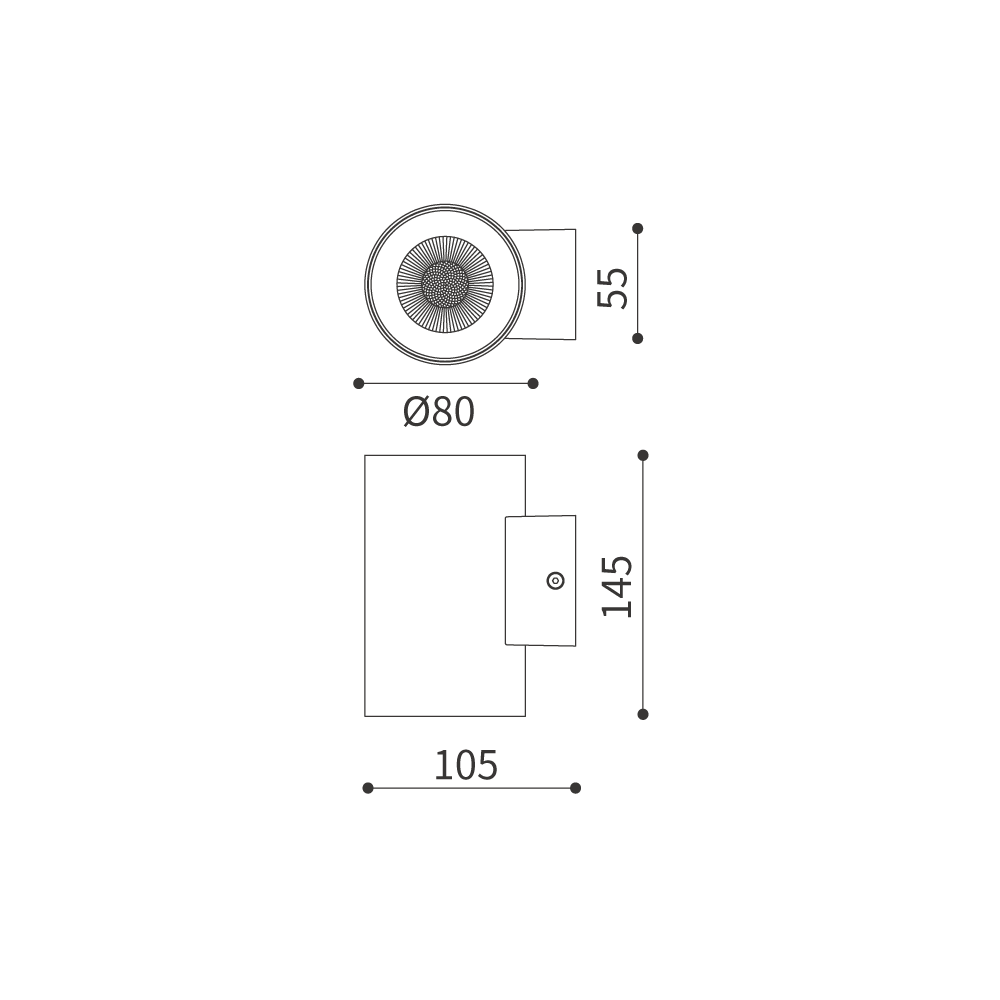

Get in Touch Get in Touch L-W438-COB3-2-30K-24 CYLINDER-WALL-UP&DOWN, with LED, system power:up 10W,down 10W, luminous flux of luminaire: up 820lm, down 680lm, colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 500mA, Beam angle: Up24°, Down24°, black/white color, ON/OFF \| DALI . ingress protection IP65. Ø=80 mm,H=145 mm Nominal power Up10W, Down10W Finish White/Black Delivered lumens Up720lm, Down680lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.99kg Color Rendering Index(CRI) CRI≥90 Diameter 80mm Unified Glare Rating (UGR) UGR＜16 Height 145mm Light Control ON/OFF \| DALI Width 105mm Beam angle Up24°, Down24° Downloads None Accessories
	L-W438-COB3-2-30K-38	L-W438-COB3-2-30K-38	Up10W, Down10W	3000K	Up720lm, Down680lm	Up38°, Down38°	White/Black
Get in Touch Get in Touch L-W438-COB3-2-30K-38 CYLINDER-WALL-UP&DOWN, with LED, system power:up 10W,down 10W, luminous flux of luminaire: up 820lm, down 680lm, colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 500mA, Beam angle: Up38°, Down38°, black/white color, ON/OFF \| DALI . ingress protection IP65. Ø=80 mm,H=145 mm Nominal power Up10W, Down10W Finish White/Black Delivered lumens Up720lm, Down680lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 0.99kg Color Rendering Index(CRI) CRI≥90 Diameter 80mm Unified Glare Rating (UGR) UGR＜16 Height 145mm Light Control ON/OFF \| DALI Width 105mm Beam angle Up38°, Down38° Downloads None Accessories
	L-W438-COB4-2-30K-24	L-W438-COB4-2-30K-24	Up15W, Down15W	3000K	Up1125lm, Down1065lm	Up24°, Down24°	White/Black

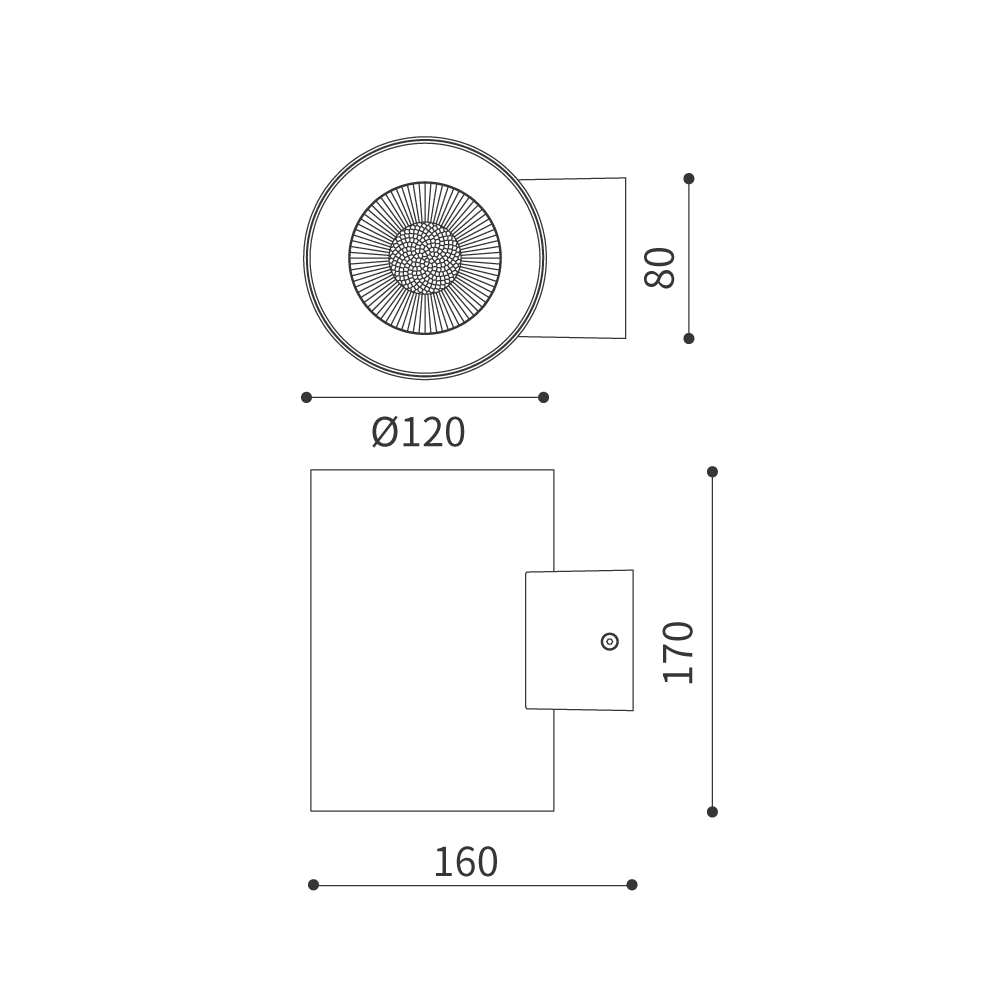

Get in Touch Get in Touch L-W438-COB4-2-30K-24 CYLINDER-WALL-UP&DOWN, with LED, system power:up 15W,down 15W, luminous flux of luminaire: up 1125lm, down 1065lm, colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 700mA, Beam angle: Up24°, Down24°, black/white color, ON/OFF \| DALI . ingress protection IP65. Ø=120 mm,H=170 mm Nominal power Up15W, Down15W Finish White/Black Delivered lumens Up1125lm, Down1065lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 1.91kg Color Rendering Index(CRI) CRI≥90 Diameter 120mm Unified Glare Rating (UGR) UGR＜16 Height 170mm Light Control ON/OFF \| DALI Width 160mm Beam angle Up24°, Down24° Downloads None Accessories
	L-W438-COB4-2-30K-38	L-W438-COB4-2-30K-38	Up15W, Down15W	3000K	Up1125lm, Down1065lm	Up38°, Down38°	White/Black
Get in Touch Get in Touch L-W438-COB4-2-30K-38 CYLINDER-WALL-UP&DOWN, with LED, system power:up 15W,down 15W, luminous flux of luminaire: up 1125lm, down 1065lm, colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 700mA, Beam angle: Up38°, Down38°, black/white color, ON/OFF \| DALI . ingress protection IP65. Ø=120 mm,H=170 mm Nominal power Up15W, Down15W Finish White/Black Delivered lumens Up1125lm, Down1065lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 1.91kg Color Rendering Index(CRI) CRI≥90 Diameter 120mm Unified Glare Rating (UGR) UGR＜16 Height 170mm Light Control ON/OFF \| DALI Width 160mm Beam angle Up38°, Down38° Downloads None Accessories
	L-W438-COB5-2-30K-24	L-W438-COB5-2-30K-24	Up25W, Down25W	3000K	Up2000lm, Down1950lm	Up24°, Down24°	White/Black

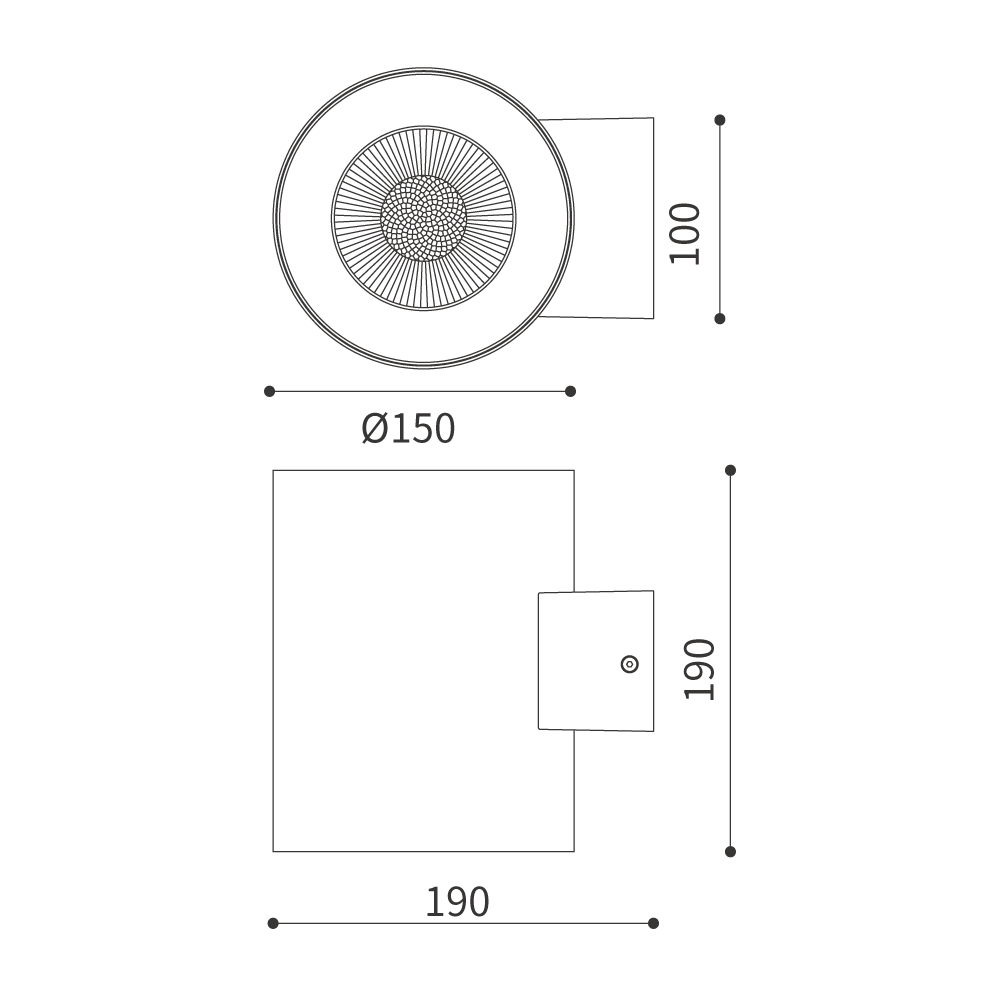

Get in Touch Get in Touch L-W438-COB5-2-30K-24 CYLINDER-WALL-UP&DOWN, with LED, system power:up 25W,down 25W, luminous flux of luminaire: up 2000lm, down 1950lm, colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 1200mA, Beam angle: Up24°, Down24°, black/white color, ON/OFF \| DALI . ingress protection IP65. Ø=150 mm,H=170 mm Nominal power Up25W, Down25W Finish White/Black Delivered lumens Up2000lm, Down1950lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 2.86kg Color Rendering Index(CRI) CRI≥90 Diameter 150mm Unified Glare Rating (UGR) UGR＜16 Height 190mm Light Control ON/OFF \| DALI Width 190mm Beam angle Up24°, Down24° Downloads None Accessories
	L-W438-COB5-2-30K-38	L-W438-COB5-2-30K-38	Up25W, Down25W	3000K	Up2000lm, Down1950lm	Up38°, Down38°	White/Black
Get in Touch Get in Touch L-W438-COB5-2-30K-38 CYLINDER-WALL-UP&DOWN, with LED, system power:up 25W,down 25W, luminous flux of luminaire: up 2000lm, down 1950lm, colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 1200mA, Beam angle: Up38°, Down38°, black/white color, ON/OFF \| DALI . ingress protection IP65. Ø=150 mm,H=170 mm Nominal power Up25W, Down25W Finish White/Black Delivered lumens Up2000lm, Down1950lm Materials Aluminium Color Consistency SDCM SDCM3 Ingress Protection (IP) IP65 Color Temperature(CCT) 3000K Weight 2.86kg Color Rendering Index(CRI) CRI≥90 Diameter 150mm Unified Glare Rating (UGR) UGR＜16 Height 190mm Light Control ON/OFF \| DALI Width 190mm Beam angle Up38°, Down38° Downloads None Accessories
