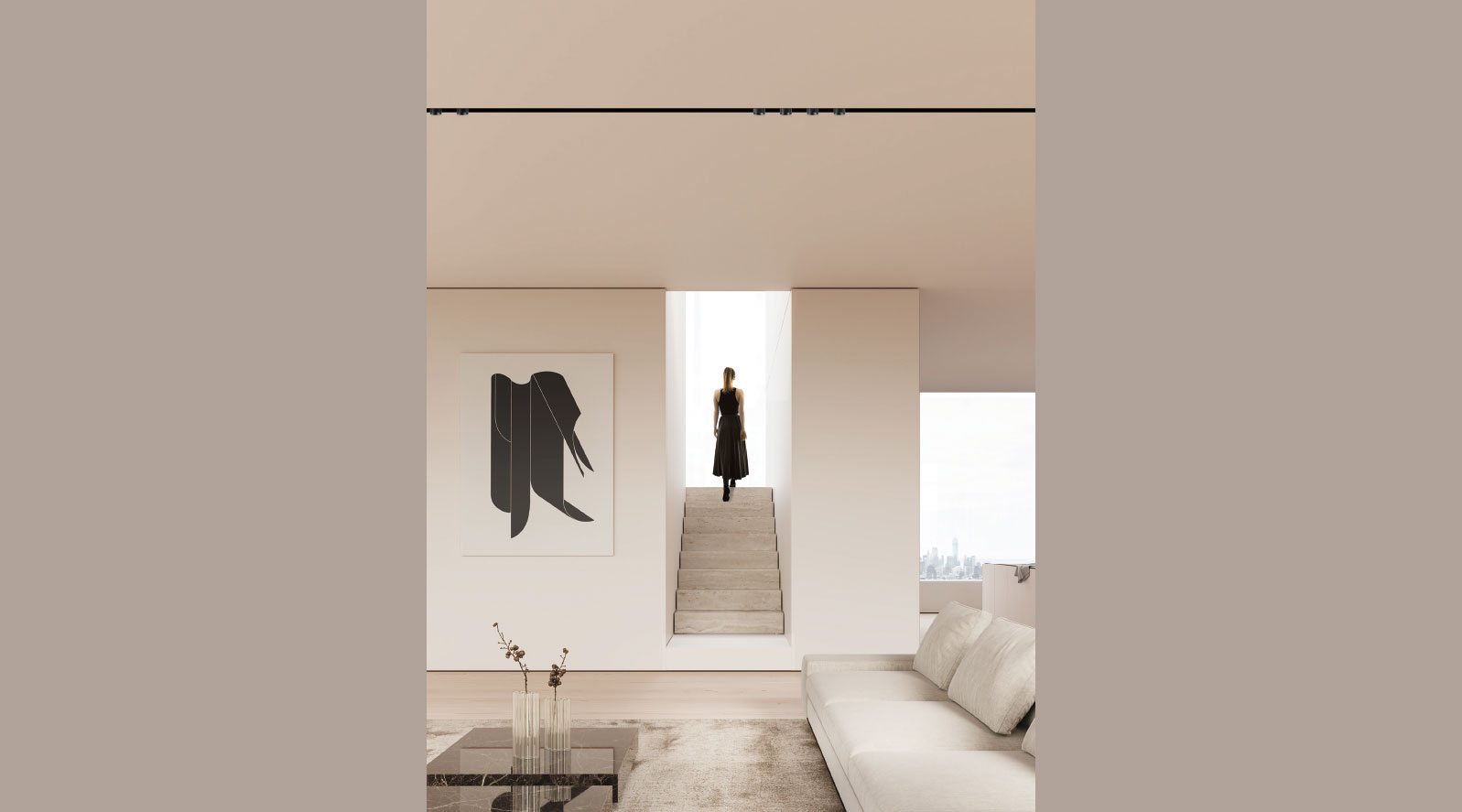

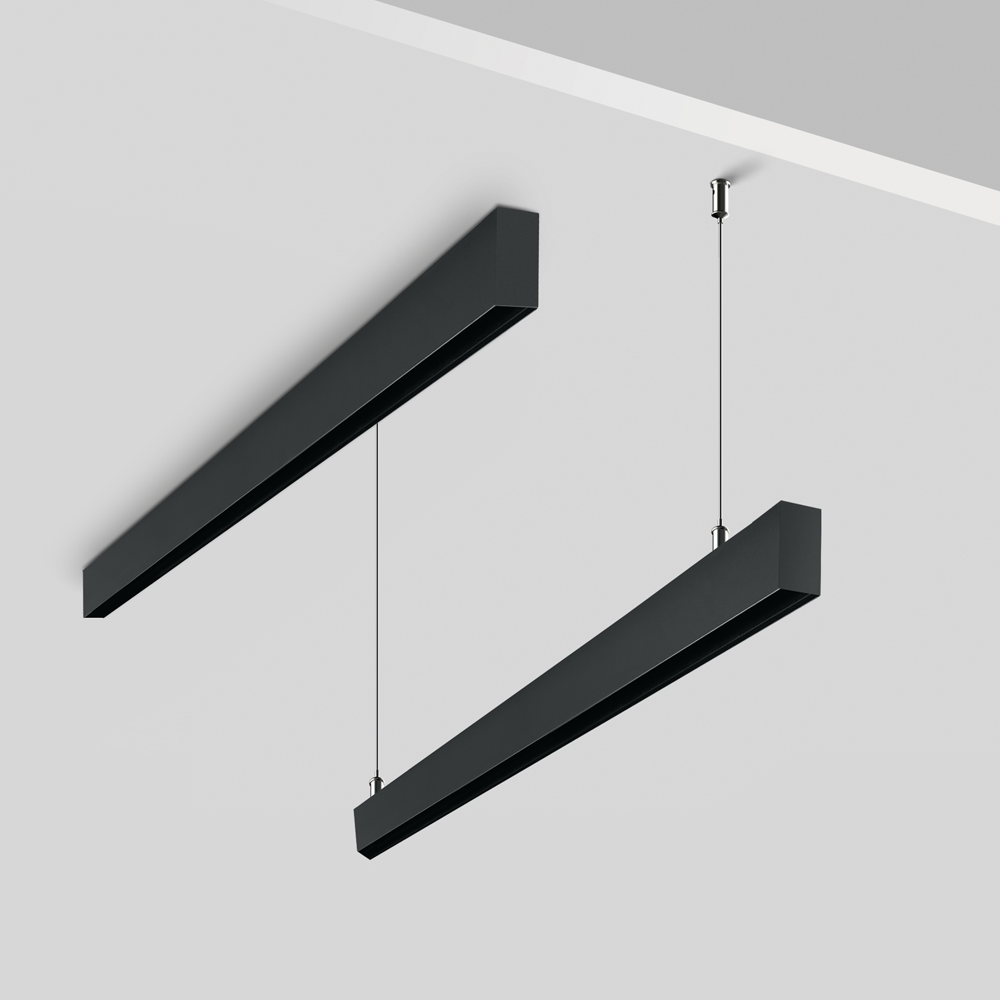

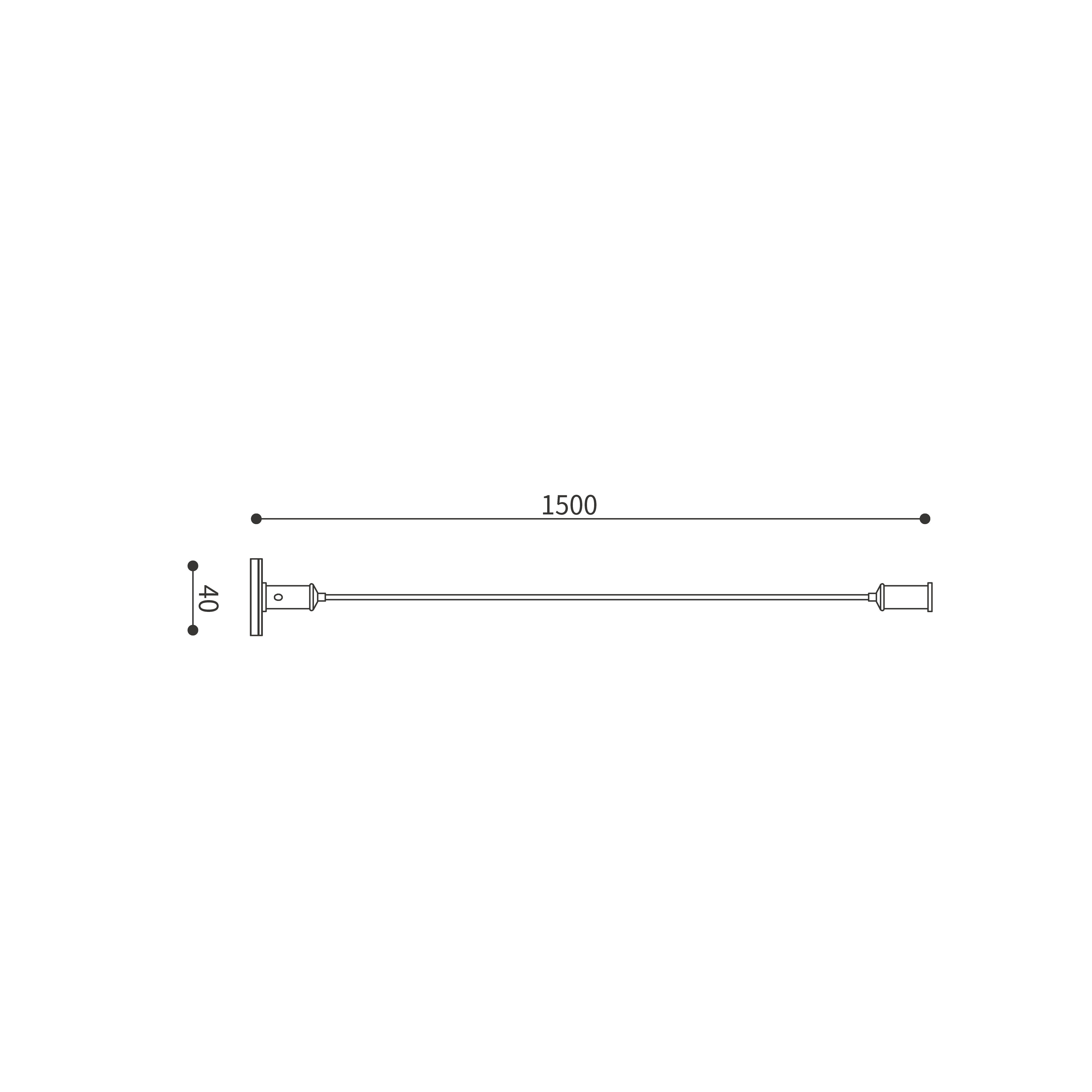

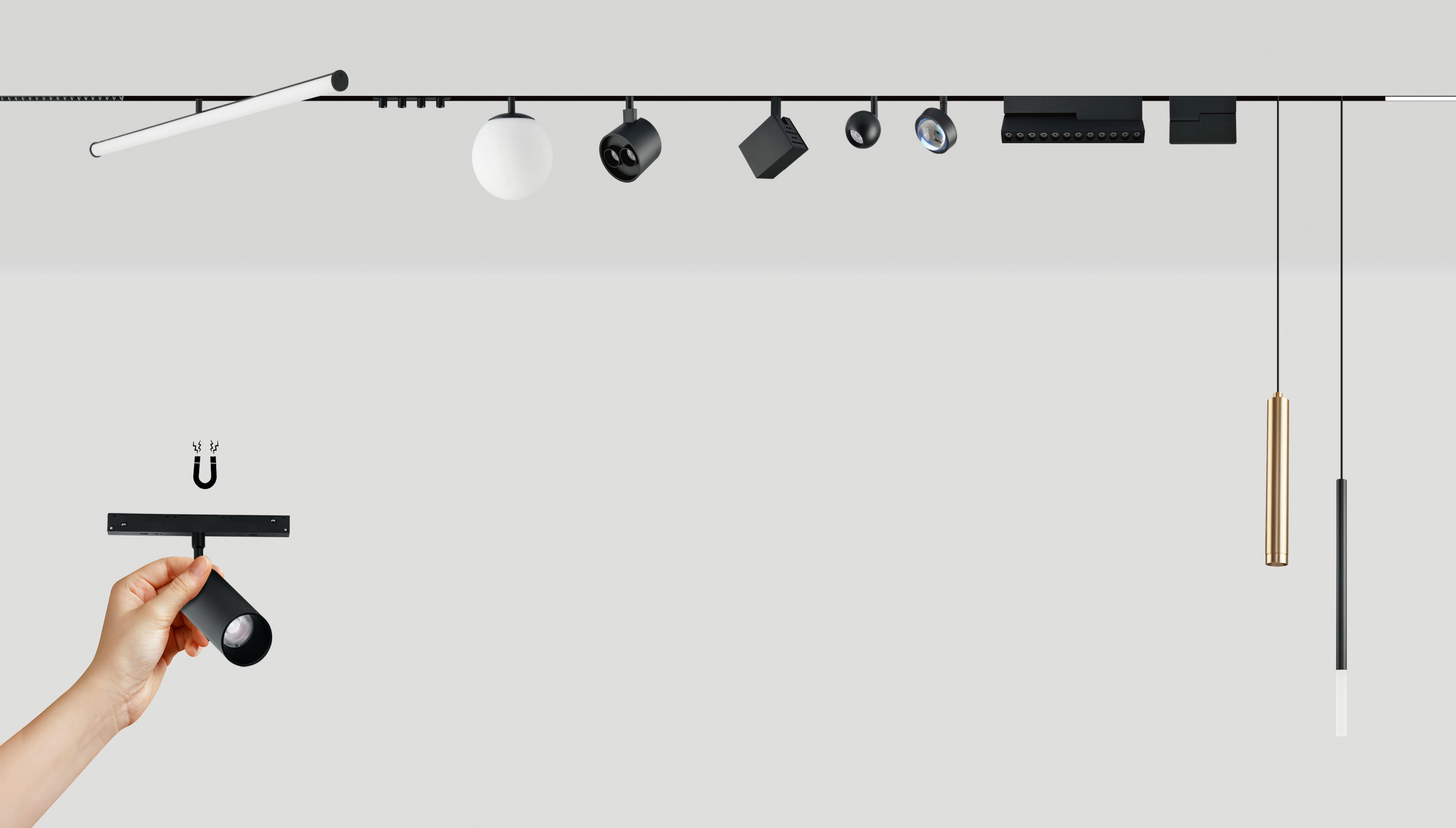

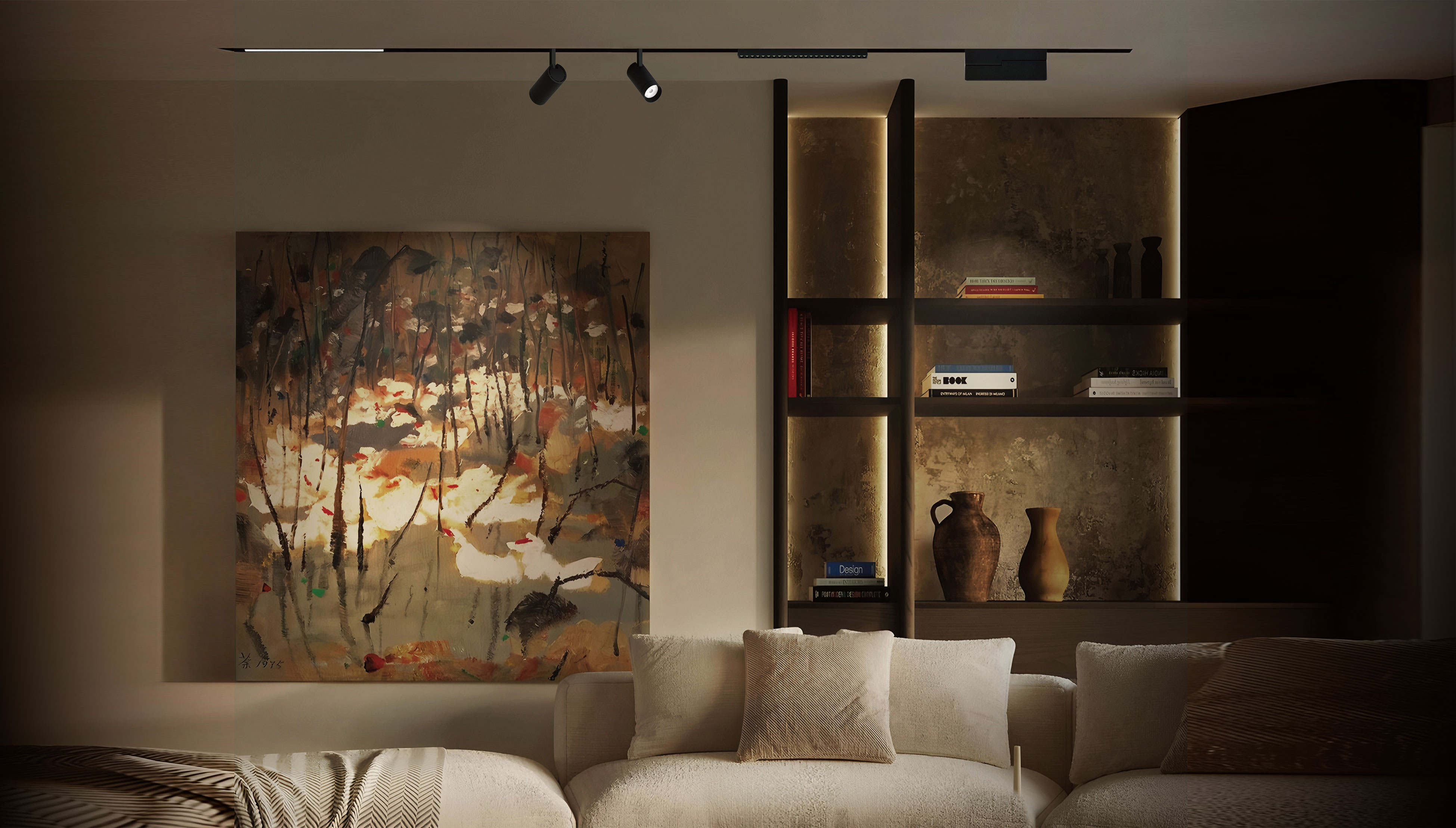

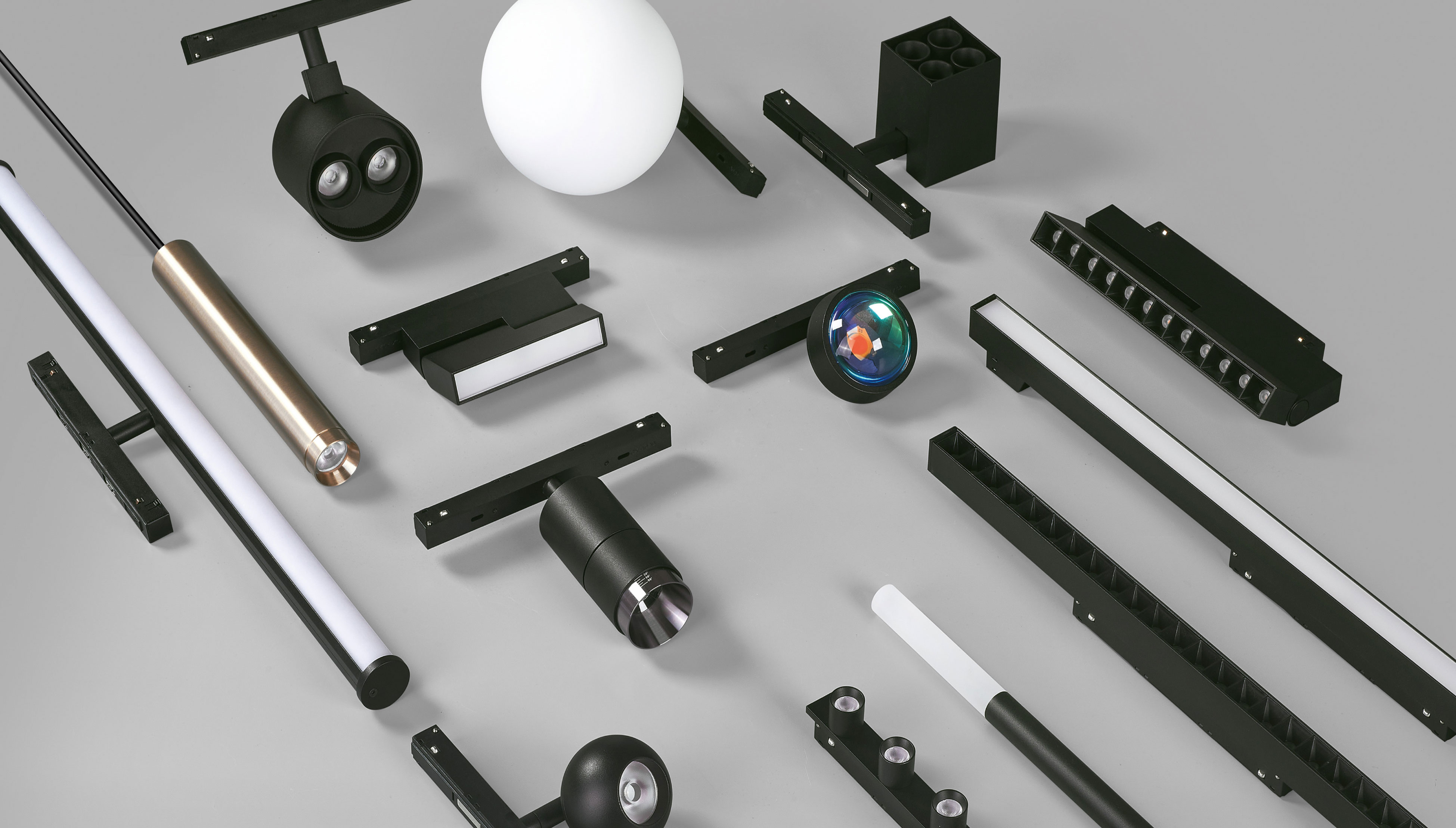

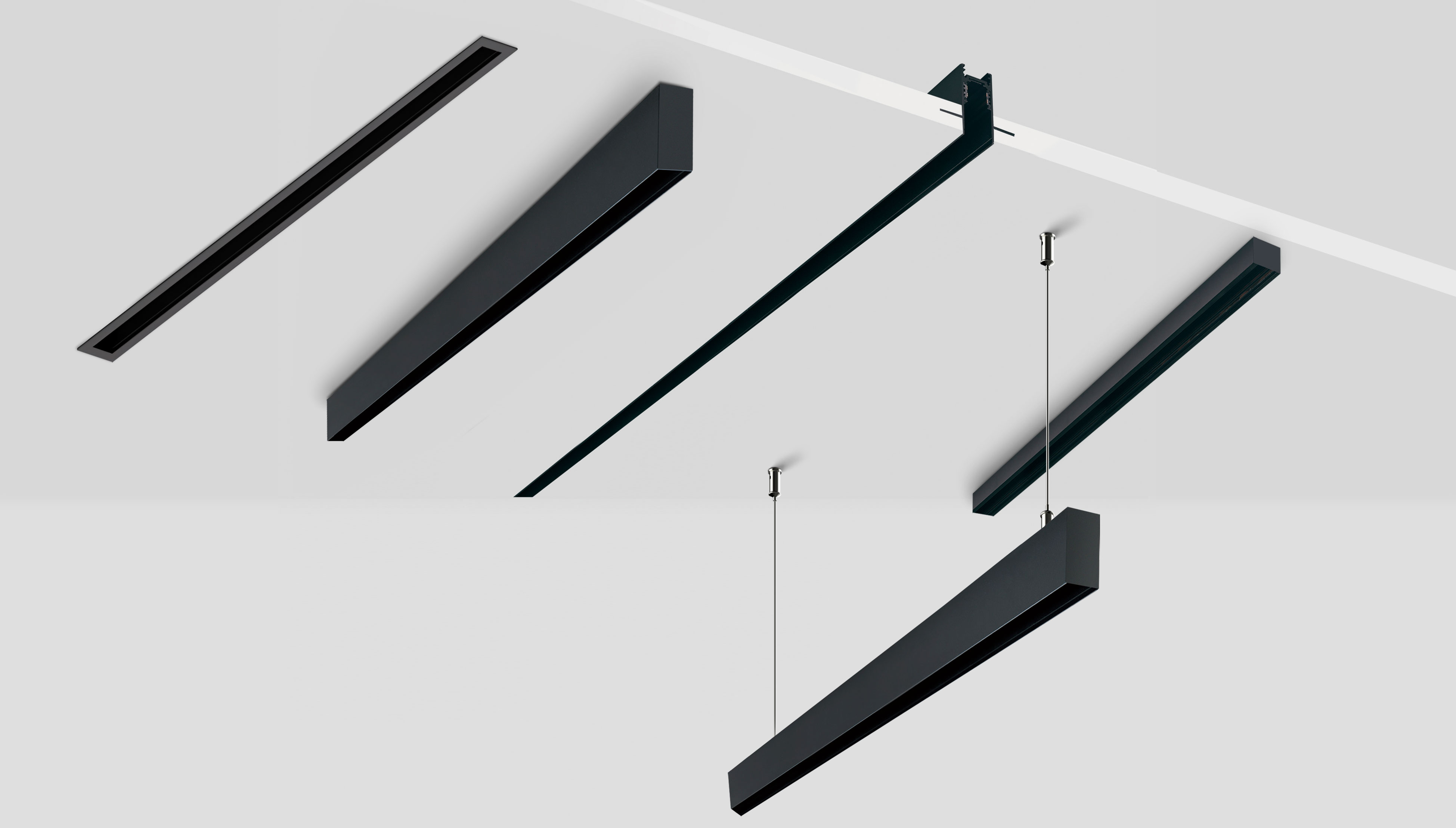

48VDC magnetie track system is available as a suspended,surface-mounted and recessed trimless version. The suspended track provides the option of additional indirect light for ceiling illumination.and this system also can be provided. These modules can be combined freely for different applications;Th

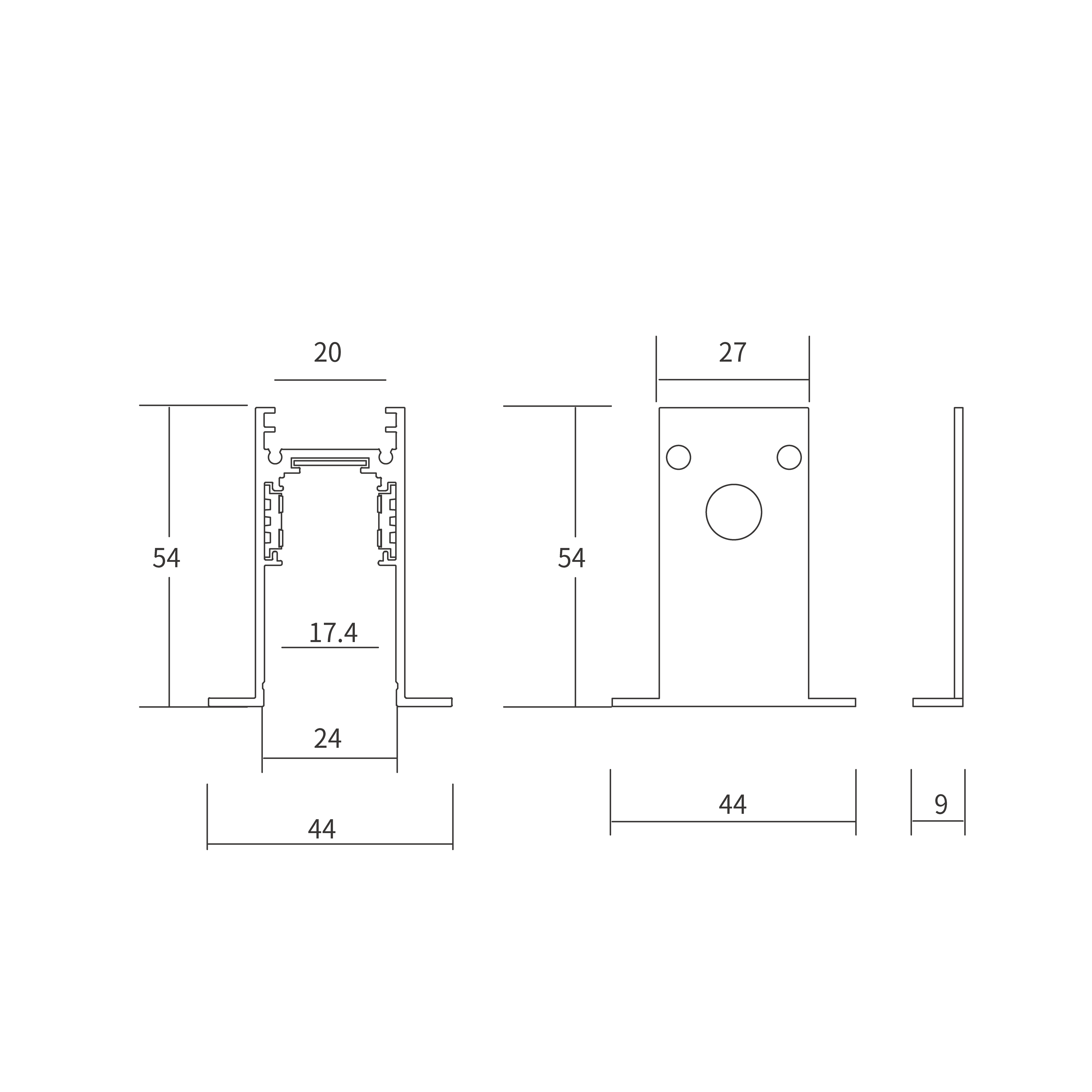

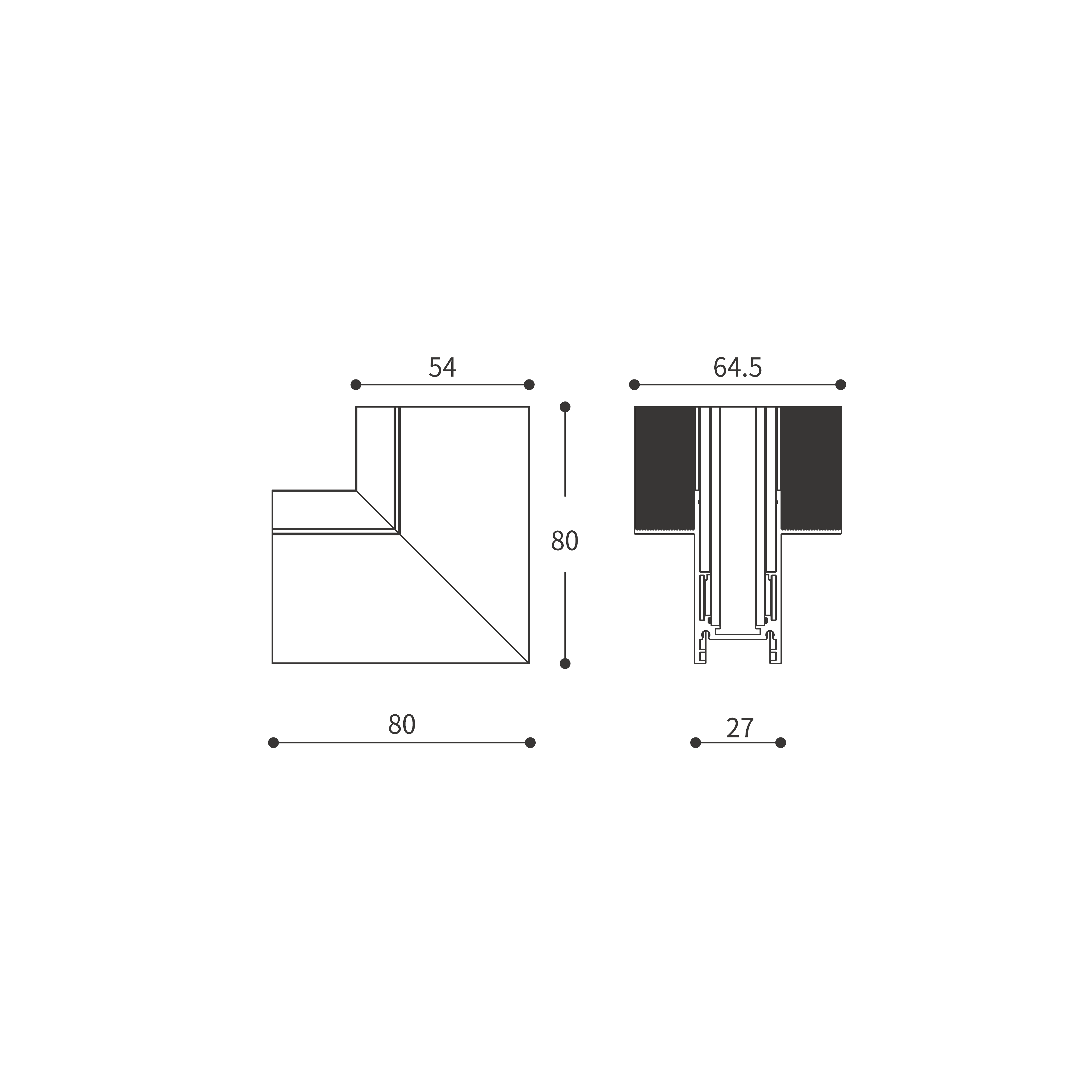

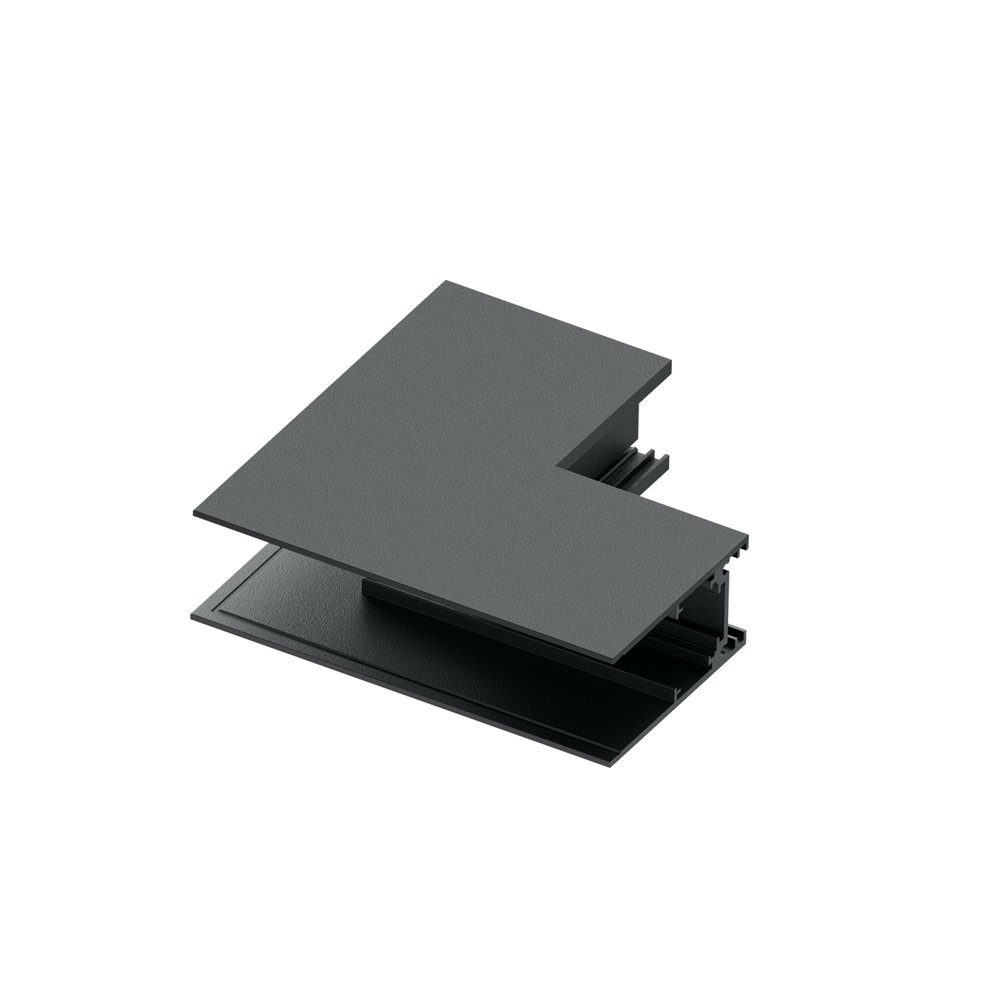

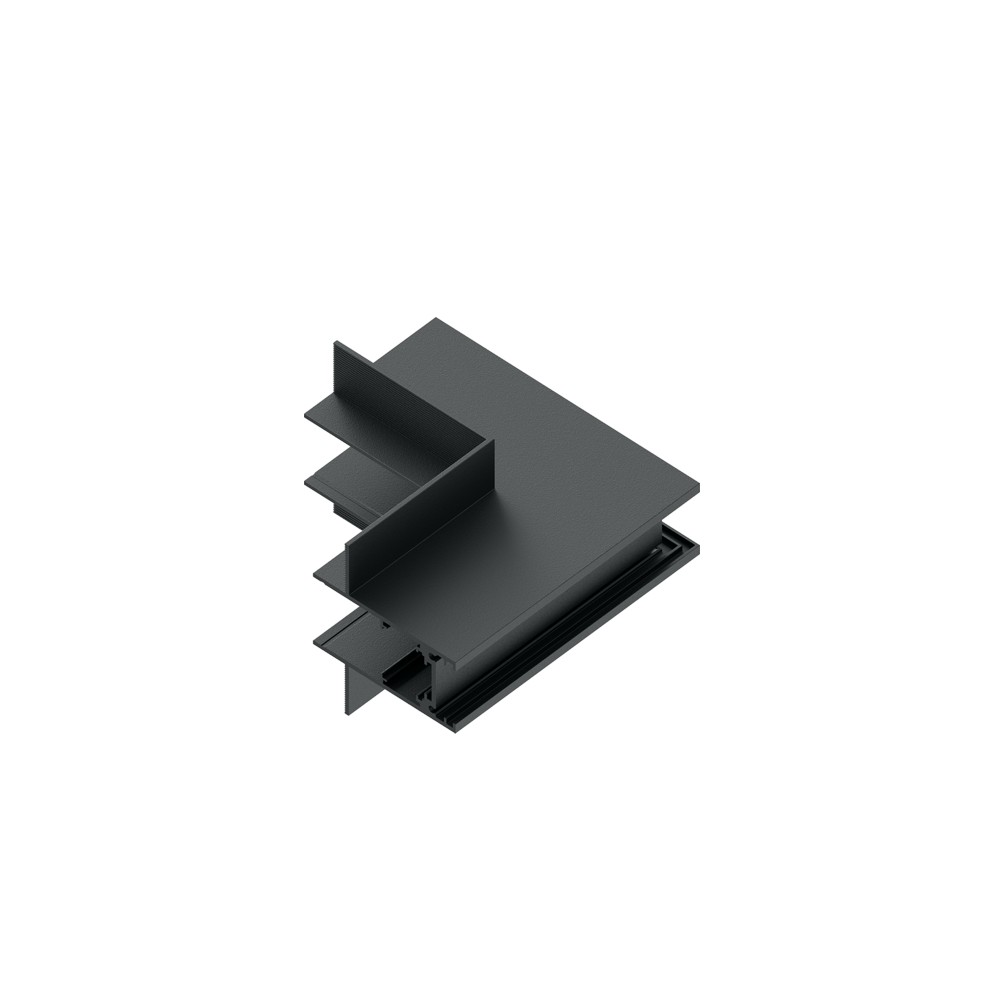

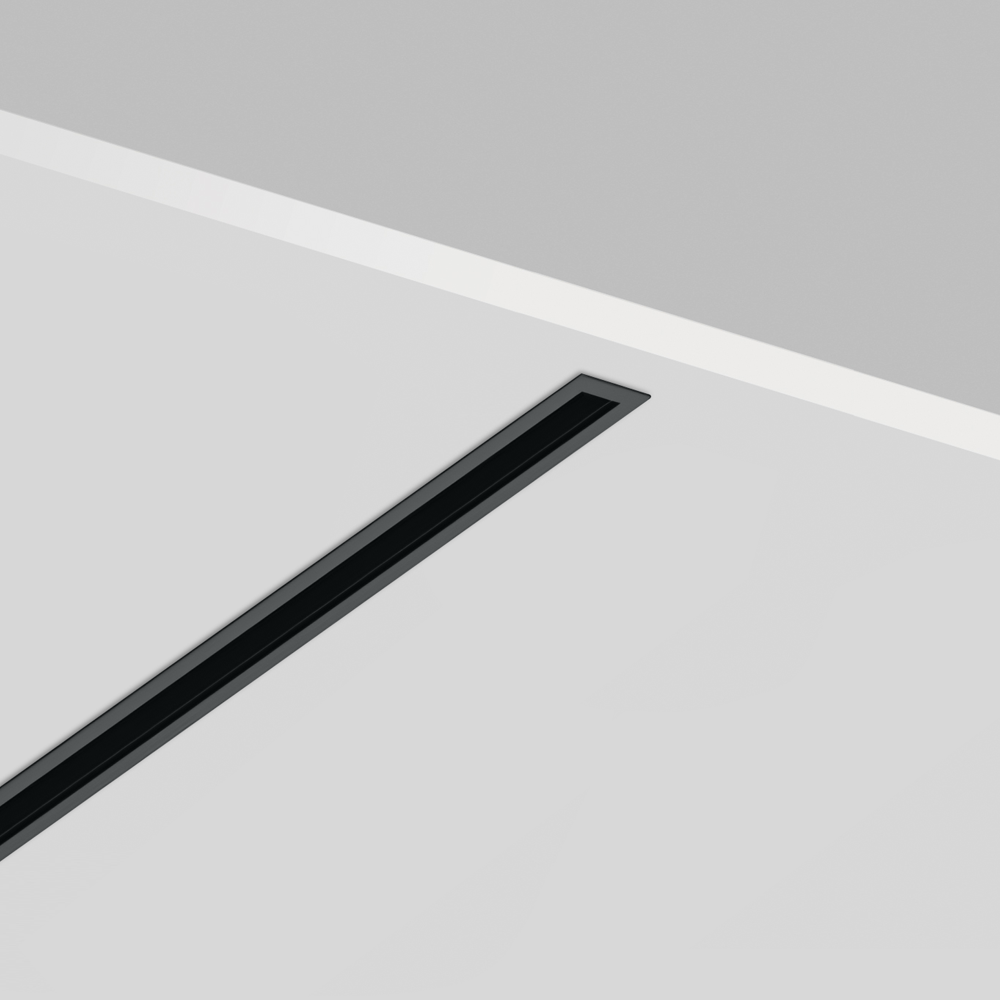

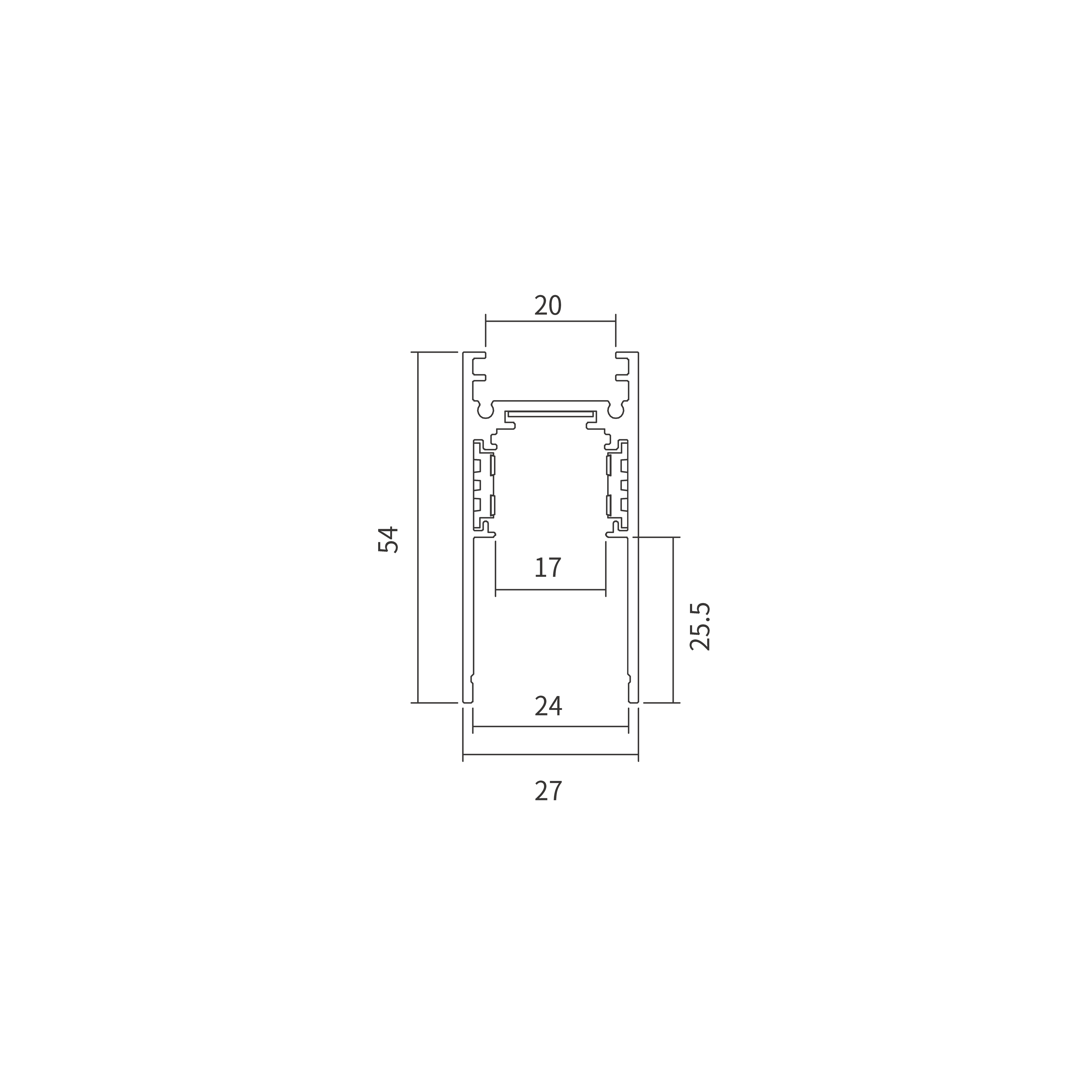

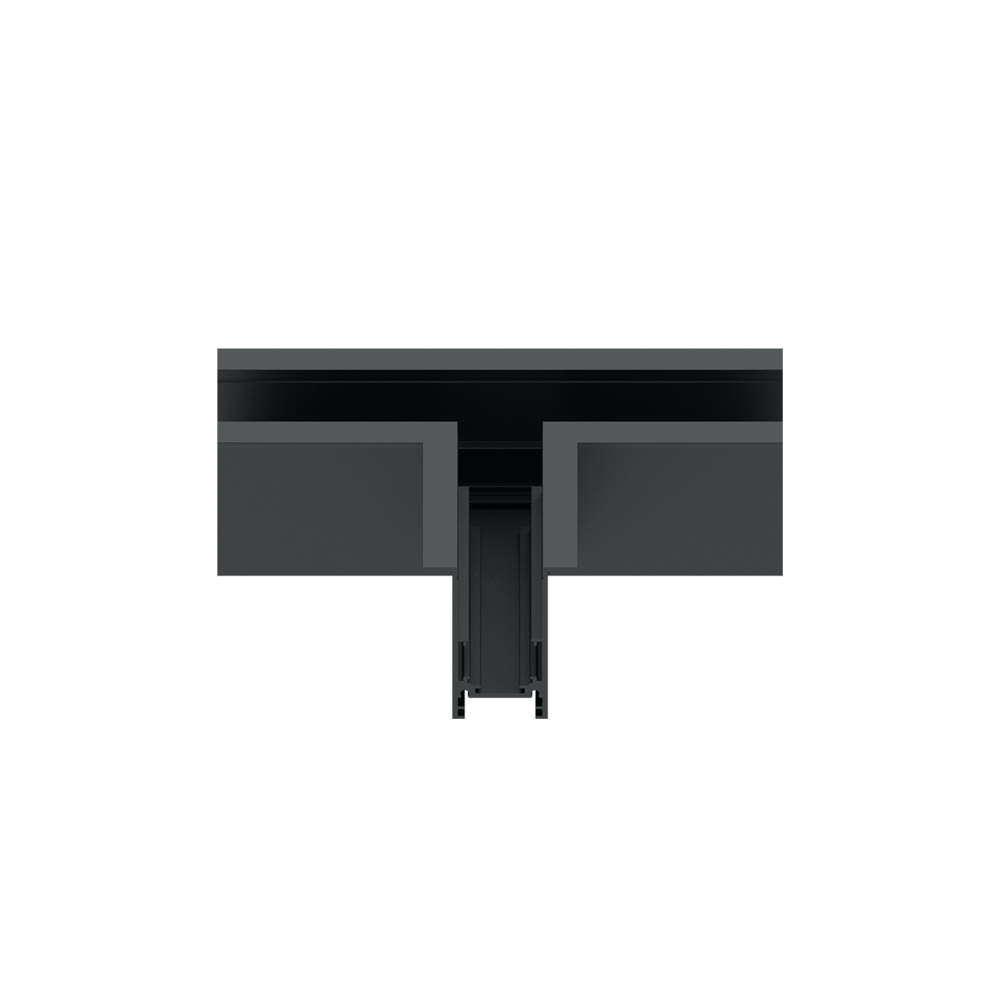

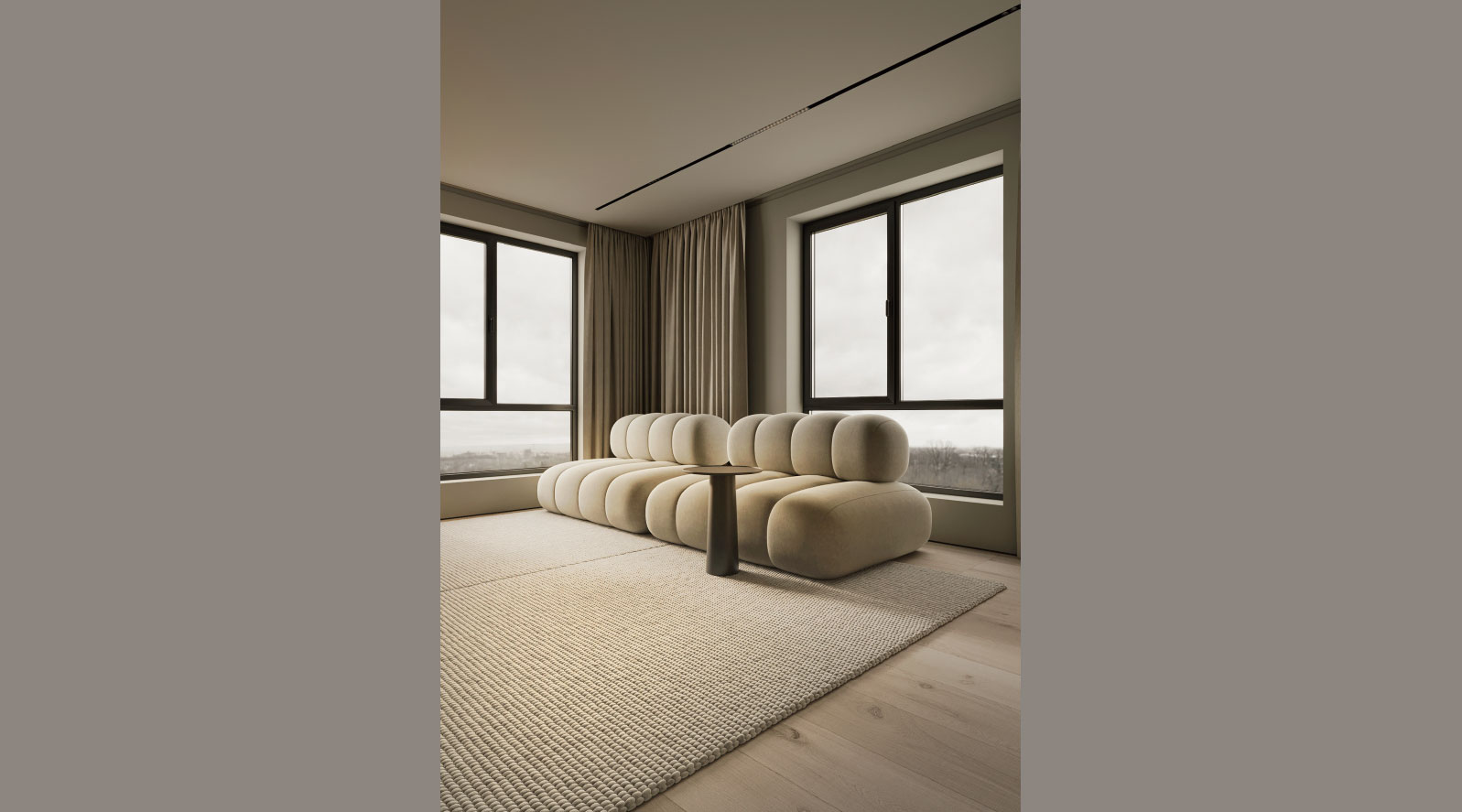

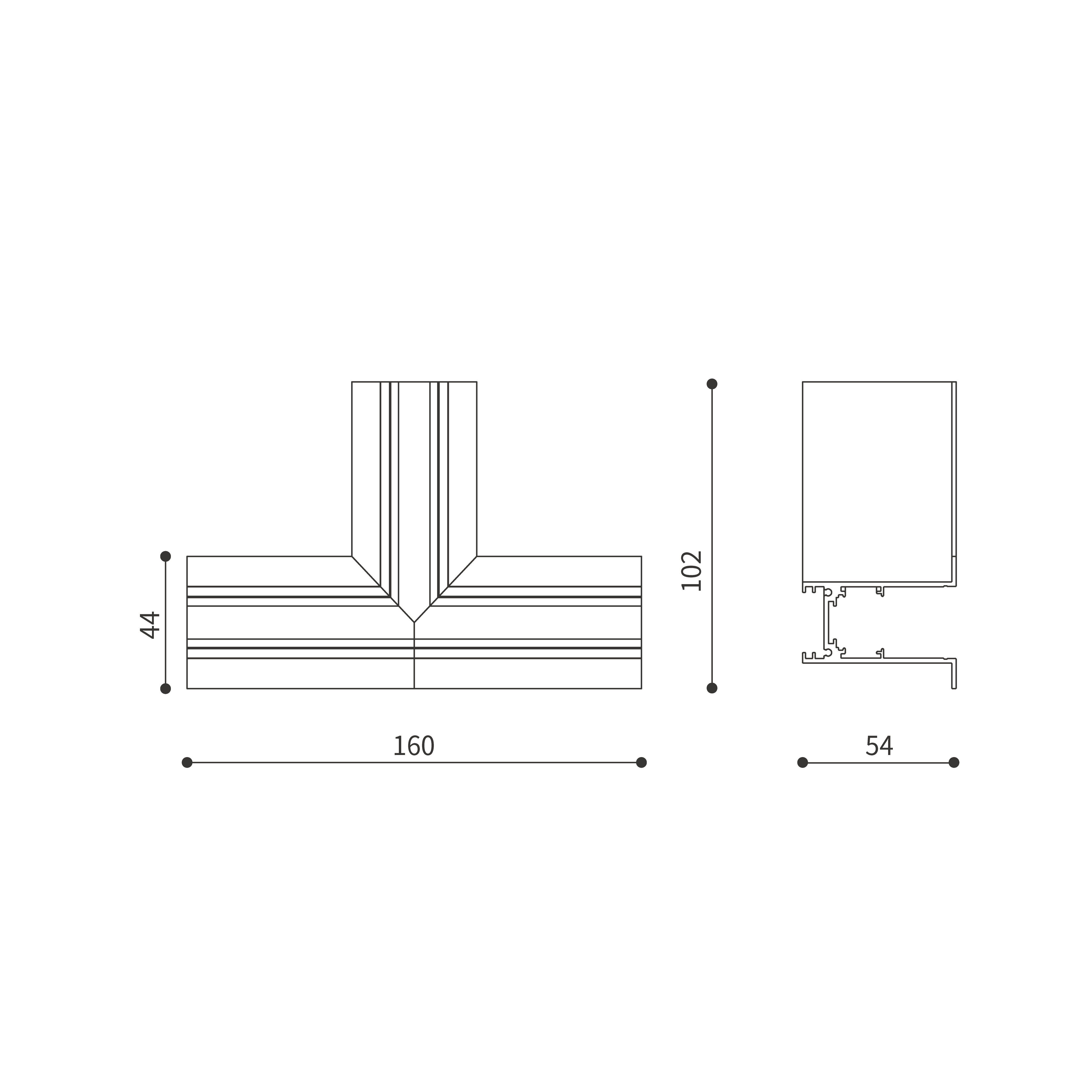

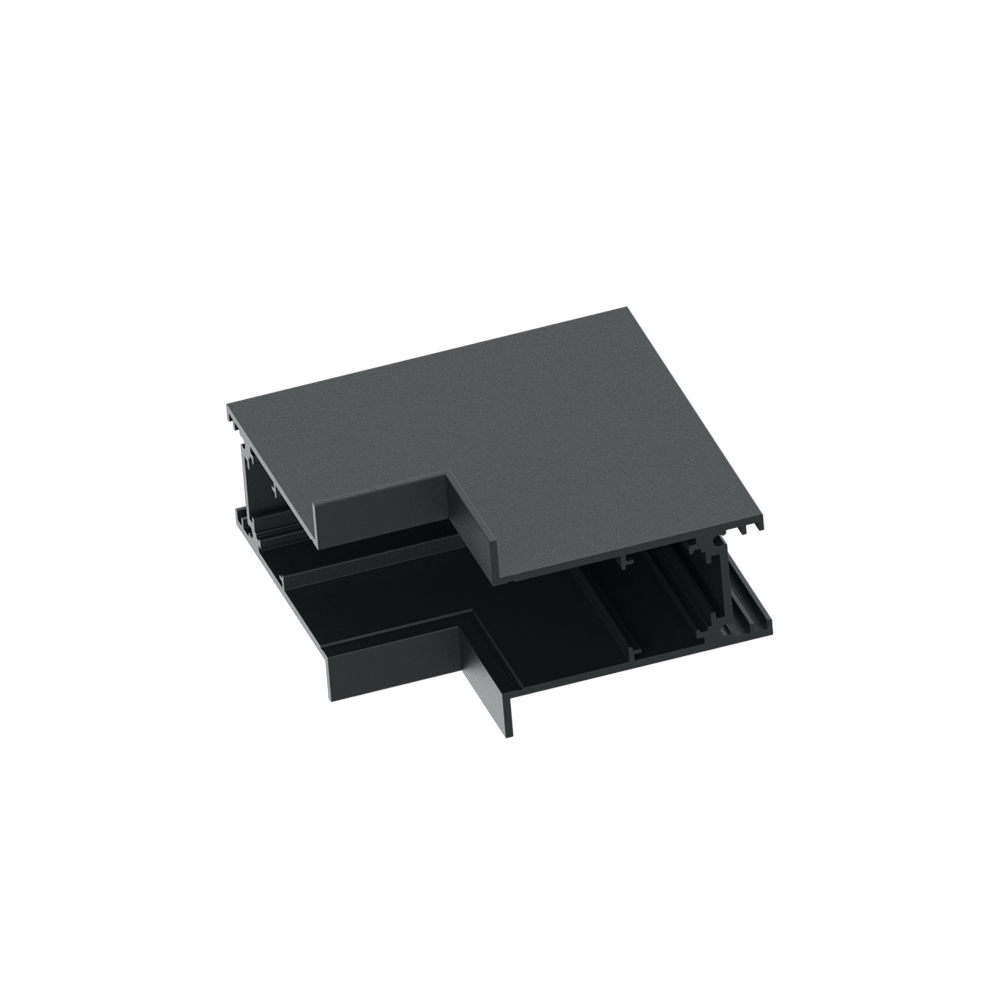

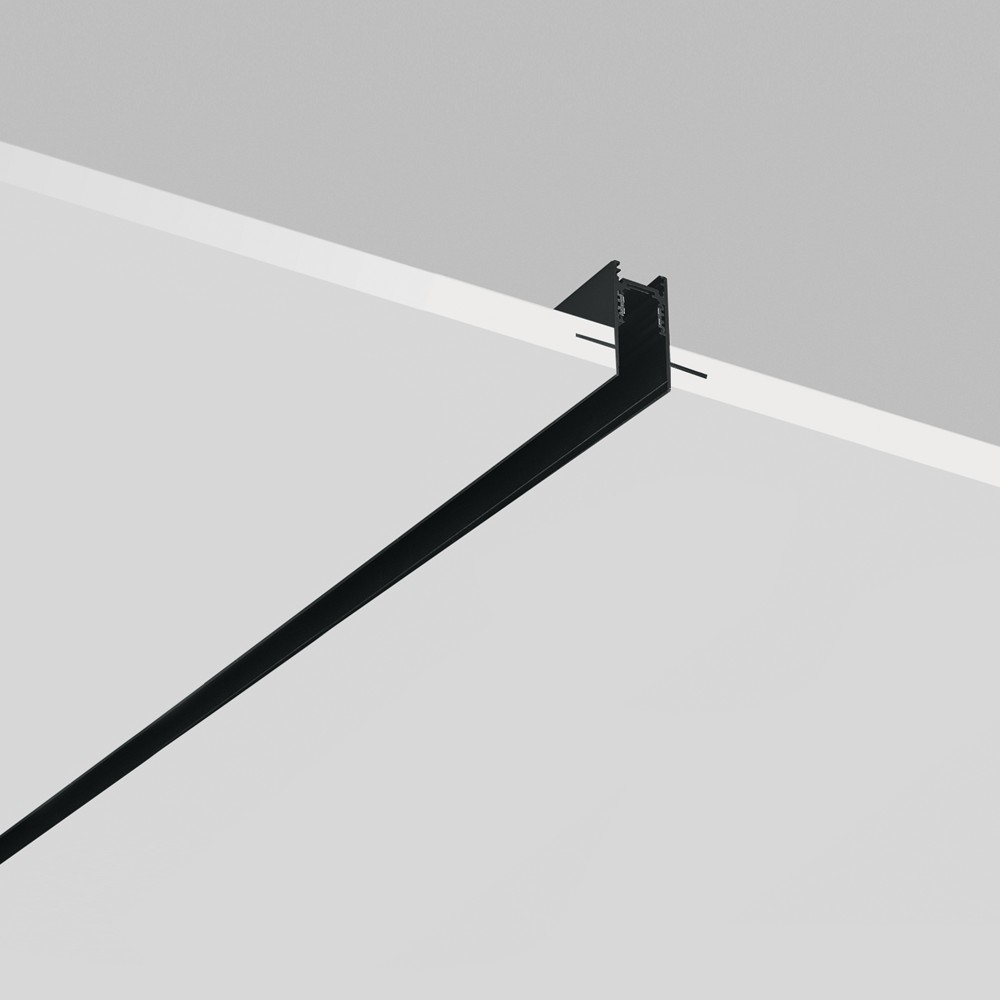

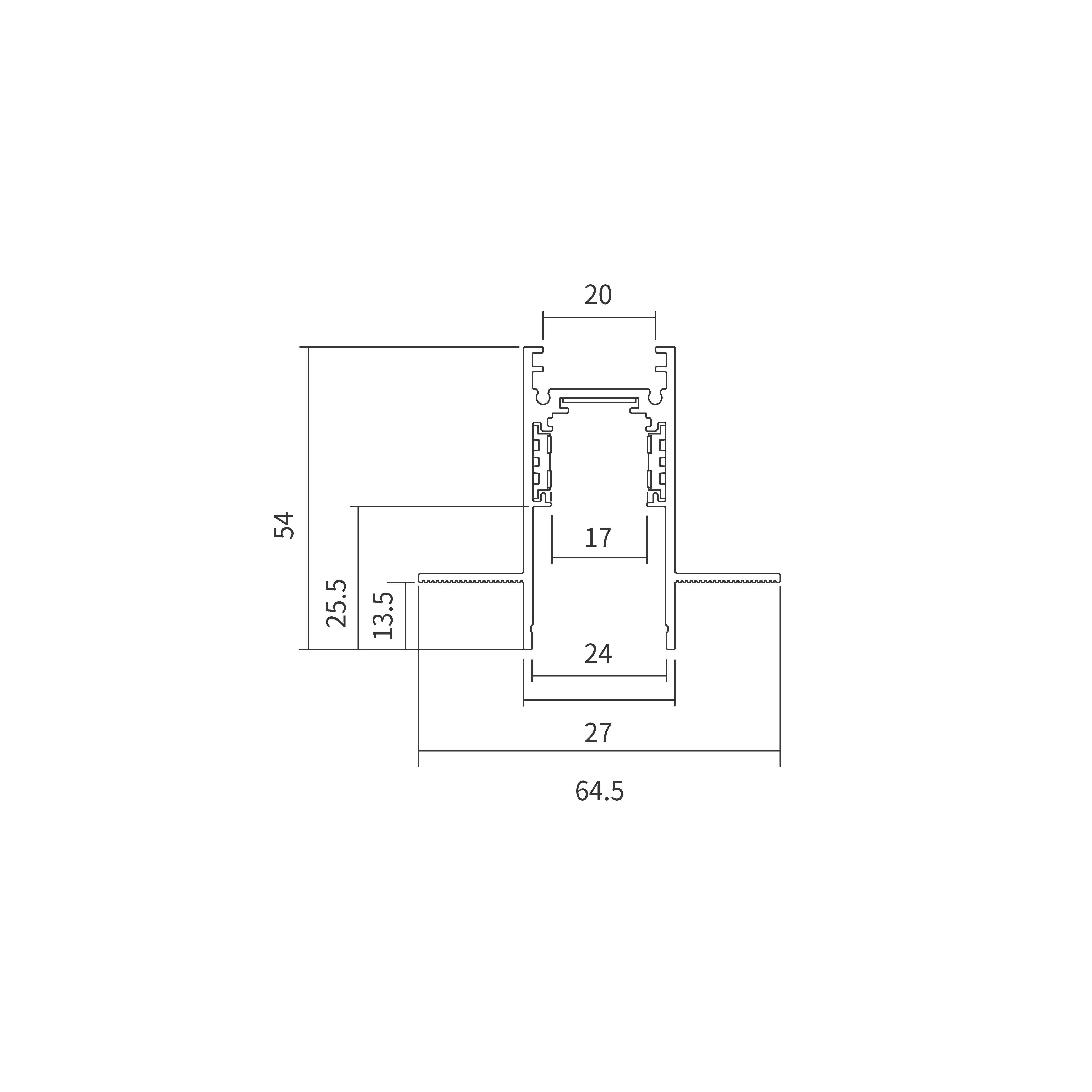

The recessed track system with 20 mm
The recessed track system with 20 mm.

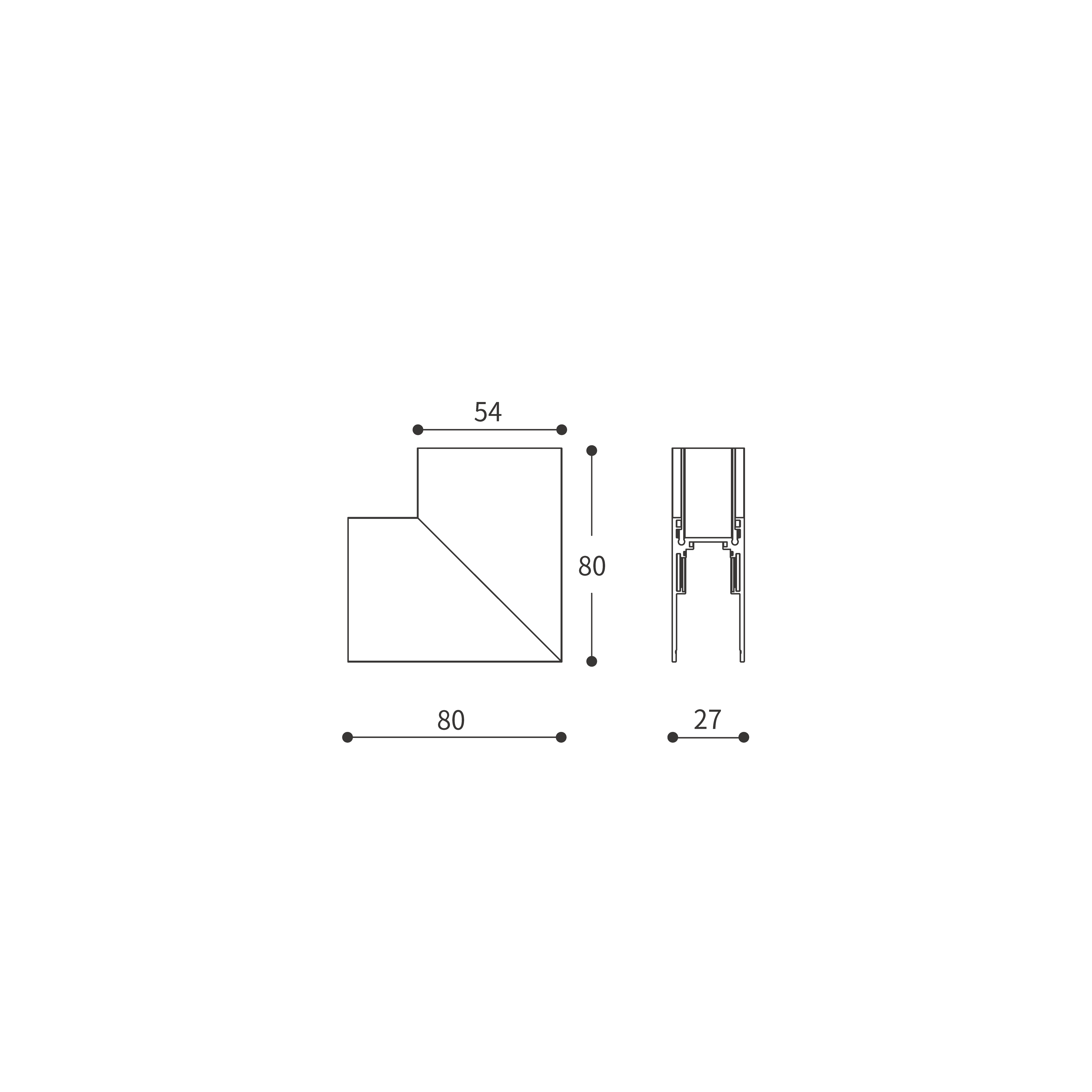

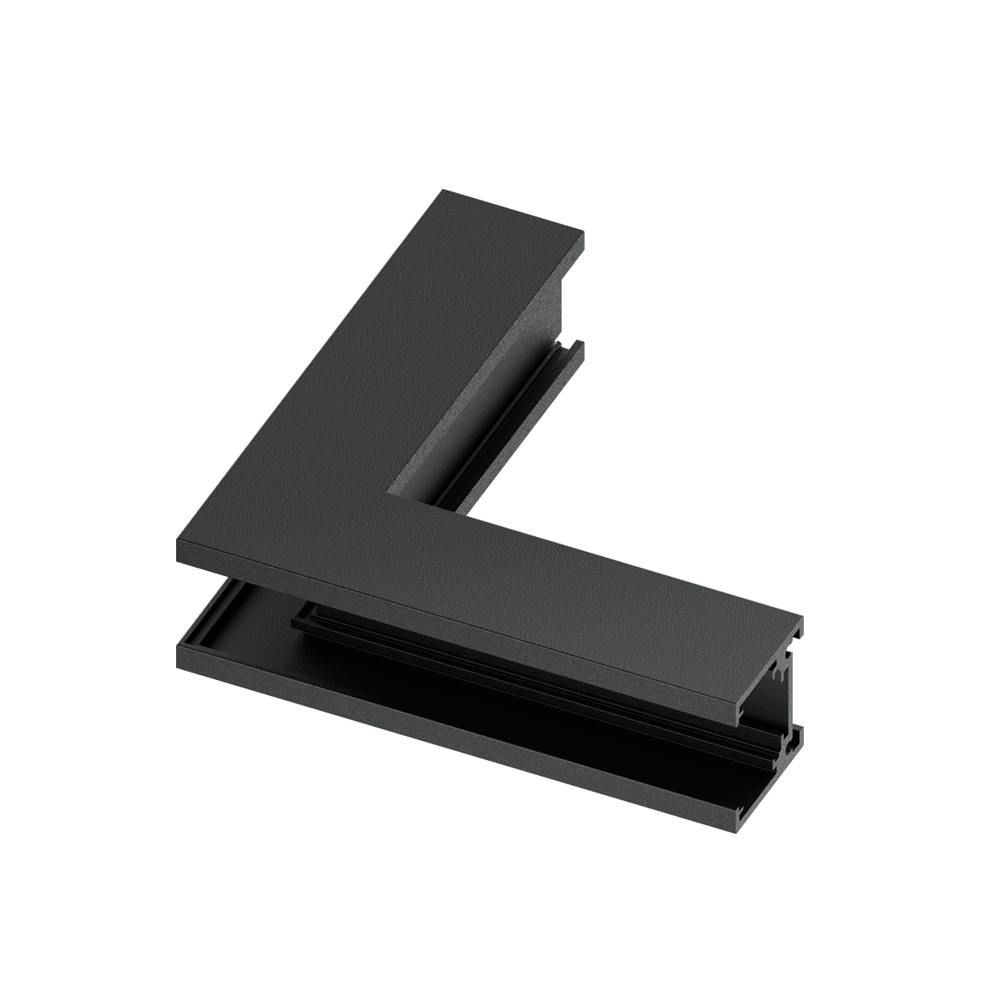

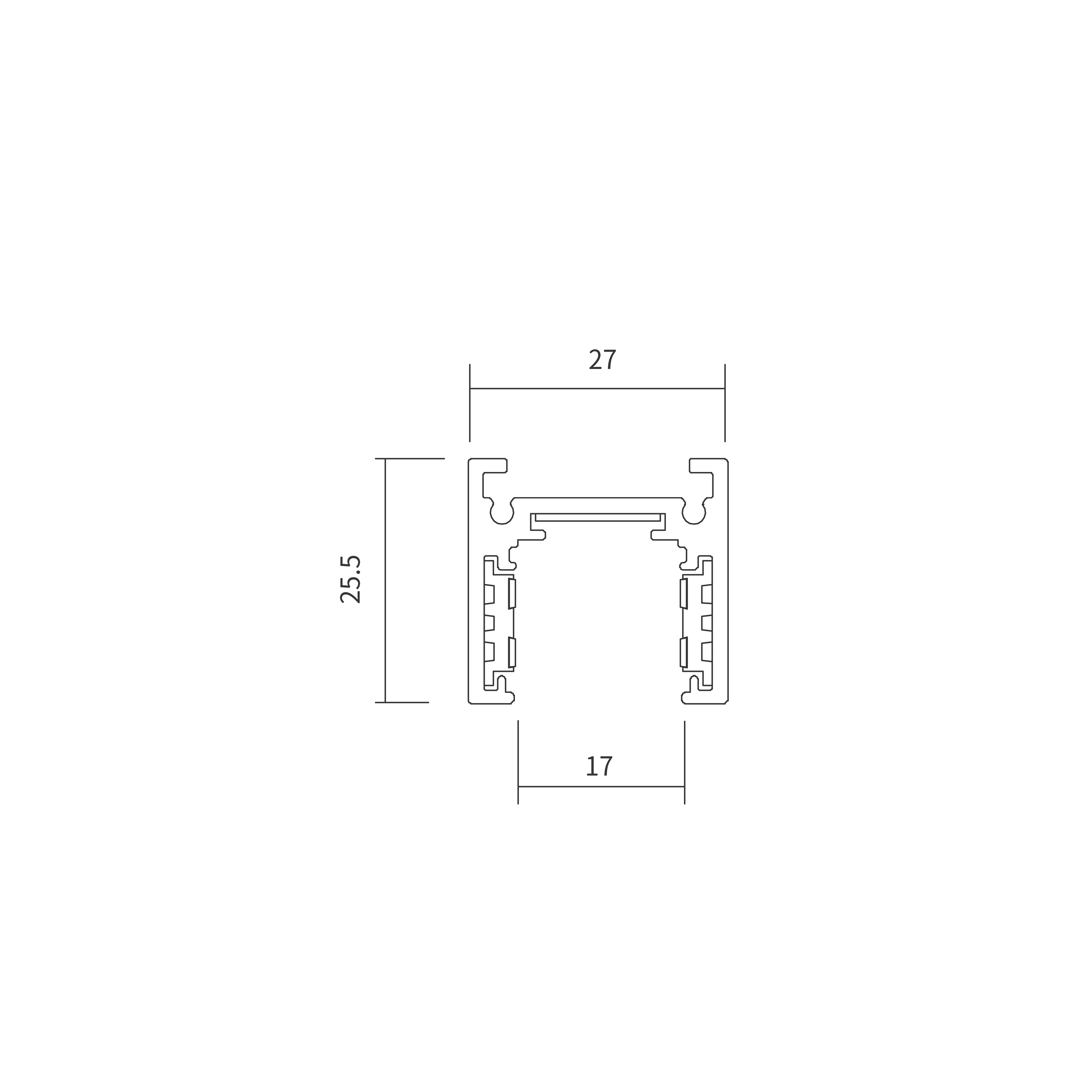

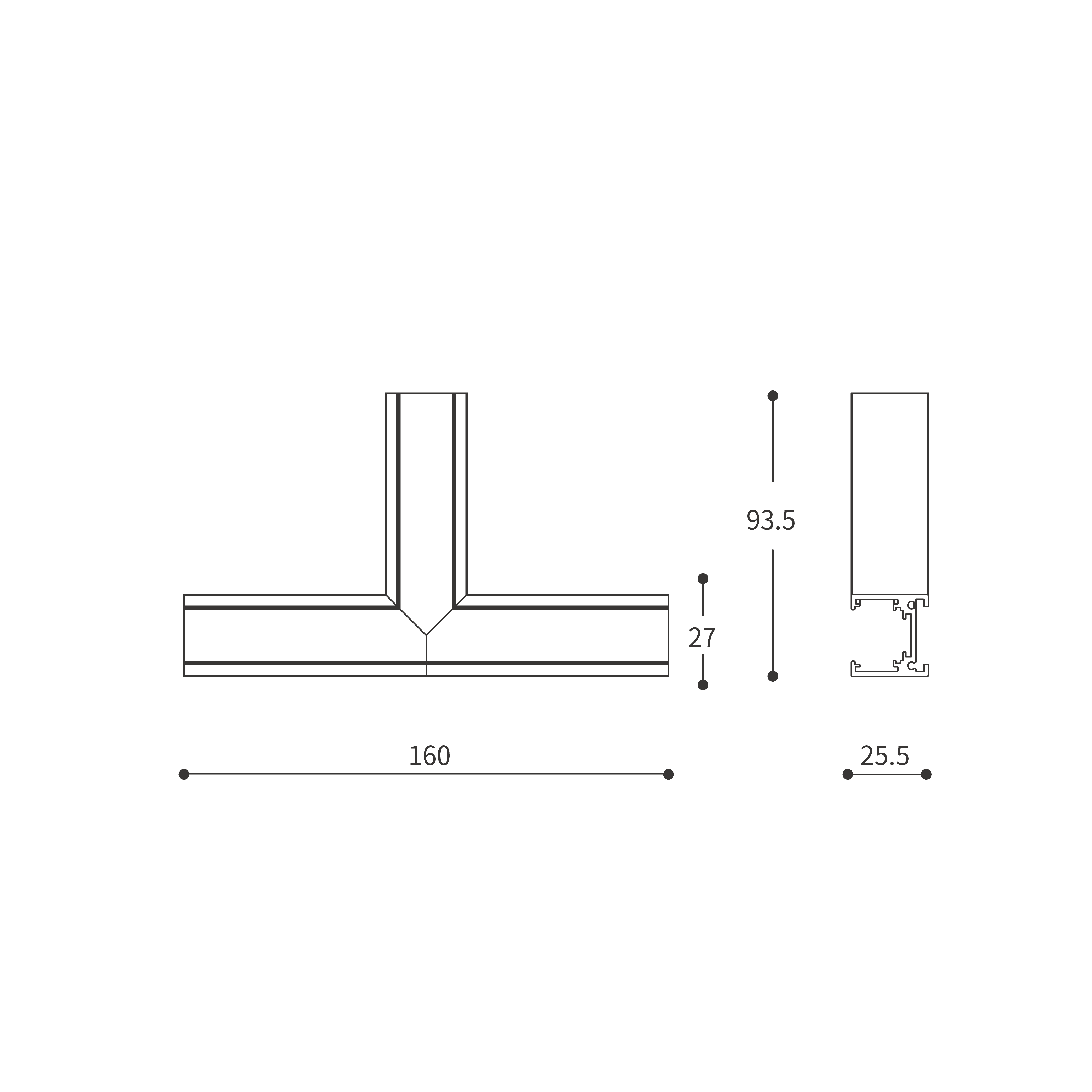

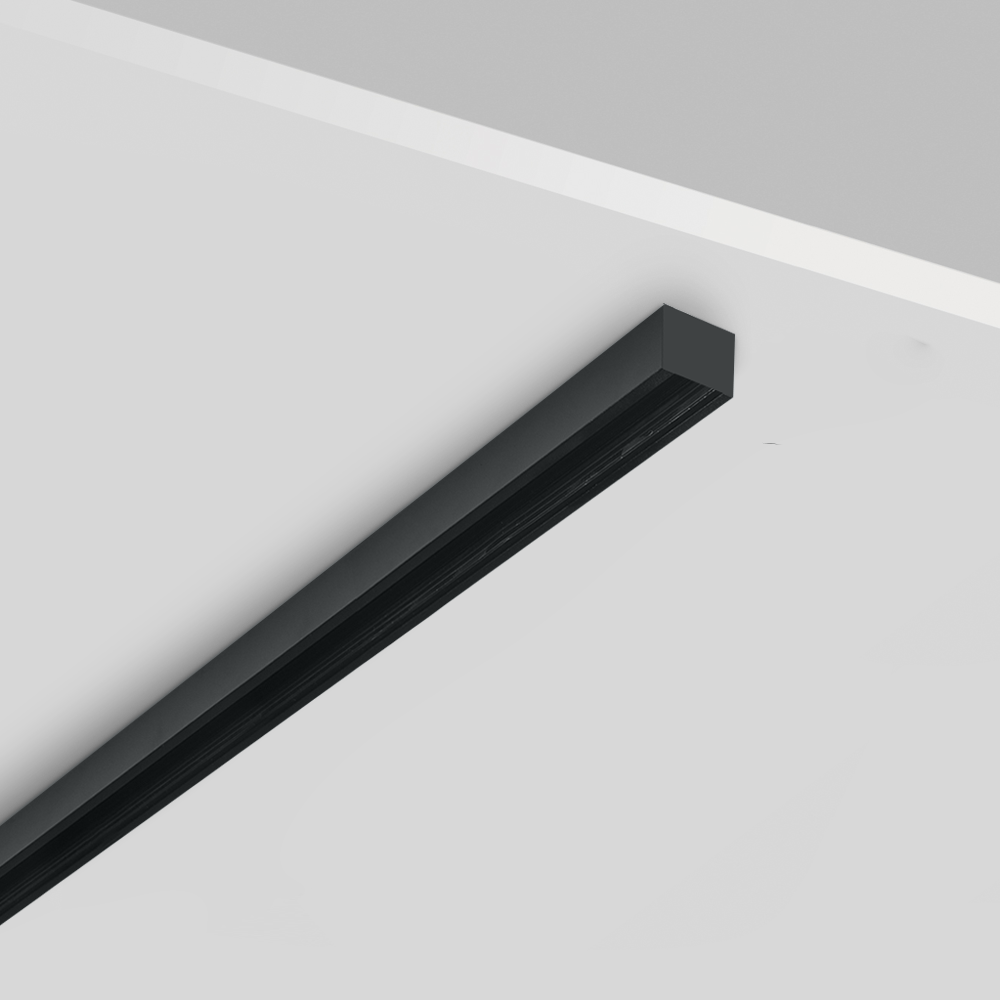

The Surface track system with 20 mm
The Surface track system with 20 mm

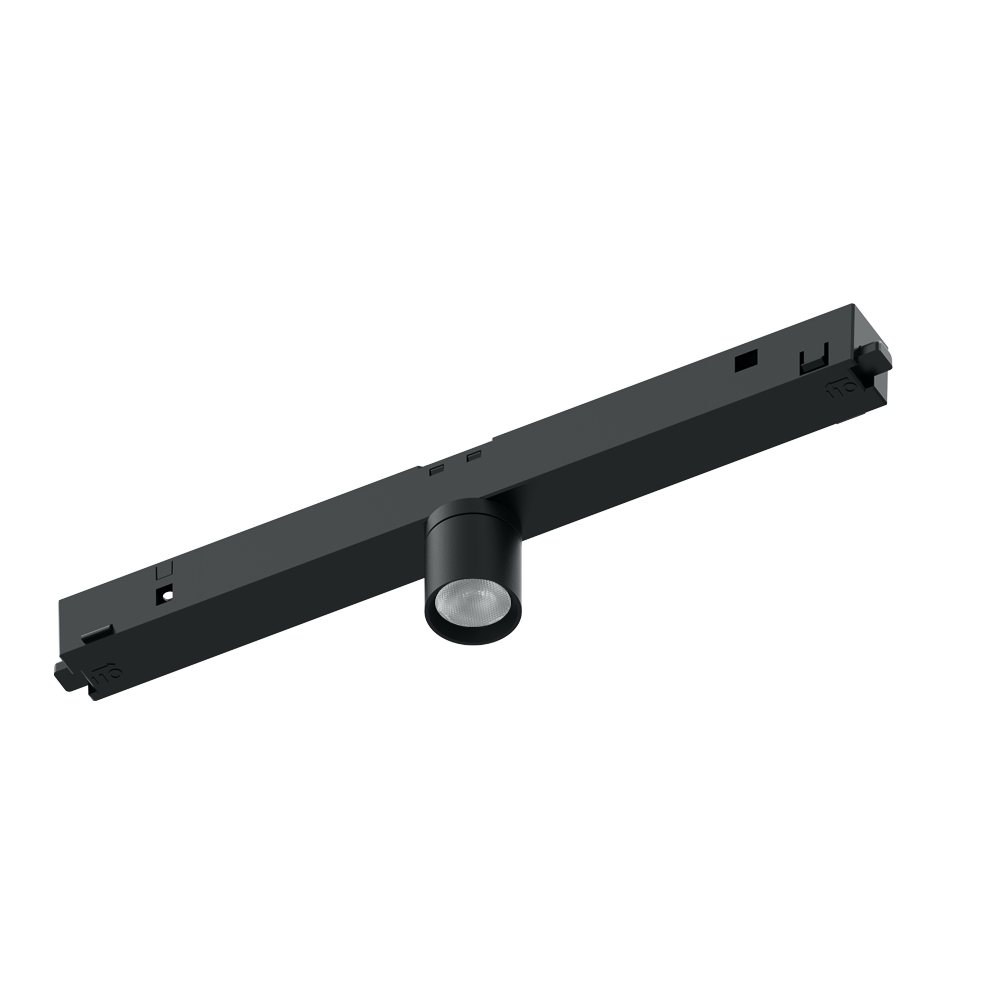

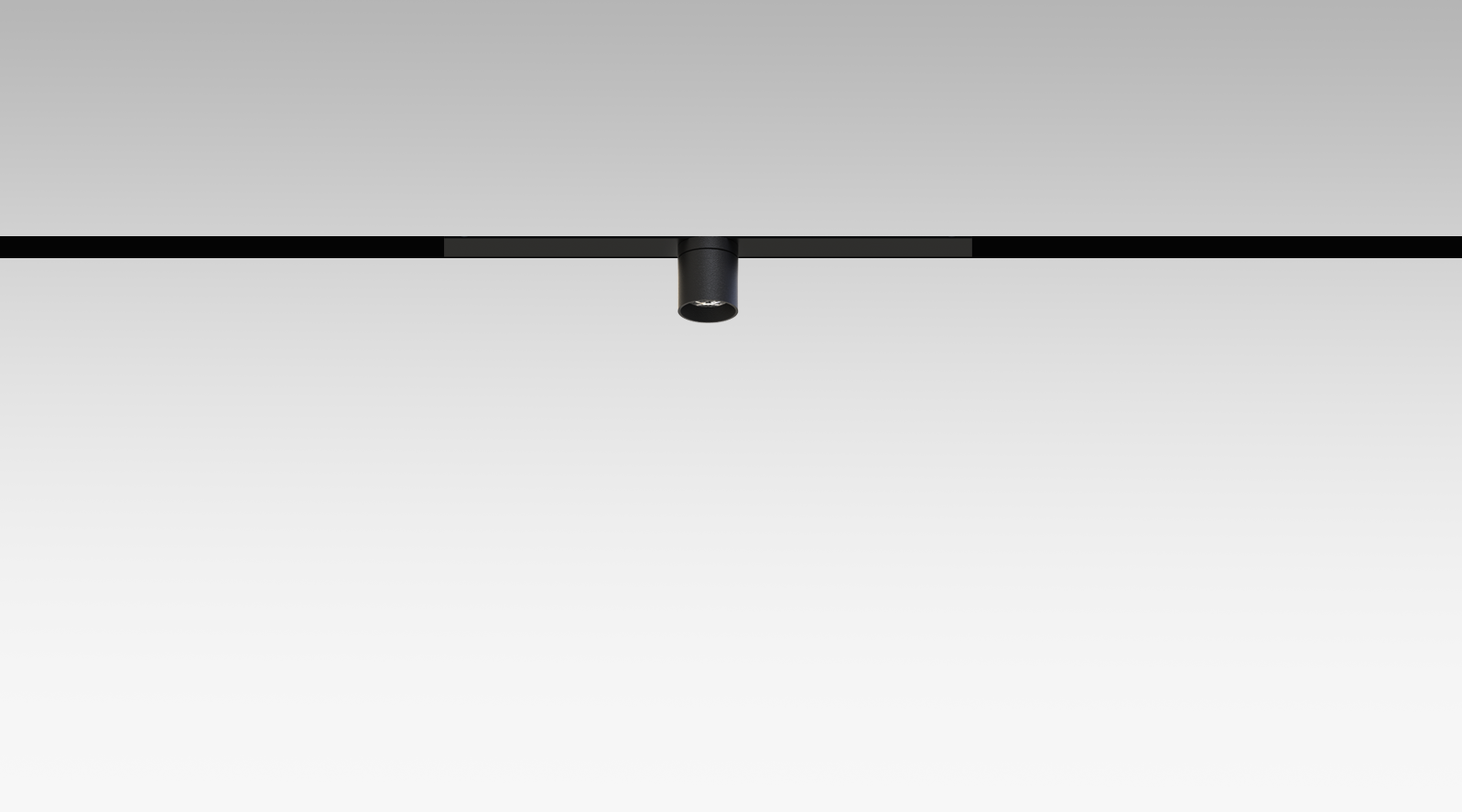

The ball-shaped track luminaire with medium beam angel and rotating mechanism. The ball-shaped track luminaire with 30/47 mm, medium beam angle and rotating mechanism.
The ball-shaped track luminaire with medium beam angel and rotating mechanism. The ball-shaped track luminaire with 30/47 mm, medium beam angle and rotating mechanism.

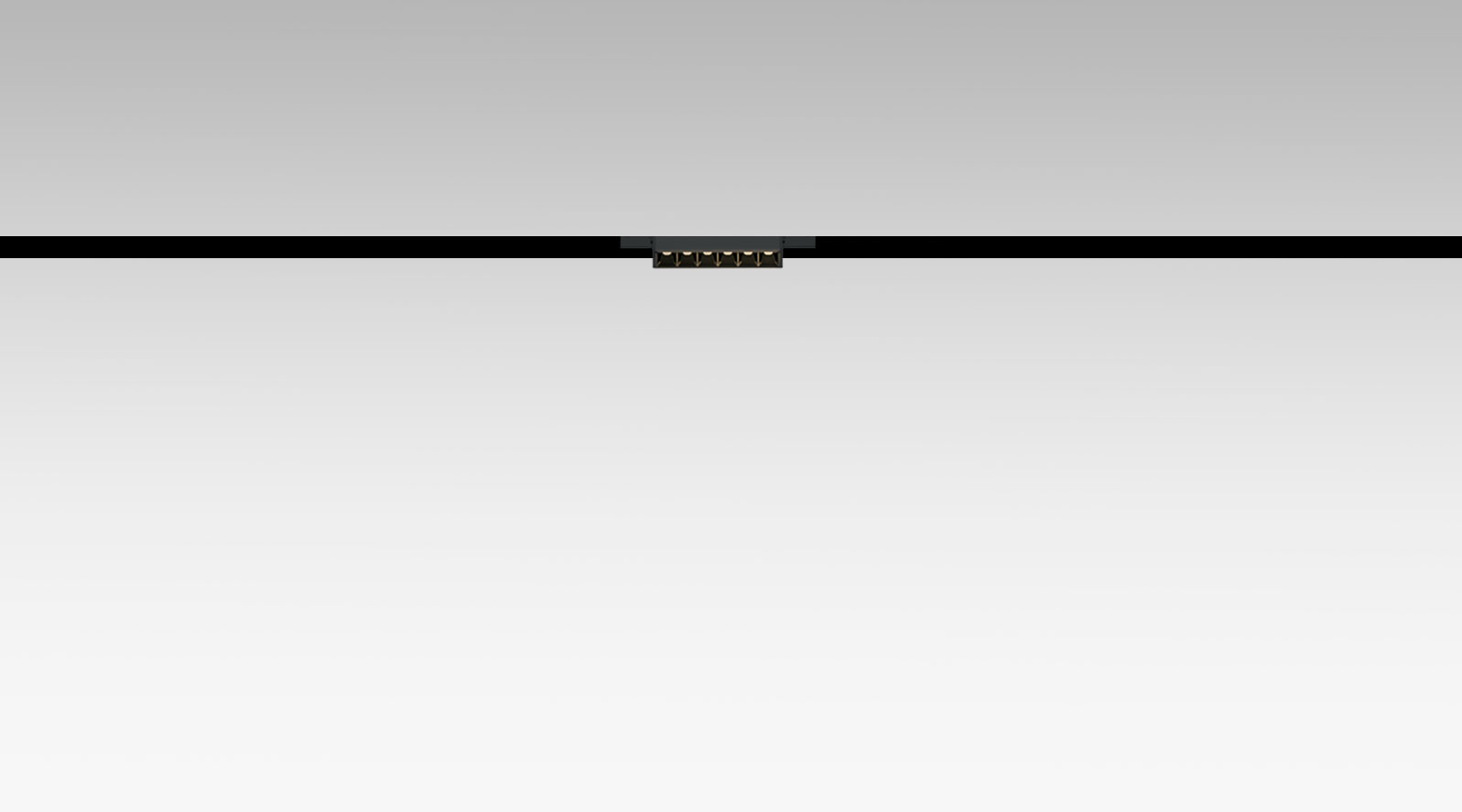

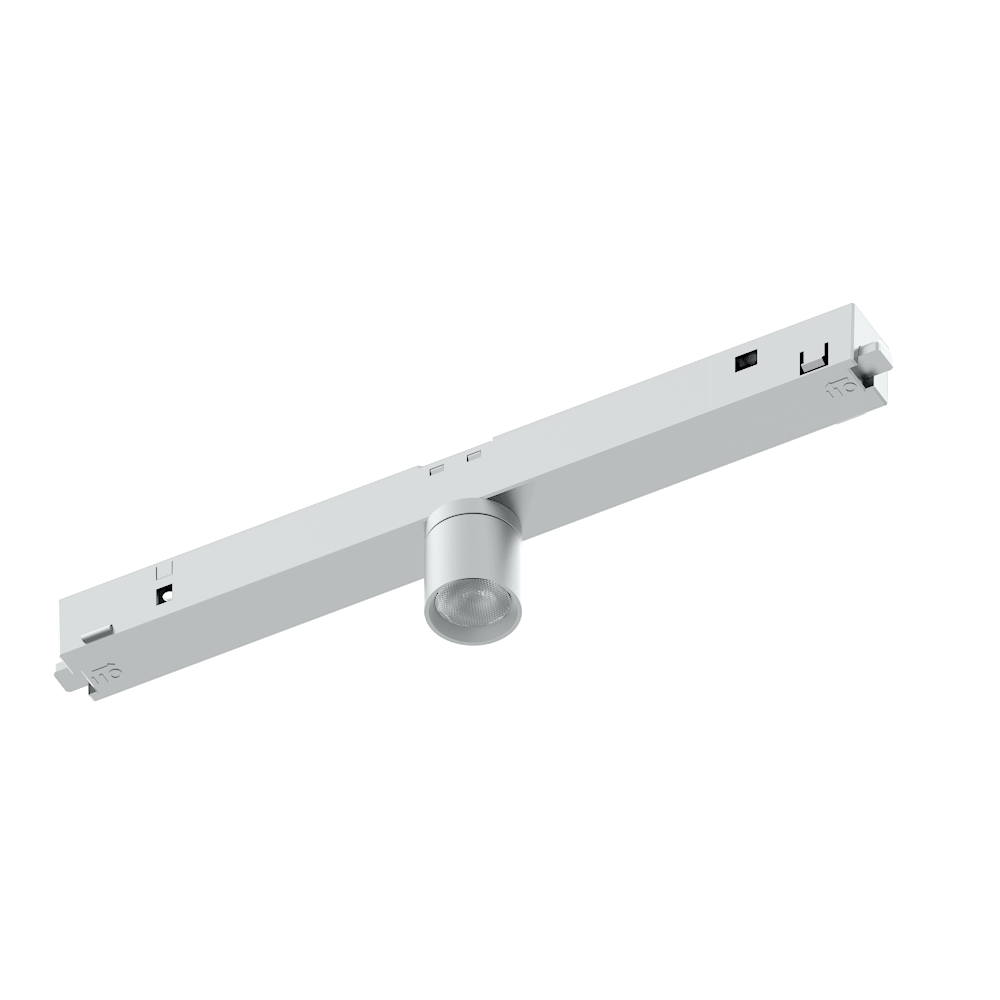

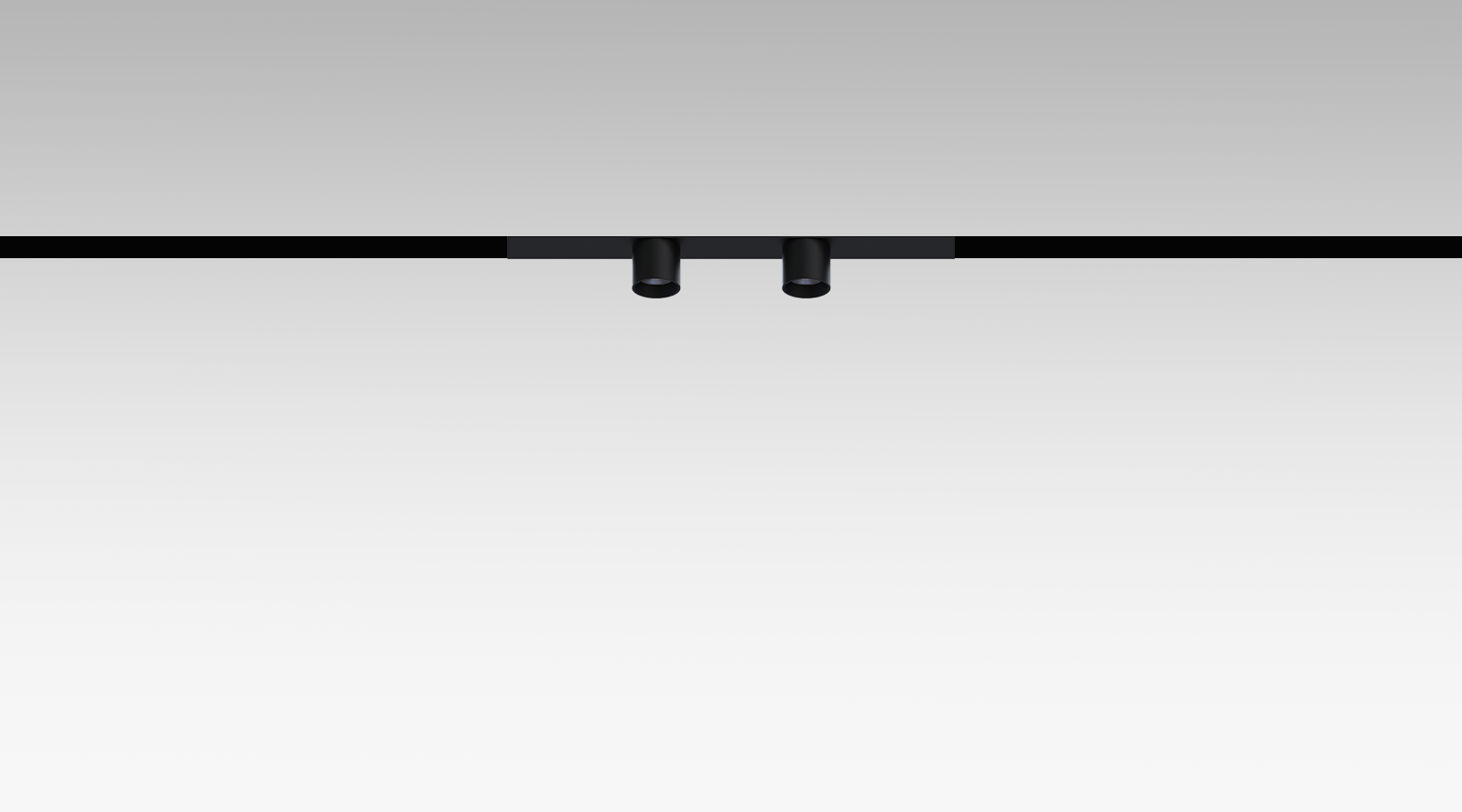

L-M473-SMD1-3W

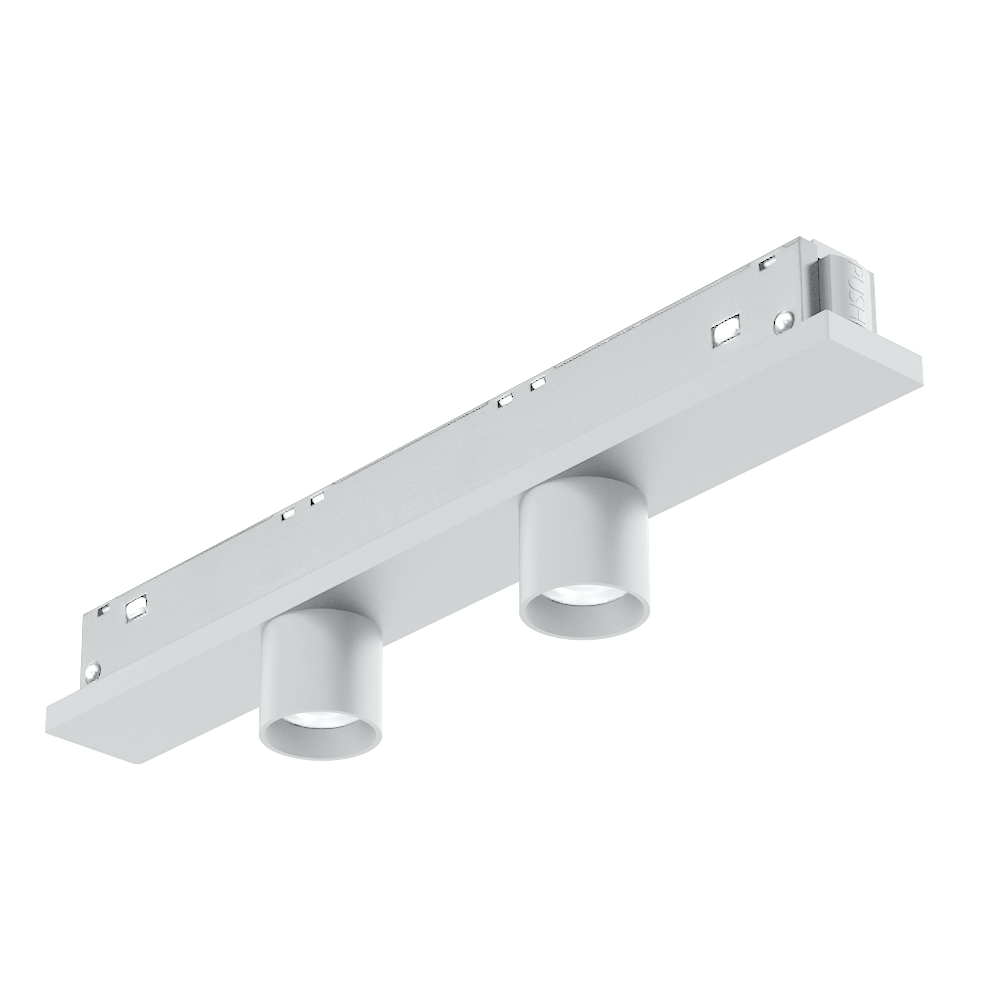

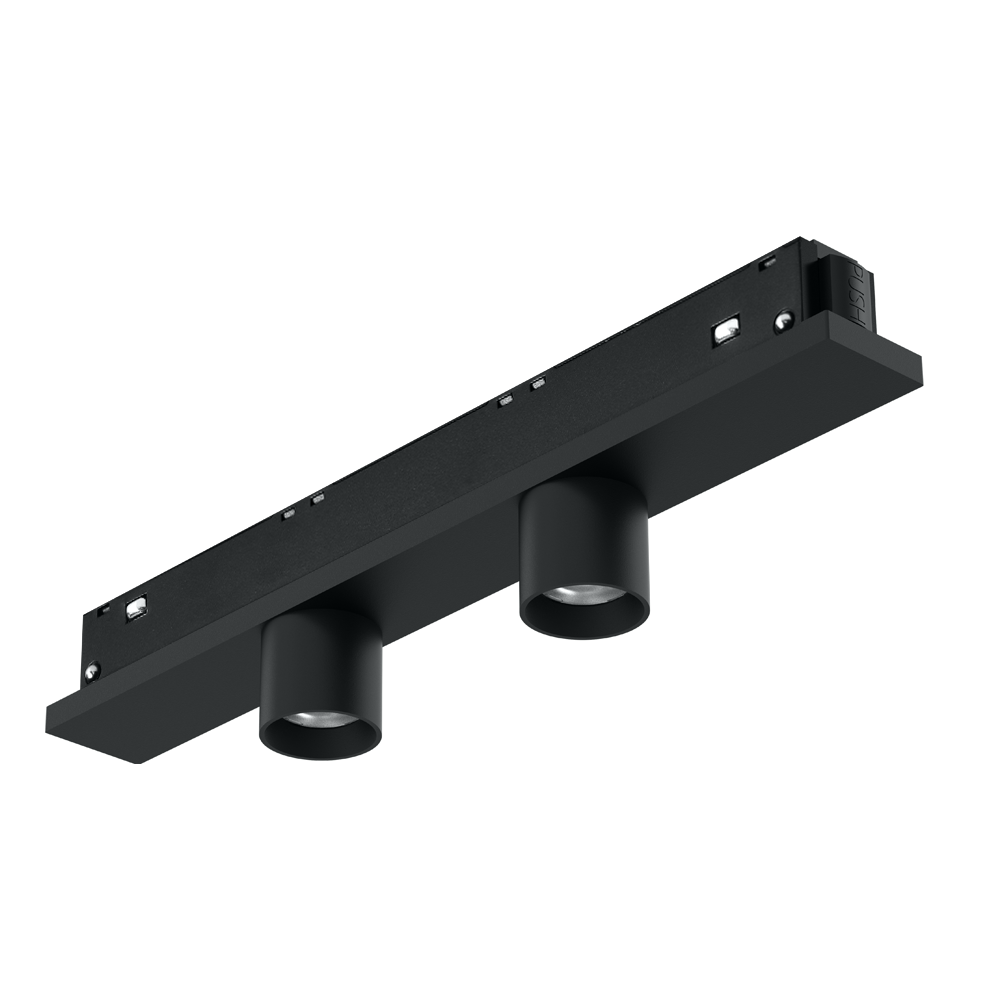

L-M473-SMD2-6W

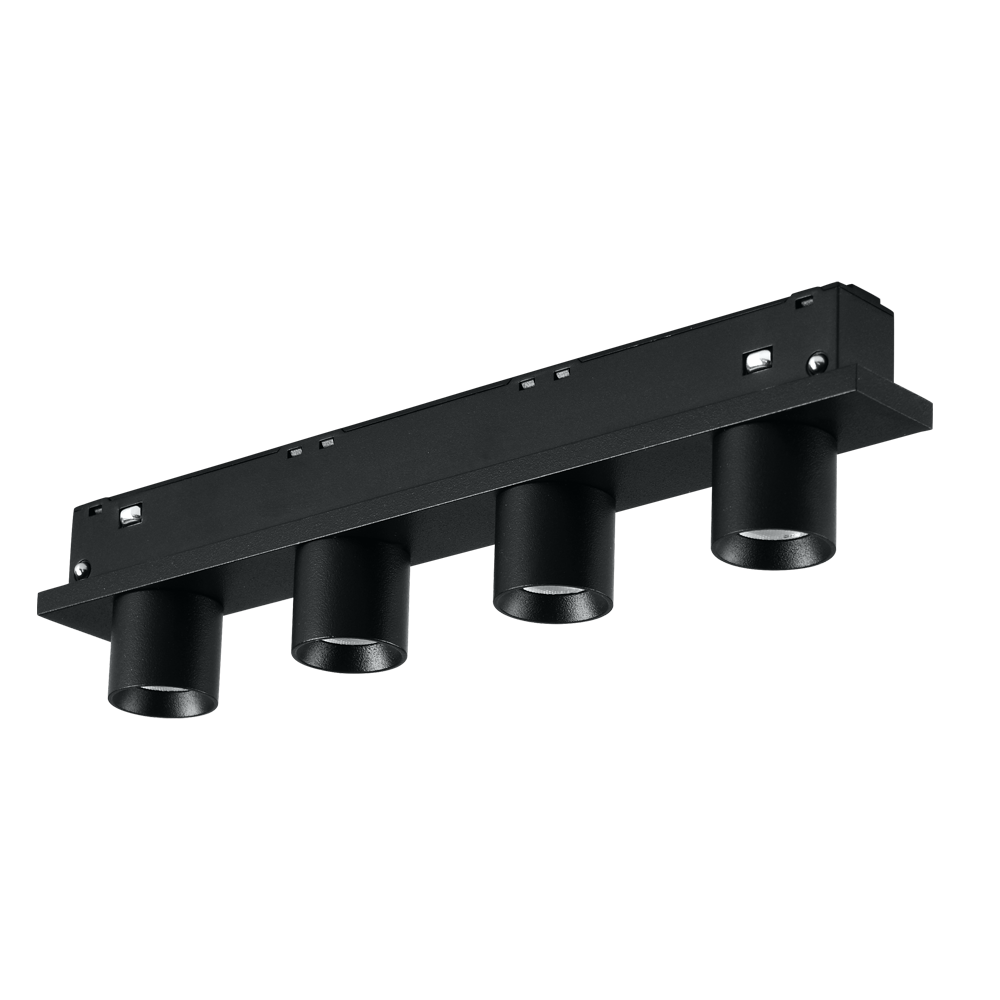

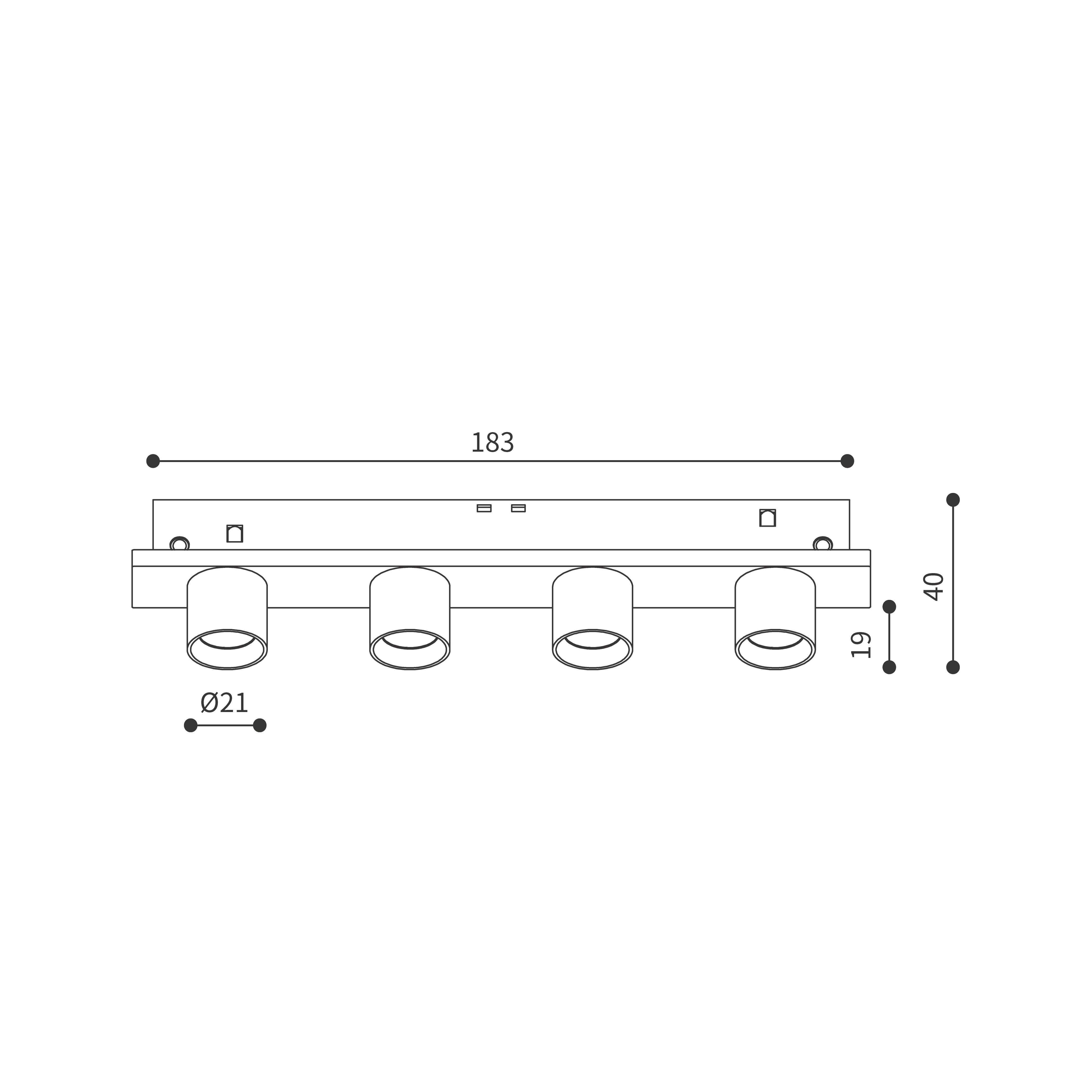

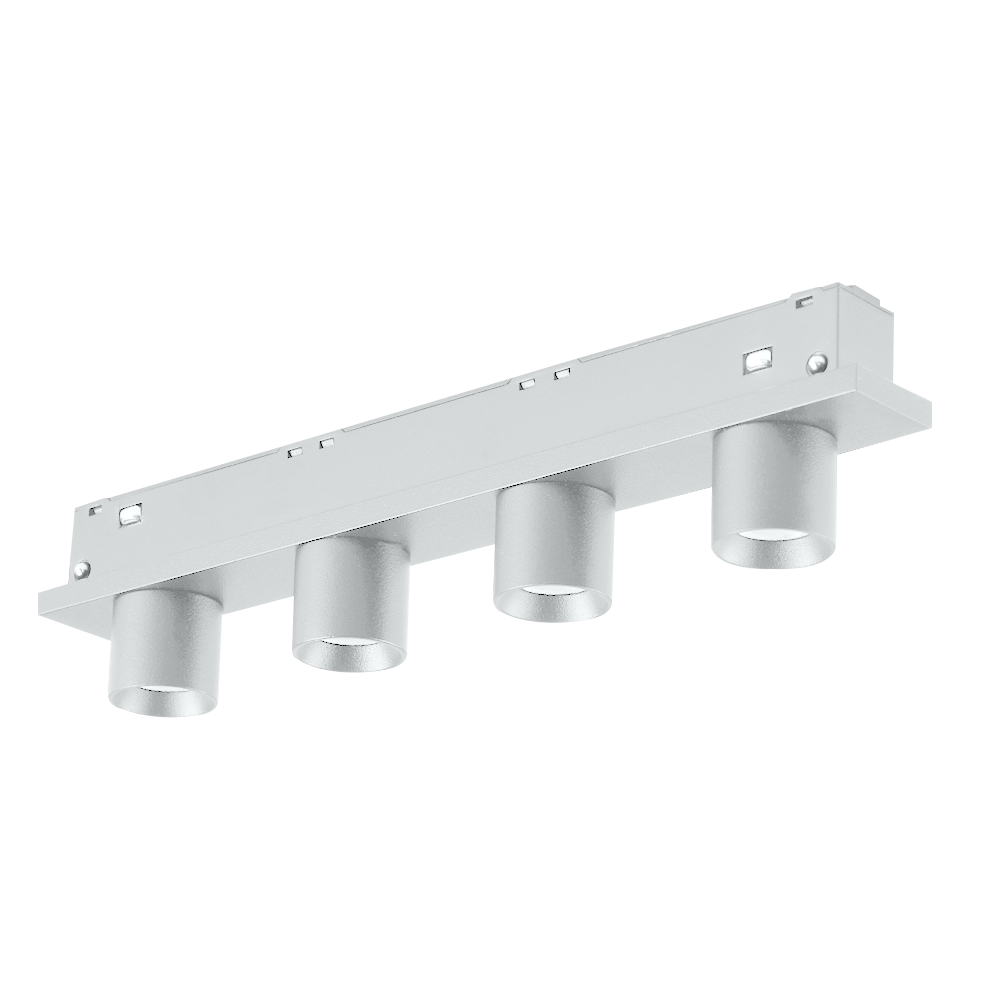

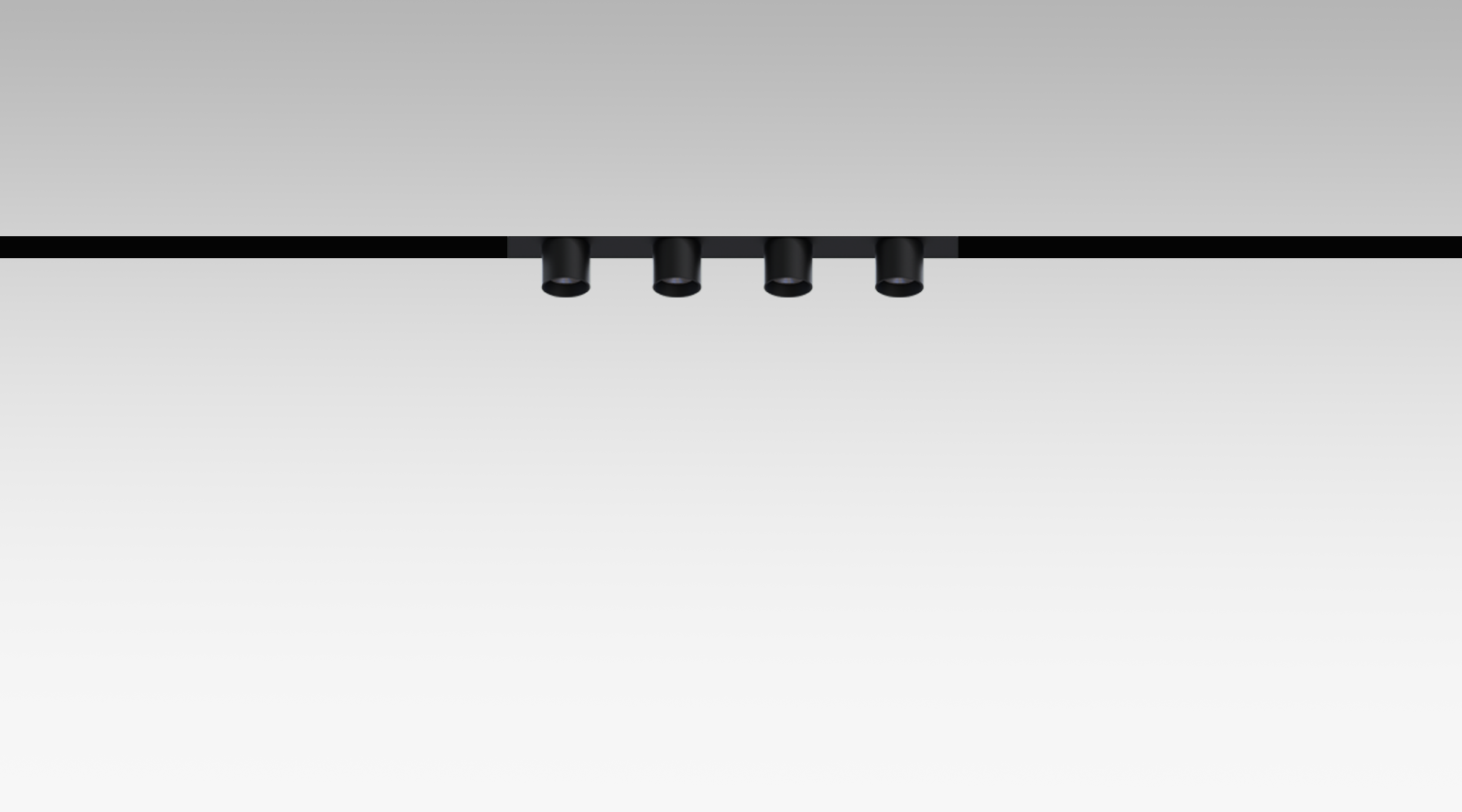

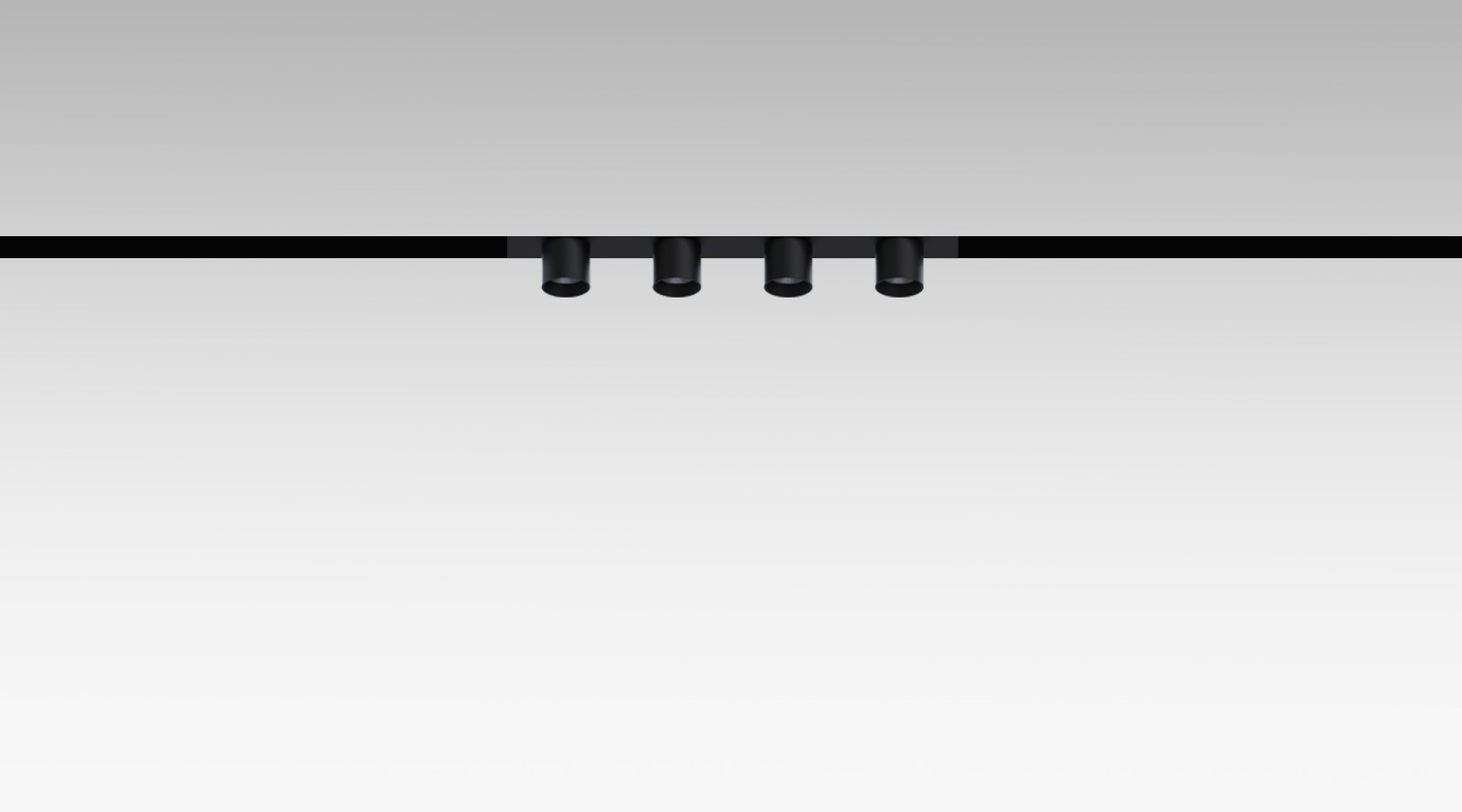

L-M473-SMD4-12W
| Article number | Nominal power | Color Temperature(CCT) | Delivered lumens | Beam angle | Finish | ||
| L-M473-SMD1-30K-25 | L-M473-SMD1-30K-25 | 1X3W | 3000K | 174lm | 25° | Black/White | |

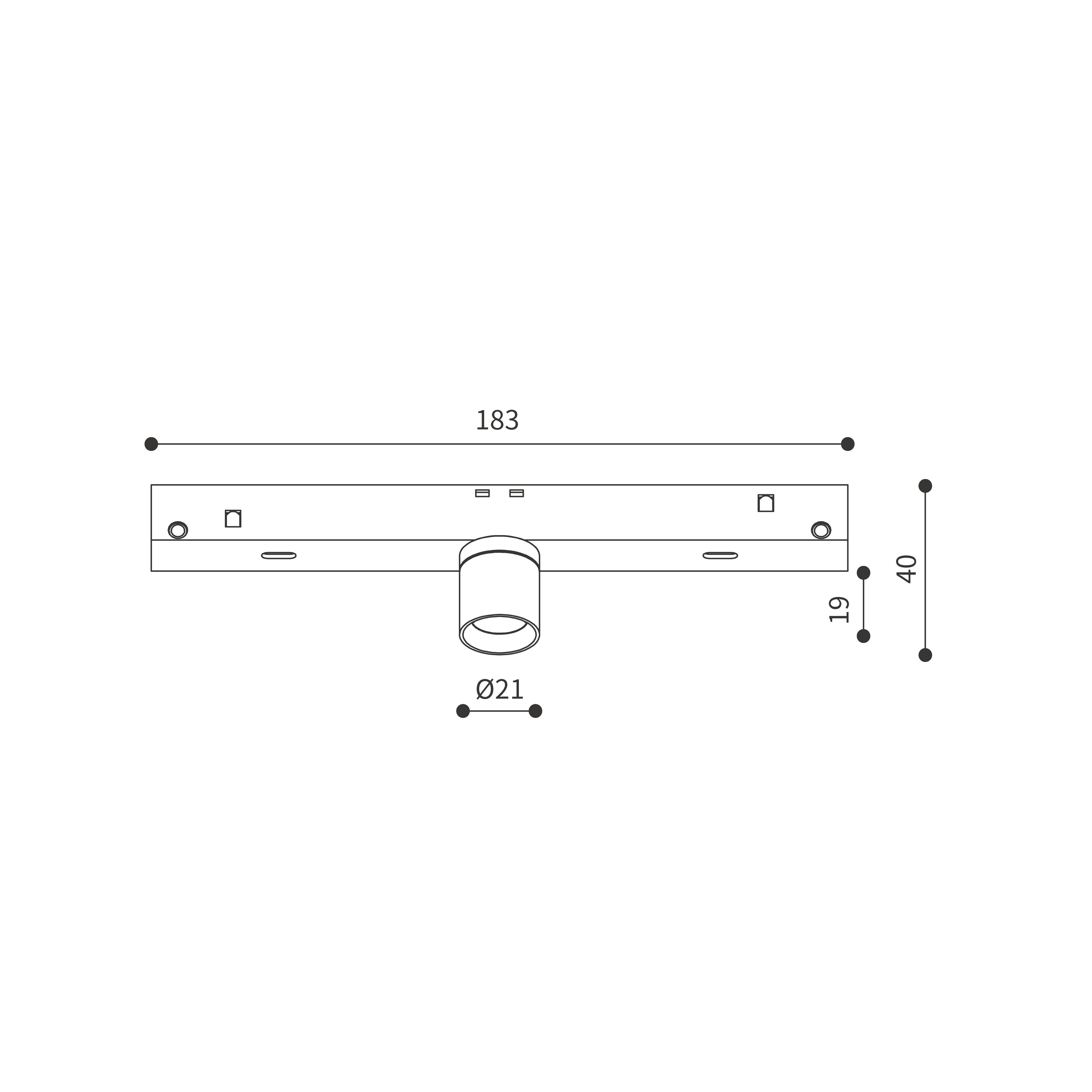

L-M473-SMD1-30K-25DOTS, with LED, system power: 2x3W, luminous flux of luminaire 174lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 25°, black/white/gold/nickel color, ON/OFF | DALI | TUYA | TRIAC 0-10V. ingress protection IP20. Ø=21 mm, H=40 mm Nominal power
1X3W
Finish
Black/White
Delivered lumens
174lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.08kg
Color Rendering Index(CRI)
CRI≥90

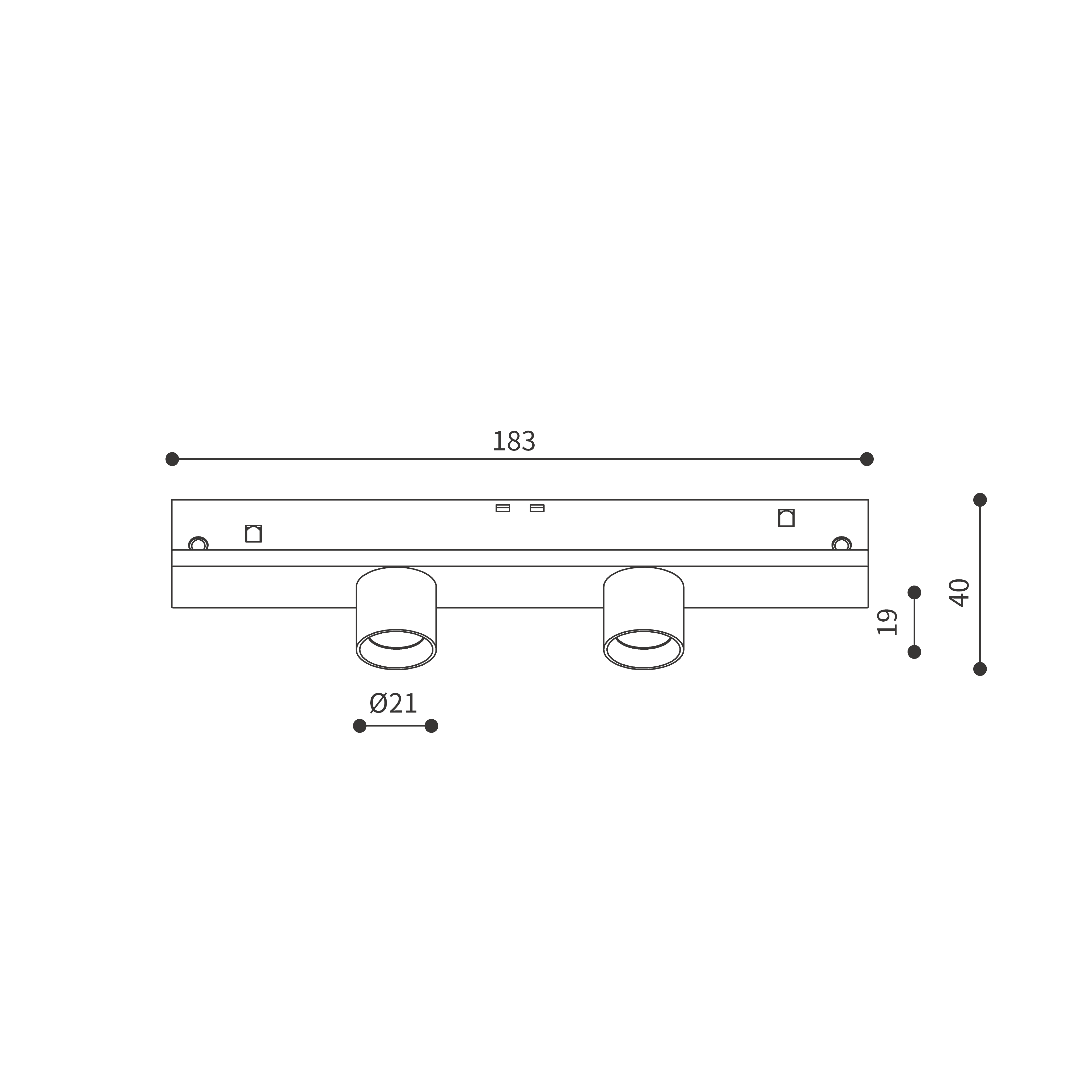

Diameter
21mm
Unified Glare Rating (UGR)
UGR<12
Length
183mm
Light Control
ON/OFF | DALI | TUYA | TRIAC 0-10V
Width
19mm

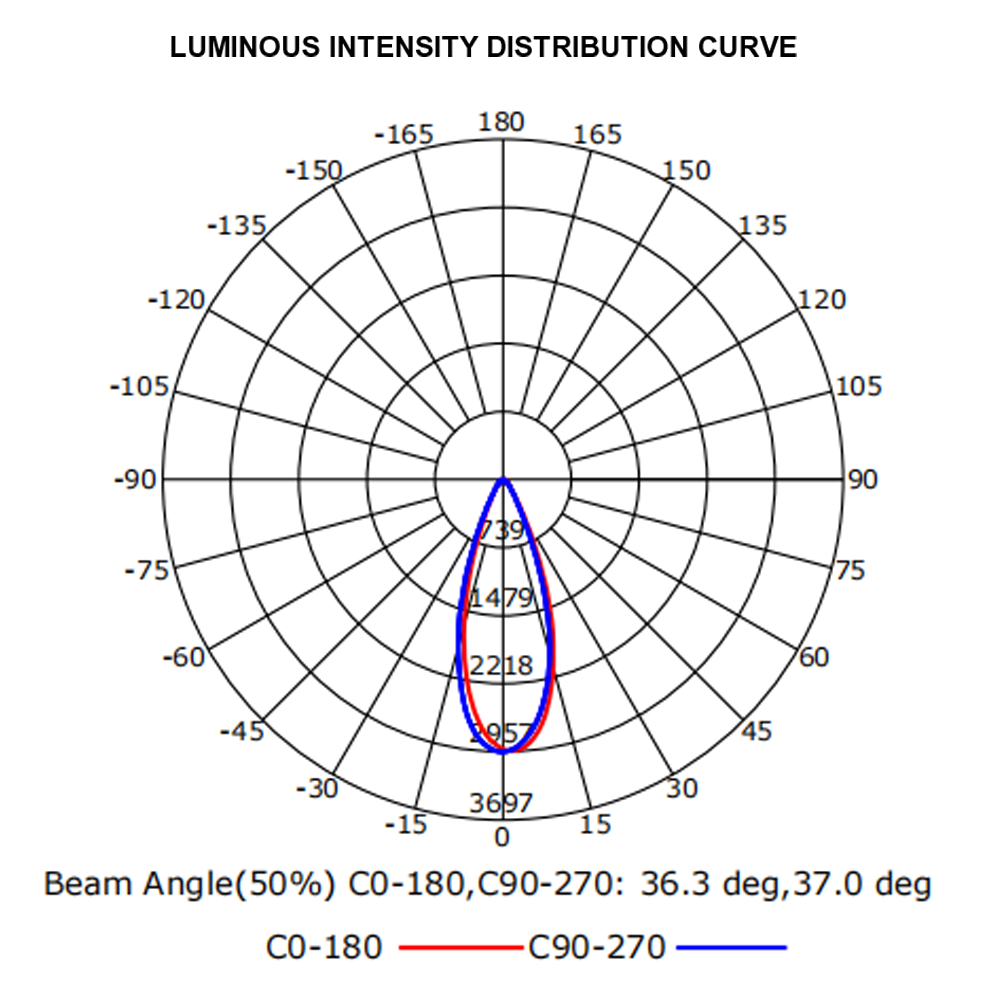

Beam angle
25°
Downloads
| |||||||
| L-M473-SMD1-30K-38 | L-M473-SMD1-30K-38 | 1X3W | 3000K | 174lm | 38° | Black/White | |
L-M473-SMD1-30K-38DOTS, with LED, system power: 2x3W, luminous flux of luminaire 174lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 38°, black/white/gold/nickel color, ON/OFF | DALI | TUYA | TRIAC 0-10V. ingress protection IP20. Ø=21 mm, H=40 mm Nominal power
1X3W
Finish
Black/White
Delivered lumens
174lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.08kg
Color Rendering Index(CRI)
CRI≥90
Diameter
21mm
Unified Glare Rating (UGR)
UGR<12
Length
183mm
Light Control
ON/OFF | DALI | TUYA | TRIAC 0-10V
Width
19mm
Beam angle
38°
Downloads
| |||||||
| L-M473-SMD2-30K-25 | L-M473-SMD2-30K-25 | 2X3W | 3000K | 390lm | 25° | Black/White | |
L-M473-SMD2-30K-25DOTS, with LED, system power: 2x3W, luminous flux of luminaire 390lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 25°, black/white/gold/nickel color, ON/OFF | DALI | TUYA | TRIAC 0-10V. ingress protection IP20. Ø=21 mm, H=40 mm Nominal power
2X3W
Finish
Black/White
Delivered lumens
390lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.09kg
Color Rendering Index(CRI)
CRI≥90
Diameter
21mm
Unified Glare Rating (UGR)
UGR<12
Length
183mm
Light Control
ON/OFF | DALI | TUYA | TRIAC 0-10V
Width
19mm
Beam angle
25°
Downloads
| |||||||
| L-M473-SMD2-30K-38 | L-M473-SMD2-30K-38 | 2X3W | 3000K | 390lm | 38° | Black/White | |
L-M473-SMD2-30K-38DOTS, with LED, system power: 2x3W, luminous flux of luminaire 390lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 38°, black/white/gold/nickel color, ON/OFF | DALI | TUYA | TRIAC 0-10V. ingress protection IP20. Ø=21 mm, H=40 mm Nominal power
2X3W
Finish
Black/White
Delivered lumens
390lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.09kg
Color Rendering Index(CRI)
CRI≥90
Diameter
21mm
Unified Glare Rating (UGR)
UGR<12
Length
183mm
Light Control
ON/OFF | DALI | TUYA | TRIAC 0-10V
Width
19mm
Beam angle
38°
Downloads
| |||||||
| L-M473-SMD4-30K-25 | L-M473-SMD4-30K-25 | 4X3W | 3000K | 828lm | 25° | Black/White | |
L-M473-SMD4-30K-25DOTS, with LED, system power: 4x3W, luminous flux of luminaire 828lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 25°, black/white/gold/nickel color, ON/OFF | DALI | TUYA | TRIAC 0-10V. ingress protection IP20. Ø=21 mm, H=40 mm Nominal power
4X3W
Finish
Black/White
Delivered lumens
828lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.13kg
Color Rendering Index(CRI)
CRI≥90
Diameter
21mm
Unified Glare Rating (UGR)
UGR<12
Length
183mm
Light Control
ON/OFF | DALI | TUYA | TRIAC 0-10V
Width
19mm
Beam angle
25°
Downloads
| |||||||
| L-M473-SMD4-30K-38 | L-M473-SMD4-30K-38 | 4X3W | 3000K | 828lm | 38° | Black/White | |
L-M473-SMD4-30K-38DOTS, with LED, system power: 4x3W, luminous flux of luminaire 828lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 250mA, Beam angle: 38°, black/white/gold/nickel color, ON/OFF | DALI | TUYA | TRIAC 0-10V. ingress protection IP20. Ø=21 mm, H=40 mm Nominal power
4X3W
Finish
Black/White
Delivered lumens
828lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.13kg
Color Rendering Index(CRI)
CRI≥90
Diameter
21mm
Unified Glare Rating (UGR)
UGR<12
Length
183mm
Light Control
ON/OFF | DALI | TUYA | TRIAC 0-10V
Width
19mm
Beam angle
38°
Downloads
| |||||||
