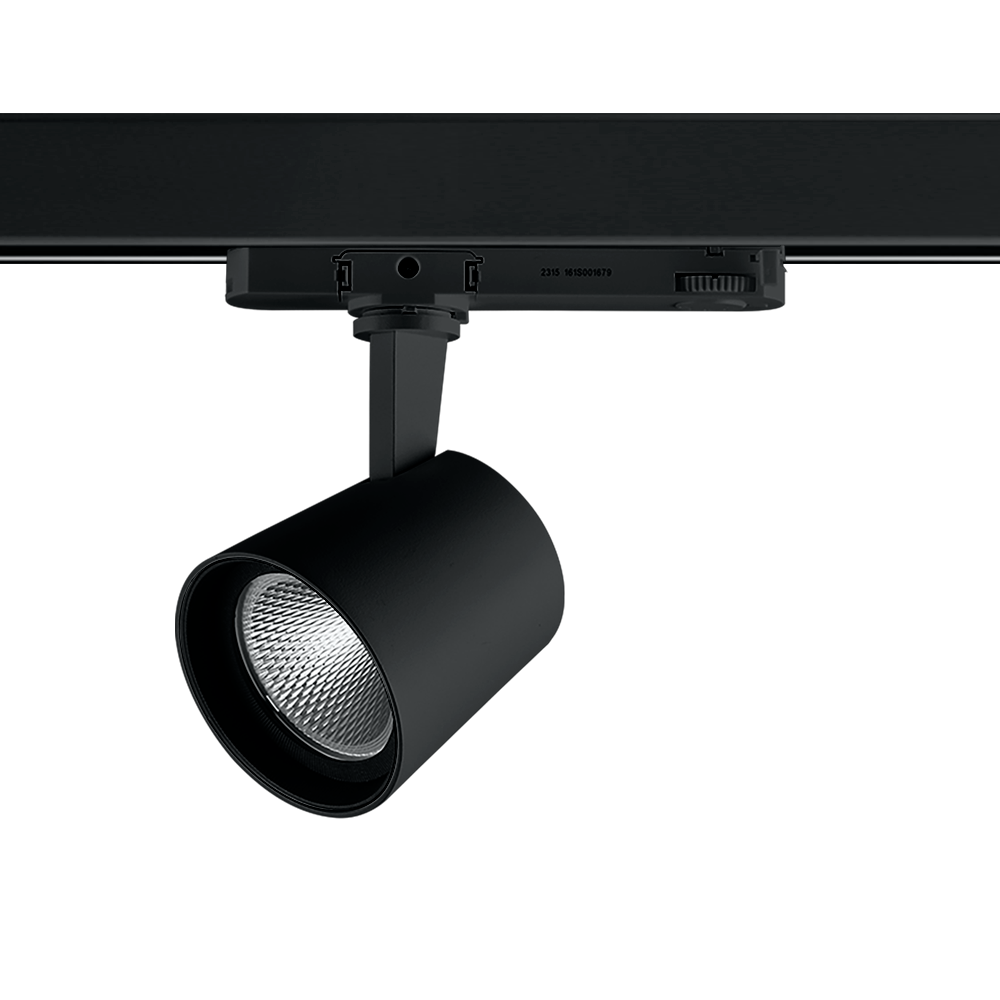

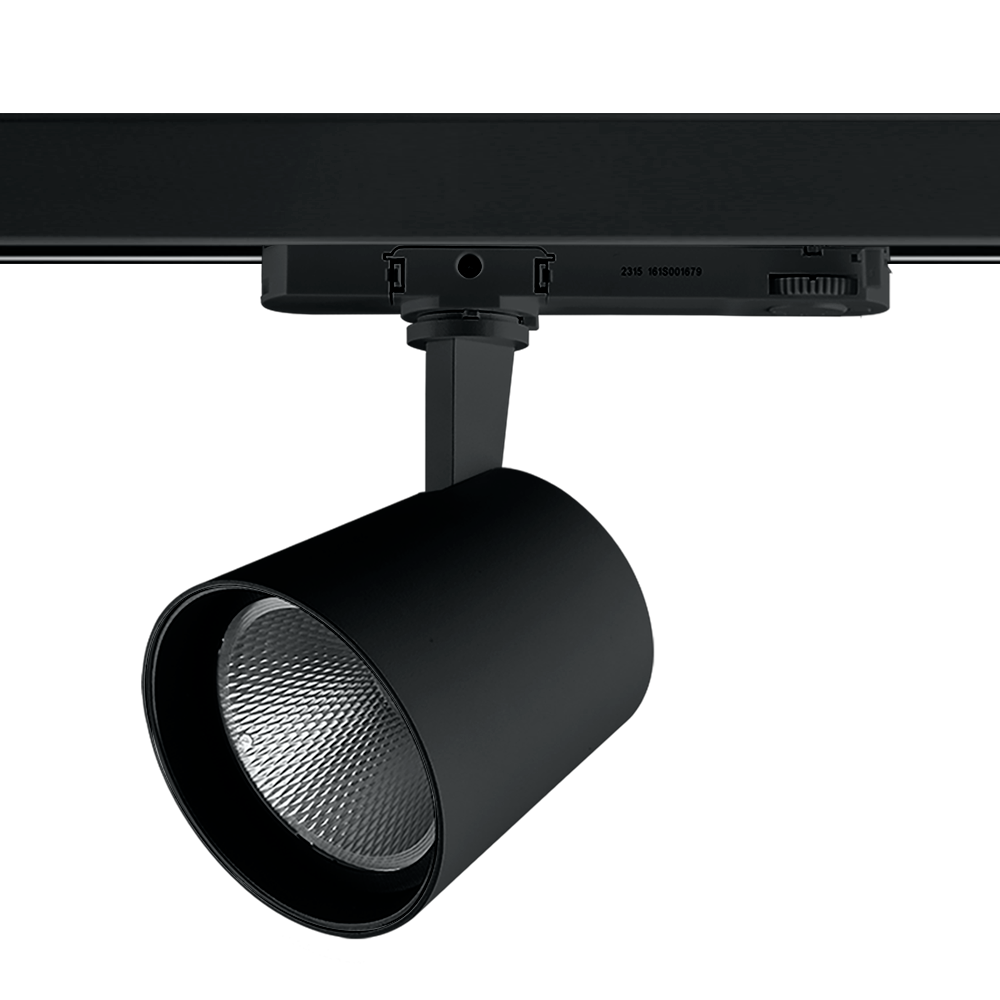

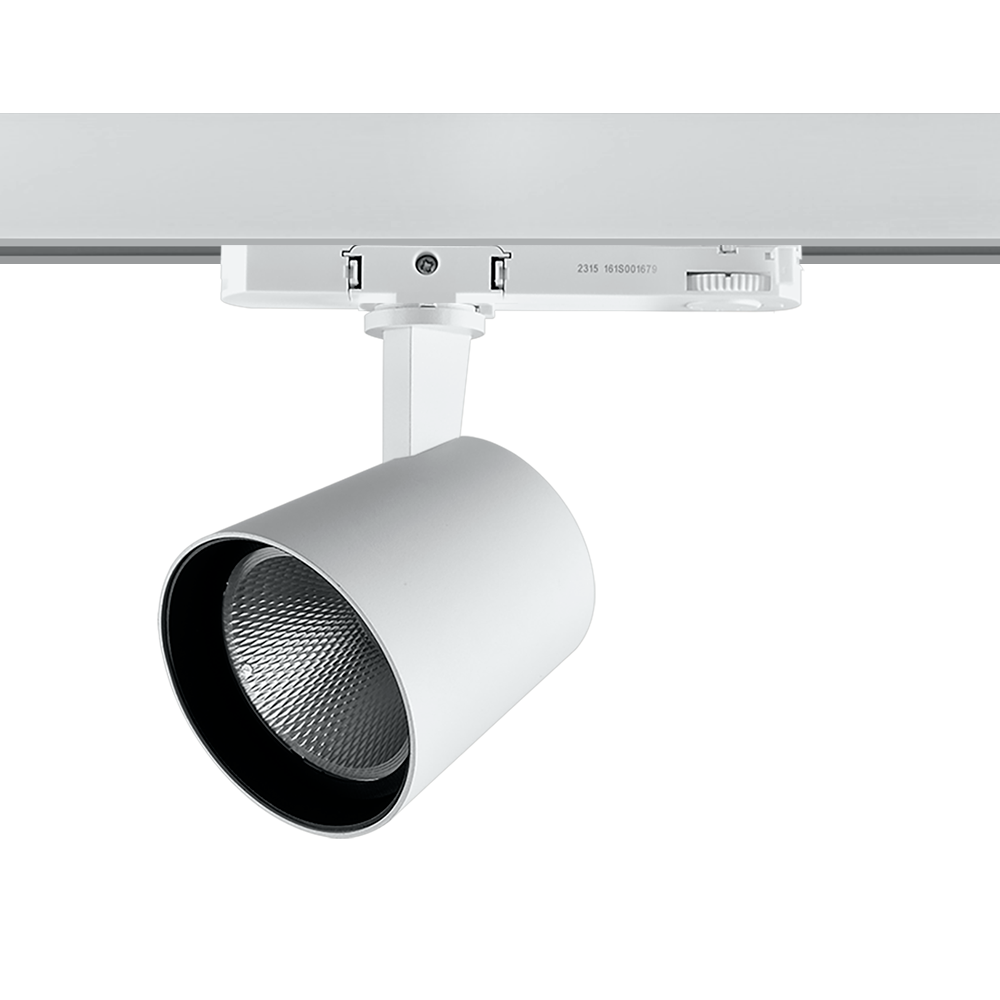

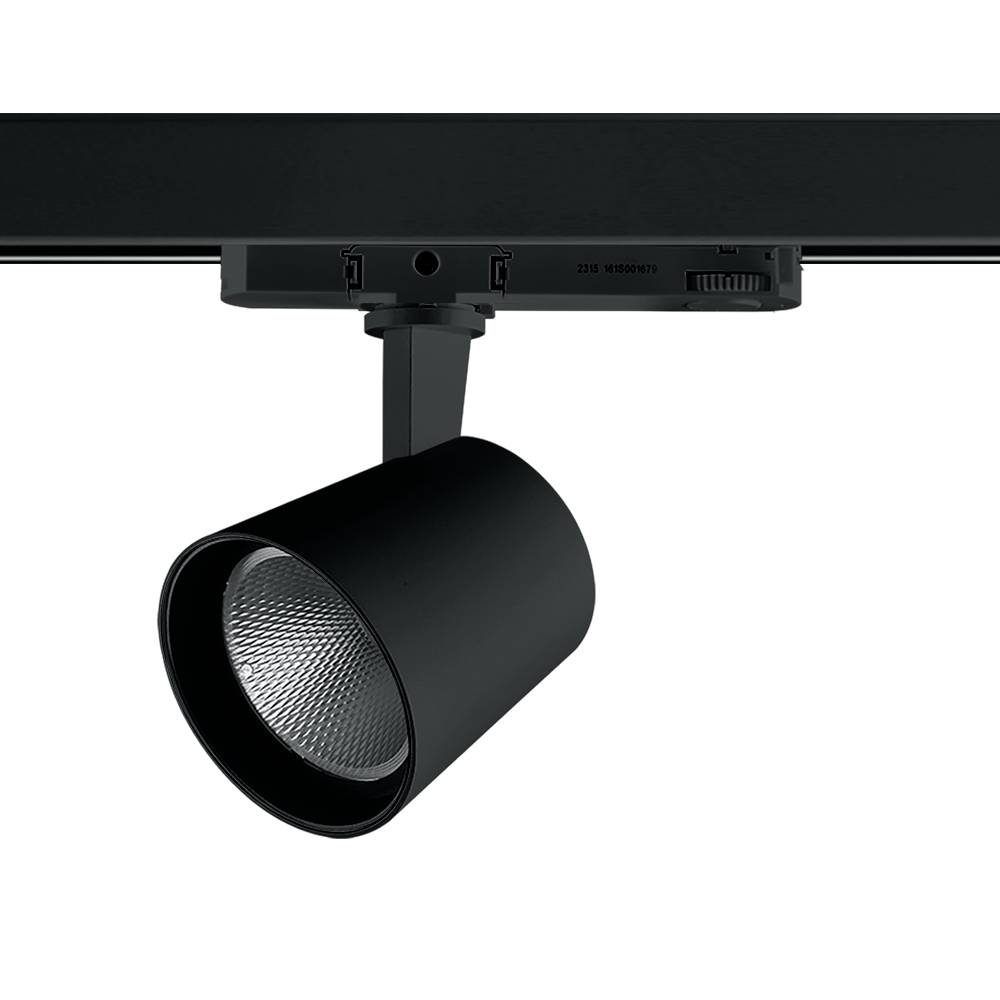

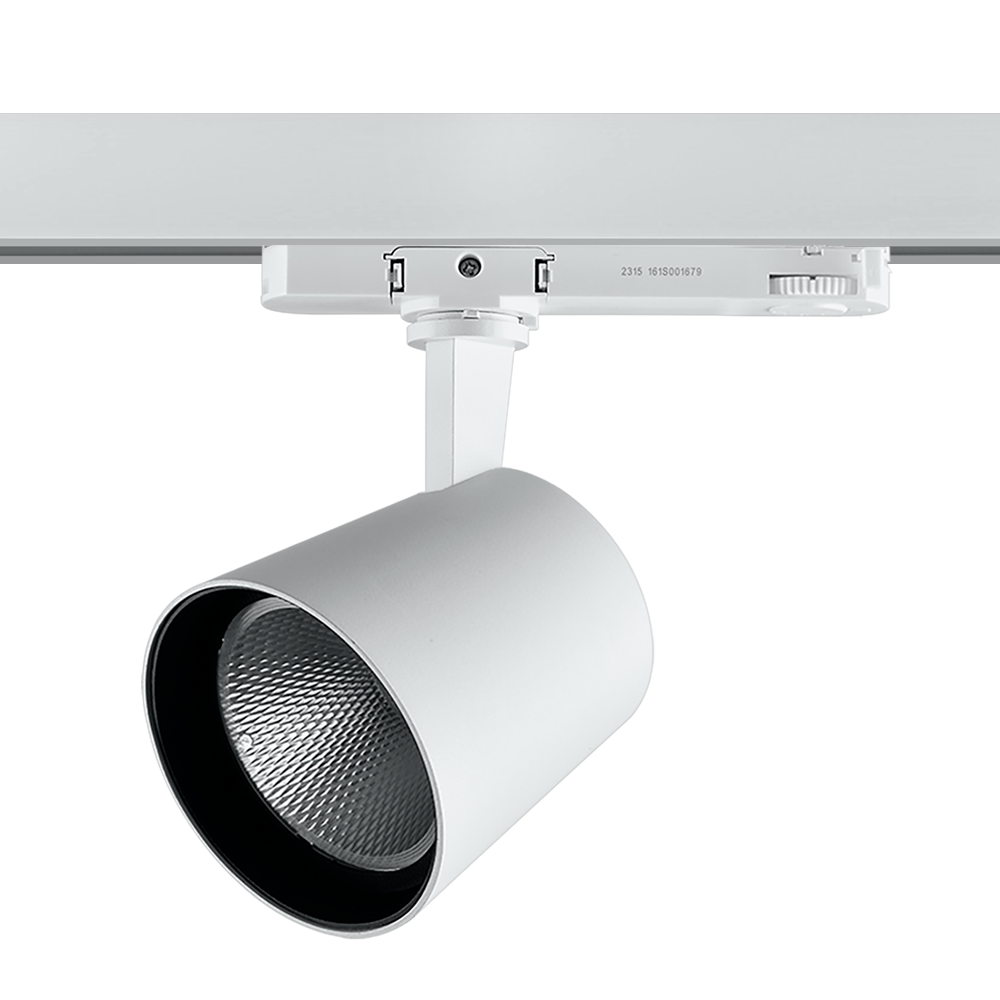

HORN WITH INTEGRATED DRIVER ADAPTOR

Freedom of movement.

HORN WITH INTEGRATED DRIVER ADAPTOR

Multiple options for different mounting applications with a dark-light design. It brings both comfort and stylist decorative effect. Wattages are available in small to large which covers the usage of residential and commercial.




Features Features

- The entire series incorporates cross-emitting lenses to ensure optimal anti-glare performance, with a low UGR of <12.

- Utilizing Unite's proprietary lens optical technology, it achieves a wide 65° beam angle even with a compact front ring.

- Equipped with high-power COB LEDs, with a single chip capable of up to 2.5W, ensuring high luminous efficacy.

- Linear Downlight Series: Available in trim and trimless designs, with 7W and 15W options.

- Breaking away from traditional square frames, the series adopts a curved design, adding distinctive aesthetic appeal.

Specifications Specifications

- Housing: Integrated one-piece aluminium, eco-friendly die-cast construction – excellent thermal conductivity and corrosion resistance

- Surface finish: Fine textured coating – elegant and durable

- Optical system: Dual-beam asymmetric lens – bilateral wall-wash distribution

- Colour rendering: Ra90

- Anti-glare: UGR<20 – comfortable for prolonged viewing

- Beam orientation: Fixed dual-direction – optimized for simultaneous illumination of adjacent walls

- Mounting: Recessed installation

- Wattages: Multiple options available


Fields of application Fields of application

- Gallery and museum corners – illuminating artworks on adjacent walls simultaneously

- Retail store corner displays – showcasing merchandise on two perpendicular walls

- Hotel corridor intersections and lobby corners – creating seamless wall-lighting continuity

- Residential living room corners – adding depth and warmth to angular spaces

- Architectural feature corners – emphasizing material and texture where two walls meet

- Narrow spaces and passageways – where bilateral light distribution maximizes illumination efficiency

- Any interior requiring simultaneous wall-washing on adjacent surfaces

- Spaces demanding consistent, reliable bilateral wall-lighting performance


Version
0 Article

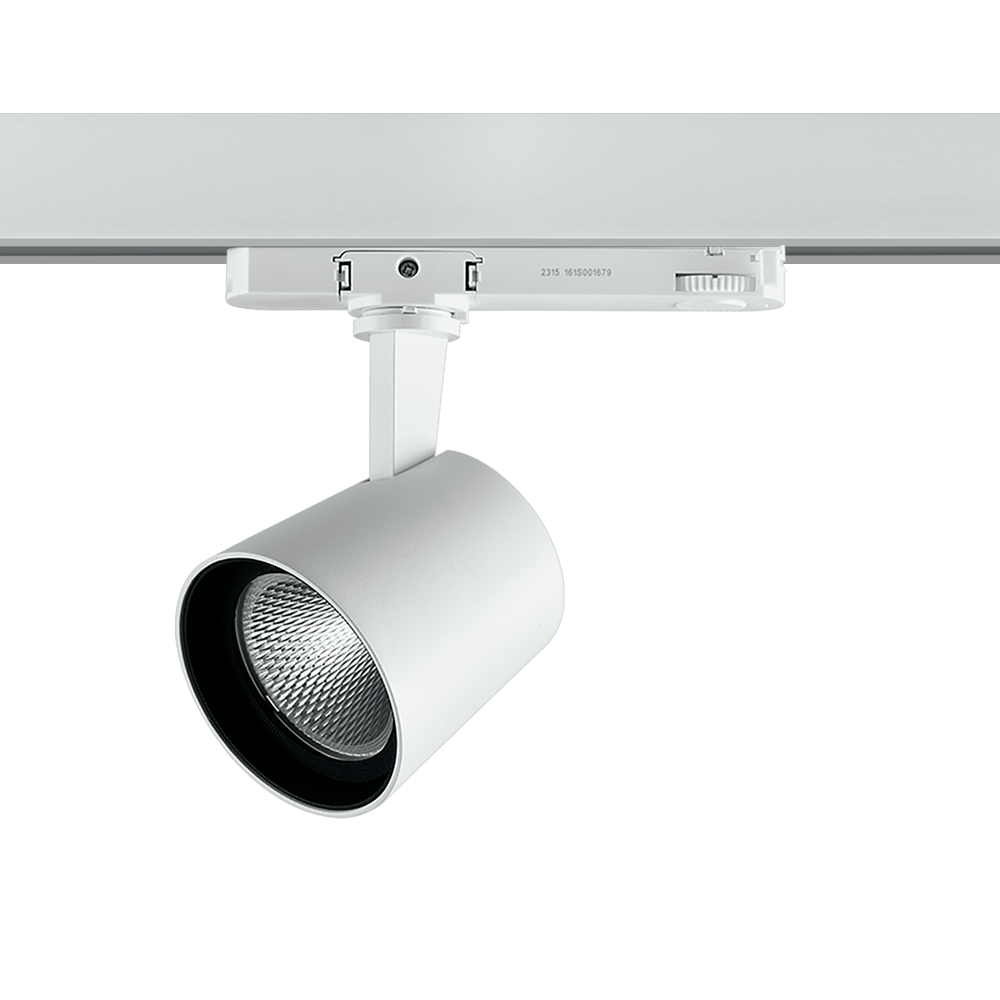

PROH_6853_1.jpg L-T239-COB3-16W
PROH_6853_1.jpg L-T239-COB4-30W
PROH_6853_1.jpg L-T239-COB5-40W
Nominal power
16W
BEAM ANGLE
60°
45°
32°
20°
15°
COLOUR / FINISH
White/Black
LIGHT CONTROL
ON/OFF | DALI | TRIAC 0-10V
Article number Nominal power Color Temperature(CCT) Delivered lumens Beam angle Finish
L-T239-COB3-30K-15 L-T239-COB3-30K-15 16W 3000K 1248lm 15° White/Black

L-T239-COB3-30K-15

HORN WITH INTEGRATED DRIVER ADAPTOR, with LED, system power: 16W, luminous flux of luminaire 1248lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 450mA, Beam angle:15°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

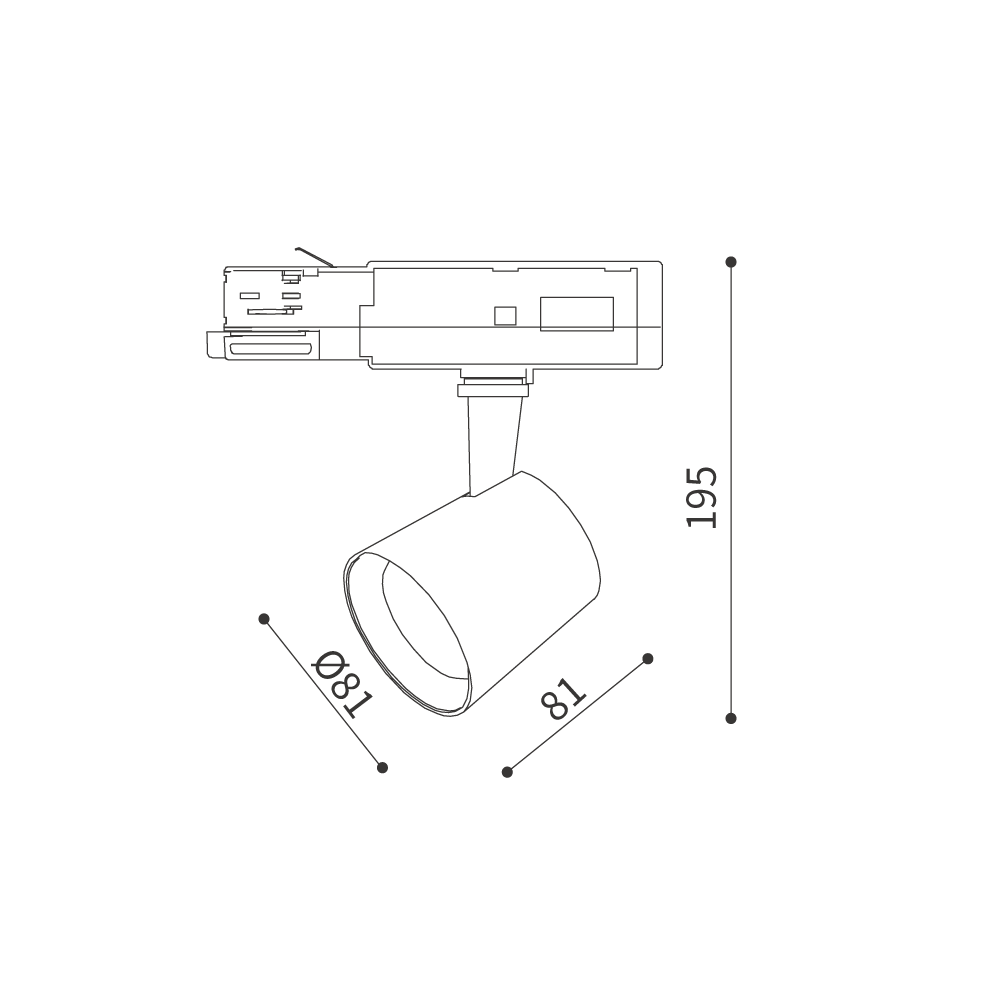

Ø=81 mm, W=81 mm, H=195 mm,

Nominal power
16W
Finish
White/Black
Delivered lumens
1248lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.42kg
Color Rendering Index(CRI)
CRI≥90
Diameter
81mm
Unified Glare Rating (UGR)
UGR<16
Height
195mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
81mm
Beam angle
15°
Downloads
    None


L-T239-COB3-30K-20 L-T239-COB3-30K-20 16W 3000K 1248lm 20° White/Black

L-T239-COB3-30K-20

HORN WITH INTEGRATED DRIVER ADAPTOR, with LED, system power: 16W, luminous flux of luminaire 1248lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 450mA, Beam angle:20°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=81 mm, W=81 mm, H=195 mm,

Nominal power
16W
Finish
White/Black
Delivered lumens
1248lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.42kg
Color Rendering Index(CRI)
CRI≥90
Diameter
81mm
Unified Glare Rating (UGR)
UGR<16
Height
195mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
81mm
Beam angle
20°
Downloads
    None


L-T239-COB3-30K-32 L-T239-COB3-30K-32 16W 3000K 1248lm 32° White/Black

L-T239-COB3-30K-32

HORN WITH INTEGRATED DRIVER ADAPTOR, with LED, system power: 16W, luminous flux of luminaire 1248lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 450mA, Beam angle:32°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=81 mm, W=81 mm, H=195 mm,

Nominal power
16W
Finish
White/Black
Delivered lumens
1248lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.42kg
Color Rendering Index(CRI)
CRI≥90
Diameter
81mm
Unified Glare Rating (UGR)
UGR<16
Height
195mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
81mm
Beam angle
32°
Downloads
    None


L-T239-COB3-30K-45 L-T239-COB3-30K-45 16W 3000K 1248lm 45° White/Black

L-T239-COB3-30K-45

HORN WITH INTEGRATED DRIVER ADAPTOR, with LED, system power: 16W, luminous flux of luminaire 1248lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 450mA, Beam angle:45°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=81 mm, W=81 mm, H=195 mm,

Nominal power
16W
Finish
White/Black
Delivered lumens
1248lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.42kg
Color Rendering Index(CRI)
CRI≥90
Diameter
81mm
Unified Glare Rating (UGR)
UGR<16
Height
195mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
81mm
Beam angle
45°
Downloads
    None


L-T239-COB3-30K-60 L-T239-COB3-30K-60 16W 3000K 1248lm 60° White/Black

L-T239-COB3-30K-60

HORN WITH INTEGRATED DRIVER ADAPTOR, with LED, system power: 16W, luminous flux of luminaire 1248lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 450mA, Beam angle:60°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=81 mm, W=81 mm, H=195 mm,

Nominal power
16W
Finish
White/Black
Delivered lumens
1248lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.42kg
Color Rendering Index(CRI)
CRI≥90
Diameter
81mm
Unified Glare Rating (UGR)
UGR<16
Height
195mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
81mm
Beam angle
60°
Downloads
    None


L-T239-COB4-30K-15 L-T239-COB4-30K-15 30W 3000K 2370lm 15° White/Black

L-T239-COB4-30K-15

HORN WITH INTEGRATED DRIVER ADAPTOR, with LED, system power: 30W, luminous flux of luminaire 2370lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 750mA, Beam angle:15°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

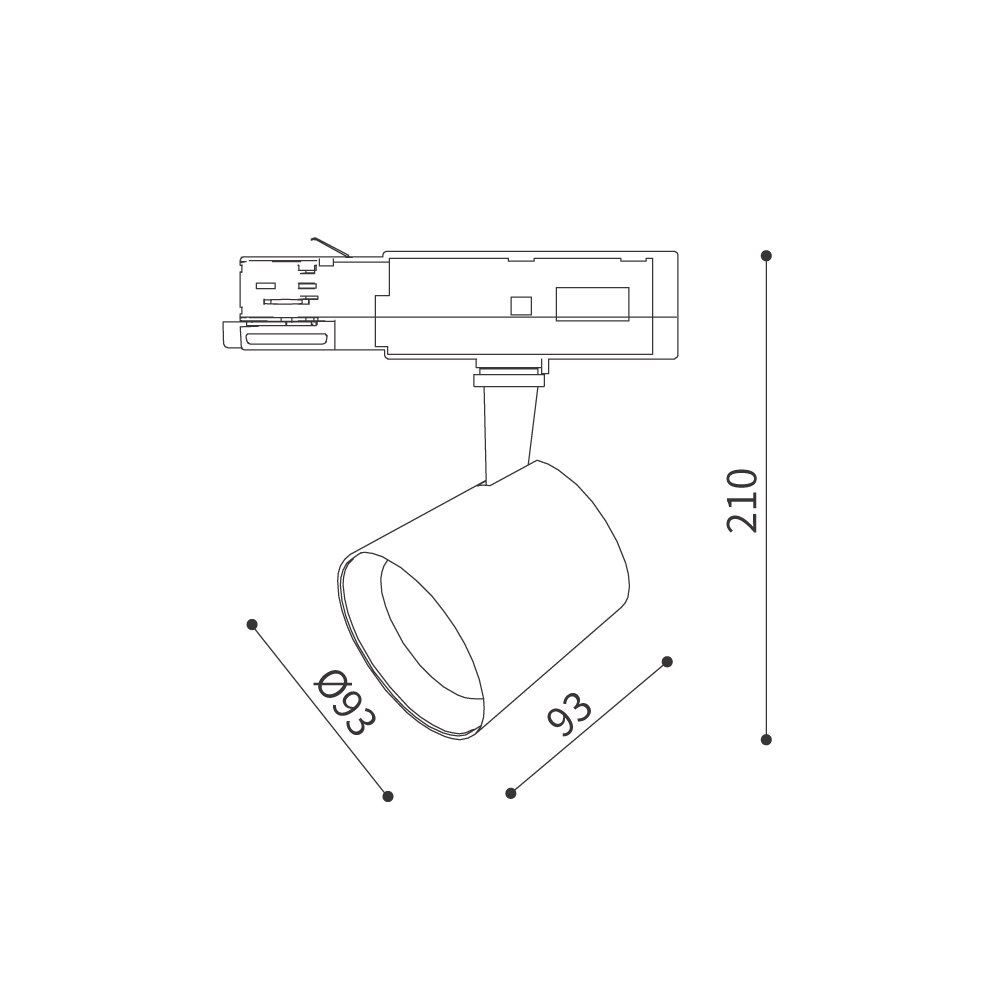

Ø=93 mm, W=93 mm, H=210 mm,

Nominal power
30W
Finish
White/Black
Delivered lumens
2370lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.53kg
Color Rendering Index(CRI)
CRI≥90
Diameter
93mm
Unified Glare Rating (UGR)
UGR<16
Height
210mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
93mm
Beam angle
15°
Downloads
    None


L-T239-COB4-30K-20 L-T239-COB4-30K-20 30W 3000K 2370lm 20° White/Black

L-T239-COB4-30K-20

HORN WITH INTEGRATED DRIVER ADAPTOR, with LED, system power: 30W, luminous flux of luminaire 2370lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 750mA, Beam angle:20°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=93 mm, W=93 mm, H=210 mm,

Nominal power
30W
Finish
White/Black
Delivered lumens
2370lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.53kg
Color Rendering Index(CRI)
CRI≥90
Diameter
93mm
Unified Glare Rating (UGR)
UGR<16
Height
210mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
93mm
Beam angle
20°
Downloads
    None


L-T239-COB4-30K-35 L-T239-COB4-30K-35 30W 3000K 2370lm 35° White/Black

L-T239-COB4-30K-35

HORN WITH INTEGRATED DRIVER ADAPTOR, with LED, system power: 30W, luminous flux of luminaire 2370lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 750mA, Beam angle:35°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=93 mm, W=93 mm, H=210 mm,

Nominal power
30W
Finish
White/Black
Delivered lumens
2370lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.53kg
Color Rendering Index(CRI)
CRI≥90
Diameter
93mm
Unified Glare Rating (UGR)
UGR<16
Height
210mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
93mm
Beam angle
35°
Downloads
    None


L-T239-COB4-30K-50 L-T239-COB4-30K-50 30W 3000K 2370lm 50° White/Black

L-T239-COB4-30K-50

HORN WITH INTEGRATED DRIVER ADAPTOR, with LED, system power: 30W, luminous flux of luminaire 2370lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 750mA, Beam angle:50°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=93 mm, W=93 mm, H=210 mm,

Nominal power
30W
Finish
White/Black
Delivered lumens
2370lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.53kg
Color Rendering Index(CRI)
CRI≥90
Diameter
93mm
Unified Glare Rating (UGR)
UGR<16
Height
210mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
93mm
Beam angle
50°
Downloads
    None


L-T239-COB4-30K-65 L-T239-COB4-30K-65 30W 3000K 2370lm 65° White/Black

L-T239-COB4-30K-65

HORN WITH INTEGRATED DRIVER ADAPTOR, with LED, system power: 30W, luminous flux of luminaire 2370lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 750mA, Beam angle:65°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=93 mm, W=93 mm, H=210 mm,

Nominal power
30W
Finish
White/Black
Delivered lumens
2370lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.53kg
Color Rendering Index(CRI)
CRI≥90
Diameter
93mm
Unified Glare Rating (UGR)
UGR<16
Height
210mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
93mm
Beam angle
65°
Downloads
    None


L-T239-COB5-30K-15 L-T239-COB5-30K-15 40W 3000K 3200lm 15° White/Black

L-T239-COB5-30K-15

HORN WITH DRIVER BOX, with LED, system power: 40W, luminous flux of luminaire 3200lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 1000mA, Beam angle:15°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

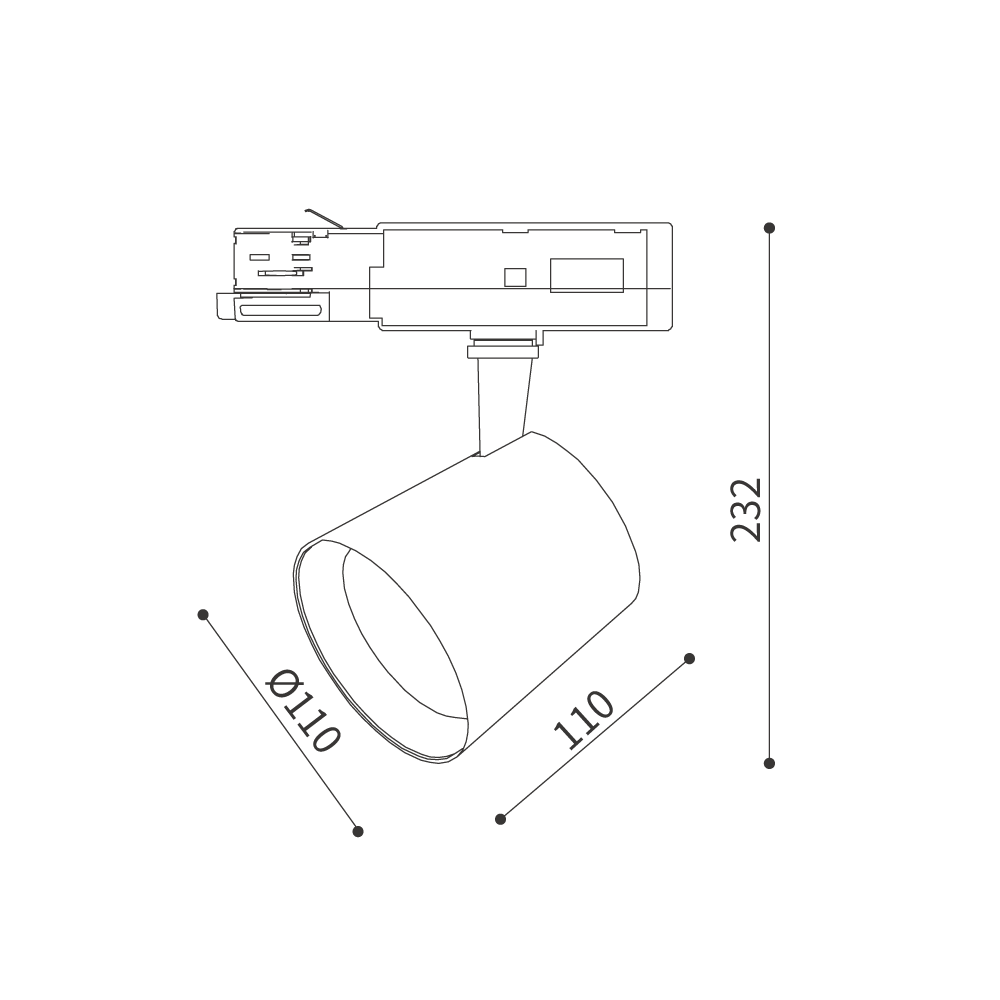

Ø=110 mm, W=110 mm, H=232 mm,

Nominal power
40W
Finish
White/Black
Delivered lumens
3200lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.71kg
Color Rendering Index(CRI)
CRI≥90
Diameter
110mm
Unified Glare Rating (UGR)
UGR<16
Height
232mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
110mm
Beam angle
15°
Downloads
    None


L-T239-COB5-30K-20 L-T239-COB5-30K-20 40W 3000K 3200lm 20° White/Black

L-T239-COB5-30K-20

HORN WITH DRIVER BOX, with LED, system power: 40W, luminous flux of luminaire 3200lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 1000mA, Beam angle:20°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=110 mm, W=110 mm, H=232 mm,

Nominal power
40W
Finish
White/Black
Delivered lumens
3200lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.71kg
Color Rendering Index(CRI)
CRI≥90
Diameter
110mm
Unified Glare Rating (UGR)
UGR<16
Height
232mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
110mm
Beam angle
20°
Downloads
    None


L-T239-COB5-30K-32 L-T239-COB5-30K-32 40W 3000K 3200lm 32° White/Black

L-T239-COB5-30K-32

HORN WITH DRIVER BOX, with LED, system power: 40W, luminous flux of luminaire 3200lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 1000mA, Beam angle:32°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=110 mm, W=110 mm, H=232 mm,

Nominal power
40W
Finish
White/Black
Delivered lumens
3200lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.71kg
Color Rendering Index(CRI)
CRI≥90
Diameter
110mm
Unified Glare Rating (UGR)
UGR<16
Height
232mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
110mm
Beam angle
32°
Downloads
    None


L-T239-COB5-30K-50 L-T239-COB5-30K-50 40W 3000K 3200lm 50° White/Black

L-T239-COB5-30K-50

HORN WITH DRIVER BOX, with LED, system power: 40W, luminous flux of luminaire 3200lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 1000mA, Beam angle:50°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=110 mm, W=110 mm, H=232 mm,

Nominal power
40W
Finish
White/Black
Delivered lumens
3200lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.71kg
Color Rendering Index(CRI)
CRI≥90
Diameter
110mm
Unified Glare Rating (UGR)
UGR<16
Height
232mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
110mm
Beam angle
50°
Downloads
    None


L-T239-COB5-30K-65 L-T239-COB5-30K-65 40W 3000K 3200lm 65° White/Black

L-T239-COB5-30K-65

HORN WITH DRIVER BOX, with LED, system power: 40W, luminous flux of luminaire 3200lm. colour rendering index CRl≥90, colour temperature 3000K, warm white, lifetime LED 50'000h, Photobiological safety: Safe, 220V, rated current: 1000mA, Beam angle:65°, black/white color, ON/OFF | DALI | TRIAC 0-10V. ingress protection IP20.

Ø=110 mm, W=110 mm, H=232 mm,

Nominal power
40W
Finish
White/Black
Delivered lumens
3200lm
Materials
Aluminium
Color Consistency SDCM
SDCM3
Ingress Protection (IP)
IP20
Color Temperature(CCT)
3000K
Weight
0.71kg
Color Rendering Index(CRI)
CRI≥90
Diameter
110mm
Unified Glare Rating (UGR)
UGR<16
Height
232mm
Light Control
ON/OFF | DALI | TRIAC 0-10V
Width
110mm
Beam angle
65°
Downloads
    None
